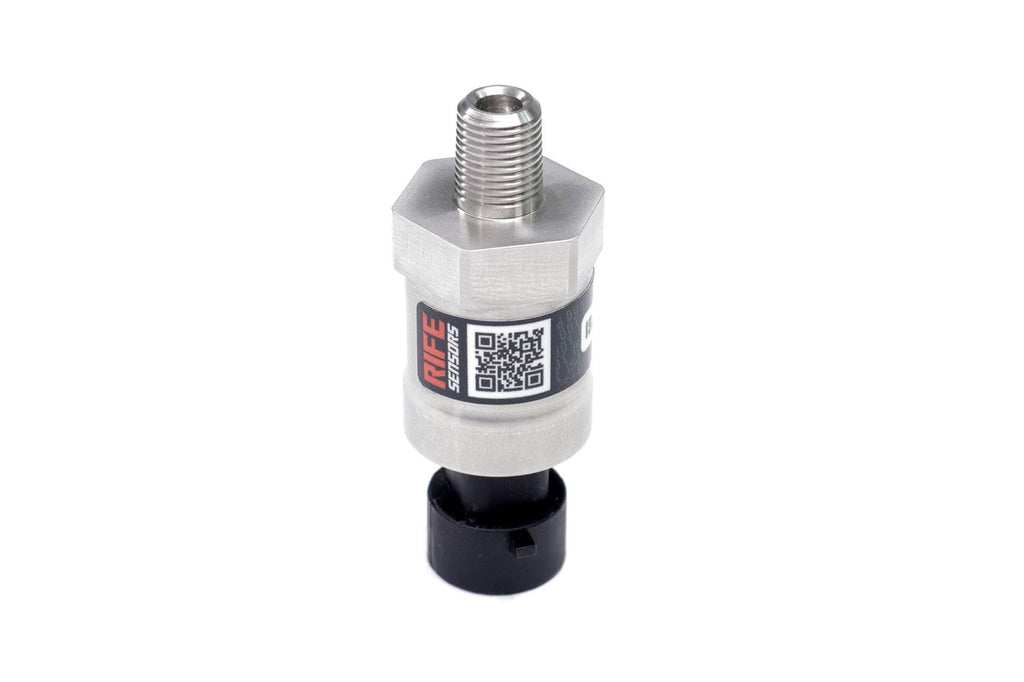

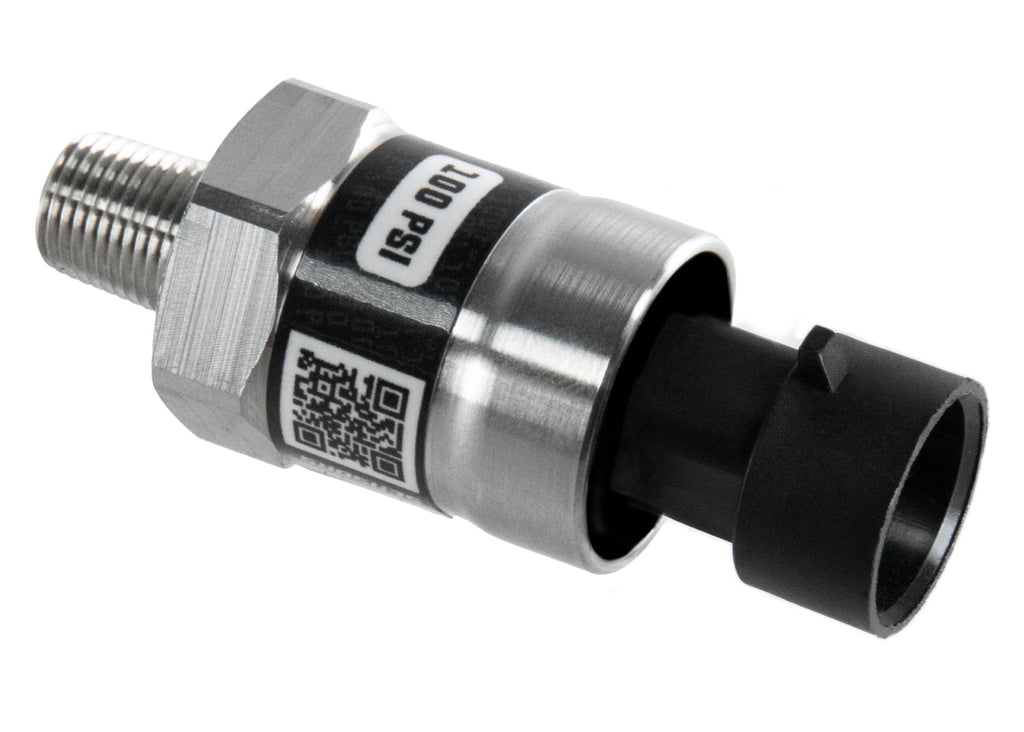

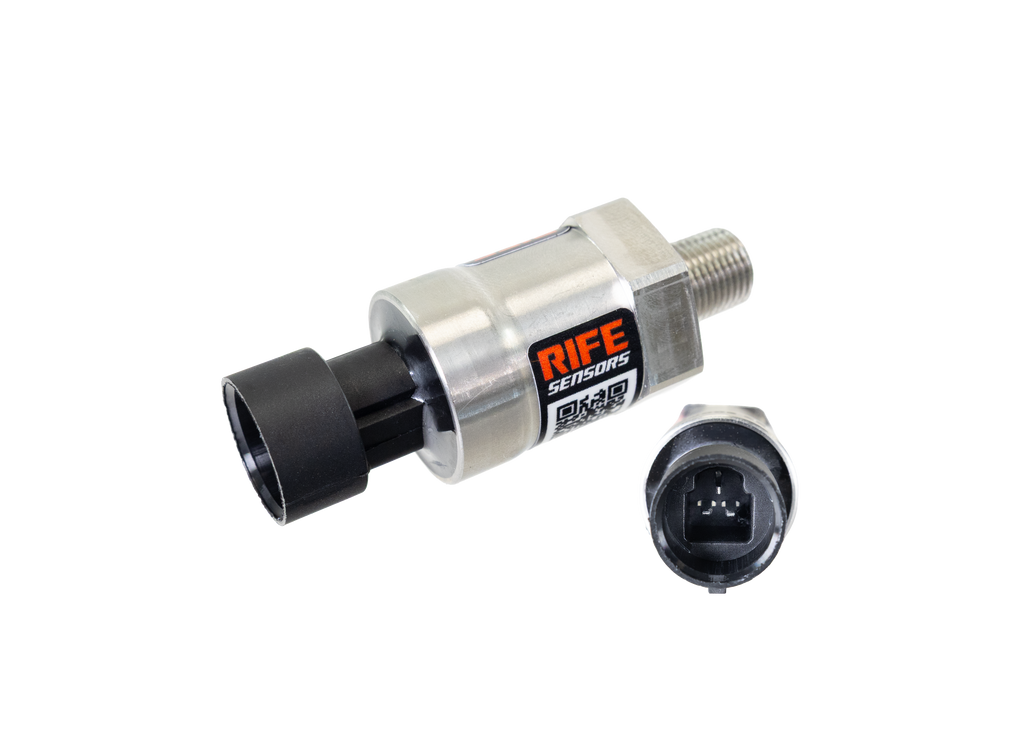

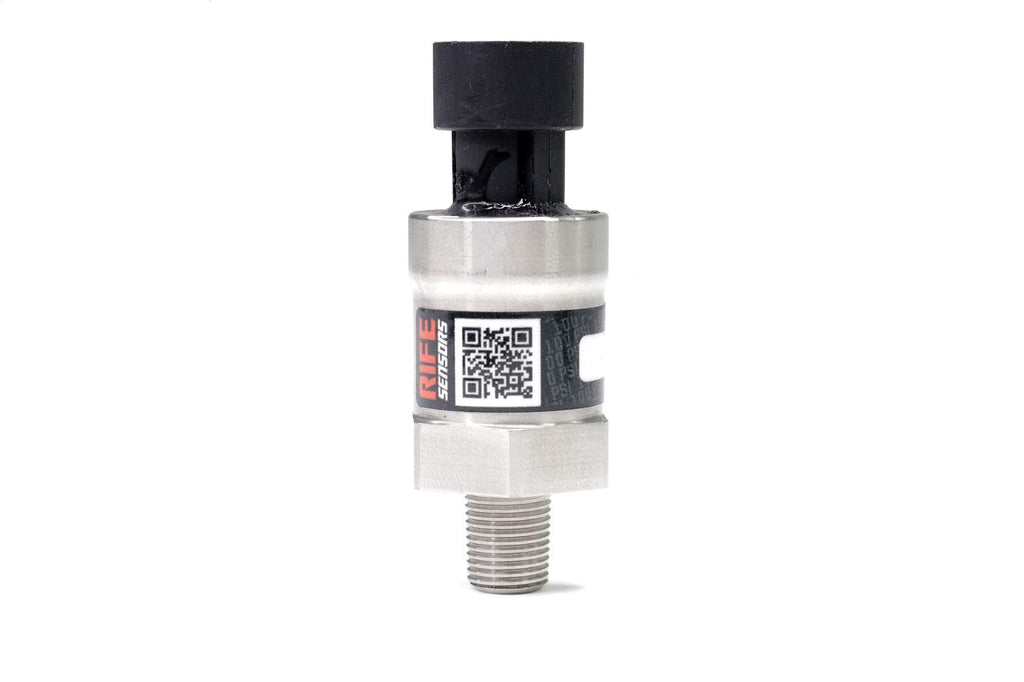

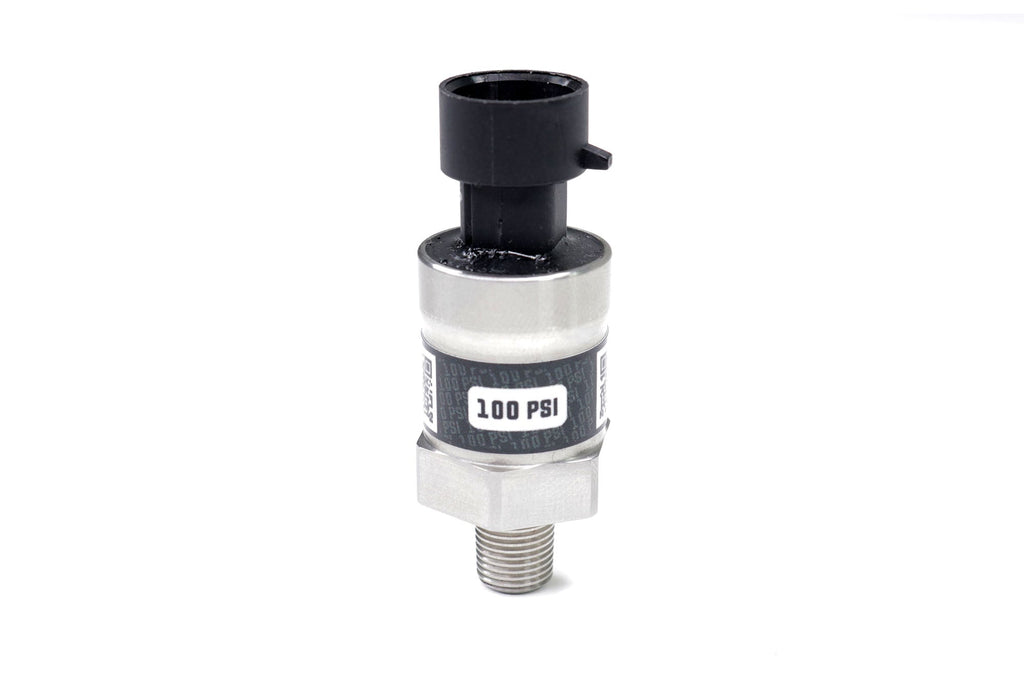

100 PSI Motorsports Pressure Sensor Transducer with 1/8-Inch NPT, 0–5V Output and 3-Pin Connector

This 0–100 PSI motorsports pressure transducer delivers a 0–5V output through an industry-standard 3-pin Delphi connector for vehicle monitoring systems.

Key Features

• 0–100 PSI pressure range with 0–5V sensor compatibility.
• Each sensor is hand tested to ±0.5% accuracy.
• Stainless steel internal diaphragm and sensor body.
• Floating sensor core uses an O-ring to isolate it from engine and road vibration.
• Compatible with listed fuels, oils, coolant, water, air, CO2, nitrous oxide and brake fluid.
• Direct replacement for Holley 554-102, Autometer 2246 and AEM 30-2130-100 without calibration or scaling changes.

Specifications

• Brand: RIFE
• Model/SKU: 52-100PSI
• Pressure range: 0–100 PSI

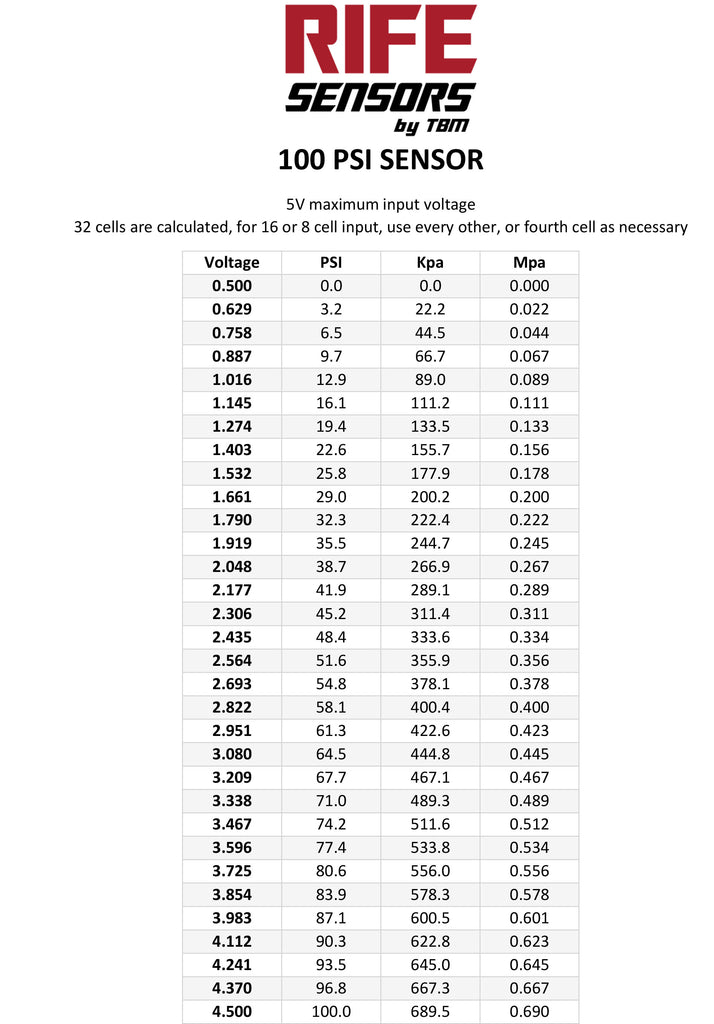

• Output: 0–5V
• Accuracy: ±0.5%

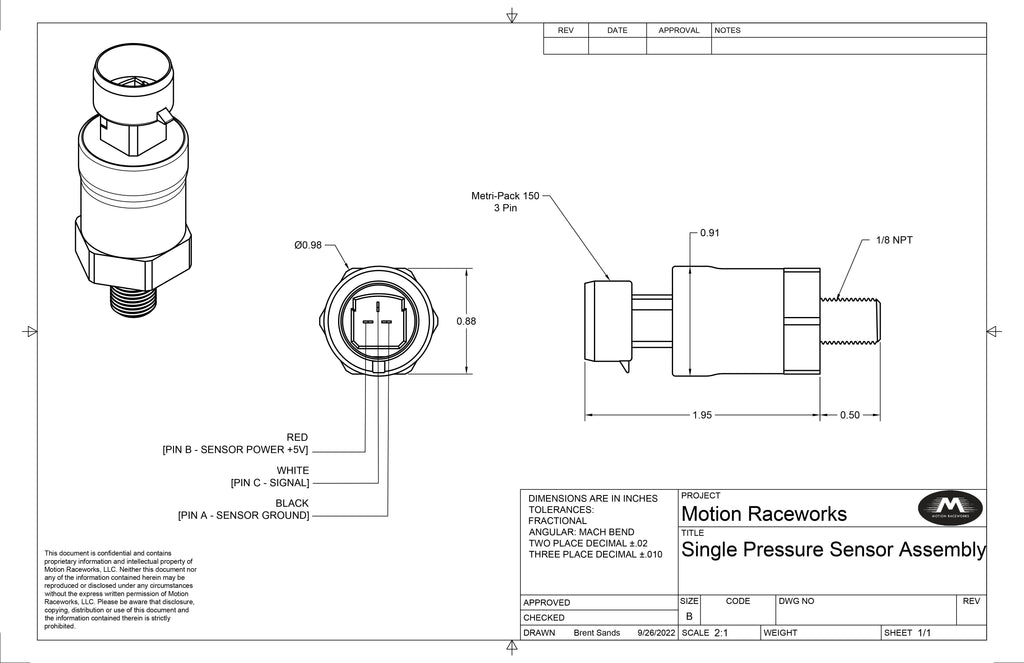

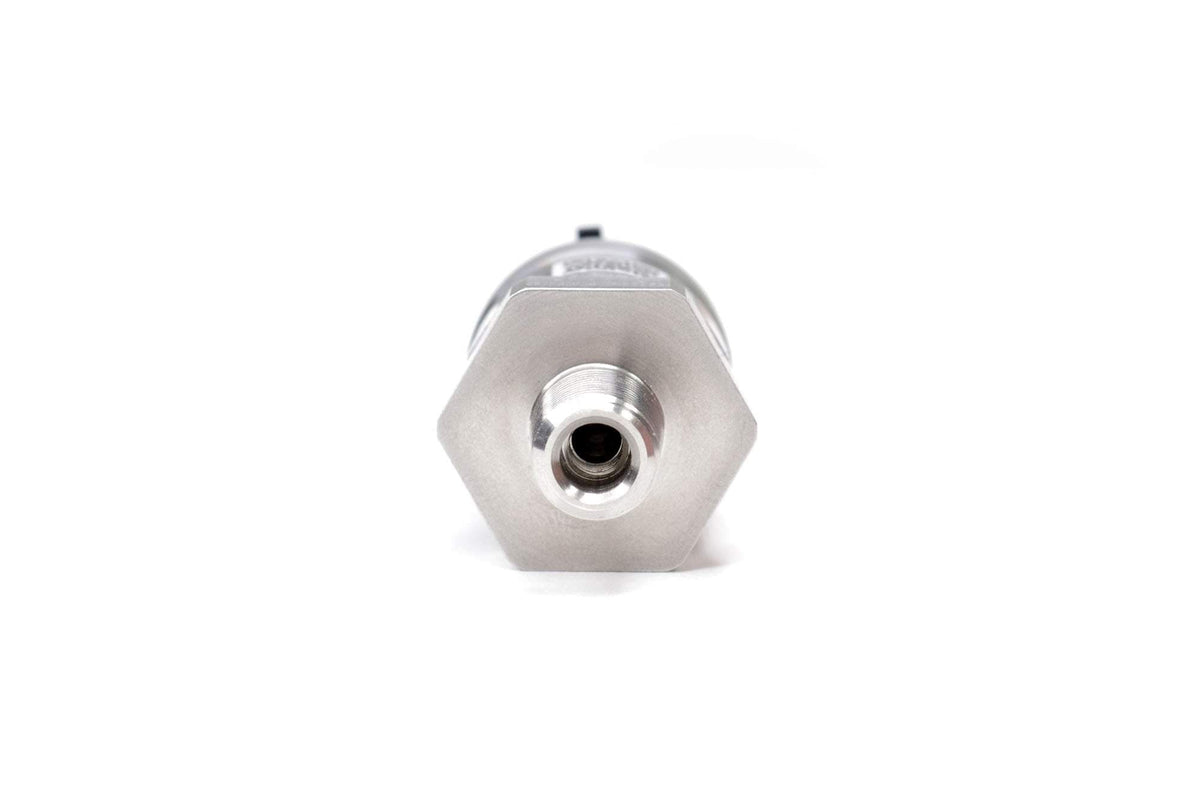

• Thread: 1/8-inch NPT

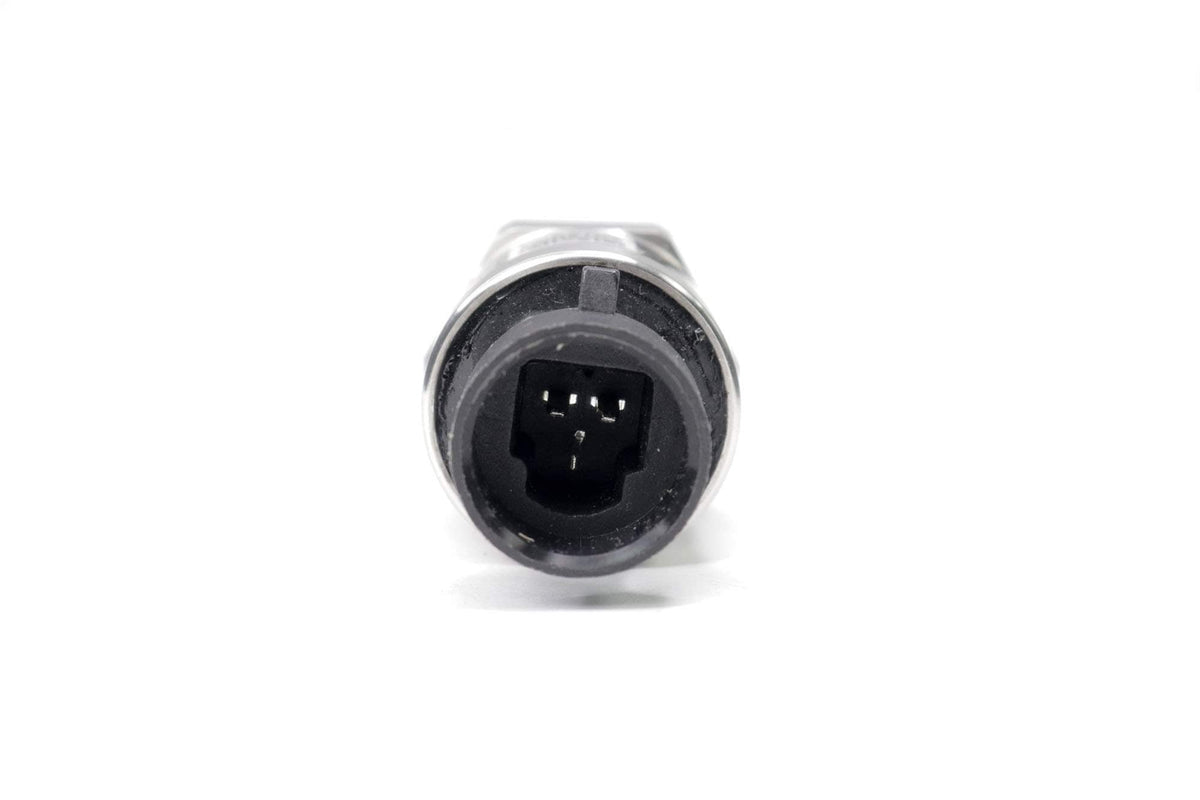

• Connector: 3-pin Delphi
