100W 12V DC Slim Dimmable LED Driver with Hardwired 120V AC Input, Class 2 Rating and IP20 Housing

This slim S-Series electronic LED driver supplies 12V DC power for single-color LED strip installations. Its hardwired AC input and compatible wall-dimmer support suit under-cabinet, cove, shelf and display lighting in dry indoor locations.

Key Features

• Provides up to 100W and 8.3A at 12V DC for compatible LED strip loads.

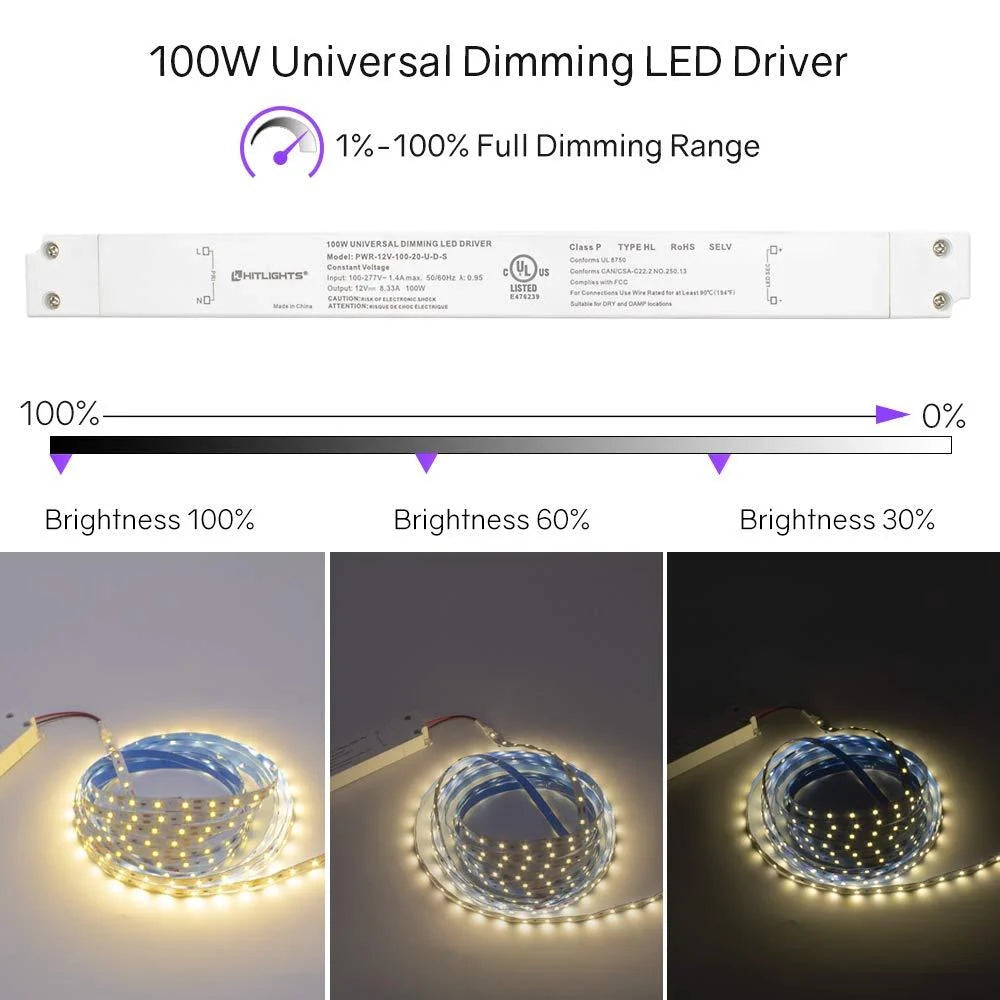

• Supports 0–100% dimming with compatible forward-phase, reverse-phase, Triac, MLV and ELV wall dimmers.

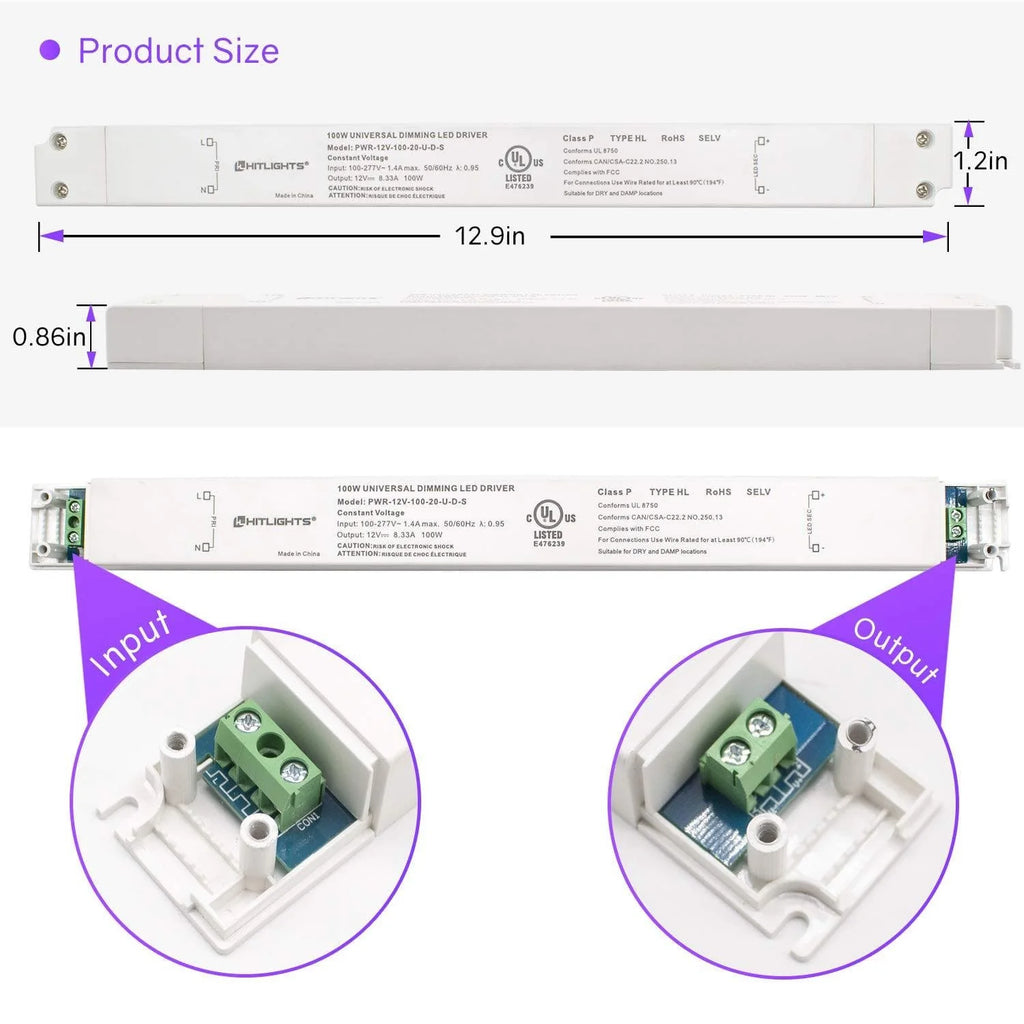

• Slim linear enclosure fits compact installation spaces.
• Includes short-circuit, over-voltage and thermal-runaway protection.

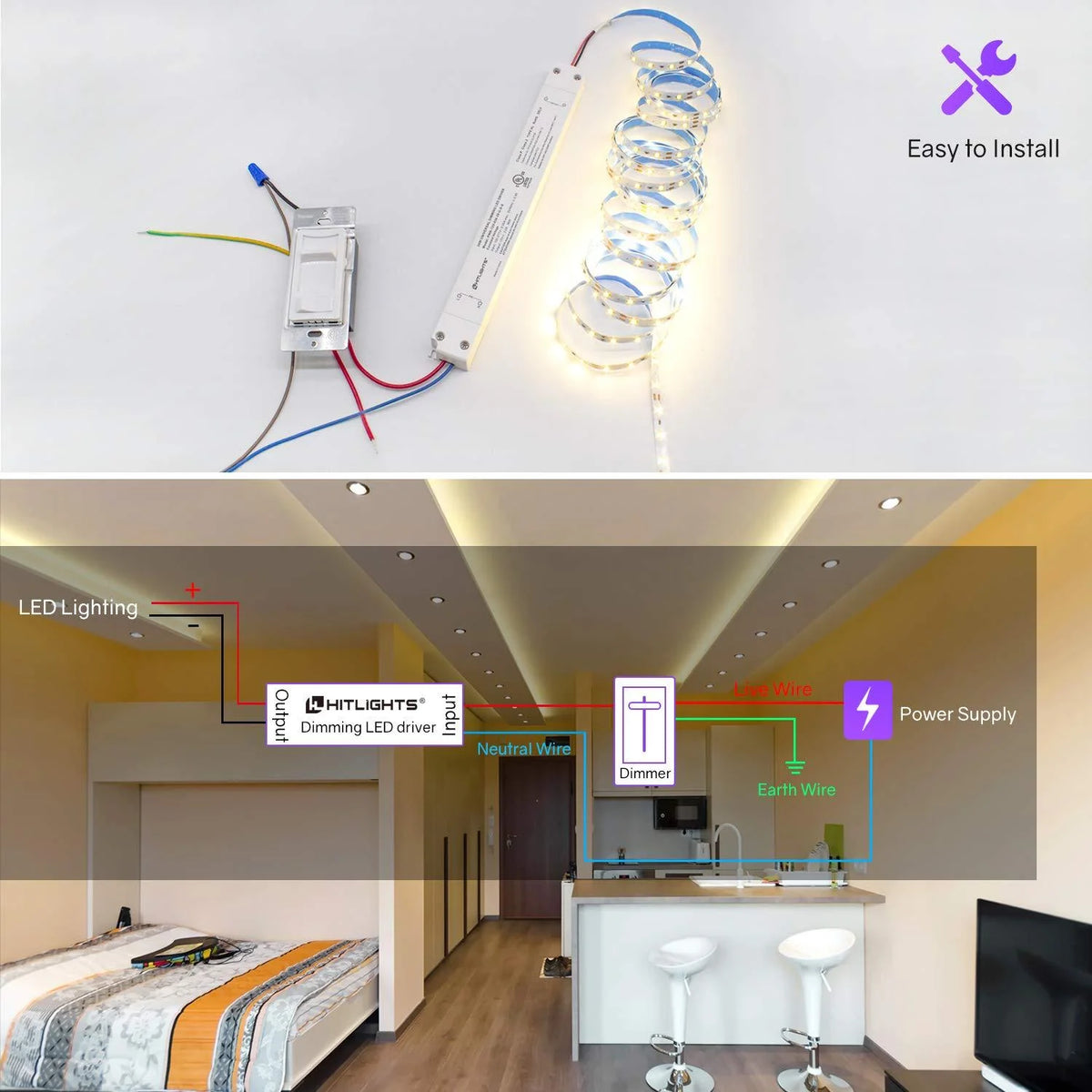

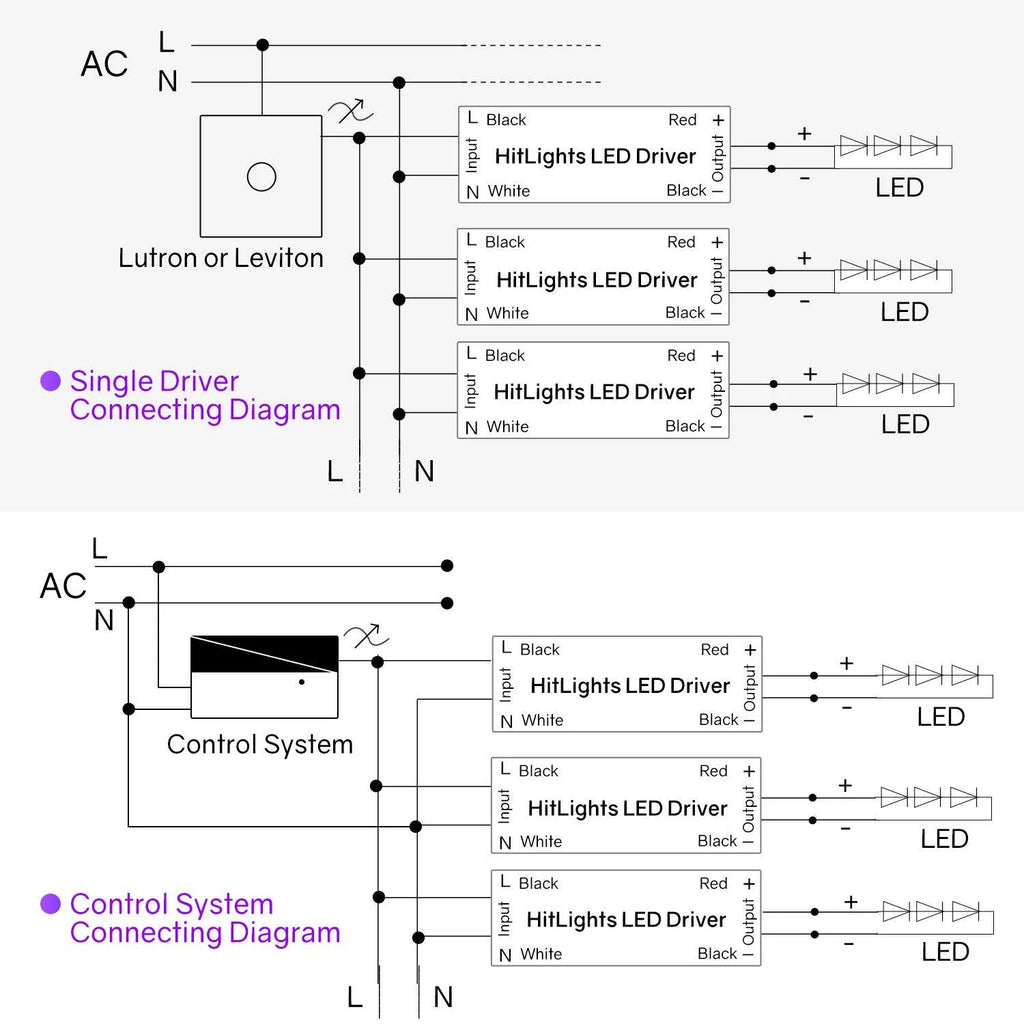

• Connects through hardwired AC input and DC output leads. It is not a plug-in wall adapter.
• Designed for single-color 12V strips; multichannel RGB systems require a compatible controller.

Specifications

• Model: PWR-12V-100-20-U-D-S; S-Series electronic driver.
• Input: 120V AC nominal, 108–132V AC range, 50/60Hz.
• Output: 12V DC, up to 100W and 8.3A.
• Dimming range: 0–100% with a compatible dimmer.
• Ratings: UL listed Class 2; FCC compliant; IP20 dry-location use.
• Efficiency: at least 84% at maximum load; power factor: 0.96 at 120V AC.
• Working temperature: -40 to 60°C; humidity: 20–90% RH, non-condensing.
• Included: one 12V 100W S-Series slim dimmable LED driver.
