100W Flexible Monocrystalline Solar Panel for 12V RV, Marine and Curved-Surface Installations

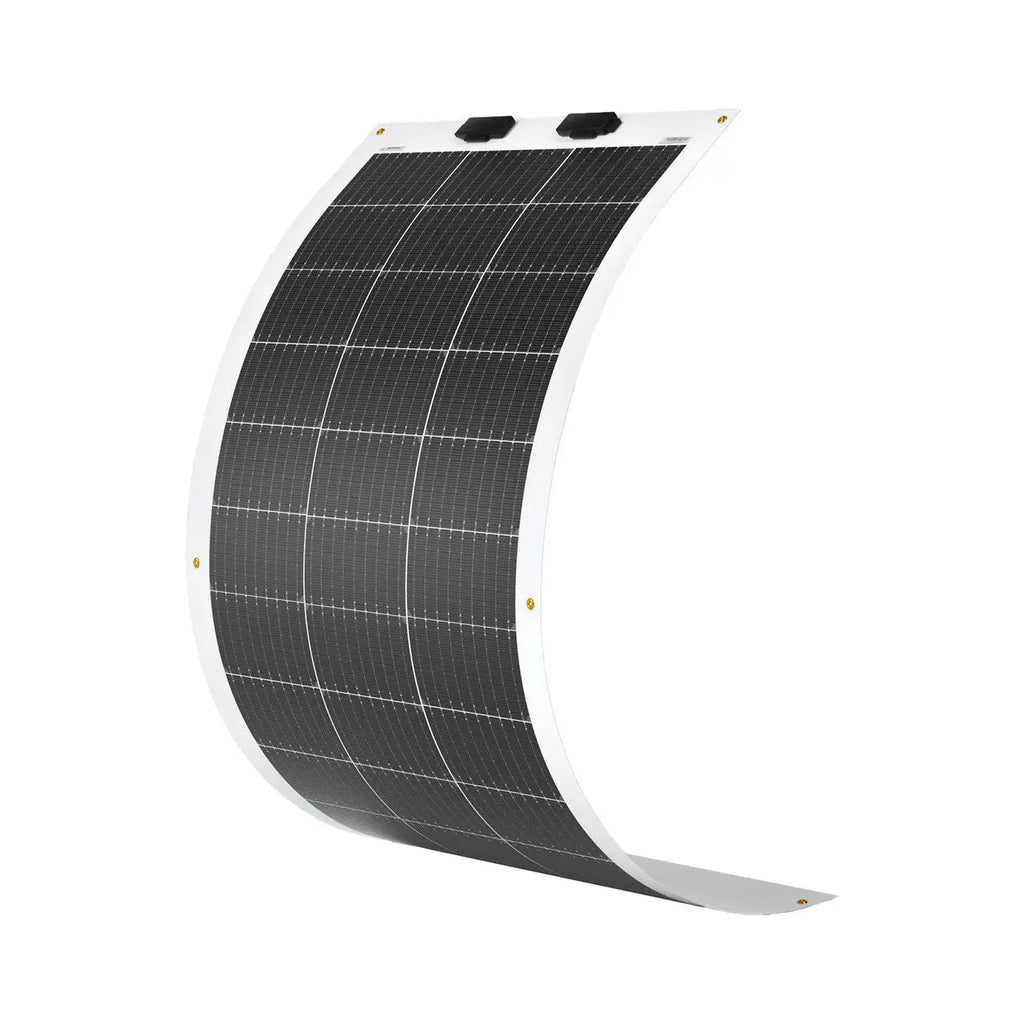

This 100W flexible monocrystalline solar panel weighs 4.2lb and bends for compatible RV, marine and curved-surface installations where a rigid panel is less practical.

Key Features

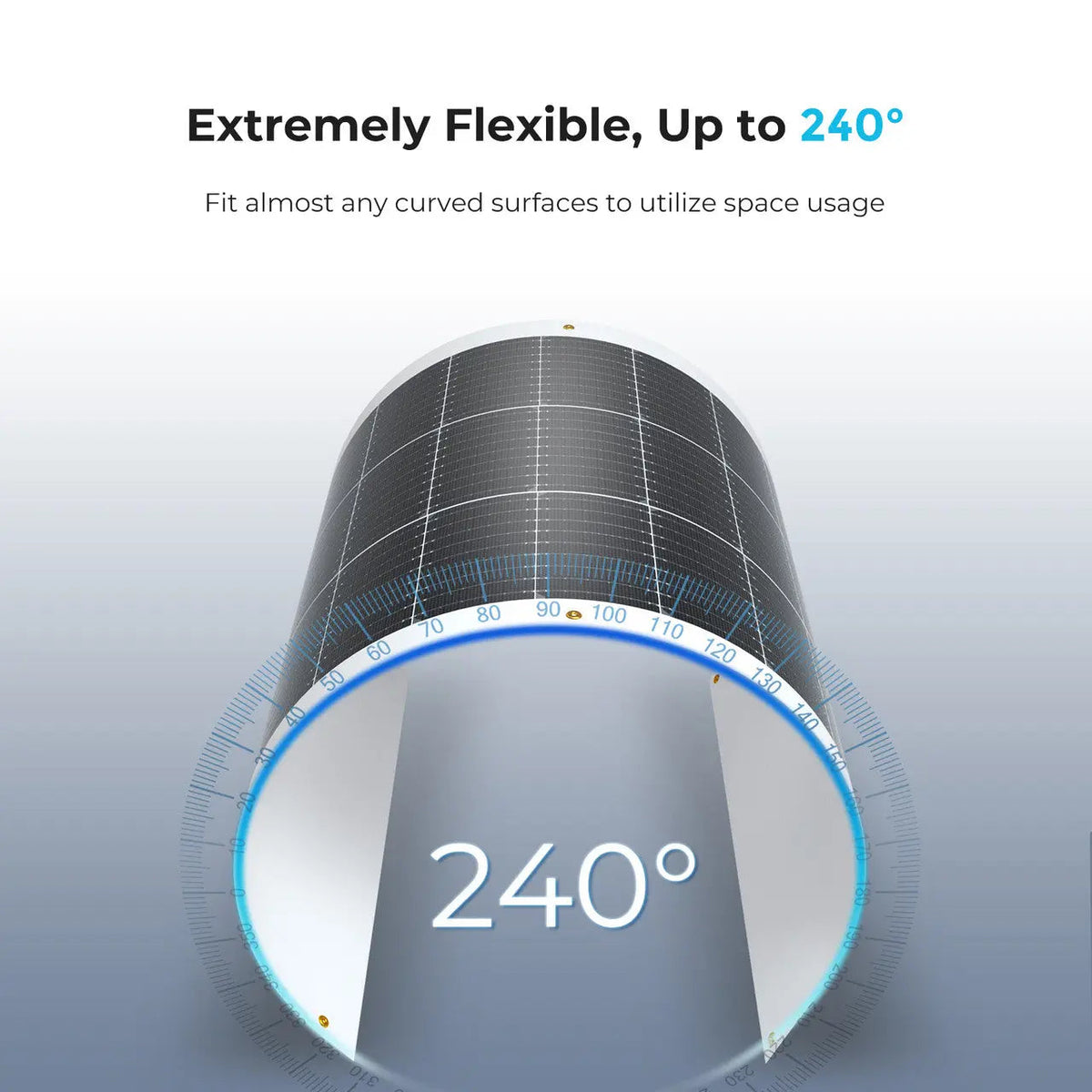

• Flexible construction bends up to the listed 248 degrees for compatible curved surfaces.

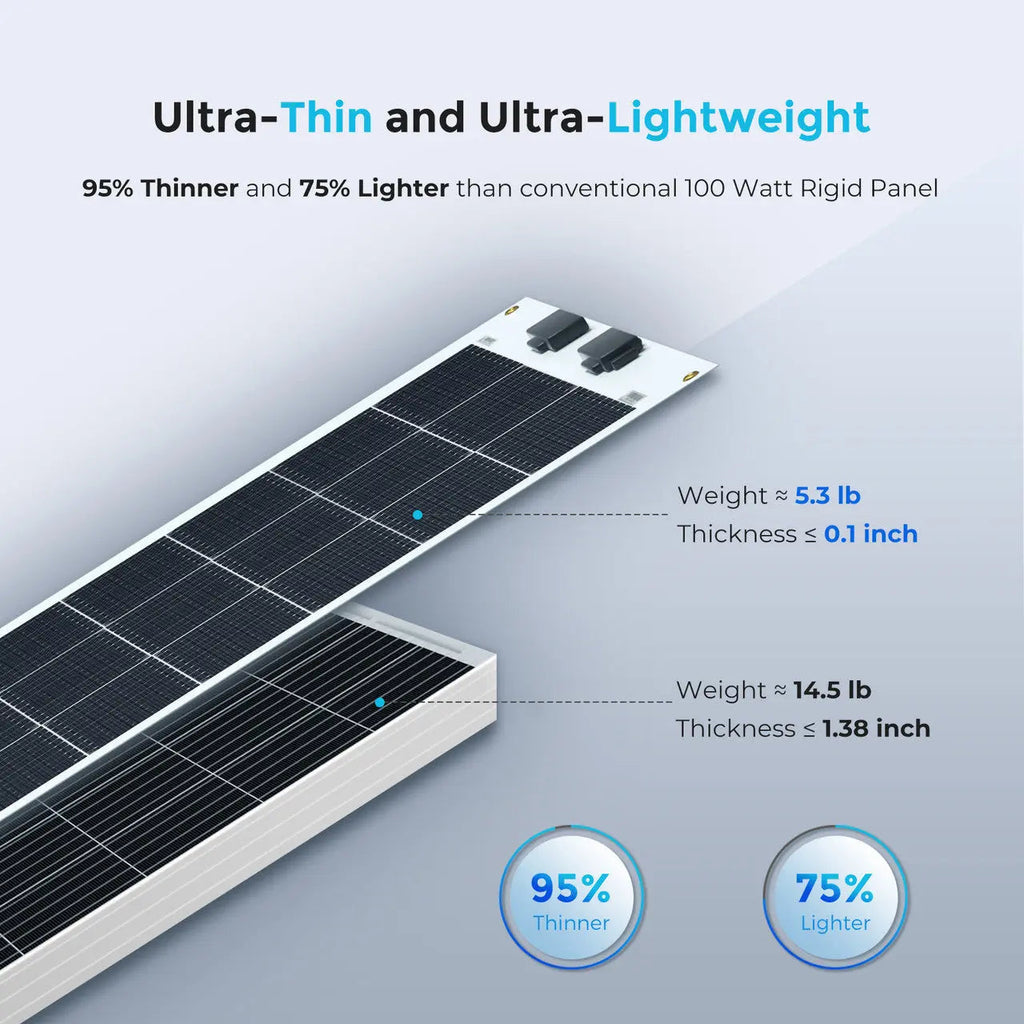

• 4.2lb panel weighs substantially less than the source rigid-panel comparison.
• 0.08-inch profile supports low-clearance solar installations.

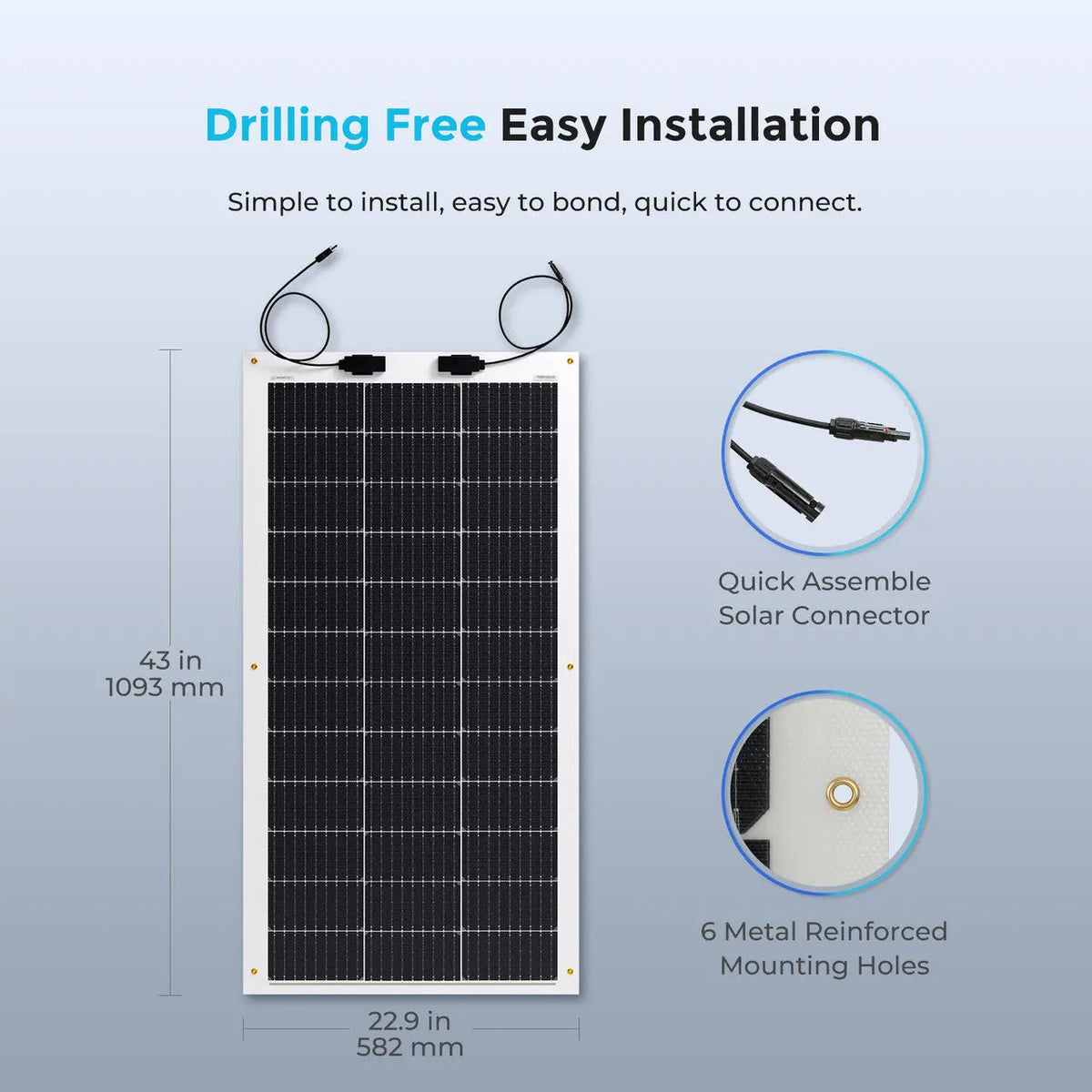

• Six reinforced mounting holes and compatible structural adhesive provide mounting options.
• IP68 junction box and IP67 solar connectors support outdoor and marine use.

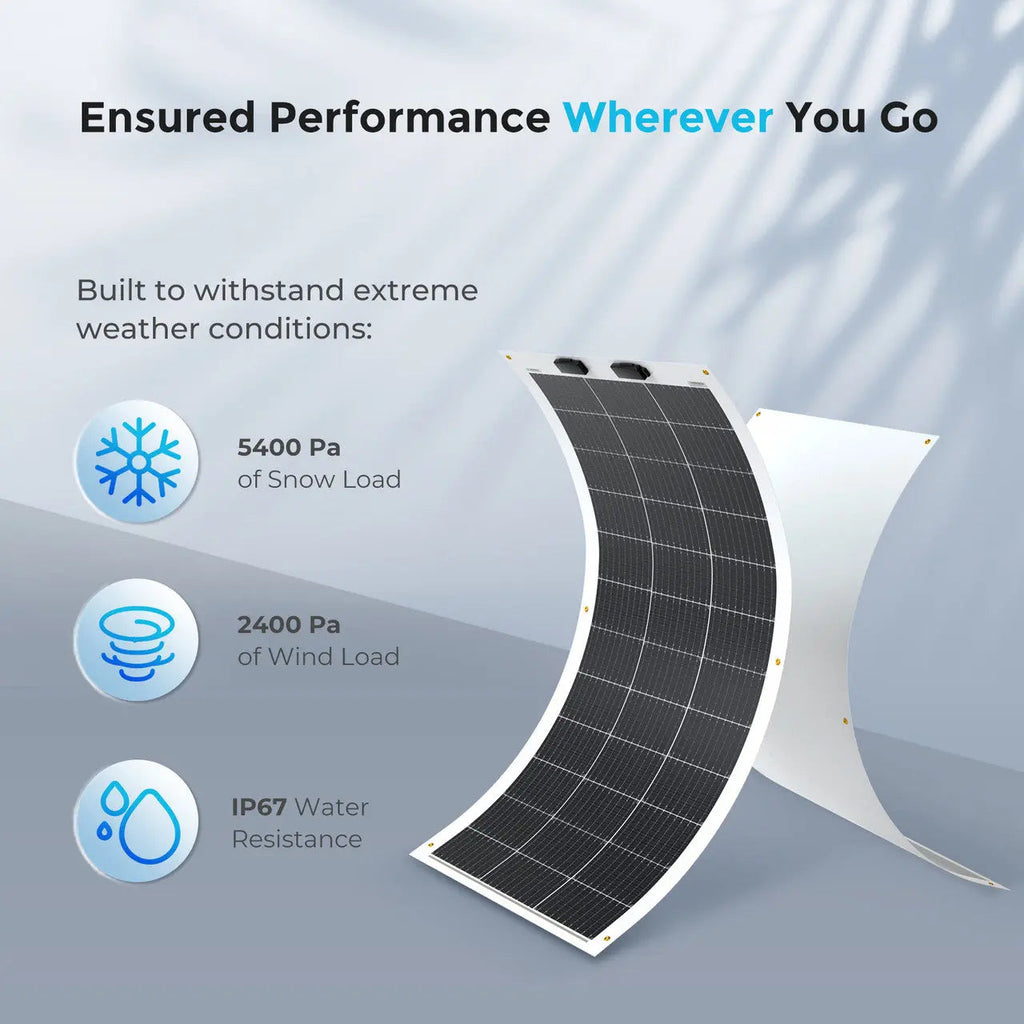

• Panel is tested for up to 2400Pa wind load and 5400Pa snow load.

Specifications

• Panel type: Flexible monocrystalline
• Maximum power at STC: 100W
• Module efficiency: 14.9%
• Optimum operating voltage: 18.9V
• Optimum operating current: 5.29A
• Open-circuit voltage: 22.5V
• Short-circuit current: 5.75A
• Maximum system voltage: 600V DC
• Maximum series fuse: 15A
• Cell count: 36 in a 4 × 9 arrangement
• Output cables: 12 AWG, 2.30ft
• Dimensions: 48.0 × 21.6 × 0.08 inches
• Weight: 4.2lb
• Operating temperature: -40°F to 185°F
• Included: One flexible solar panel

Use a compatible charge controller when charging a battery and confirm all system voltage, current, mounting and wiring requirements before installation.
