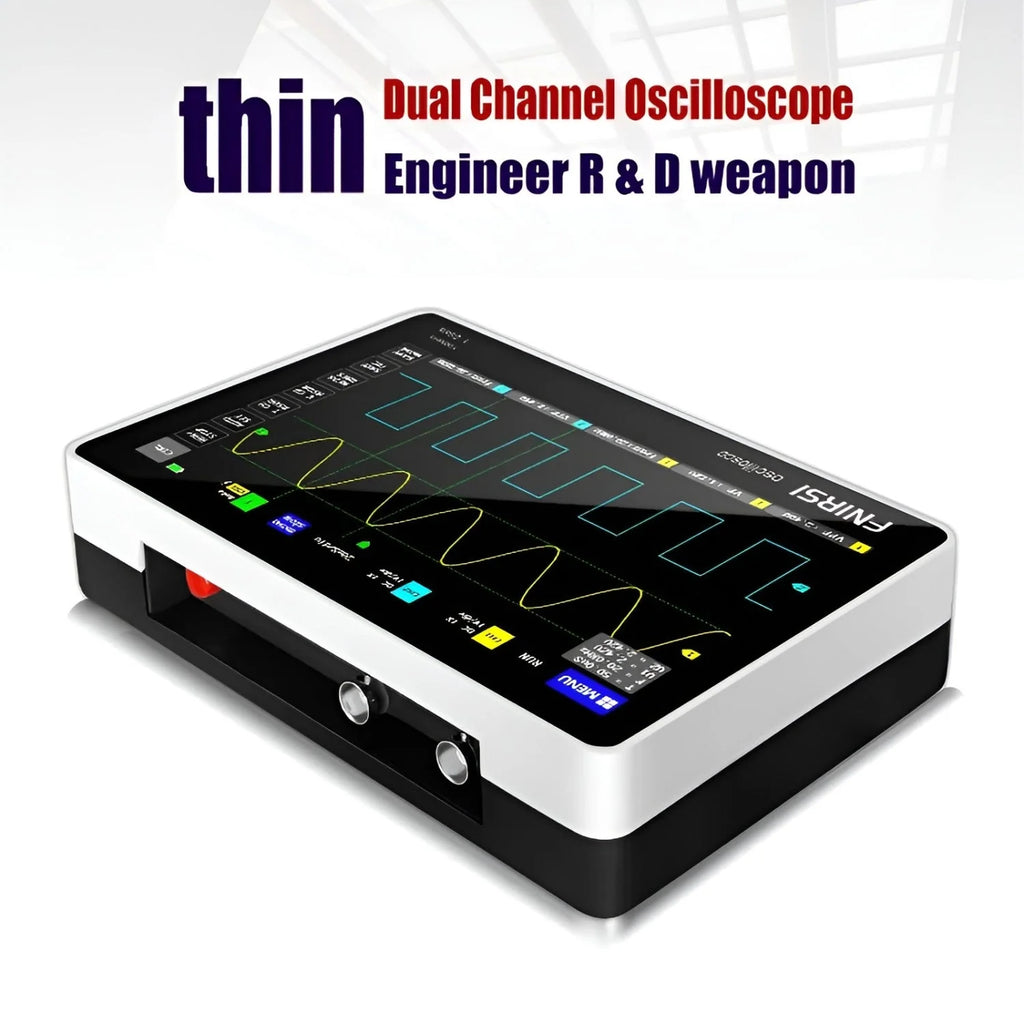

1013D Dual-Channel Tablet Oscilloscope with 100MHz Bandwidth, 1GSa/s Sampling and 7-Inch Touchscreen

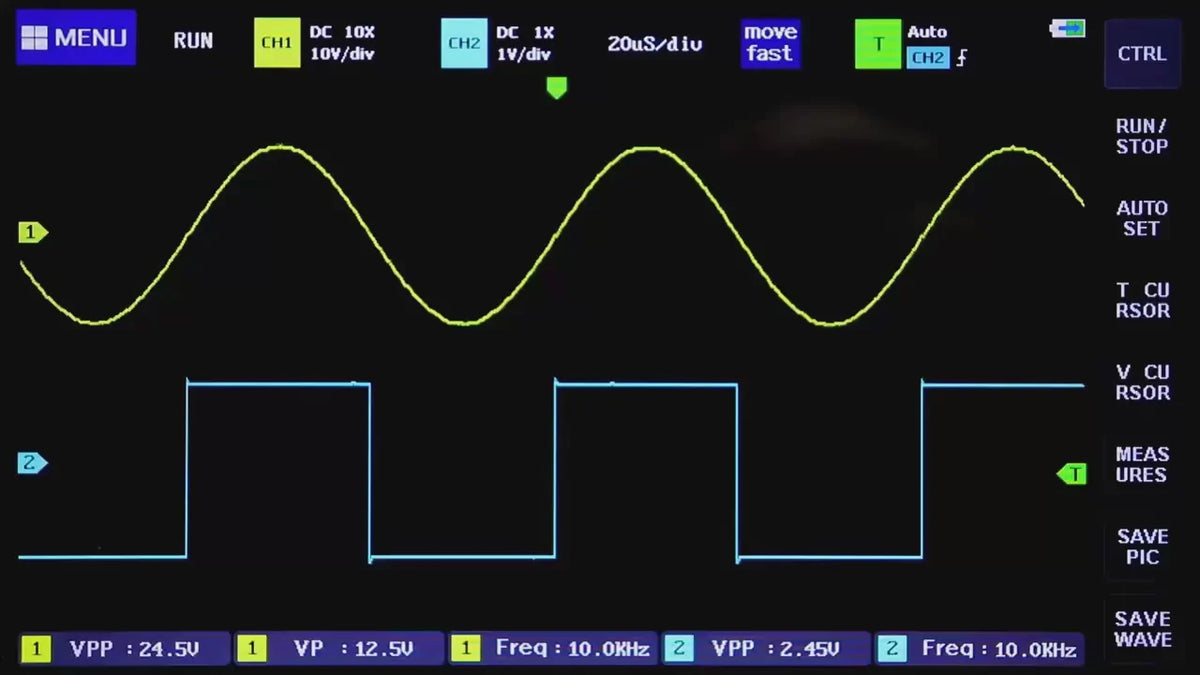

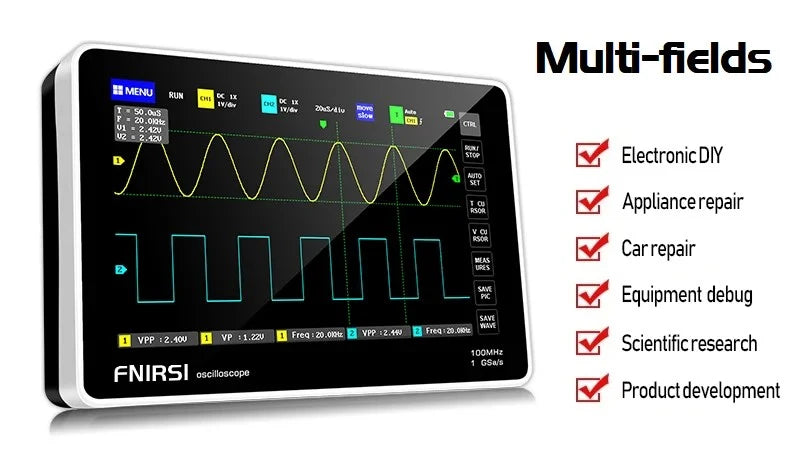

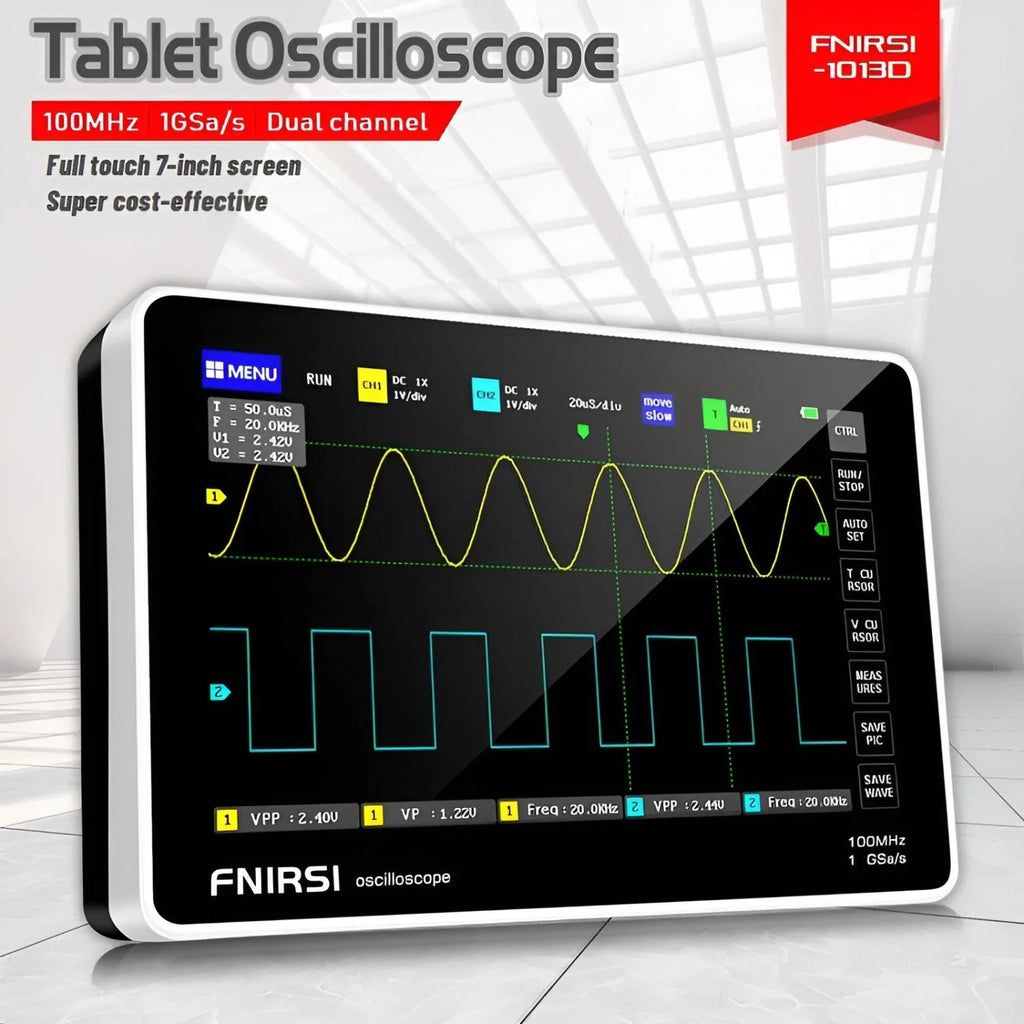

The 1013D is a dual-channel tablet oscilloscope for electronics maintenance and signal analysis. Its 7-inch touchscreen combines waveform controls with automatic setup, cursor measurements and storage for screenshots and waveforms.

Key Features

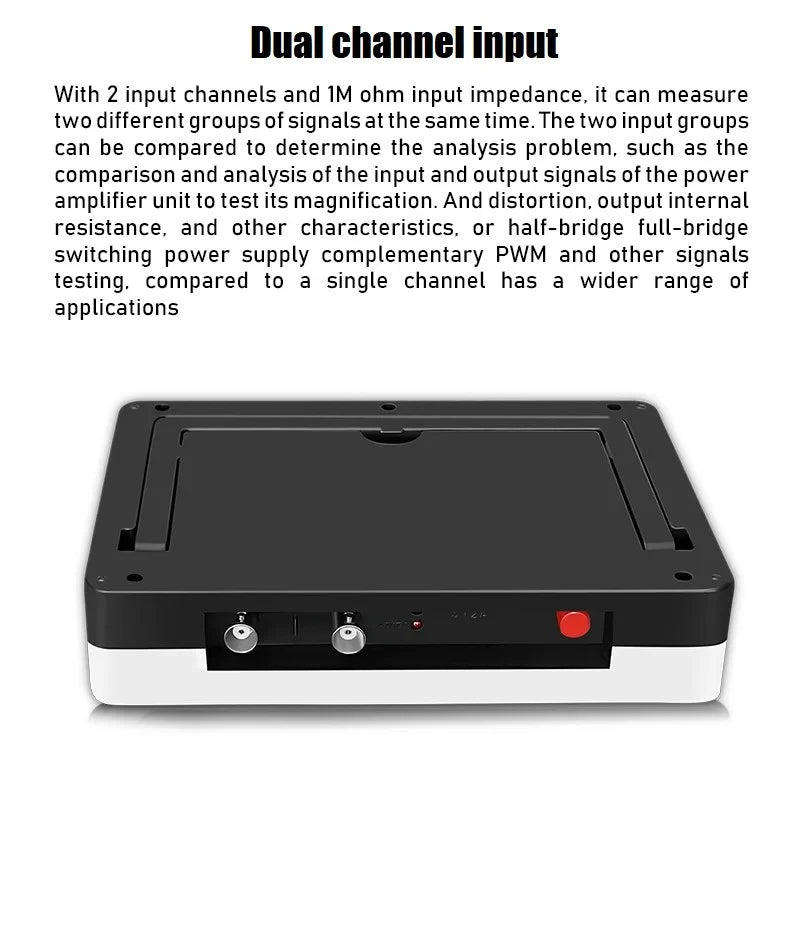

• Two channels provide 100MHz bandwidth with 1GSa/s real-time sampling.

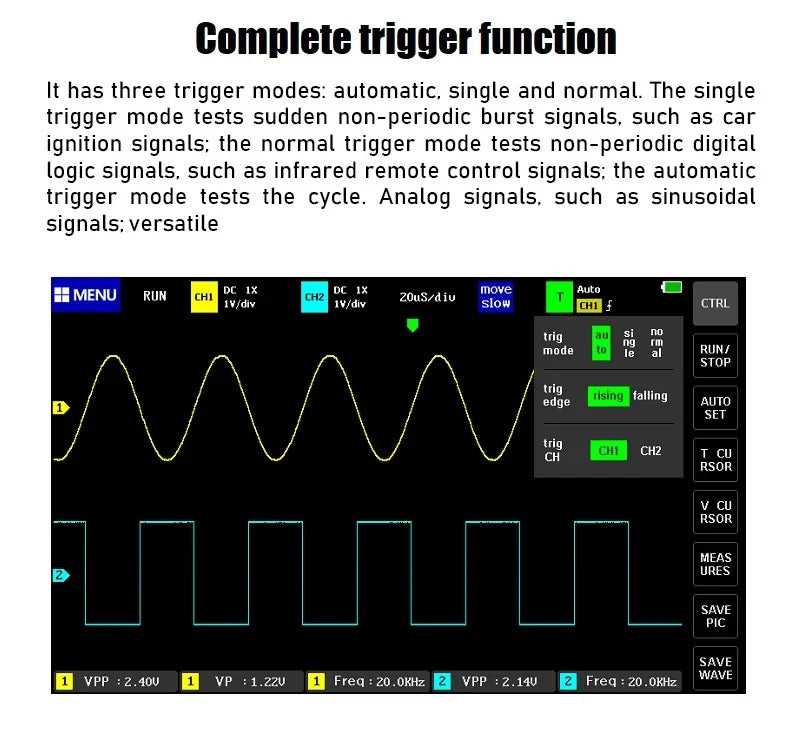

• Use single, normal or automatic trigger modes with rising or falling edge selection.

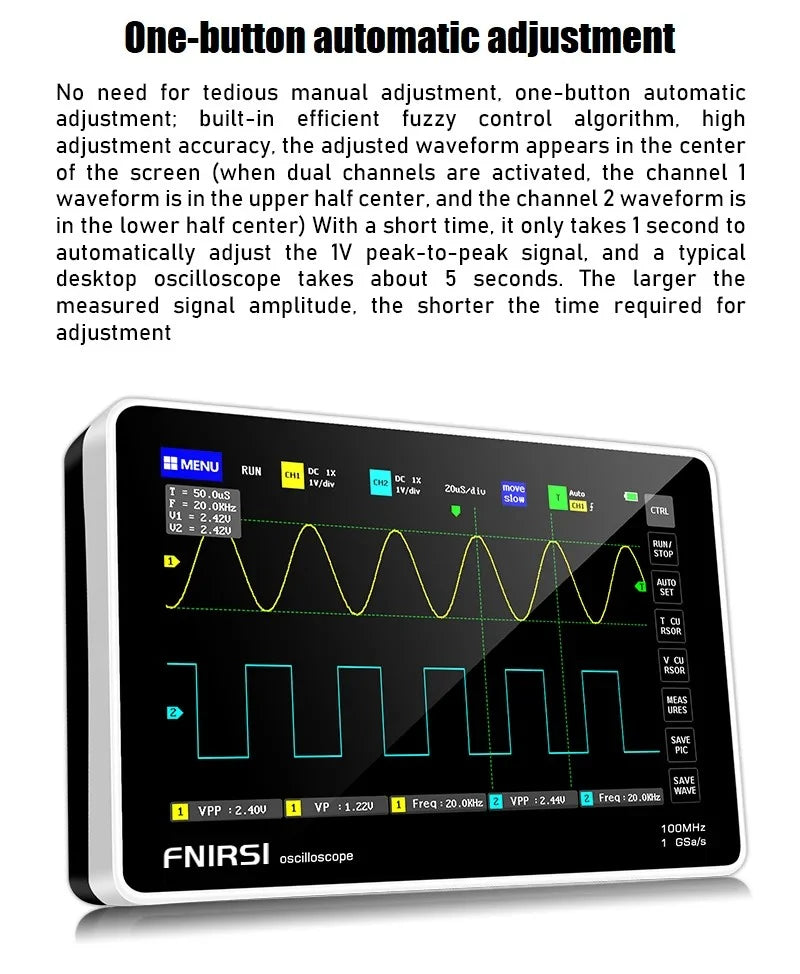

• One-key AUTO and adaptive triggering simplify waveform setup.

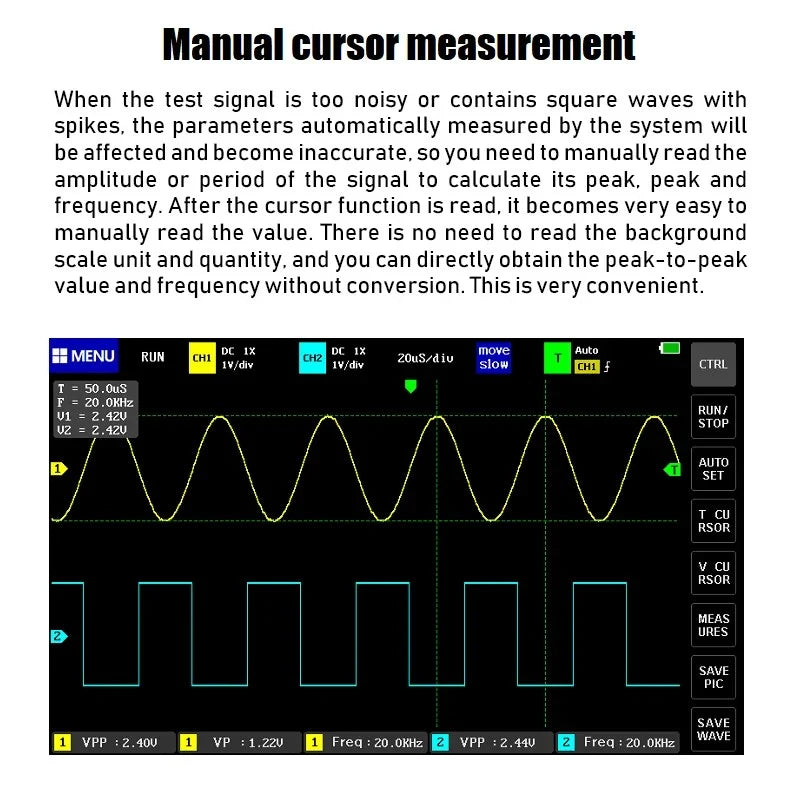

• Cursor measurements, peak detection and roll mode support signal inspection.

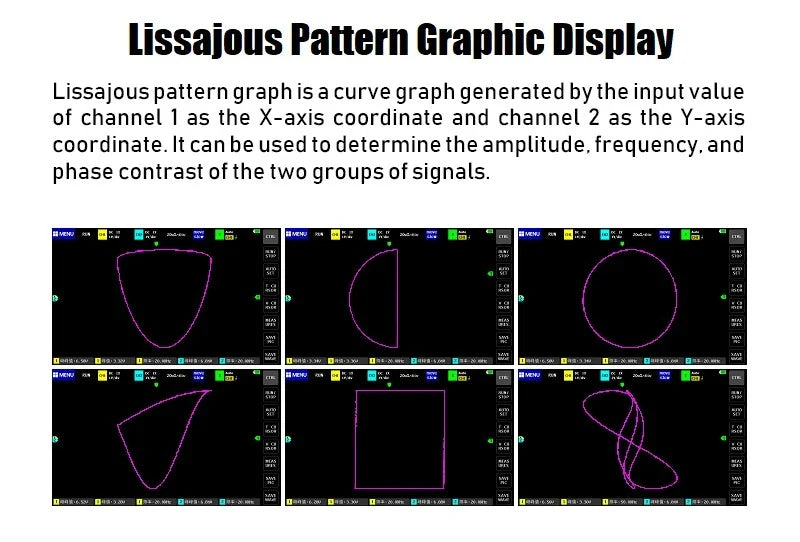

• FFT and Lissajous displays offer additional ways to view signal behavior.

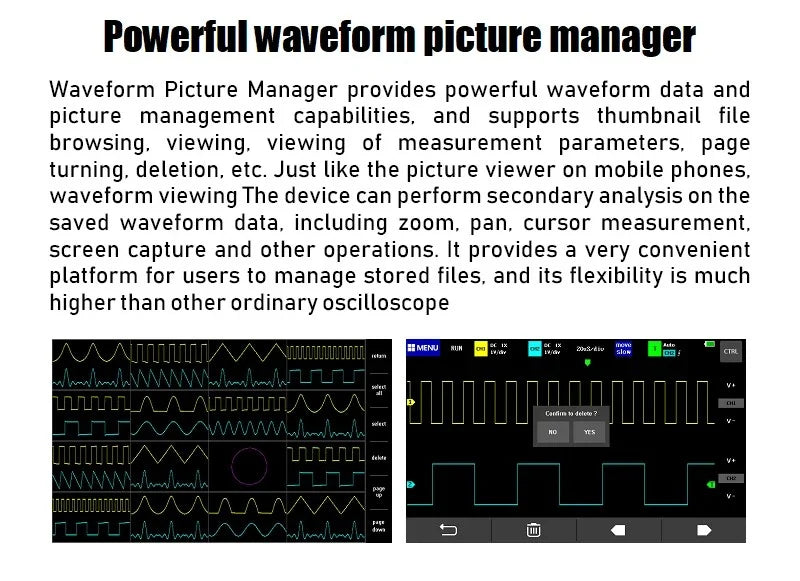

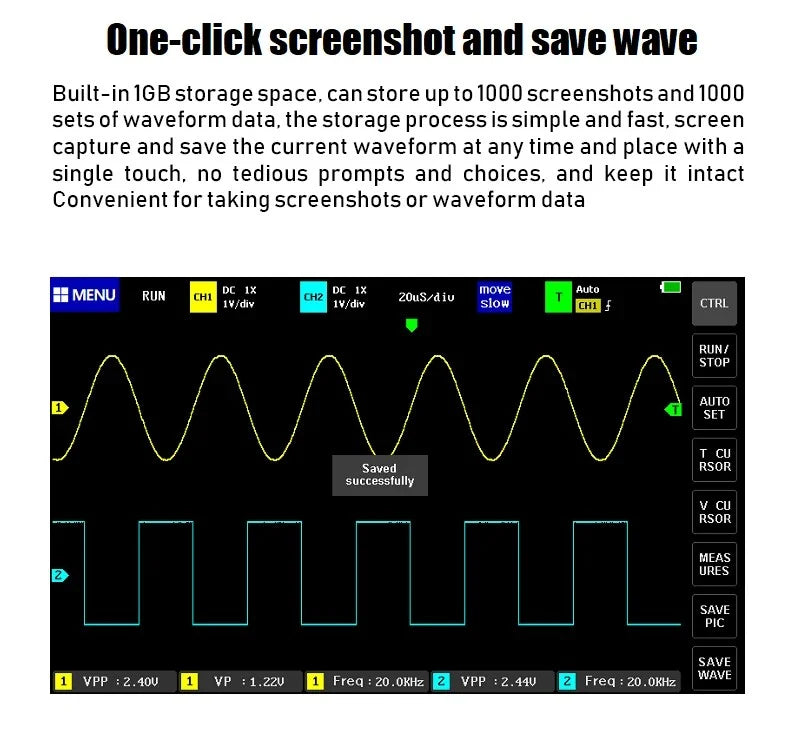

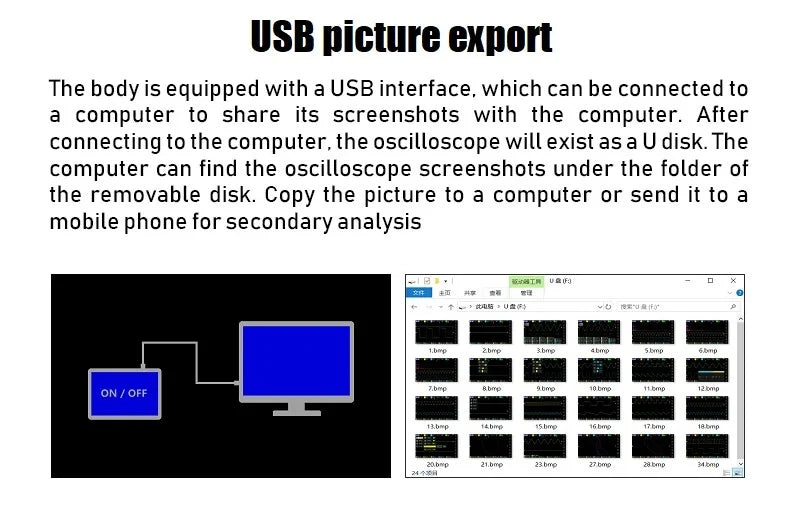

• Internal storage holds up to 1000 pictures and 1000 waveforms, with USB picture export.
• A built-in 6000mAh battery supports portable operation.

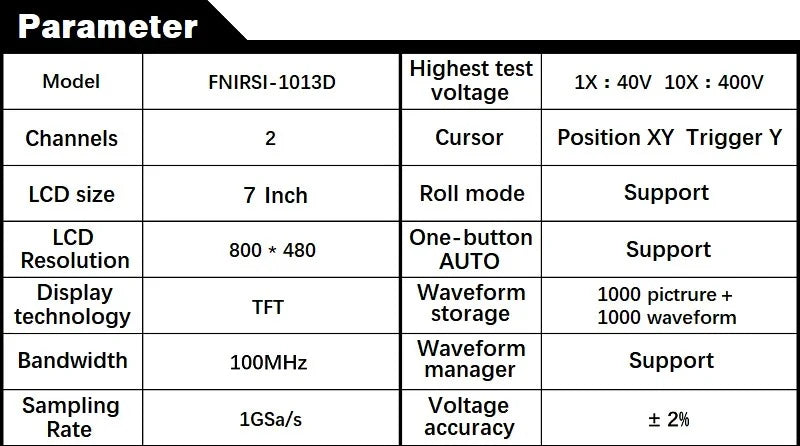

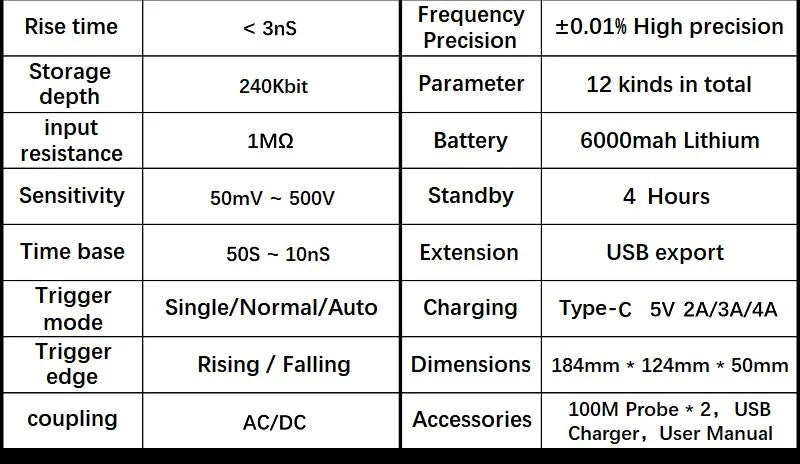

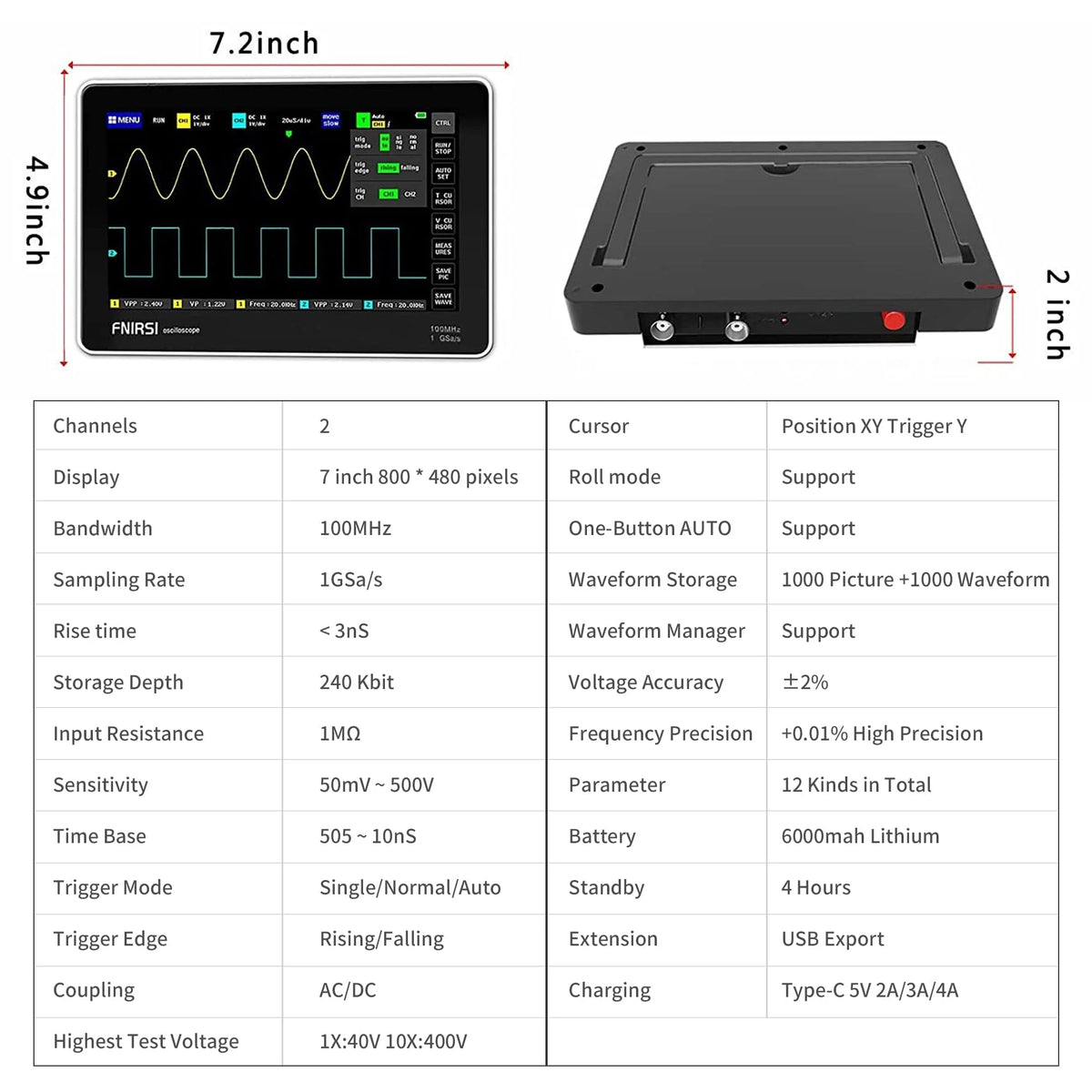

Specifications

• Model: 1013D
• Channels: two
• Analog bandwidth: 100MHz per channel; probe settings specify 5MHz at 1X and 100MHz at 10X
• Sampling rate: 1GSa/s

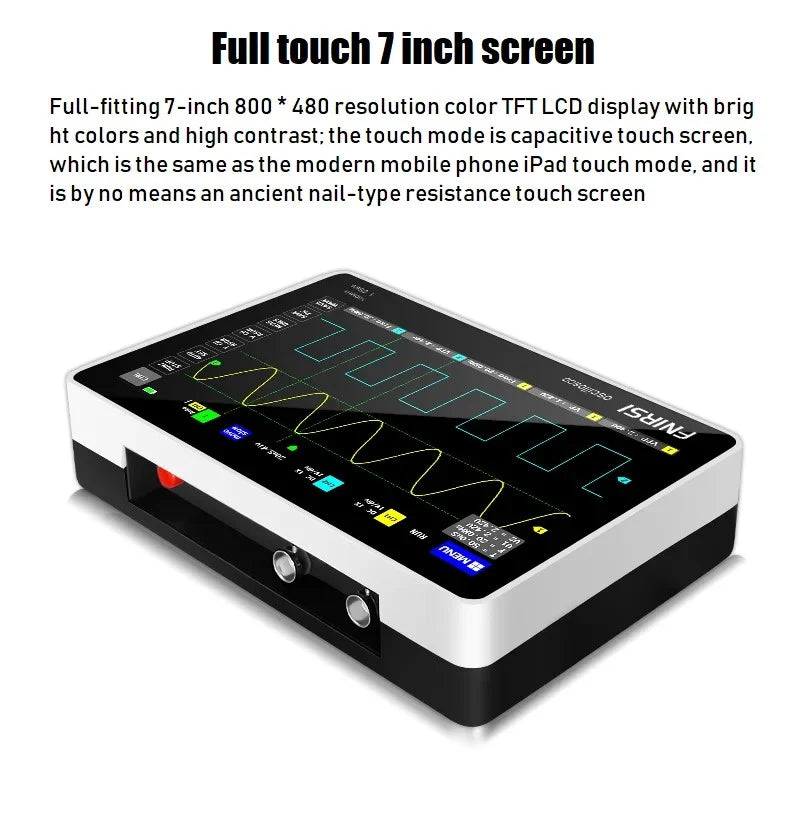

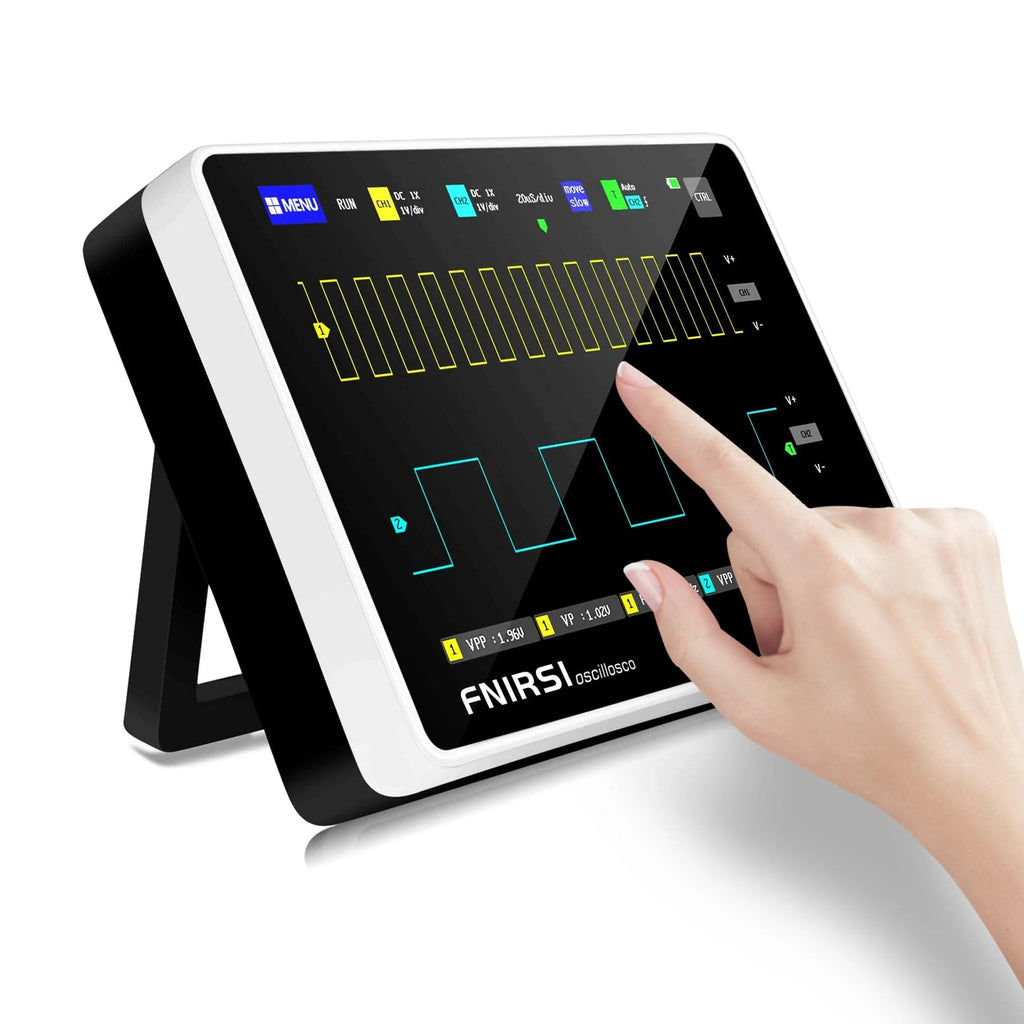

• Display: 7-inch TFT LCD touchscreen, 800 × 480 pixels
• Storage: 1GB internal memory; 240Kbit storage depth
• Input impedance: 1MΩ
• Input coupling: AC or DC
• Rise time: below 3ns
• Battery capacity: 6000mAh
• Charging: 5V USB-C
• Available configurations: 1013D Std. or 1013D Plus

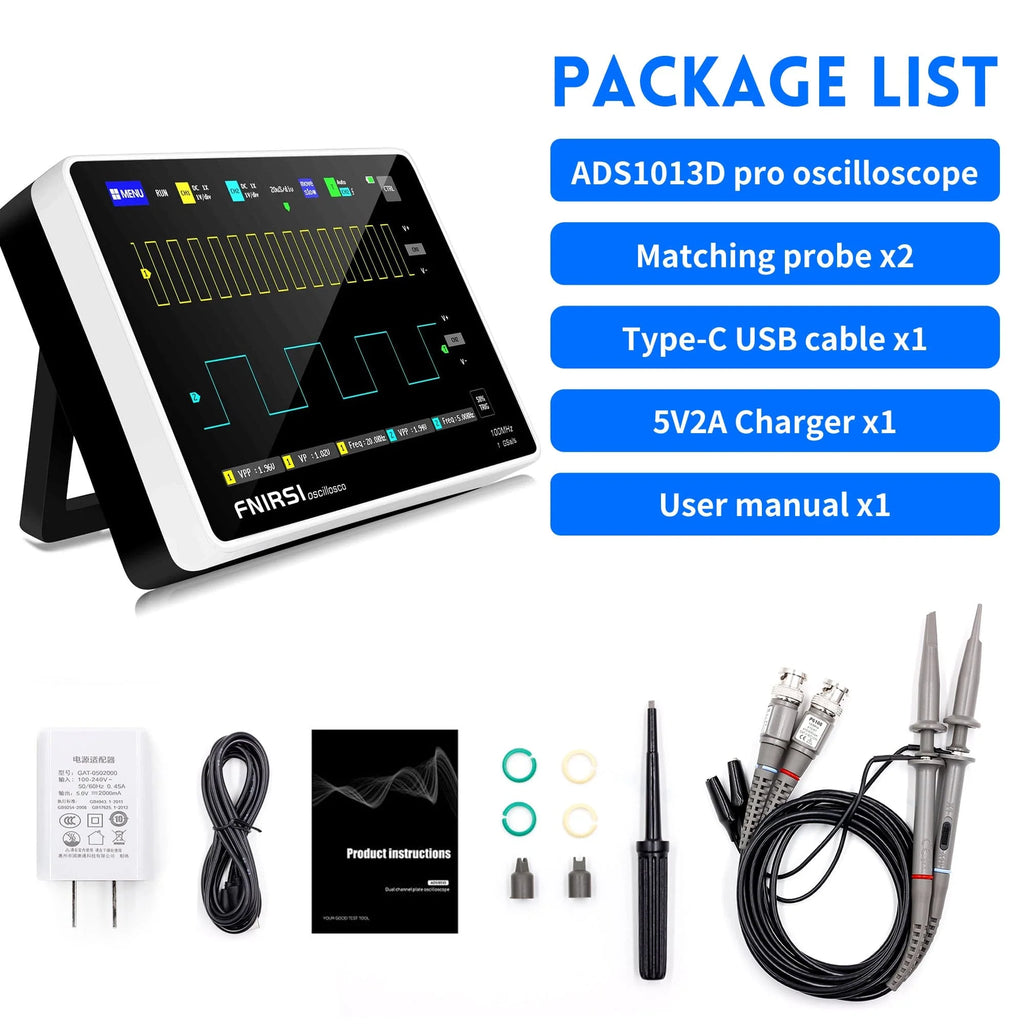

• Common accessories: two matching 100MHz probes with 1X/10X settings, data cable, charging adapter and user manual
