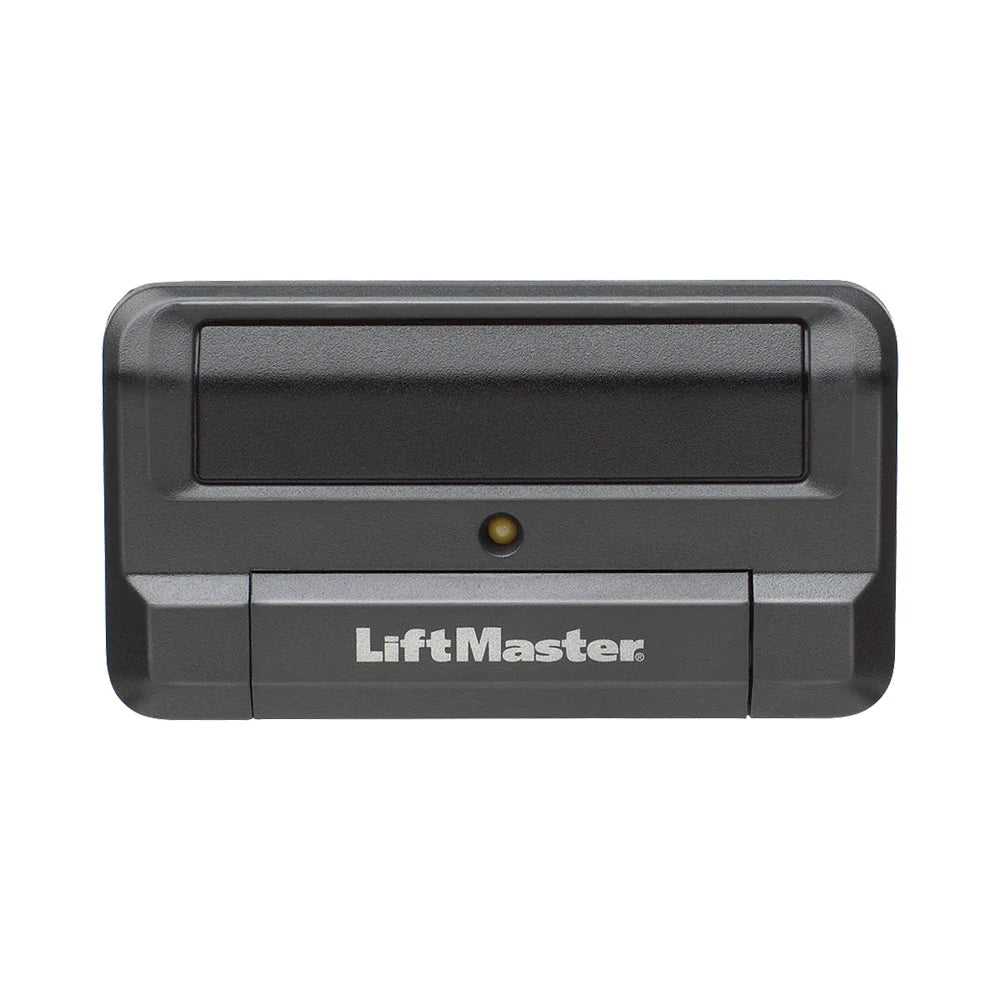

811LMX Single-Button Programmable DIP Remote Control with Security+ 2.0, 315MHz and 390MHz Modes

The 811LMX single-button remote control supports compatible commercial gate and entrance systems. Its programmable DIP settings let you choose the security type required by the receiver or operator.

Key Features

• Security+ 2.0 encrypted DIP is the default setting.
• Select 315MHz DIP mode corresponding to 361LM or 390MHz DIP mode corresponding to 61LM.
• Compatible for cloning with 892LT and 894LT learning remote controls.
• A sliding cover gives access to On/Off DIP switch positions.
• The Program button and yellow LED assist security-type selection and resetting.
• Pair with a compatible device using its Learn button and test remote activation.

Specifications

• Model: 811LMX.
• Control buttons: one.
• Modes: Security+ 2.0 encrypted DIP, 315MHz DIP and 390MHz DIP.
• Replacement battery: 3V CR2032 lithium coin cell; do not recharge.

Package Contents

811LMX remote control. Battery and visor-clip inclusion are not specified.

Use and Battery Safety

Keep the remote and coin batteries away from children. Operate a gate or door only when clearly visible and unobstructed, and keep it in view until closed. Check receiver compatibility before selecting a programming mode.
