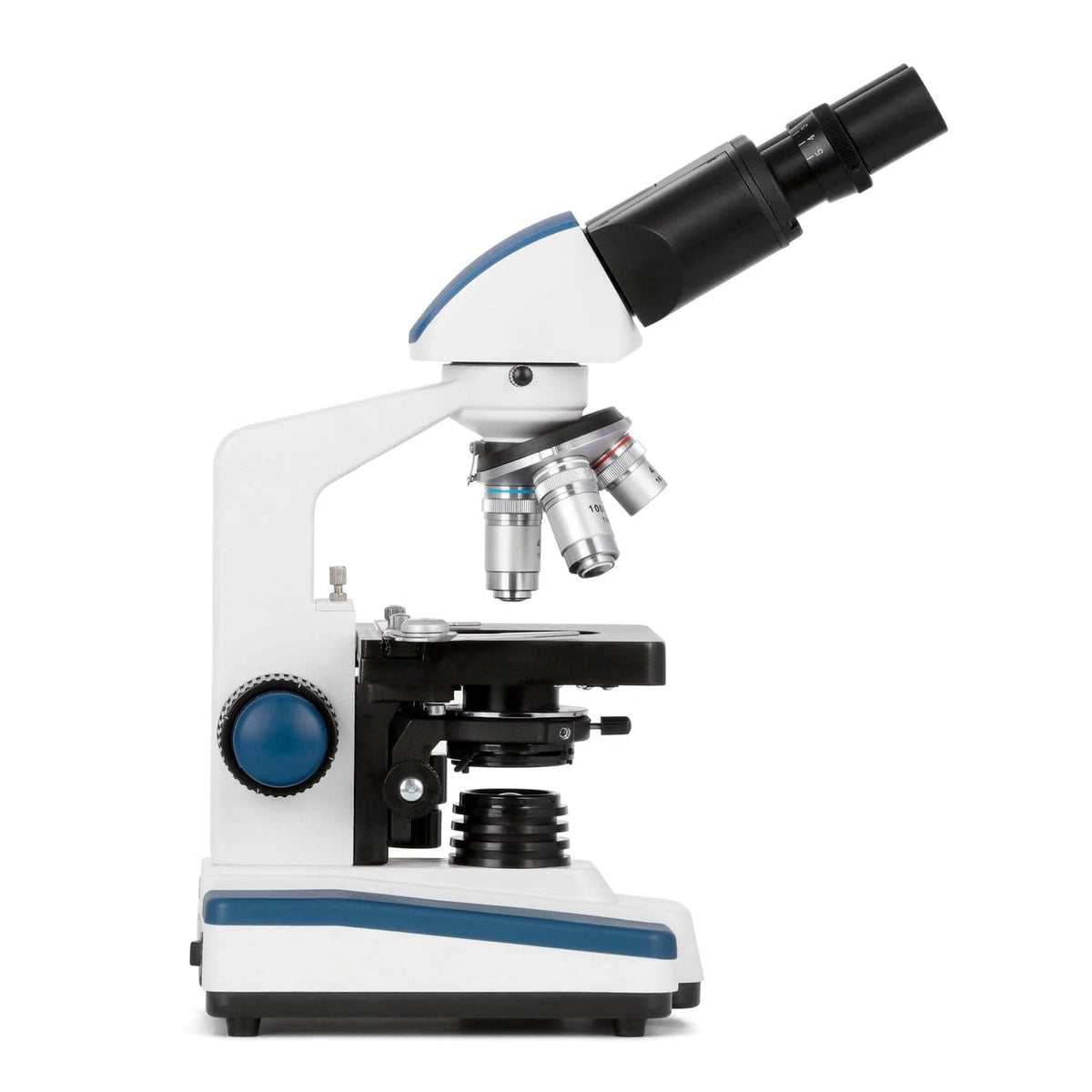

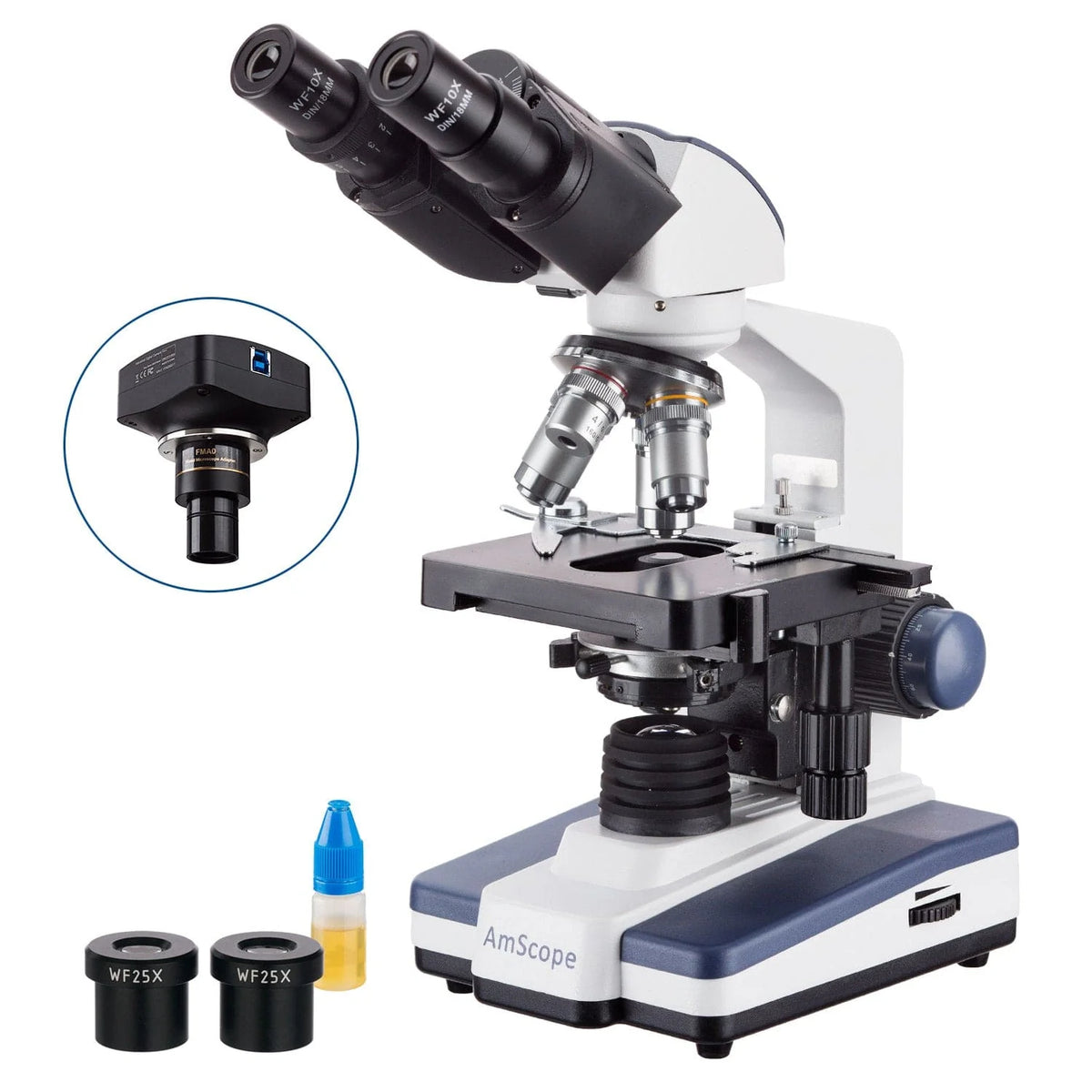

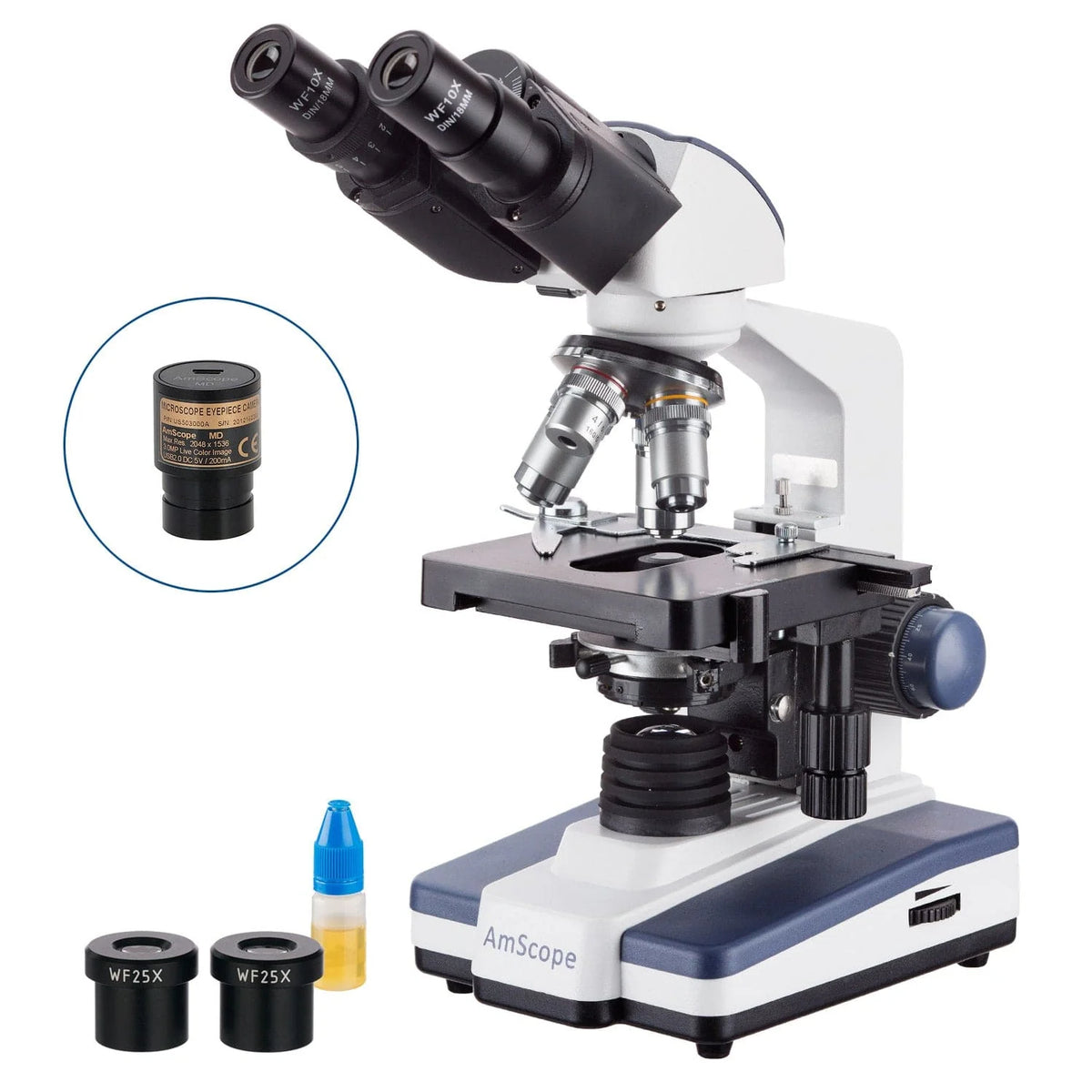

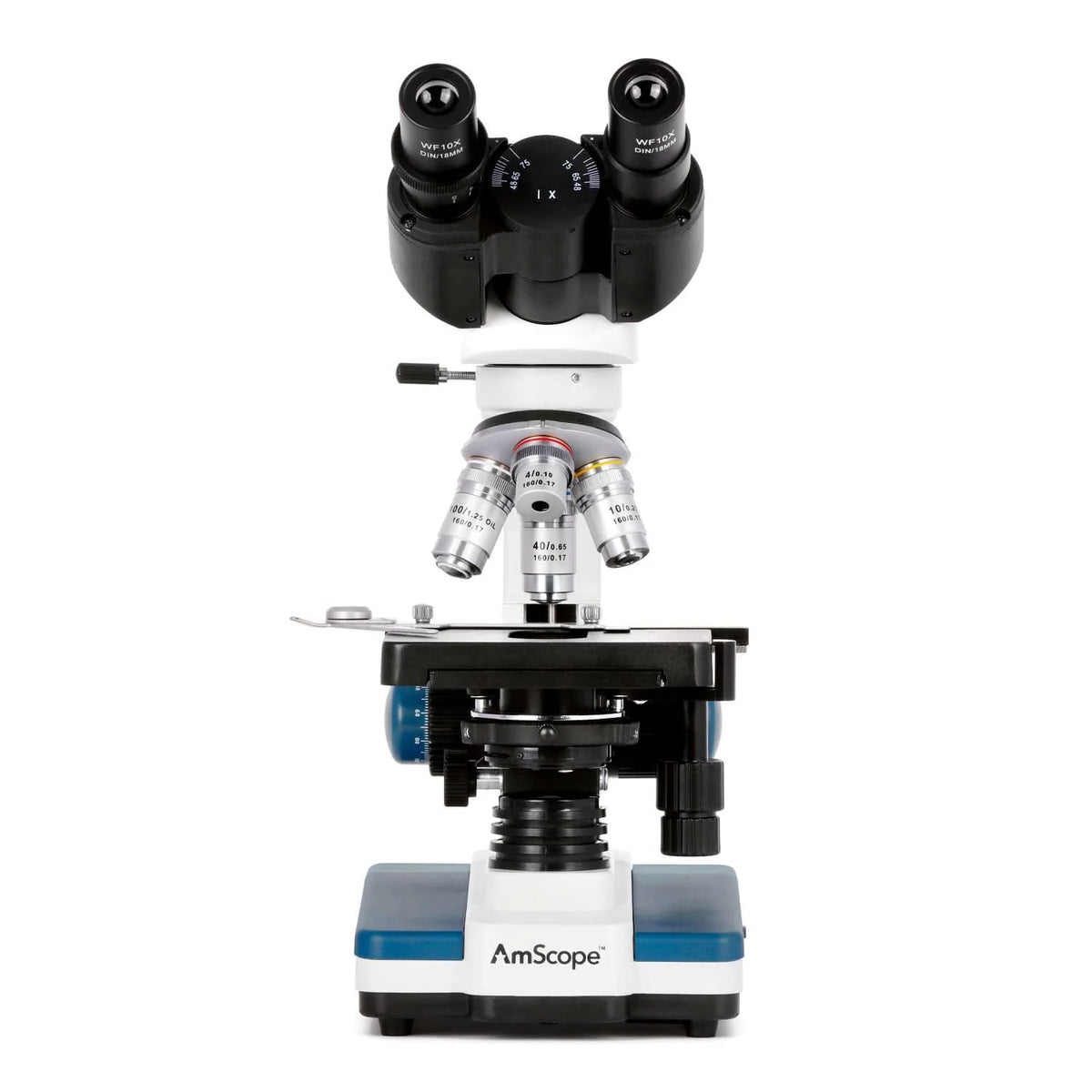

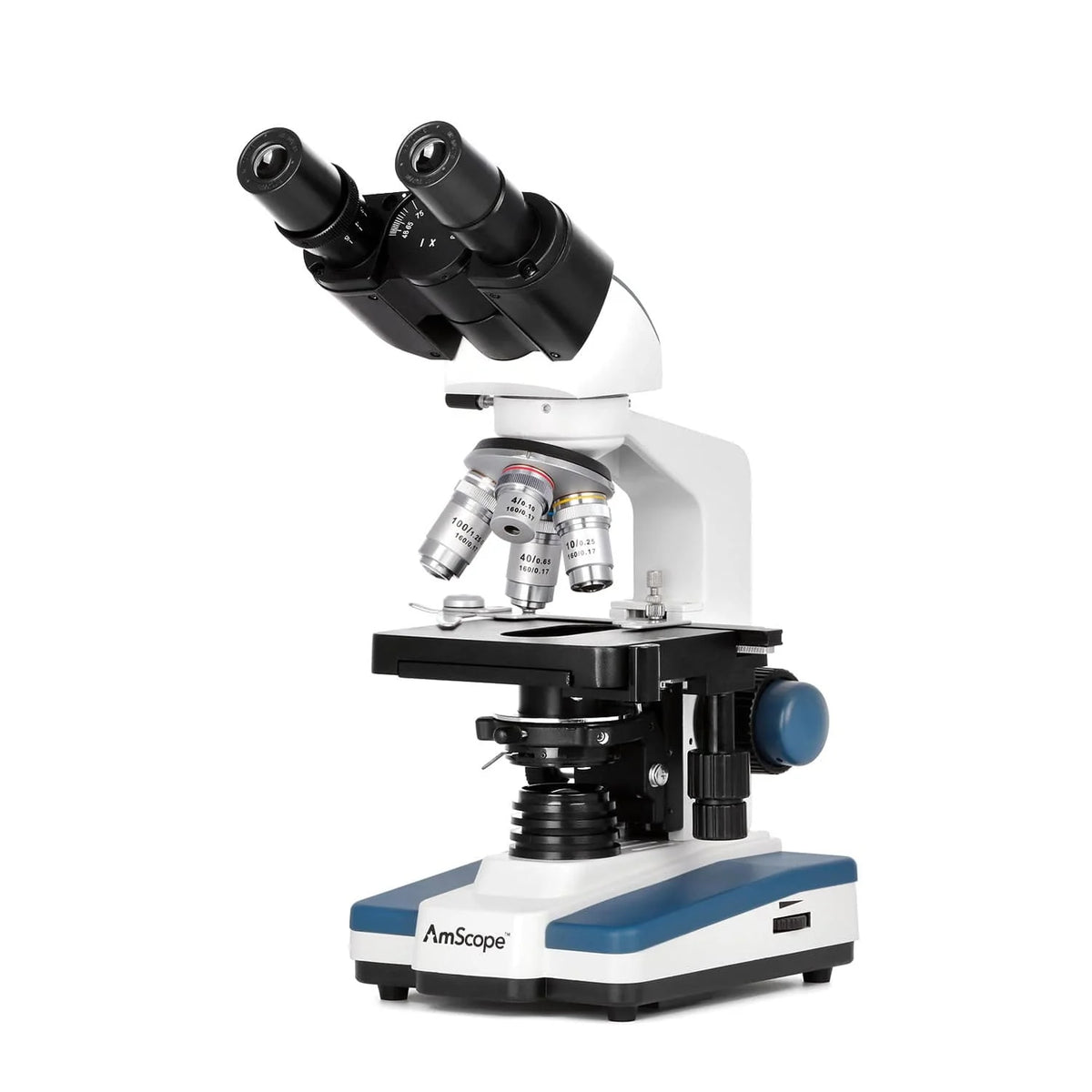

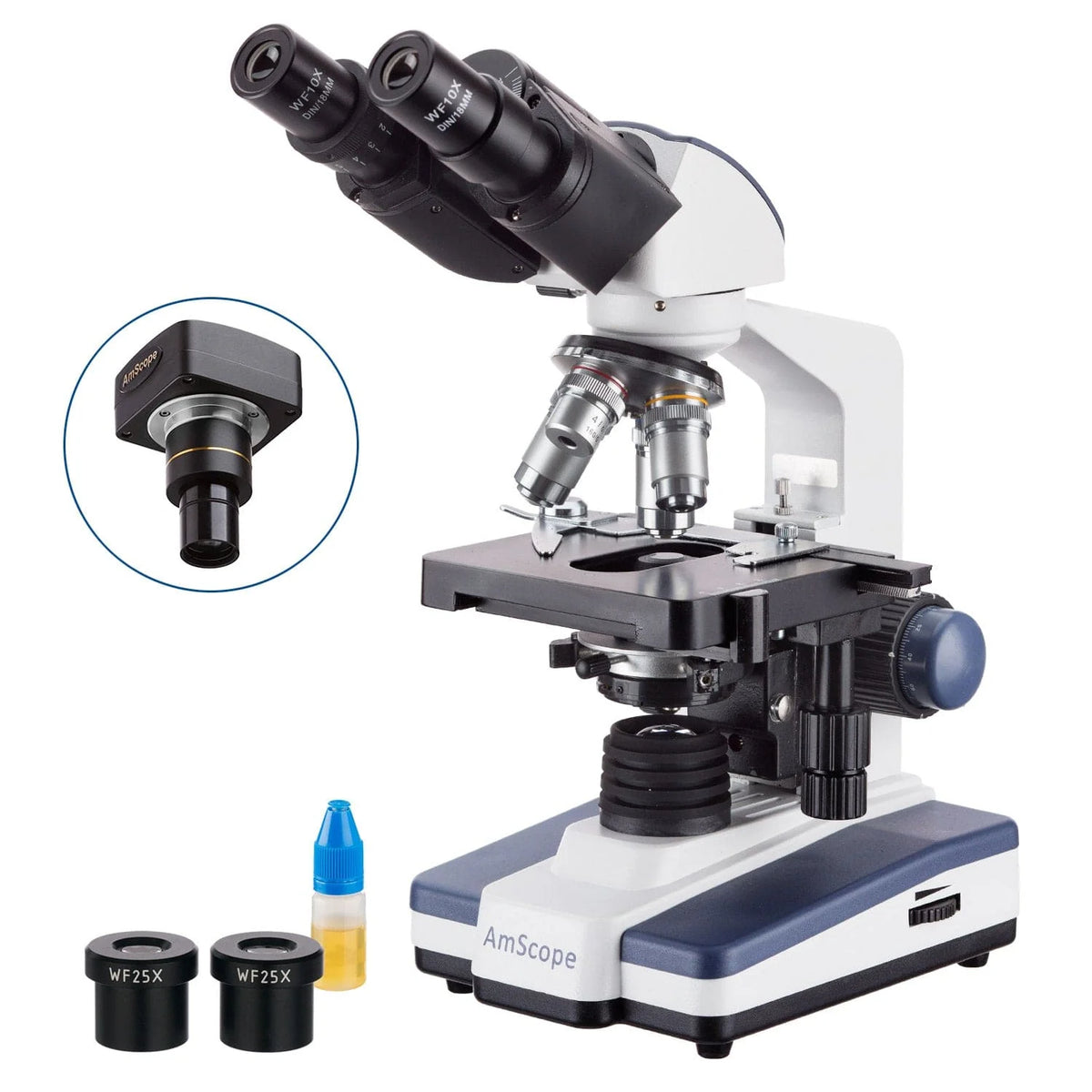

The B120 series binocular compound microscope combines adjustable LED illumination with a mechanical stage for positioning slides. Choose a configuration by magnification, camera interface and camera resolution. Camera kits and microscope-only configurations are separate options; the selected variant specifies what you receive.
Key Features

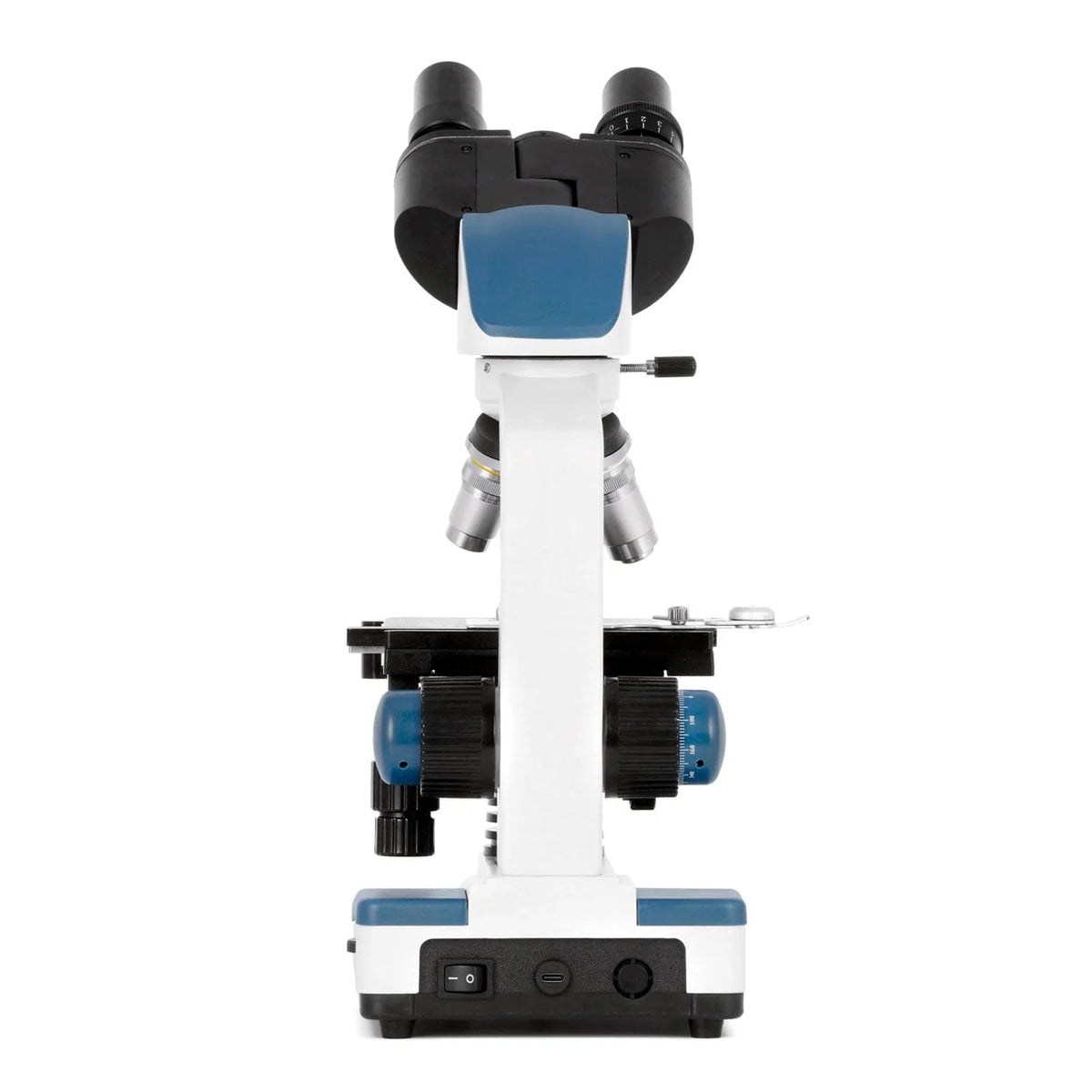

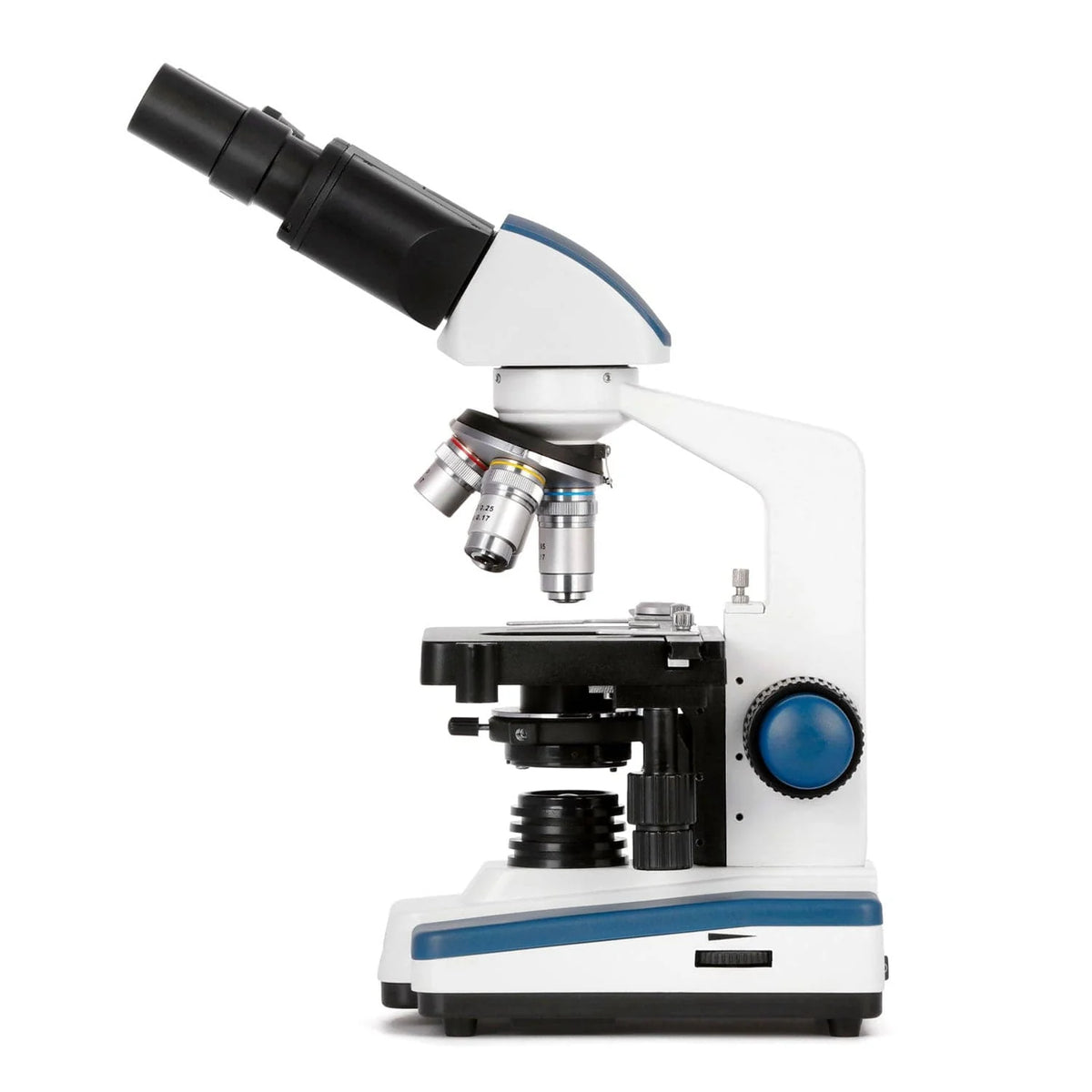

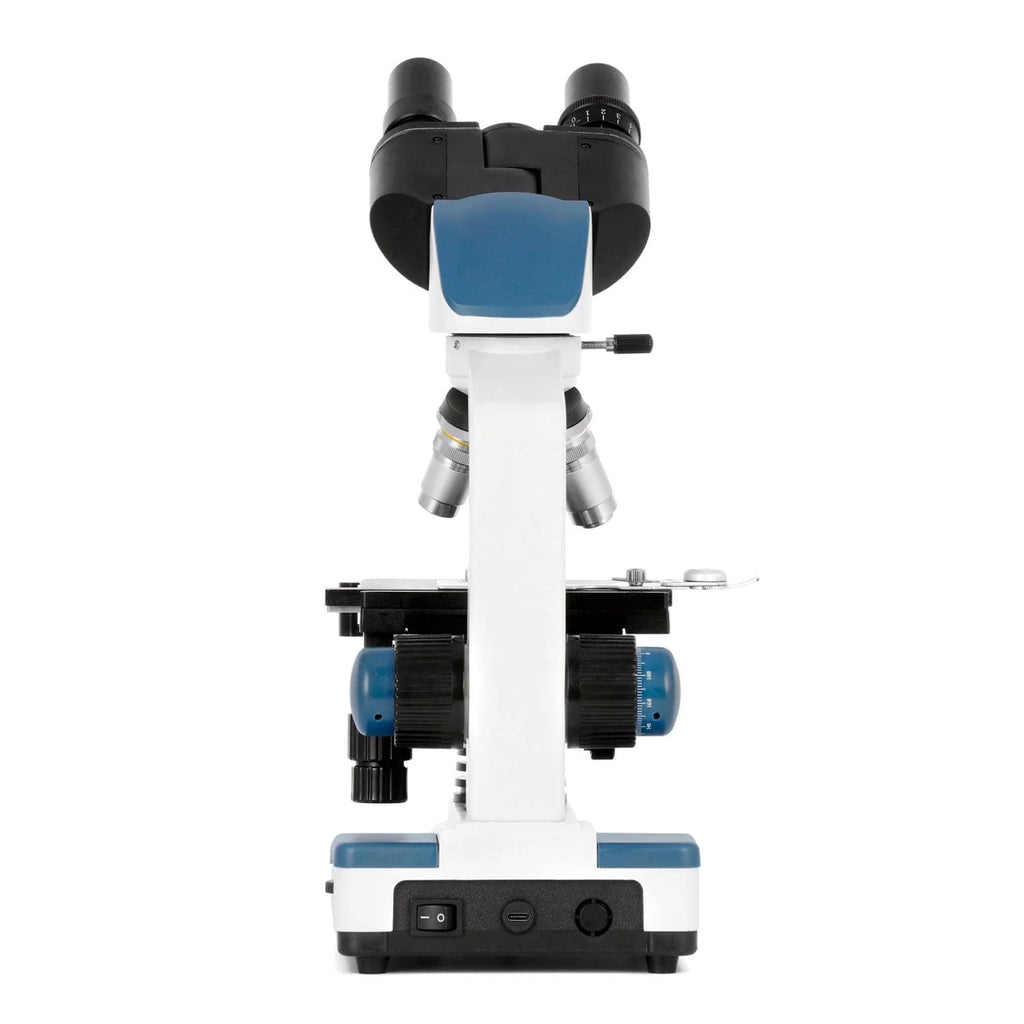

- Siedentopf binocular head with a 30-degree viewing angle, 360-degree rotation and adjustable interpupillary distance.

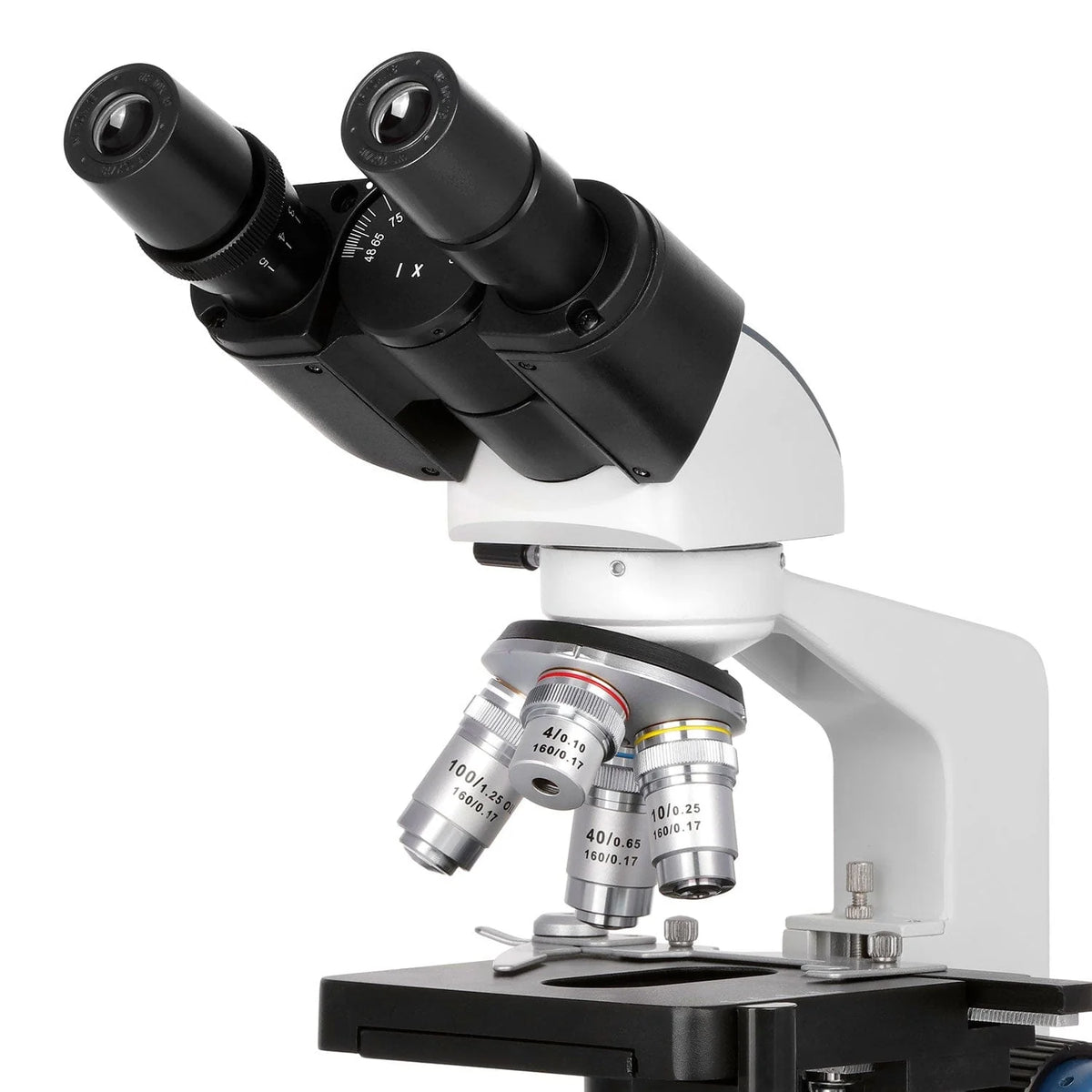

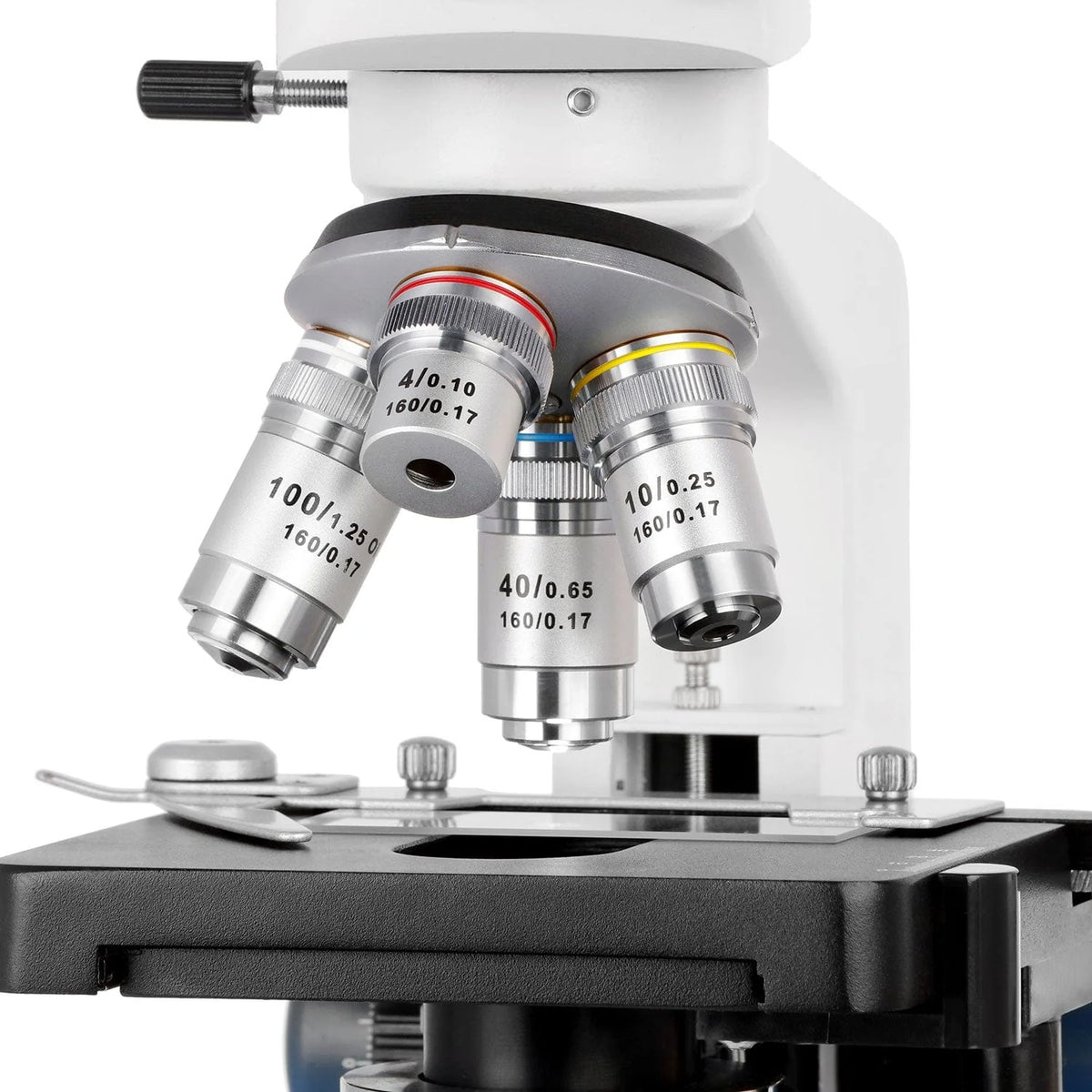

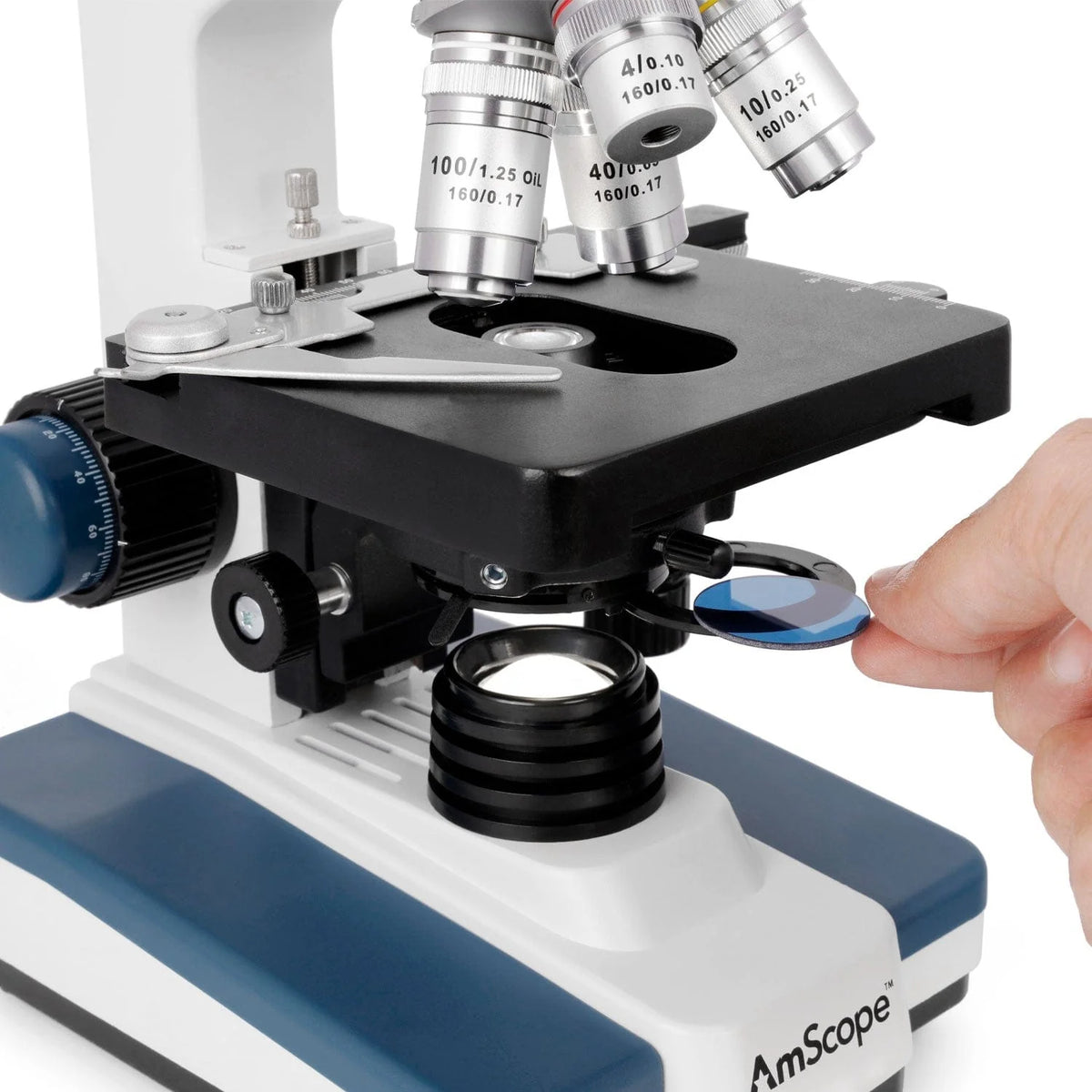

- Four-position objective turret with 4X, 10X, 40X and 100X oil-immersion objectives.
- Coaxial coarse and fine focus controls for bringing specimens into view.

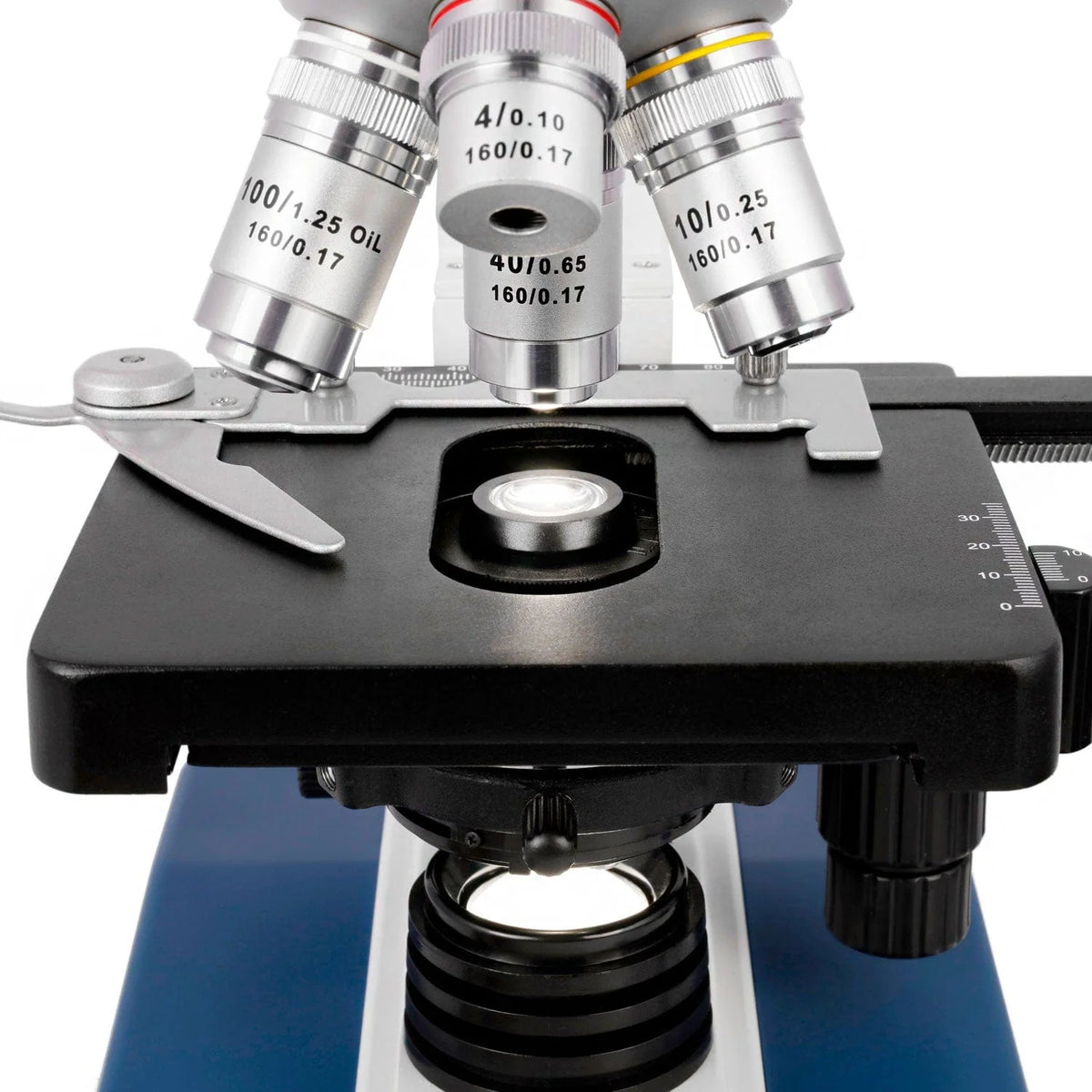

- Mechanical stage with separate X and Y positioning controls and a caliper.
- Variable-intensity transmitted LED illumination with a fly-eye lens.
- Centerable Abbe condenser with an iris diaphragm and rack-and-pinion adjustment.
- Source configurations span 40X-1000X, 40X-1600X, 40X-2000X and 40X-2500X. USB camera interface and pixel options follow the exact selected configuration.
Specifications
| Optical system | Finite conjugate; 160 mm mechanical tube length |
|---|---|
| Interpupillary adjustment | 53-77 mm |
| Eyepiece tube diameter | 23 mm |
| Objective mounting | DIN; 45 mm parfocal distance; RMS 20.32 mm thread |
| Objective numerical apertures | 0.10 / 0.25 / 0.65 / 1.25 for 4X / 10X / 40X / 100X respectively |
| Fine focus graduation | 0.002 mm |
| Stage size and travel | 118 x 127 mm; X/Y travel 70 x 21 mm |
| Condenser | NA 1.25 Abbe condenser with iris diaphragm |
| Illumination | 1W transmitted LED; variable intensity |
| Power input | 100-240V AC, 50/60Hz |

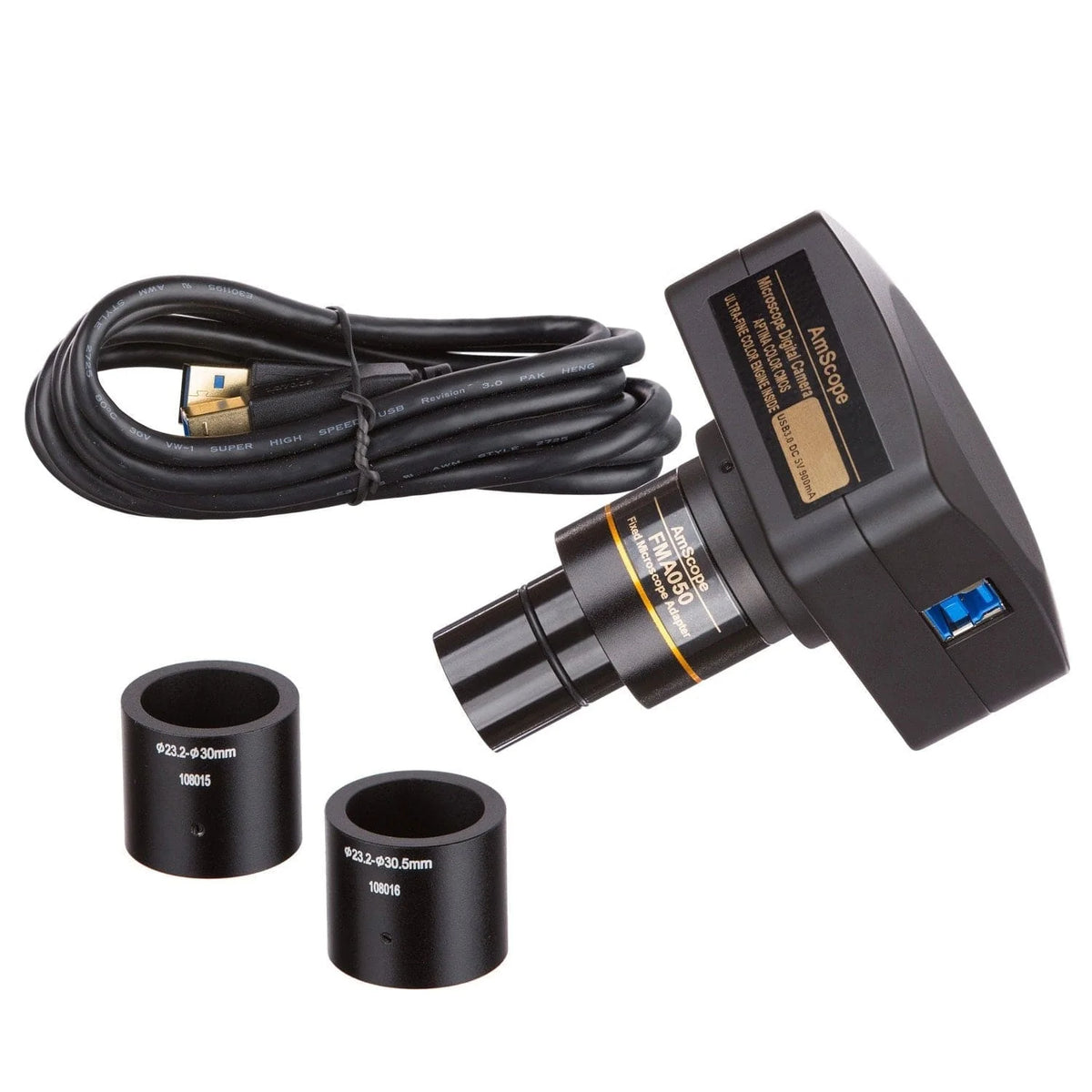

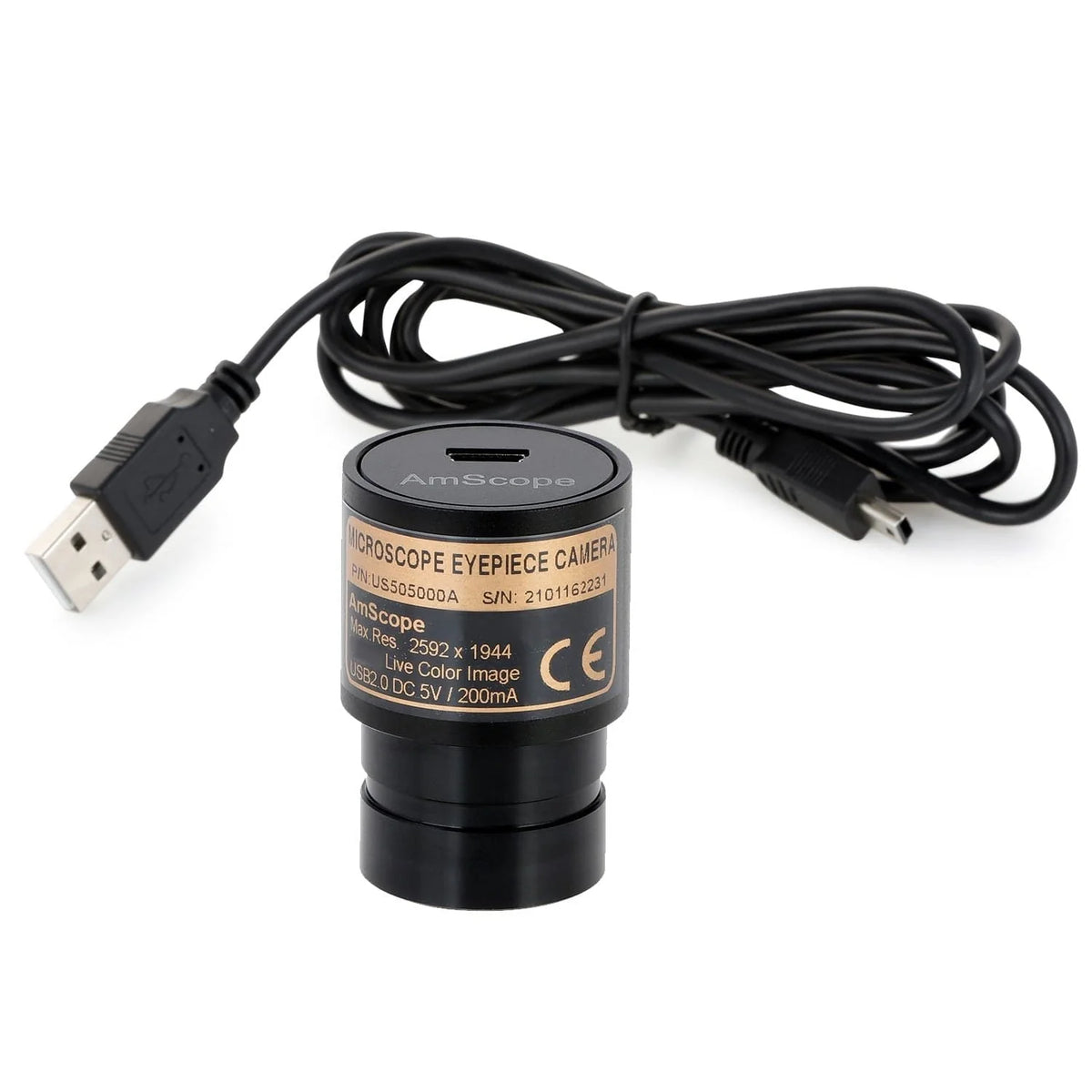

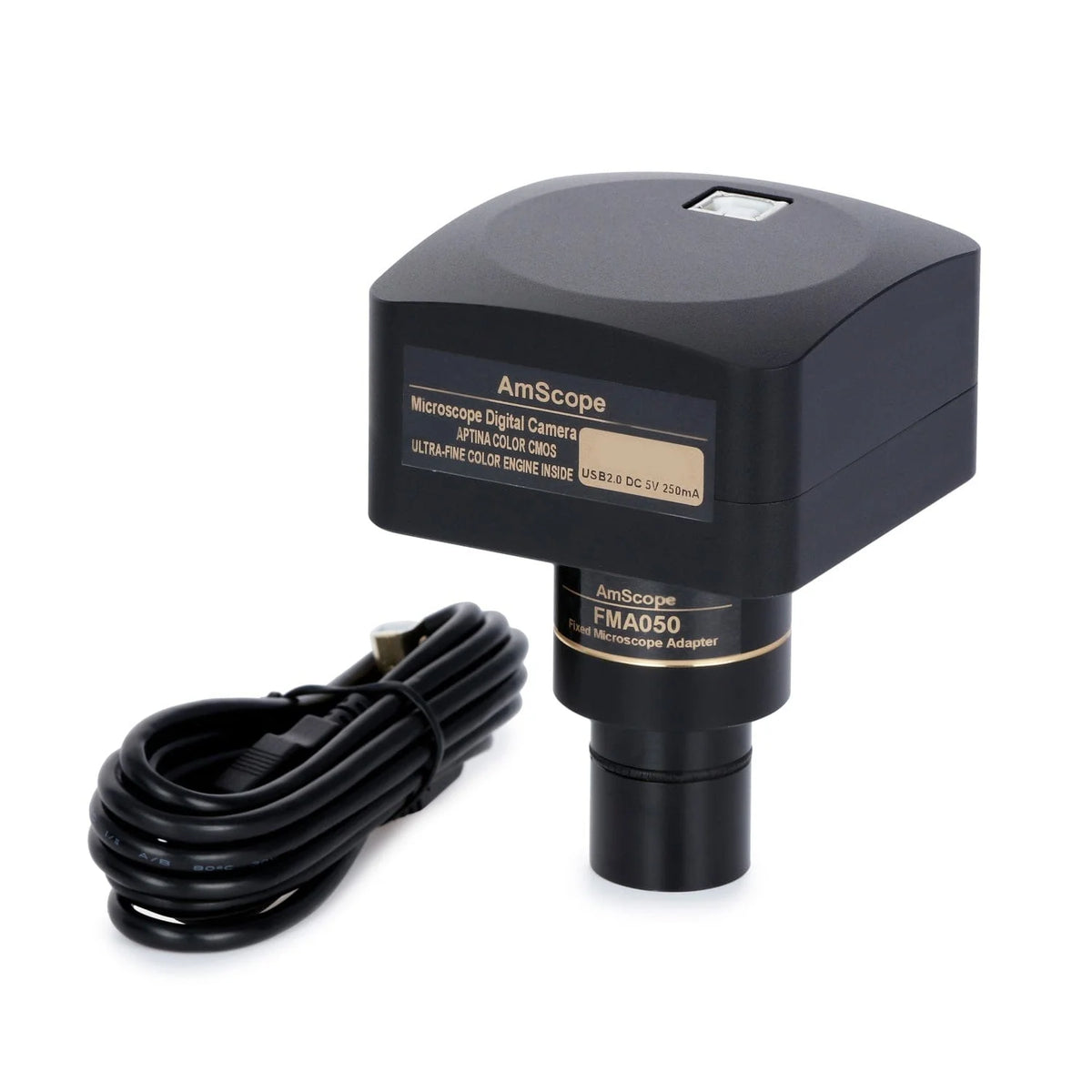

| Camera configuration | Select the exact interface and pixel option. A configuration marked none selected has no camera. |
