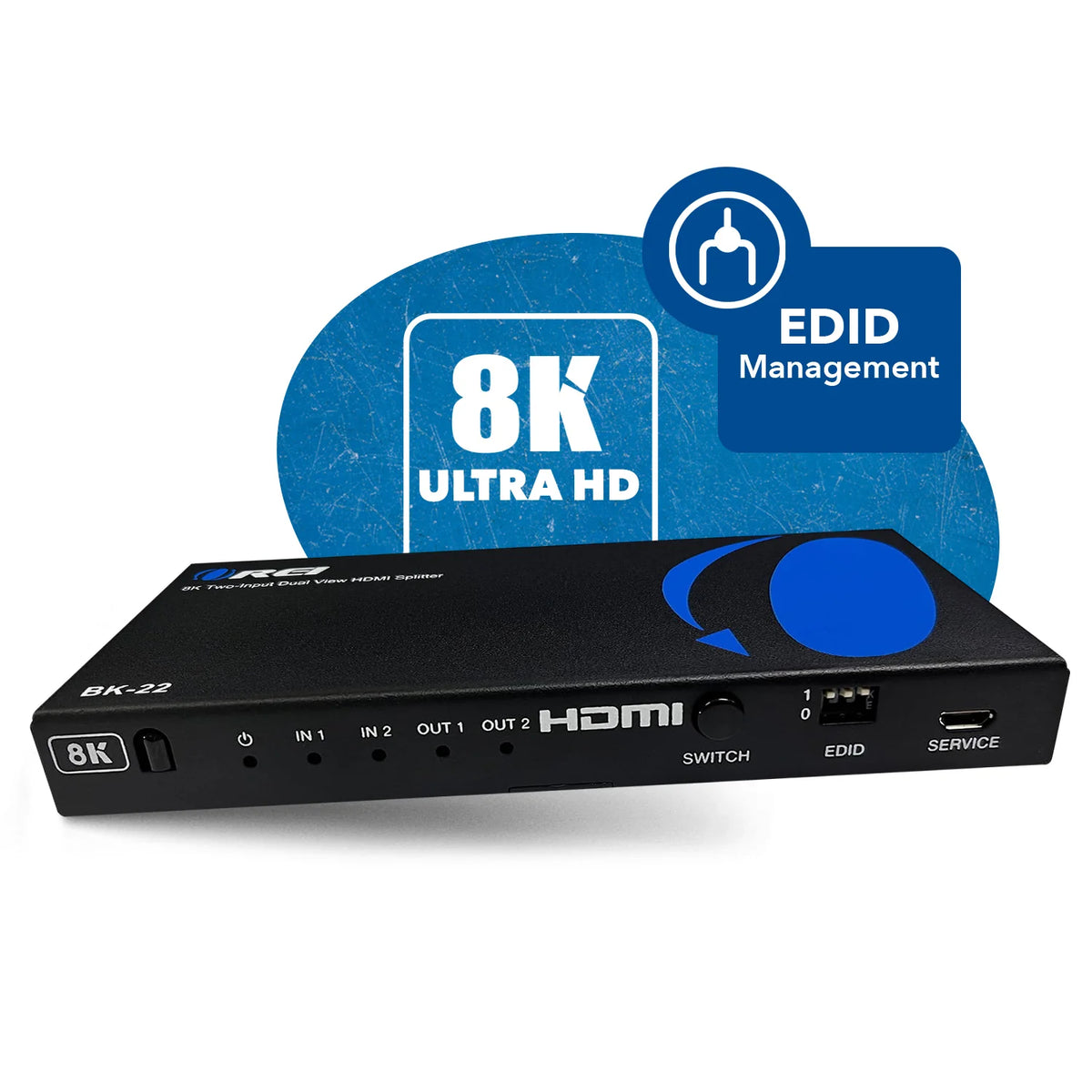

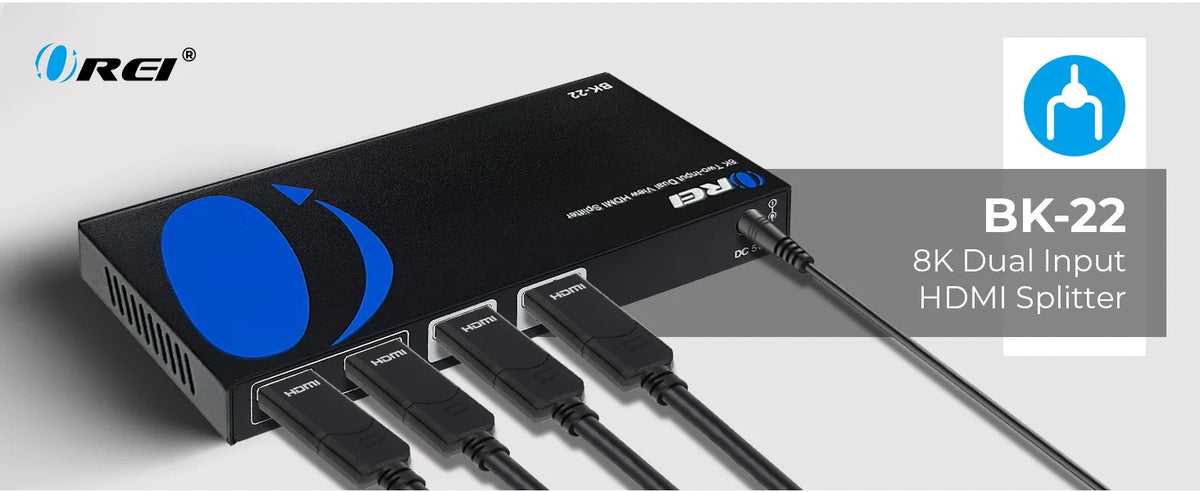

BK-22 Dual-Input HDMI 2.1 Splitter Switch with Two Mirrored Outputs, 8K 60Hz Video, EDID Management and IR Control

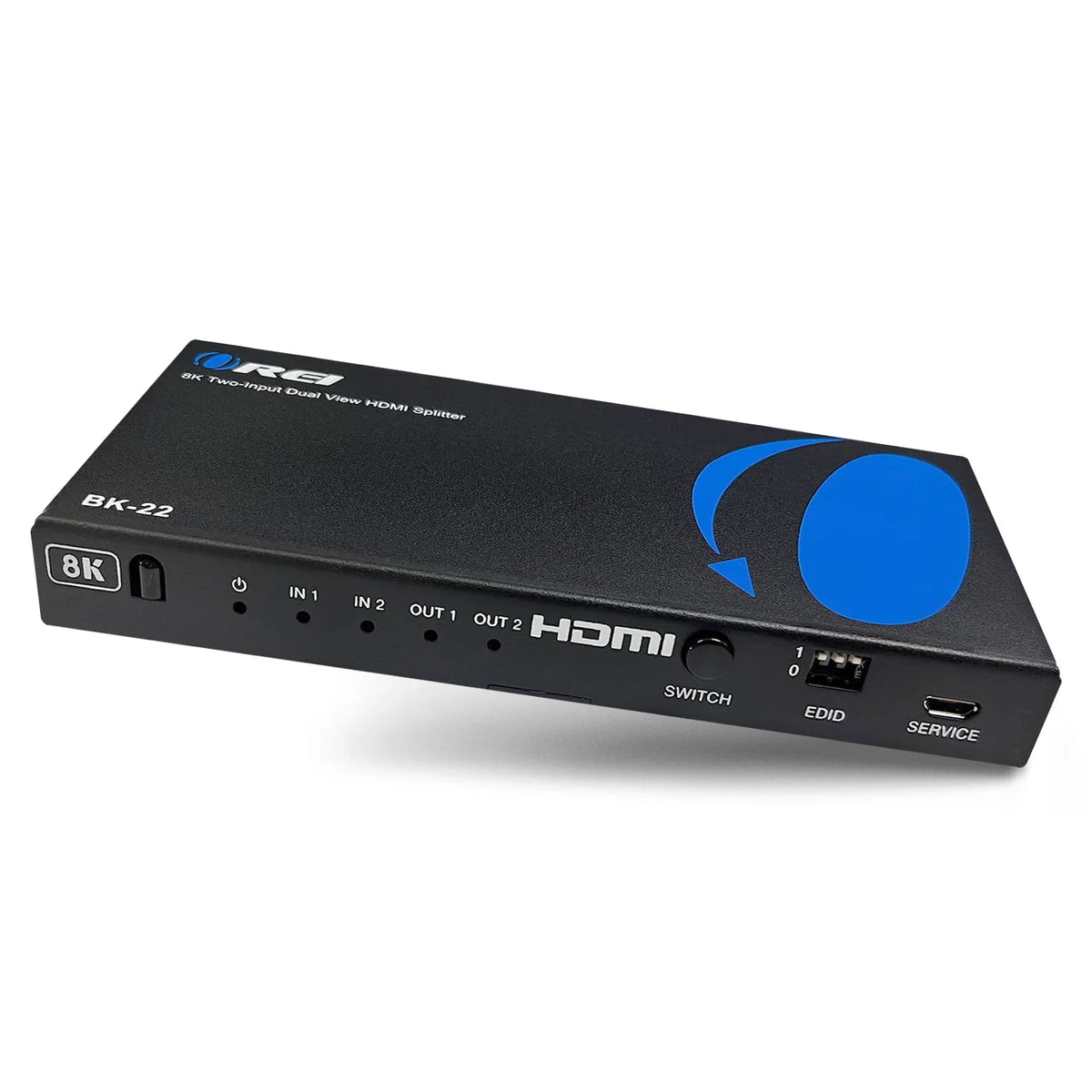

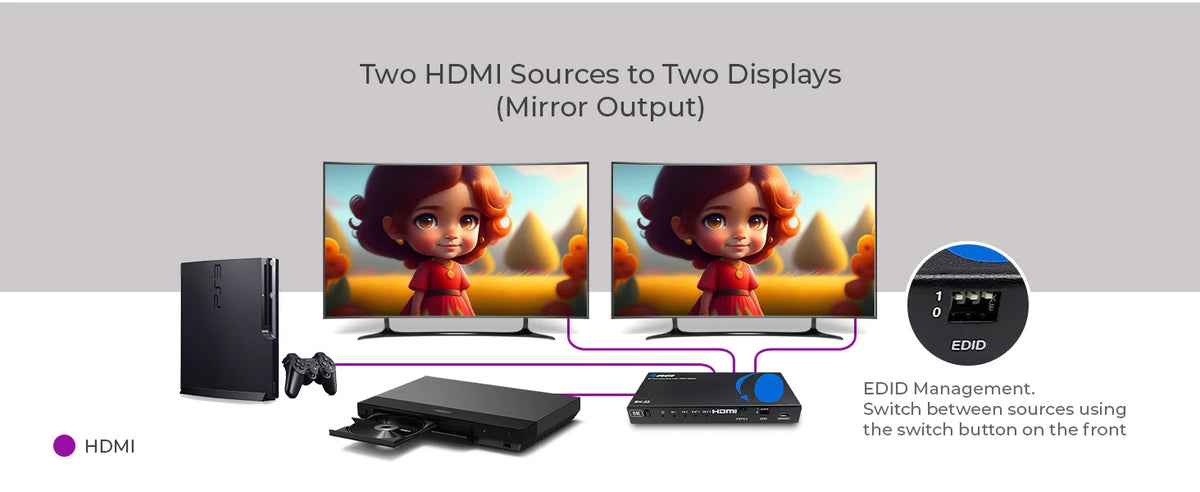

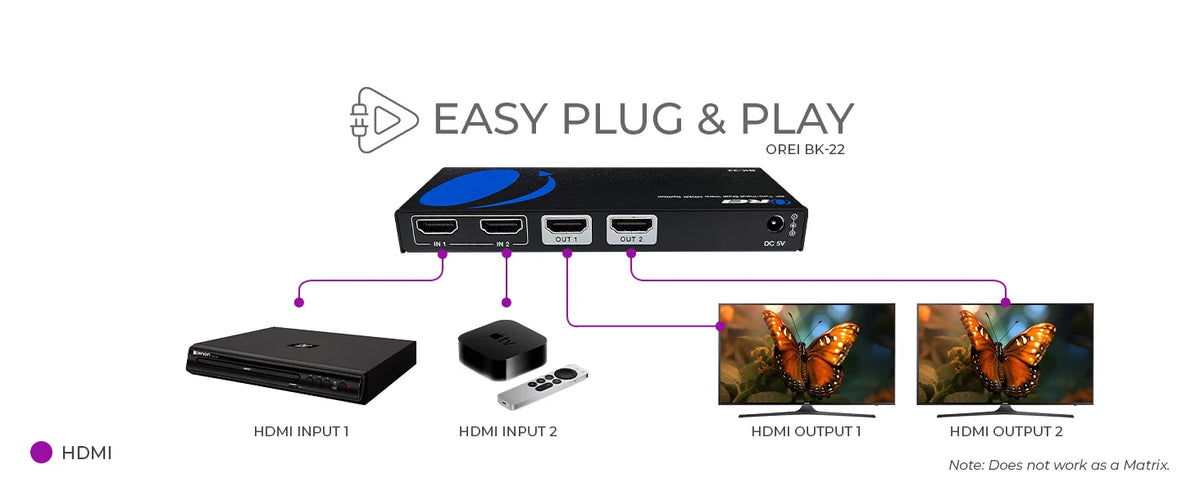

The BK-22 splitter switch connects two HDMI sources to two displays. Select one source at a time to show the same content on both outputs. HDMI 2.1 and HDCP 2.3 support, advanced EDID management and front-panel or IR control suit compatible home and commercial display systems.

Key Features

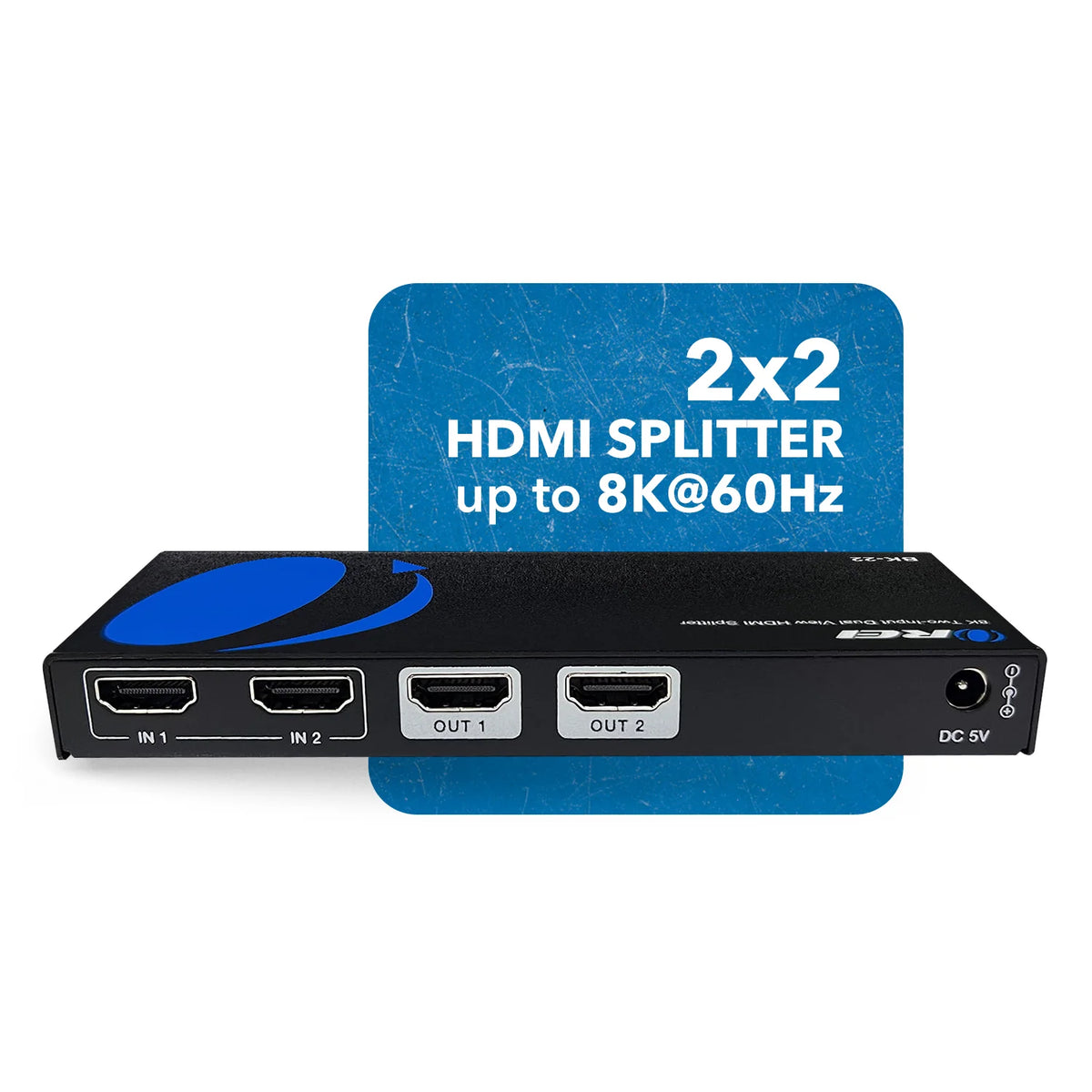

• Two HDMI inputs and two HDMI outputs, all using Type A 19-pin female connectors.
• Up to 40Gbps video bandwidth, supporting 8K at 60Hz and 4K at 120Hz.
• HDR pass-through includes HDR10, HDR10+, Dolby Vision and HLG.
• Supports VRR, FVA and ALLM with compatible connected equipment.
• HDMI audio support includes LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, DTS formats and DSD.

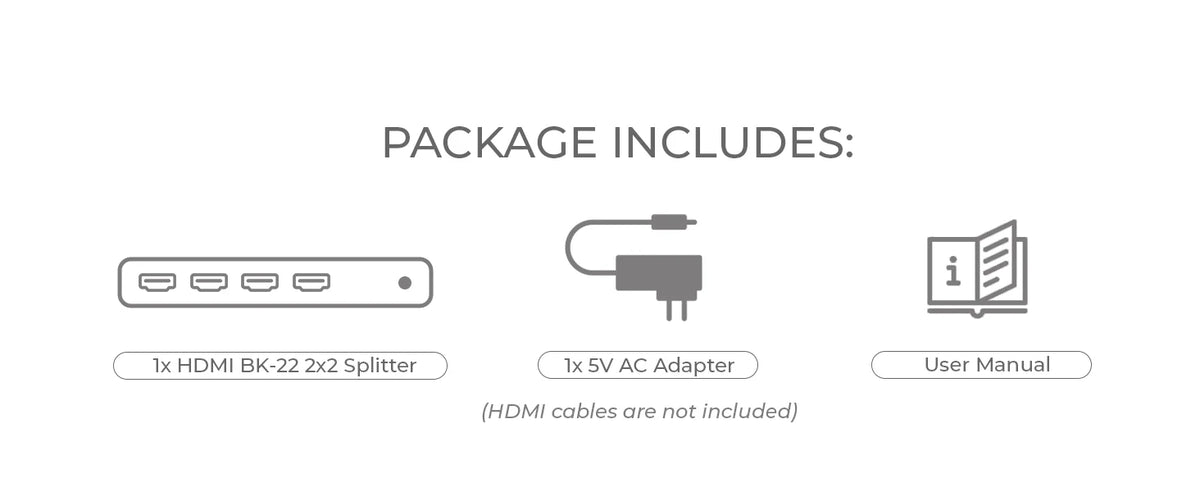

• Includes a power adapter and user manual. The Micro-USB service port is for updates.

Specifications

• Video formats: up to 8K 60Hz 4:2:0 10-bit, 8K 30Hz 4:4:4 10-bit and 4K 120Hz 4:4:4 10-bit; also supports 4K 60Hz and 2K 120/60Hz.

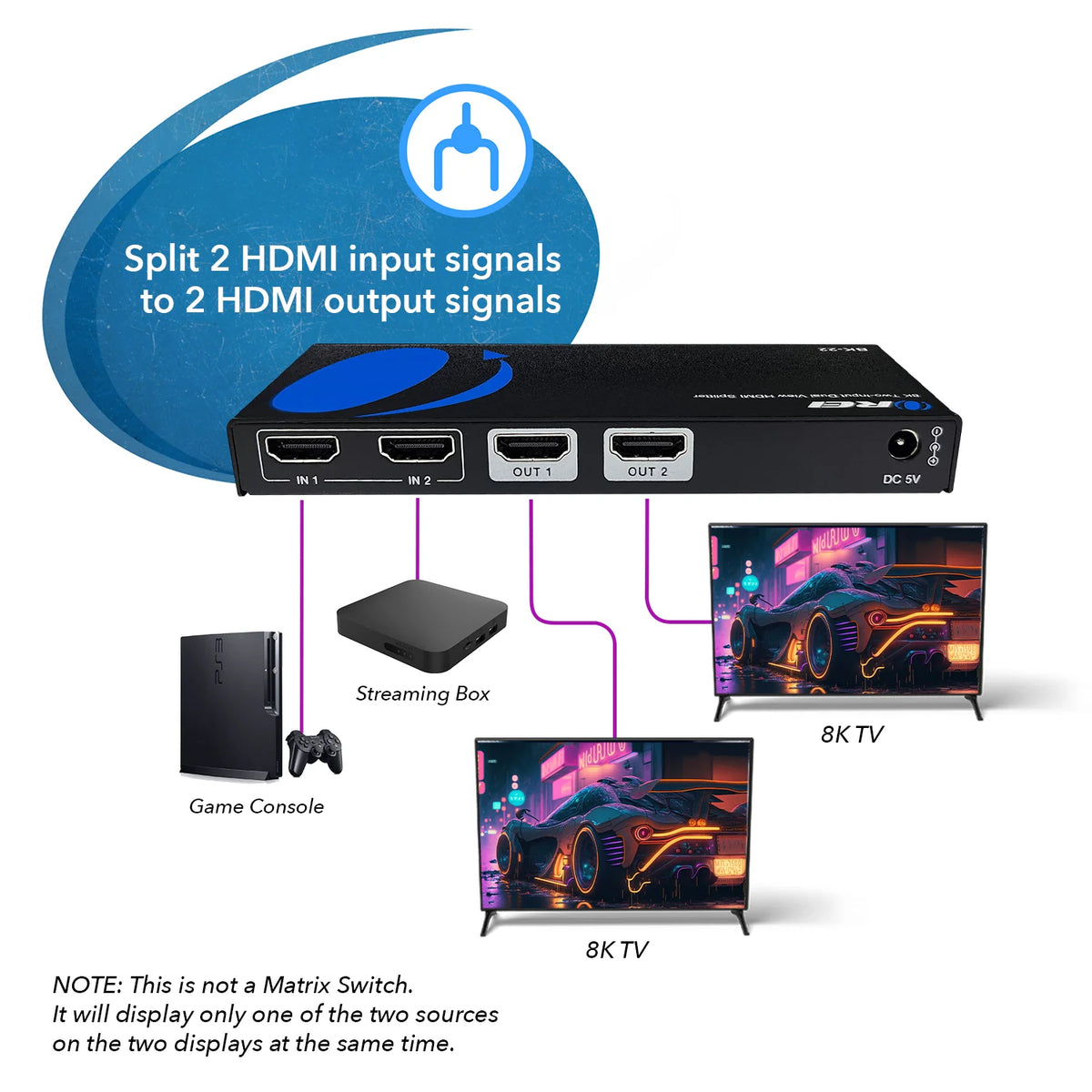

• One selected input is mirrored on both displays; it does not provide an extended desktop or two independent source images.
• No video downscaling, audio extraction or CEC support.
• HDMI cable distance limits: 6ft for 8K 60Hz and 30ft for 4K 60Hz. Use suitable high-quality HDMI 2.1 cables.
• Maximum power consumption: 2.25W. Supplied adapter input: AC 100–240V, 50/60Hz; output: DC 5V/1A.

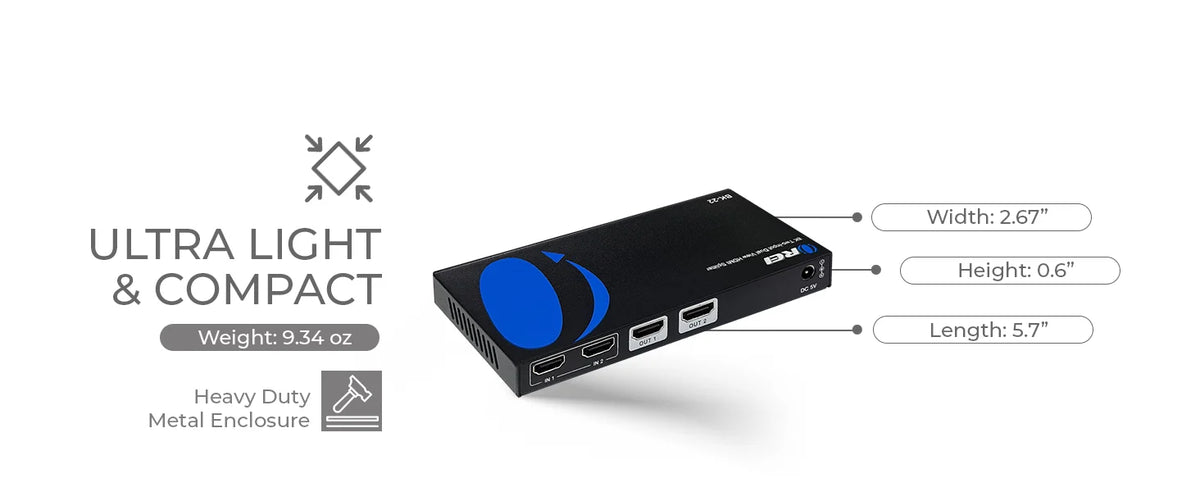

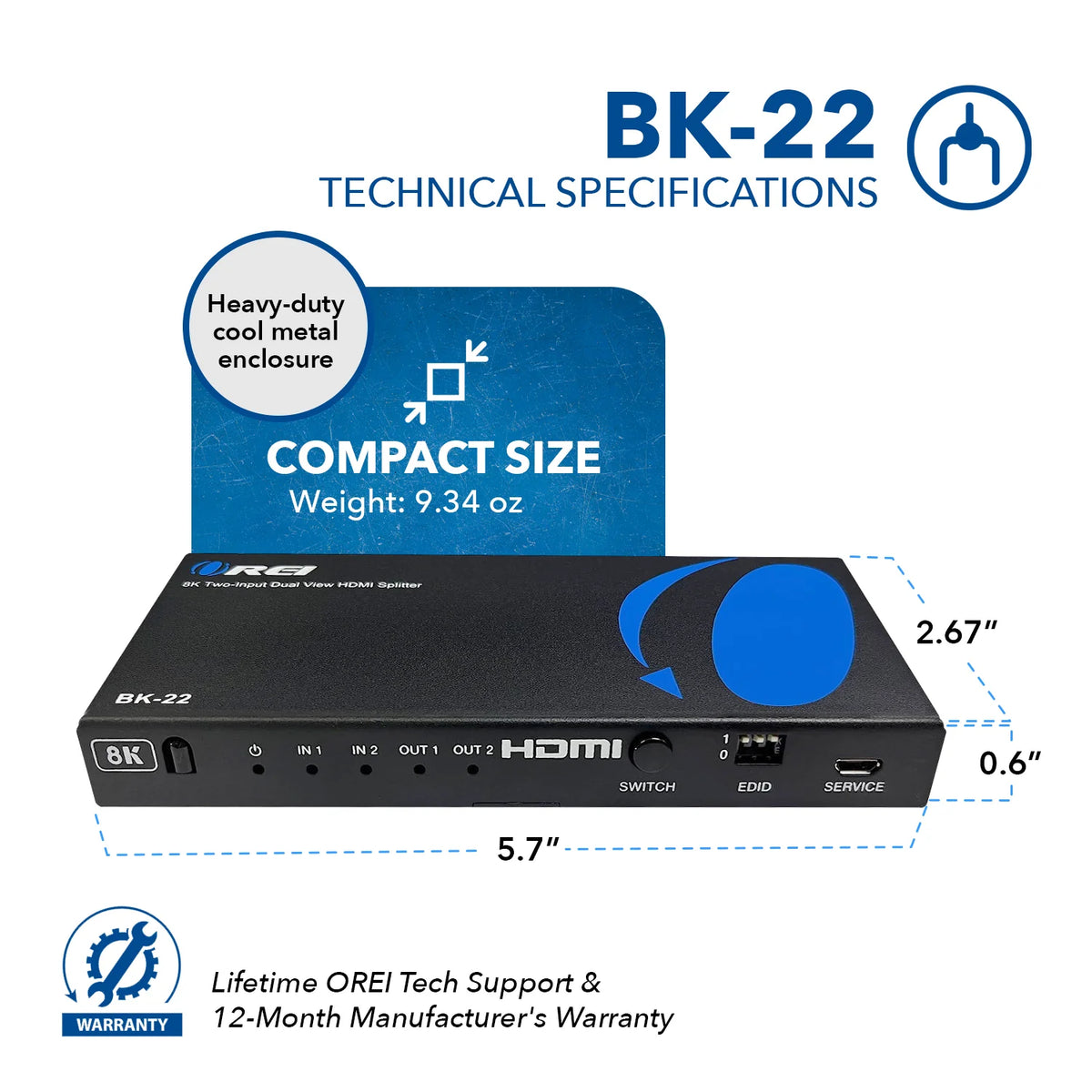

• Black metal enclosure: 115 × 68 × 18mm; weight: 220g.
• Operating temperature: 0–40°C; storage: -20–60°C. Operating humidity: 20–90% RH, non-condensing.
