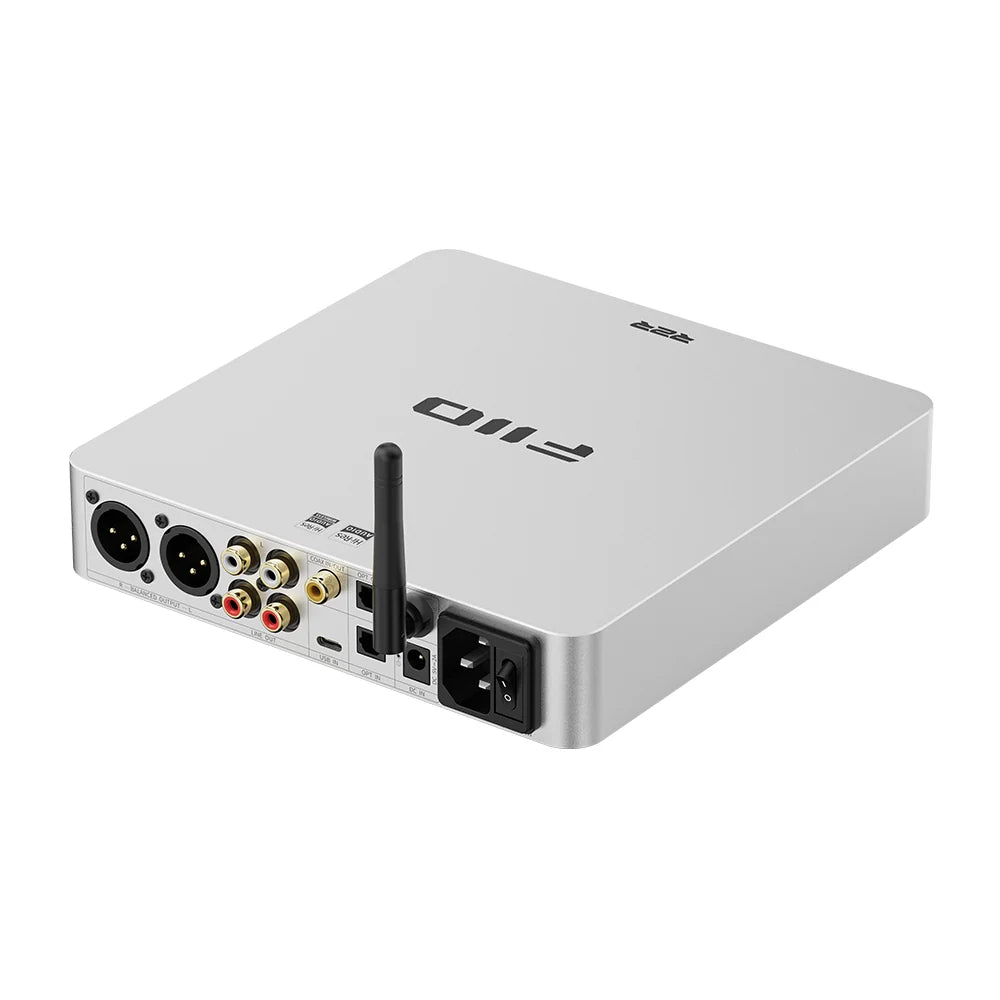

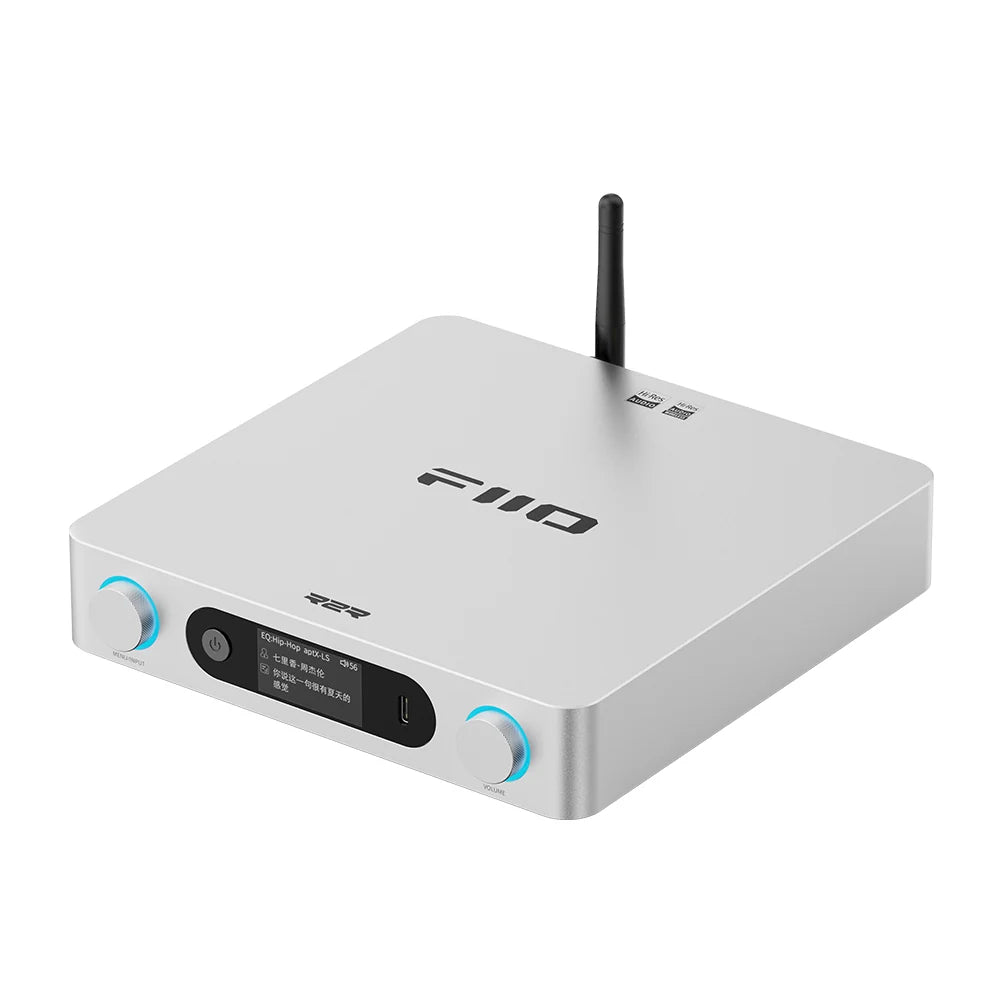

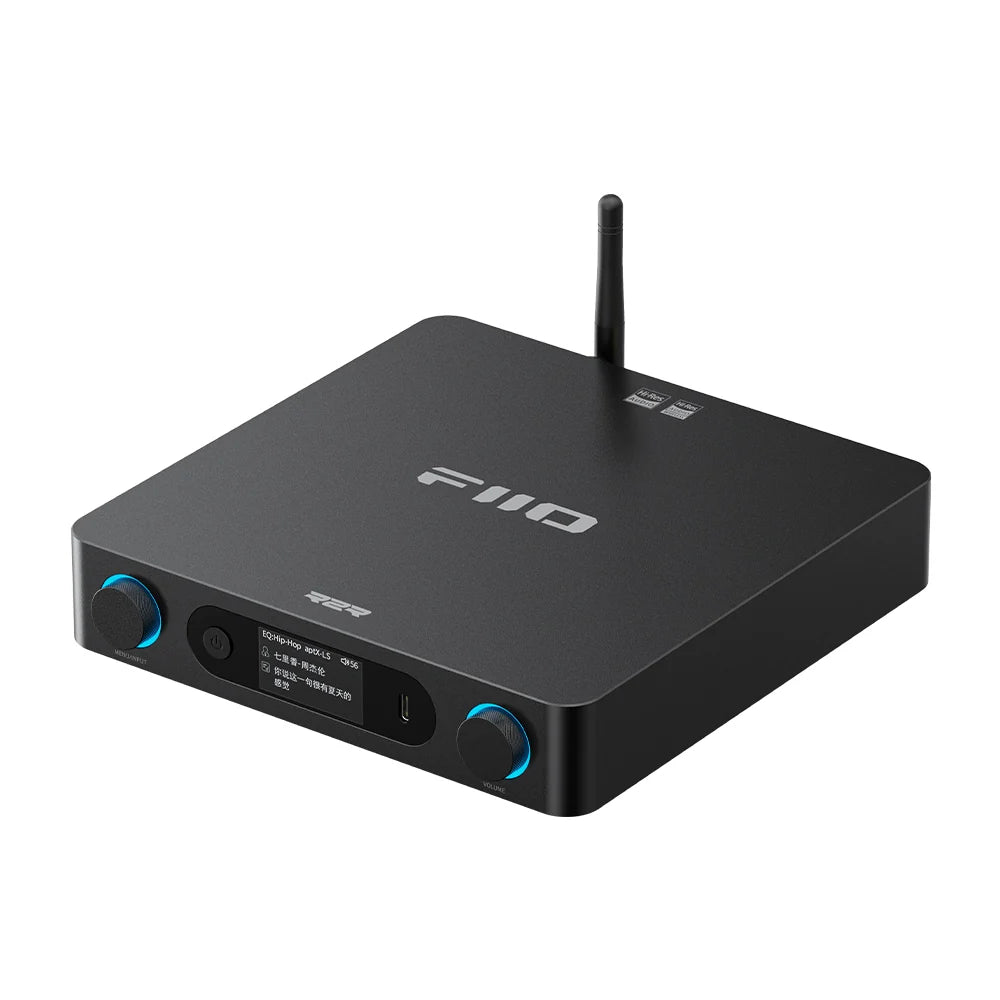

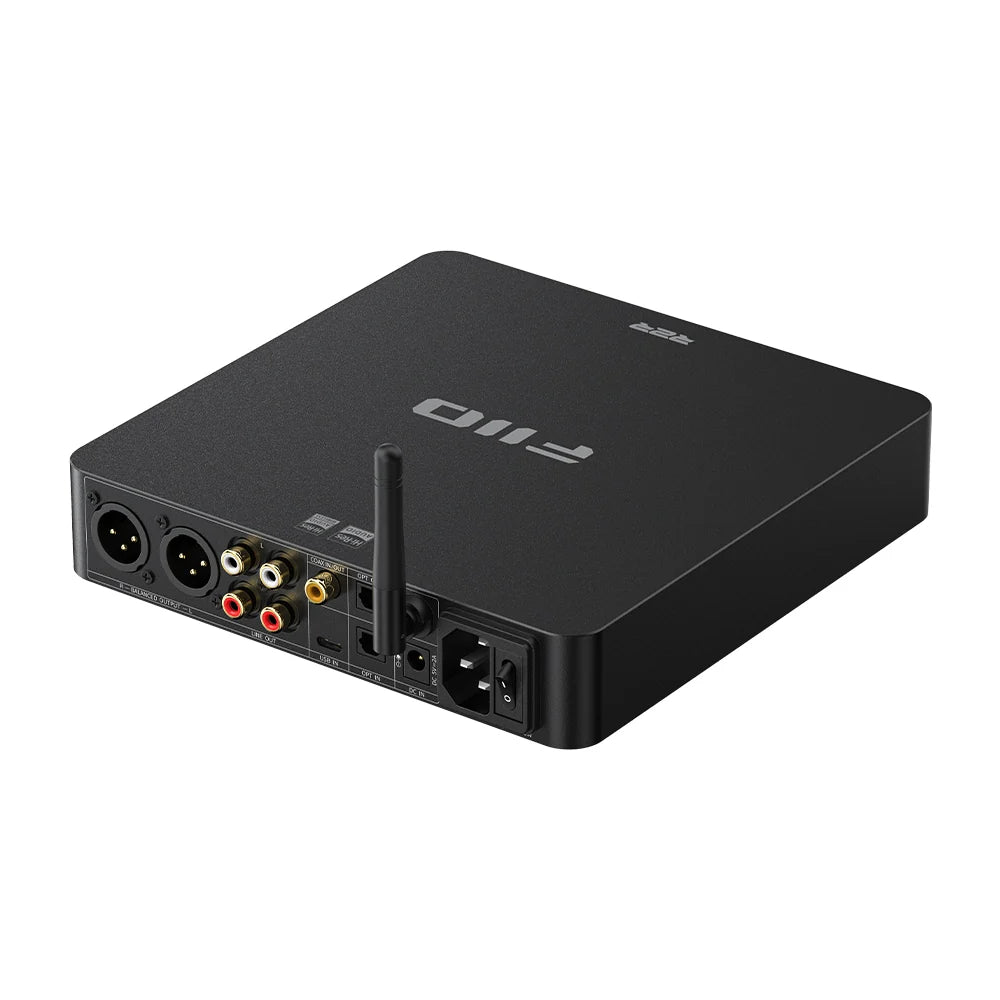

BR15 R2R Bluetooth 6.0 Audio Receiver with 24-Bit DAC, RCA and XLR Outputs, USB Decoding and Remote Control

BR15 R2R adds Bluetooth audio reception and digital-to-analog conversion to an audio system. Connect its RCA or XLR line outputs to a compatible amplifier or active speakers, or use its optical and coaxial digital outputs with an external DAC.

Key Features

• Qualcomm QCC5181 Bluetooth 6.0 receiver with LDAC, aptX Adaptive, aptX Lossless, aptX HD, aptX, LC3, SBC and AAC support. Codec availability depends on the paired device.
• Fully differential 24-bit R2R DAC with 4 channels, 192 thin-film resistors and NOS/OS modes.
• Bluetooth, USB, coaxial and optical audio decoding.

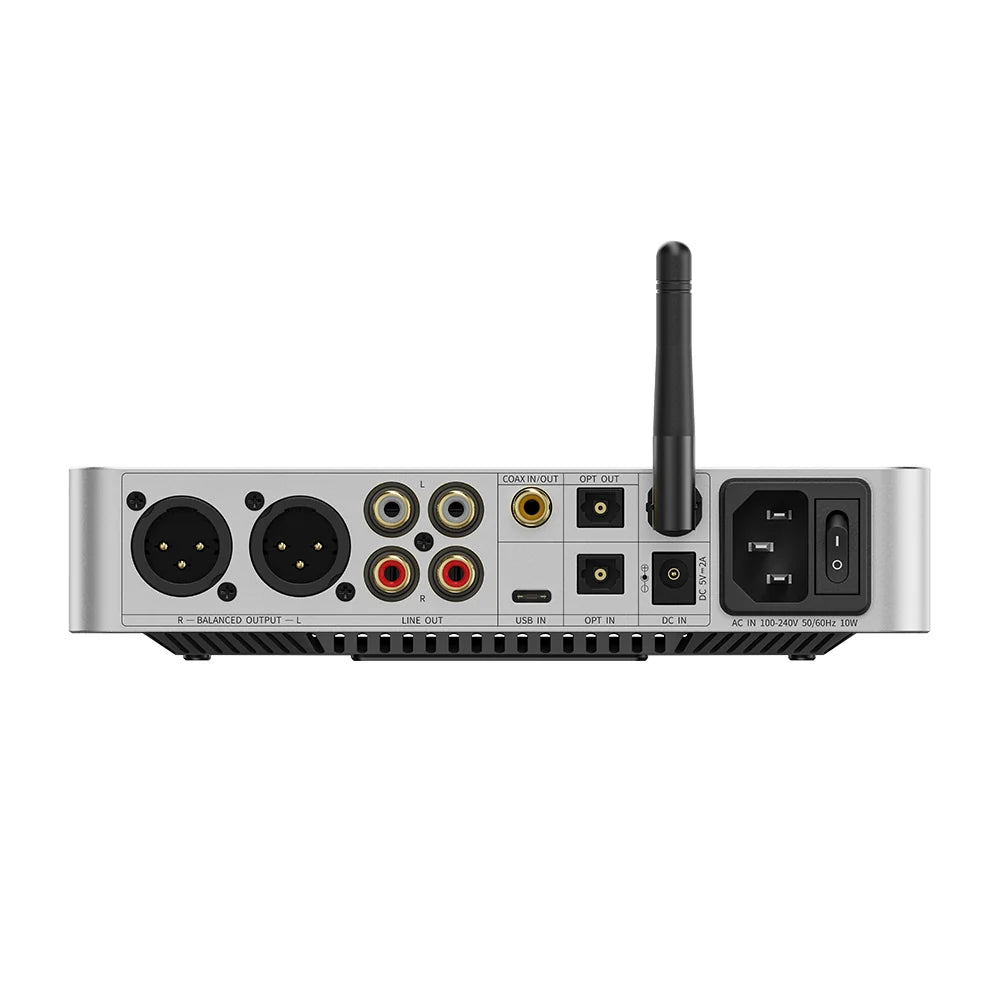

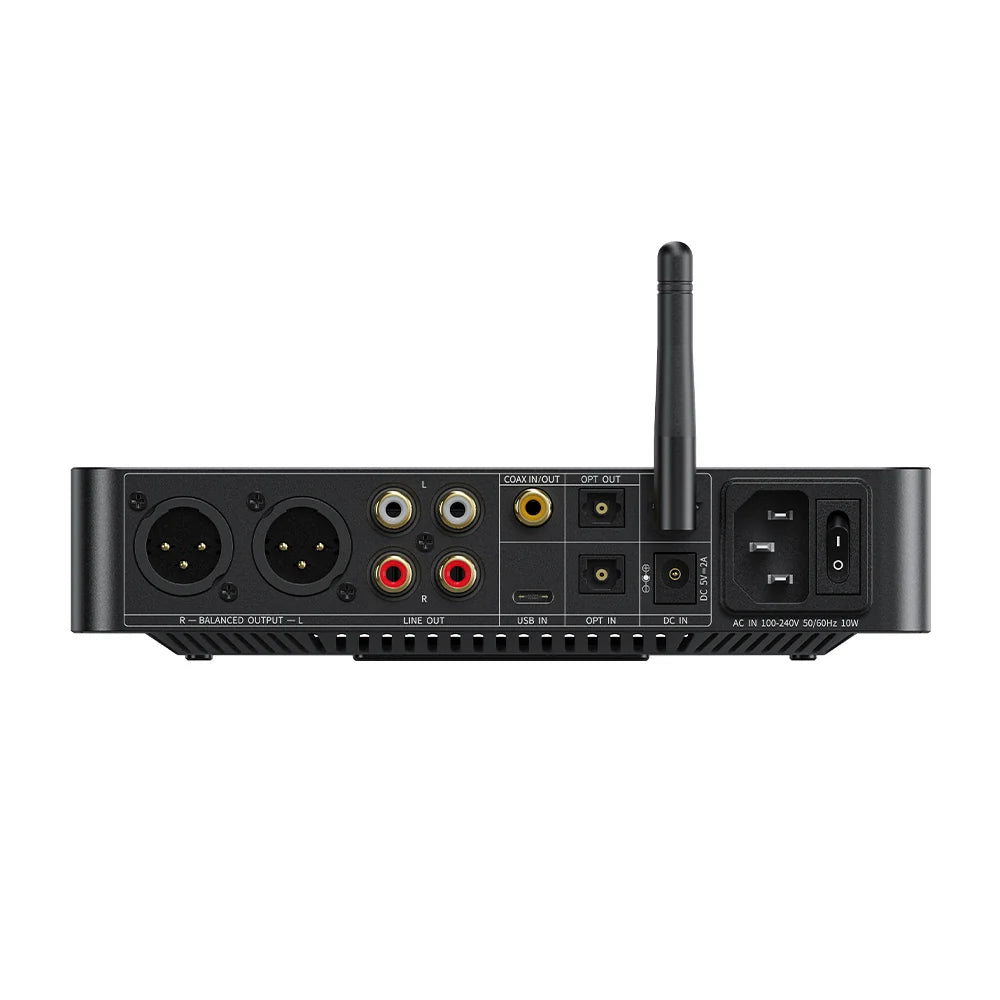

• RCA and XLR line outputs, plus coaxial and optical digital outputs.
• Global 10-band parametric EQ, AUTO EQ and FIIO Control app support.

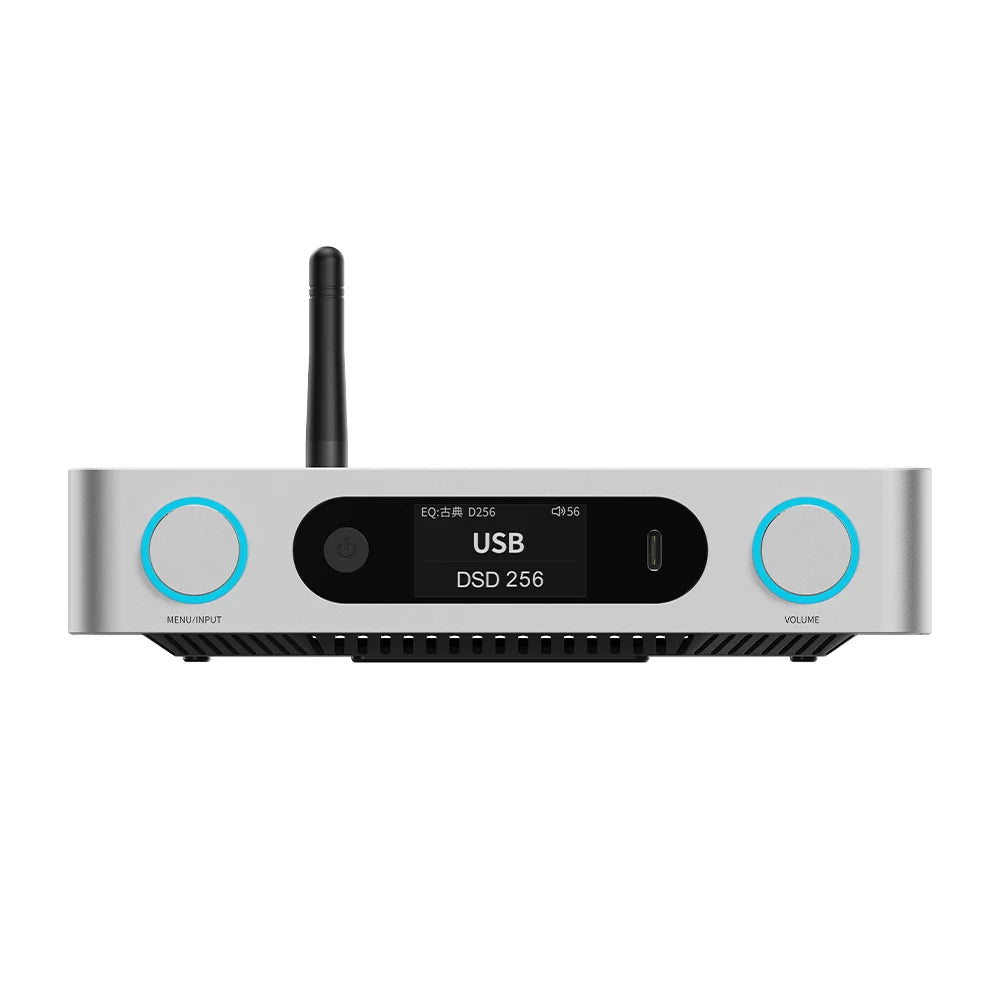

• 1.47-inch color LCD, dual knobs and infrared remote control.
• AC/DC power modes with automatic priority for an external 5V DC supply.

Specifications

• USB DAC: up to 384kHz/32-bit PCM and DSD256 through the XMOS XU316.
• Coaxial input: up to 192kHz/24-bit and DSD64.
• Optical input: up to 96kHz/24-bit and DSD64.
• Coaxial and optical digital outputs: up to 192kHz/24-bit and DSD64.
• RCA line output: 2.2Vrms + 2.2Vrms; XLR: 4.4Vrms + 4.4Vrms, at 1kHz into 10kΩ.
• Dimensions: 210 × 188 × 42mm.

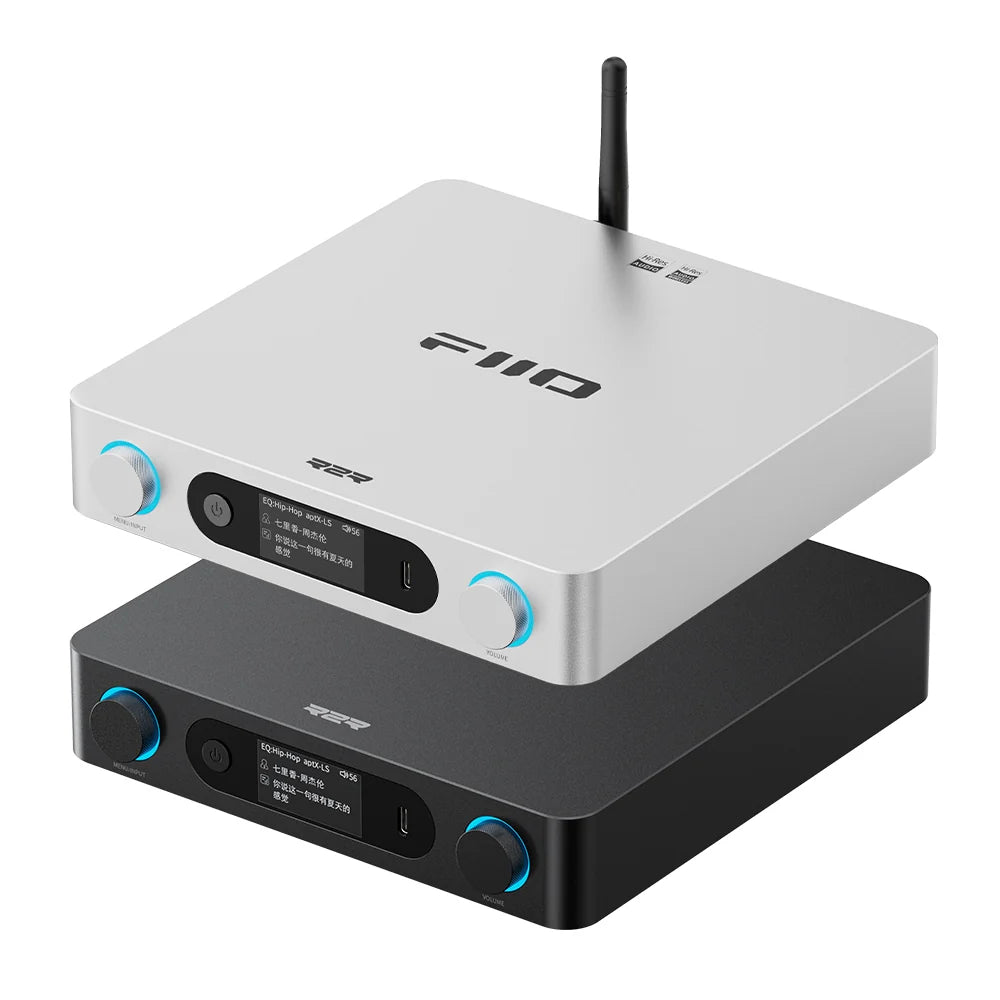

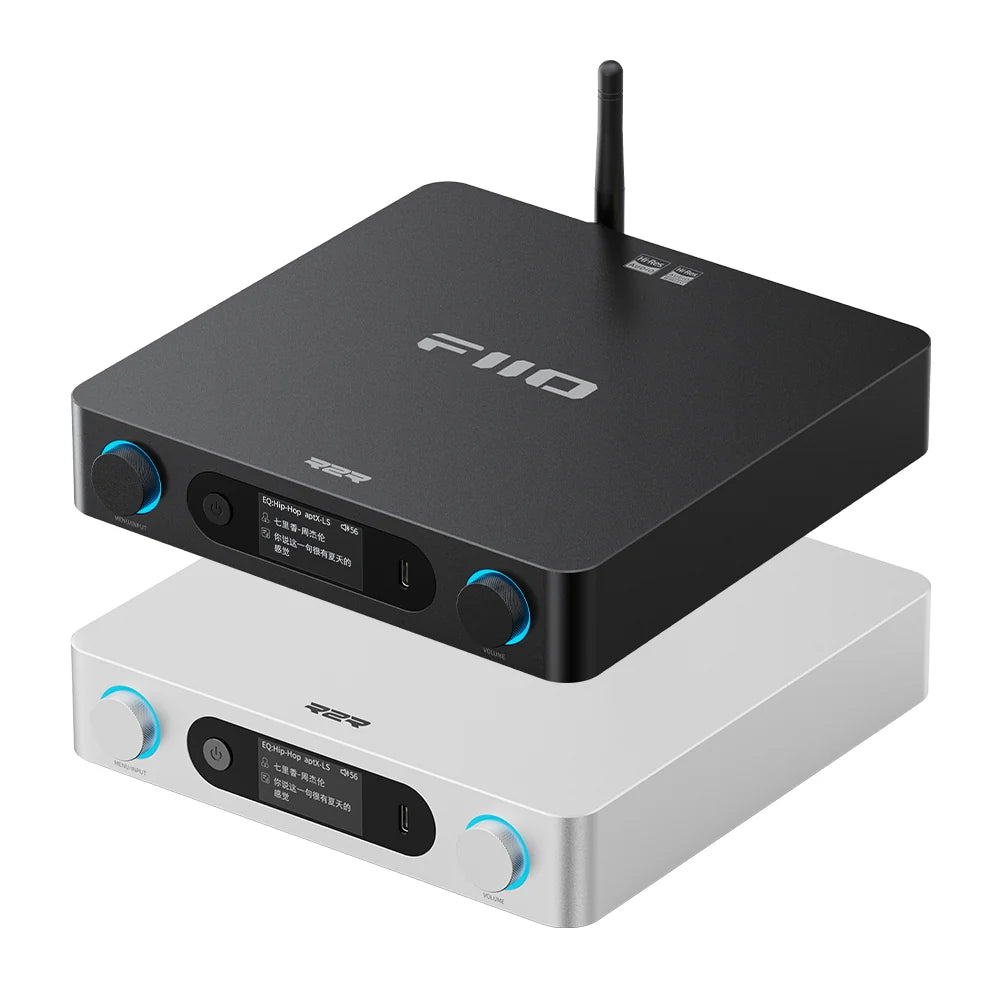

• Choose a Black or Silver finish.

Package Contents

BR15 R2R unit, infrared remote control, AC power cord, dual RCA cable and quick start guide.
