CT6B/T6A 2.4GHz Six-Channel AFHDS Radio Transmitter with Included Receiver, Programmable Mixing and Strap
$67.63
Sale price
$67.63
Regular price

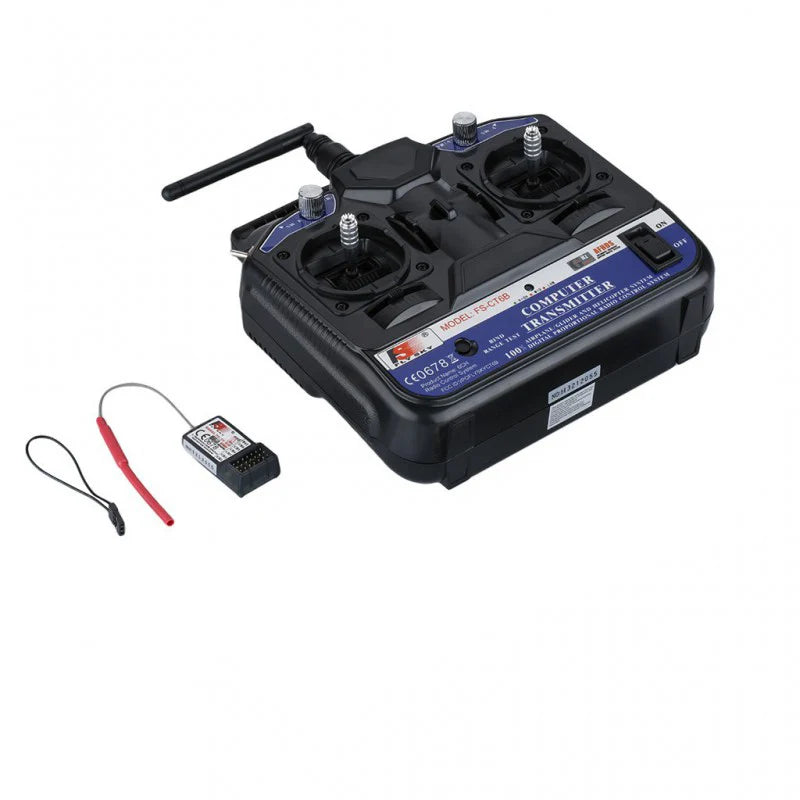

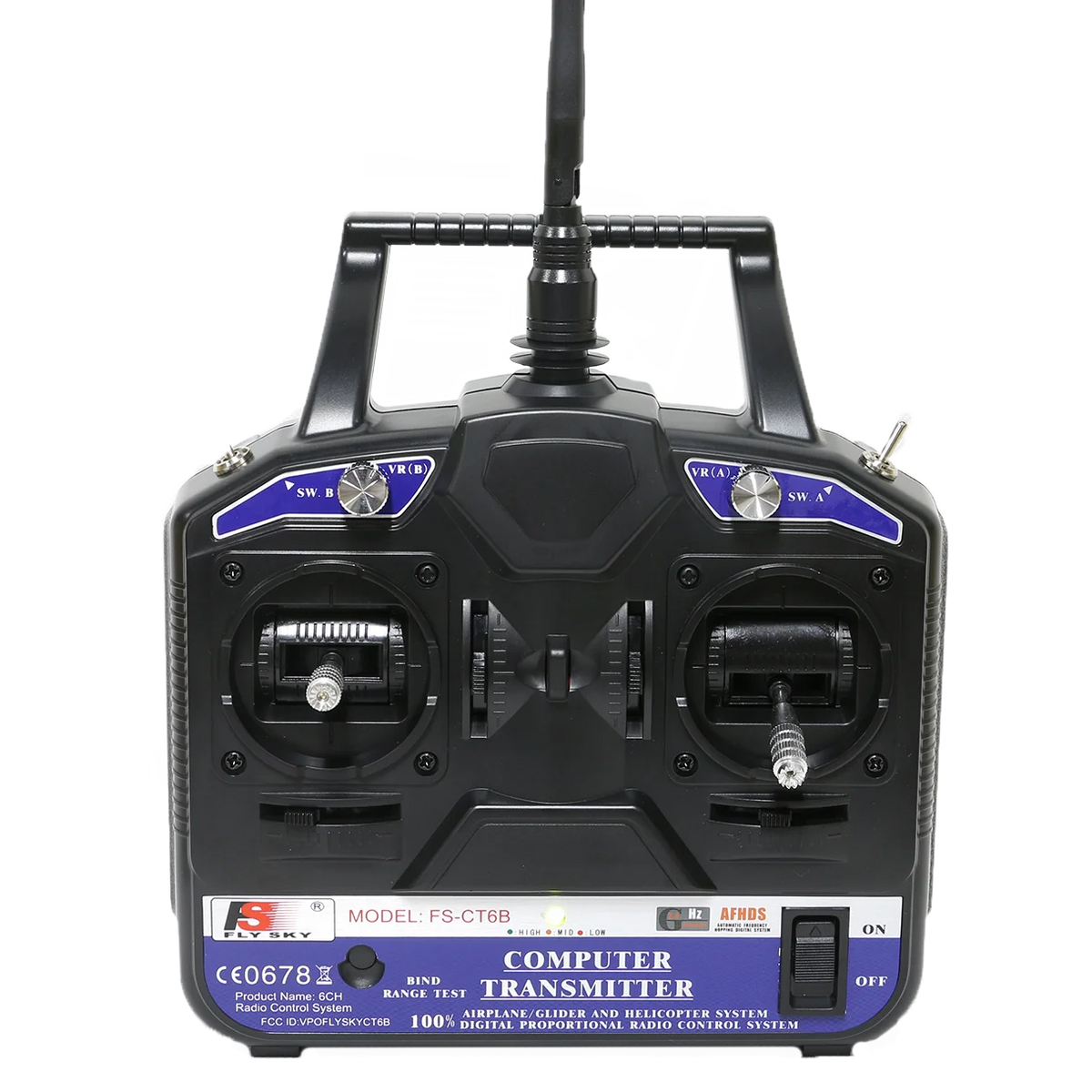

The CT6B/T6A is a six-channel 2.4GHz AFHDS radio transmitter supplied with a compatible R6B or T6RA V2 receiver and a transmitter strap. Mixing on channels 1 and 2 is programmed for single-stick robot drive applications.
Key Features
- Three programmable mixes, endpoint adjustment, subtrims and servo reverse.
- Dual rates and throttle curves.
- Knob and switch controls for channels 5 and 6 allow a motor speed or servo position to be set before switching to that preset.
- The right stick returns to center on both axes; the left stick has a ratchet on its vertical axis.
Specifications
- Radio: 2.4GHz, six channels, AFHDS protocol.

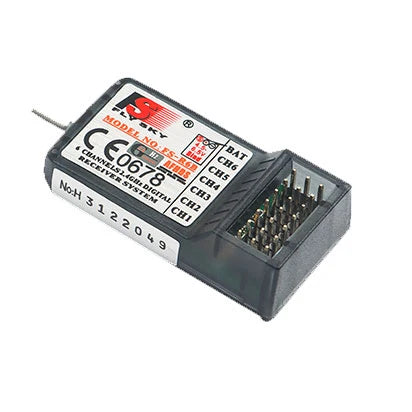

- Receiver compatibility: R6B or T6RA V2.

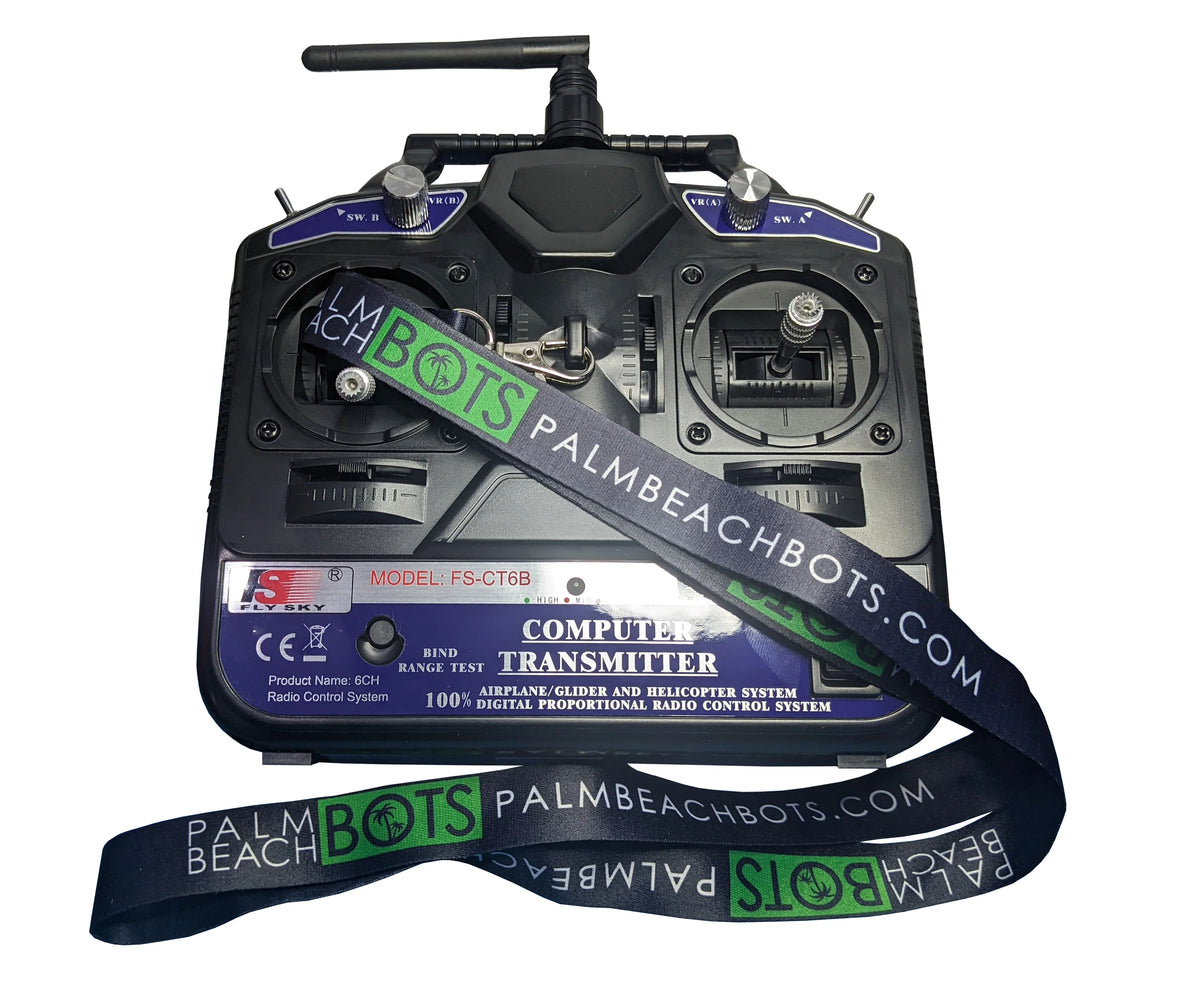

- Package: transmitter, compatible receiver and transmitter strap.
- Compatible transmitter family: CT6B and Turnigy T6A; receivers and transmitters are interchangeable between the two.
Setup and Signal Loss
On loss of the transmitter signal, receiver outputs remain in the off state. Motor-controller behavior depends on how the controller interprets that state. Servos hold their last position, so check that this does not create a hazard. Confirm the behavior of your complete robot and follow the transmitter manual before operation.
