Dreamcast Fan Mount Kit with 3D-Printed Duct, Replacement Door Latch and Adapter Cable for NF-A4x10 5V Fans

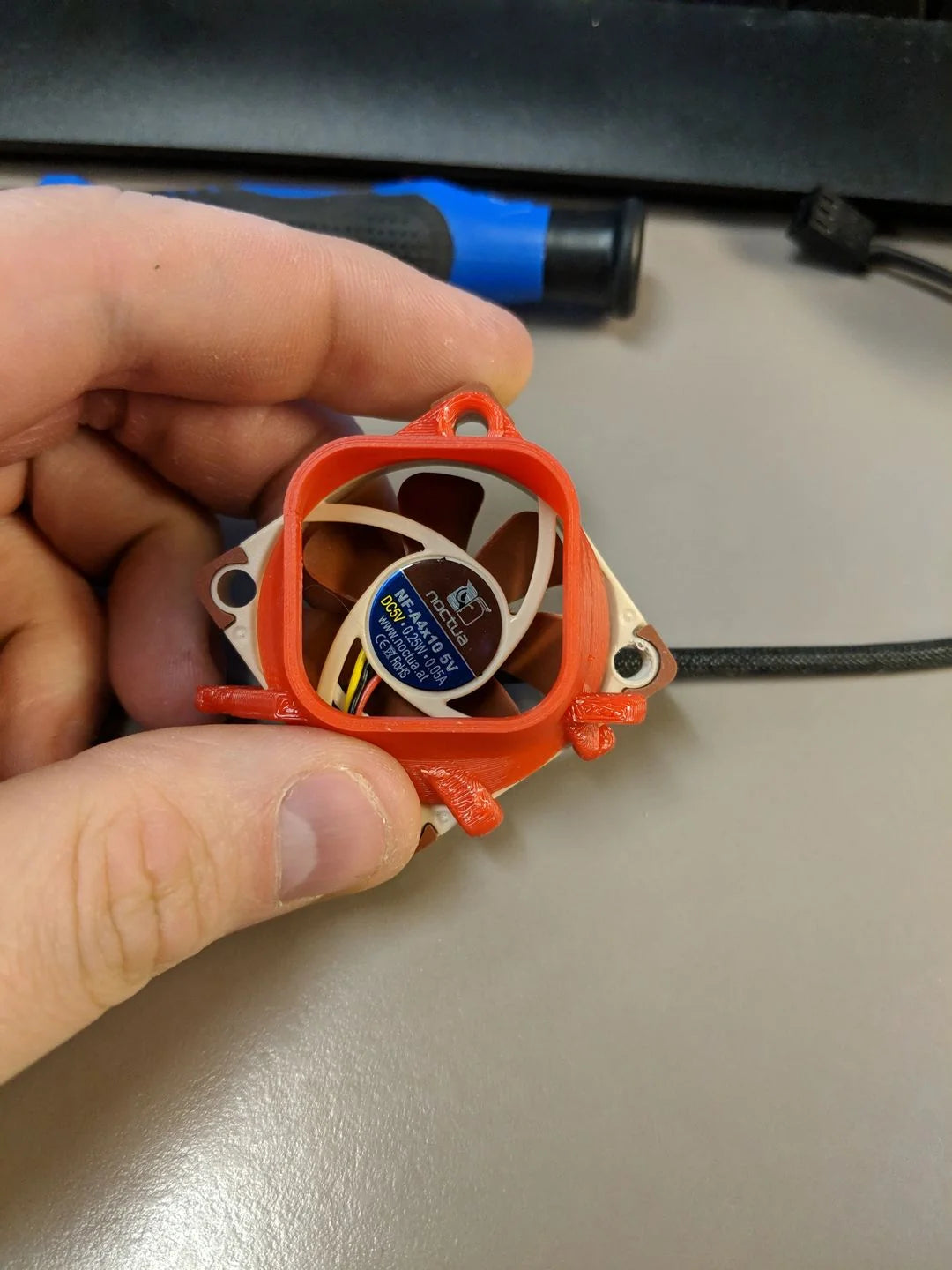

This Dreamcast fan mount kit provides a 3D-printed fan duct, a replacement door release latch and an adapter cable for fitting a separately purchased Noctua NF-A4x10 5V 3-pin fan in the original fan position. The fan and Dreamcast console are not included.

Key Features

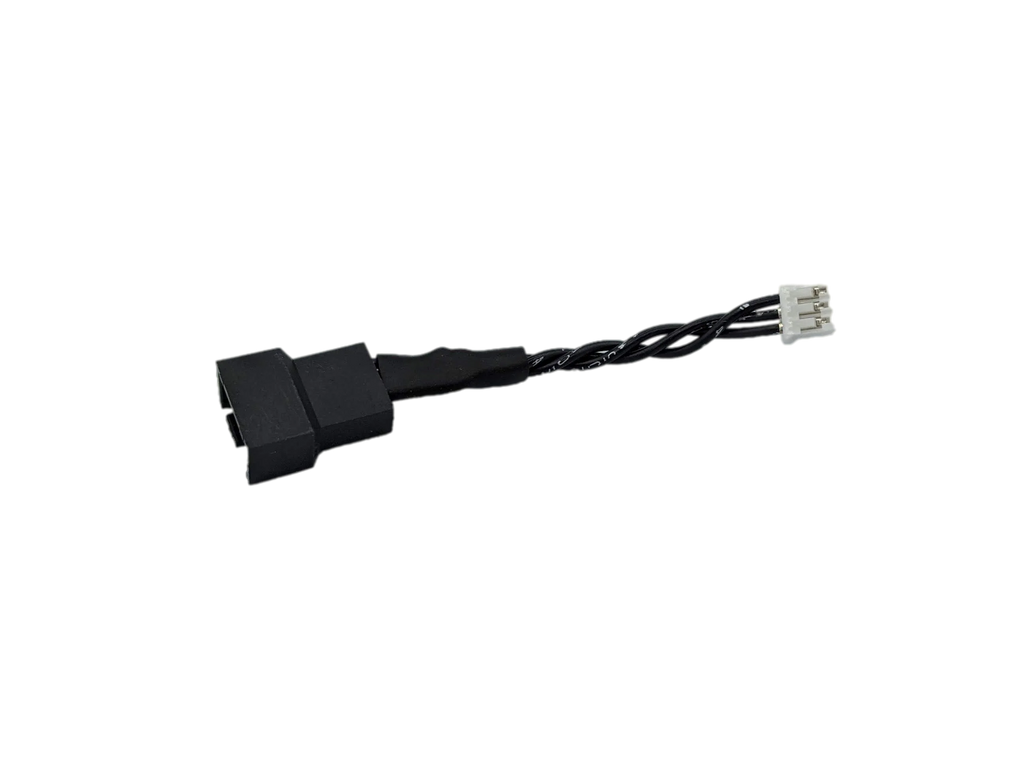

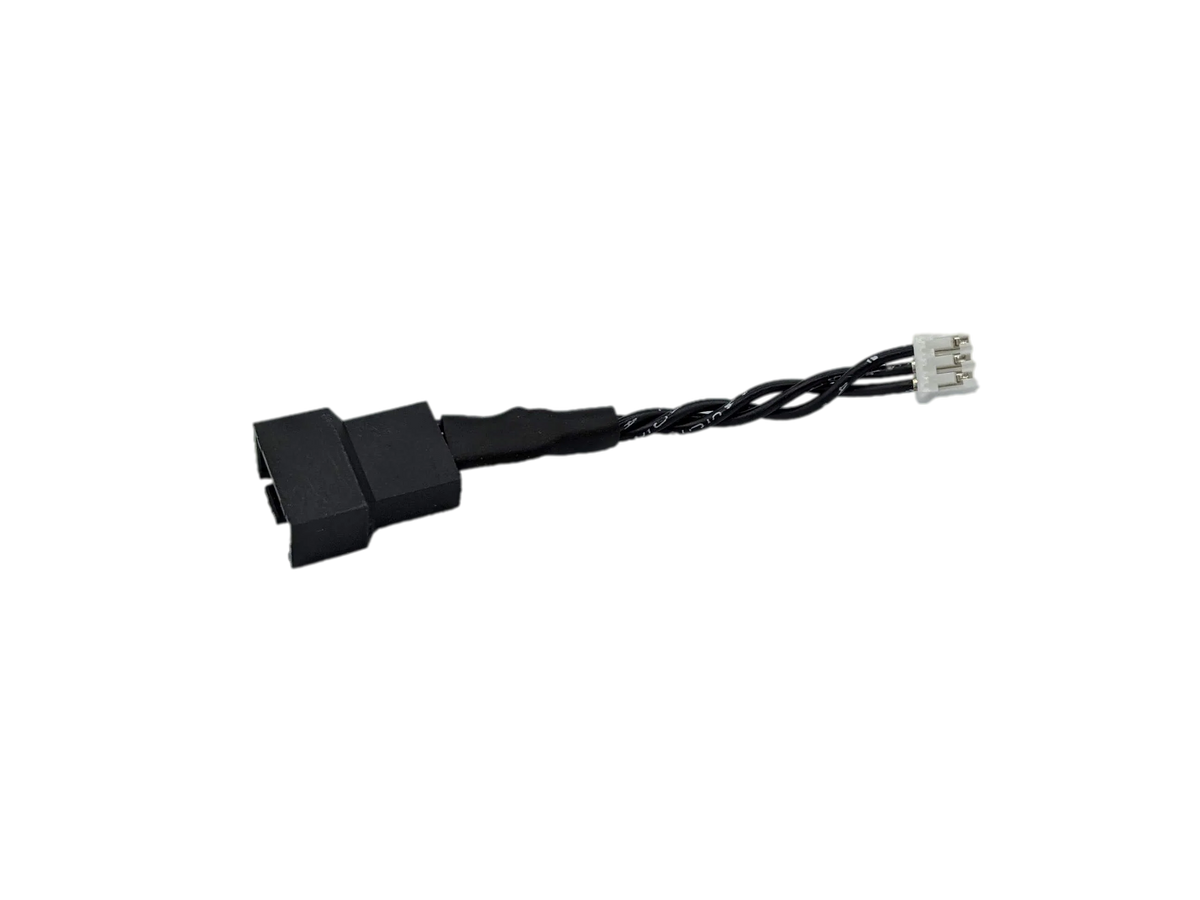

• The custom conversion cable connects to the original fan connector and includes a built-in 10K resistor.
• The revised mount and latch design provides sturdier parts.
• Designed for Dreamcast systems, including systems using USB-GDROM, GDEMU or MODE drive emulators.
• Choose from 11 mount kit colors.

Specifications

• Kit type: Dreamcast replacement fan mounting and conversion parts.
• Required fan: NF-A4x10 5V, 3-pin.
• Cable resistor: 10K.

Compatibility

Use the NF-A4x10 5V 3-pin fan. The 12V version will not spin in the Dreamcast. This kit does not fit early VA0 consoles; check your console revision before ordering. A VA0 system has a silver or grey fan attached to a metal heatsink. With the original disc drive installed, drive noise may remain louder than the cooling fan.

Package Contents

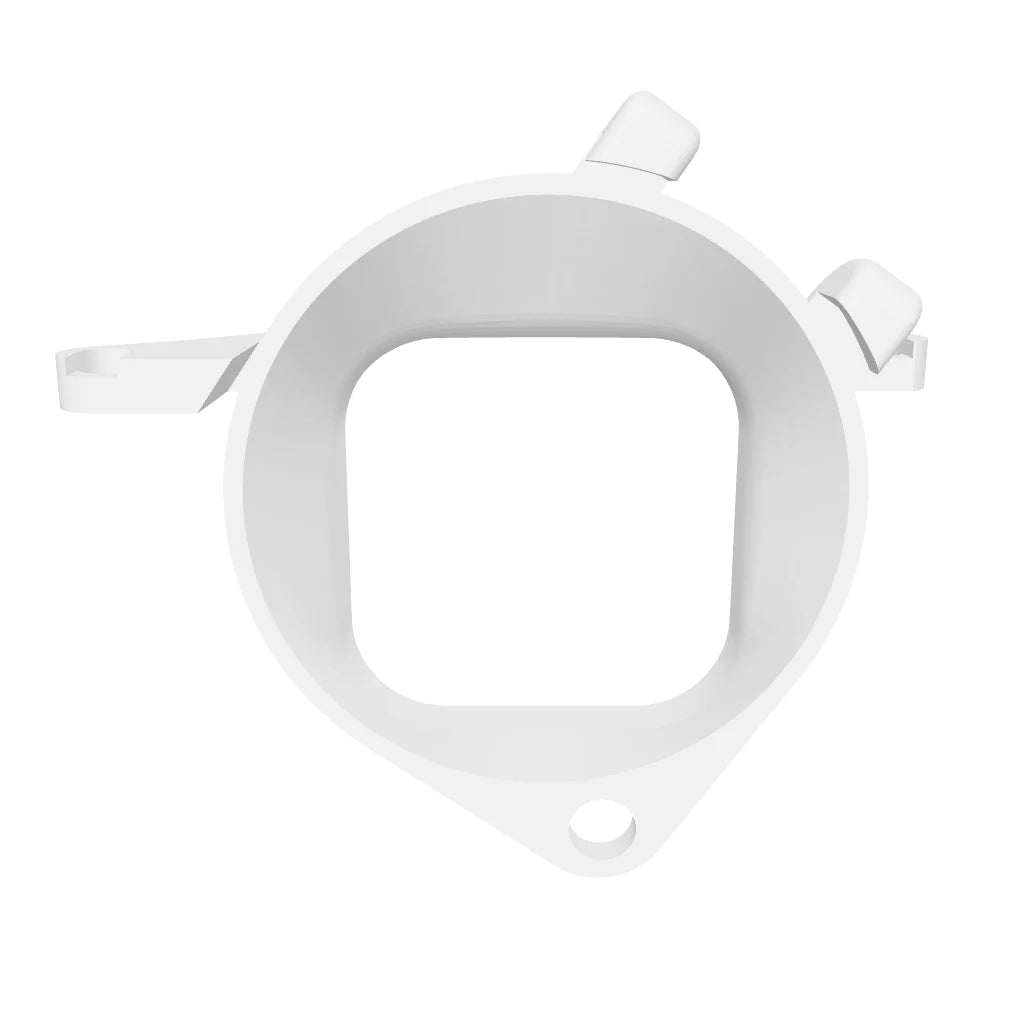

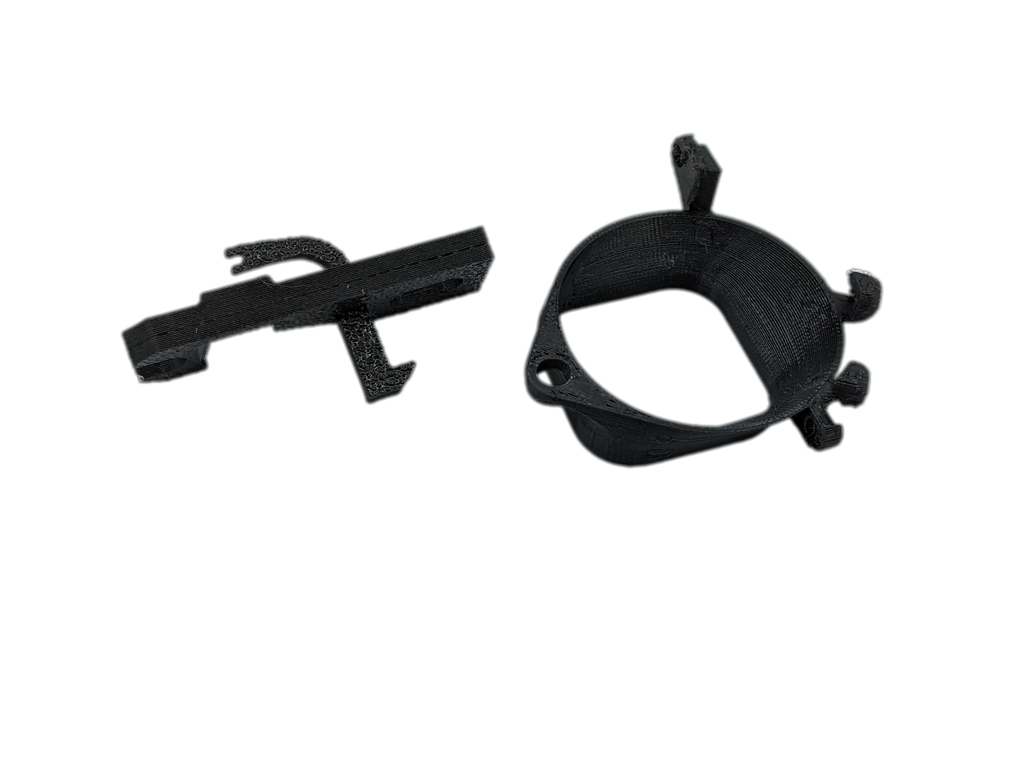

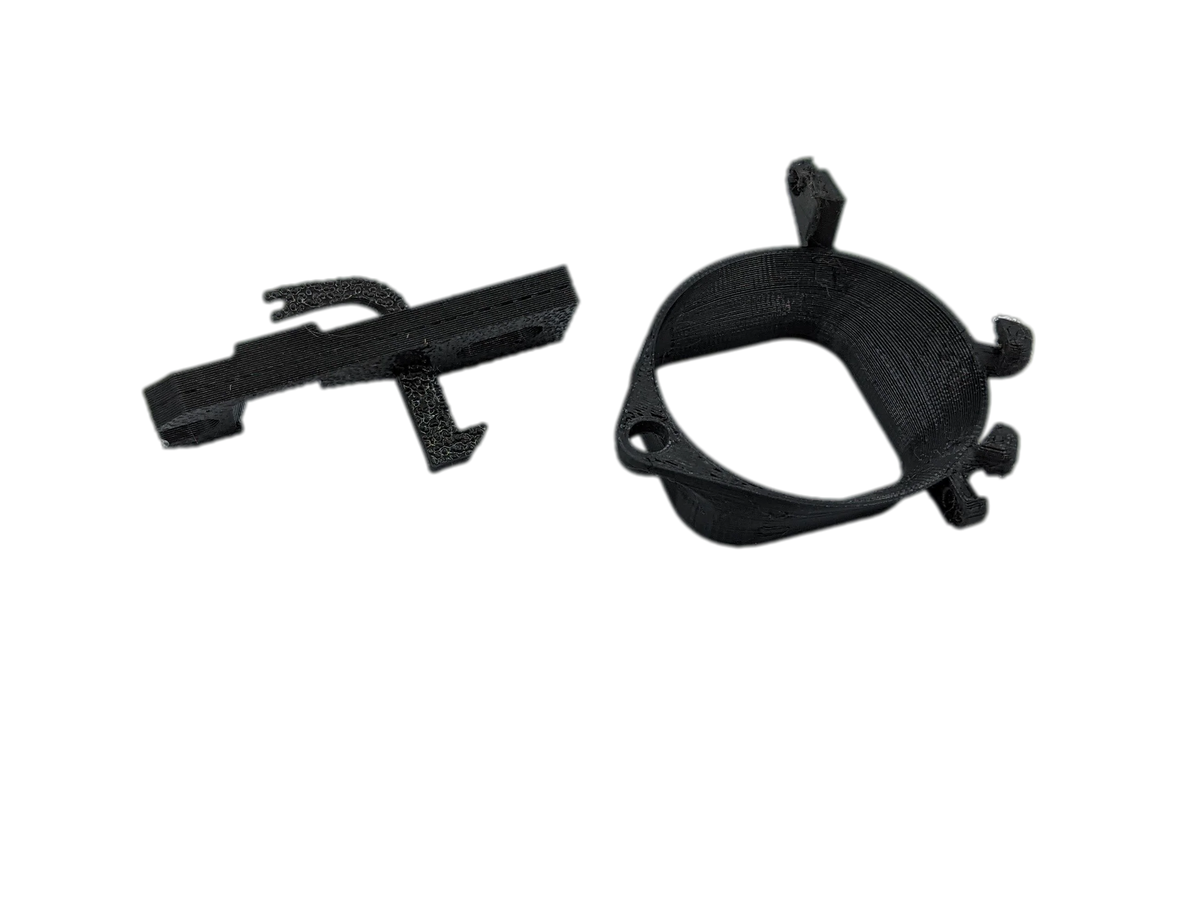

• 3D-printed fan duct.
• 3D-printed replacement door release latch.
• Custom fan conversion cable with built-in 10K resistor.
