ESP32 USB-C Development Board with 38-Pin Headers, CP2102 USB-to-Serial Chip, Wi-Fi and Bluetooth 4.2

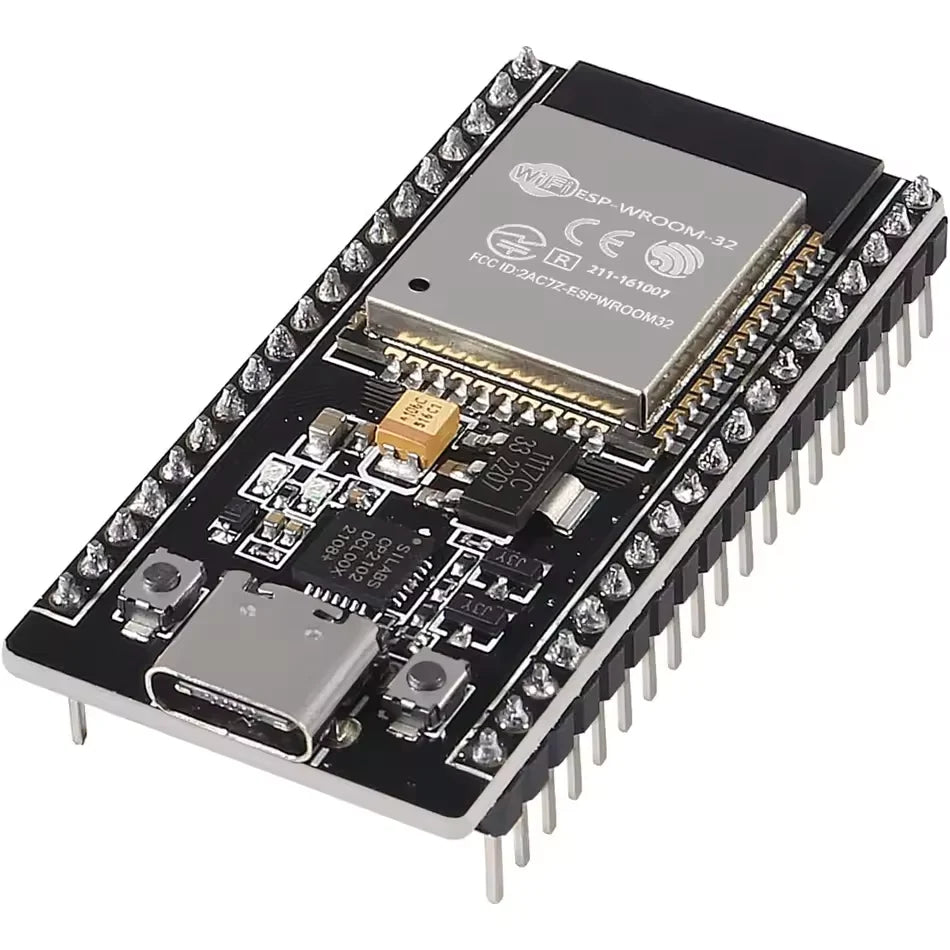

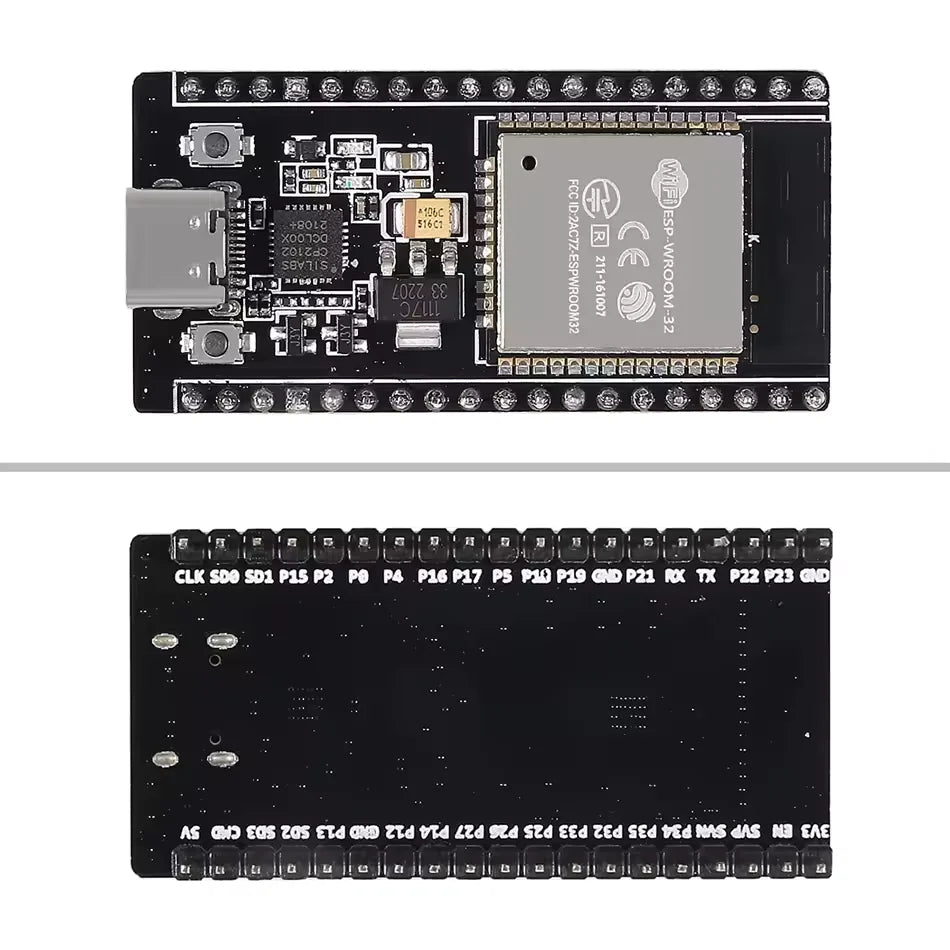

This ESP32 development board combines an ESP-WROOM-32 module with a CP2102 USB-to-serial chip and a USB-C connection for programming and power. Its 38-pin layout and wireless connectivity suit IoT prototypes, sensor networks and smart home development projects.

Key Features

• Dual-core 32-bit LX6 processor running at up to 240 MHz.
• 802.11 b/g/n Wi-Fi and Bluetooth 4.2 with Classic and BLE support.
• USB-C connection and CP2102 USB-to-serial interface.

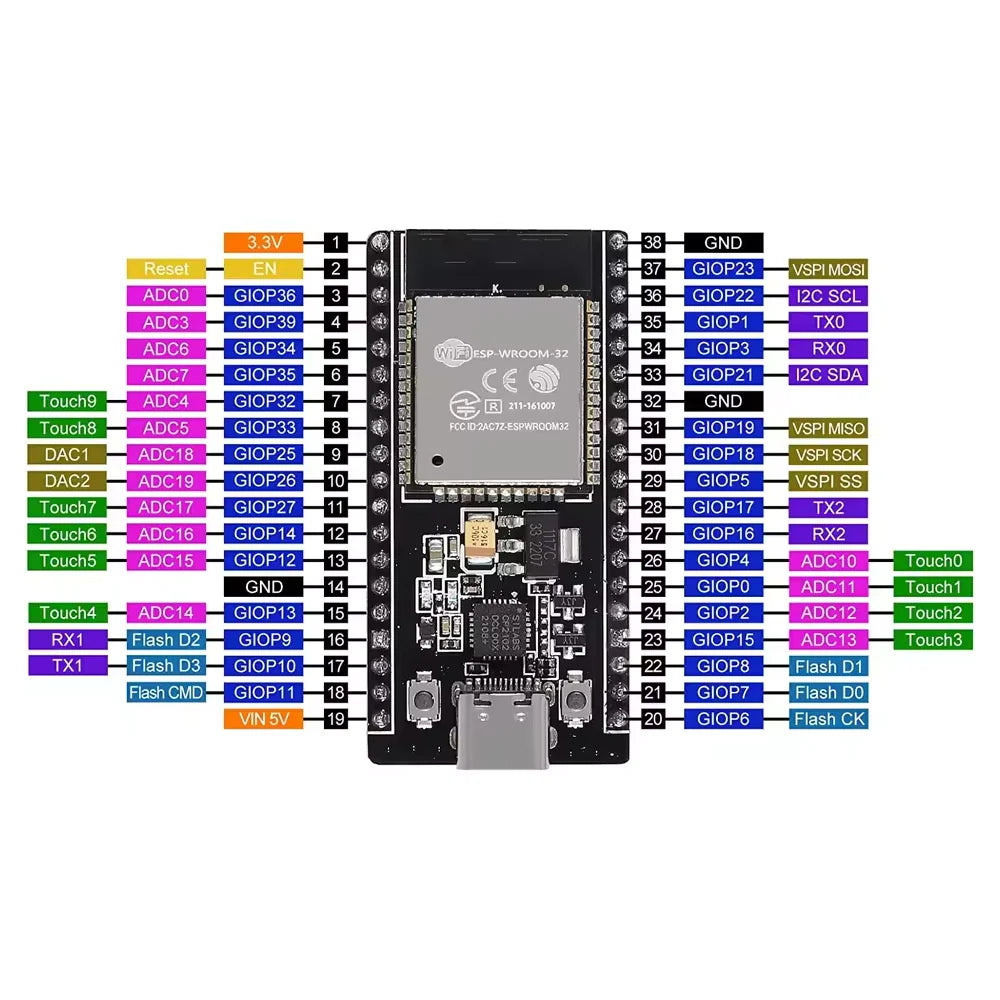

• GPIO and serial interfaces for connecting project peripherals; use the board pinout when wiring.
• On-board PCB antenna and 32 Mbit SPI flash.

Specifications

• Module: ESP-WROOM-32. Layout: 38 pins.
• Memory: 520 KB SRAM, 448 KB ROM and 16 KB RTC SRAM.
• Interfaces listed by the merchant include UART, SPI, I2C, I2S, PWM, ADC and DAC.
• USB-C power input: 5V.
• Dimensions: 52 × 29 × 15 mm.
• Package accessories, cables and power adapters are not specified.
