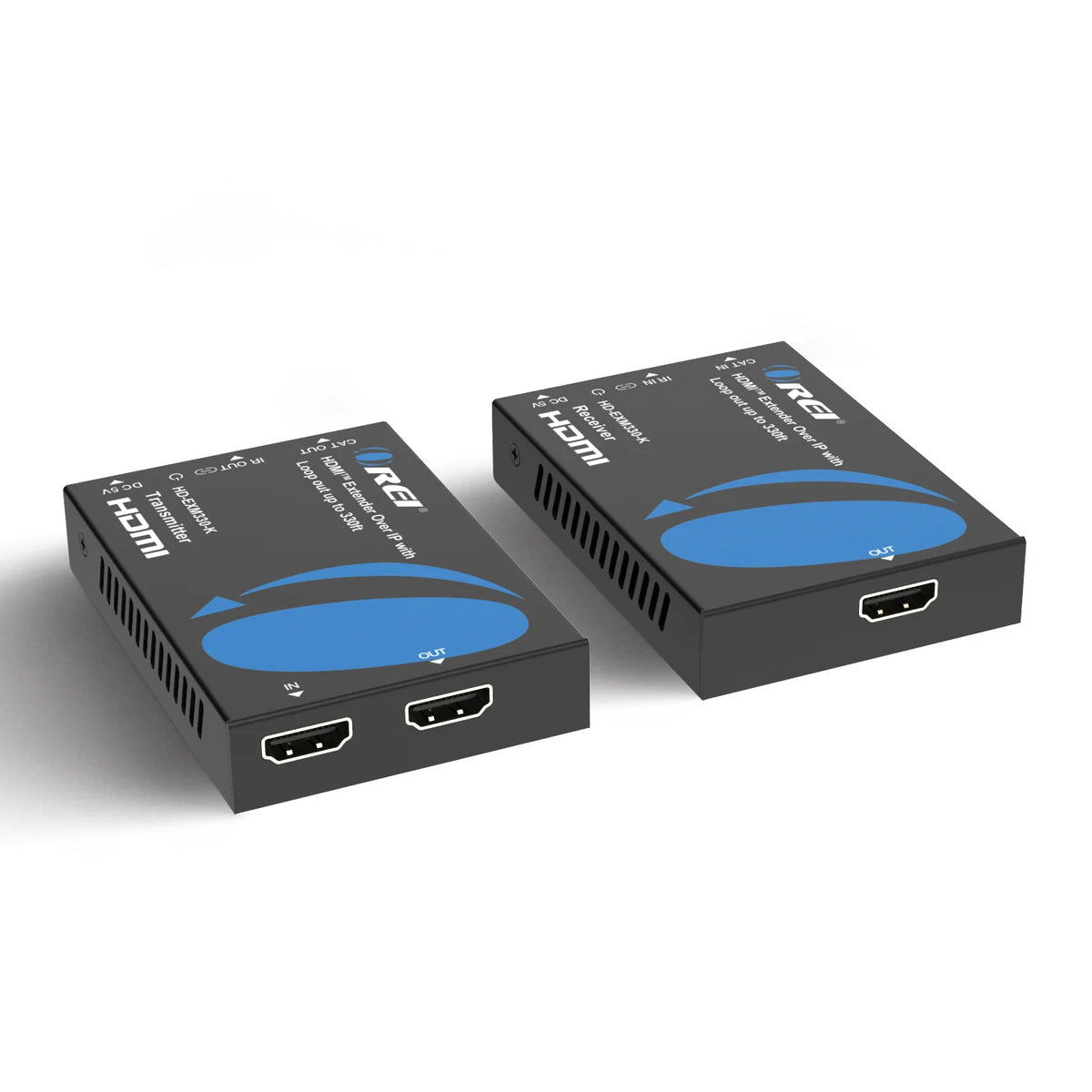

1080p HDMI Over IP Extender HD-EXM330 with CAT6 Transmission, Local Loop-Out and Receiver-Only Option

The HD-EXM330 system distributes Full HD HDMI video over Ethernet cabling through a dedicated network switch. Choose the transmitter-and-receiver kit to build a system or the receiver-only option to expand a compatible installation.

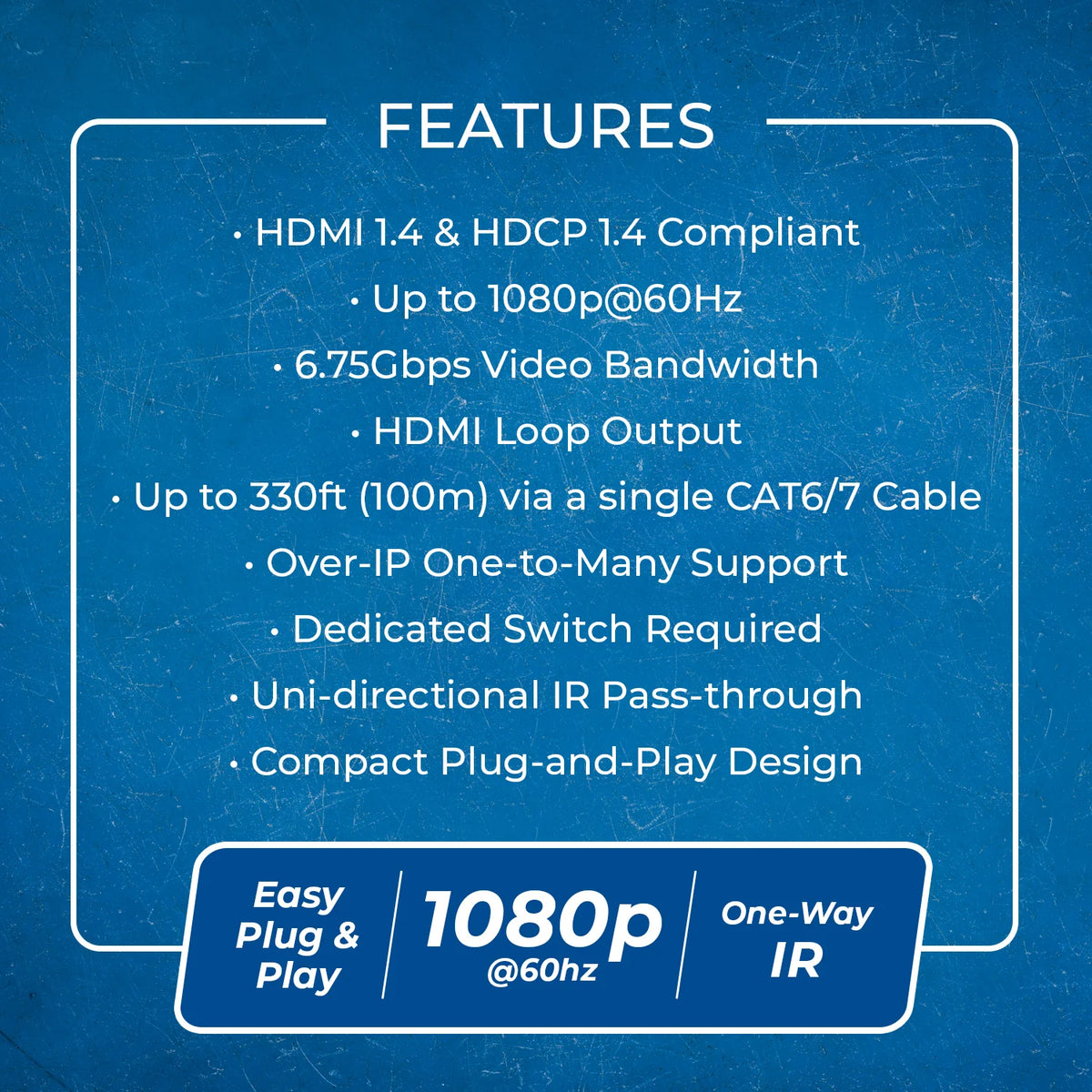

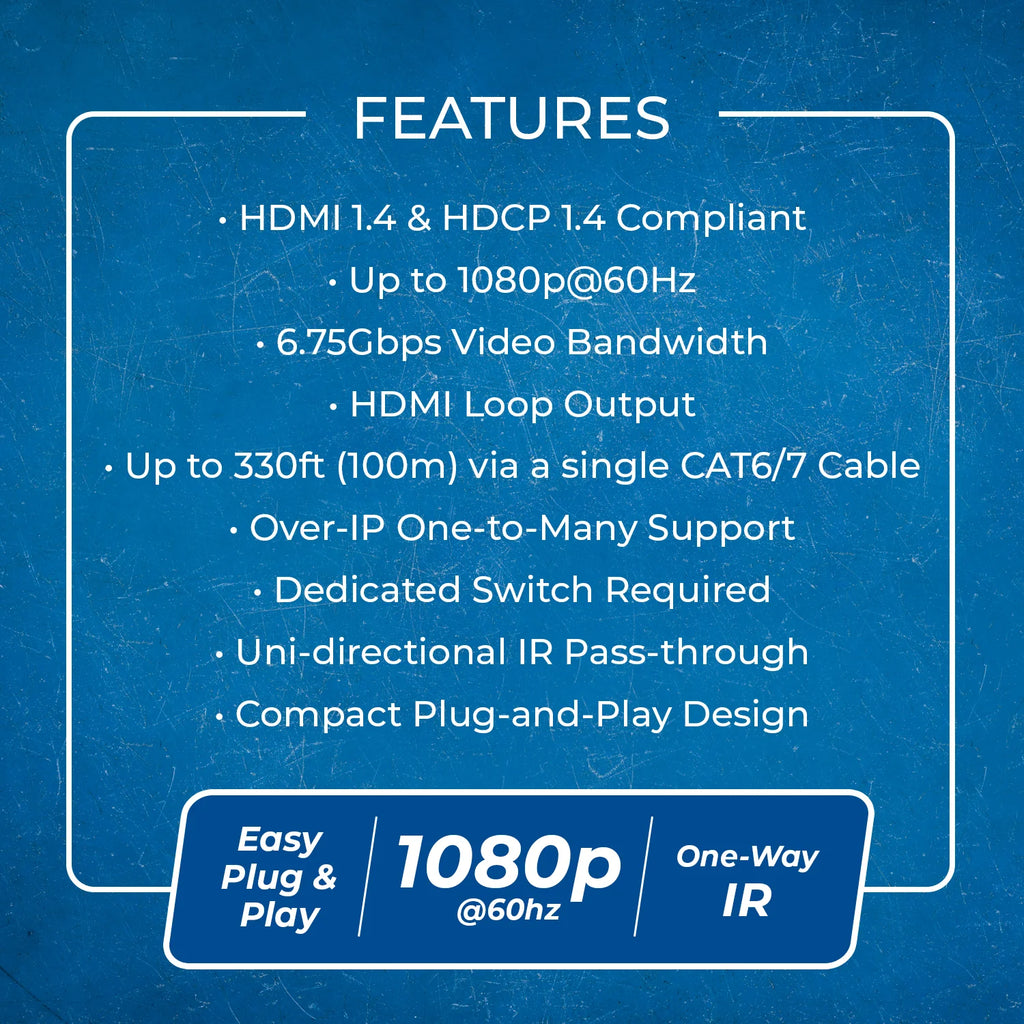

Key Features

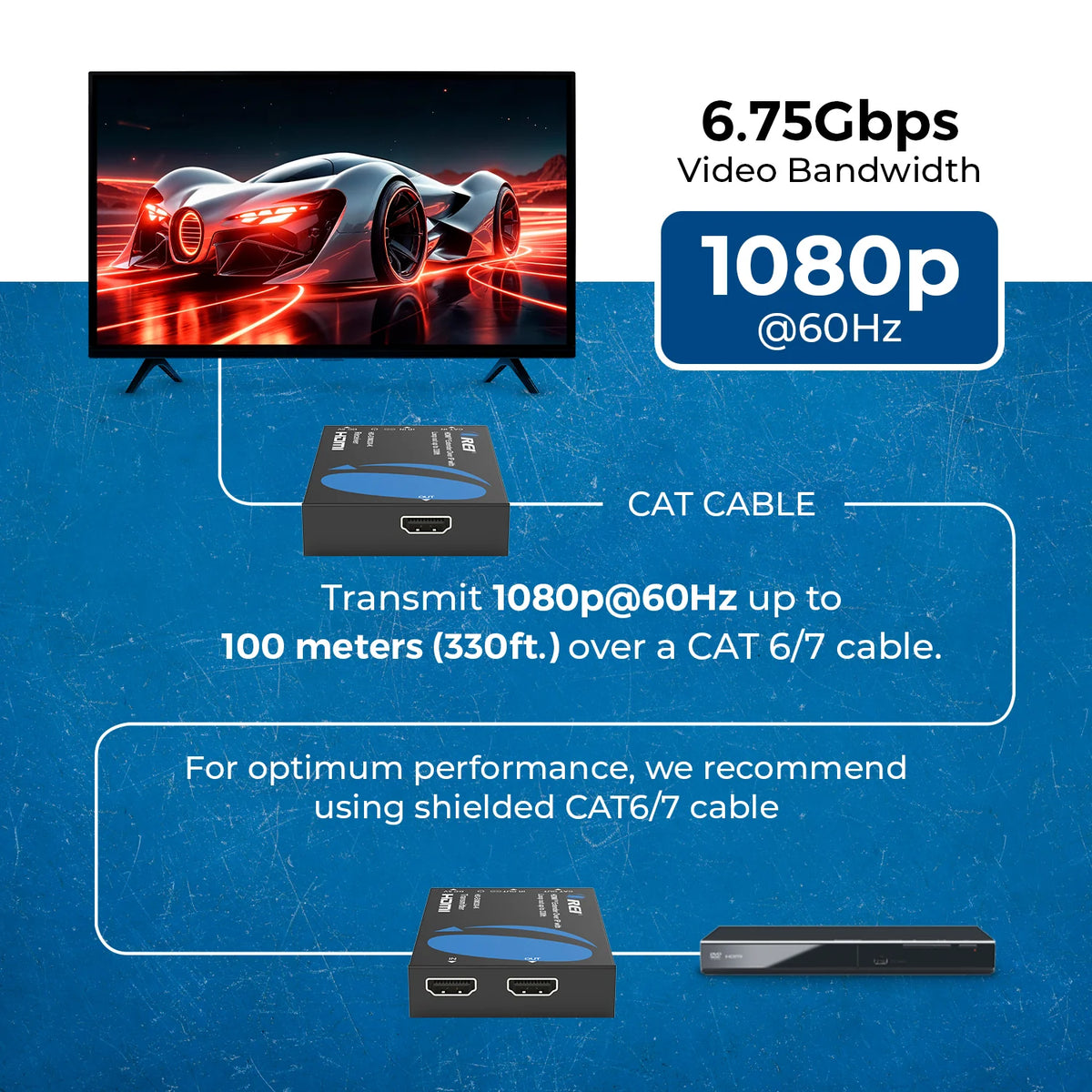

• Supports video up to 1080p at 60 Hz with a stated CAT6 extension distance of up to 330ft, or 100 m.

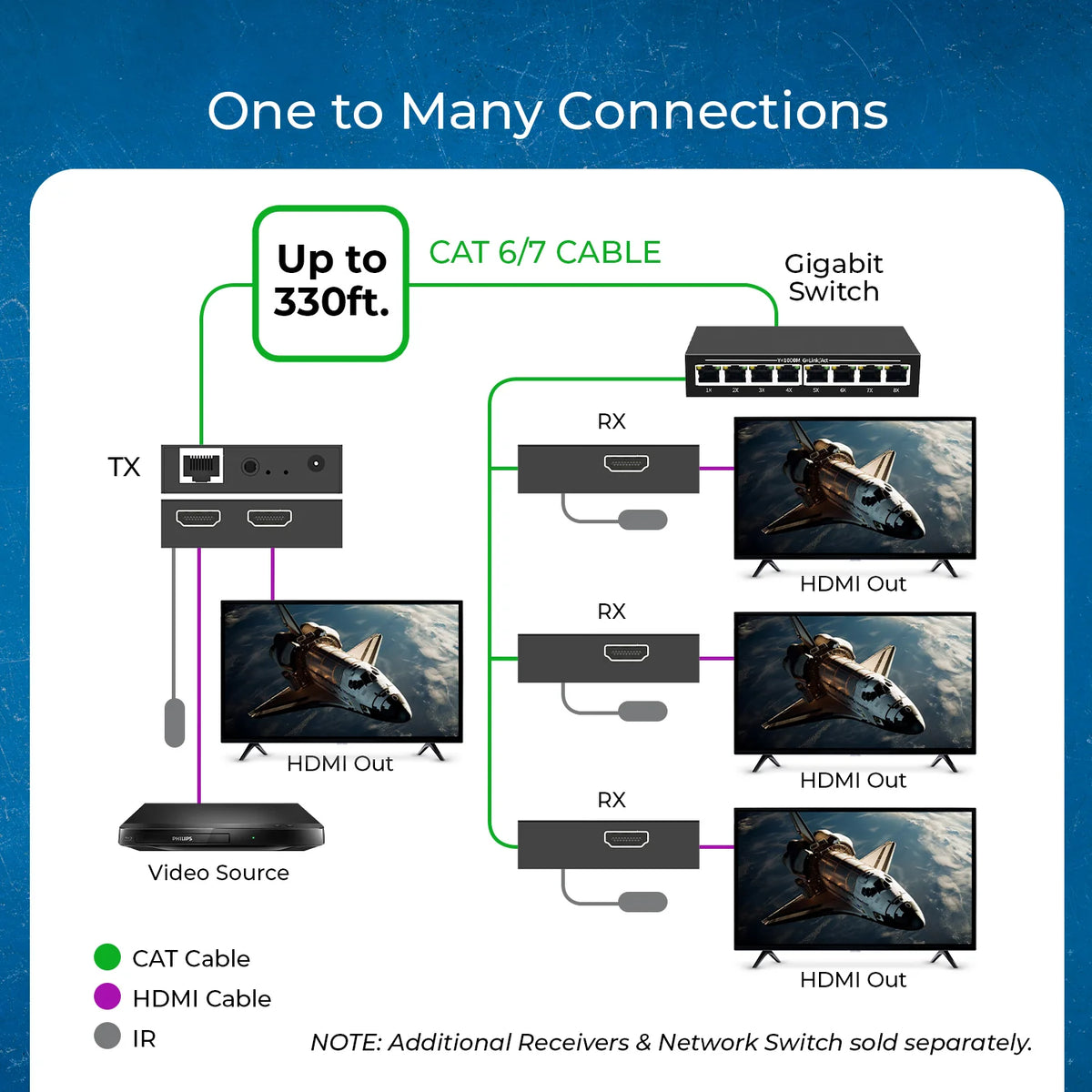

• One-to-many distribution works through a compatible dedicated Gigabit or Layer-2 switch. It does not operate over an existing shared LAN.

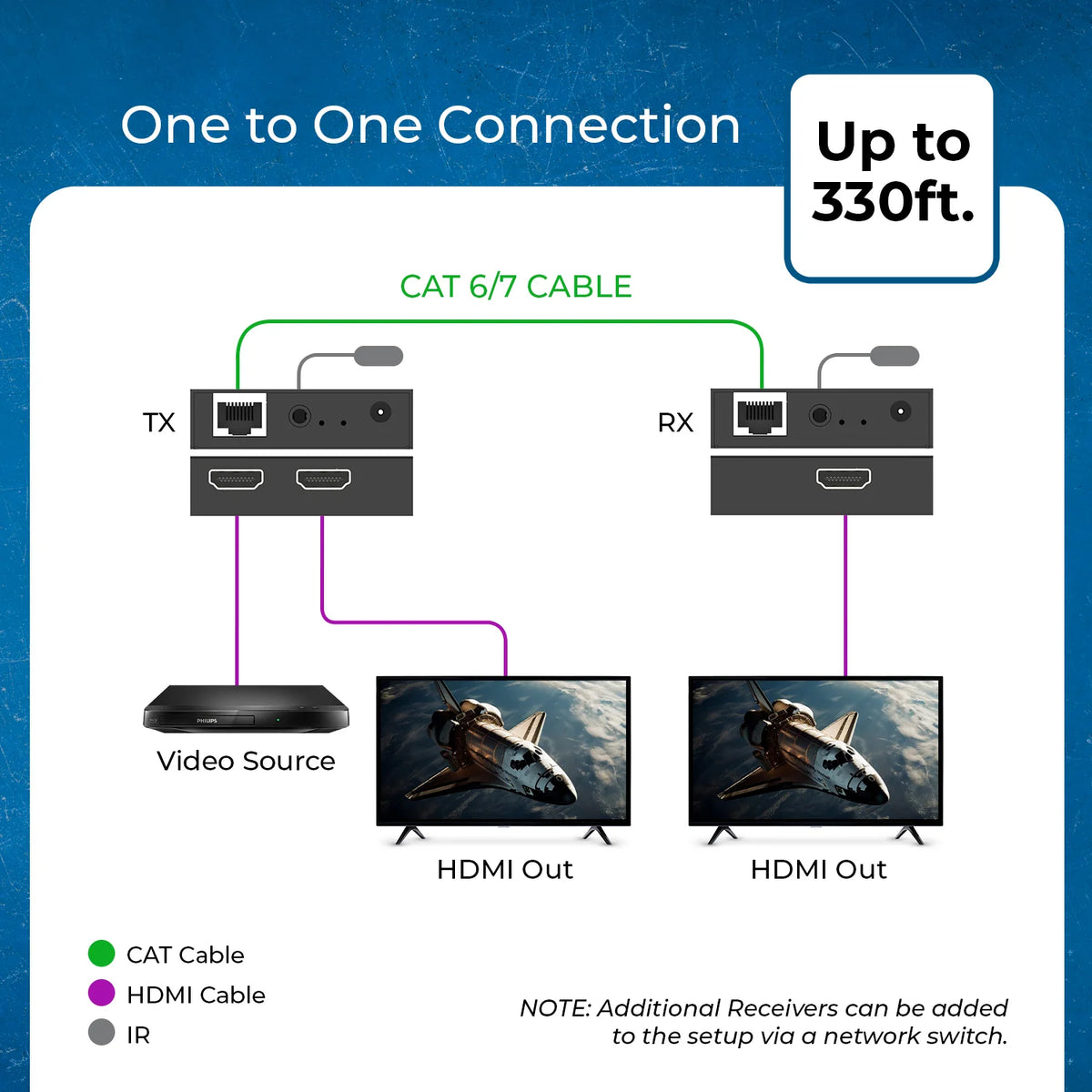

• The transmitter HDMI loop output can feed a local display while the signal is extended to receiver locations.
• Unidirectional IR allows control of the source device from a receiver location.
• HDMI audio support is PCM two-channel audio.
• The transmitter and receiver require separate power; the system does not provide power over the CAT cable.

Specifications

• Kit model: HD-EXM330-K; receiver-only model: HD-EXM330-RX
• Standards supported: HDMI 1.4 and HDCP 1.4
• Video bandwidth: 6.75 Gbps

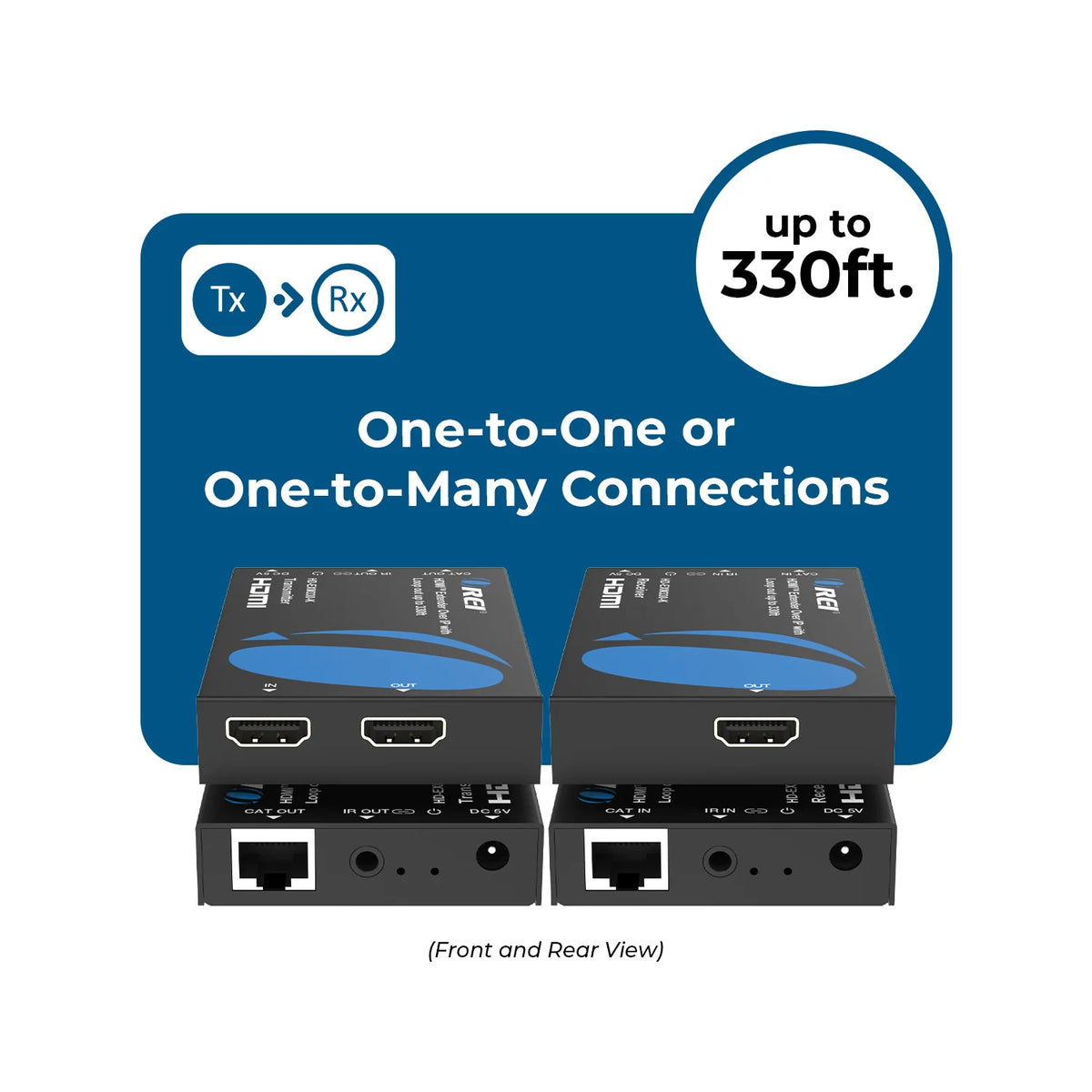

• Transmitter connections: HDMI input, HDMI loop output, RJ45 CAT output and 3.5 mm IR output
• Receiver connections: RJ45 CAT input, HDMI output and 3.5 mm IR input
• Supported CAT cables: CAT5e, CAT6 and CAT7; shielded CAT6 is recommended
• Specified power supply: DC 5 V, 2 A; adapter AC input: 100–240 V, 50/60 Hz
• Maximum stated consumption: transmitter 1.5 W; receiver 1.1 W

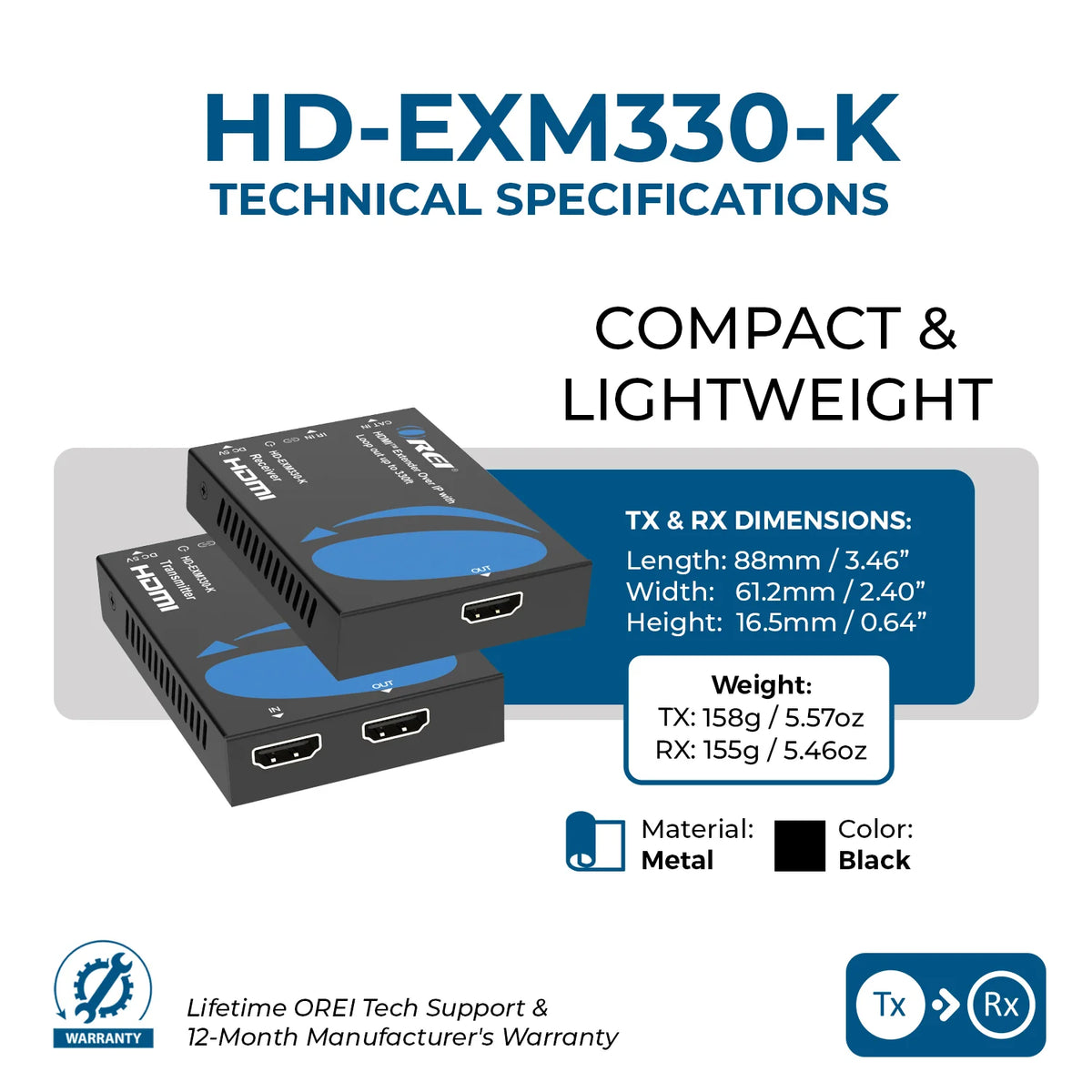

• Unit dimensions: 88 × 61.2 × 16.5 mm
• Weight: transmitter 158 g; receiver 155 g
• Housing: black metal; operating temperature: 0–40°C

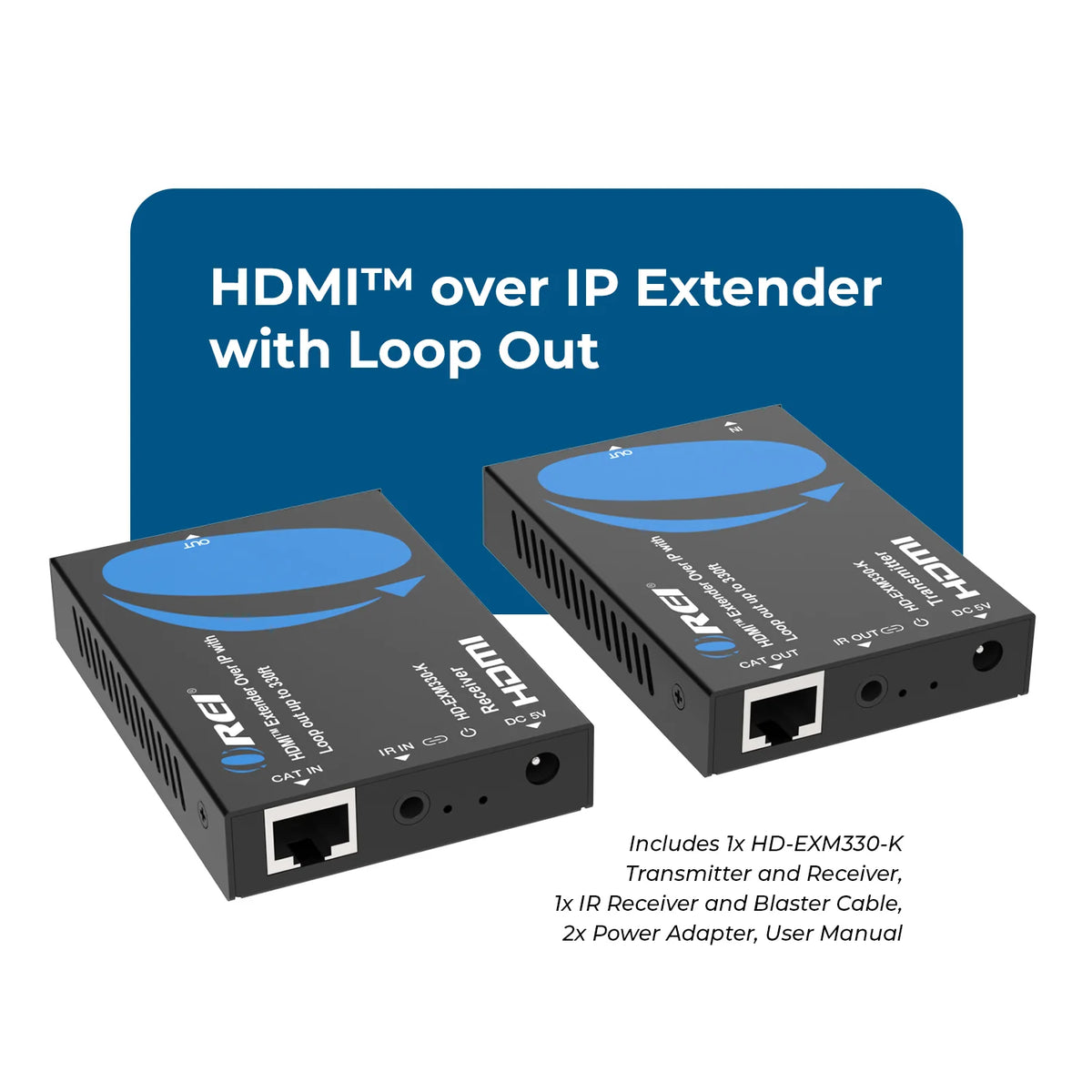

• Full kit includes: transmitter, receiver, IR blaster cable, IR receiver cable, two power adapters and user manual

The Receiver Only option supplies the receiver rather than the complete kit and requires a compatible transmitter. A dedicated network switch, HDMI cables and CAT cabling are not included in the full kit package list.
