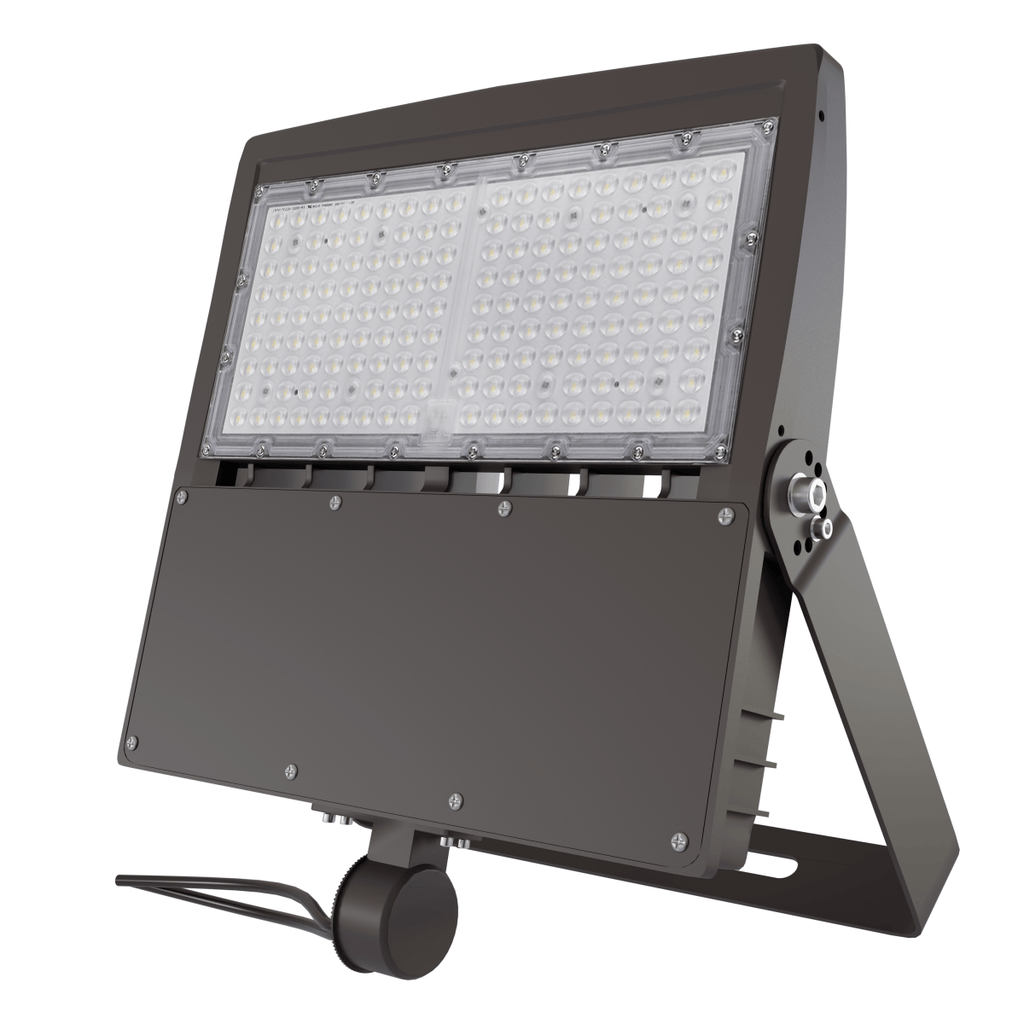

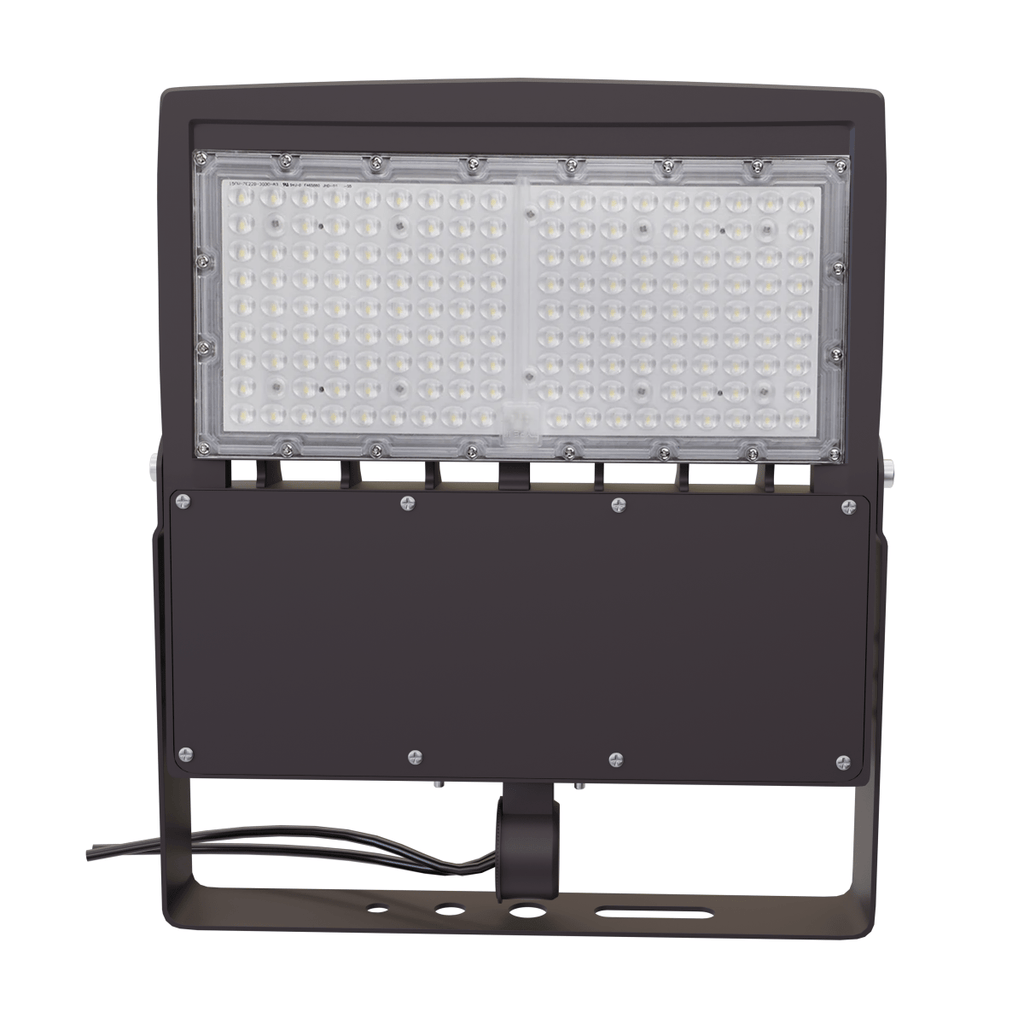

FD004 Bronze Outdoor LED Flood Light with Three Power Settings, 5700K Daylight and Adjustable U-Bracket Mount

The FD004 is a bronze LED floodlight with selectable 150W, 120W or 100W operation and 5700K daylight output. Its U-bracket supports adjustable mounting.

Key Features

• Three power settings with 1–10V dimming.

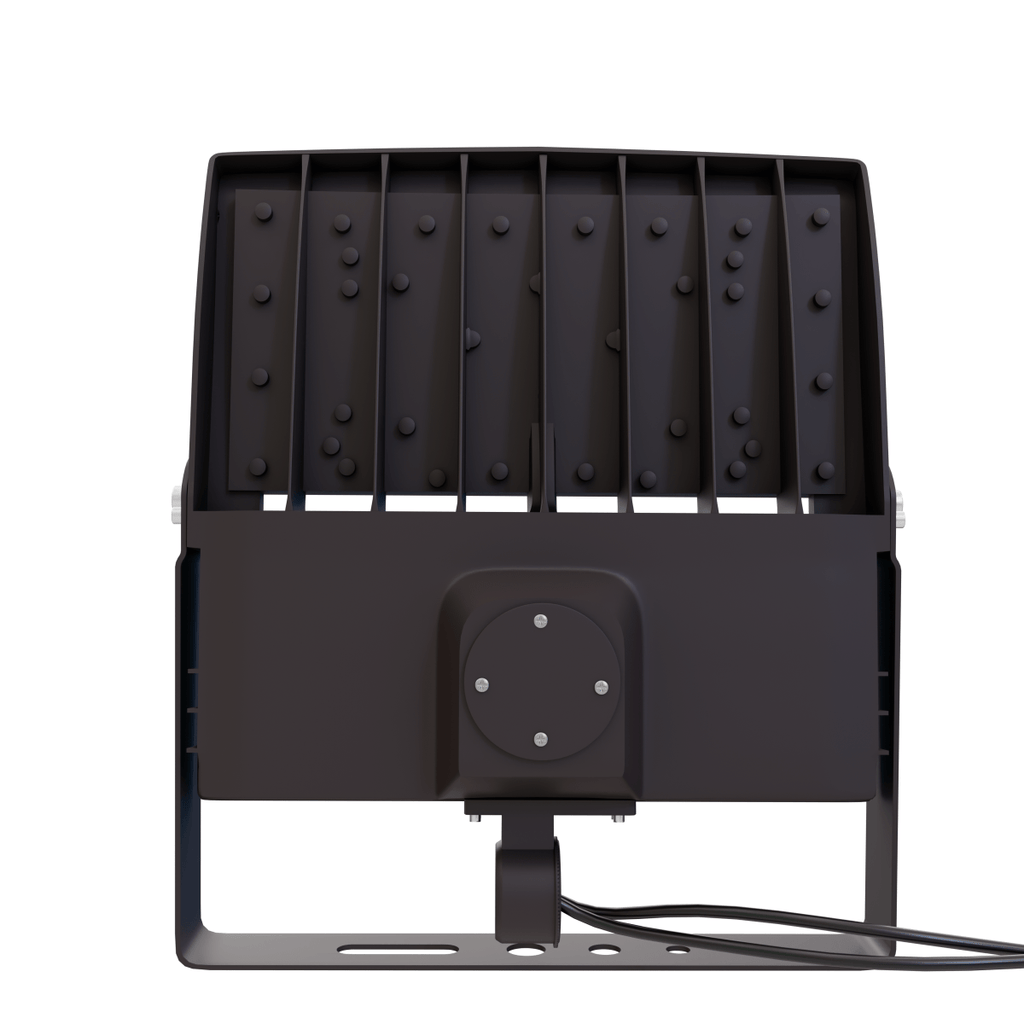

• Aluminum housing and heatsink with polycarbonate optics.
• Epistar LED chips.

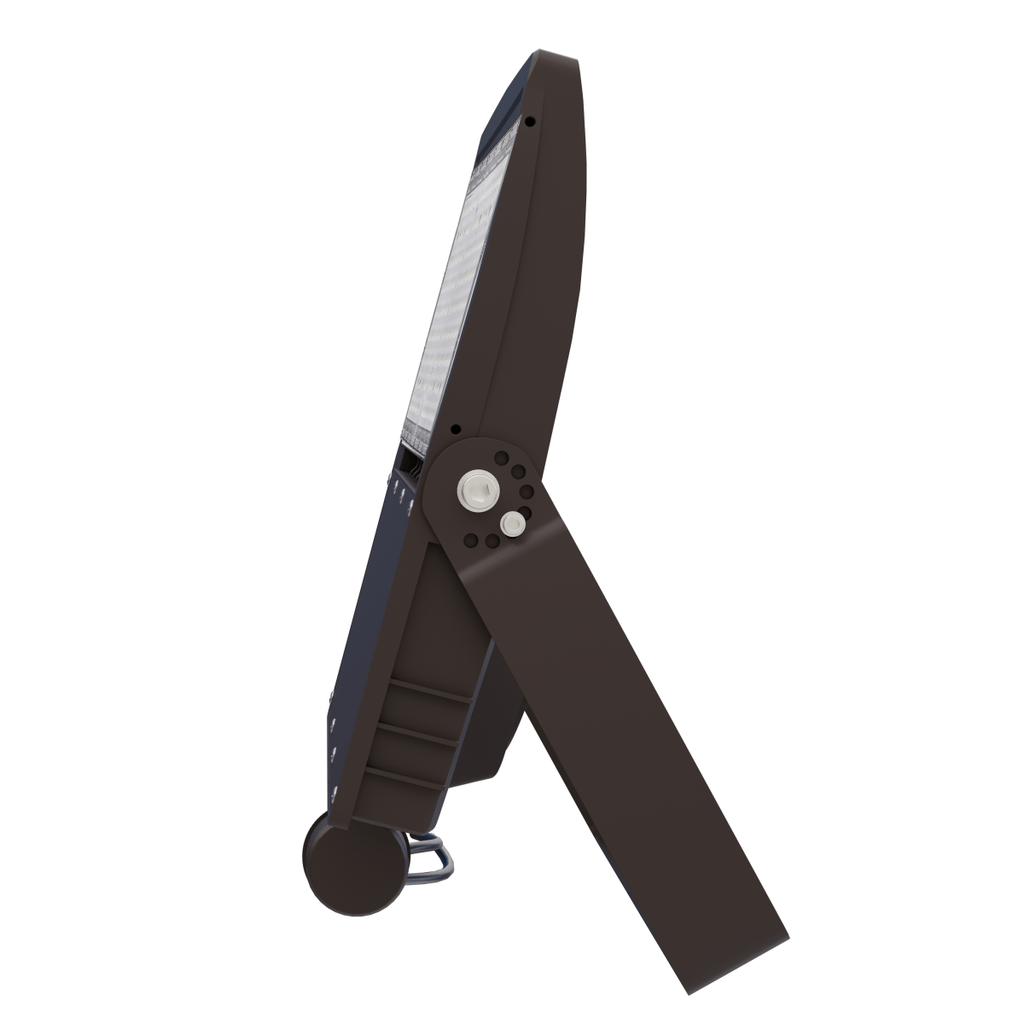

• U-bracket adjustment using a thumb-screw.

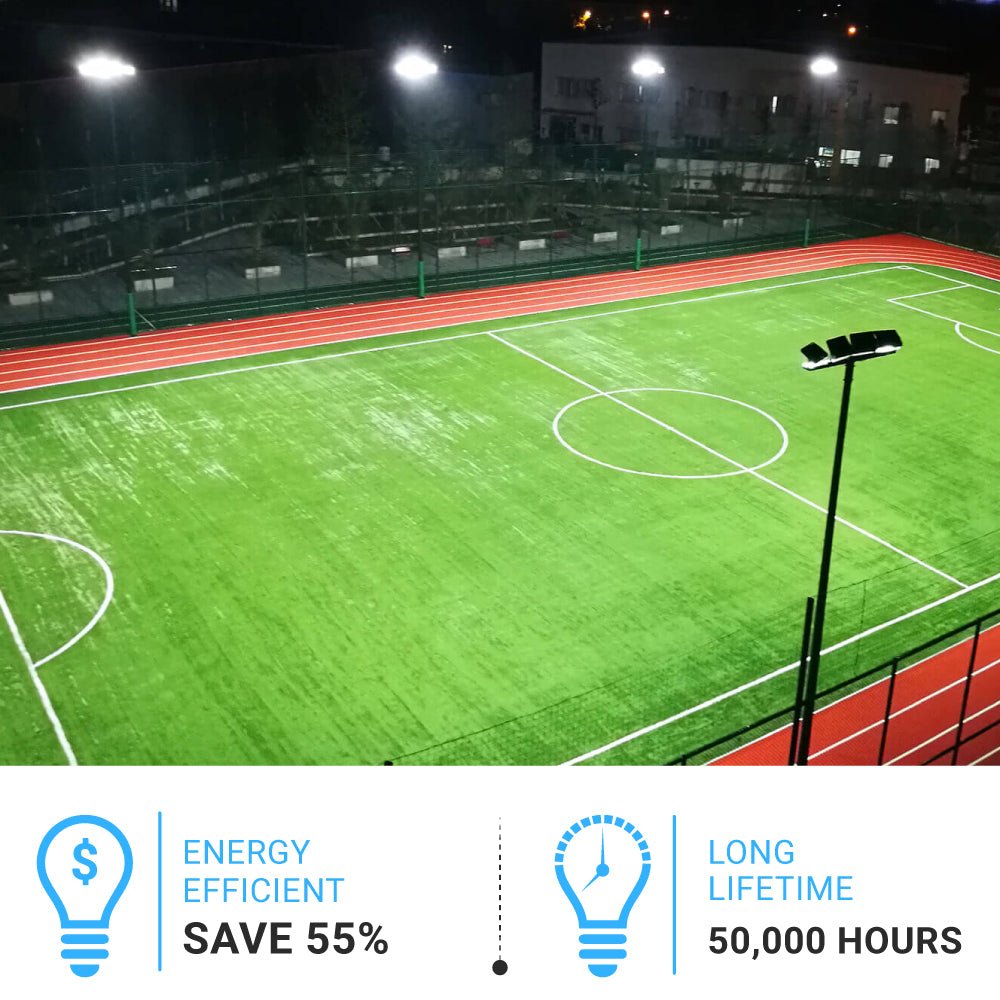

• Suitable for yards, parking lots, playgrounds and stadium lighting.

Specifications

• Input voltage: 120–277VAC.
• Light output: 21,000 lumens.
• Beam angle: 160×115°.
• Power factor: above 0.9.
• IP65 rating; no immersion use claim.
• Weight: 13.5lb.
• Part number: FD004.

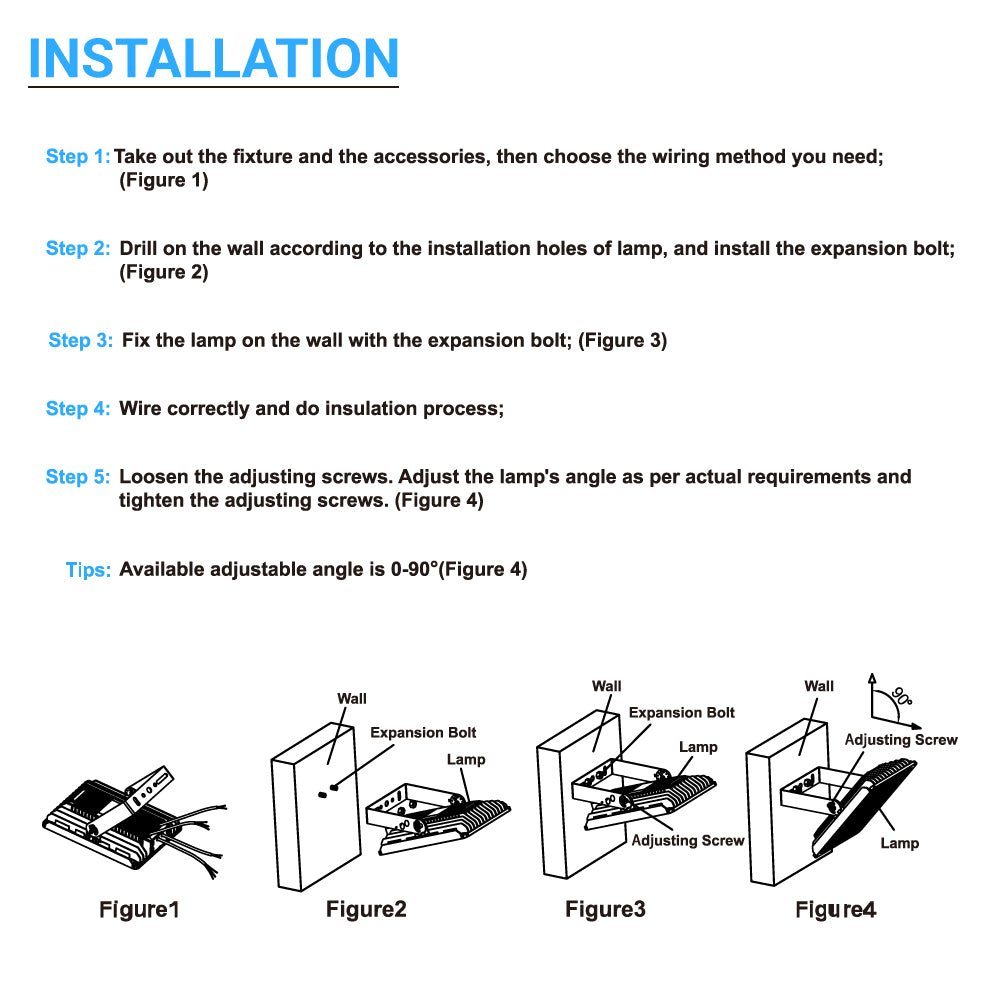

Mounting and Dimming

Use suitable mounting support for the U-bracket. Compatible dimmers named for this model are DS710, IP710, NTSTV-DV, NFTV, DVTV-WH and H4FBL3PW. Other dimmer compatibility is not established.
