Game Boy Advance Class-D Audio Amplifier Module with 24dB Gain, Solder Pads and Optional Installation Kit
$40.75
Sale price
$40.75
Regular price

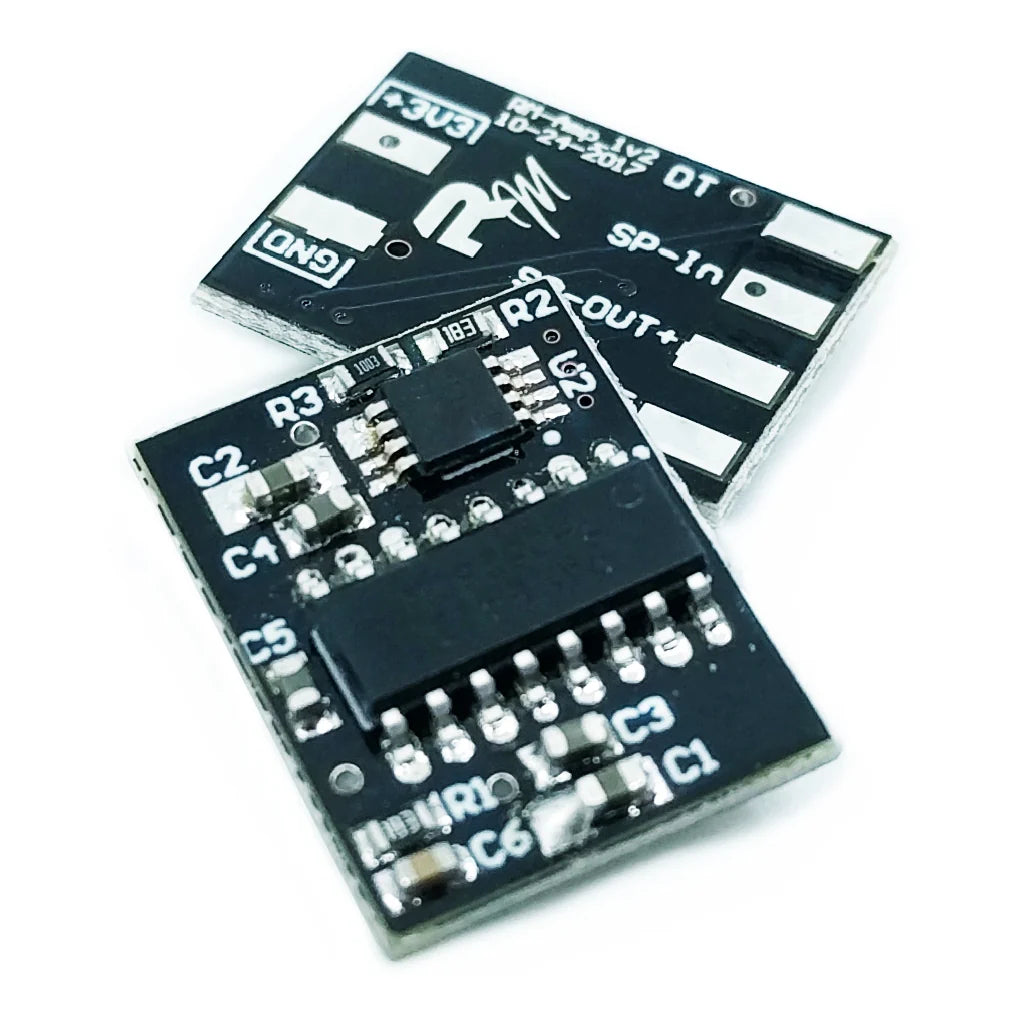

This compact Class-D audio amplifier module is designed for a Game Boy Advance audio modification. Choose the amplifier board alone or a board with an installation kit. Installation requires soldering.
Key Features
- Closed-loop gain of 24dB and approximately 87% efficiency.
- Input range of 2.7–5.5V, with 3.3V recommended.
- Solder-pad termination with six wires used for installation.
- Recommended speaker impedance: 8 ohms. A speaker is not included.
- Installation does not require modifying existing chips or pins.
Specifications
- Amplifier class: Class-D.
- Dimensions: 12.8 × 16.7 × 2.7mm.
- Weight: 1.7g.
- Maximum operating temperature: 85°C.
- High-pass filter corner frequency: 1882Hz.
Package Options
- Board Only: one amplifier module.
- Board + Install Kit: one amplifier, wiring kit, heat-shrink tubing, double-sided tape and double-sided foam tape.
Installation Notes
A console and speaker are not included. Existing console hiss or high-pitched noise can become louder after amplification. Performance may change when console batteries are low. This product is intended for Game Boy Advance installation.
