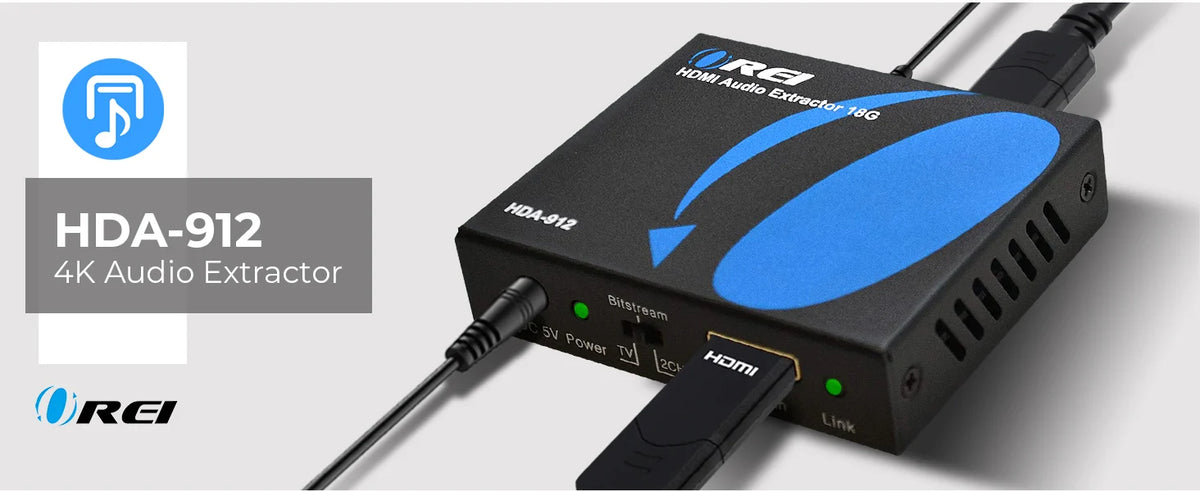

HDA-912 HDMI Audio Extractor with 4K 60Hz Video Pass-Through, Optical S/PDIF and 3.5mm Stereo Outputs

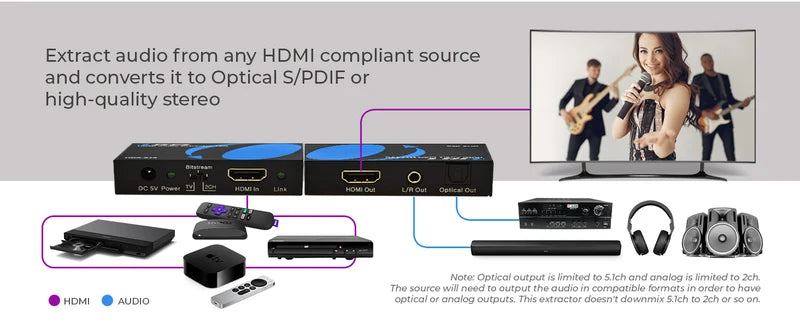

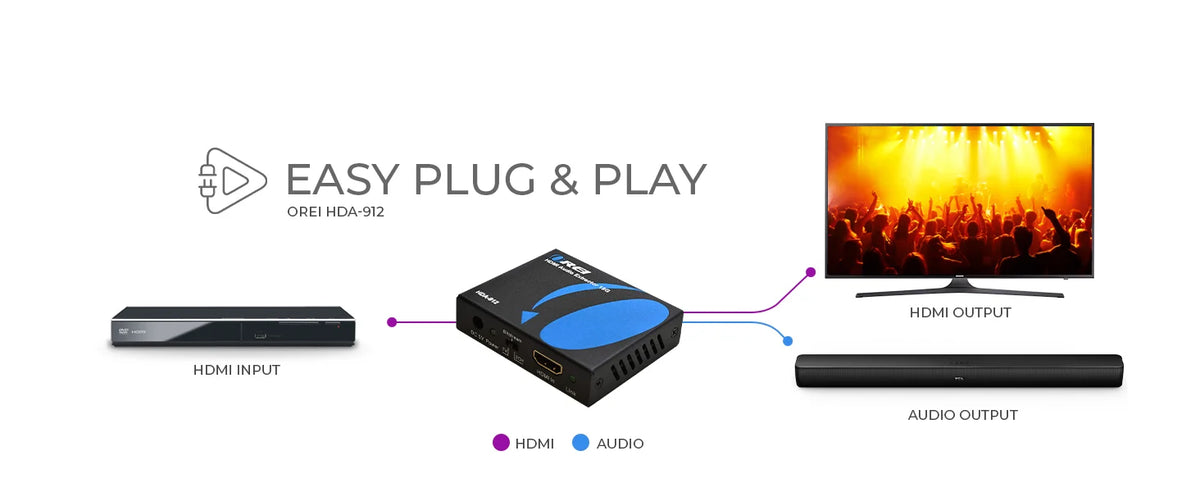

The HDA-912 separates audio from an HDMI source while passing video to a connected display. Its optical S/PDIF and 3.5mm stereo outputs connect to compatible audio equipment, and its HDMI path supports resolutions up to 4K at 60Hz with HDMI 2.0b and HDCP 2.2 compatibility.

Key Features

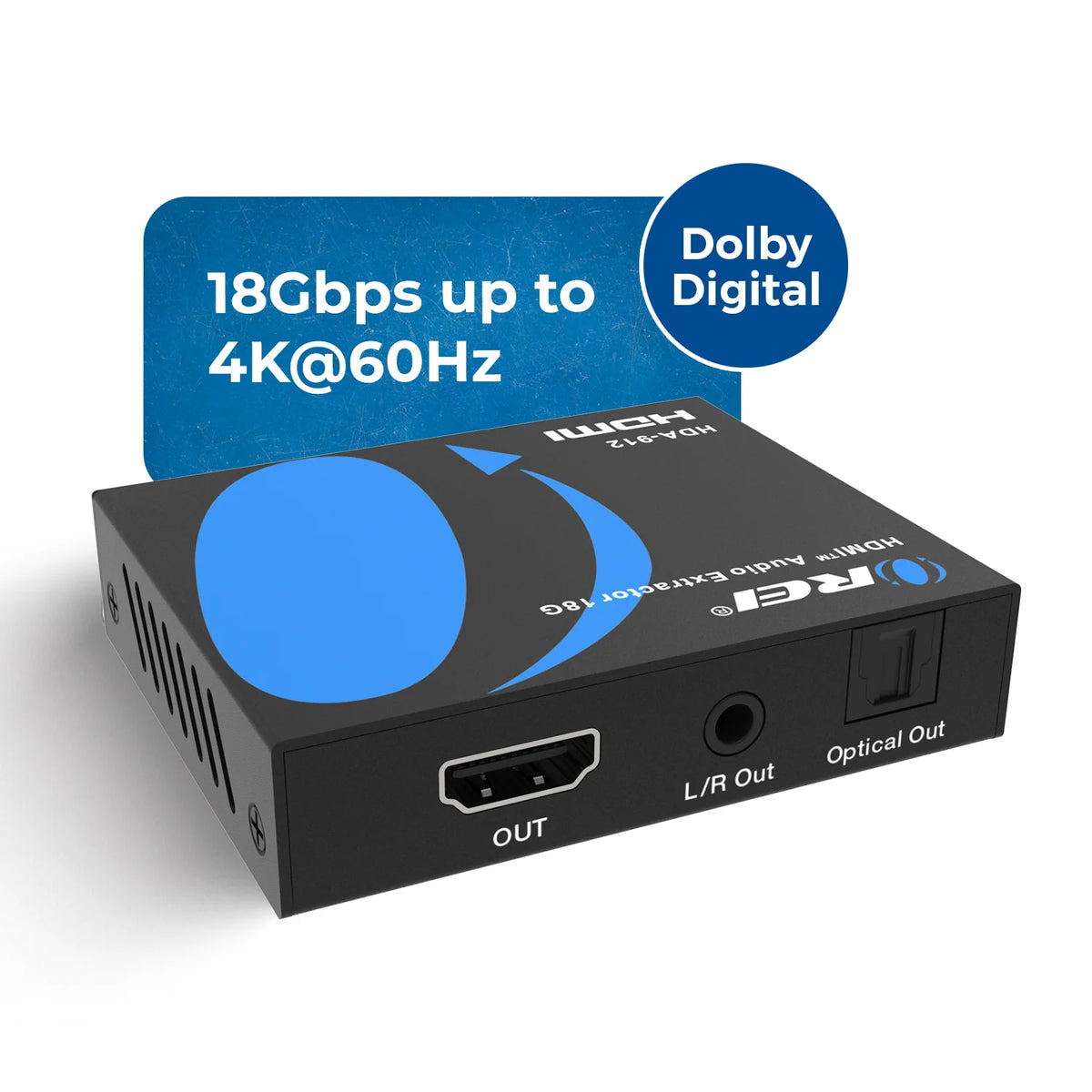

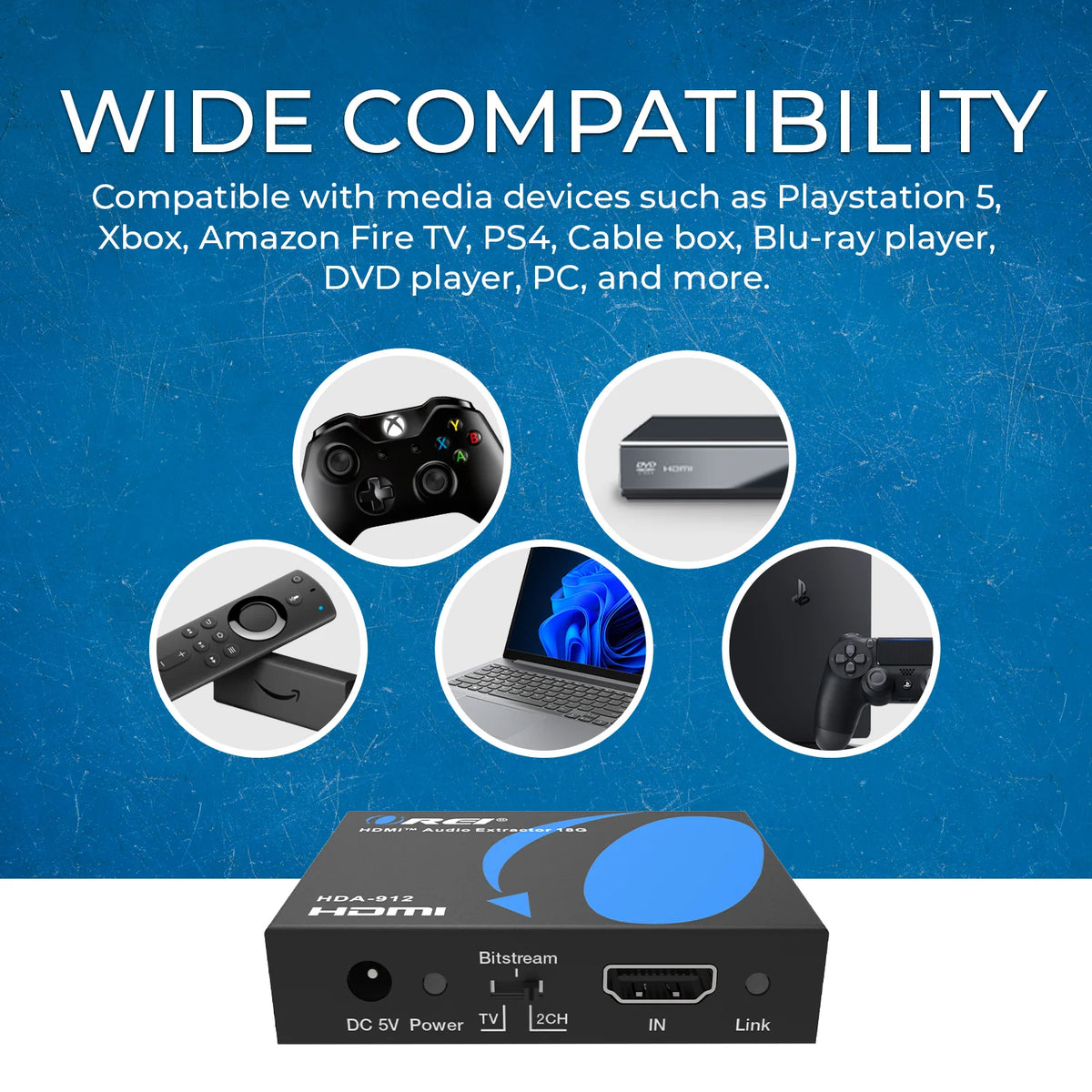

• One HDMI input and one HDMI output, both using Type A 19-pin female connectors.

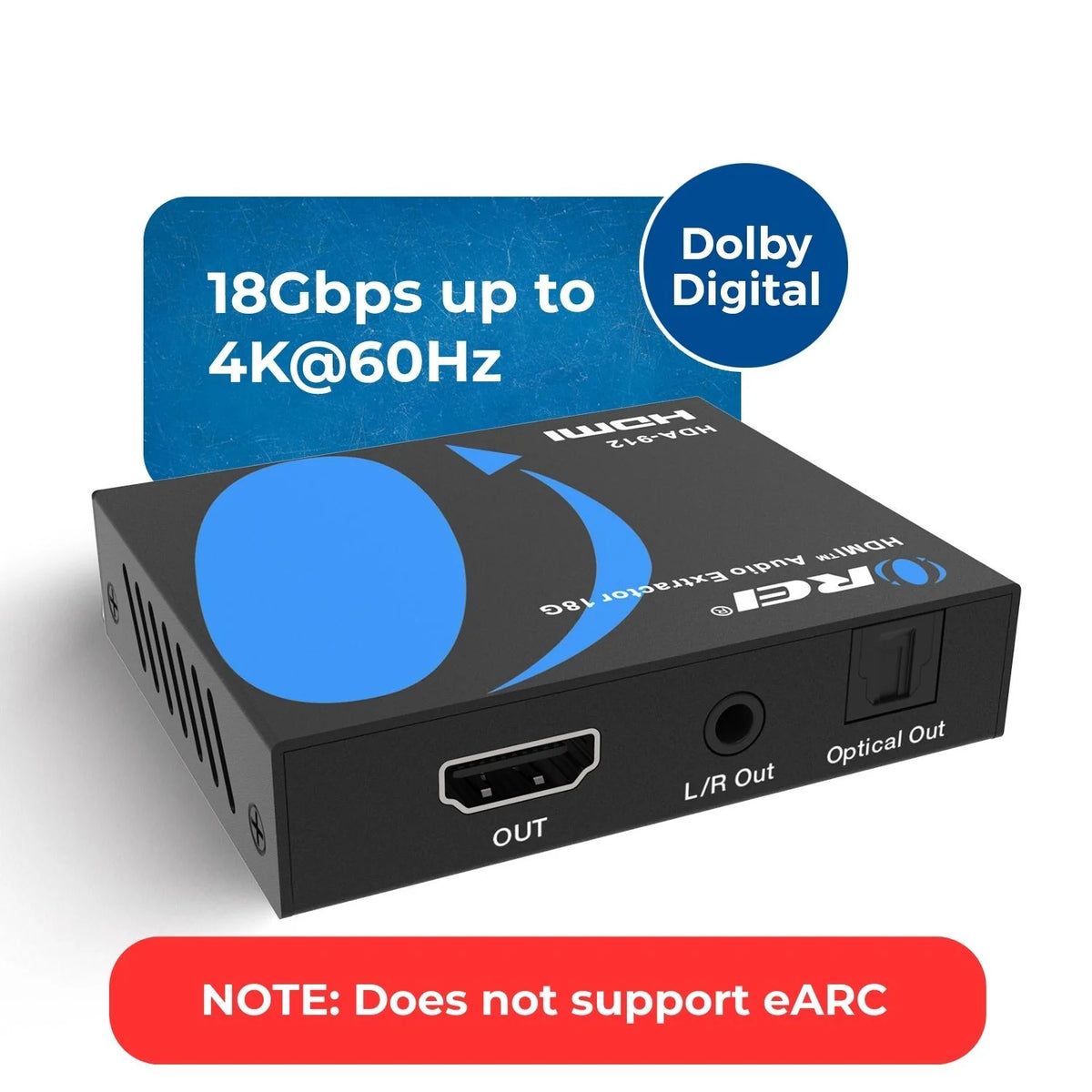

• Video pass-through up to 4K at 60Hz or 2K at 60Hz, with 18Gbps bandwidth and 10-bit HDR pass-through.

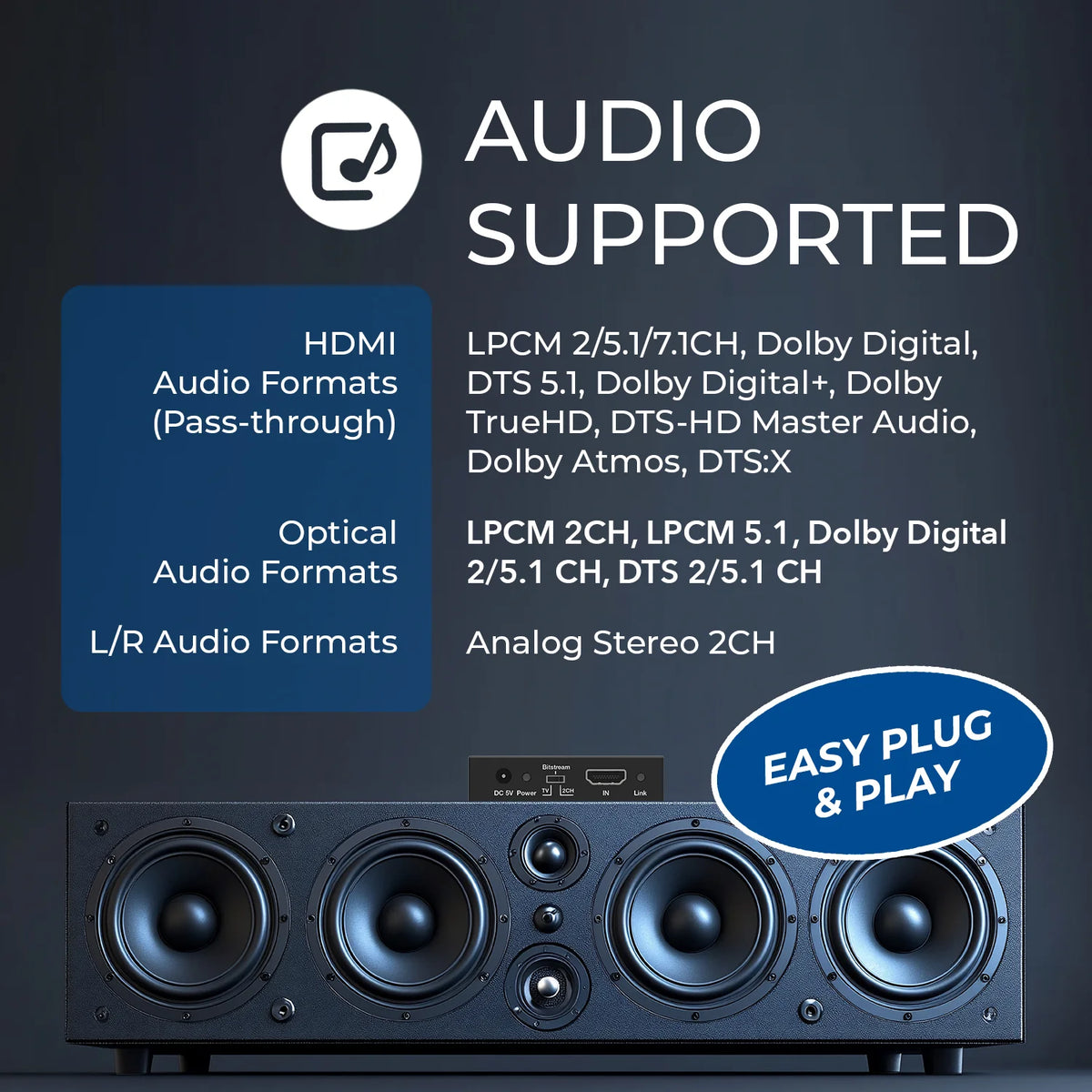

• Optical output supports LPCM 2-channel, Dolby Digital 2/5.1-channel and DTS 2/5.1-channel formats.
• The 3.5mm analog stereo output supports PCM 2.0. Set the connected source to a compatible format when using this output.
• HDMI audio pass-through supports formats including LPCM 2/5.1/7.1-channel, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS 5.1, DTS-HD Master Audio, Dolby Atmos and DTS:X.

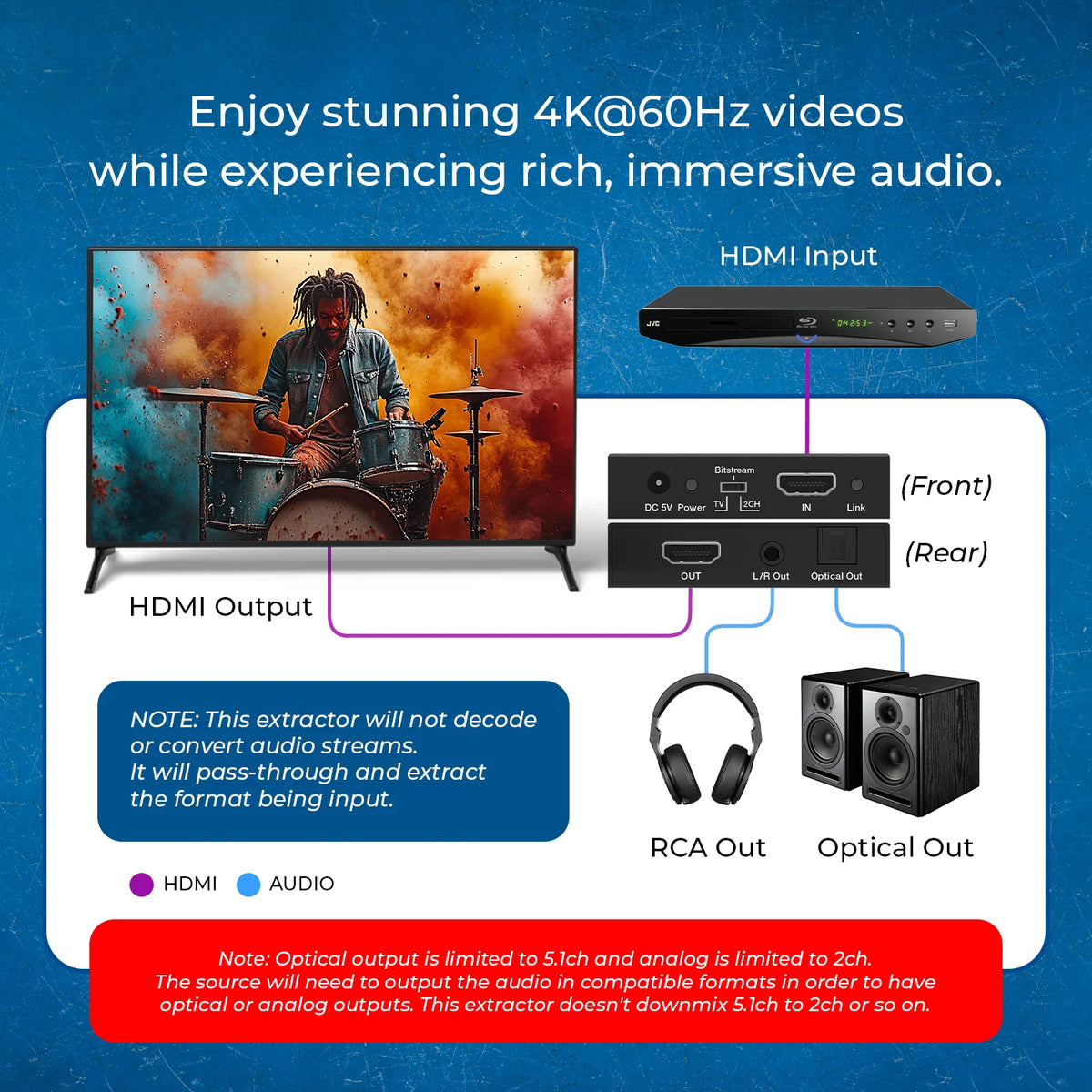

• No ARC, eARC, CEC, EDID management, audio downmixing or decoding. HDMI pass-through support does not mean those formats are converted to stereo or optical output.

Specifications

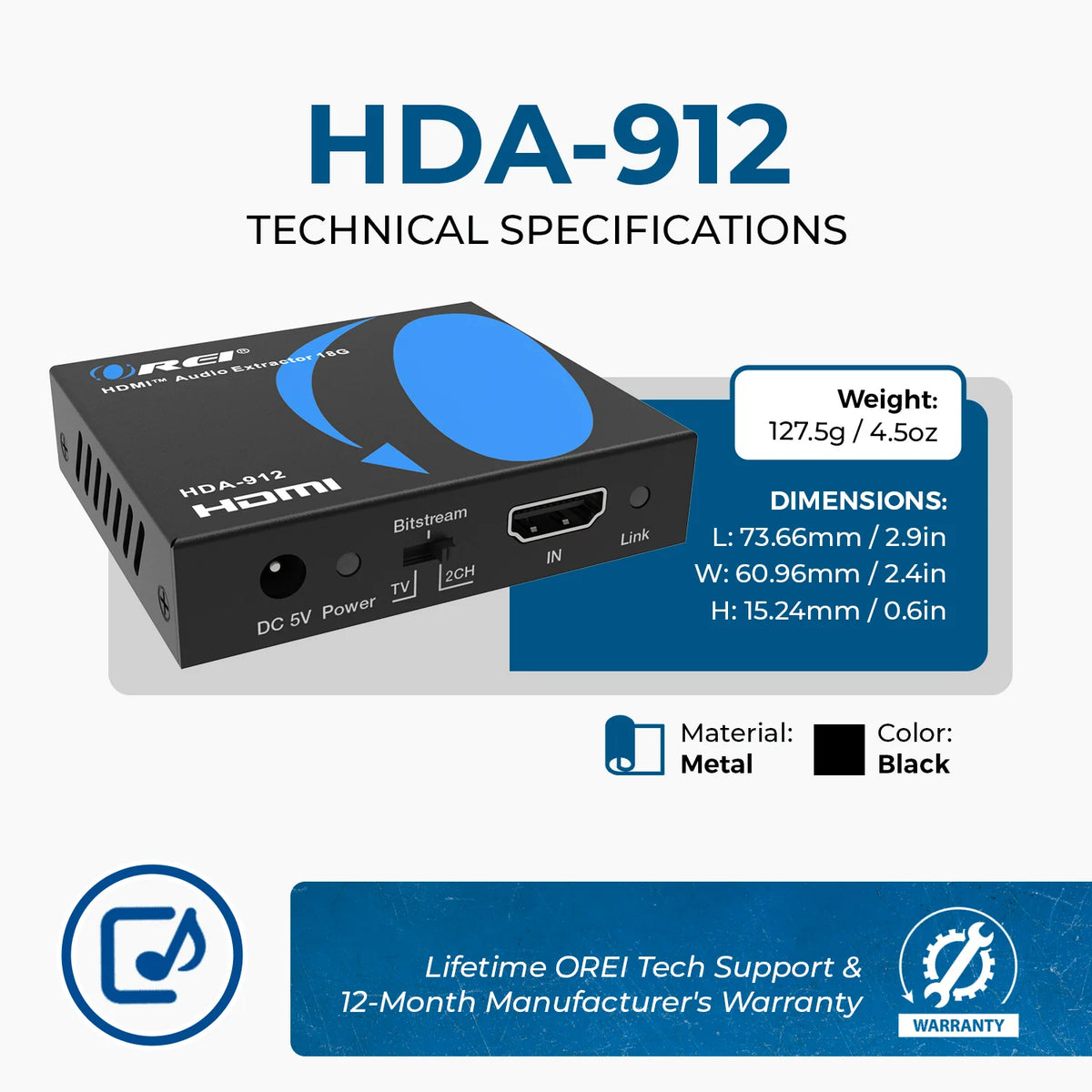

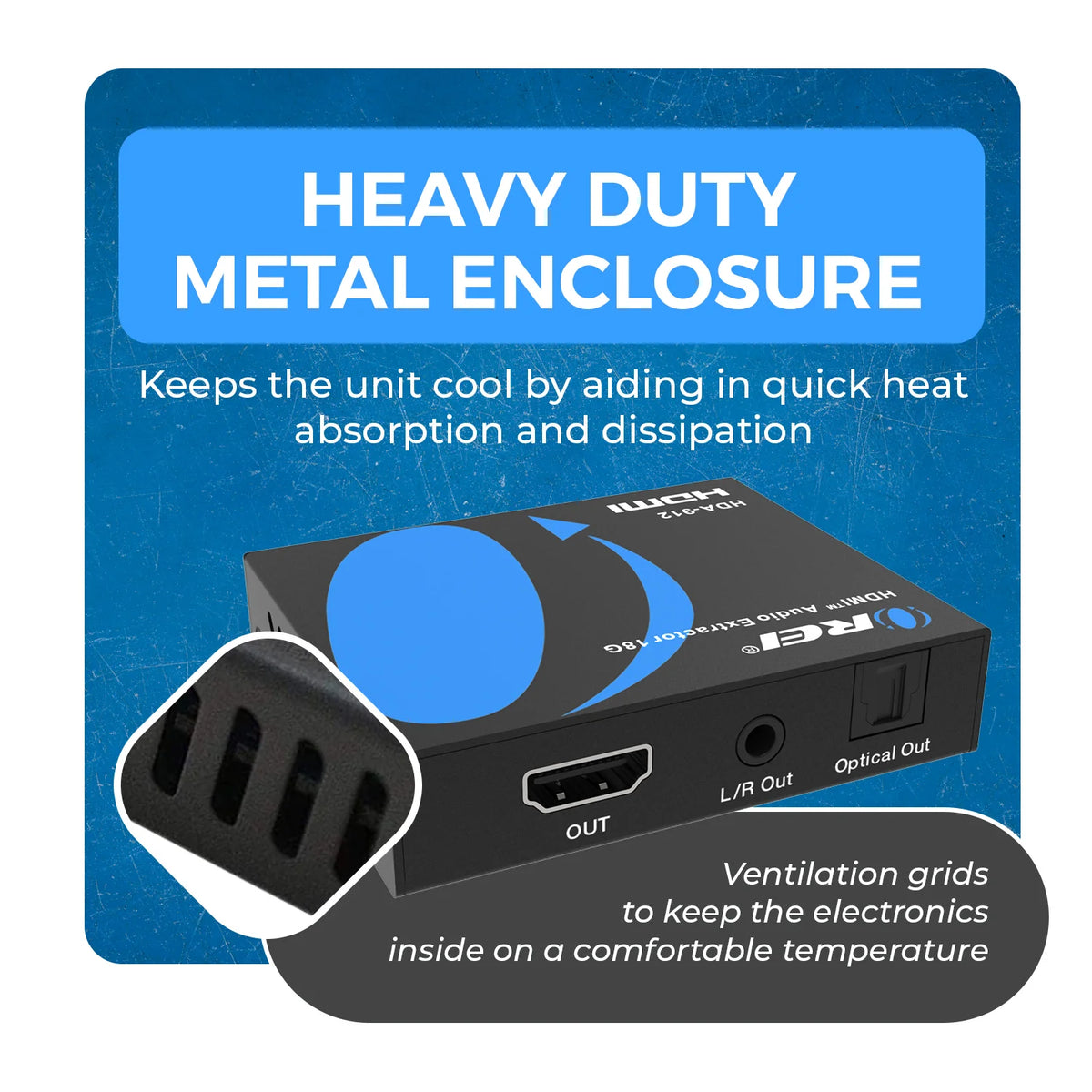

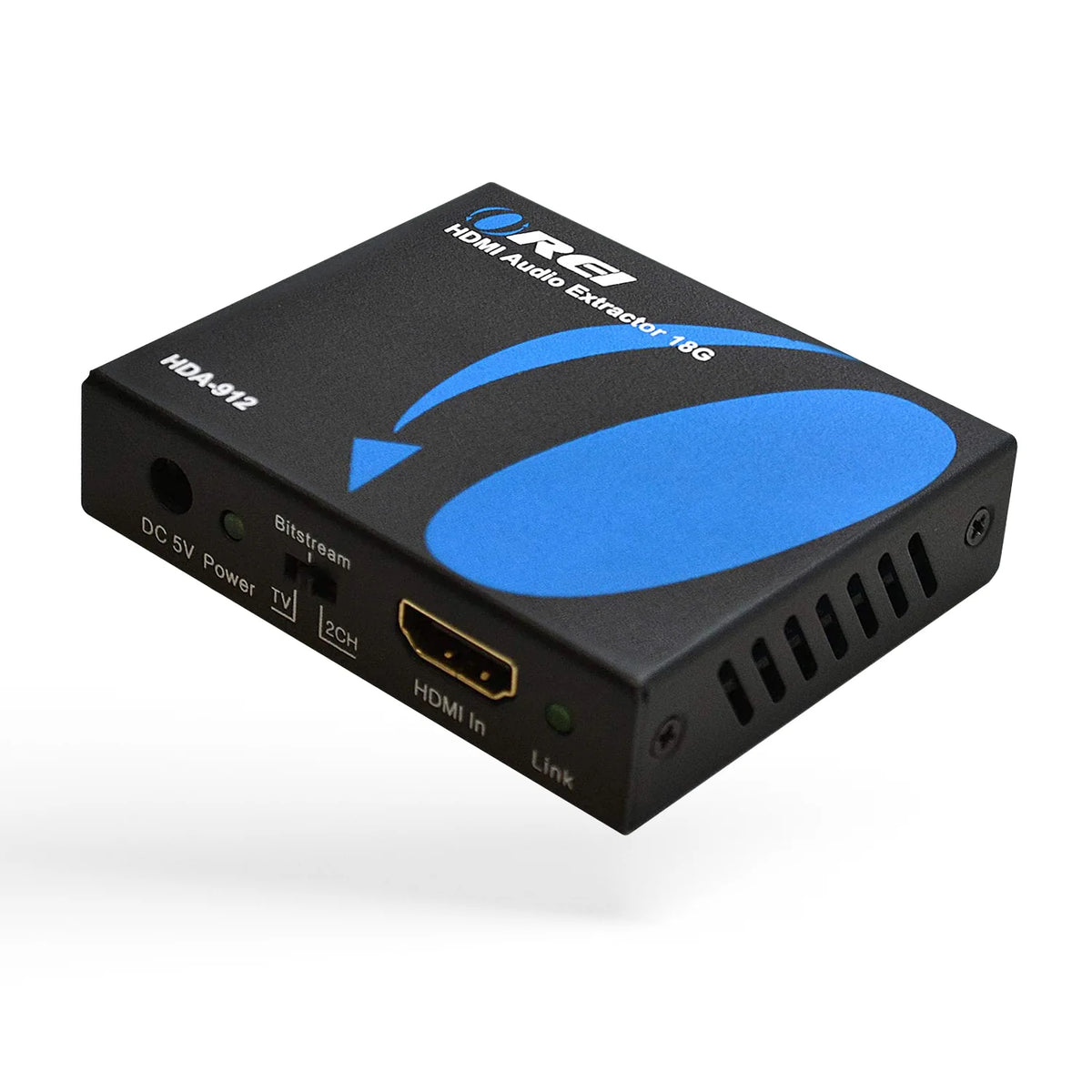

• Model: HDA-912. Housing: black metal enclosure.

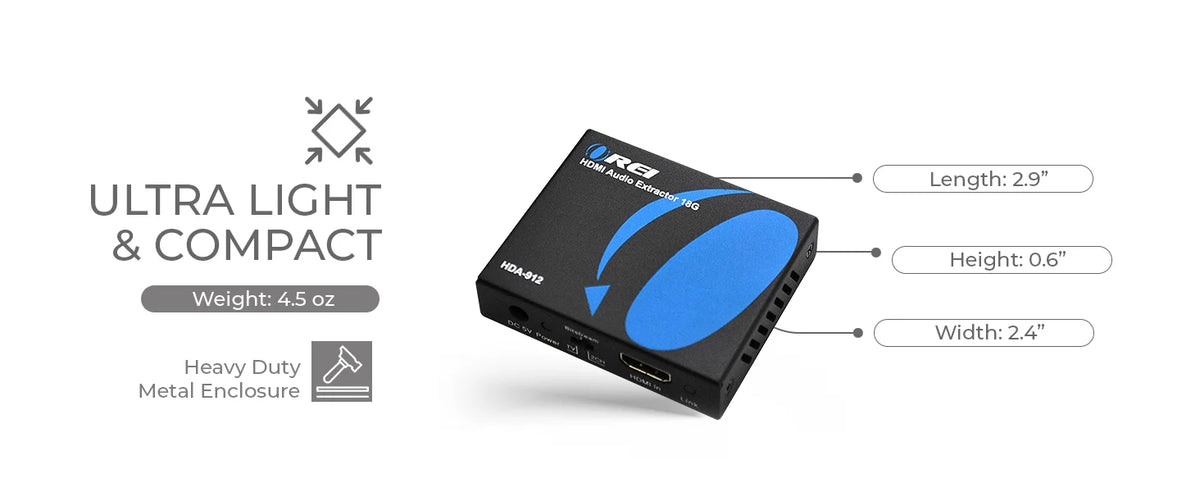

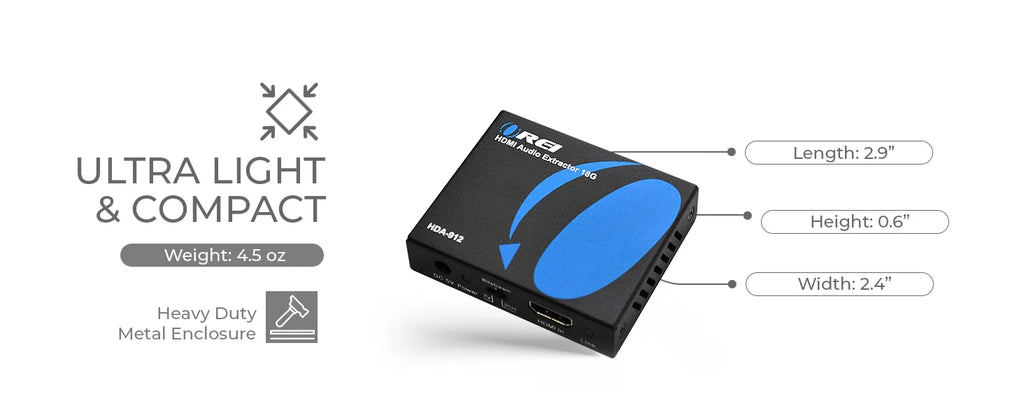

• Dimensions: 73.5 × 60.7 × 17mm. Weight: 130g.
• Maximum power consumption: 1W.
• Supplied adapter input: AC 100–240V, 50/60Hz. Adapter output: DC 5V/1A.

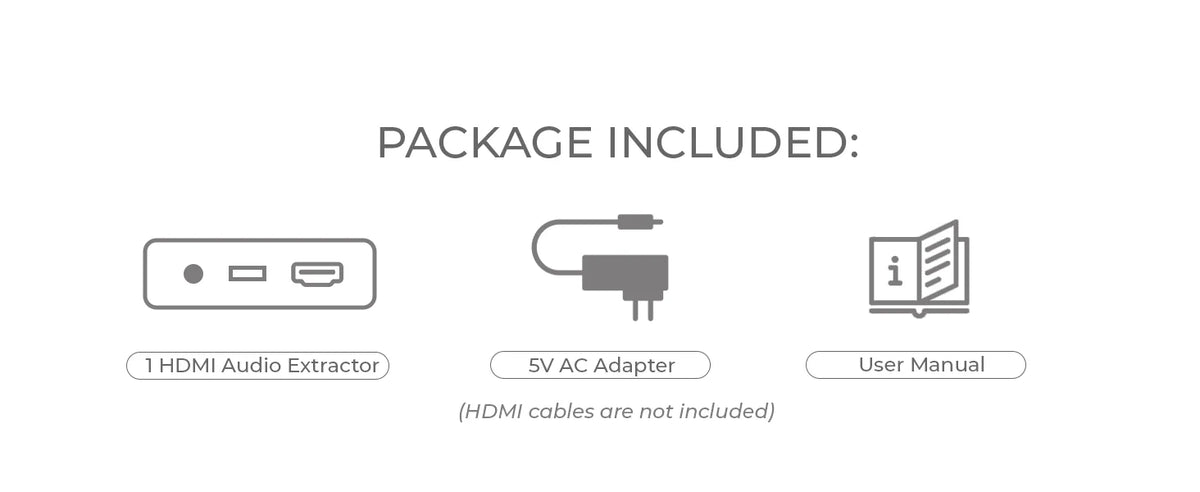

• Included: one HDA-912 audio extractor, one power adapter and user manual.
• Operating temperature: 0–40°C. Operating humidity: 20–80%, non-condensing.
