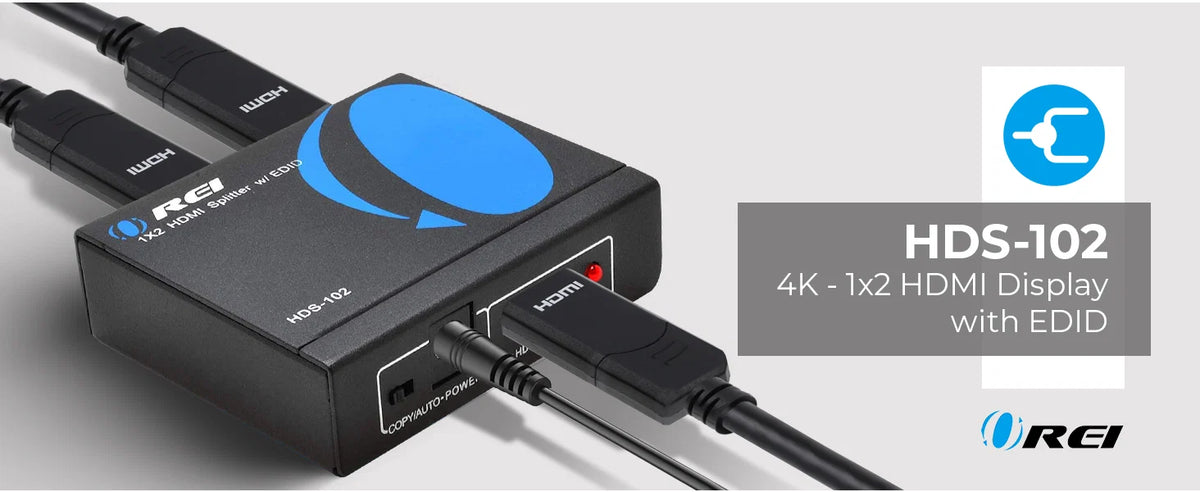

HDS-102 1x2 HDMI Splitter with 4K 30Hz Video, Dual Mirrored Display Outputs, EDID Management and 5V Power Adapter

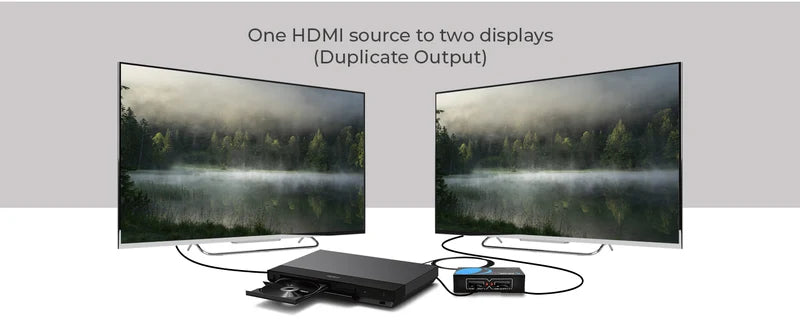

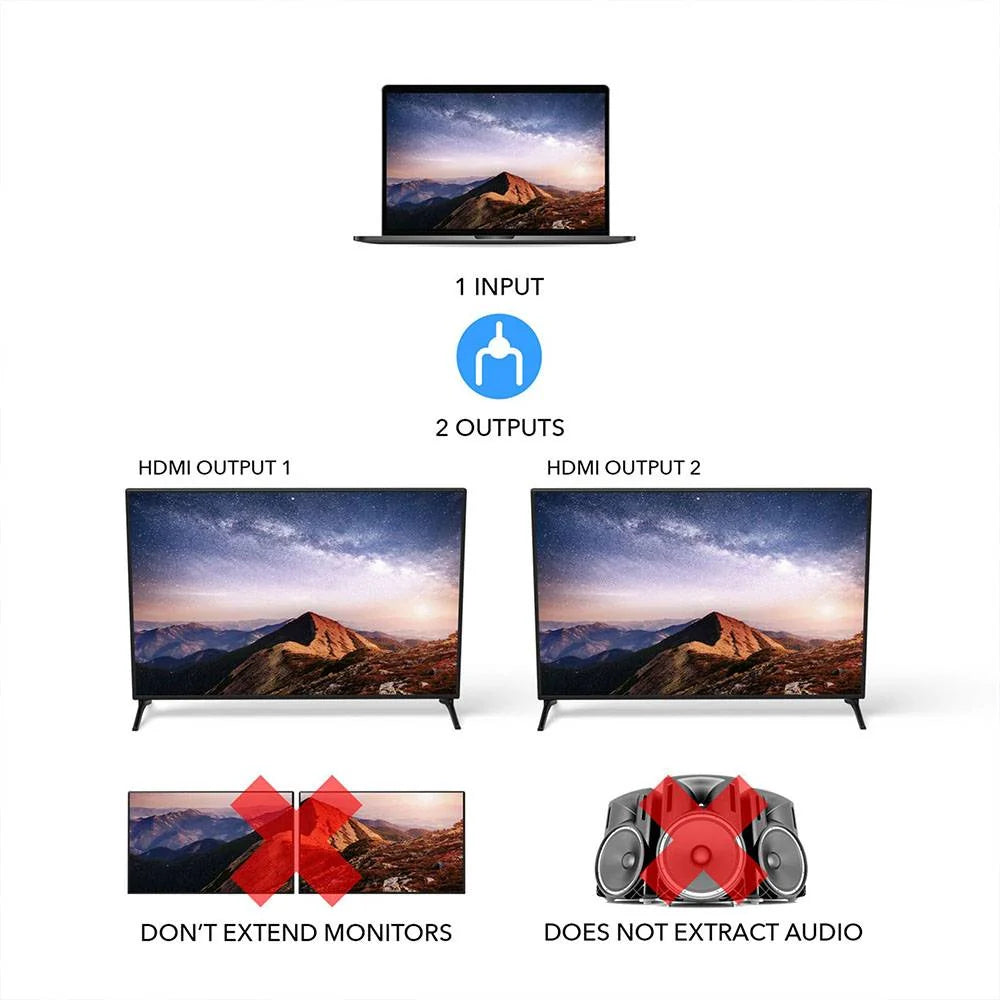

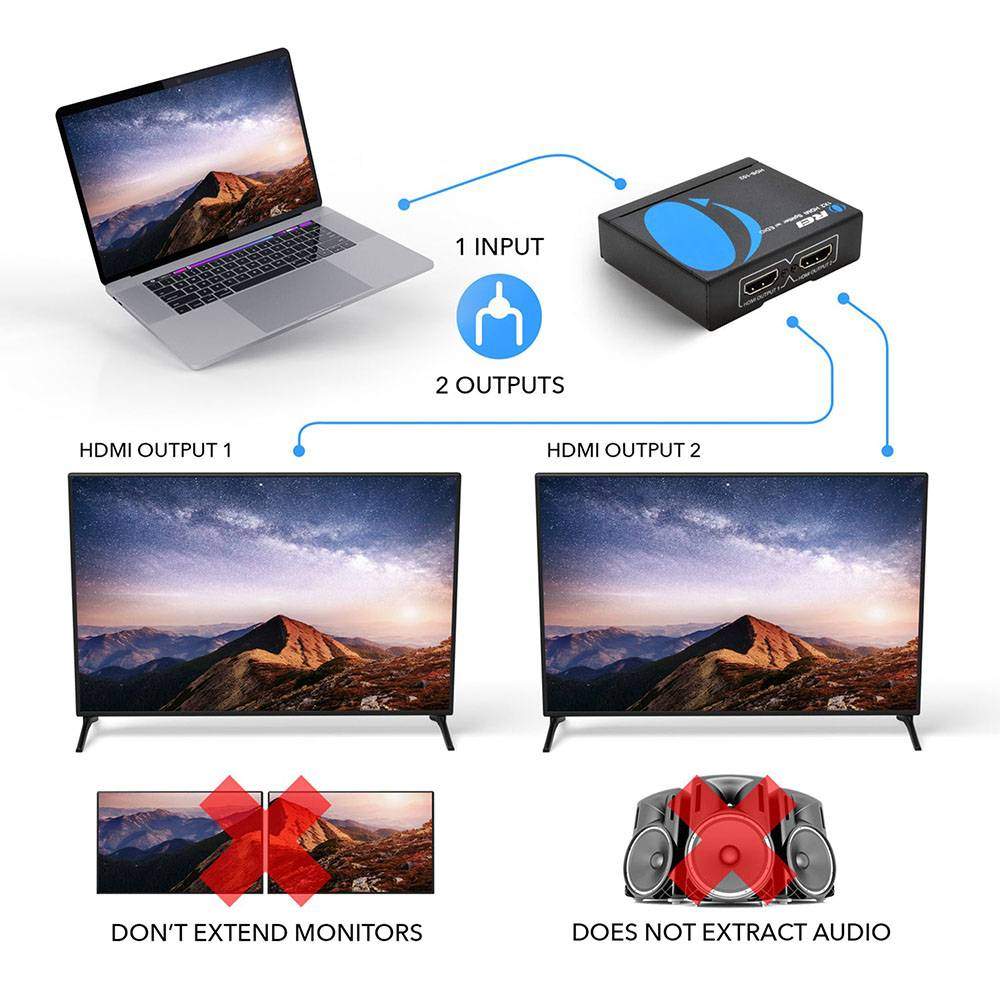

The HDS-102 is a powered 1x2 HDMI splitter that sends one source to two displays at the same time. It supports video up to 4K at 30Hz or 1080p at 60Hz, with EDID management and HDMI audio-format support in a compact metal enclosure. Both displays show the same source; this splitter does not extend a computer desktop.

Key Features

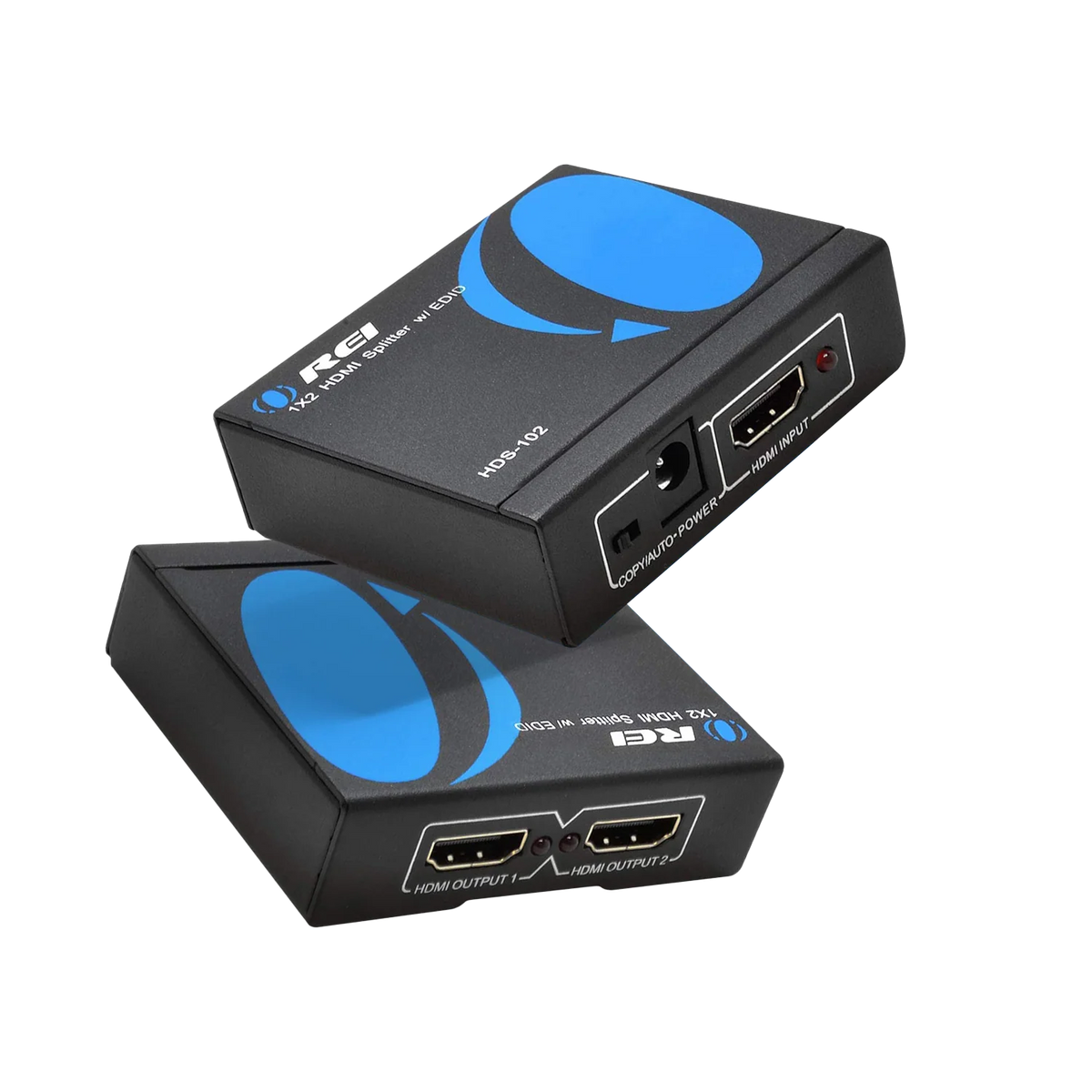

• One HDMI input and two HDMI outputs, using Type A 19-pin female connectors.
• Supports up to 4K at 30Hz and 1080p at 60Hz, with a listed video bandwidth of 2.97Gbps.
• Two EDID modes help set compatible video and audio for connected displays.
• HDMI 1.4 and HDCP 1.4 compatibility.
• Supports 3D video at 1080p at 60Hz and HDMI audio formats including DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, Dolby AC3 and DSD.

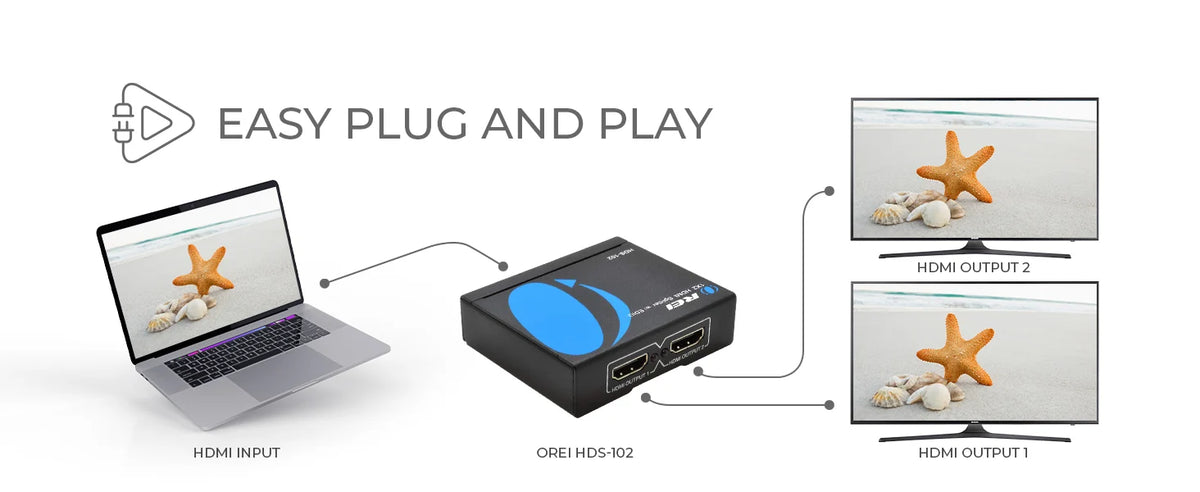

• Plug-and-play operation without software or drivers.

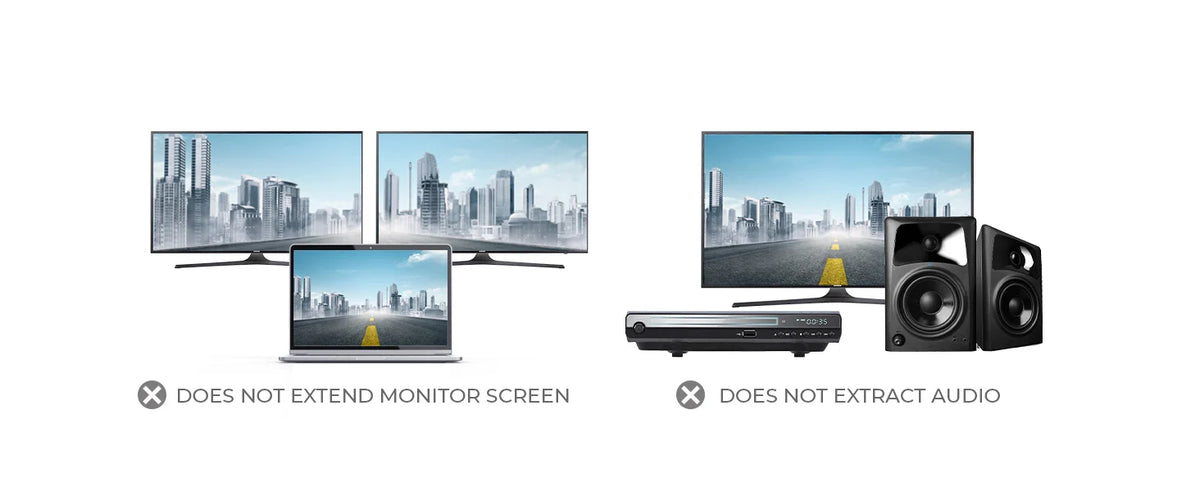

• No video downscaling, audio extraction, CEC, HDR10, HDR10+, Dolby Vision or extended-display MST support.

Specifications

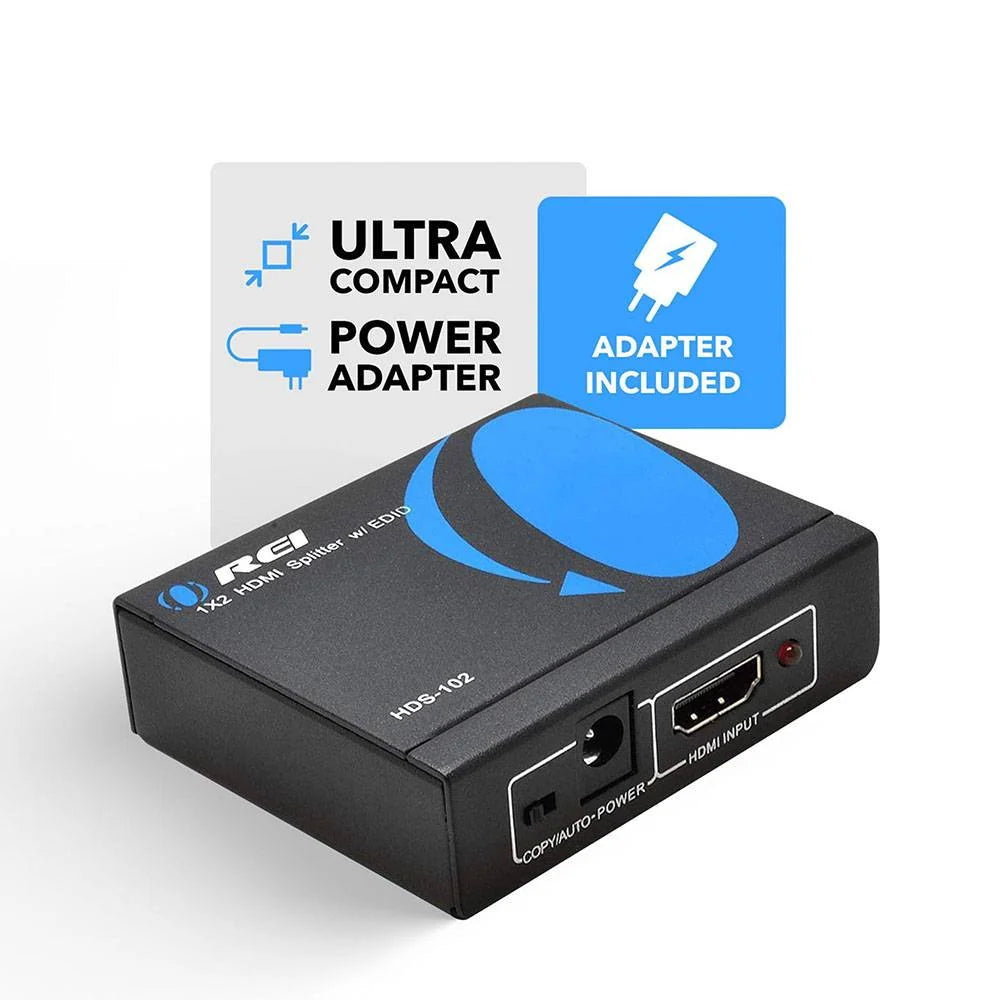

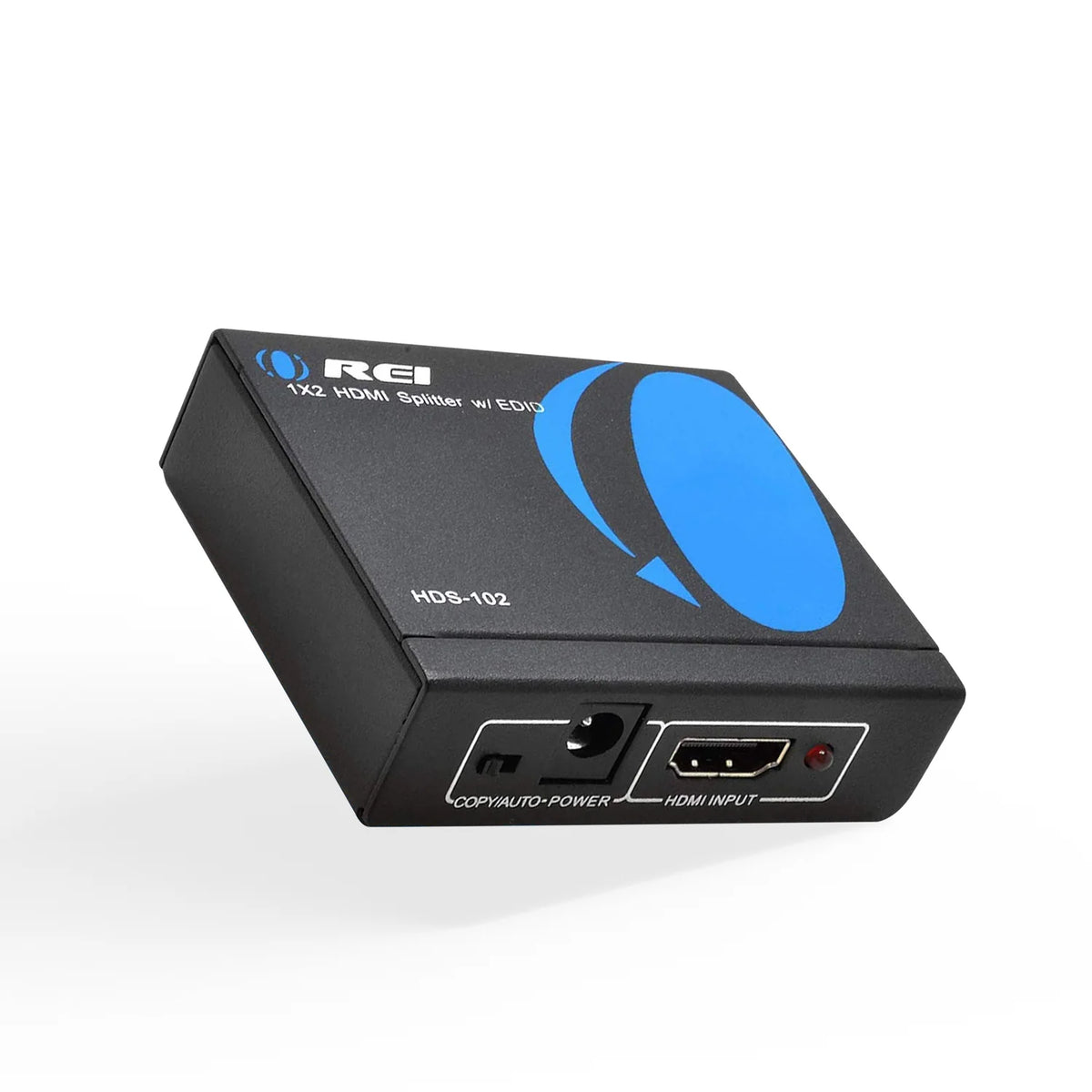

• Model: HDS-102. Housing: black metal enclosure.

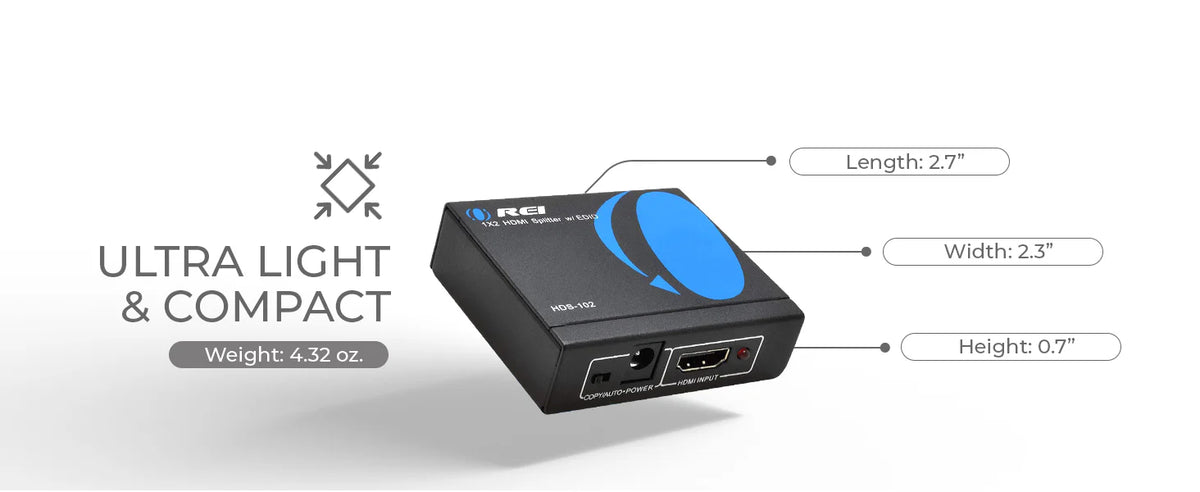

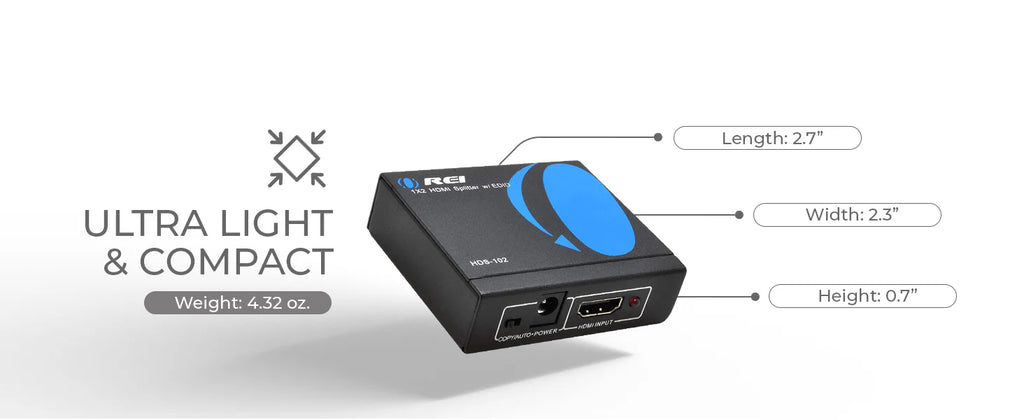

• Dimensions: 70 × 60 × 20mm. Weight: 125g.
• Maximum power consumption: 5W.
• Supplied power adapter input: AC 100–240V, 50/60Hz. Adapter output: DC 5V/1A.

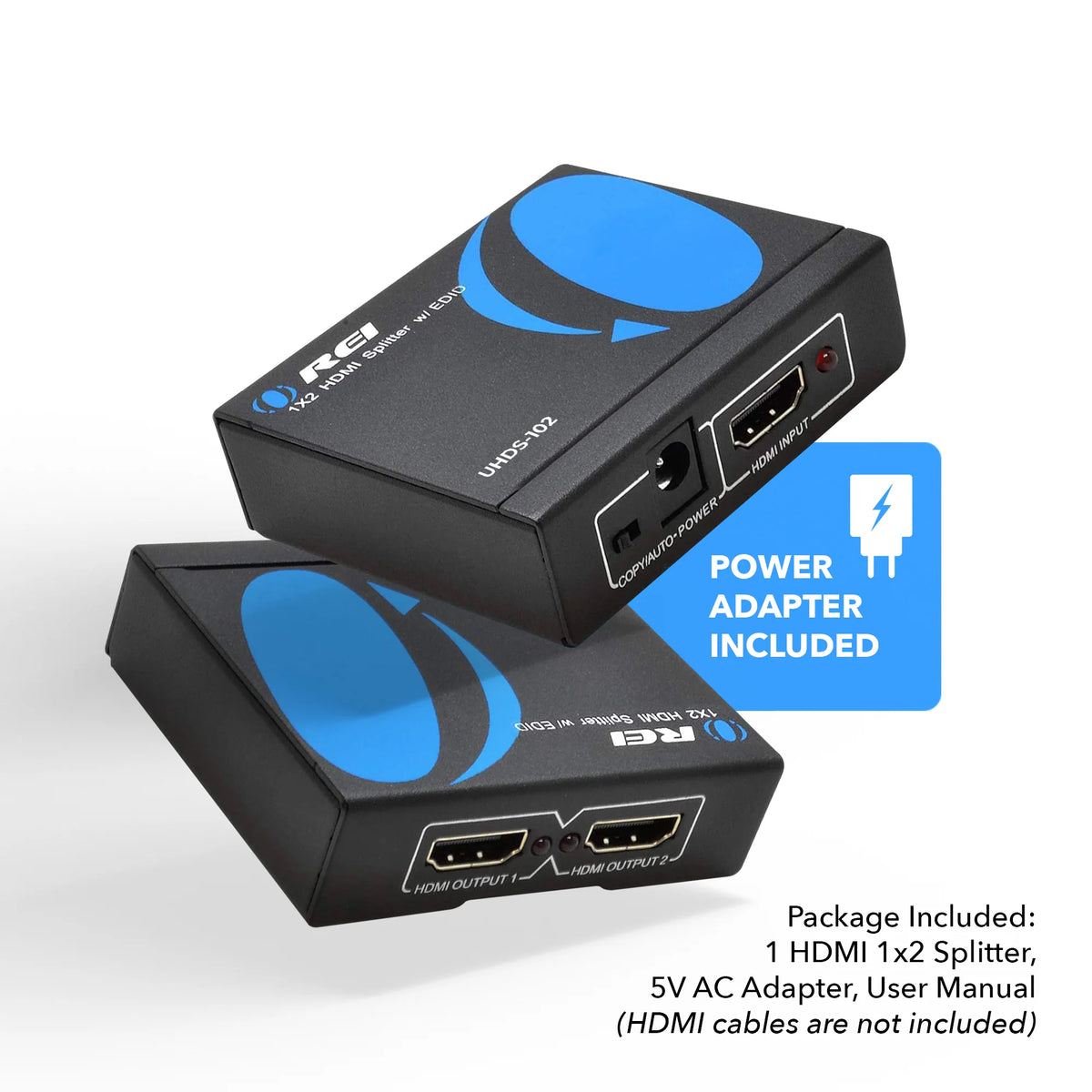

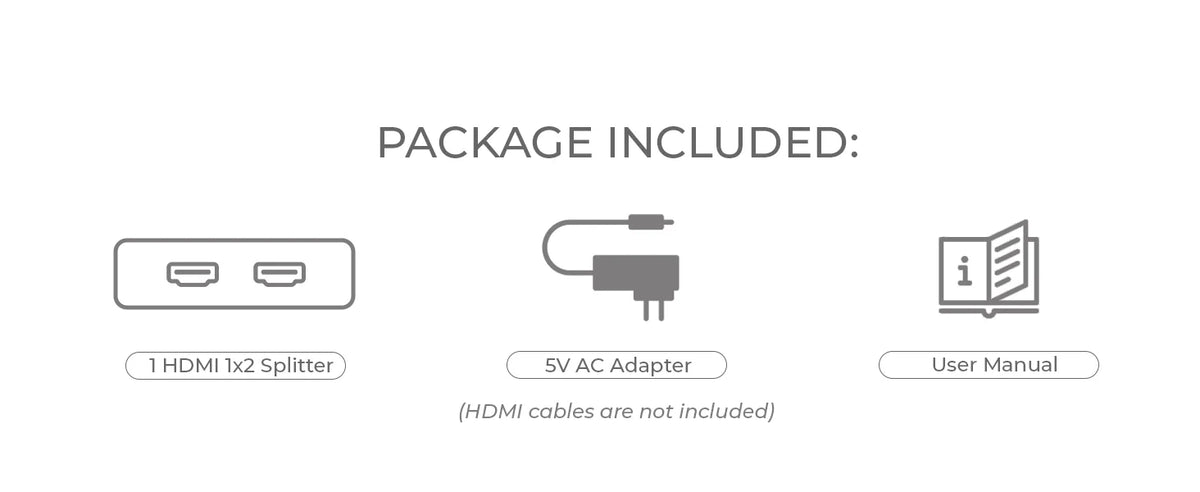

• Included: one HDS-102 splitter, one power adapter and user manual.
• Use high-quality HDMI 2.0 or 2.1 cables under 30 feet for optimal performance; cable compatibility does not change the splitter's listed HDMI version.
• Operating temperature: 0–40°C. Relative humidity: 20–90%, non-condensing.
