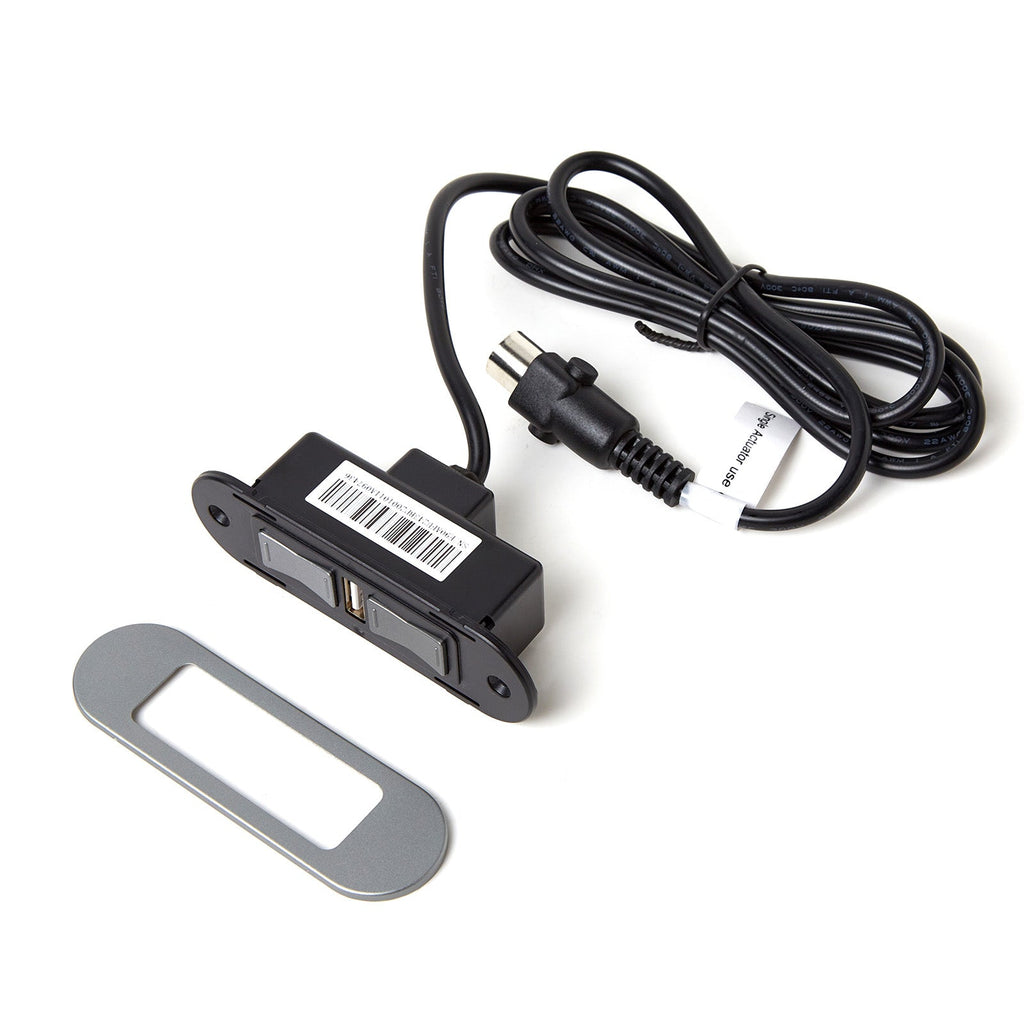

HX90AFU Two-Button Recliner Switch with 5V 2A USB Port, 5-Pin Male Connector, Faceplate and Screws

This HX90AFU two-button switch replaces a compatible control on a single-motor power recliner. It has a 5-pin male motor connector and a USB port rated at 5V 2A for mobile-device charging. A faceplate and two screws are included. Check the barcode-sticker serial number before ordering.

Key Features

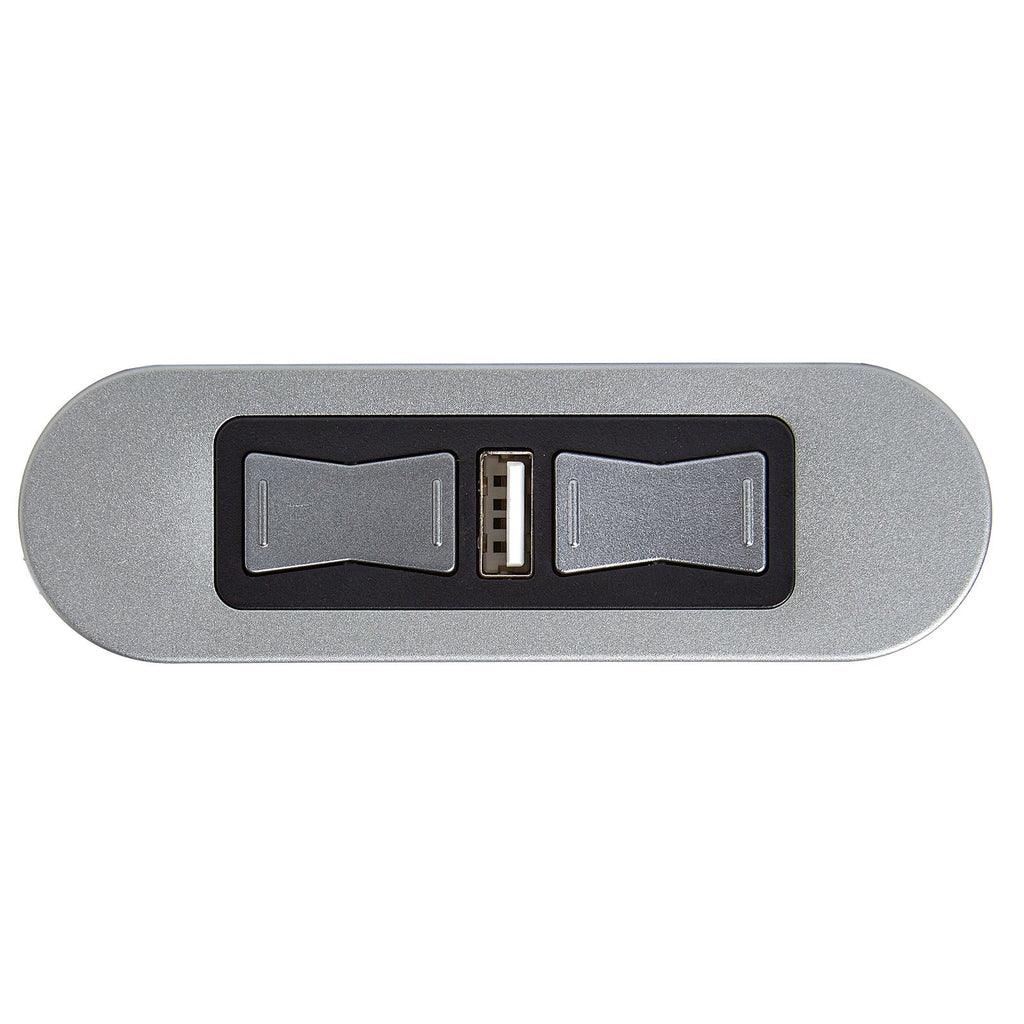

• Two buttons control the chair’s opening and closing movement.
• USB charging port with a 5V 2A output rating.

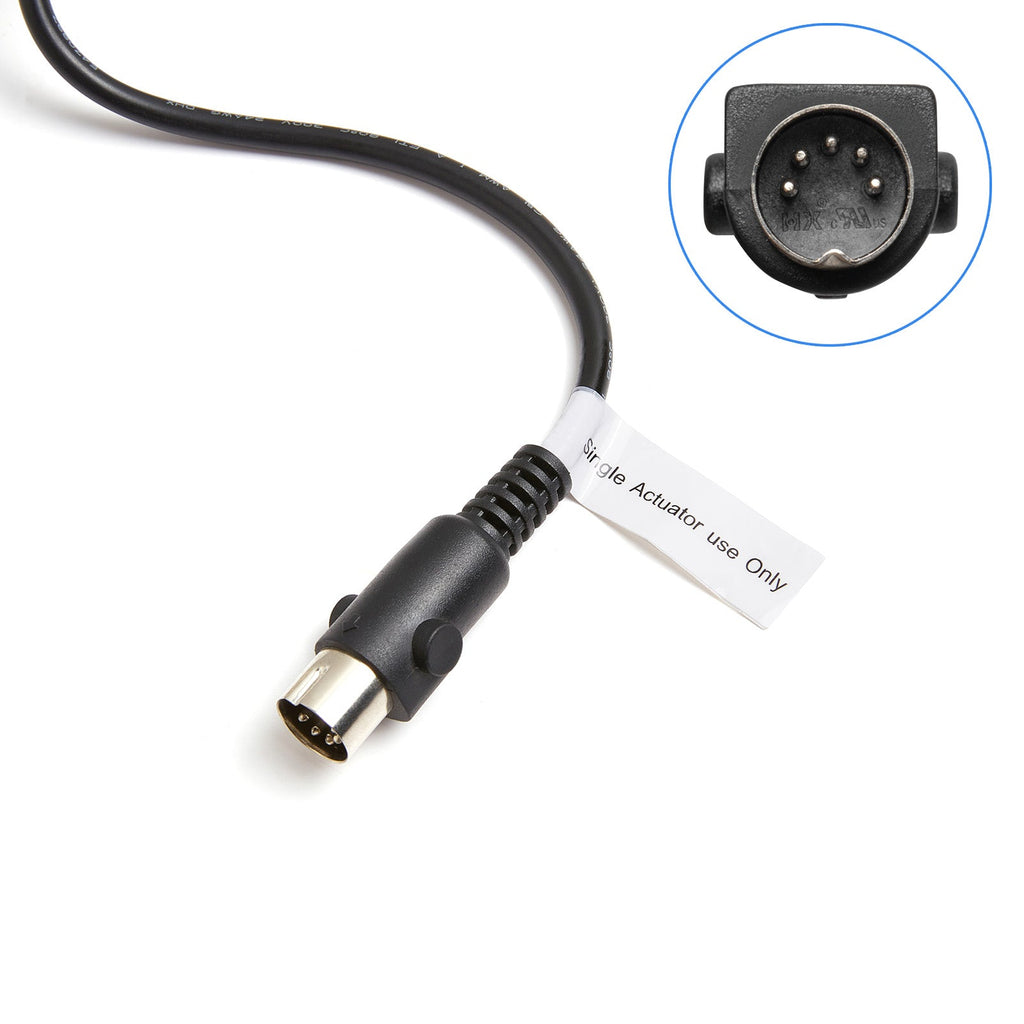

• 5-pin male connector plugs into the motor.
• Replacement for HX90AFU, HX90AHU and HX90AZU switches when all serial-number conditions match.

Specifications

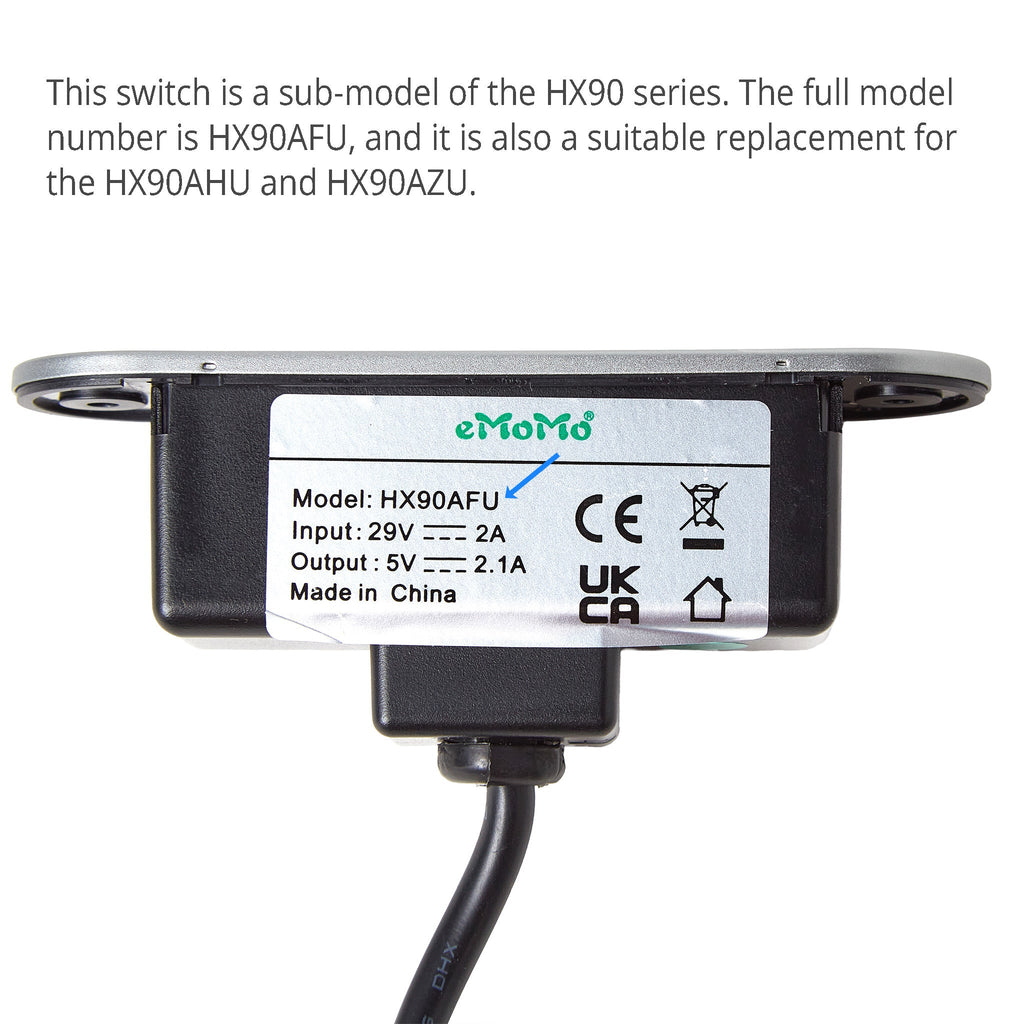

• Switch model: HX90AFU, part of the HX90 series.
• Chair configuration: Single-motor power recliner.
• Control buttons: Two.
• Connector: 5-pin male.
• USB output: 5V 2A.

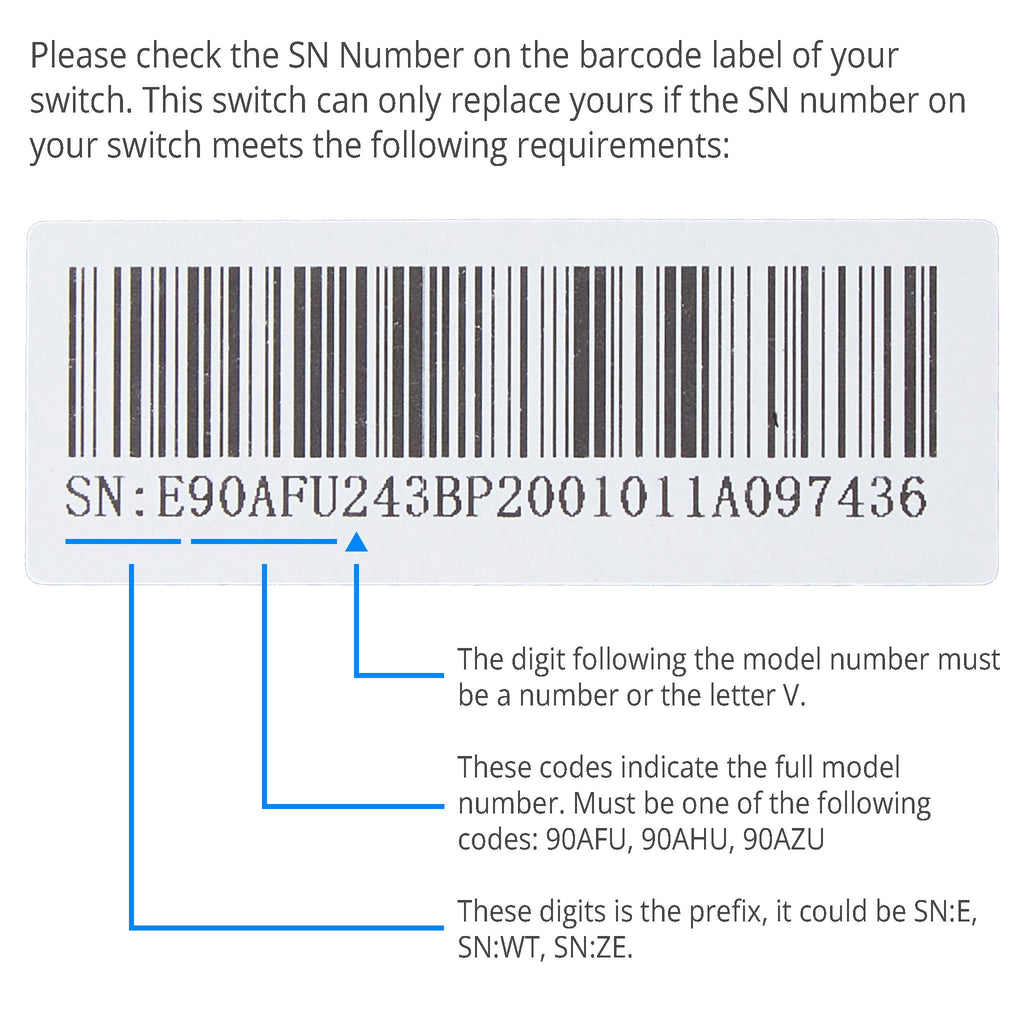

• Required serial prefix: SN:E, SN:WT or SN:ZE.
• Model code immediately after the prefix: 90AFU, 90AHU or 90AZU.
• Character immediately after the model code: A number or the letter V.
• Package: One HX90AFU switch, one faceplate and two screws.
