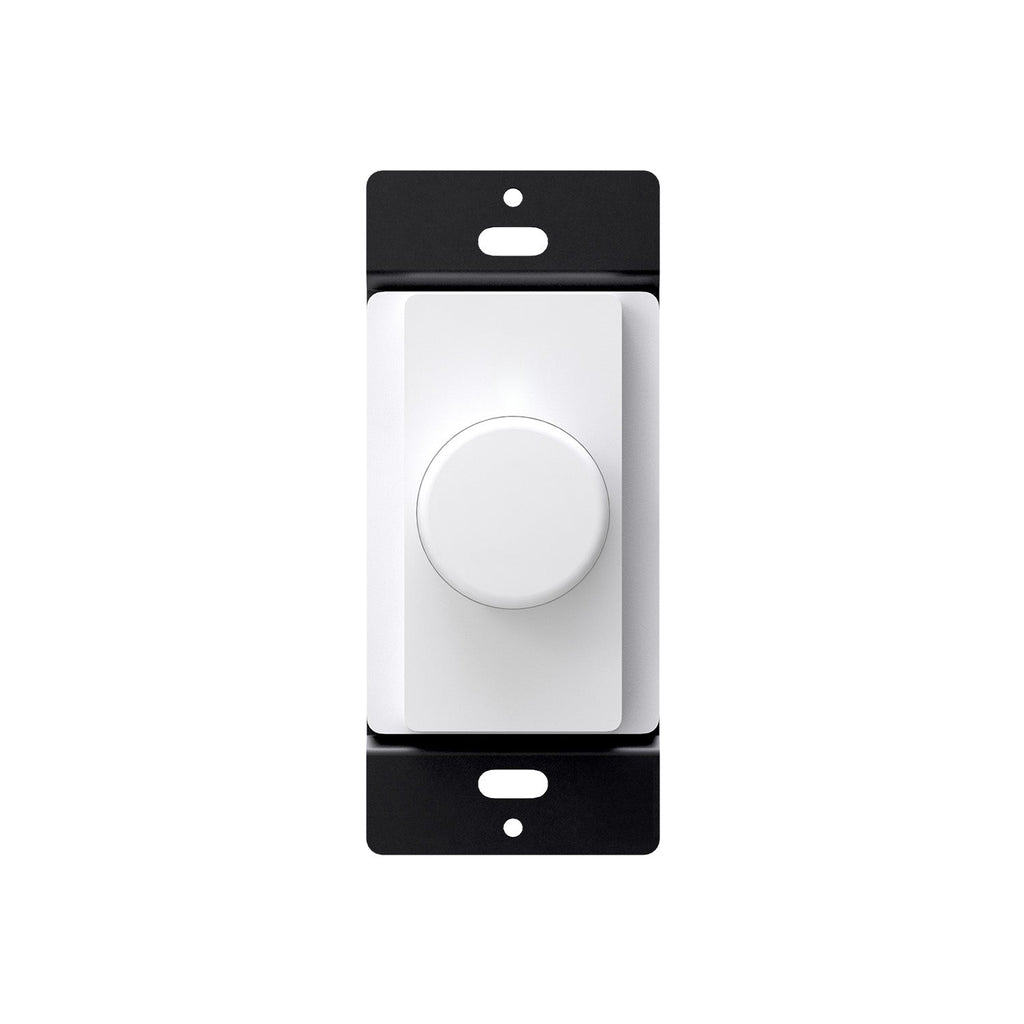

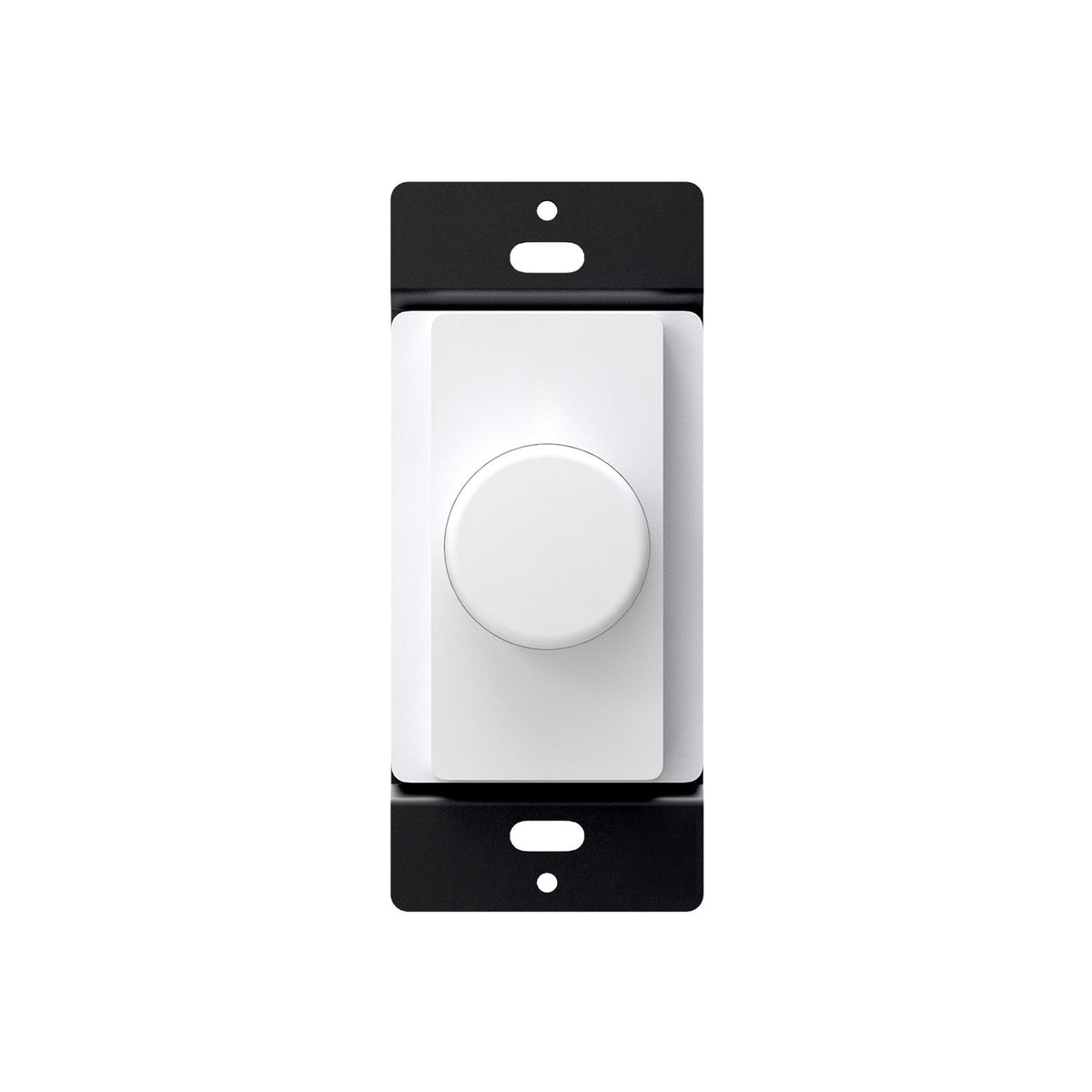

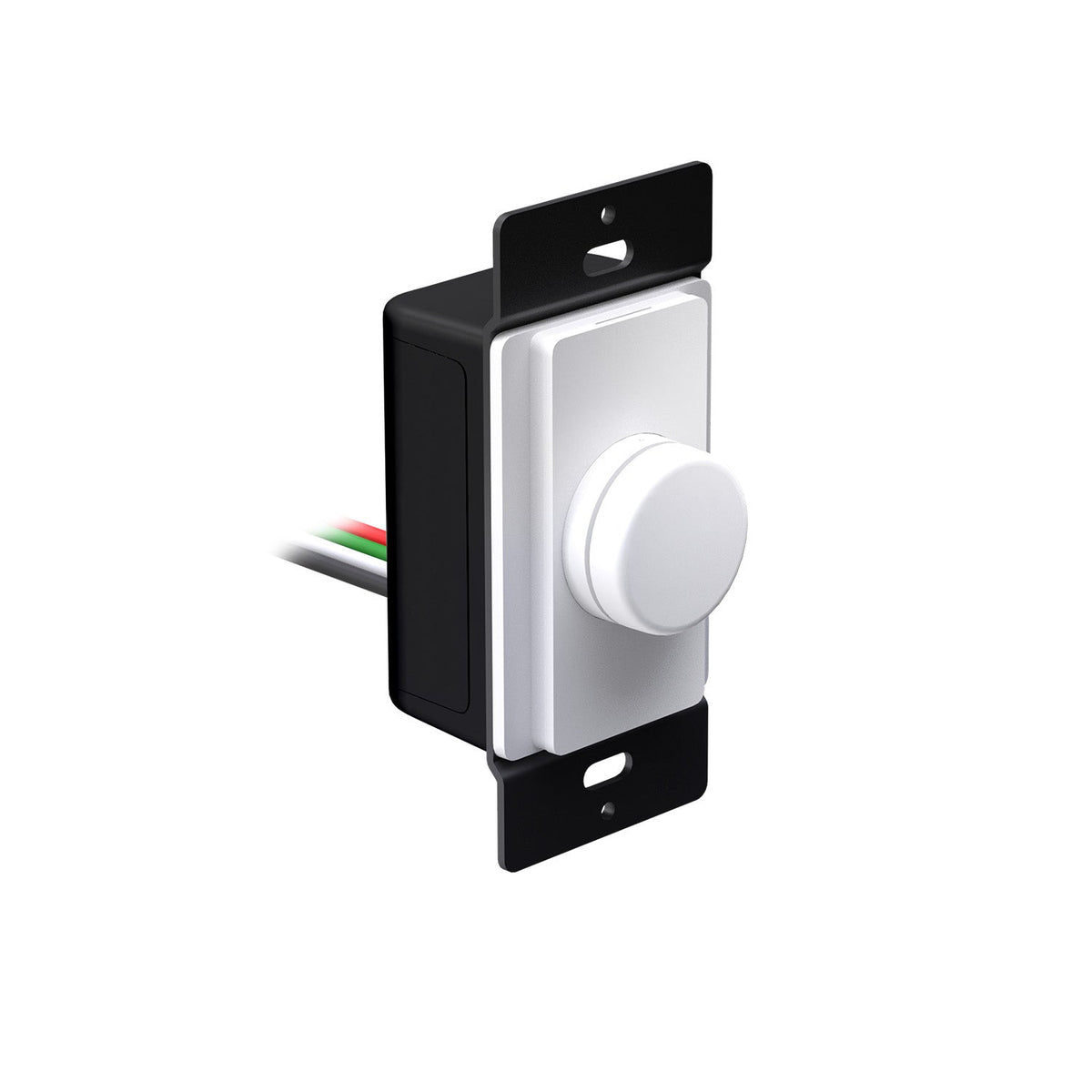

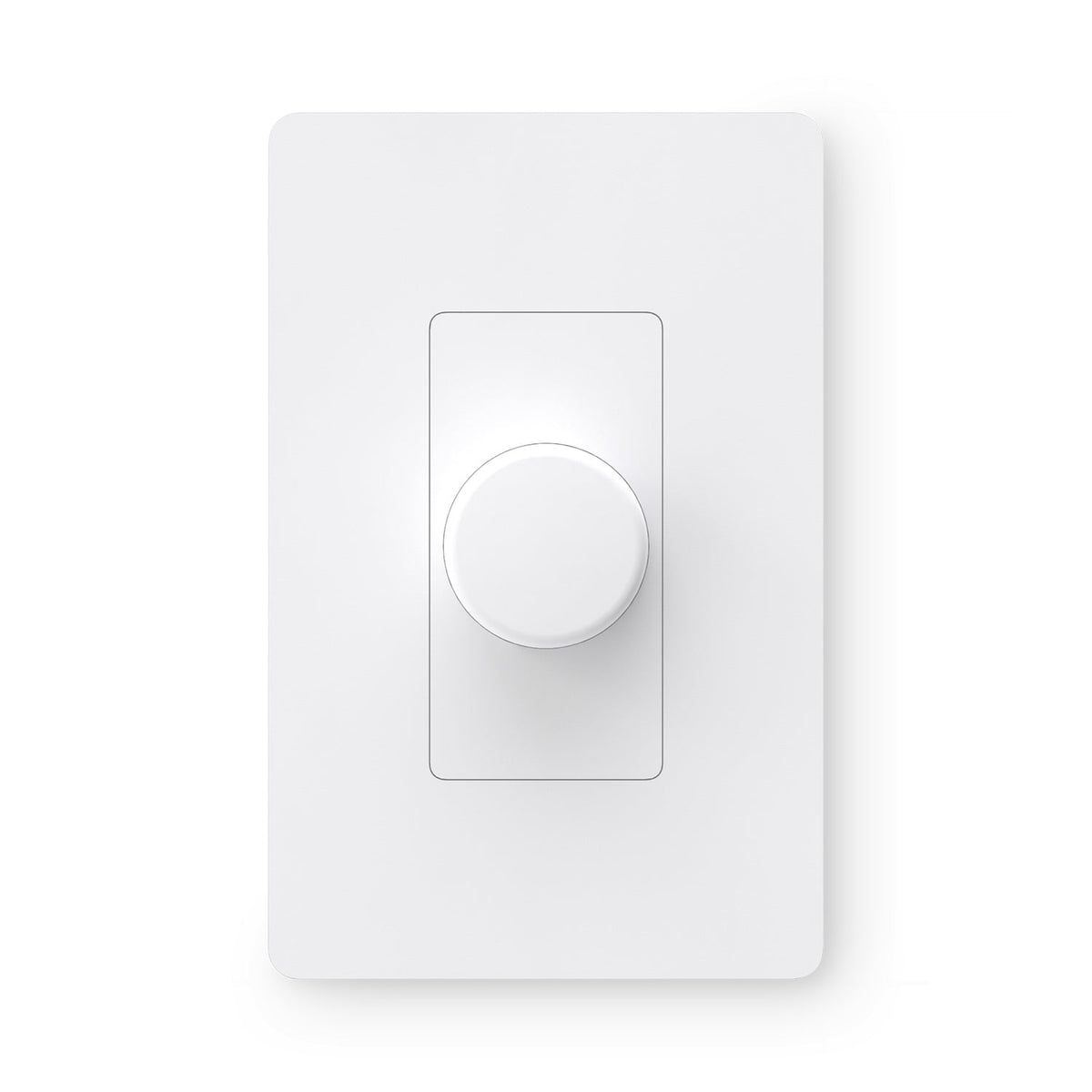

i3 Dial Rotary Smart Dimmer Switch with Dual-Band Scene Control and Selectable On-Off or Dimming Modes

i3 Dial is a rotary smart wall switch that lets you push to turn lights on or off and rotate to set brightness. It can act as an Insteon scene controller and can be configured for dimming or on-off operation.

Key Features

• Precision rotary brightness adjustment with push on-off control.
• Configurable brightness on-level and fade speed for linked scenes.
• Dual-band mesh communication over power lines and wireless radio.
• Manual linking between Insteon devices without a hub, app or Wi-Fi.
• Links with Insteon switches, keypads, sensors, remotes, plugs and outlets.
• Status LED, set button and pull-out air gap.
• App, schedules and Alexa or Google Home voice control require Hub 2 and Connected Home Access.

Specifications

• Model: DS01 i3 Dial
• Dimmer mode: up to 150W of dimmable LED bulbs, or 400W of incandescent or halogen bulbs
• On-off mode: switching up to 9A, 1/3 HP
• Factory default: dimmer mode

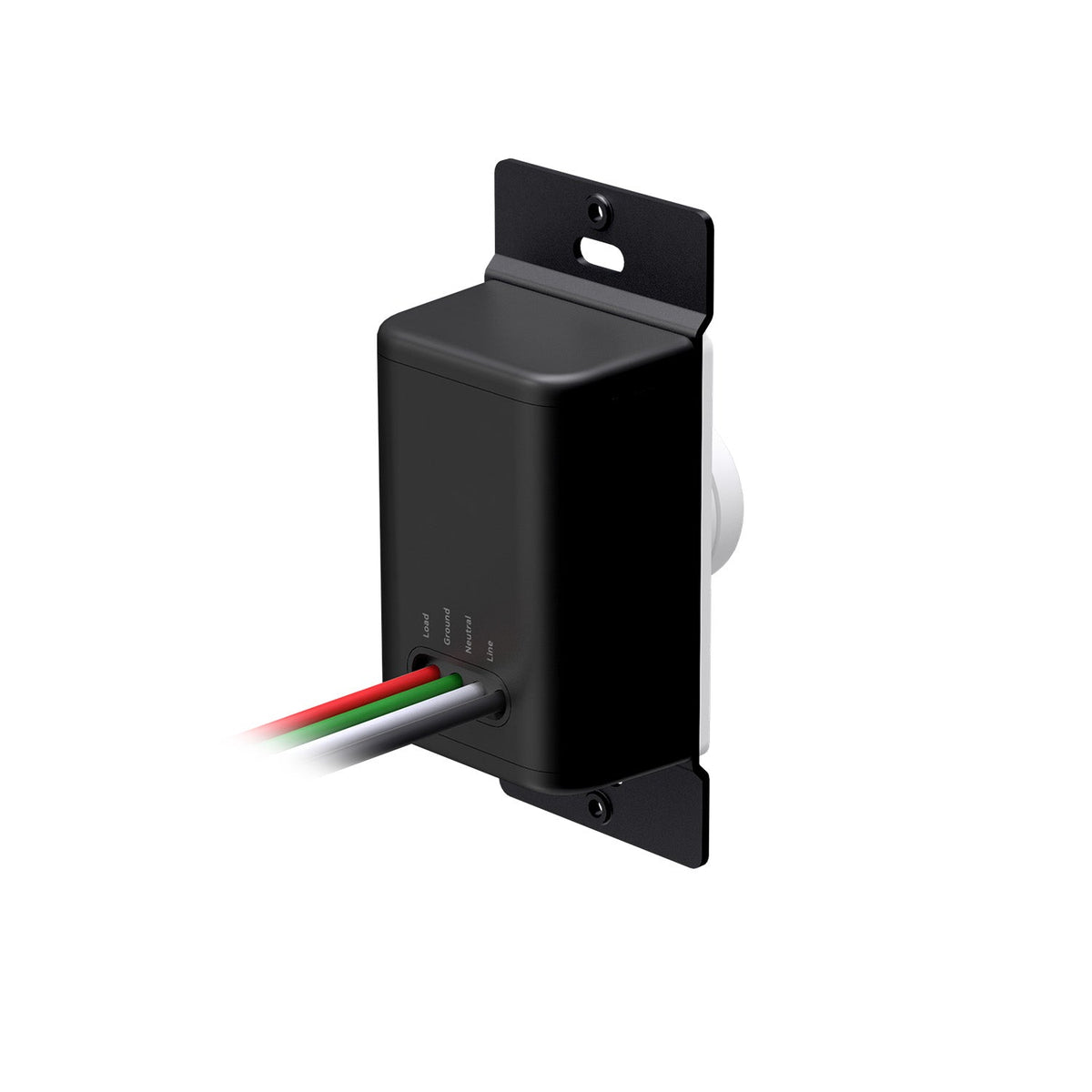

• Installation: replaces a wall switch; neutral wiring required

Installation and Use

Turn power off at the circuit breaker before installation. If neutral wiring is absent or you are unsure, stop and contact support. Follow the model-specific wiring instructions. The manufacturer recommends a factory reset before use. Change to on-off mode when controlling a non-dimmable fixture.
