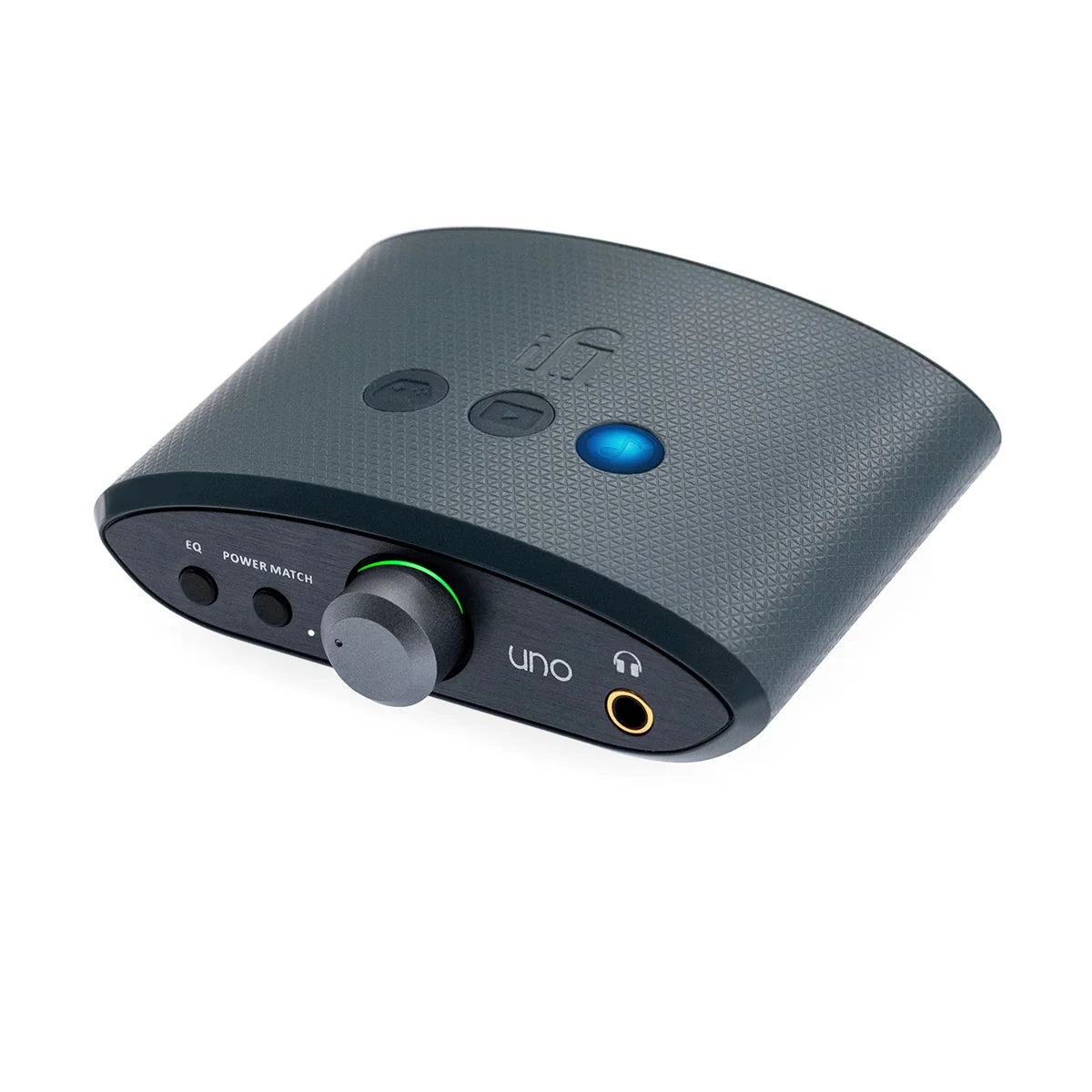

Uno USB-C DAC and Headphone Amplifier with RCA Output, Analog Volume Control and Three Listening Modes

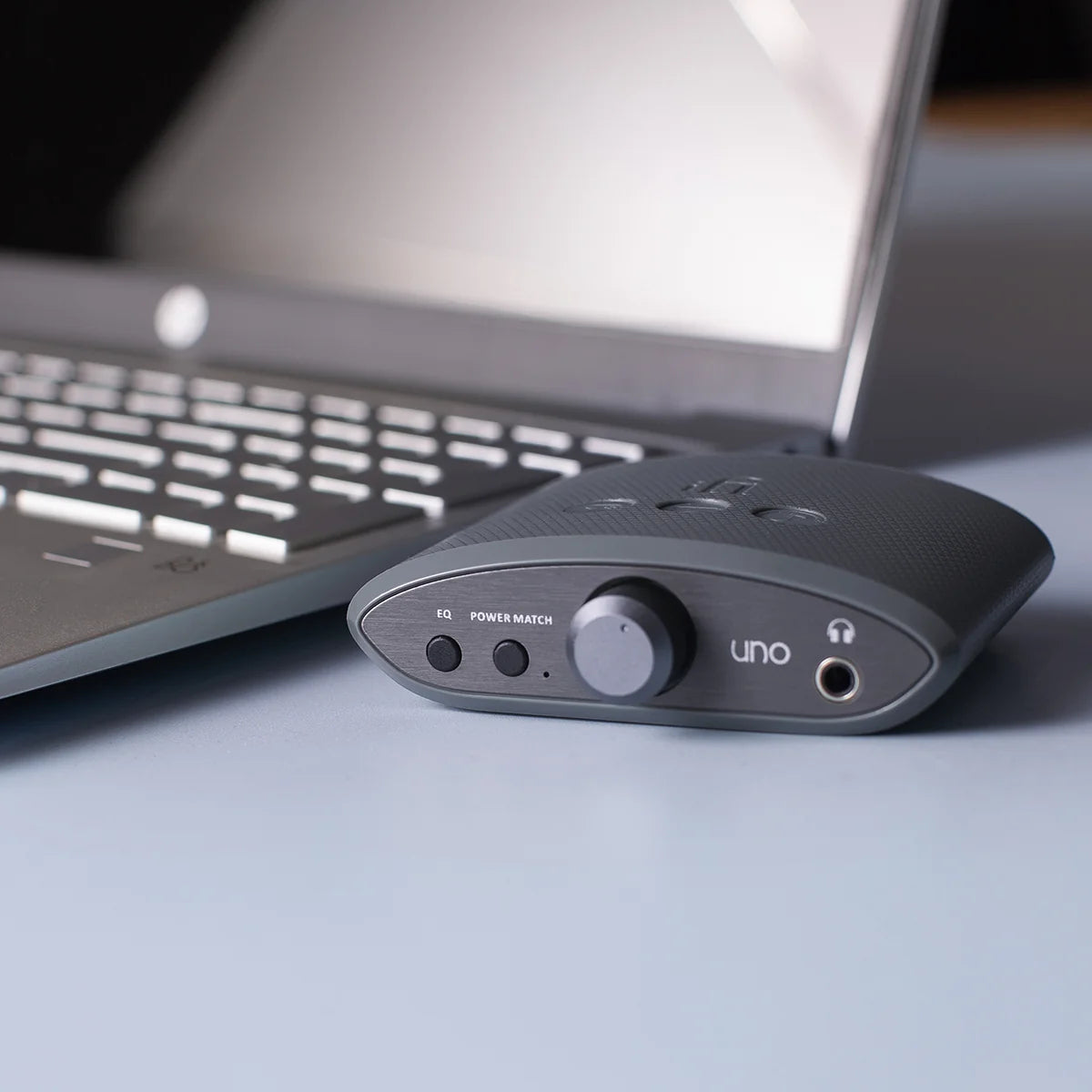

The iFi Uno combines a USB DAC and headphone amplifier for music, movies and games. Connect it to a compatible computer, smartphone or tablet through USB-C, then use headphones or a powered speaker system.

Key Features

• USB-C carries audio data and power from the connected device.

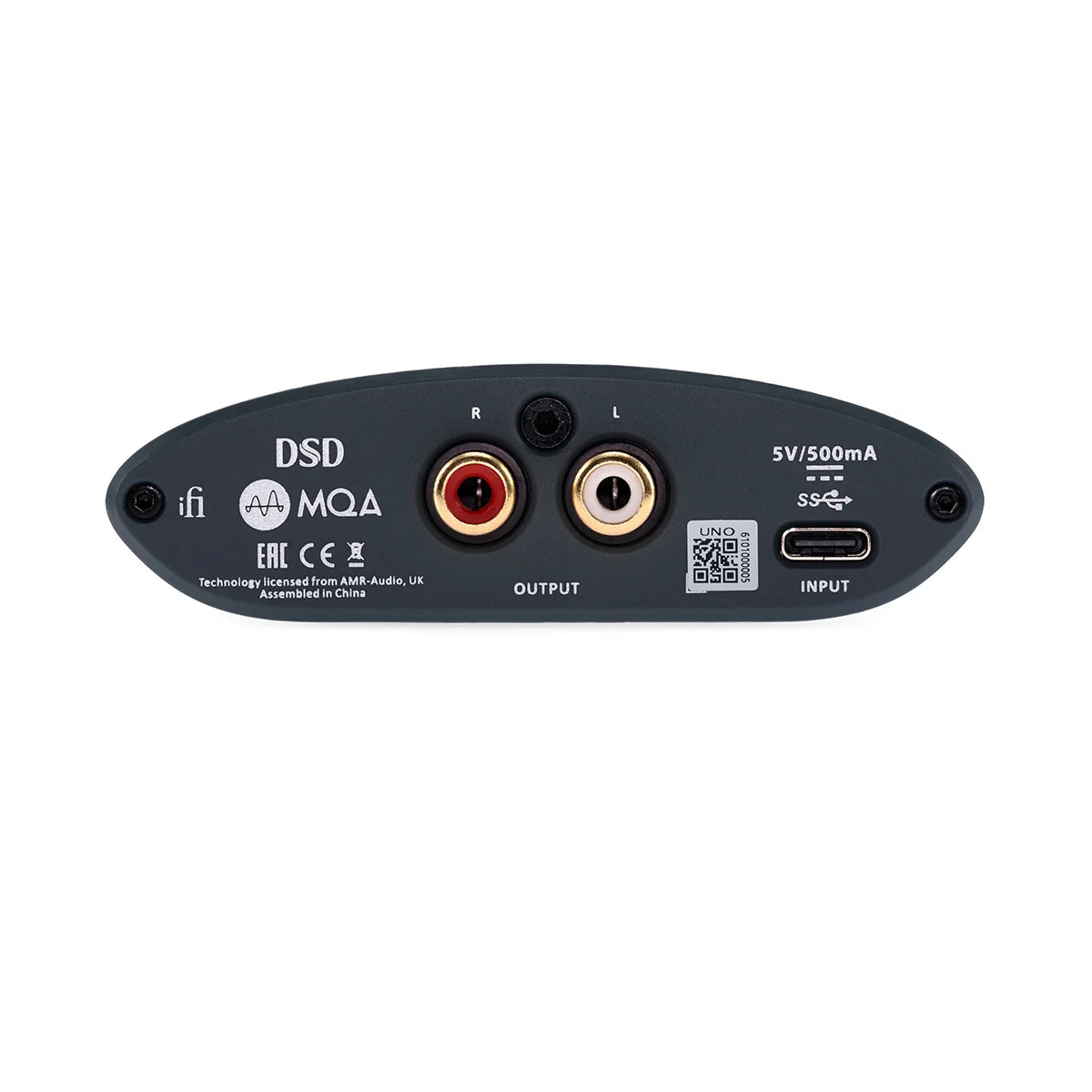

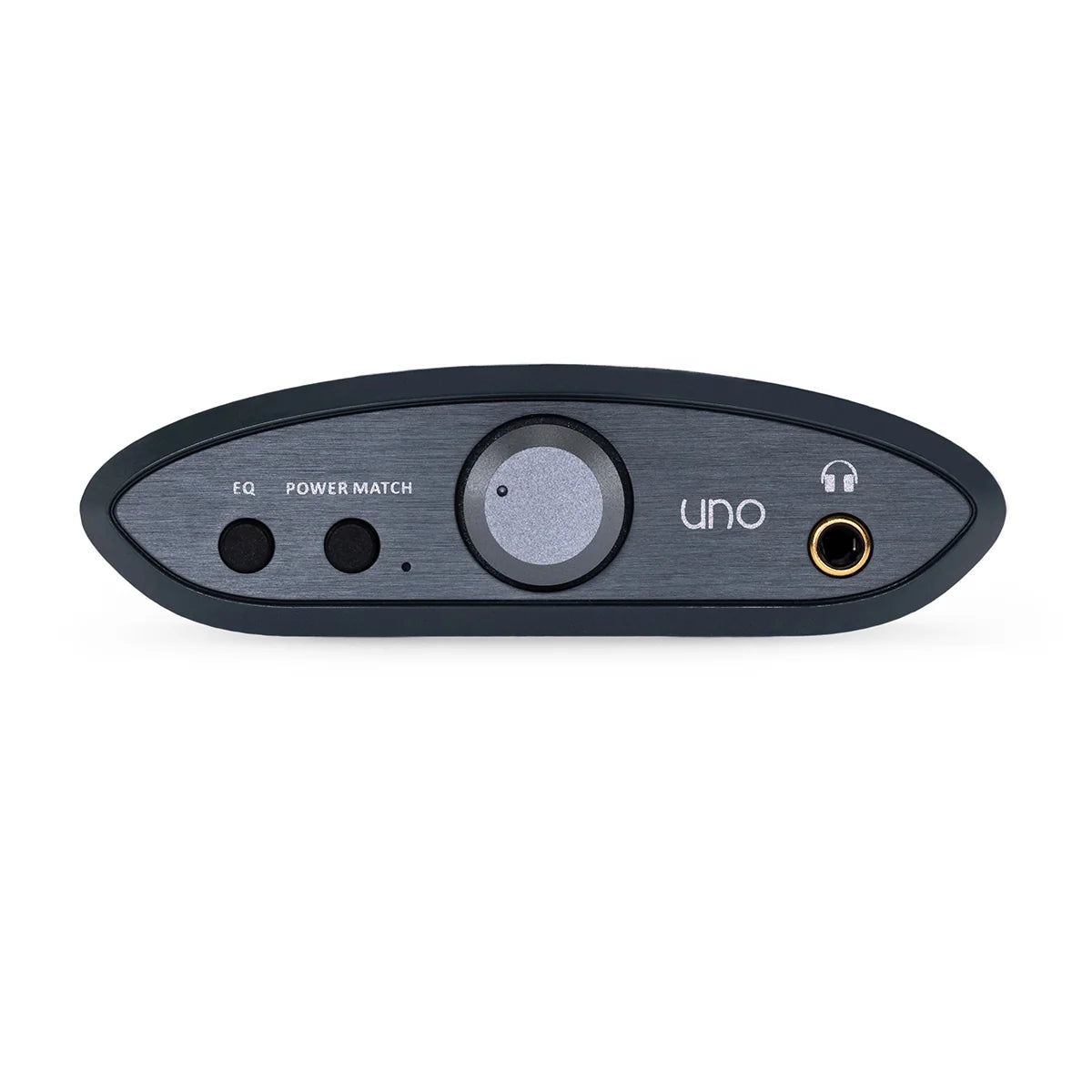

• 3.5mm headphone socket at the front and stereo RCA line outputs at the rear.
• Music, Movie and Game modes selected with a front-panel button and illuminated mode indicators.
• Analog volume control, PowerMatch gain and selectable digital filters.
• ESS DAC with support for PCM and DXD up to 384kHz, native DSD256 and MQA playback.
• S-Balanced headphone circuitry and gold-plated analog outputs.
• Compact mineral-filled polymer case.

Specifications

• Model: Uno; SKU UNO.
• USB power requirement: 5V/0.5A through USB-C.
• Power consumption: approximately 0.8W with no signal; approximately 1.5W at maximum signal.
• Headphone output power: at least 211mW at 32Ω; 39mW at 300Ω.
• RCA line output: 2V maximum.
• Headphone output impedance: below 1Ω.
• Net weight: 92g.
• Compatible device types: Windows PCs, Macs, smartphones and tablets with a suitable USB connection.
