Indoor Infrared Motion Sensor Two-Pack with YS1603 Hub, App Status Alerts and Adjustable Sensitivity

This starter kit combines one YS1603 hub with two YS7804 indoor infrared motion sensors. View real-time movement status in the YoLink app and use three sensitivity levels to tailor detection to the room.

Key Features

• Wireless sensors can mount on a wall, ceiling or suitable metal surface using the built-in magnet.
• App setup uses Scan & Play. Low-battery alerts help plan battery replacement.
• Motion events can trigger configured lighting or occupancy automations through compatible equipment, which is not included.
• The supplied hub needs internet access through Ethernet or 2.4GHz Wi-Fi.

Specifications

• Sensor: YS7804; infrared motion detection.
• Listed sensing coverage: 360 degrees with a 120-degree side profile; detection range 6–20 feet.
• Suggested mounting height: 5 feet on a wall or 9–13 feet on a ceiling.
• Sensor power requirement: two AAA alkaline batteries, 3V DC.
• Sensor dimensions: 2.44 inches wide by 1.1 inches high; white finish.
• Multicolor front status LED and rear SET button.
• Operating temperature: 0–50°C; humidity: 0–95%, non-condensing.
• App requirement: iOS 9 or later, or Android 4.4 or later.
• Intended for indoor use in the USA and Canada.

Package Contents

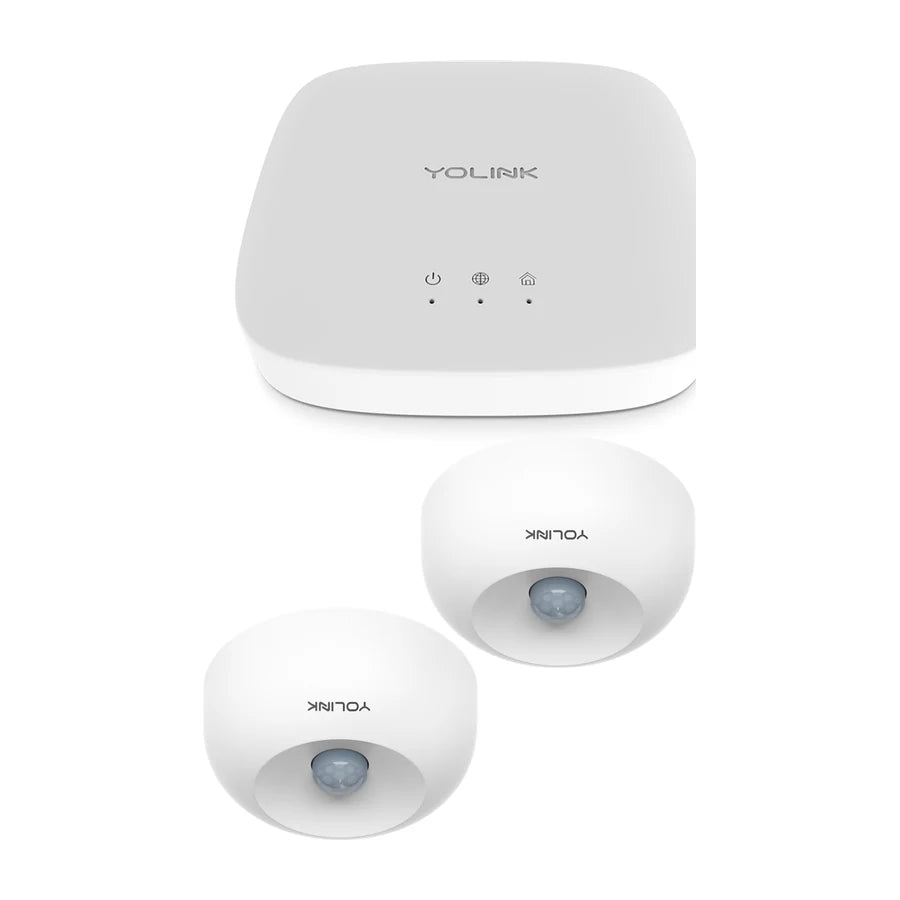

• One YS1603 hub.
• Two YS7804 indoor motion sensors.
