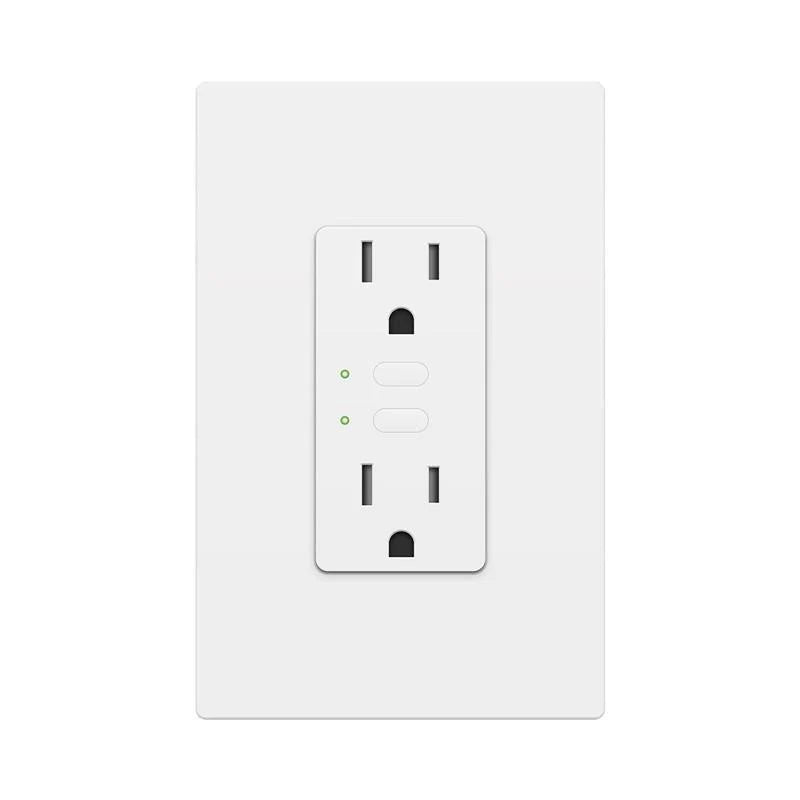

2663-222 Dual On/Off Smart Wall Outlet with Independent Receptacle Control, Load Sensing and Dual-Band Linking

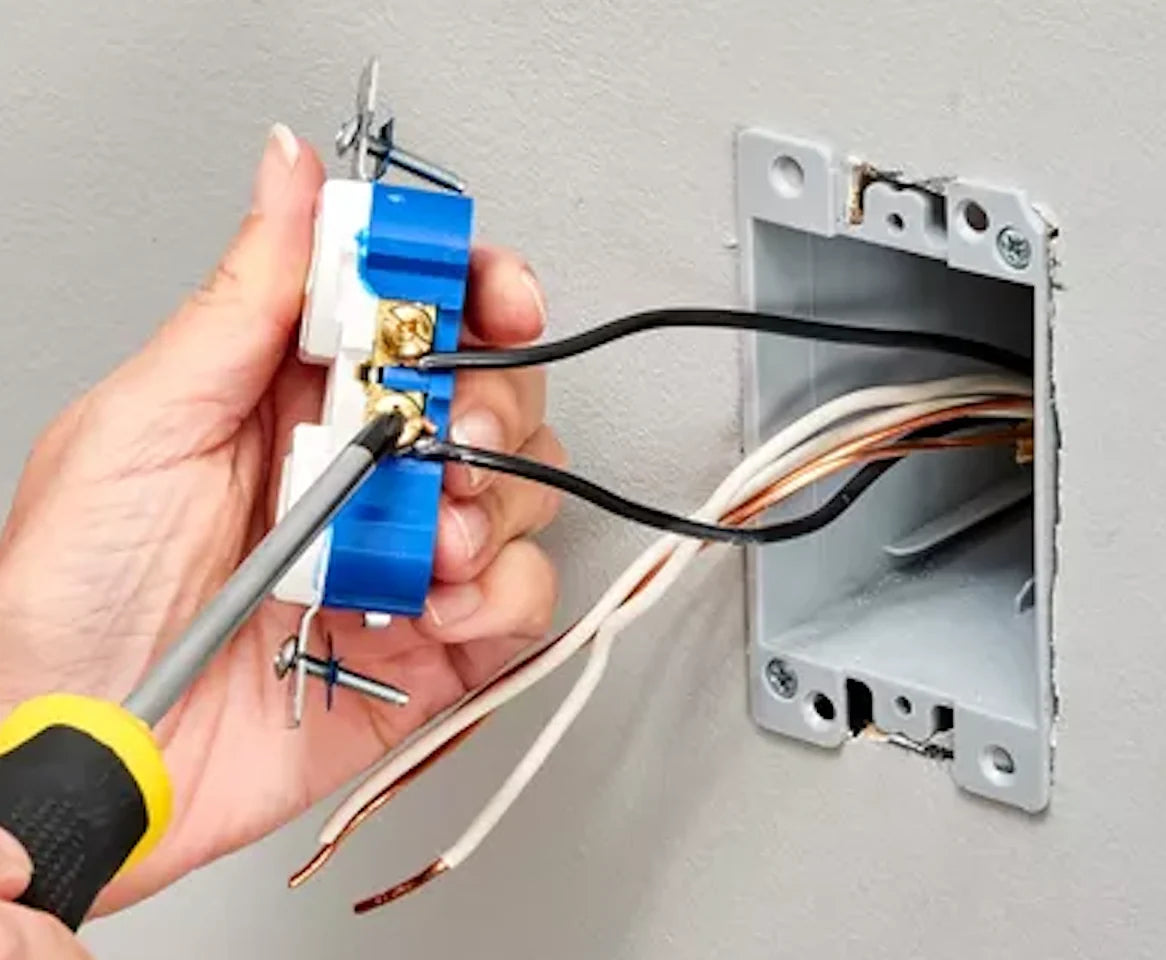

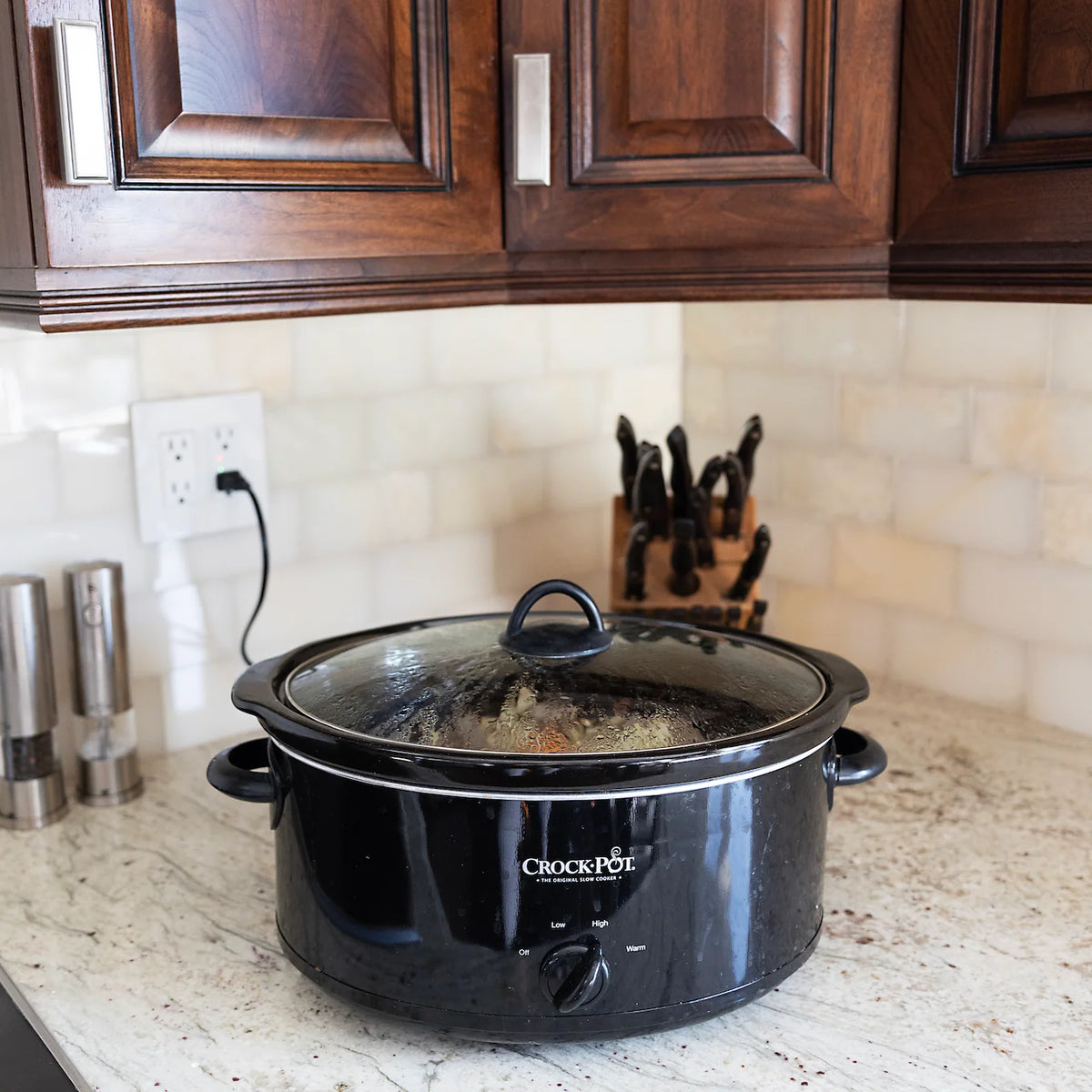

The 2663-222 Dual On/Off Outlet replaces a standard wall outlet with two grounded receptacles that can be controlled independently. Local buttons, load sensing and Insteon device linking provide convenient control of compatible lamps, fans and small appliances.

Key Features

• Individually addressable top and bottom outlets.
• Load sensing lets a connected lamp trigger the outlet using its own power switch.
• Local button control and scene-controller functions.
• Dual-band communication over existing power lines and wireless radio.

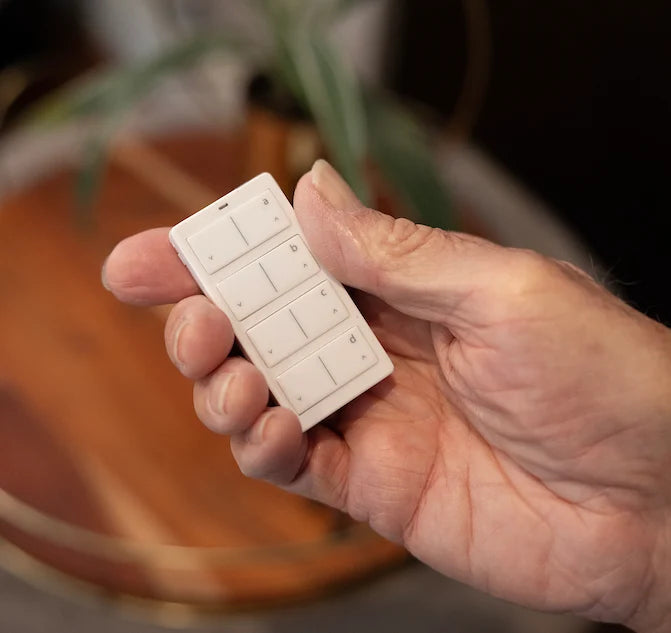

• Link compatible Insteon switches, keypads, sensors, remotes and outlets without a Hub, app or WiFi for basic linking.

Specifications

• Model: 2663-222.
• Supply: 120V AC ±10%, 50/60Hz, single phase.
• Maximum load: 600W for incandescent lighting; 15A for other loads.
• Controlled receptacles: two grounded NEMA 5-15R outlets.
• Power consumption: under 0.4W.

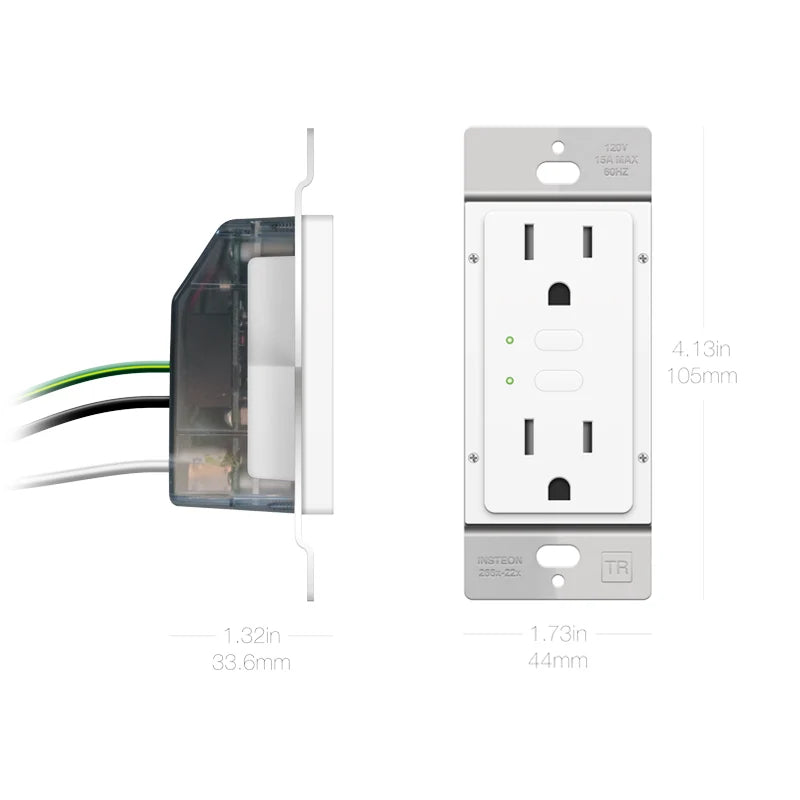

• Dimensions: 4.1 × 1.73 × 1.6in (H × W × D).
• Weight: 4.5oz.
• Operating temperature: 32–104°F; operating humidity: 0–90% RH.

Control Options

A separate Hub 2 and Connected Home Access are required for the Insteon mobile app and supported Amazon Alexa or Google Home voice control. Hub-based control adds scene editing, schedules and device notifications. This outlet switches power on and off; it does not dim loads.
