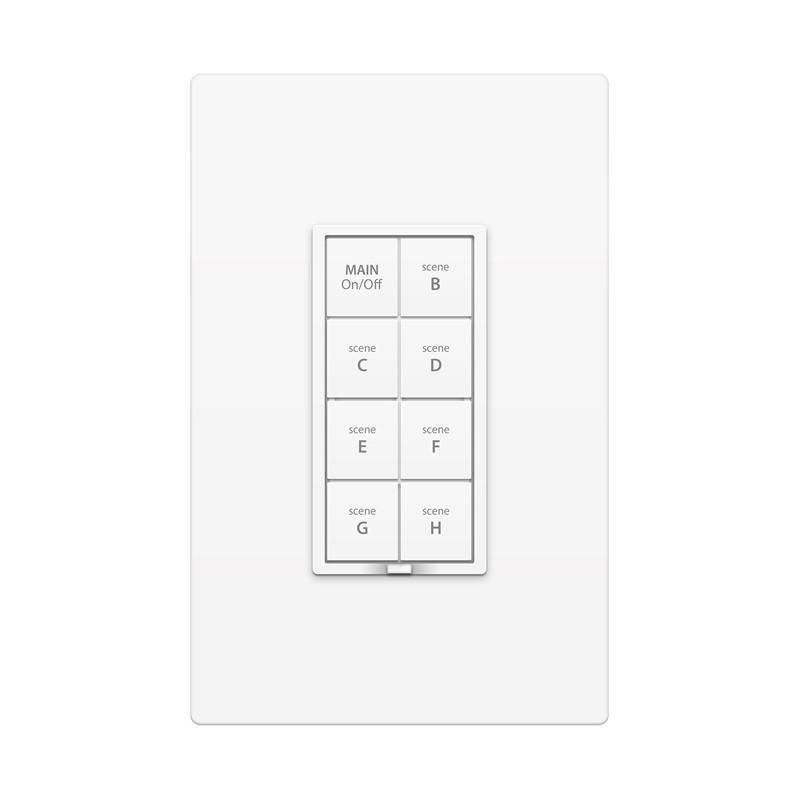

Eight Button Dimmer Keypad with Local Lighting and Scene Control, Dual Band Communication and Neutral Required

This eight-button Insteon keypad combines a local lighting dimmer with a controller for up to eight devices or scenes. Model 2334-222 replaces a wall switch and requires a neutral wire.

Key Features

• Control groups of linked Insteon devices with one scene button.
• Set brightness on-levels and fade-on or fade-off speeds.
• Dual-band communication uses power lines and wireless radio.
• Link compatible Insteon devices using physical controls without a hub, app or Wi-Fi.
• Button status lights and a physical Set button.
• Optional button-label and colour kits support customization; these kits are not claimed included.

Specifications

• Exact model: 2334-222. Eight-button in-wall dimmer keypad.
• Input scope: 120VAC, 50/60Hz, supported by both the own product table and linked manual.
• The supplier table lists 100–277VAC; the linked owner manual lists 120–277VAC. Confirm the selected unit input label before installation; broader voltage compatibility is not promised here.
• Own product table lists dimmable lighting loads up to 150W LED or 600W incandescent.
• Neutral wire required. Standard single-gang wall box mounting.
• Dimensions: 4.1 inches high, 1.8 inches wide and 1.4 inches deep. Device weight: 3.8 ounces.
• Operating temperature: 32–104°F. Humidity: 0–85% relative humidity.
• Standby consumption: under 1W.

Use and Compatibility

For compatible dimmable lighting and Insteon devices. Installation involves mains wiring; follow the linked manual and applicable installation requirements. App control, schedules and Amazon Alexa or Google Home voice control require Hub 2 and Connected Home Access. The manual warns against controlling receptacles, motor-operated equipment, fluorescent fixtures or transformer-supplied appliances. Home automation is a convenience and should not be relied on as the sole method of controlling a home.

Package Contents

• One eight-button dimmer keypad.

A hub, separate customization kits, wallplate and installation accessories are not claimed included.
