POE-Switch0504GD Industrial Gigabit PoE Switch with Four 30W Ports, DC Voltage Booster and Dual Power Input

POE-Switch0504GD Industrial Gigabit PoE Switch with Four 30W Ports, DC Voltage Booster and Dual Power Input

$115.58
$115.58

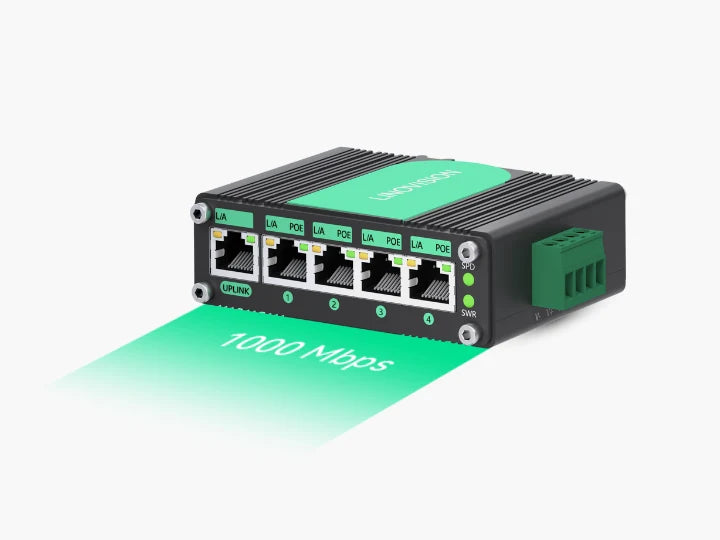

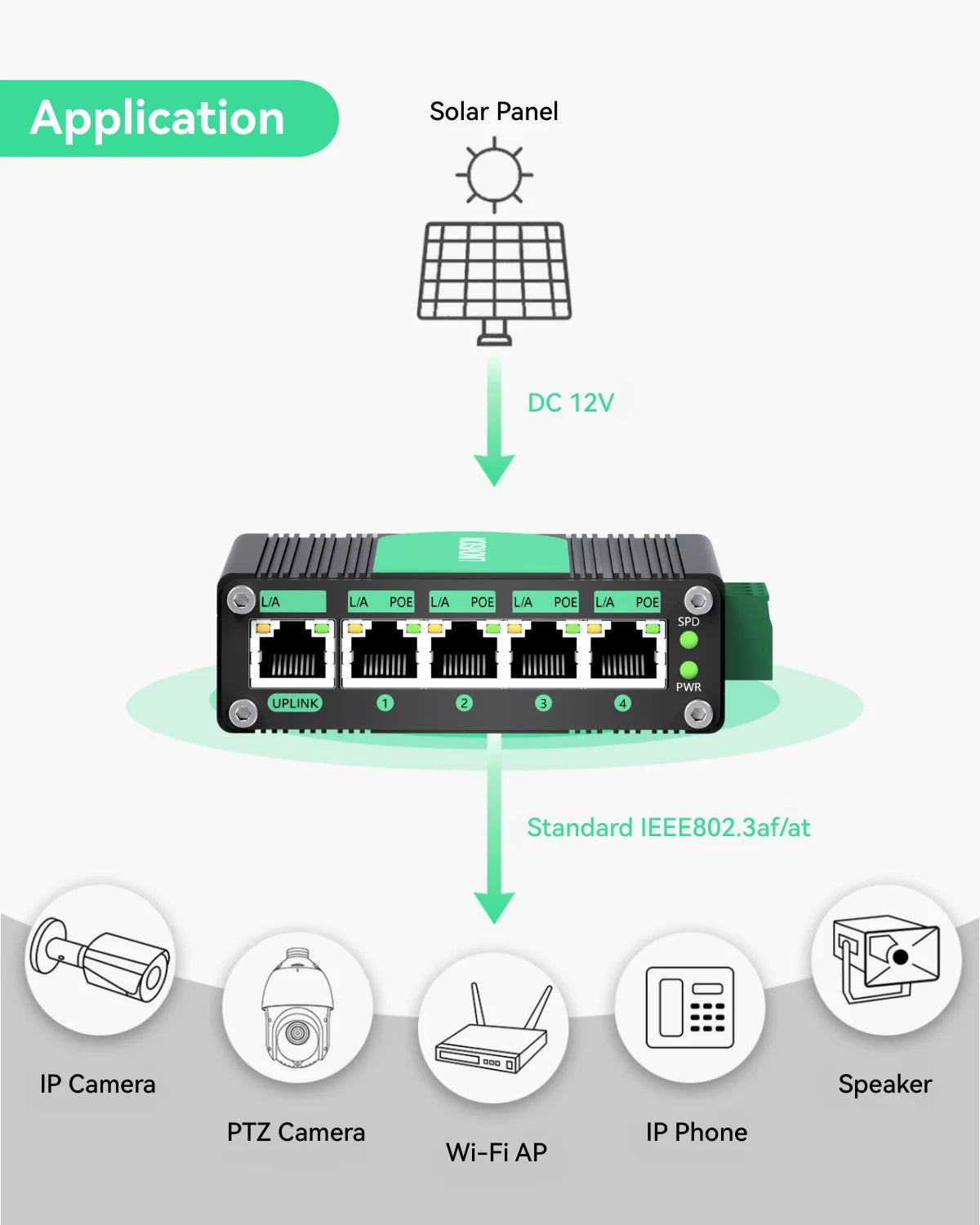

The LINOVISION POE-Switch0504GD is an unmanaged industrial gigabit switch with four PoE ports and one gigabit uplink. Its built-in voltage booster accepts DC9–54V power for networking in solar, vehicle and UPS installations.

Key Features

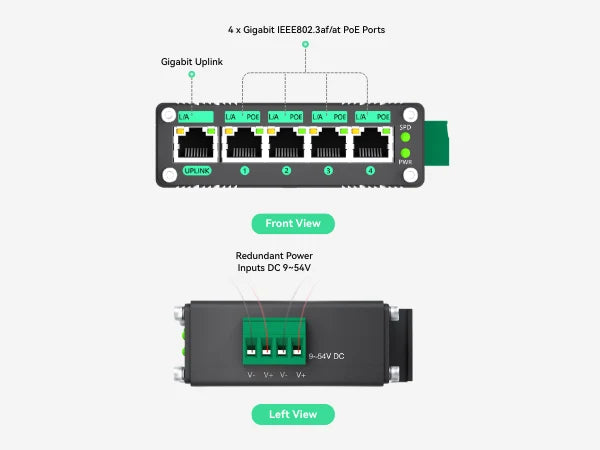

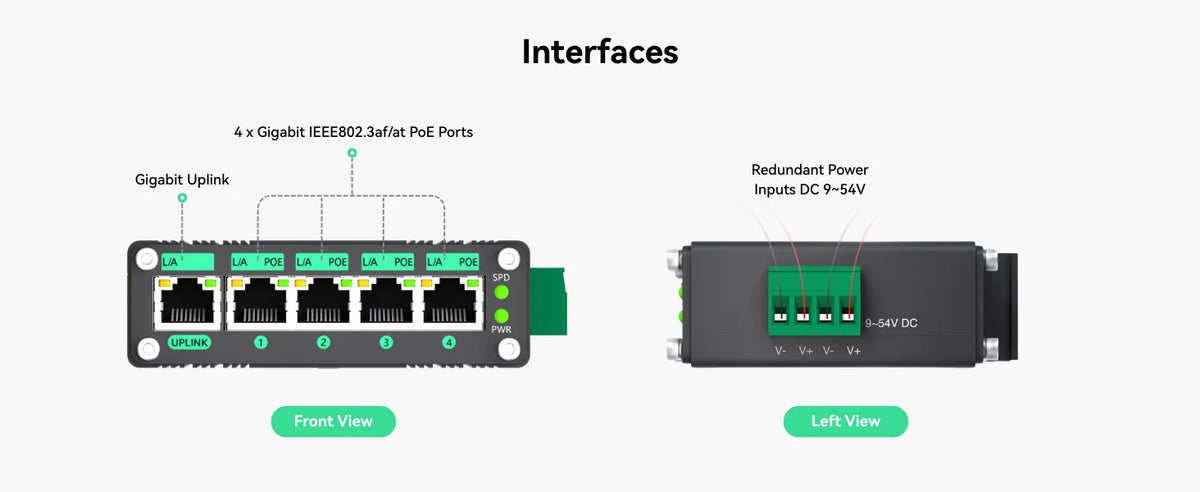

  • Four IEEE 802.3af/at PoE ports, supporting up to 30W per port, plus one gigabit uplink.
  • All five ports support 10/100/1000Mbps self-adaptive full-duplex Ethernet.

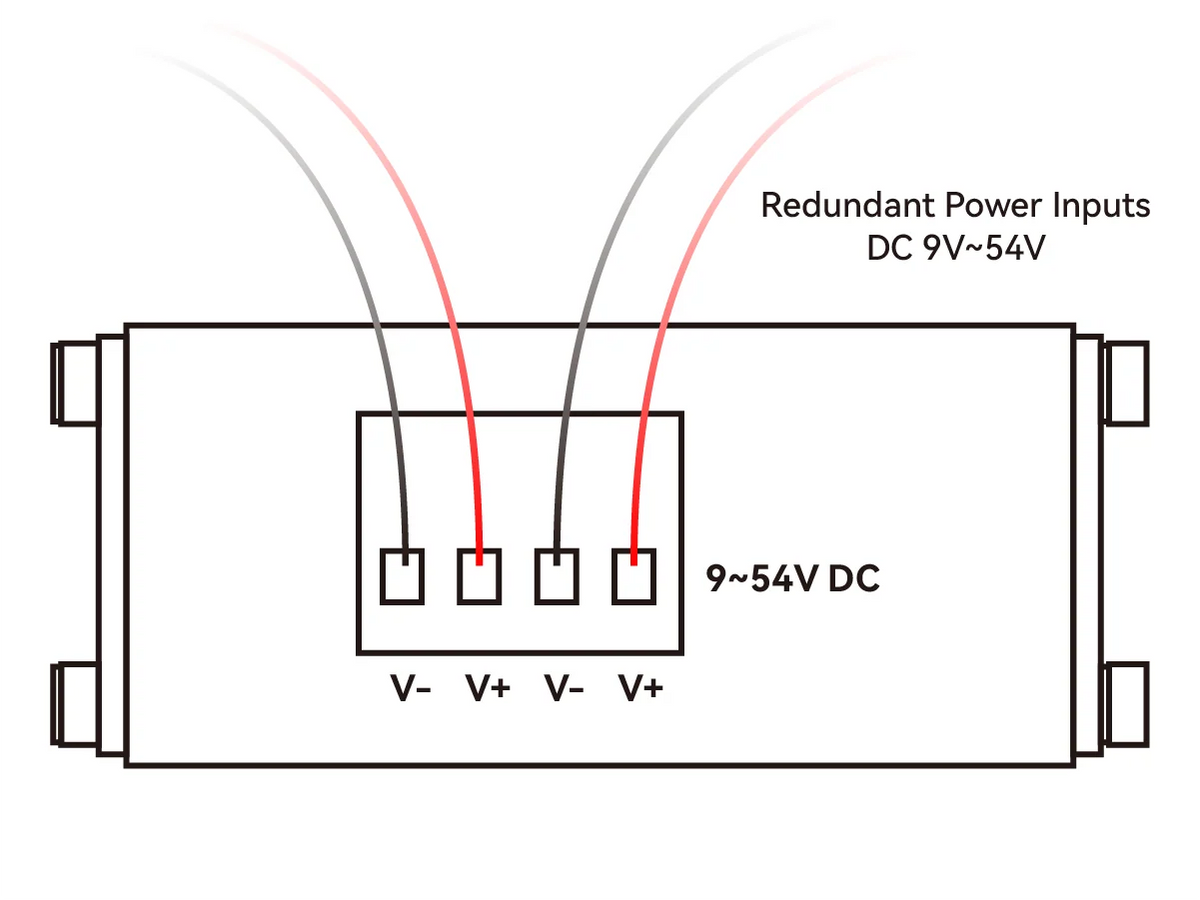

  • Two redundant DC inputs with automatic failover.
  • Automatic PoE detection: non-PoE devices receive data without PoE power.
  • Compact fanless aluminum enclosure for DIN-rail or wall mounting.

Specifications

  • Input: DC9–54V through terminal blocks.
  • Total PoE budget: 120W with DC24V or DC48V input; 60W with DC12V input.
  • PoE mode: Mode B only, pins 4/5 positive and 7/8 negative.
  • Operating temperature: −40°C to 80°C.
  • Enclosure rating: IP40.
  • Dimensions: 95 × 70 × 29mm. Weight: 250g.

Compatibility

Use devices compatible with standard IEEE 802.3af/at 48V PoE and Mode B. This switch does not supply 24V passive PoE. Choose a suitable DC supply for the required PoE budget.
