LR8RG Red and Green Pulse Line Laser Receiver with Dual Displays, AA Batteries and Grade Rod Mounting Bracket

The LR8RG receiver locates red or green pulse laser lines at distances up to 60m. Front and rear displays, audible signals and direction indicators help position the receiver at the laser line.

Key Features

• Detects pulse-mode beams from supported Huepar line laser levels.

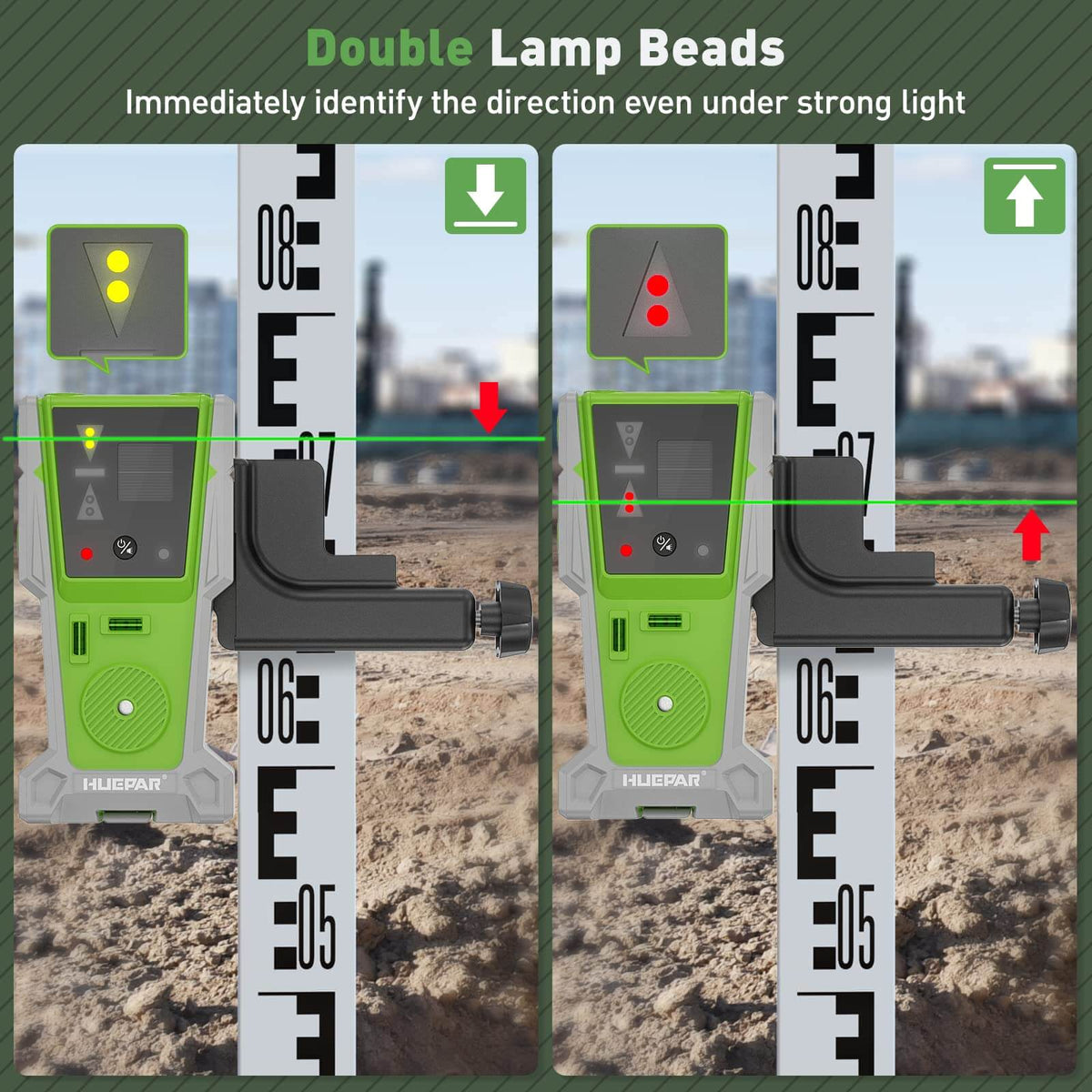

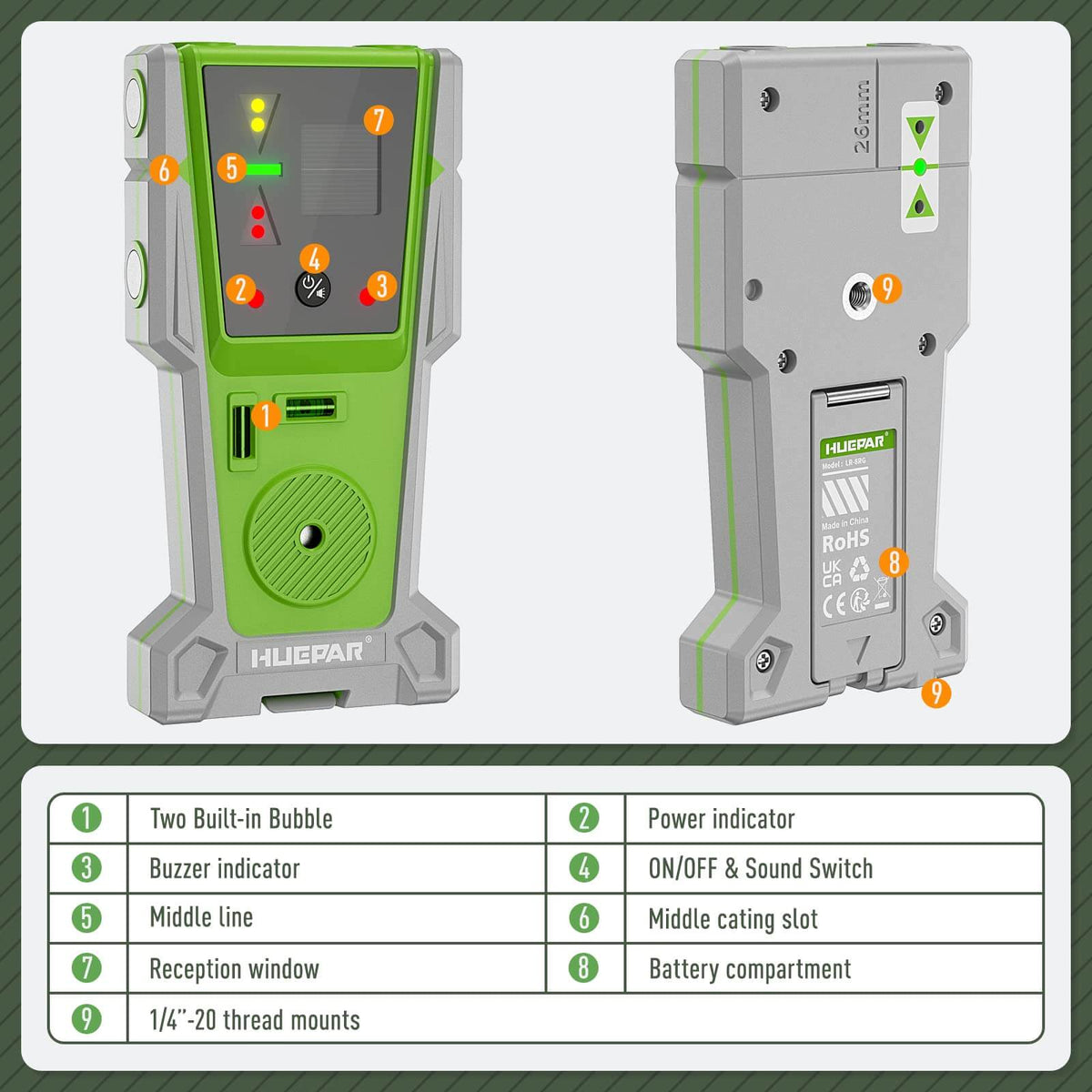

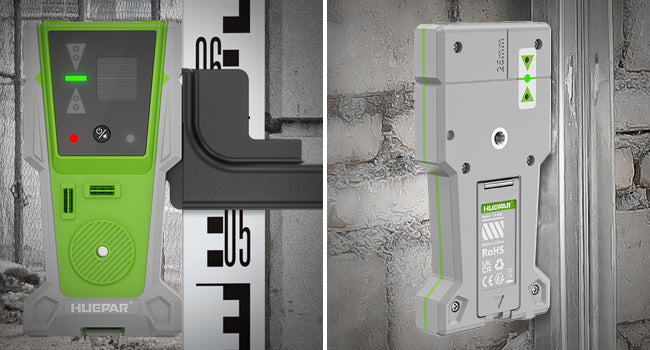

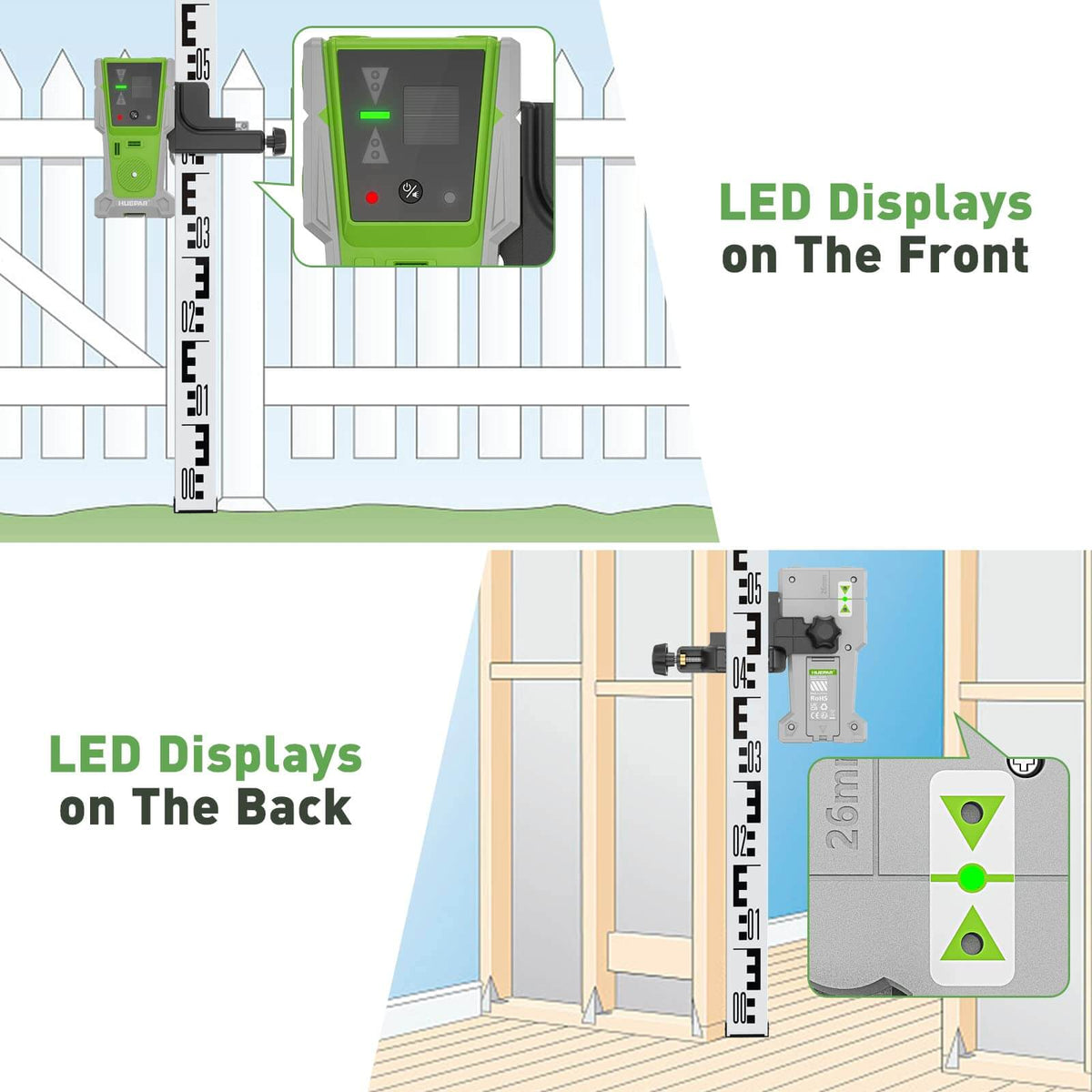

• Front and rear readouts show alignment; a green indicator marks the laser line.

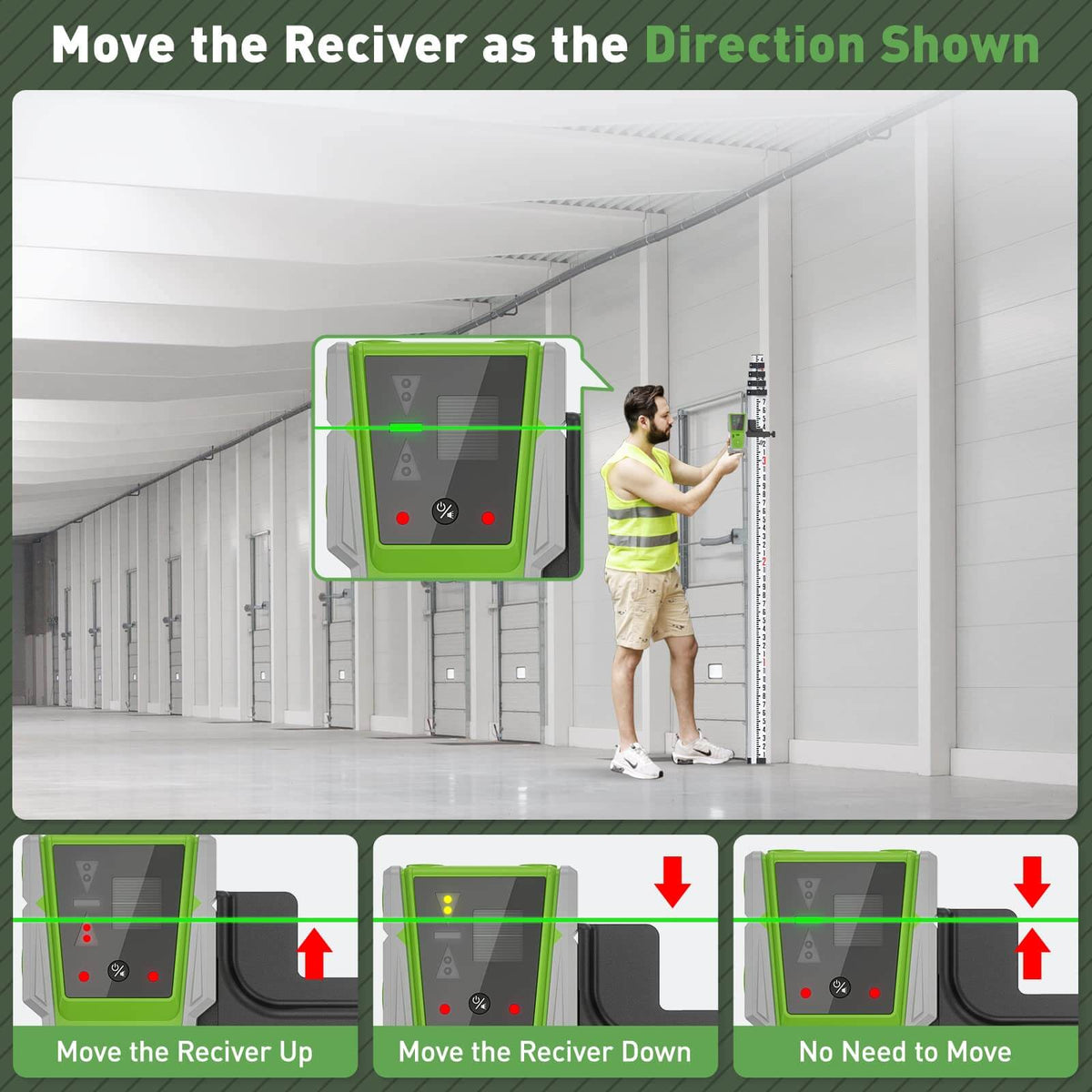

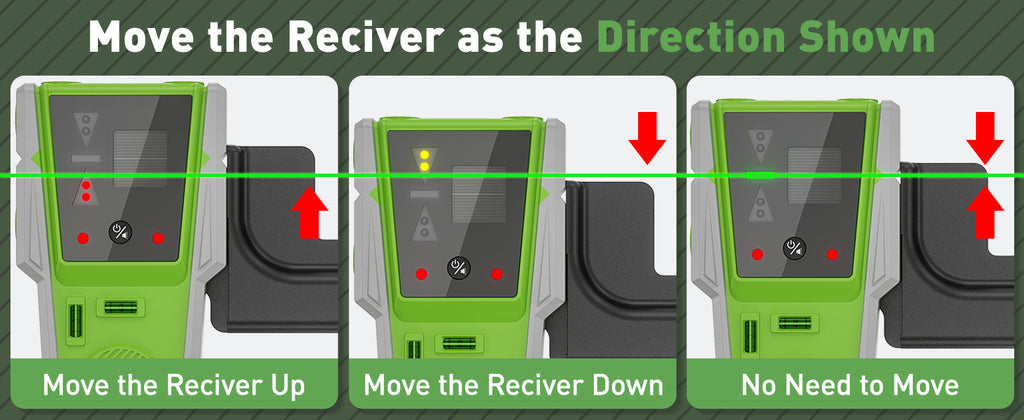

• Slow or fast beeps indicate whether to move the receiver up or down, with an adjustable sound level.

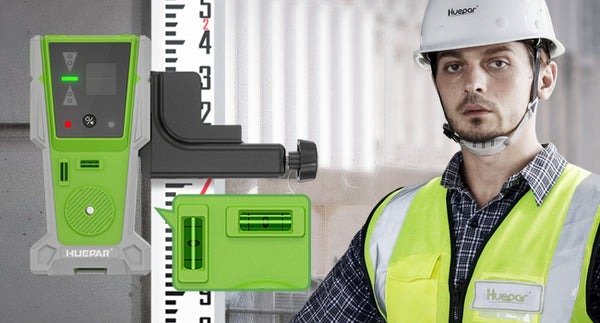

• Front and top bubble vials assist alignment.

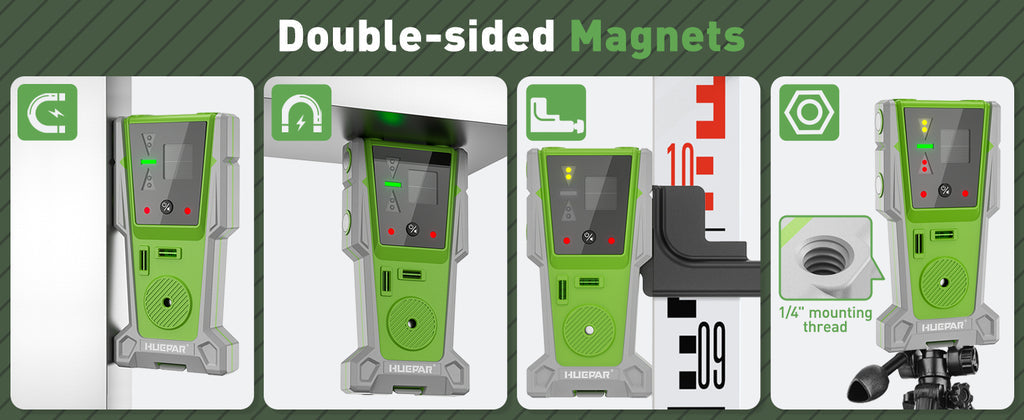

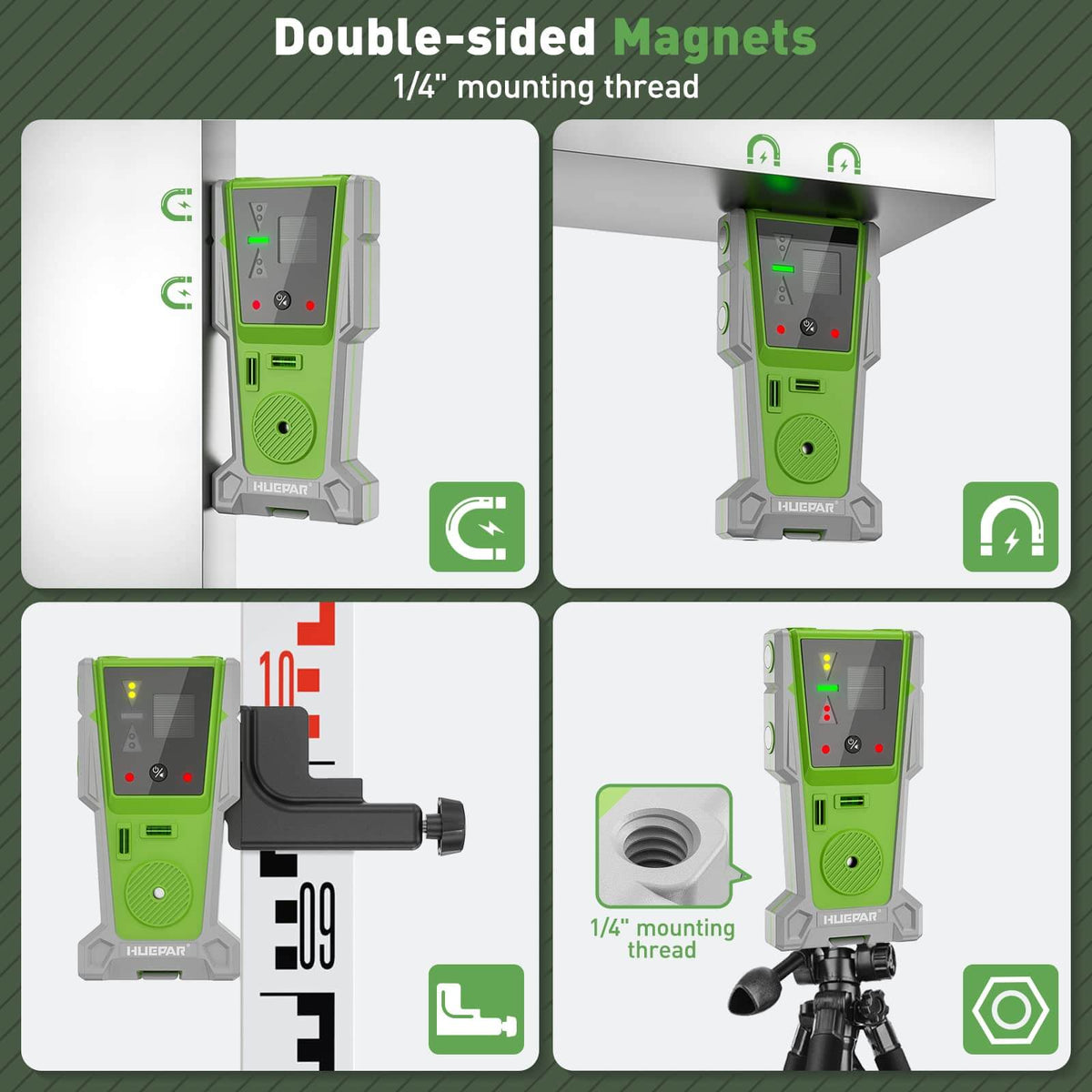

• Double-sided magnets and a threaded connection support mounting on the supplied rod bracket.

Specifications

• Model: LR8RG.
• Detection: red and green pulse laser lines, up to 60m.
• Accuracy: ±1.5mm.
• Audible signal: 90dB, with a reduced sound setting.
• Power: two AA batteries included; continuous operation exceeds 12 hours.
• Mount: quarter-inch thread; grade rod bracket included.
• Compatibility: supported Huepar line laser levels with pulse mode enabled, including 902CG, 901CG, 8211G, BOX-1G/R, GF360G/R, HM03CG, S03CG, S04CG and LS04CG.
• Not compatible with rotary laser levels or Huepar 9011G and 9211G.

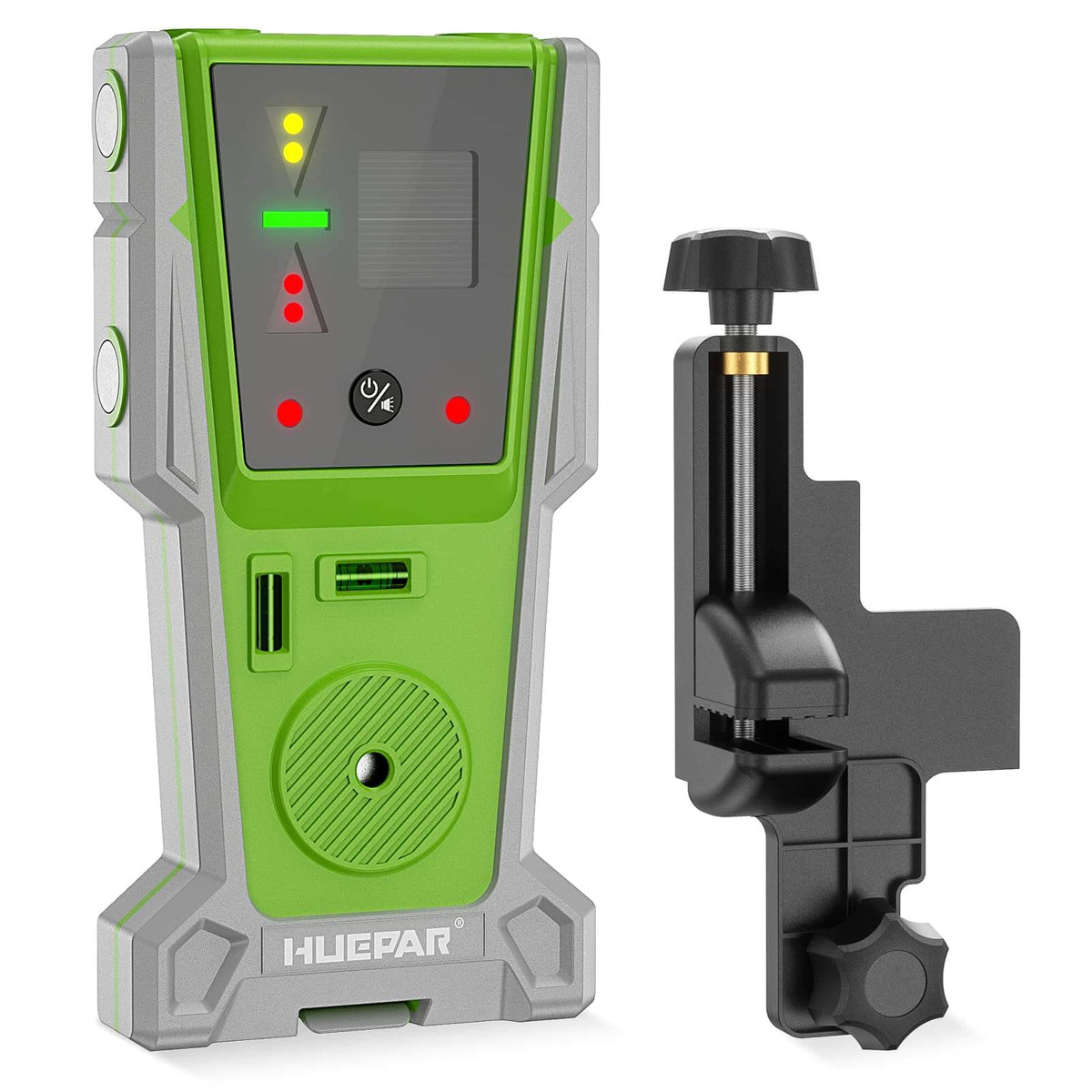

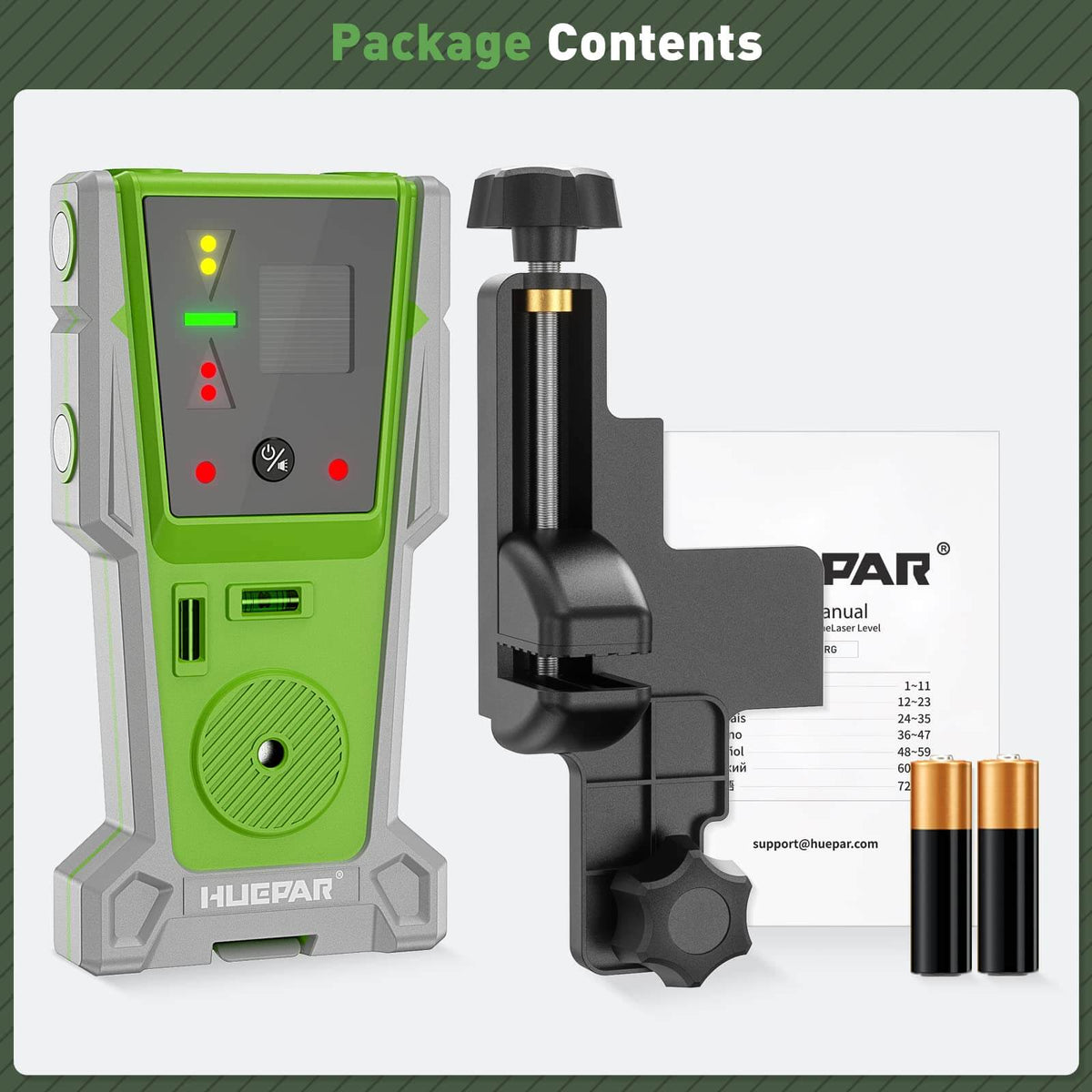

• Package: receiver, two AA batteries and rod mounting bracket.
