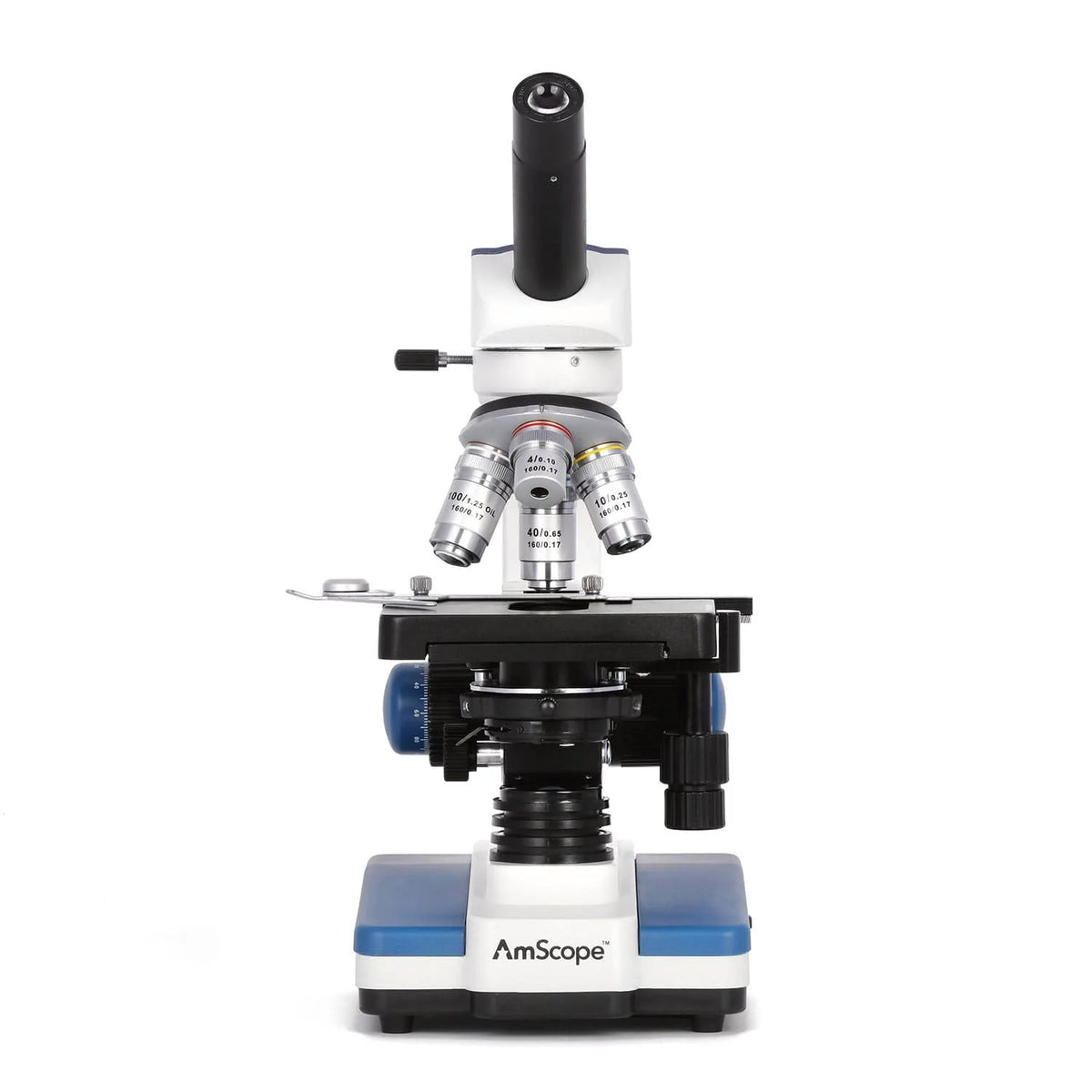

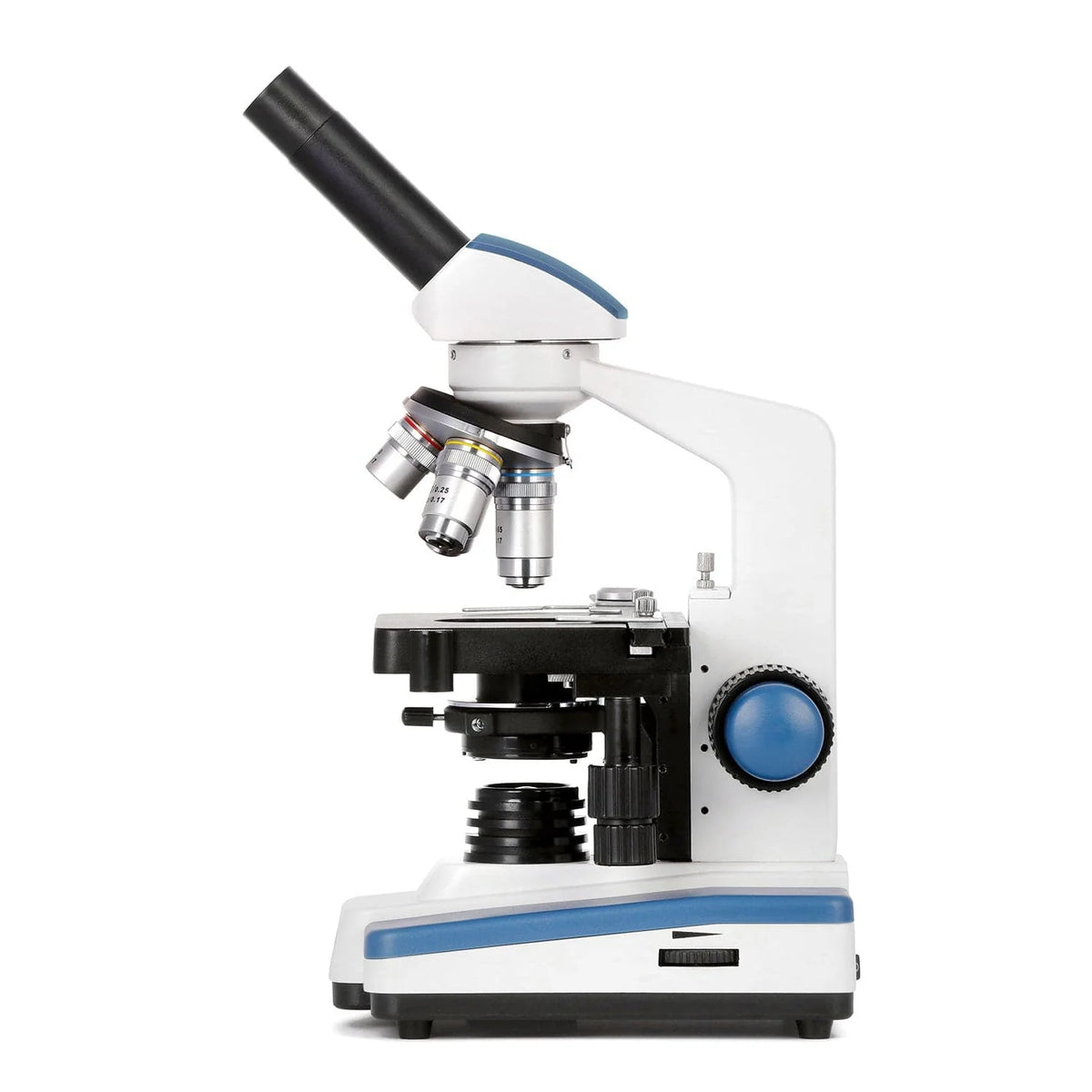

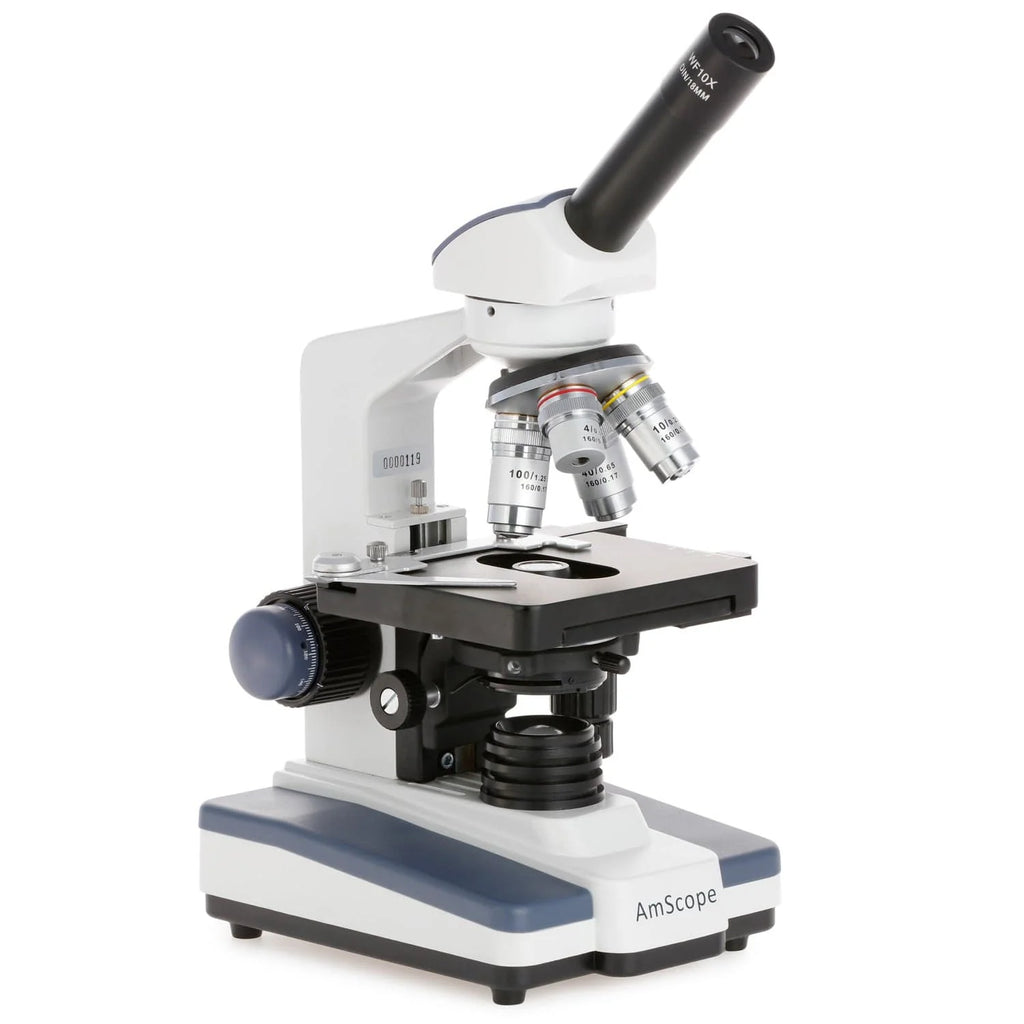

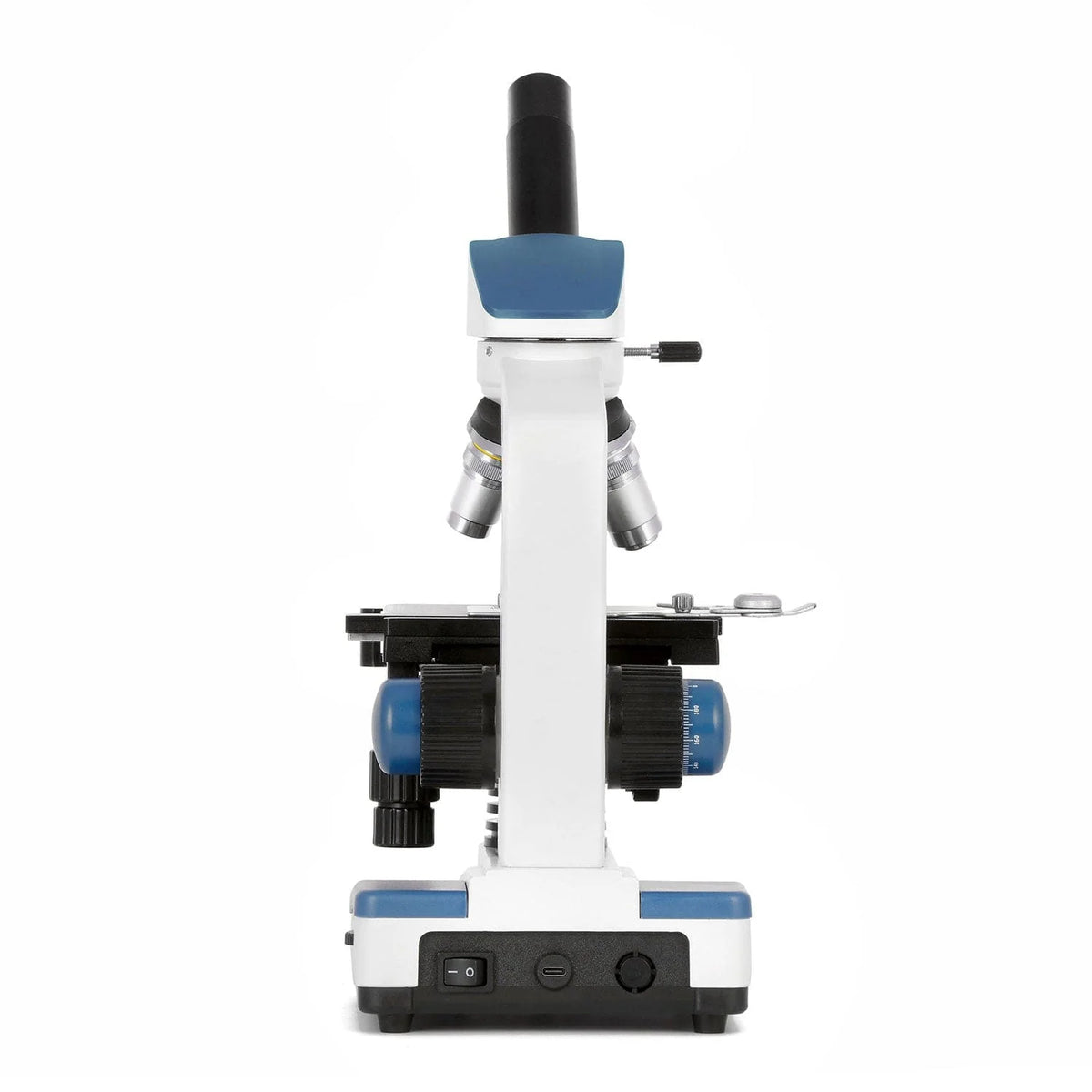

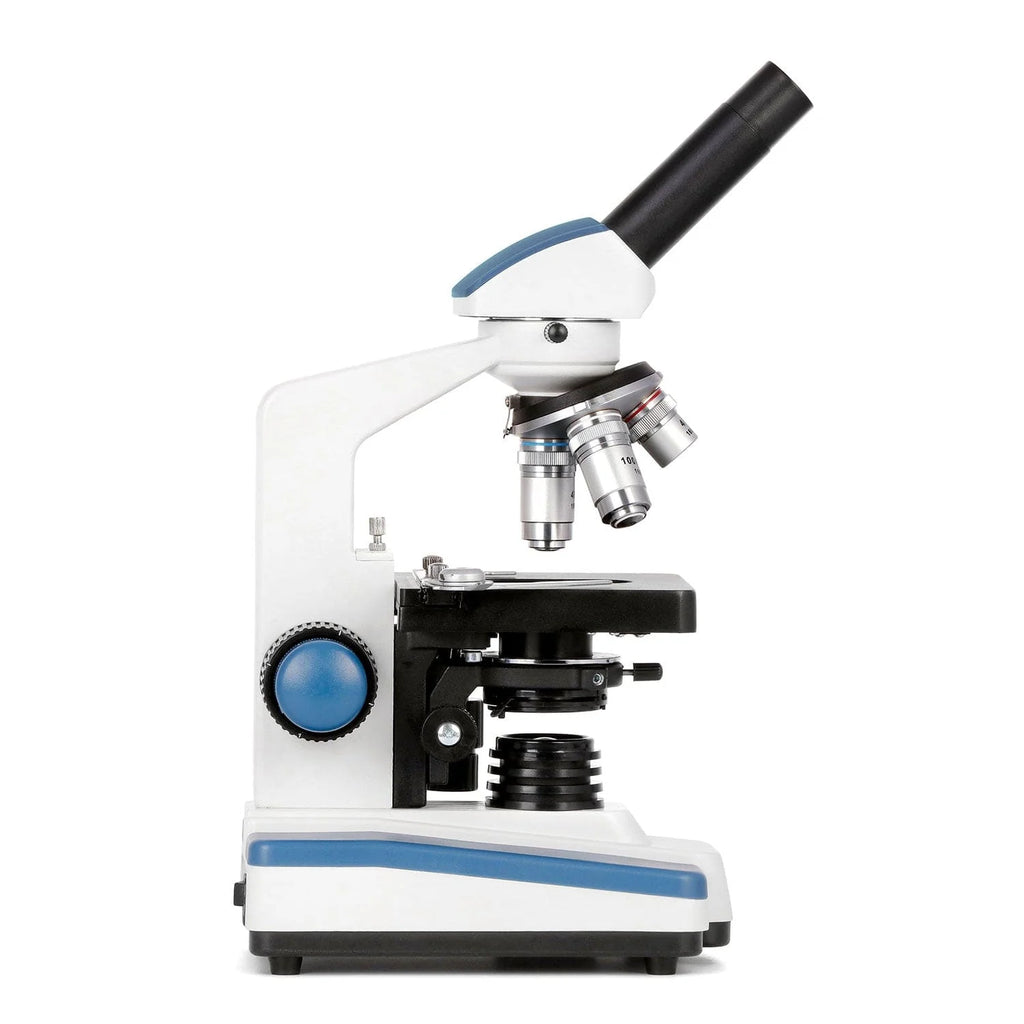

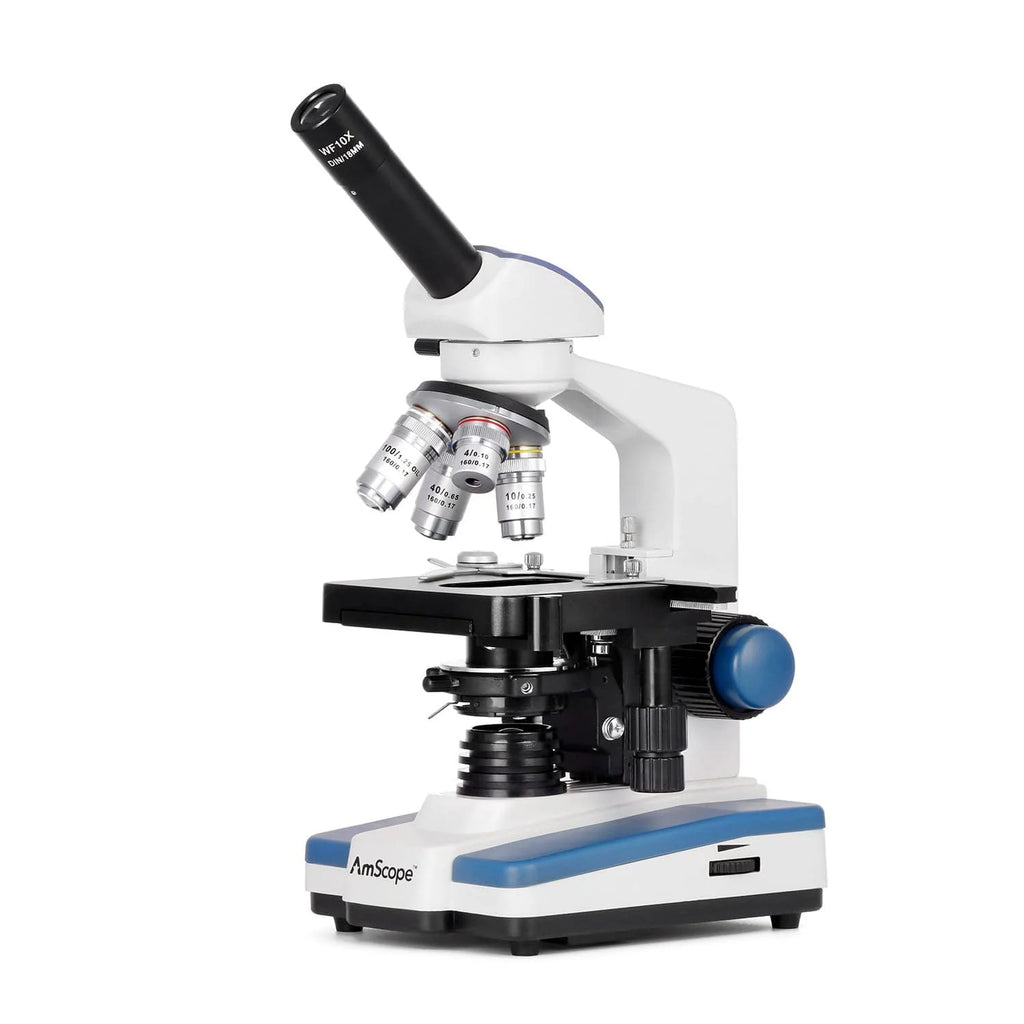

M620C-E1 Monocular Compound Microscope with 40X–2500X Magnification, 1MP USB Camera, LED and Mechanical Stage

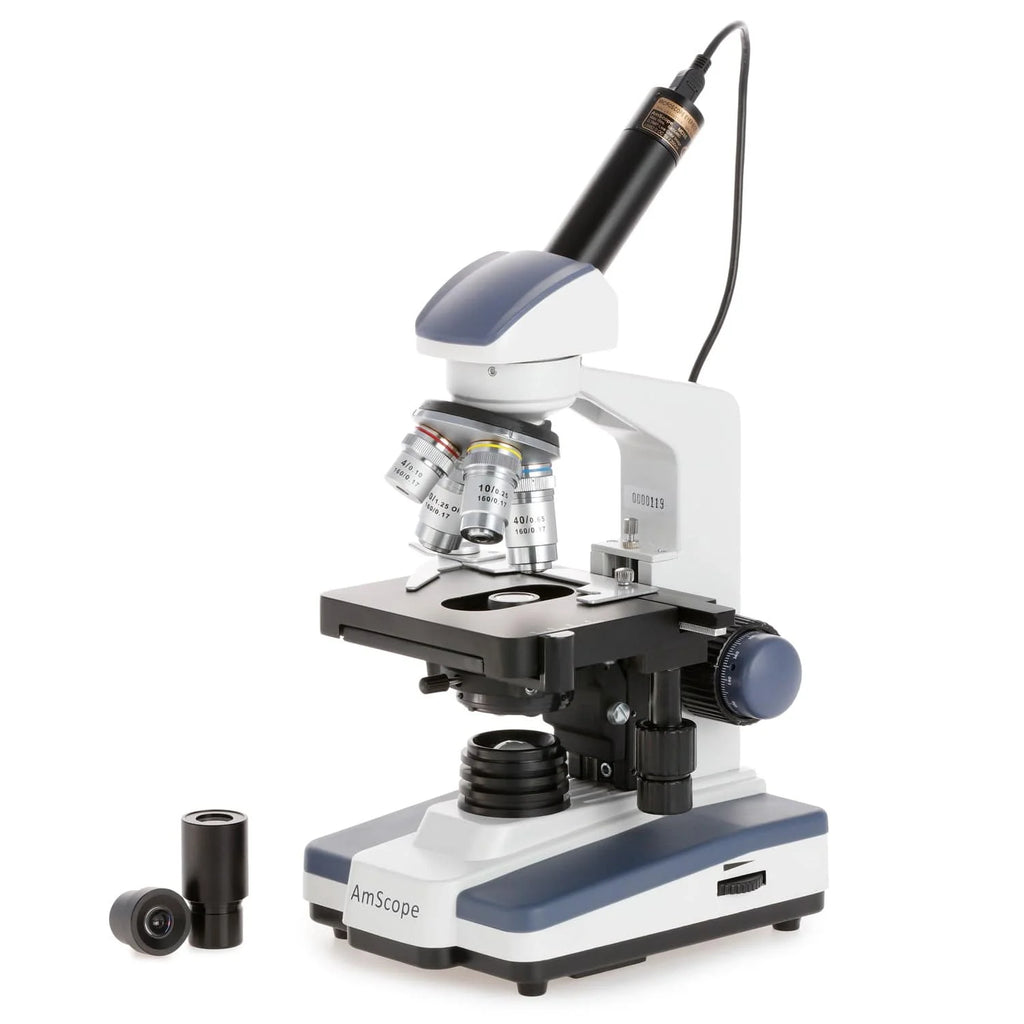

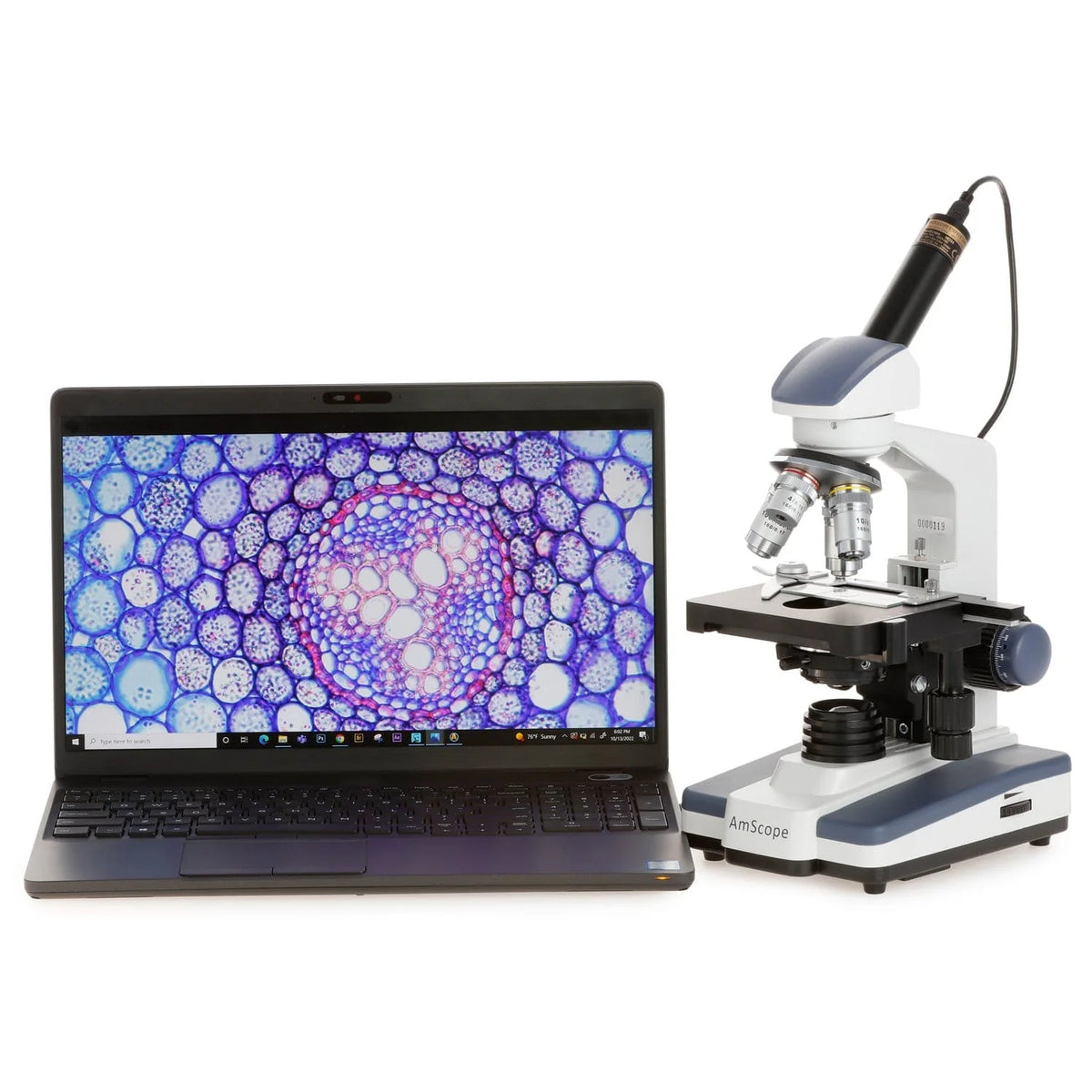

The AmScope M620C-E1 combines a monocular compound microscope with a 1MP USB digital eyepiece camera for viewing, photographing and recording specimens on a computer. Achromatic optics cover 40X–2500X magnification, with a mechanical stage and adjustable illumination for classroom and laboratory observation.

Key Features

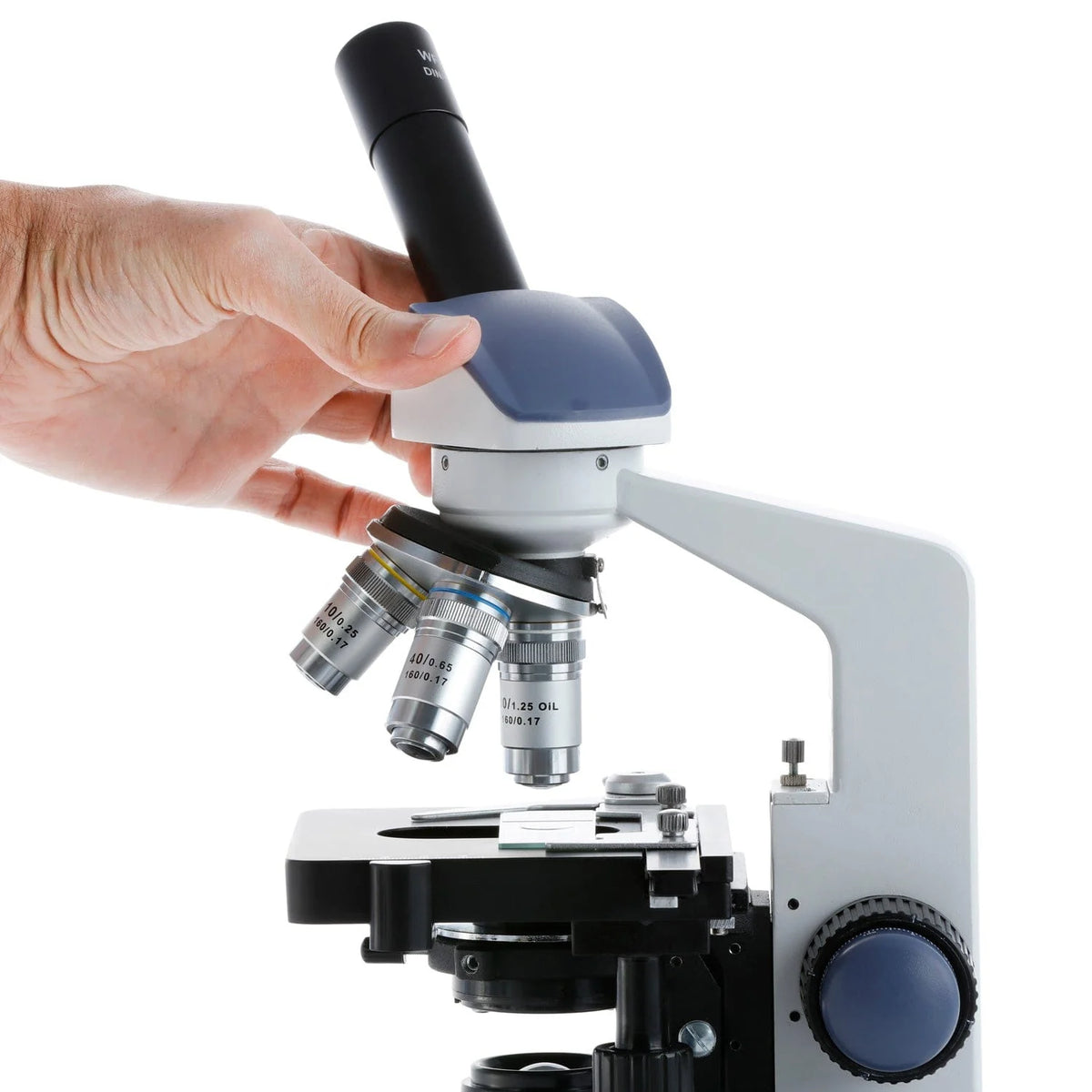

• 45-degree inclined, 360-degree swiveling monocular head.

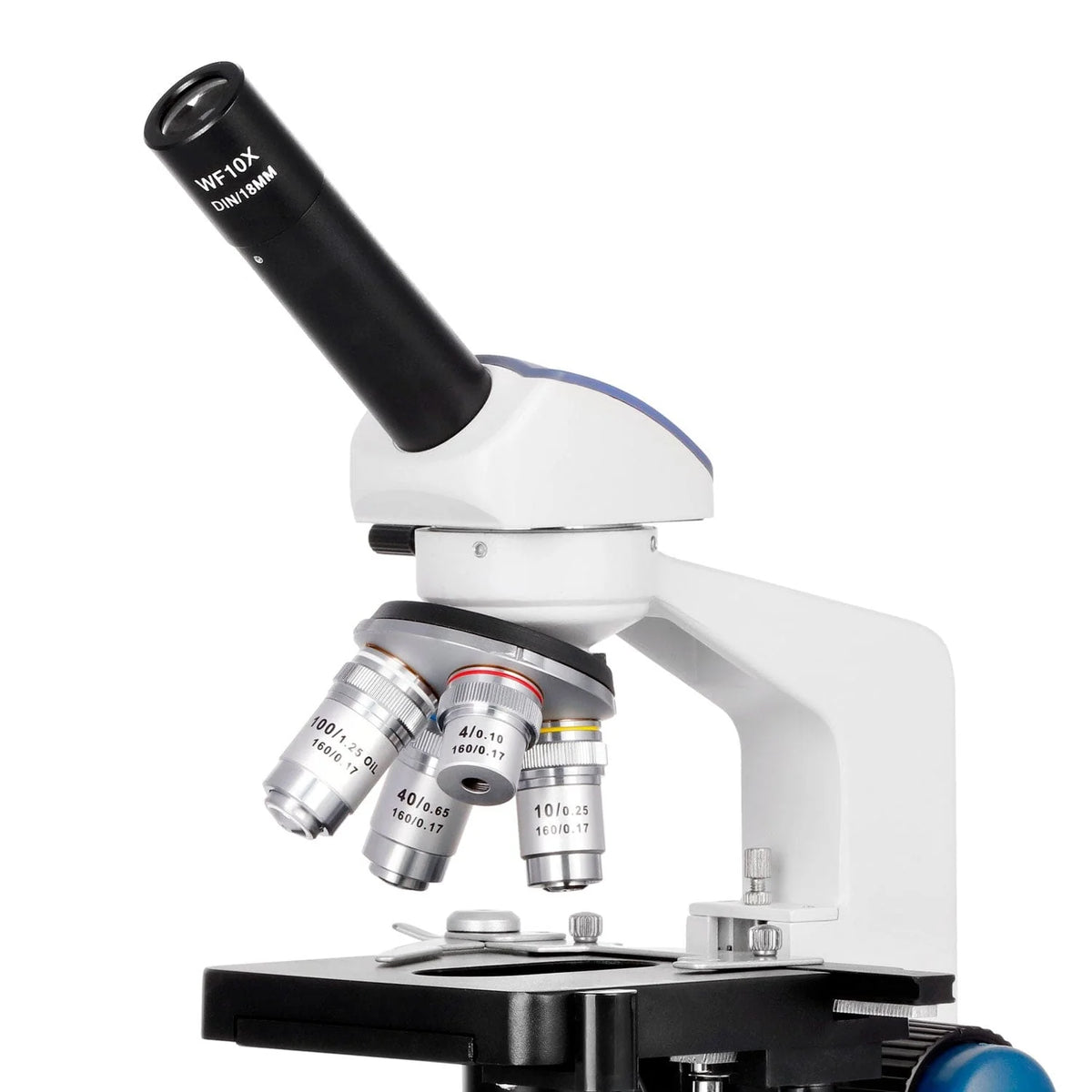

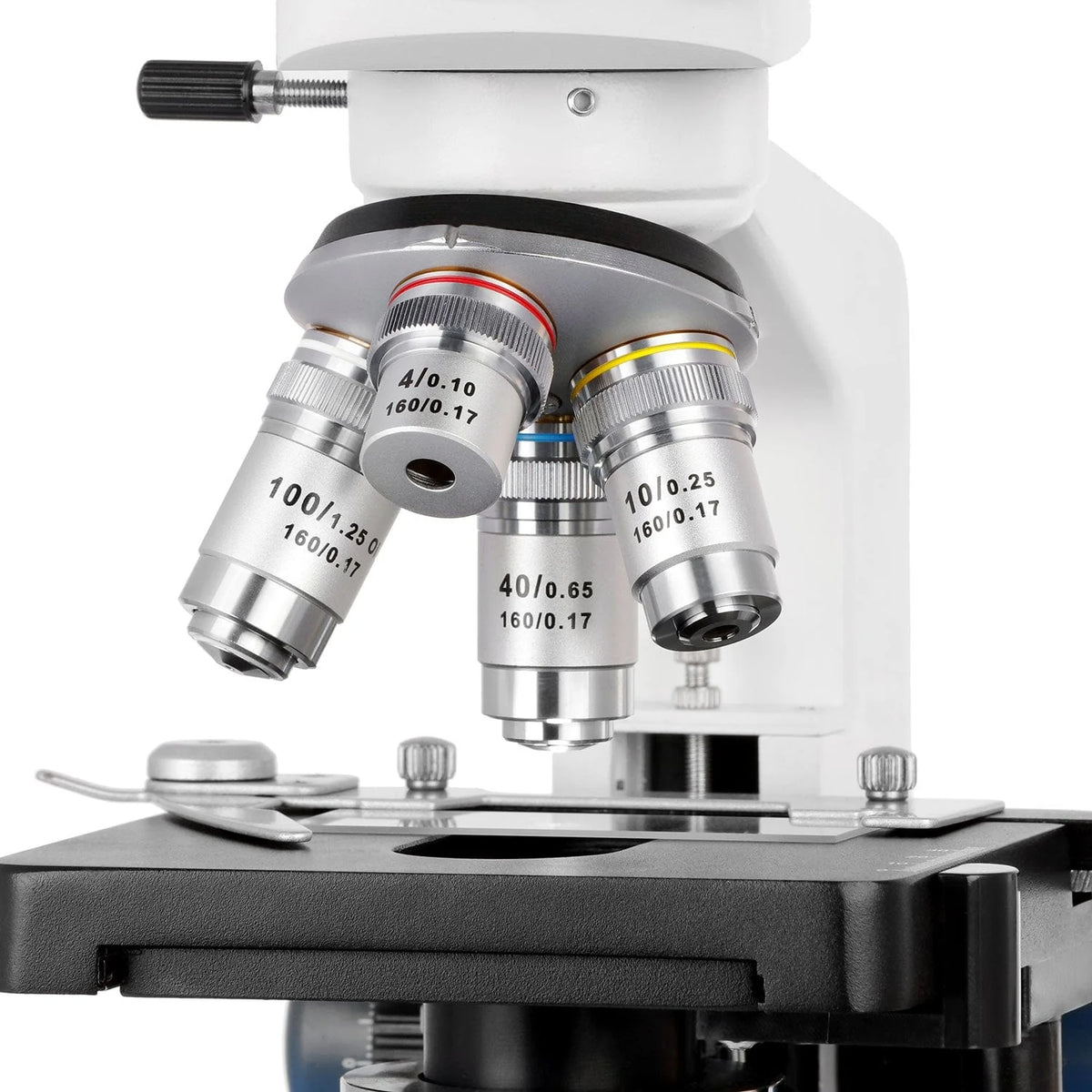

• 10X eyepiece with pointer, 25X eyepiece and four achromatic DIN objectives: 4X, 10X, spring-loaded 40X and spring-loaded 100X oil immersion.
• Ball-bearing quadruple nosepiece and coaxial coarse/fine focus controls on both sides.

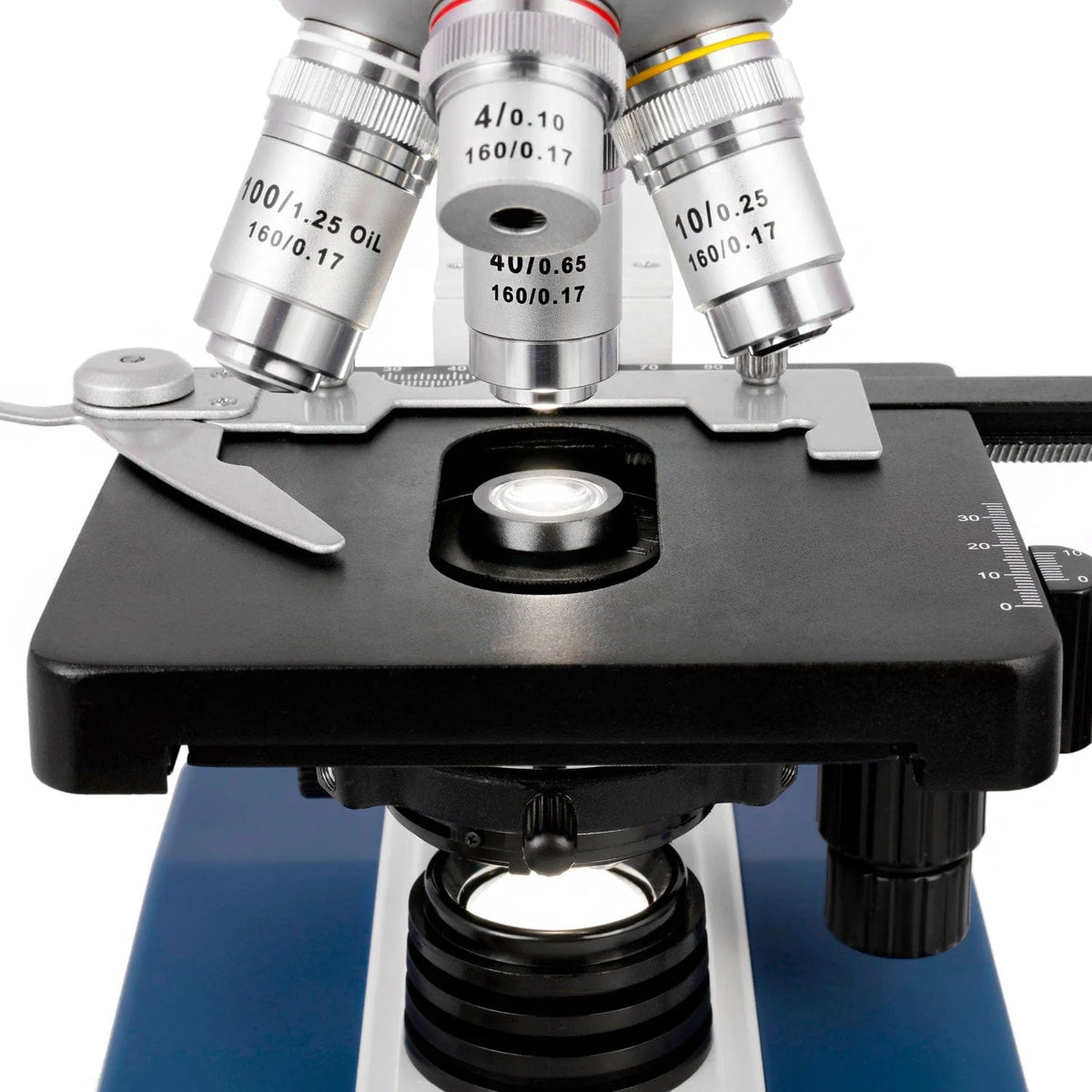

• Two-layer mechanical stage with low-position controls, caliper and 70 × 21mm travel.
• Variable-intensity, daylight-balanced transmitted LED lighting with a fly-eye lens.

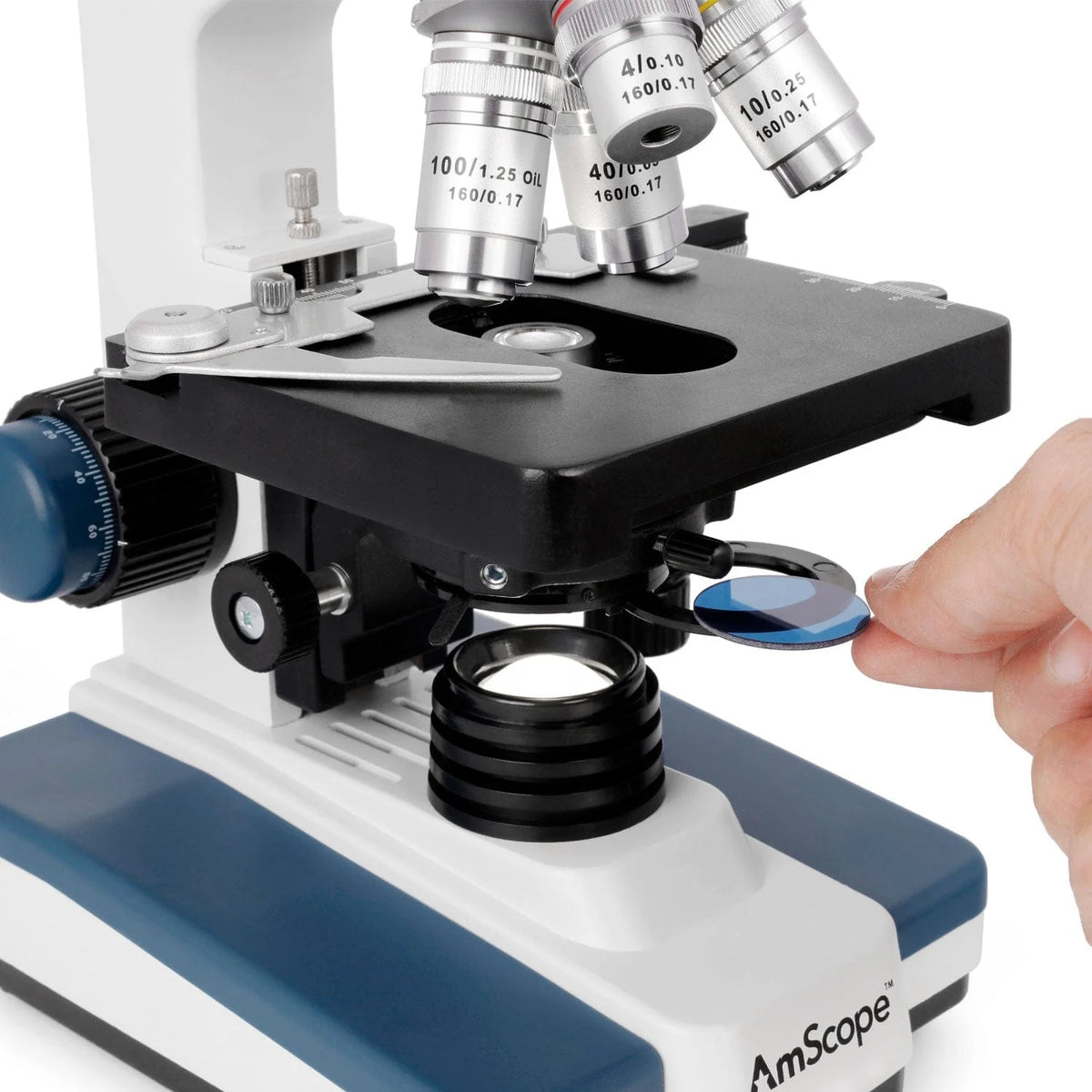

• Centerable NA1.25 Abbe condenser with iris diaphragm.
• Included eyepiece camera captures still images and video through USB 2.0.

Specifications

• Model: M620C-E1; stage size: 118 × 127mm
• Microscope power: 100–240VAC, 50/60Hz, with supplied AC/DC adapter
• Camera: CMOS, 1/3in optical format, 1280 × 1024 active pixels, electronic rolling shutter
• Pixel size: 3.6 × 3.6µm; active sensor area: 4.61 × 3.69mm
• Spectral response: 380–650nm with IR-cut filter
• Maximum capture rates: 7.5fps at 1280 × 1024; 12.5fps at 1024 × 768 or 800 × 600
• Camera power: 5VDC over USB; camera connection: USB 2.0
• Software requirements: Windows 32/64-bit XP/Vista/7/8/10, Mac OS 10.8+ or Linux kernel 3.13+
• Computer requirements: Intel Core2 2.8GHz or comparable processor, 4GB RAM
• Included: monocular head, microscope body, four objectives, 10X and 25X eyepieces, blue filter, dust cover, sample immersion oil, digital eyepiece camera, two sizing adapters, mini-USB to USB-A cable, software CD and AC/DC adapter

Windows software includes image processing and measurement functions. Mac and Linux versions provide essential preview, image/video capture, exposure, color adjustment and measurement tools.
