M8D is a dual-channel DC smart charger for compatible lithium, NiMH and lead-acid battery packs. Its touchscreen provides access to charging presets, discharge modes and SD card data logging.
Key Features

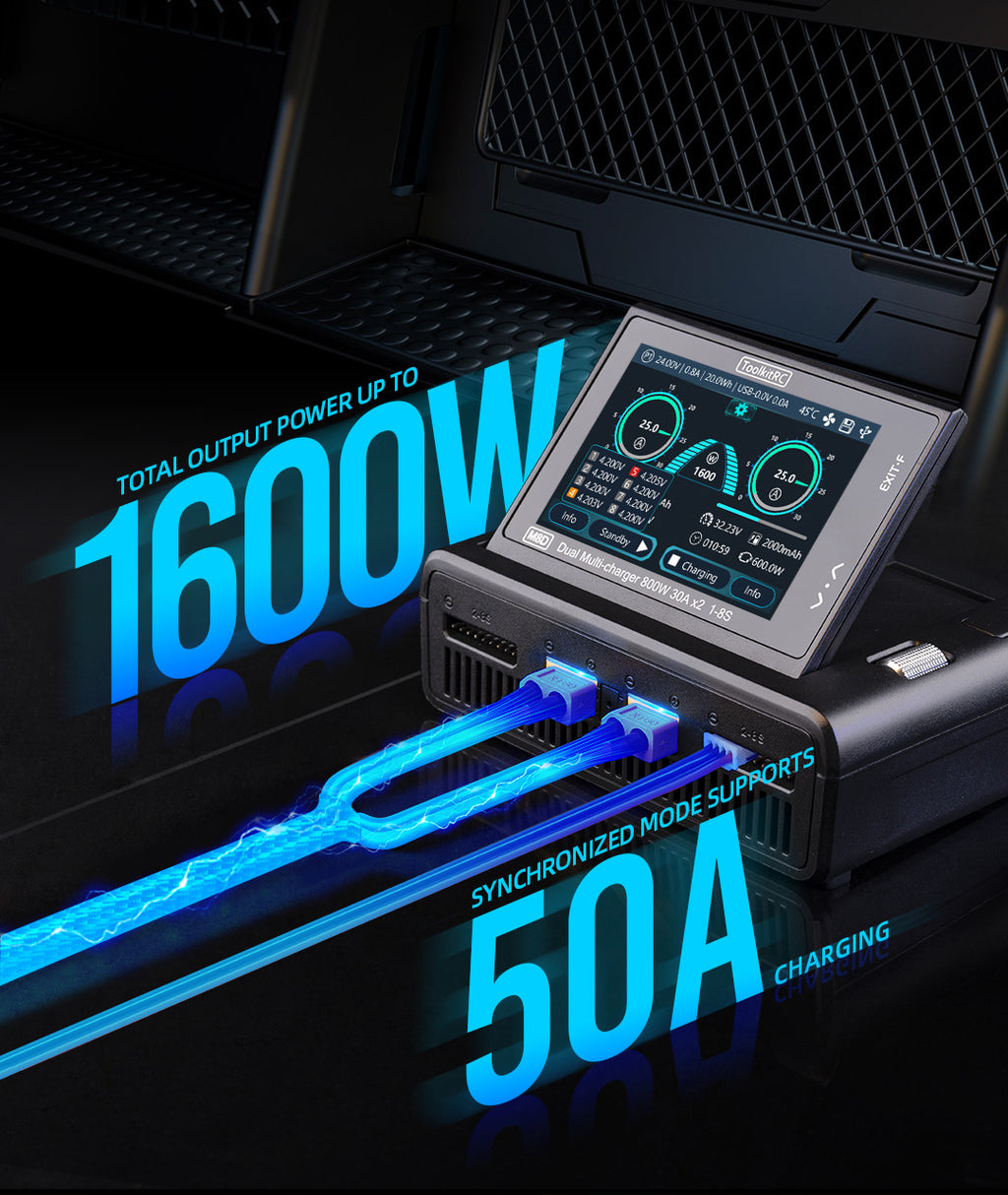

- 800W charging with a maximum 30A × 2 current rating; synchronized mode is rated 1600W at up to 50A.

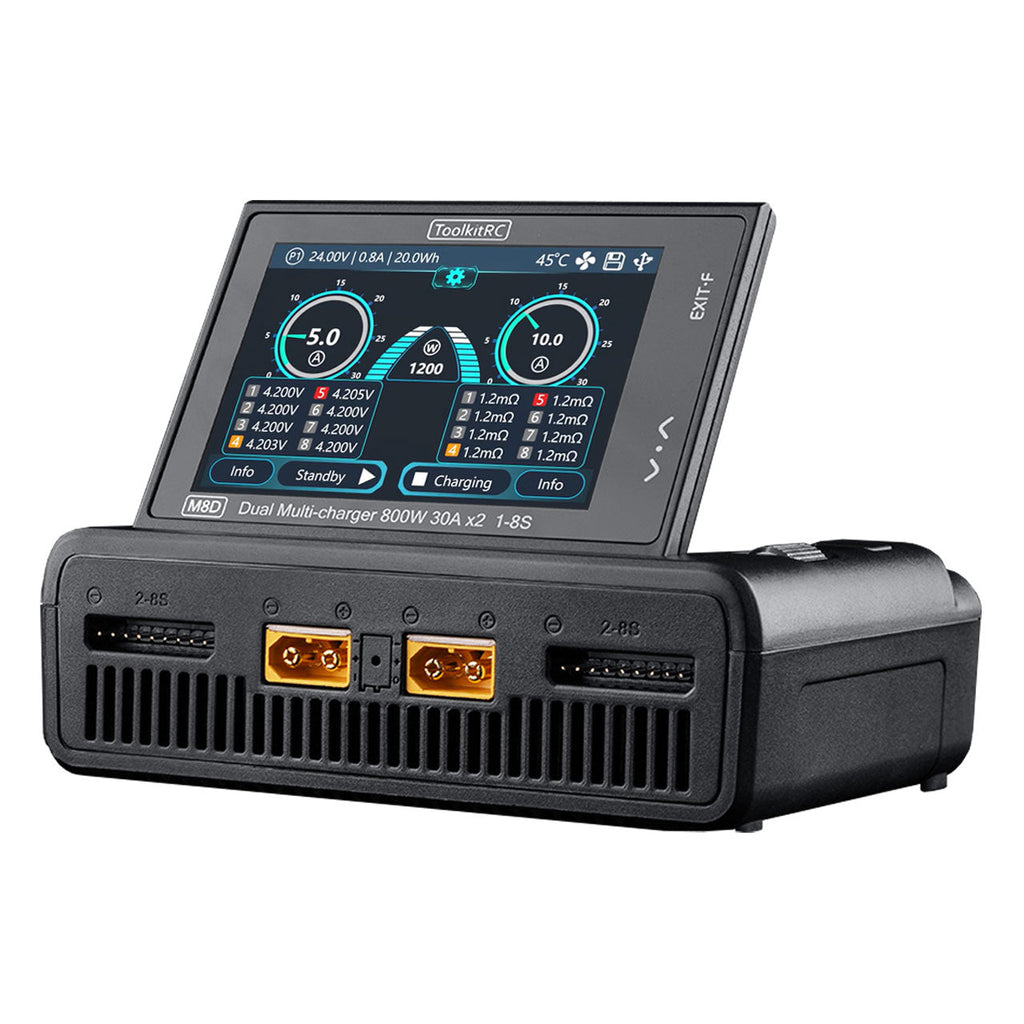

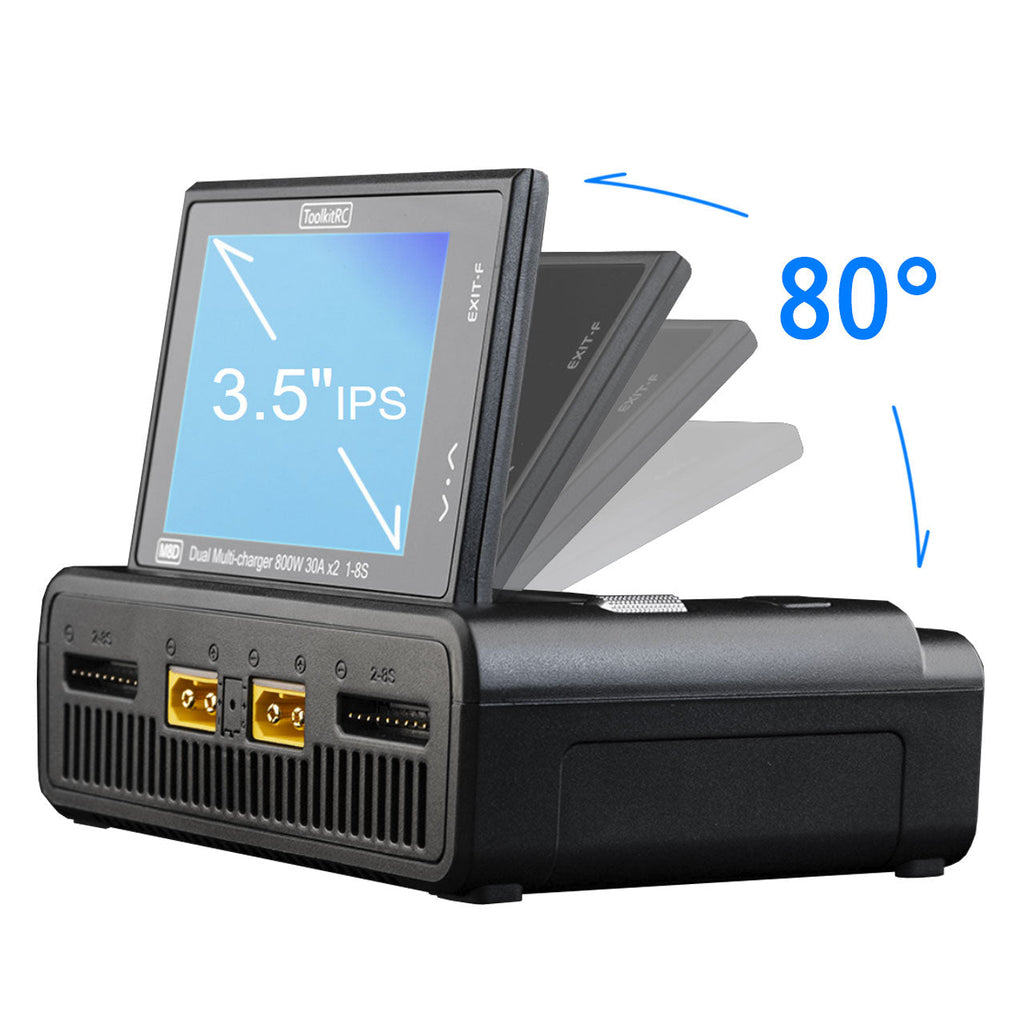

- 3.5-inch IPS touchscreen with 480×320 resolution and an 80° adjustable tilt.
- Ten charging presets, dual automatically adjusting fans and USB-C output rated 5–20V at up to 65W.
Specifications

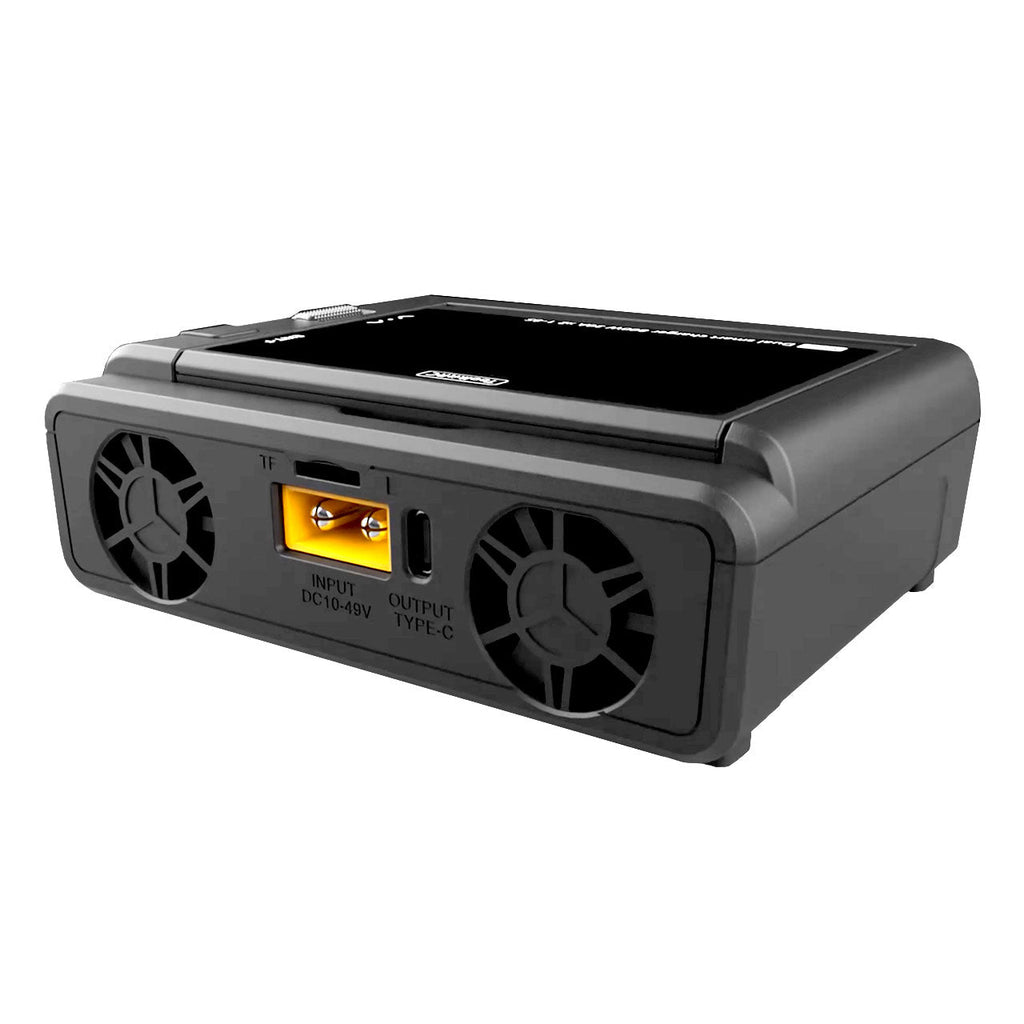

- DC input: 10–49V, maximum 60A. It requires a suitable DC source.
- Battery compatibility: LiPo, LiHV, LiFe, Li-ion and LTO at 1–8S; NiMH at 1–20S; lead-acid at 1–15S.
- Balance current: 2000mA at 4.2V.
- Recycle discharge: 800W at up to 30A. Normal discharge: 40W at up to 10A.
- Dimensions: 130×97×42mm. Weight: 450g.

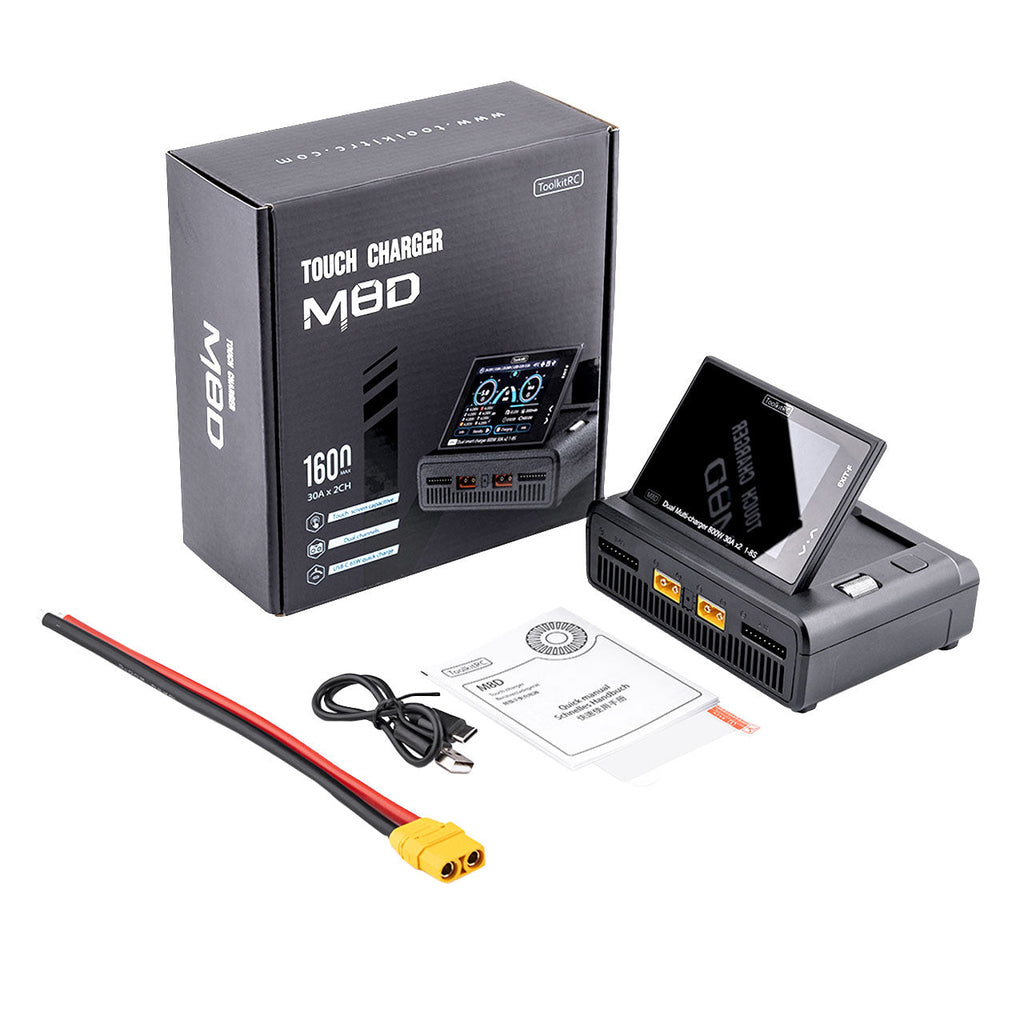

Package Contents
M8D charger, XT90 input cable, USB-C cable, screen protector and manual. Battery packs and an AC power supply are not part of the stated package. Select the correct chemistry, cell count and current for the connected battery.
