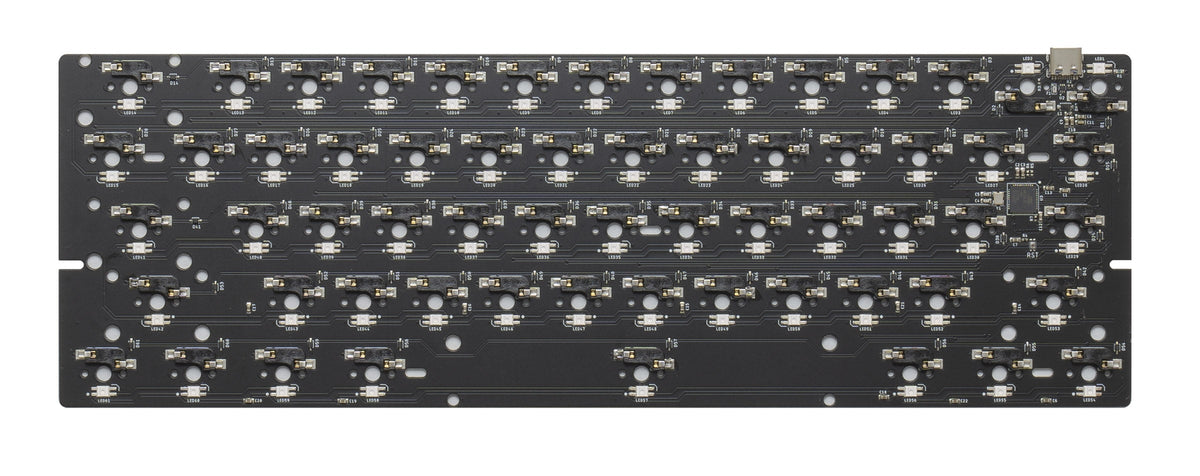

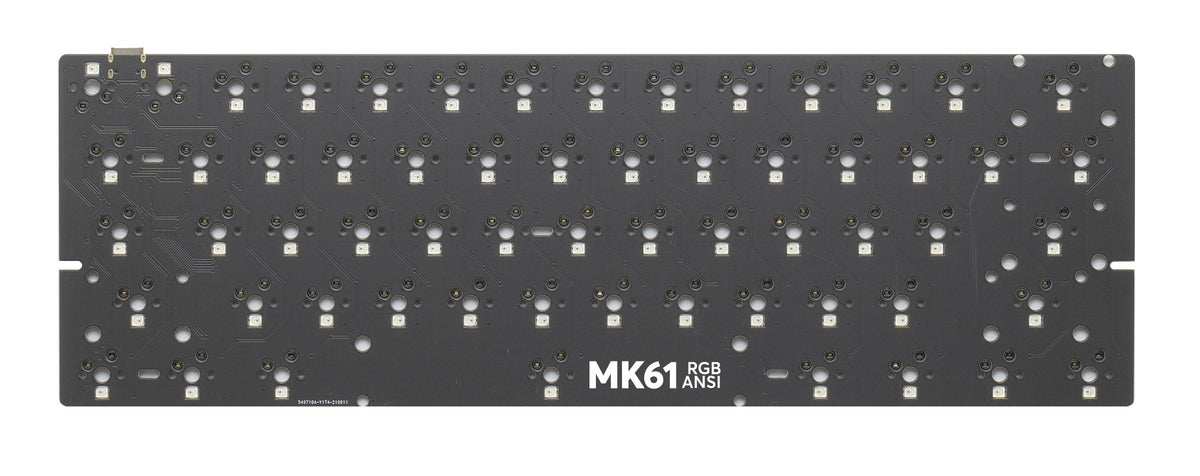

MK61 60% ANSI Hot-Swap Keyboard PCB with Per-Key RGB, USB-C, QMK/VIA Programming and 1.6mm Board Thickness

MK61 is a 60% ANSI keyboard PCB with per-key RGB backlighting, Kailh hot-swap sockets and USB-C connectivity. It supports QMK/VIA programming and fits most 60% tray-mount cases.

Key Features

• Per-key RGB SMD LED backlighting.
• Kailh hot-swap sockets and south-facing switch arrangement.
• QMK/VIA programmable with firmware and VIA definition files provided by the source.
• Supports PCB-mount stabilizers.

Specifications

• Product: MK61 keyboard PCB.
• Layout: 60%, ANSI; 61 switch positions.
• Model field: GH60.
• Connection: USB-C.
• Board thickness: 1.6mm, without flex cuts.
• Spacebar configuration: 6.25u.
• Case fit: most 60% tray-mount cases.
