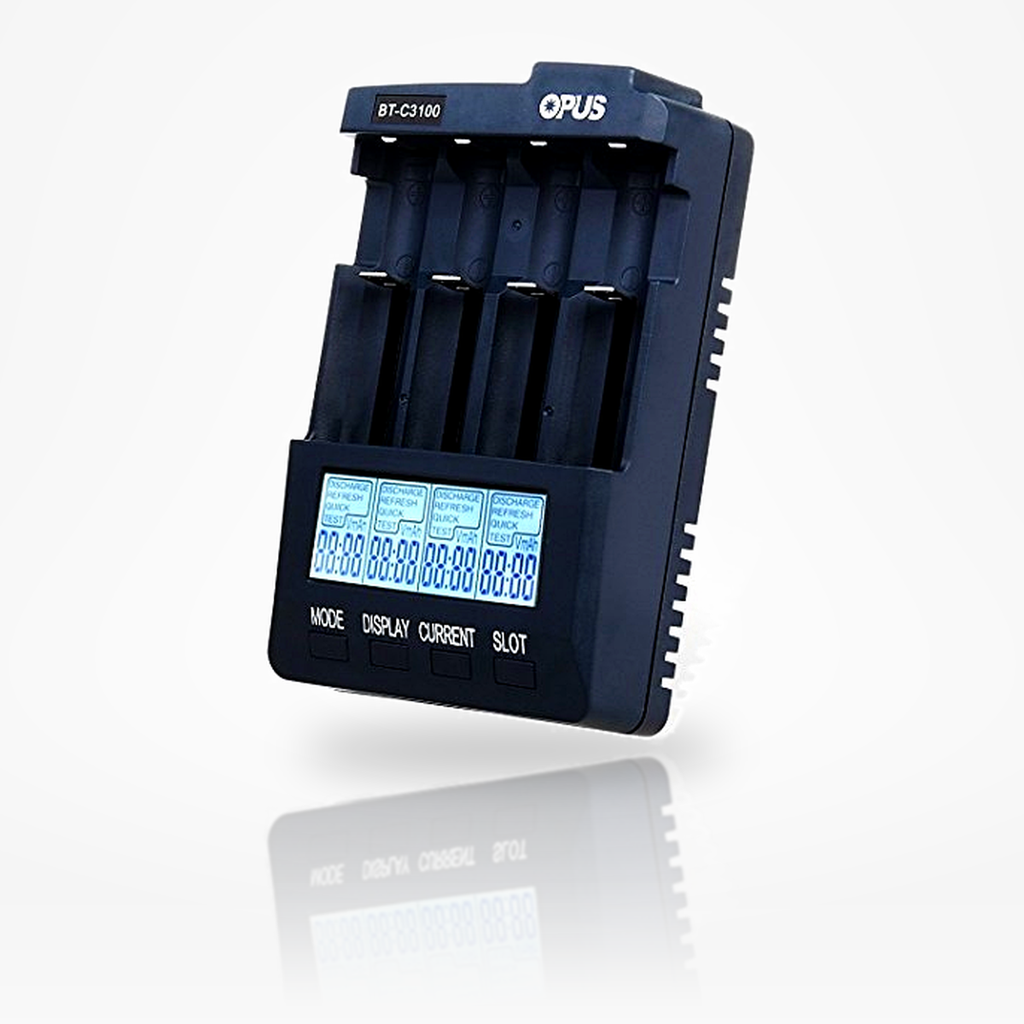

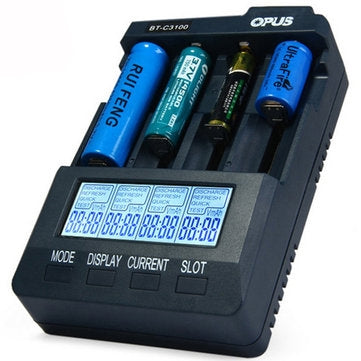

BT-C3100 v2.2 Four-Bay Battery Charger with LCD, Capacity Test Modes and Five Current Settings

The Opus BT-C3100 v2.2 is a four-bay charger and analyser for compatible rechargeable lithium-ion, NiMH and NiCd cells. Independent slots and an LCD let you monitor each battery during charging and testing.

Key Features

• Four independently monitored charging slots.
• Charge, discharge, refresh, cycle and test functions.
• Selectable 200, 300, 500, 700 and 1000mA charging and discharging settings.
• LCD readings for voltage, current, capacity and internal resistance.
• Built-in cooling fan.

Specifications

• Model: BT-C3100 v2.2. SKU: BT-C3100.
• Charger input: 12V DC, 3A.
• Supported cell types: 3.6/3.7V lithium-ion and 1.2V NiMH or NiCd rechargeable cells.
• Lithium-ion sizes listed: 10440, 14500, 16340/RCR123, 17350, 17500, 17650, 17670, 18350, 18490, 18500, 18650, 20700, 21700, 22650, 25500 and 26650.
• NiMH/NiCd sizes listed: AA, AAA and C.
• Dimensions: 163 × 100 × 40mm. Approximate weight: 350g without batteries.

Use and Power Requirements

Use a suitable power supply matching the specified 12V DC, 3A input. Charge only compatible rechargeable cells, observe polarity and supervise charging. Keep the charger dry and ventilated.

Package Contents

BT-C3100 charger. Separate power-supply, cable and cell inclusion is not specified; do not assume these accessories are included.
