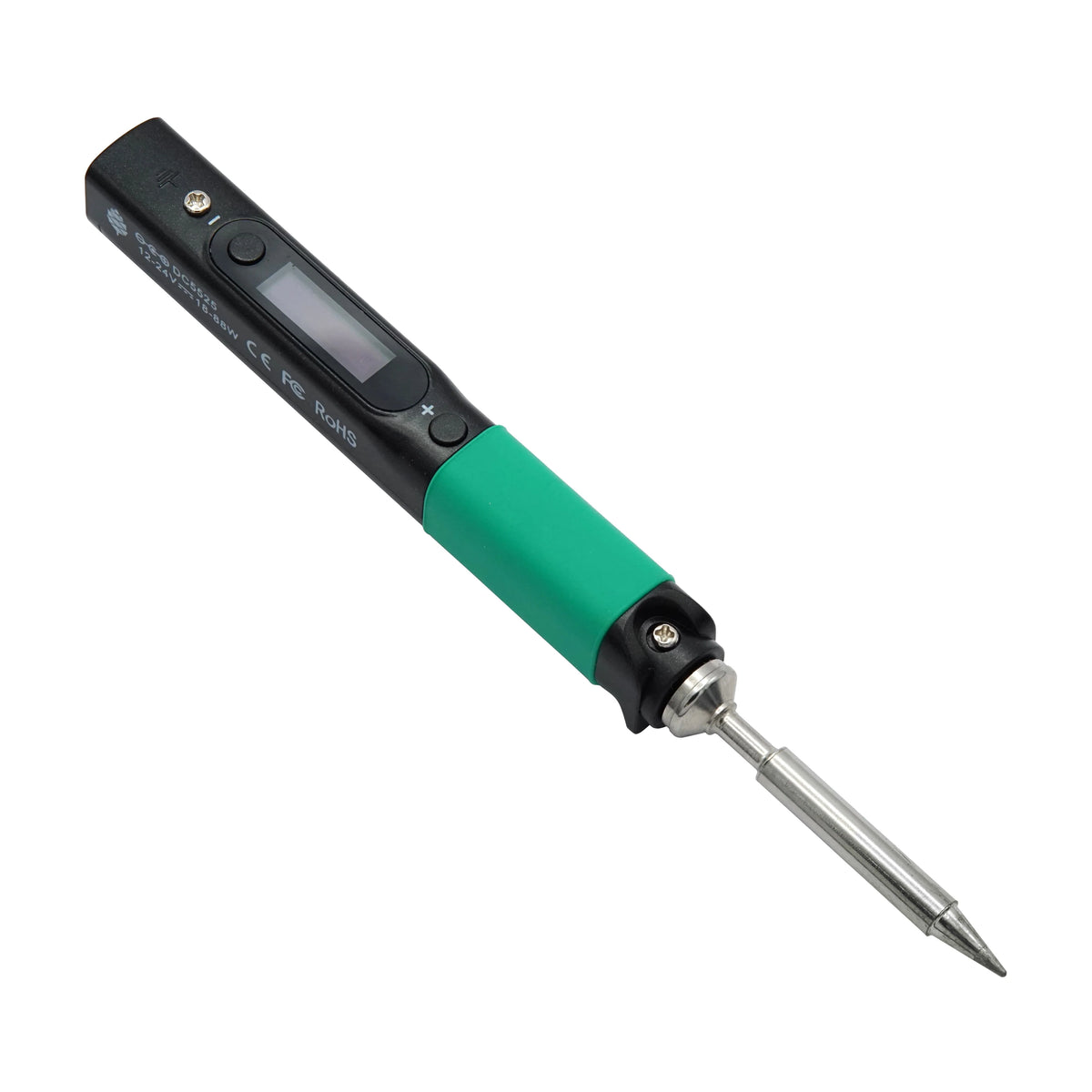

The Pinecil V2 is a compact portable soldering iron with a 32-bit RISC-V processor, OLED display and adjustable tip temperature. Its slim polycarbonate shell surrounds an SAE 304 stainless steel core.
Key Features
- Adjustable 100–400°C tip temperature using the control buttons and OLED display.
- Rapid warmup to operating temperature in 6 seconds, with an on-demand boost function.
- Automatic standby when the iron is not in use.
- Open-source firmware on the Bouffalo BL706 144 MHz RISC-V processor.
Specifications
- Display: 0.69-inch white monochrome OLED, 96×16 pixels.
- USB-C input: PD or QC 3.0, 12–20V at 3A.
- Barrel input: center-positive DC5525, 12–24V, minimum 3A.
Power and Use
Iron only. A 60W+ USB-PD power supply and a USB-C cable supporting USB-PD and 60W+ throughput are required separately. Use only one power port at a time; never connect USB-C and barrel power simultaneously. Do not supply more than 24V through the barrel input, and do not force a DC5521 plug into the DC5525 connector. Unplug the iron when it is not in use or left unattended.
