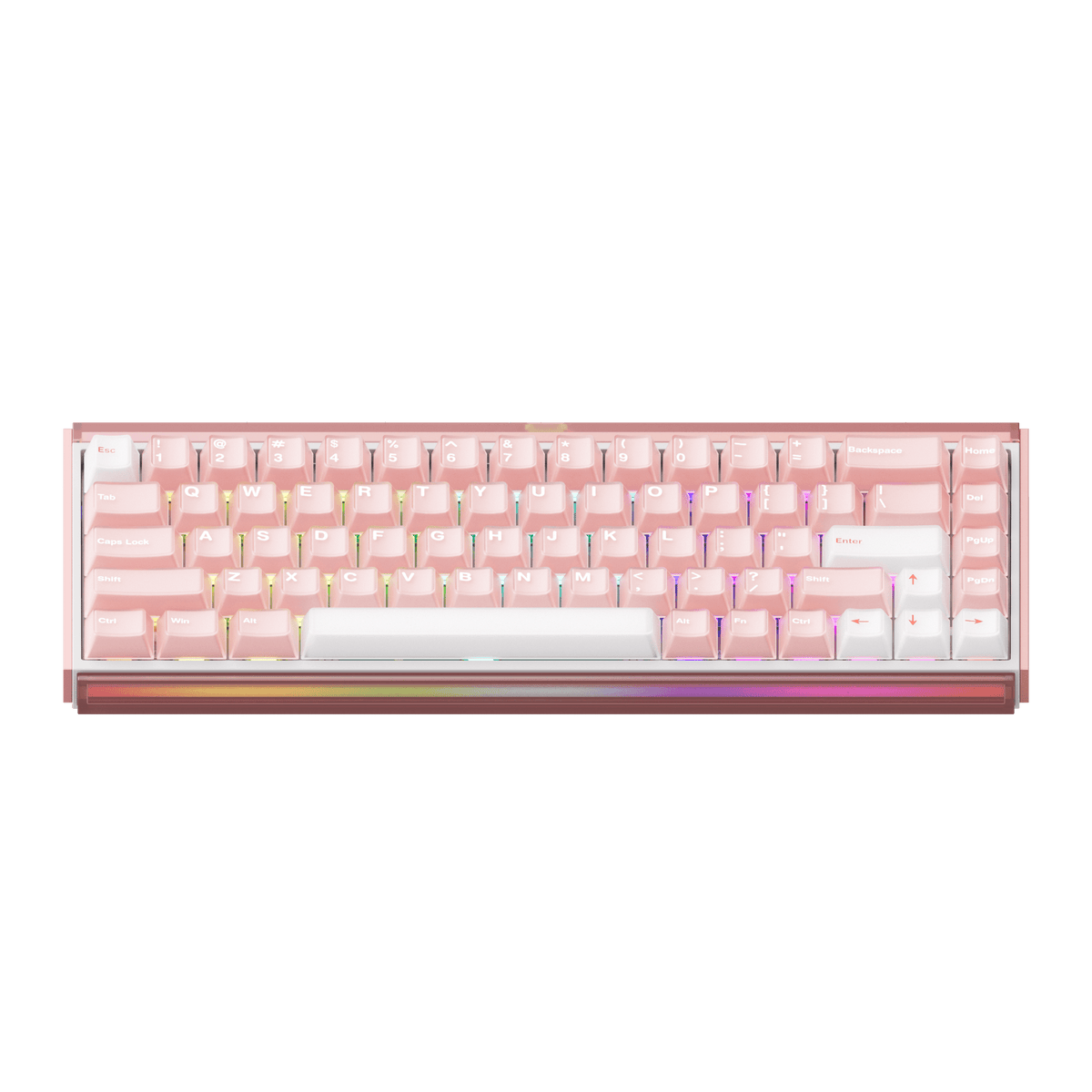

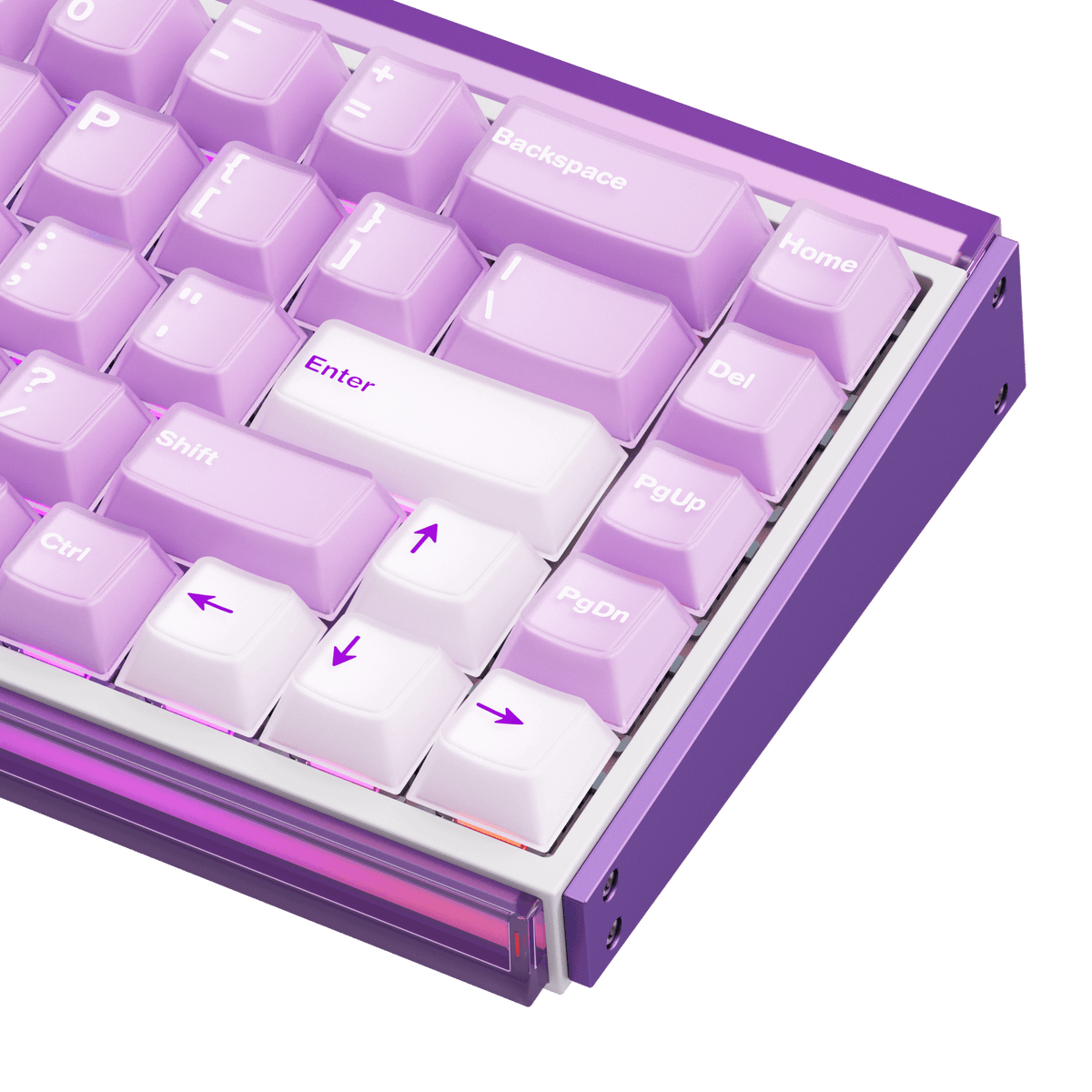

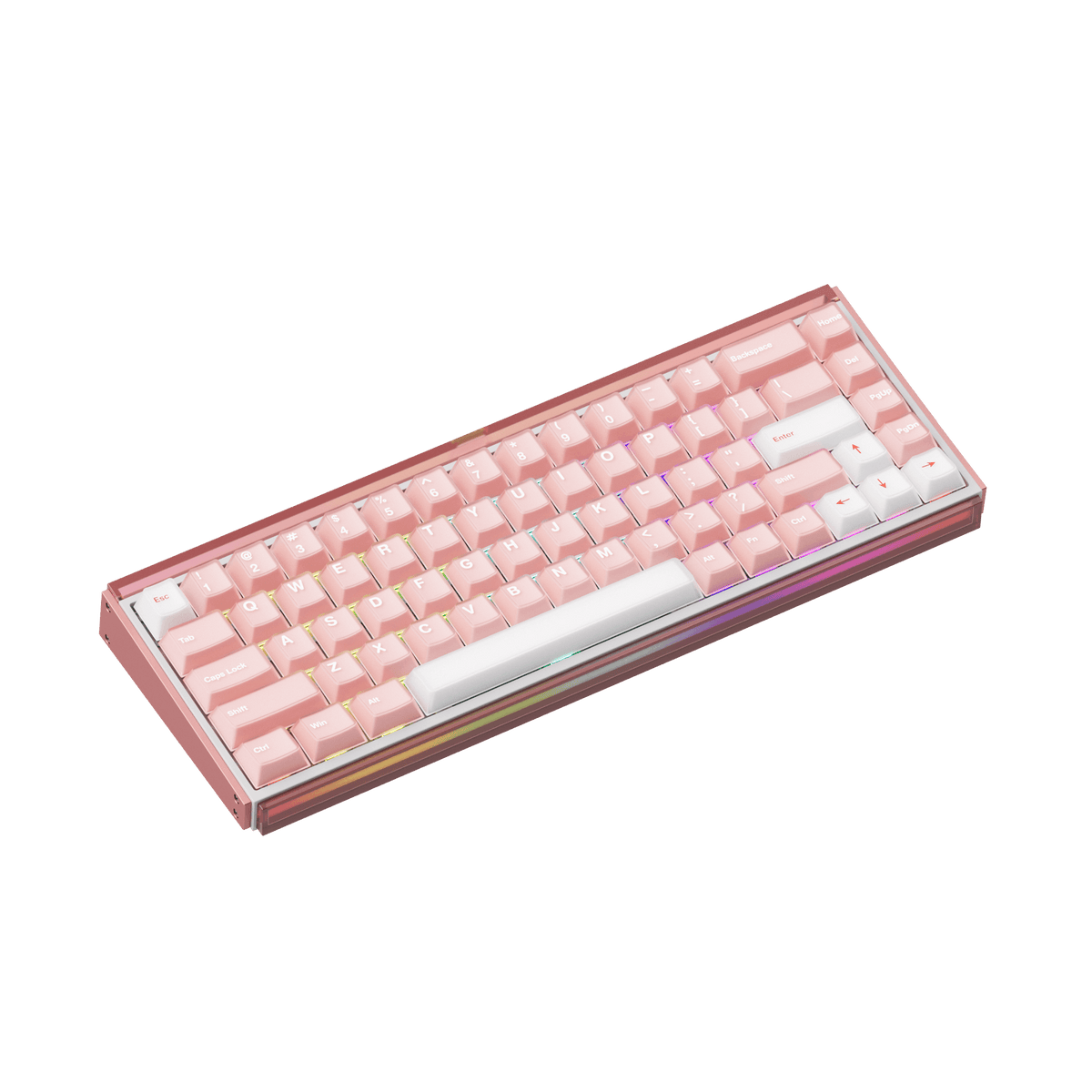

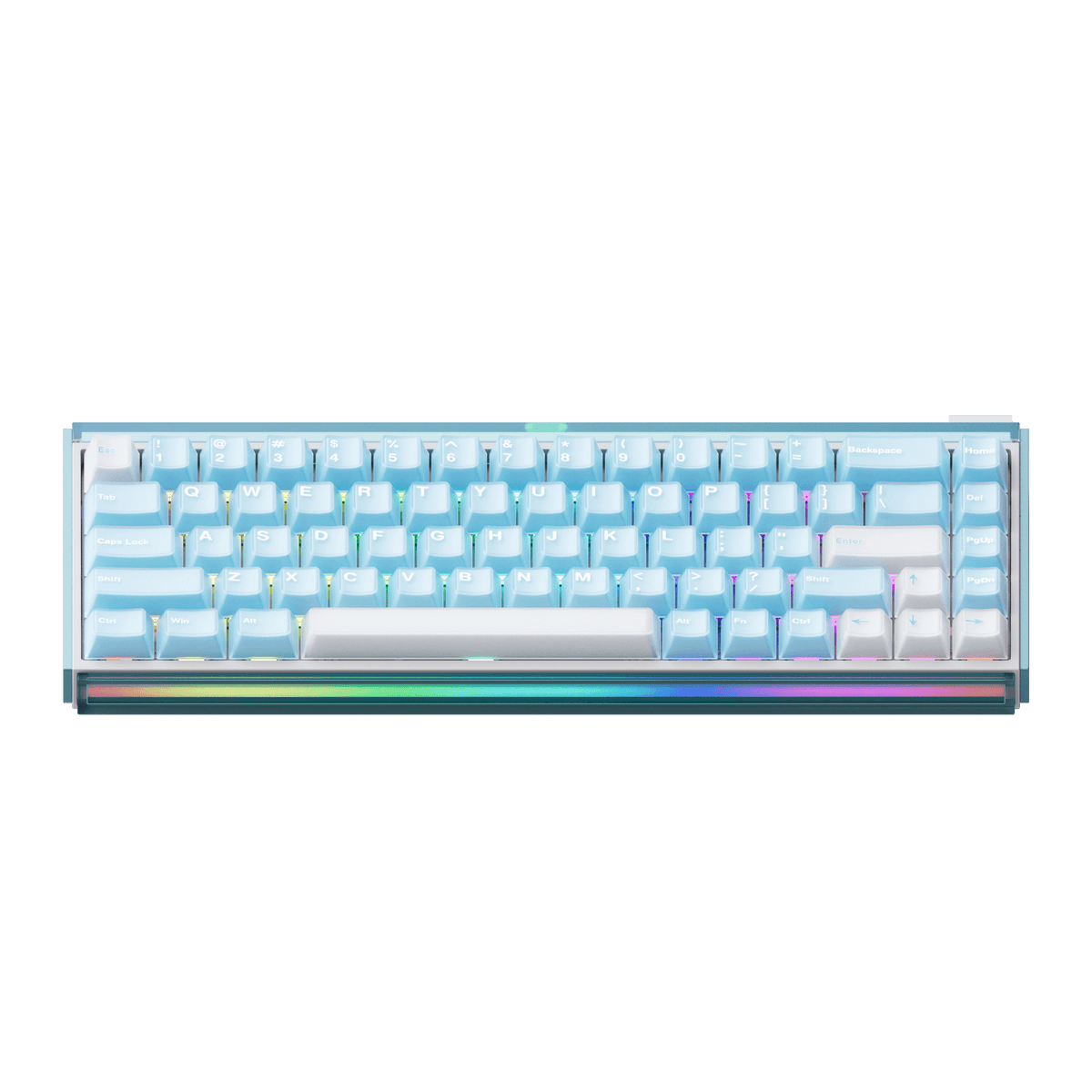

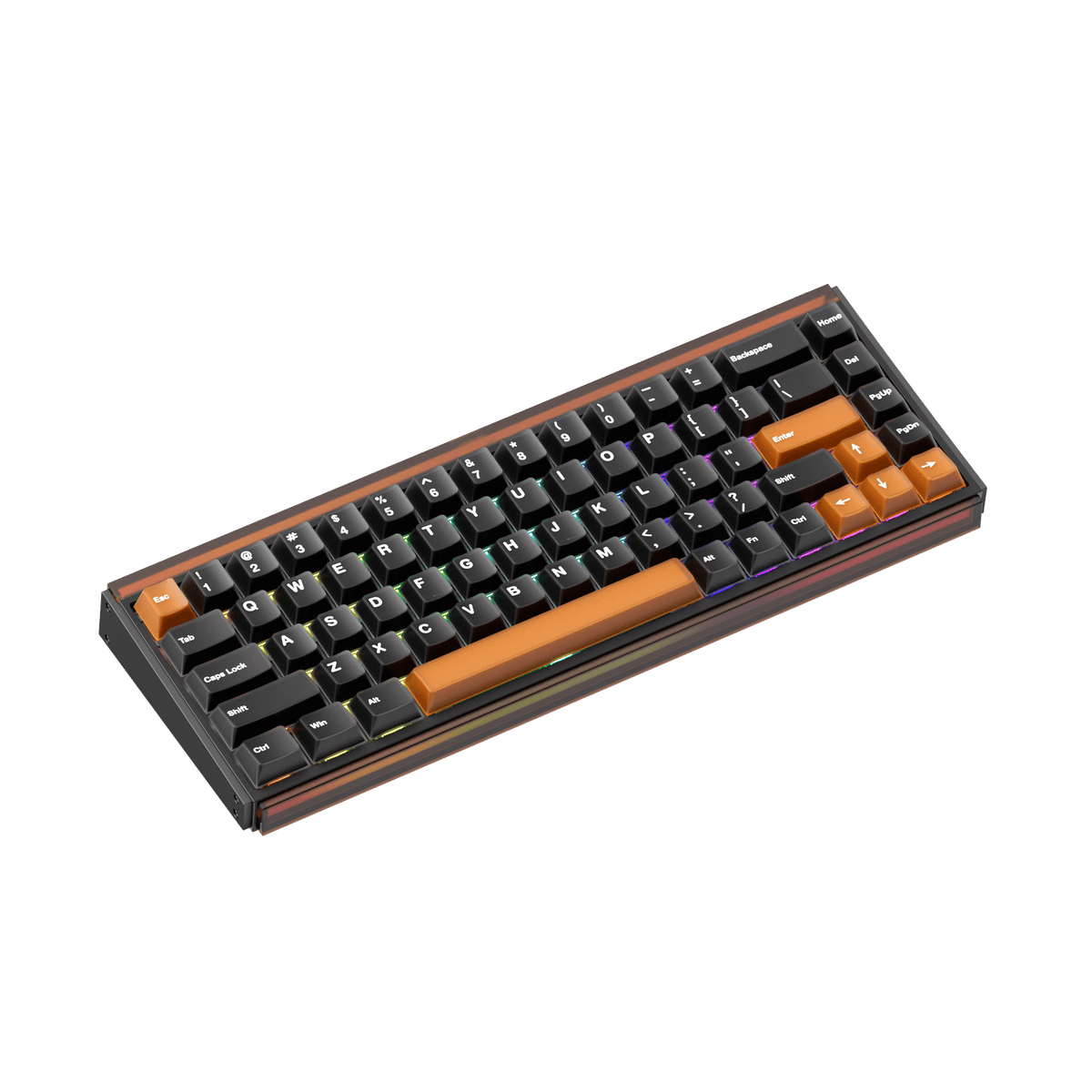

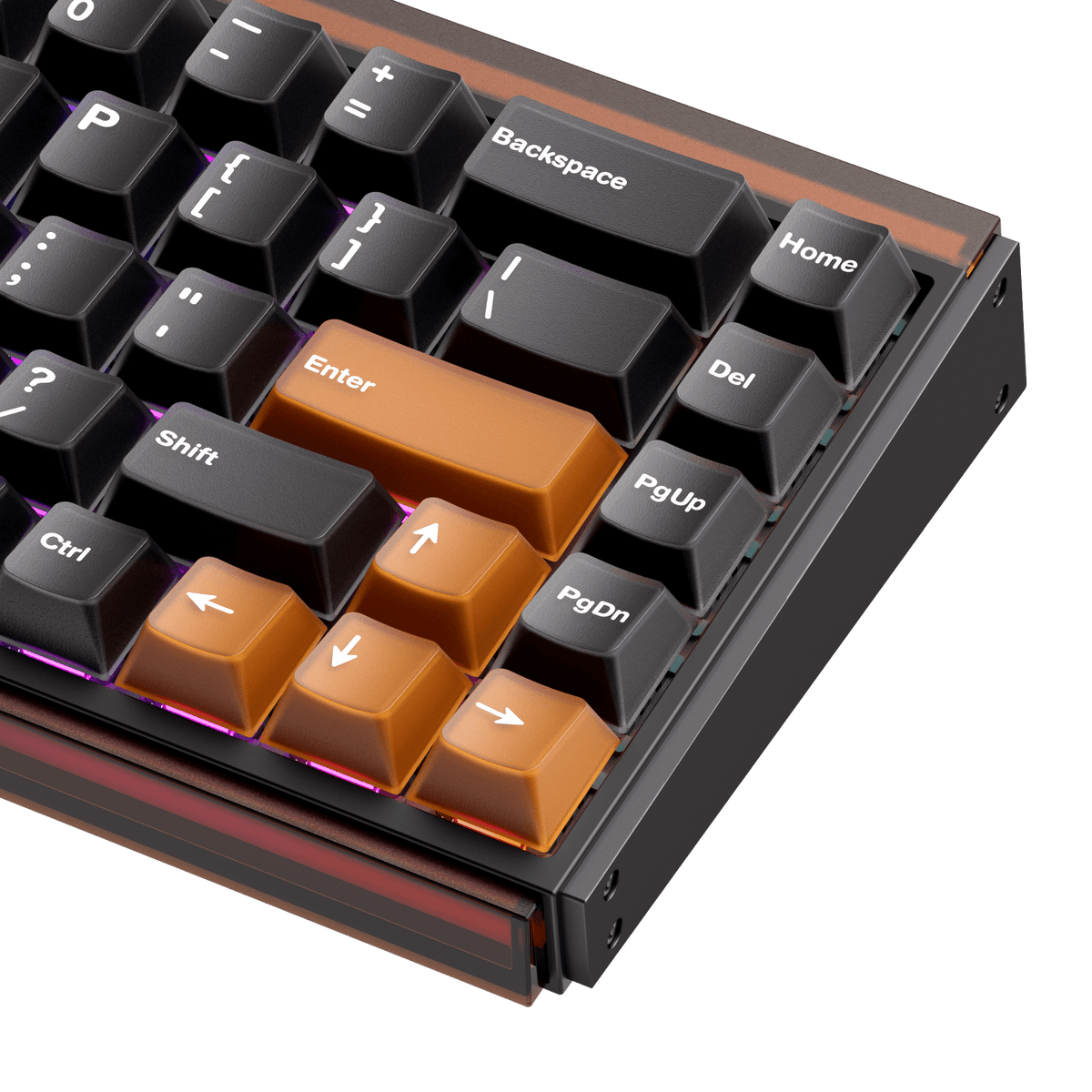

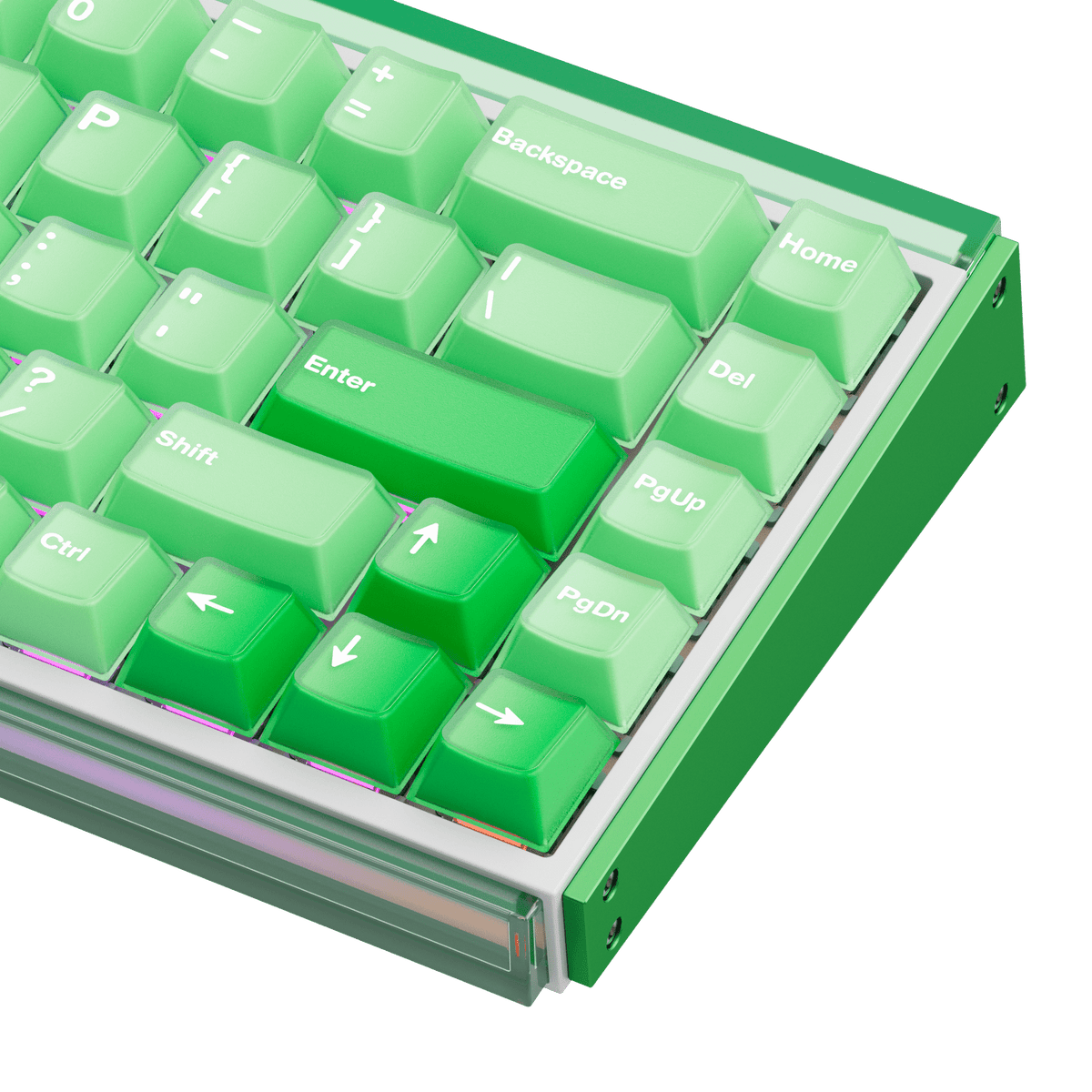

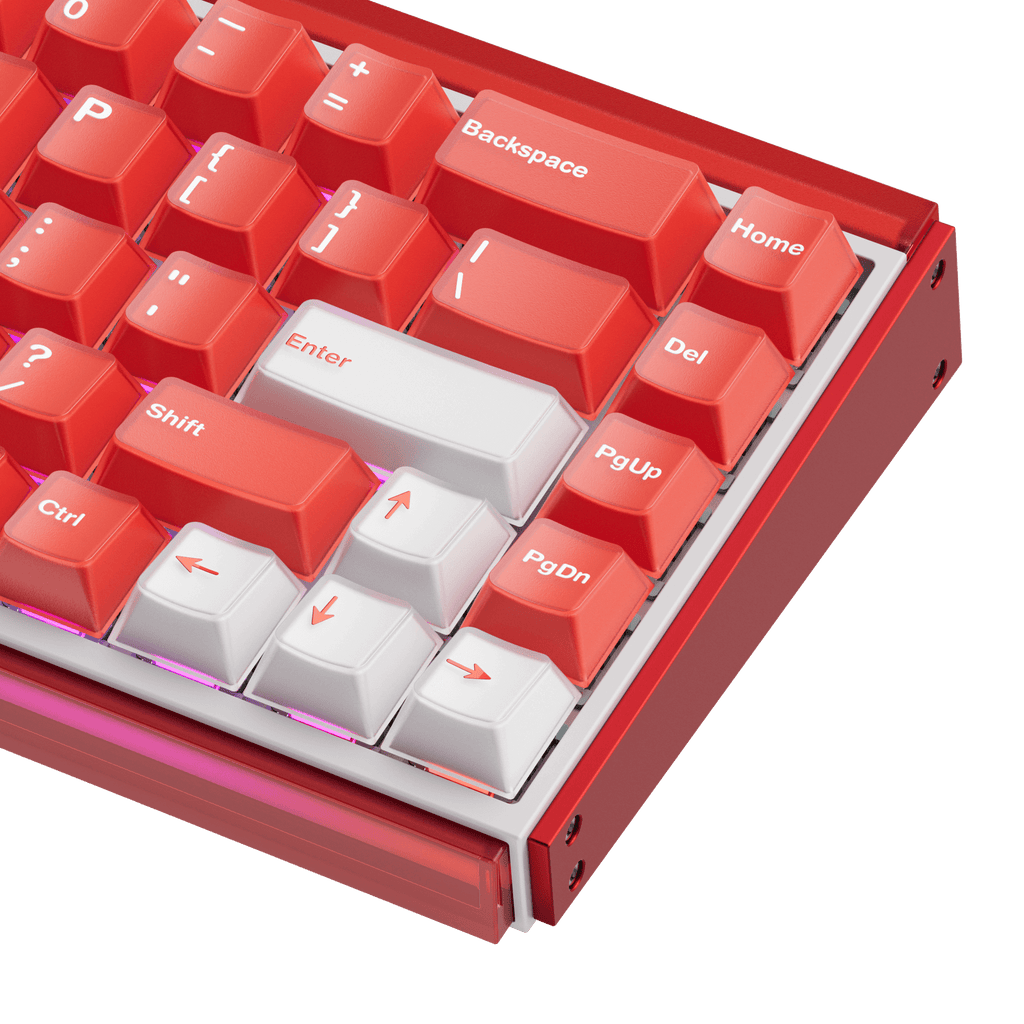

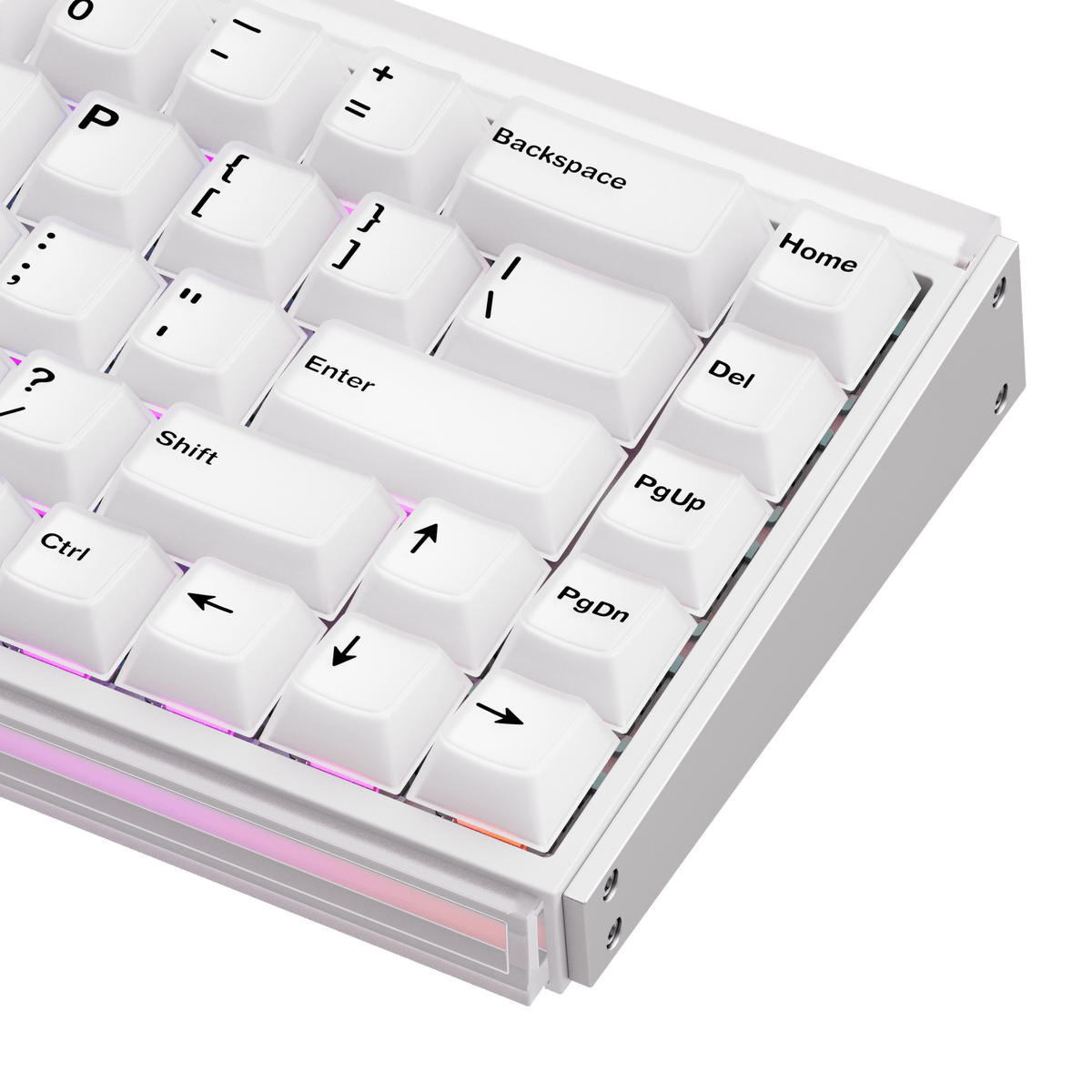

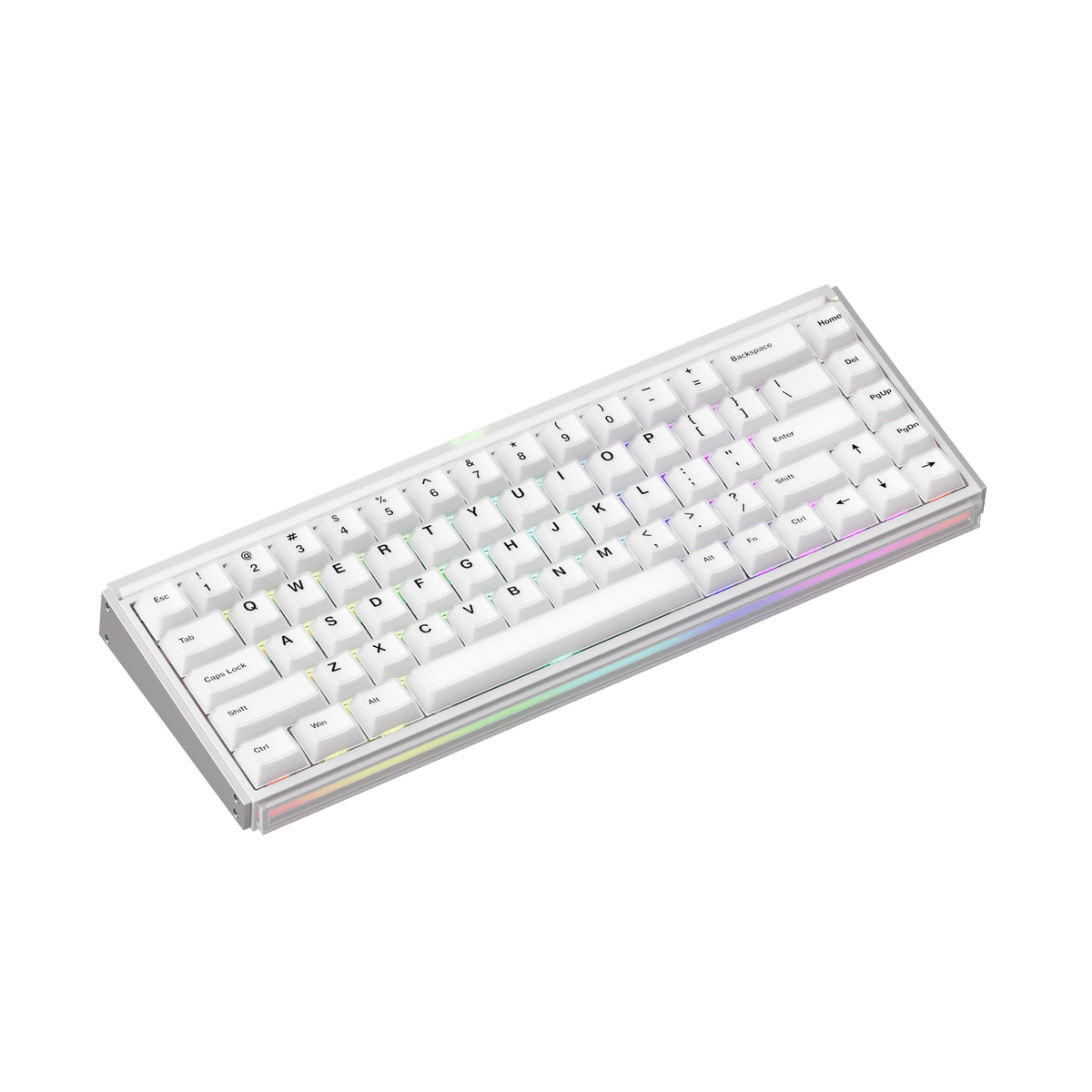

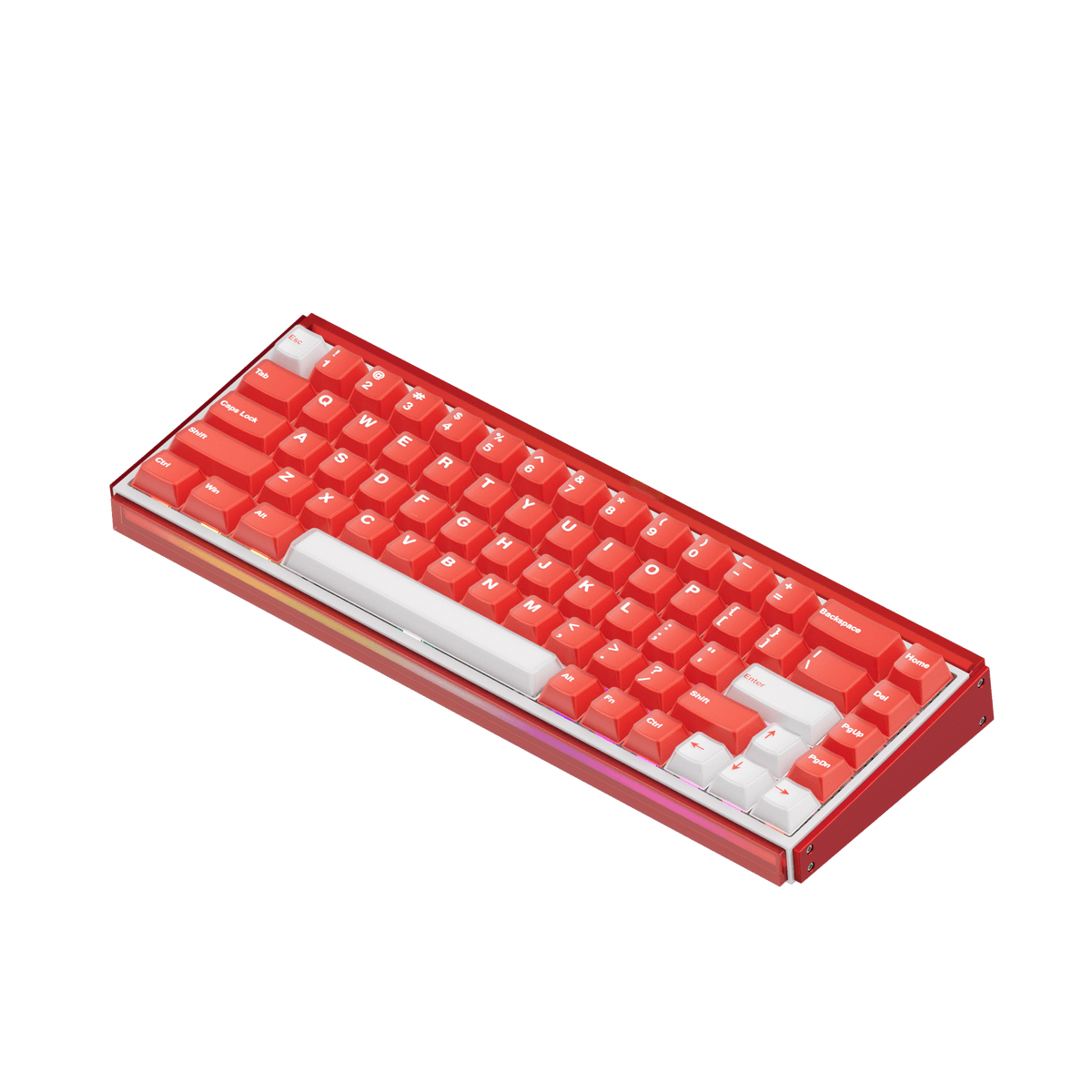

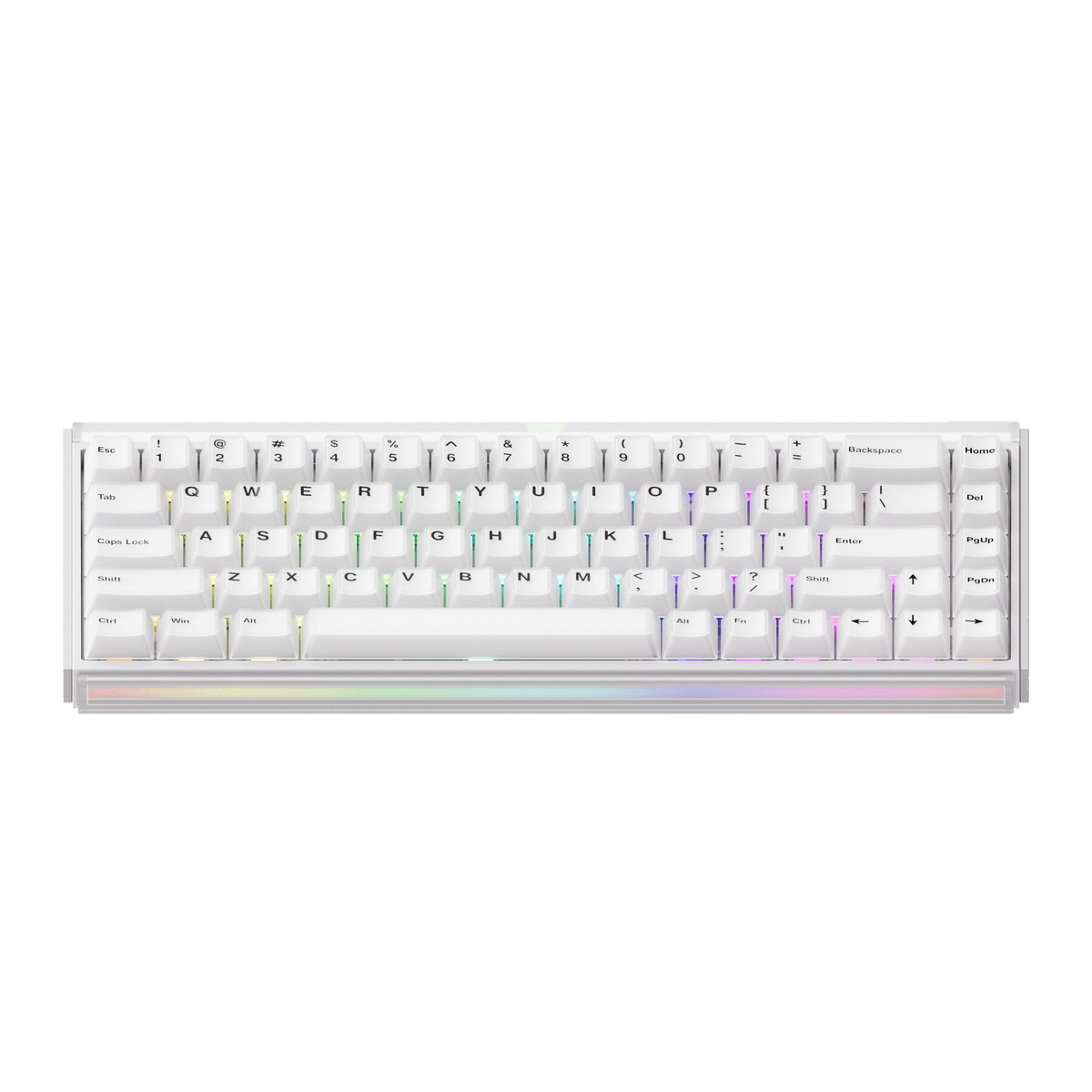

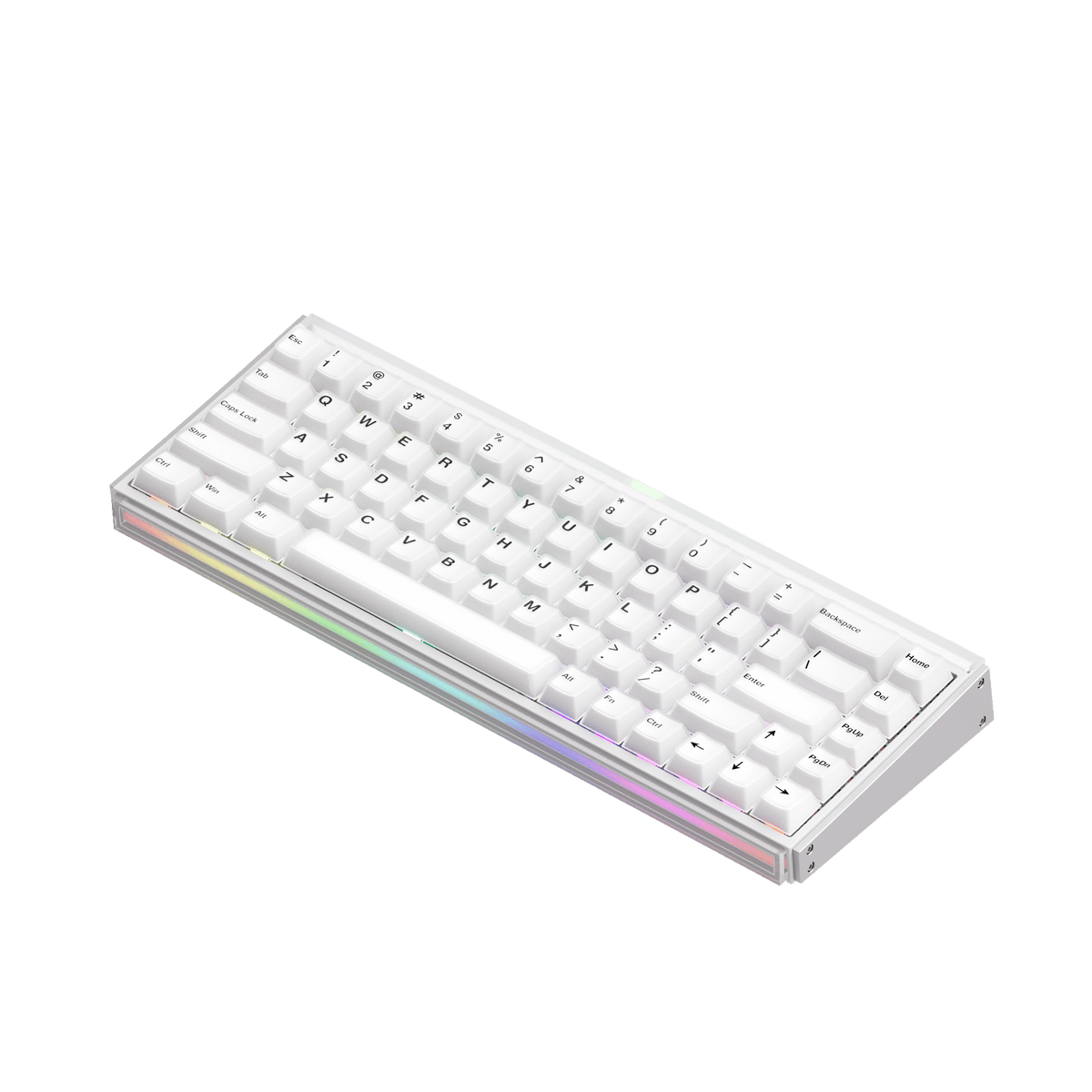

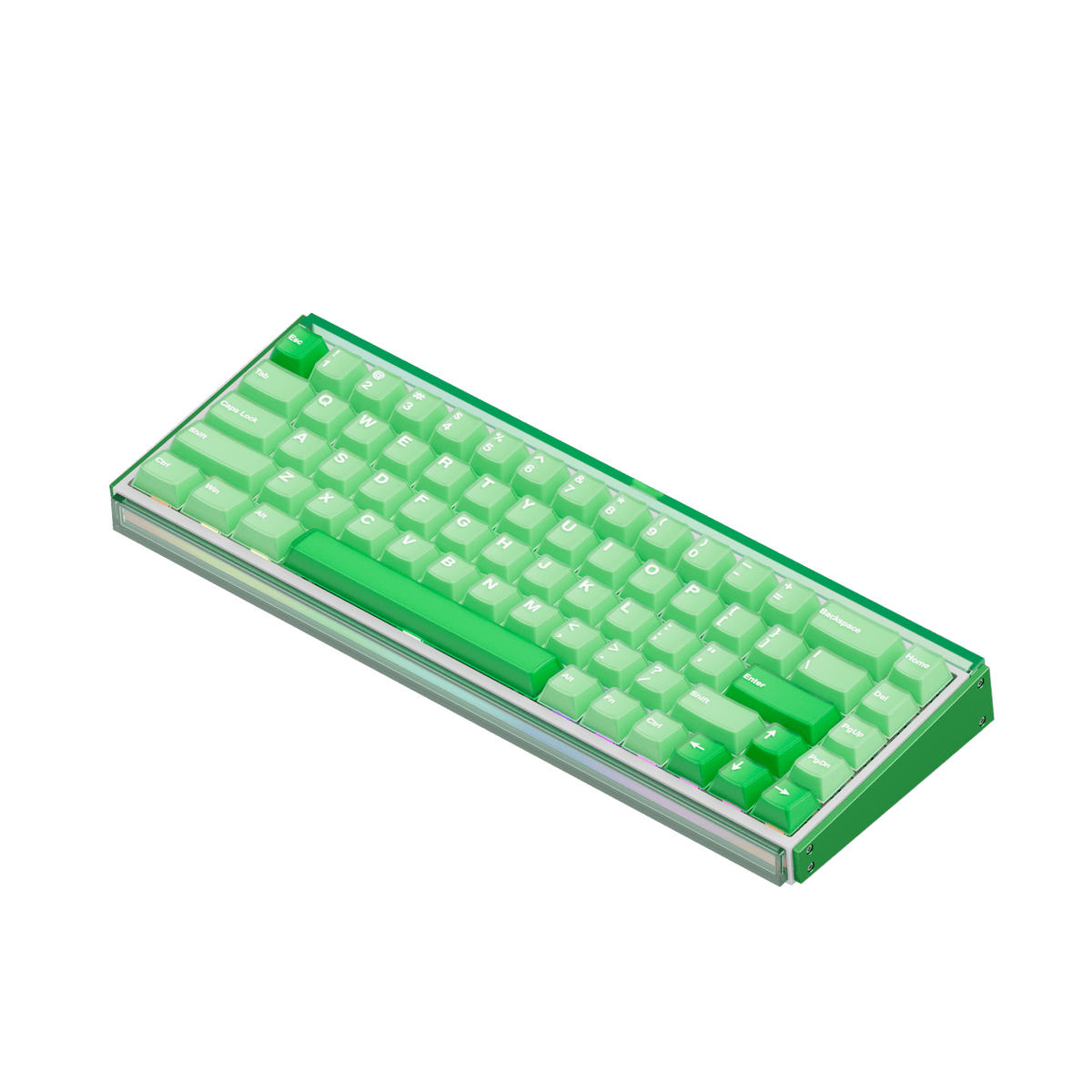

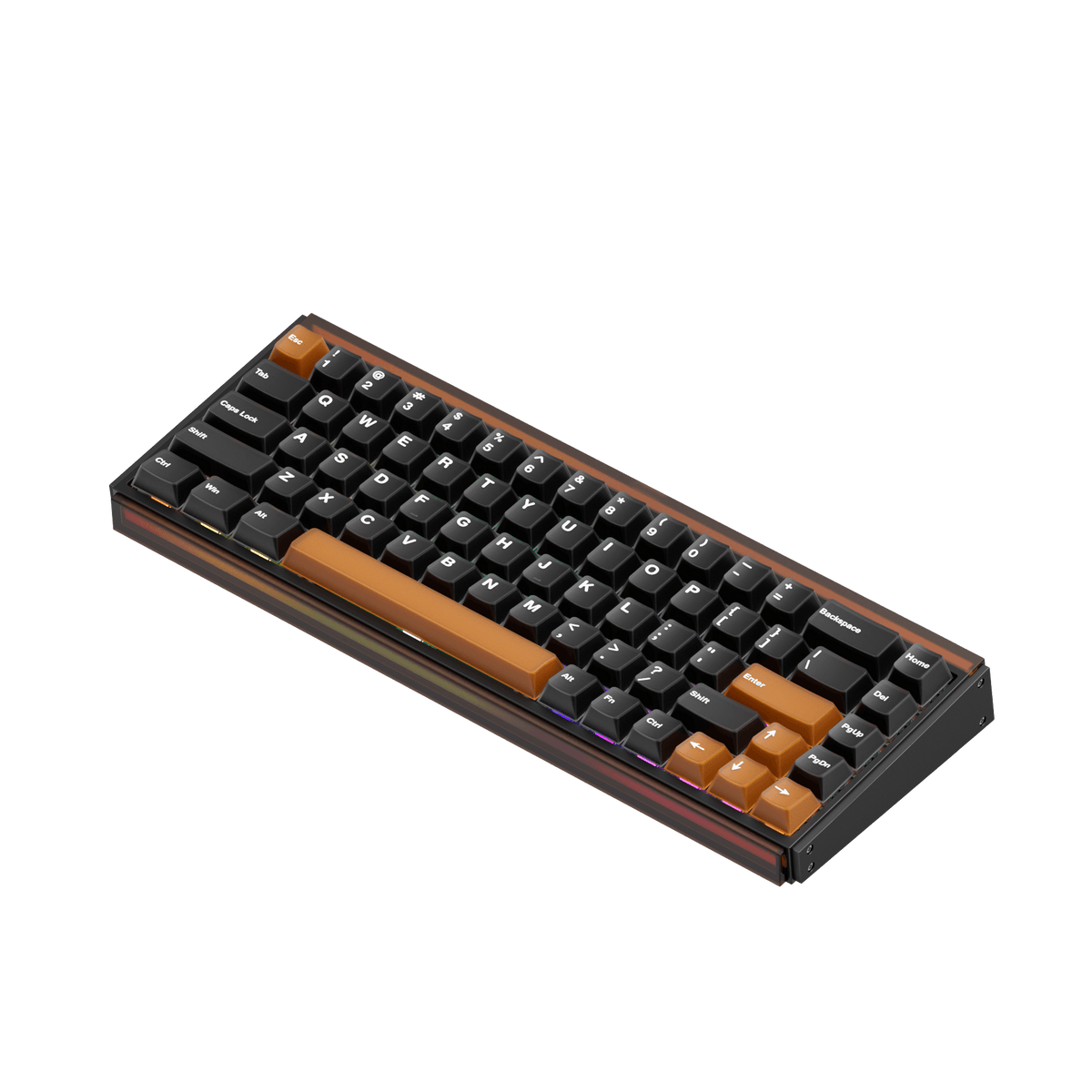

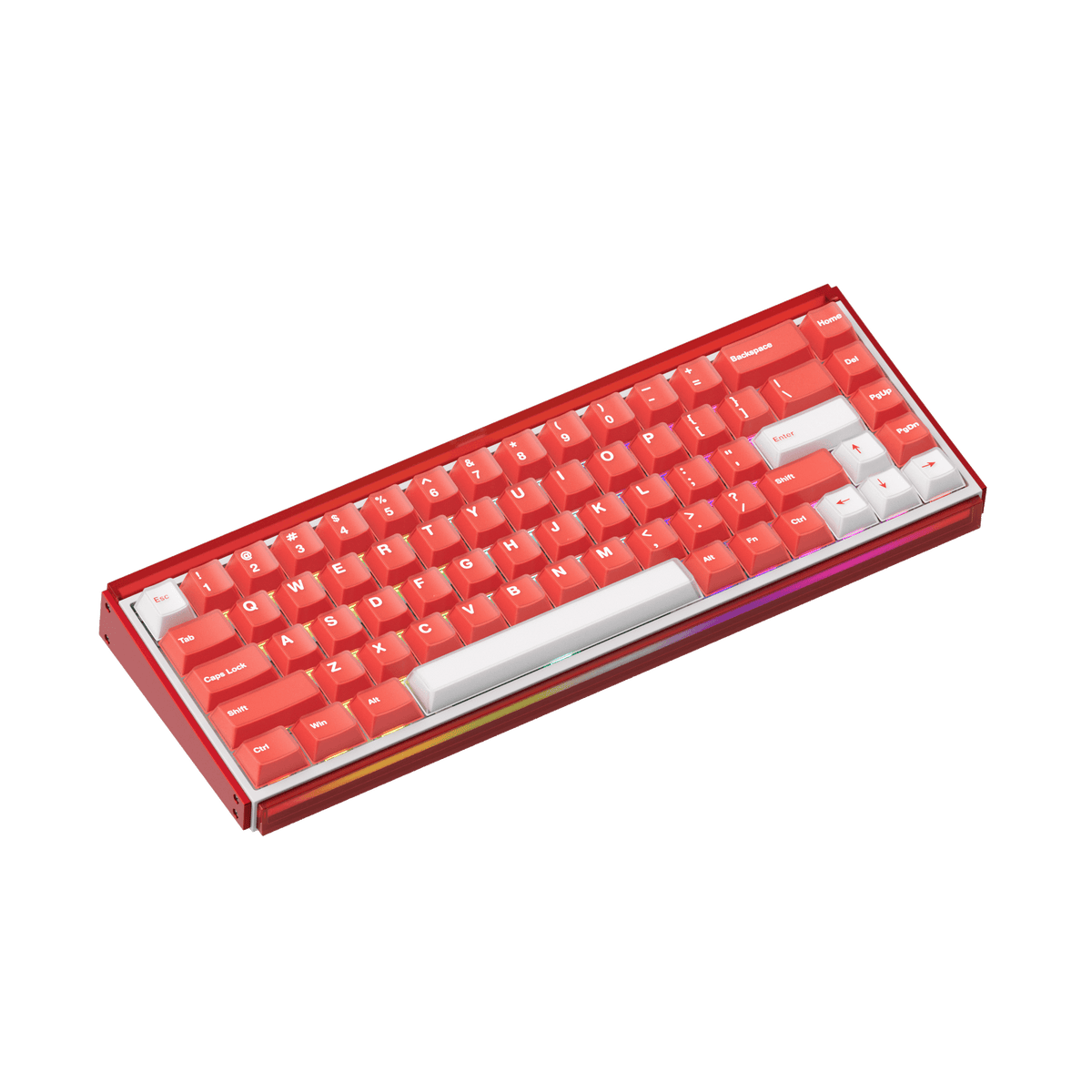

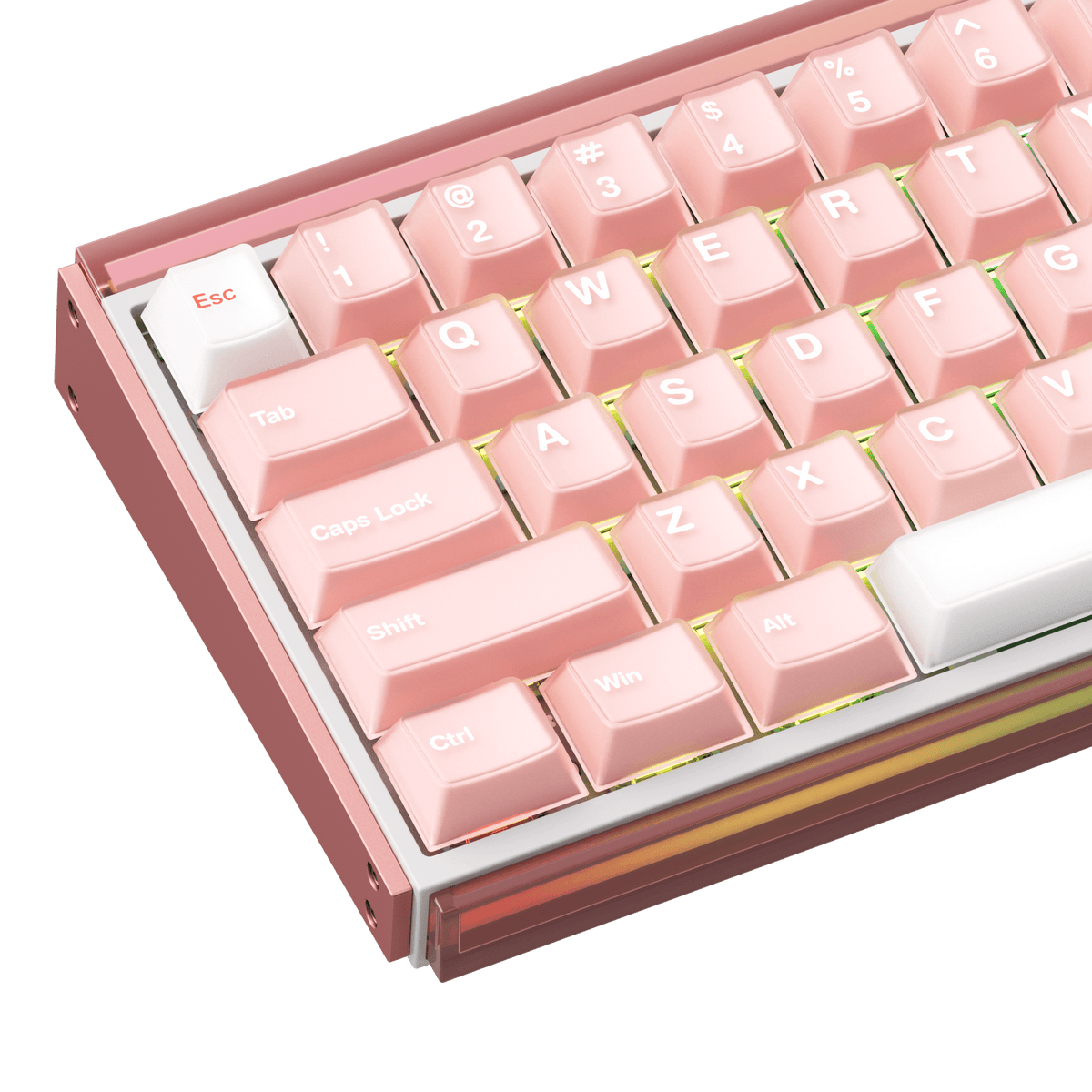

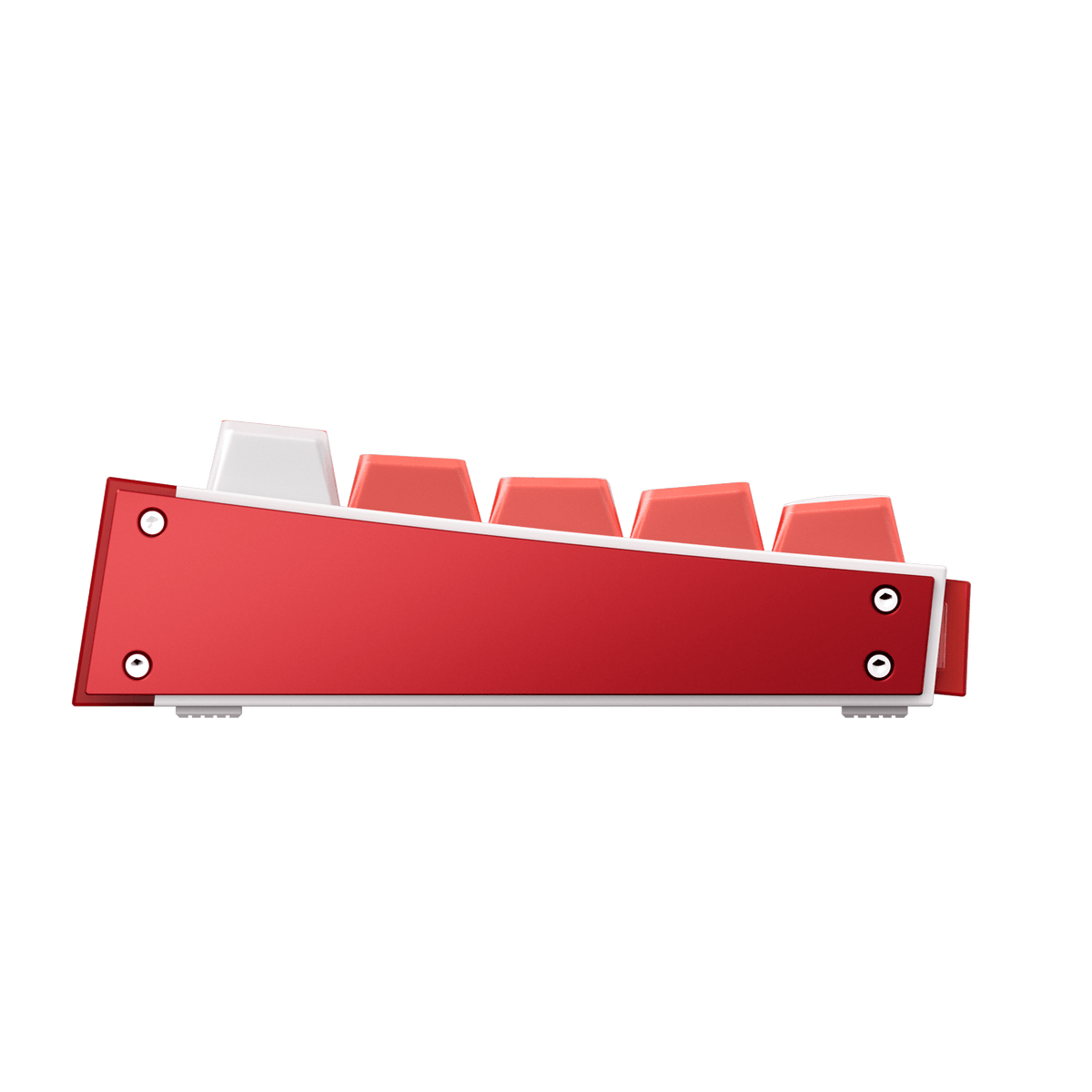

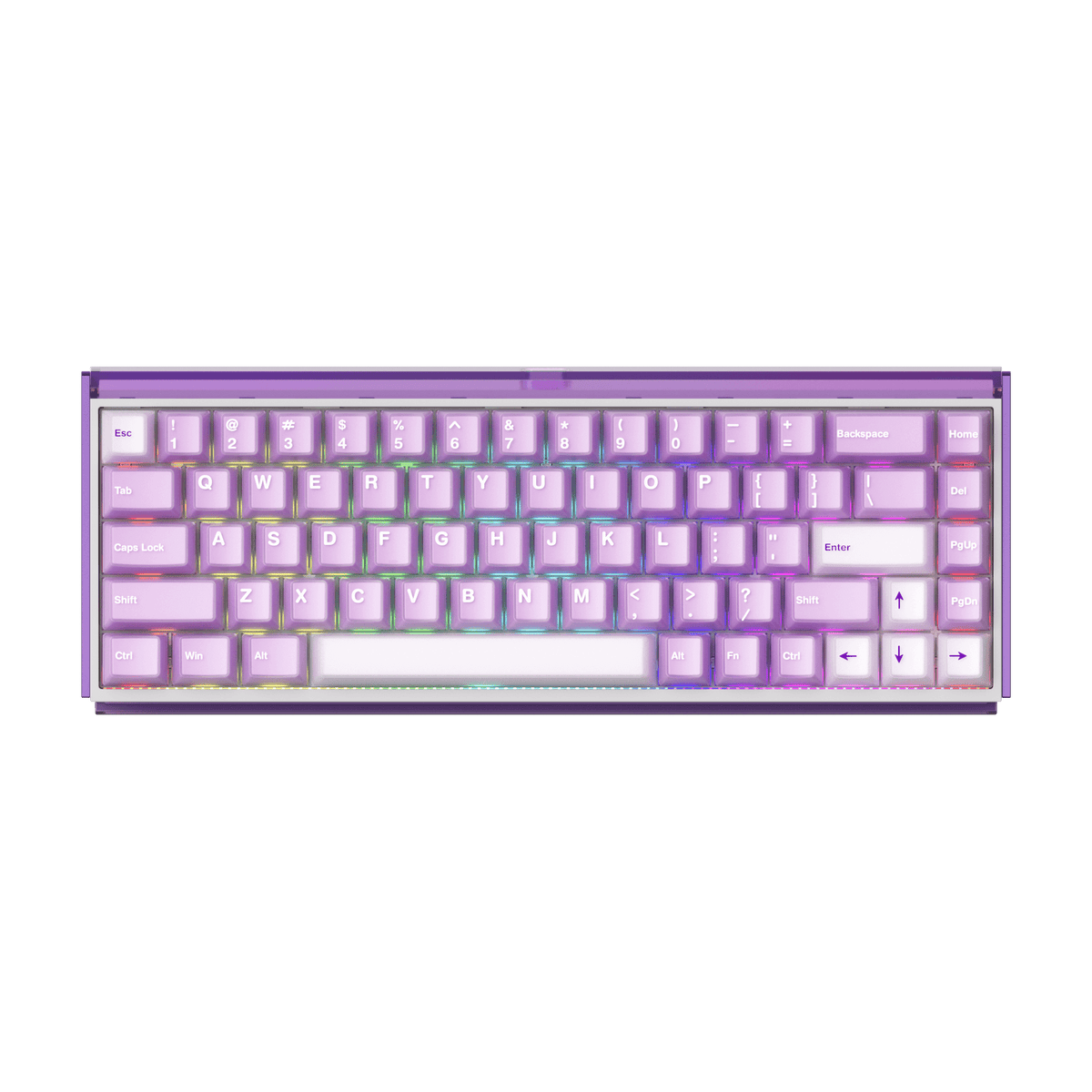

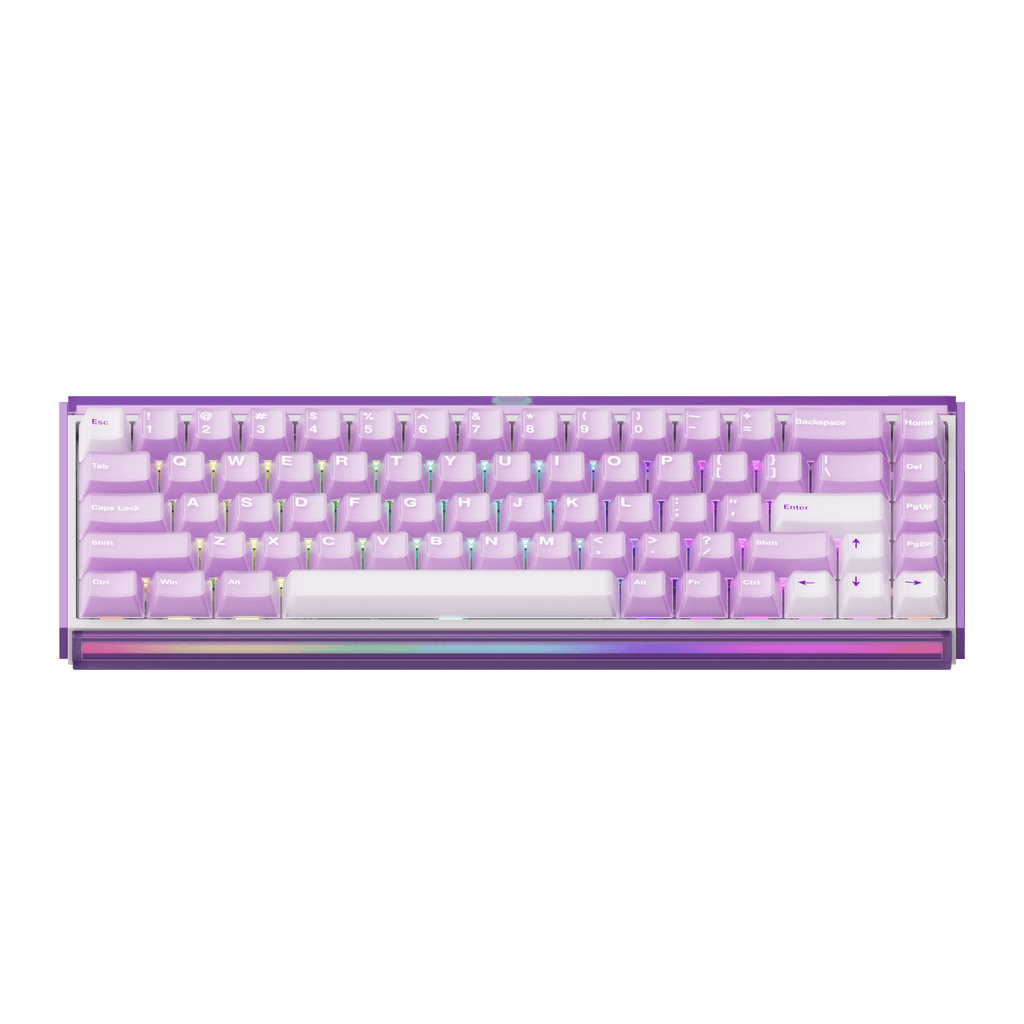

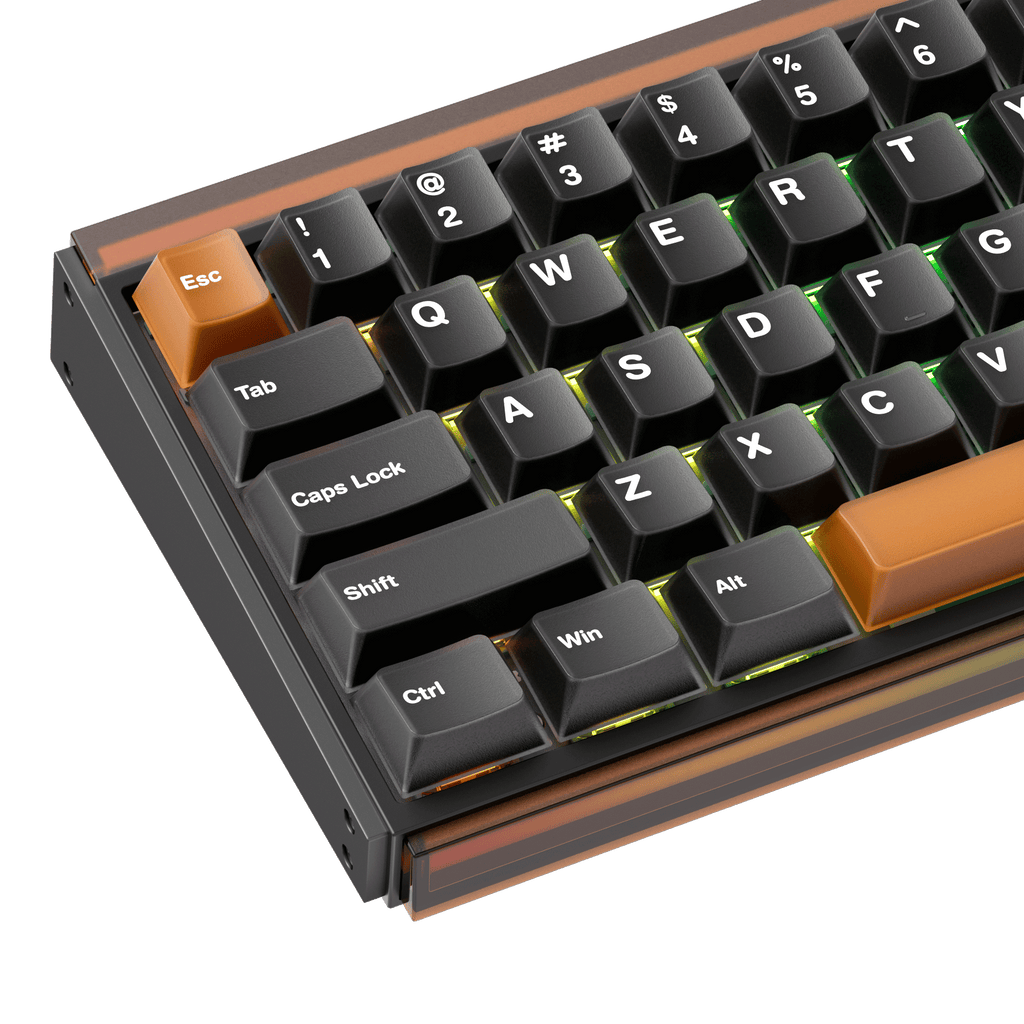

Ray68 HE 65% Magnetic Gaming Keyboard with DIY Lightbox, Rapid Trigger and Wired or Wireless Connectivity

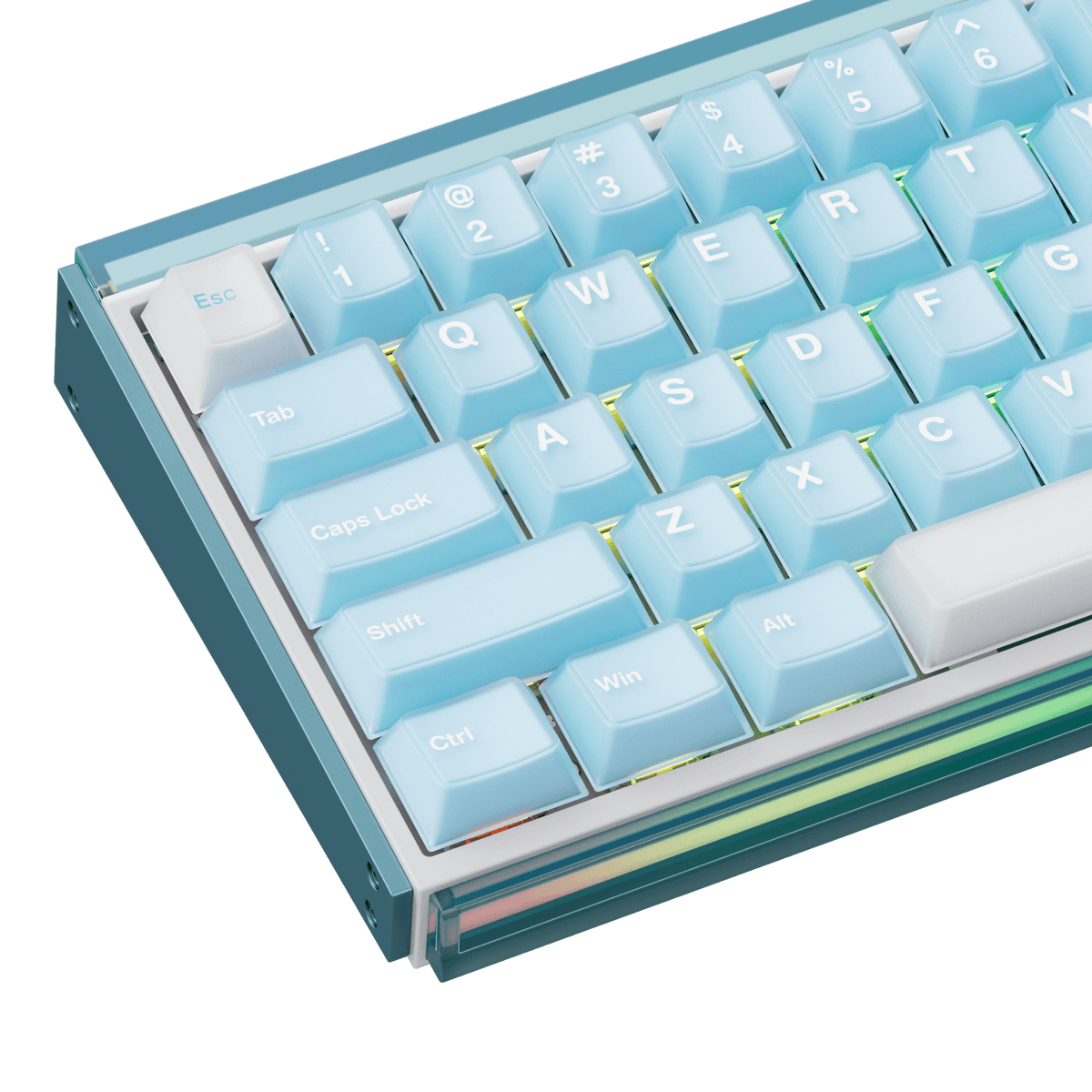

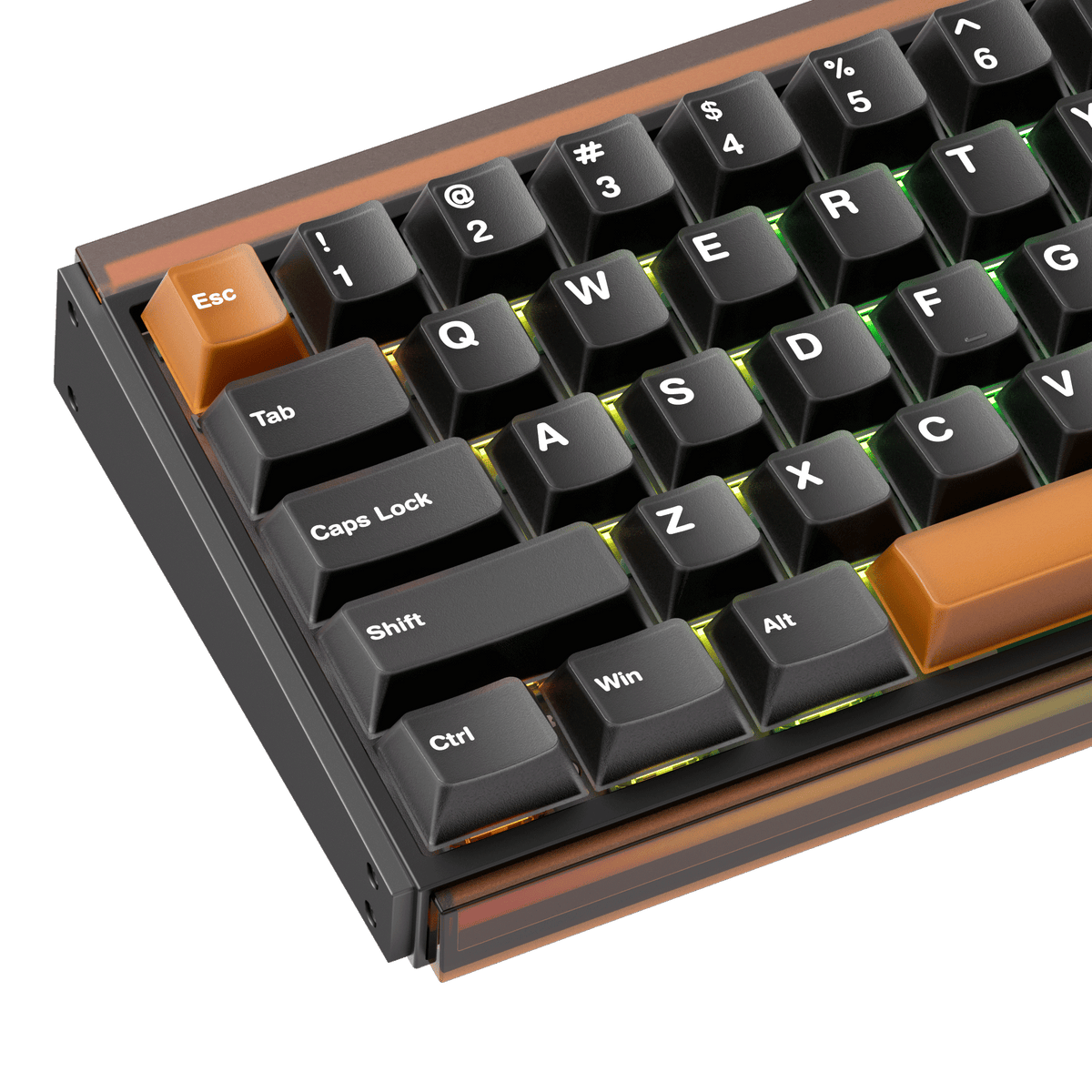

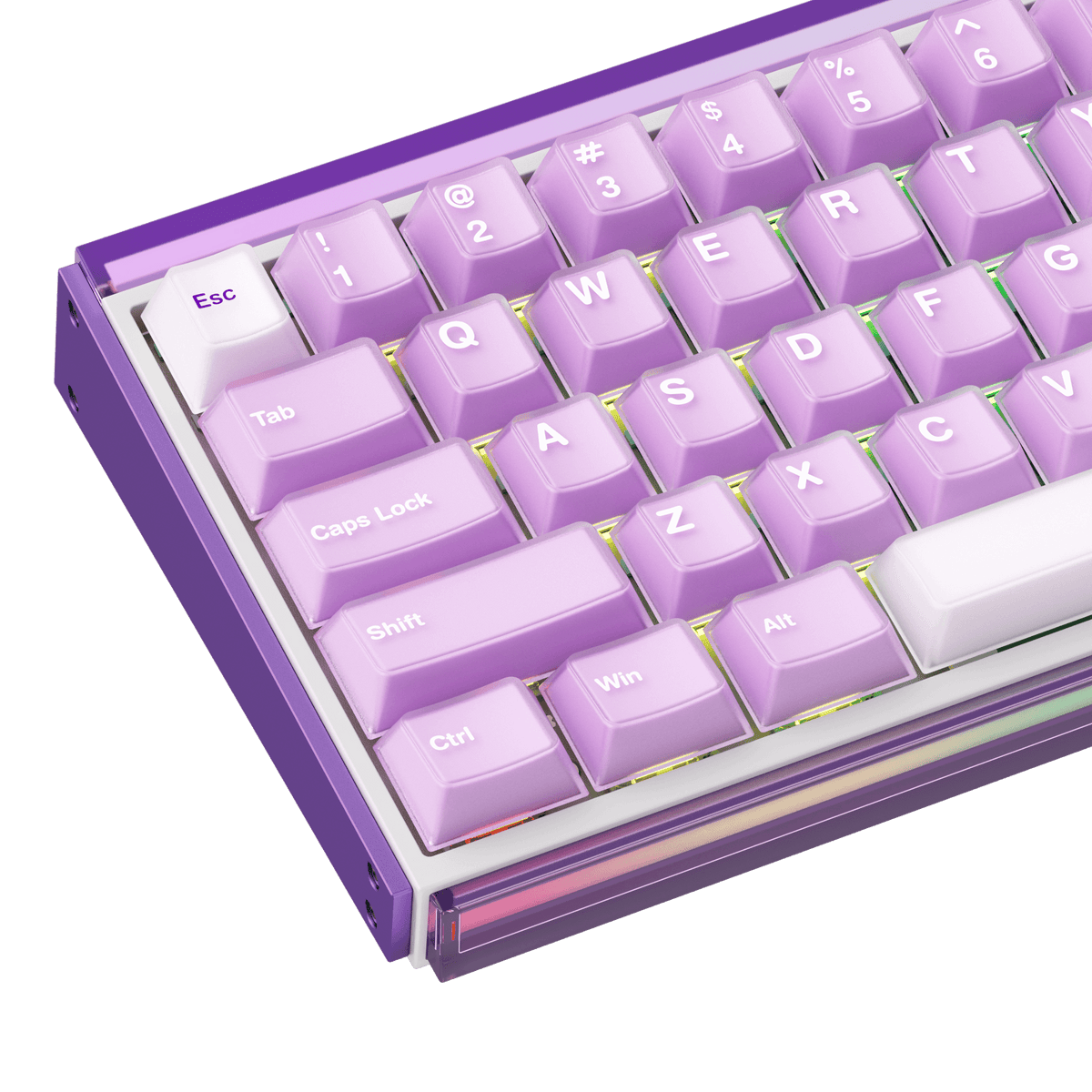

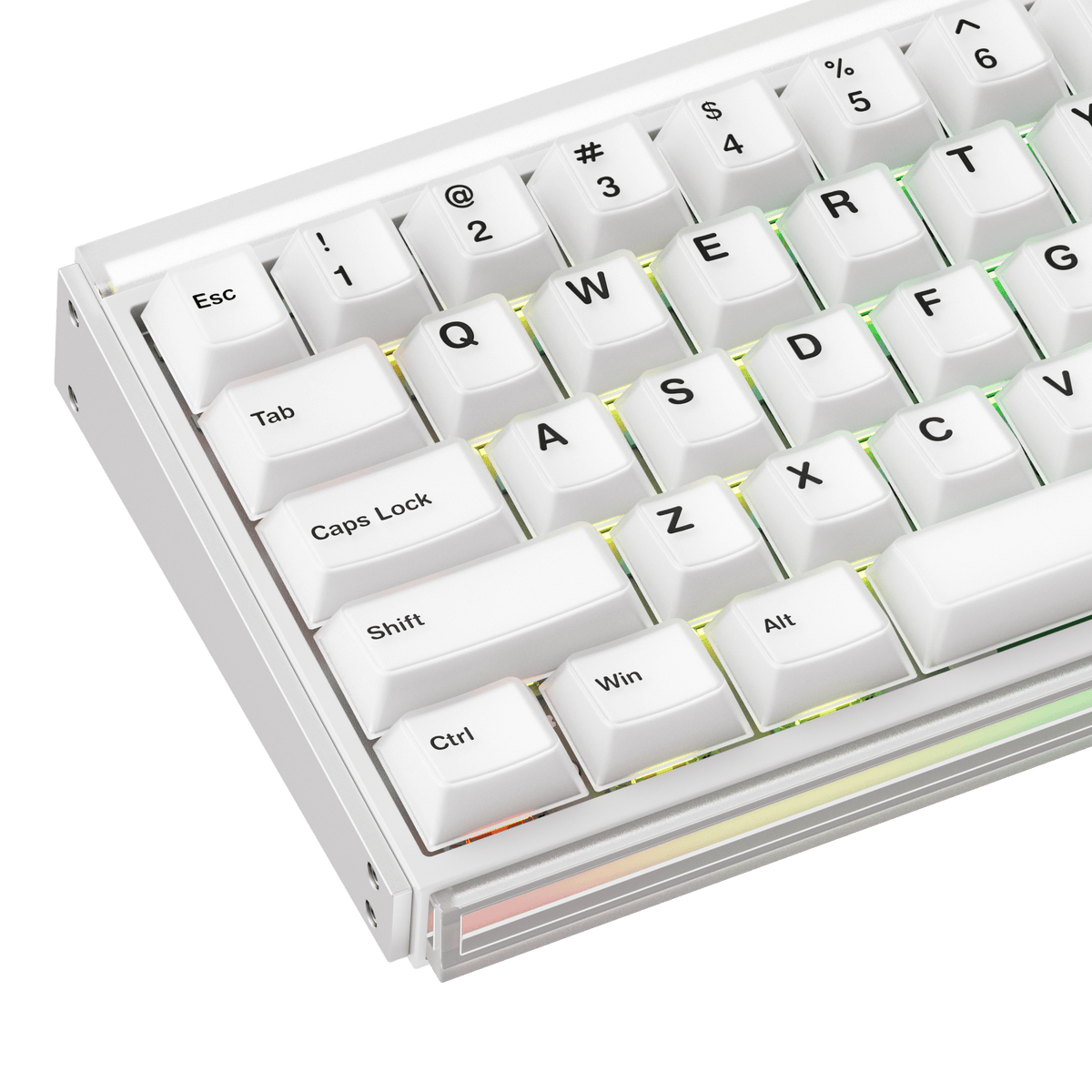

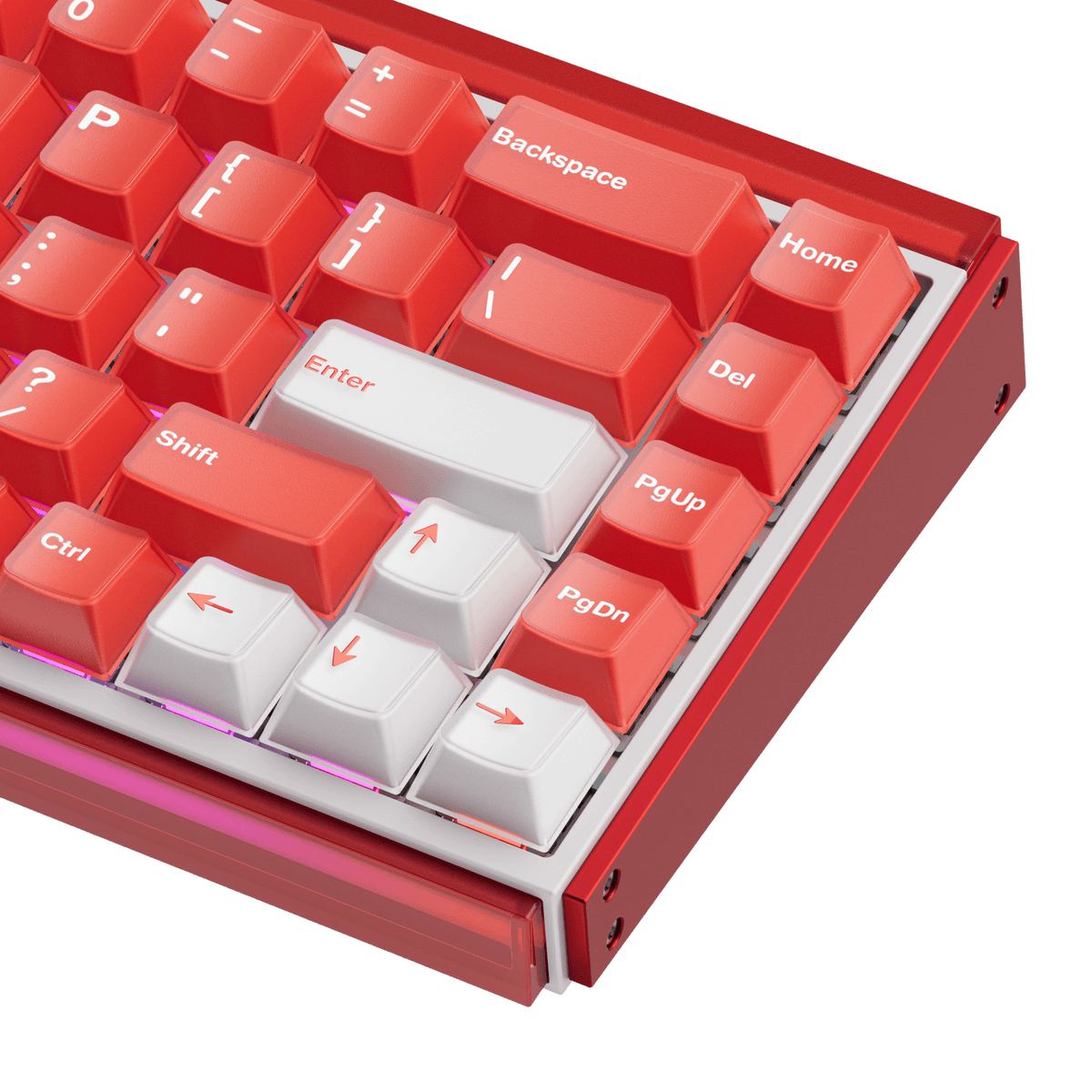

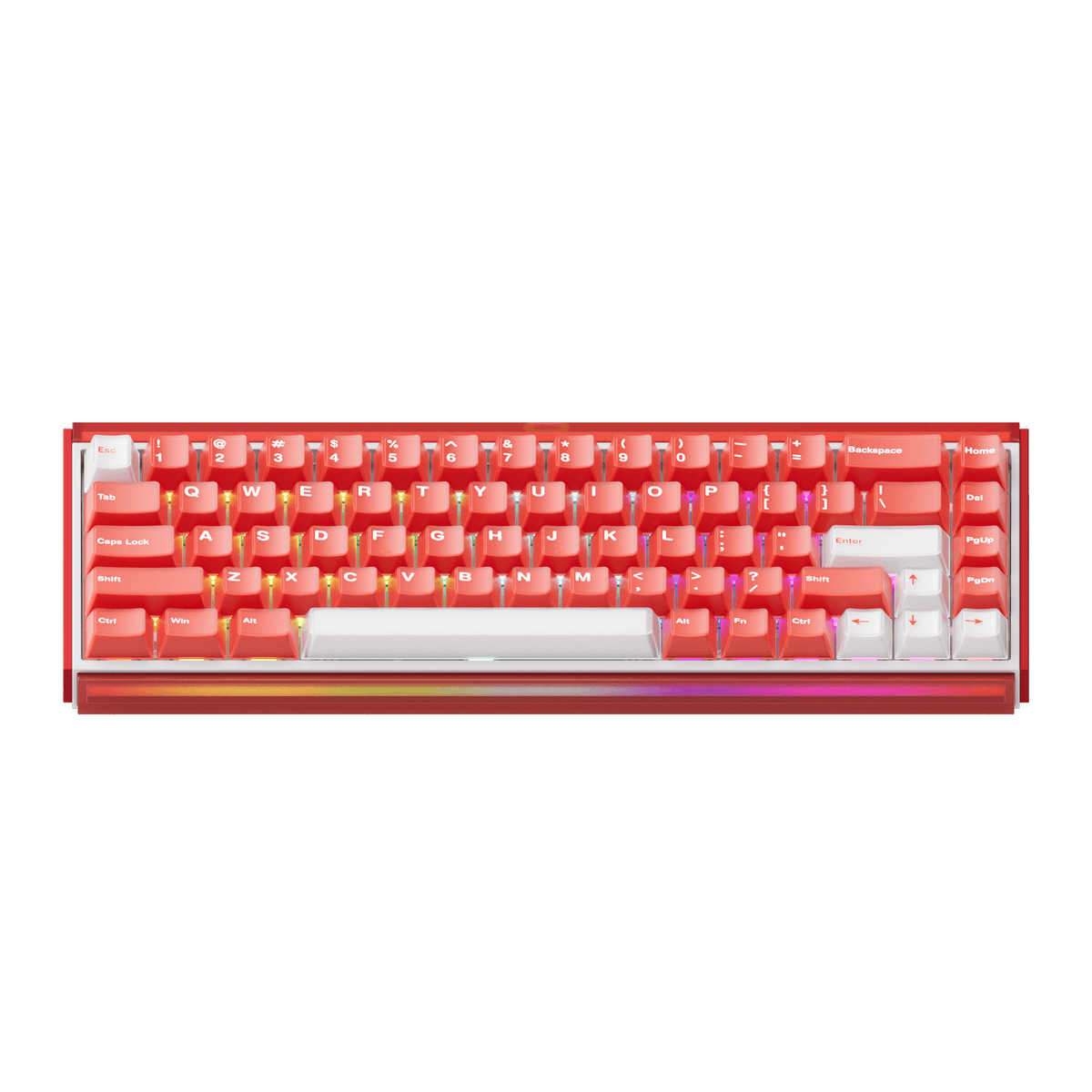

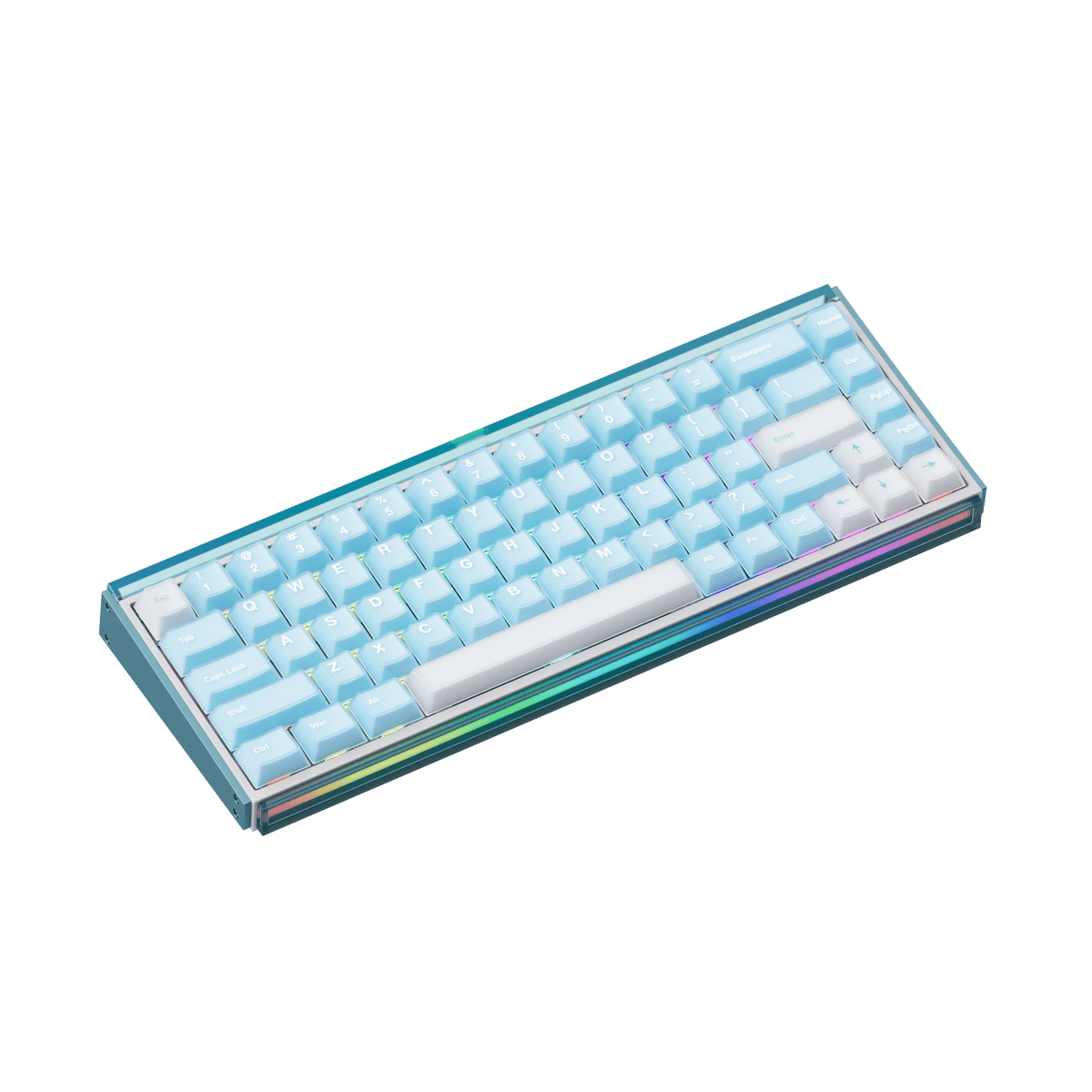

Ray68 HE is a 65% magnetic gaming keyboard with a DIY lightbox, south-facing ARGB lighting and AstroAim linear magnetic switches. Choose the USB-C wired version or the wireless version with Bluetooth 5.0, 2.4GHz and USB-C connections.

Key Features

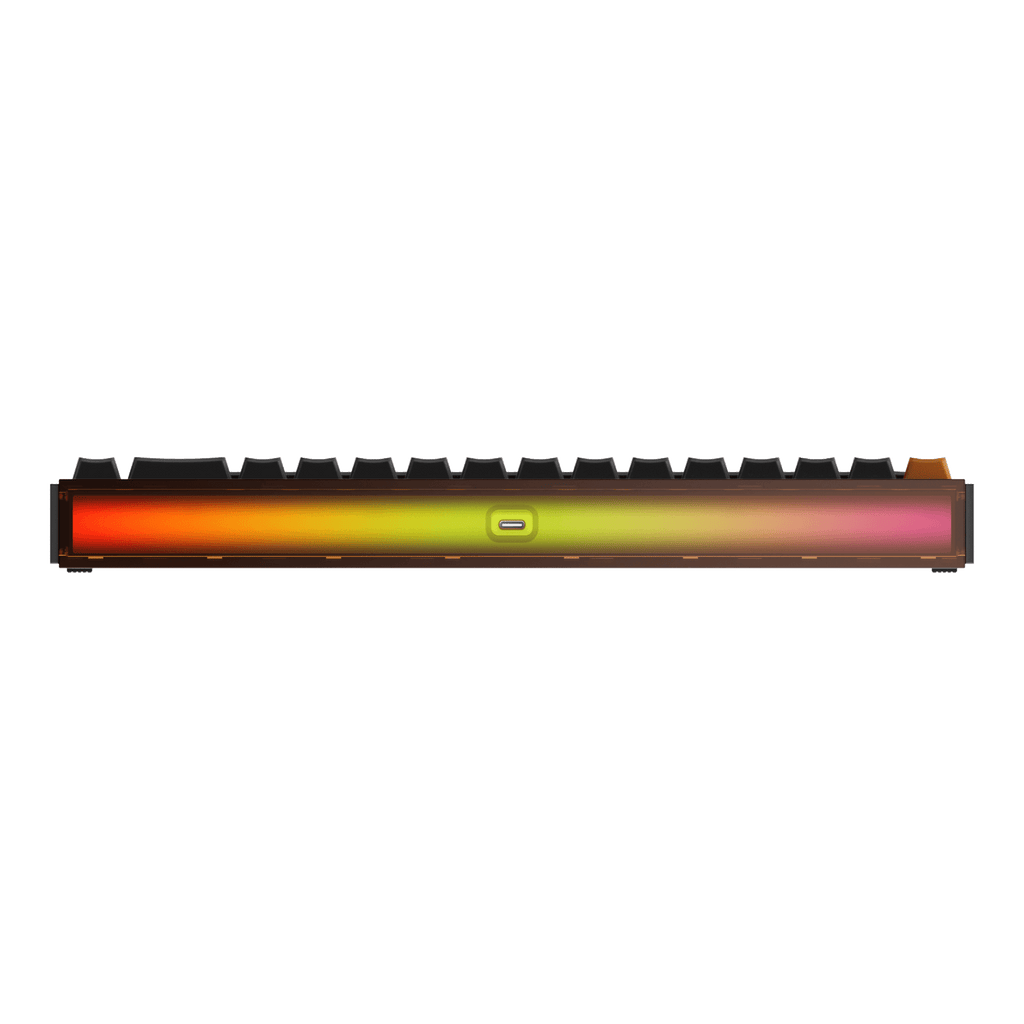

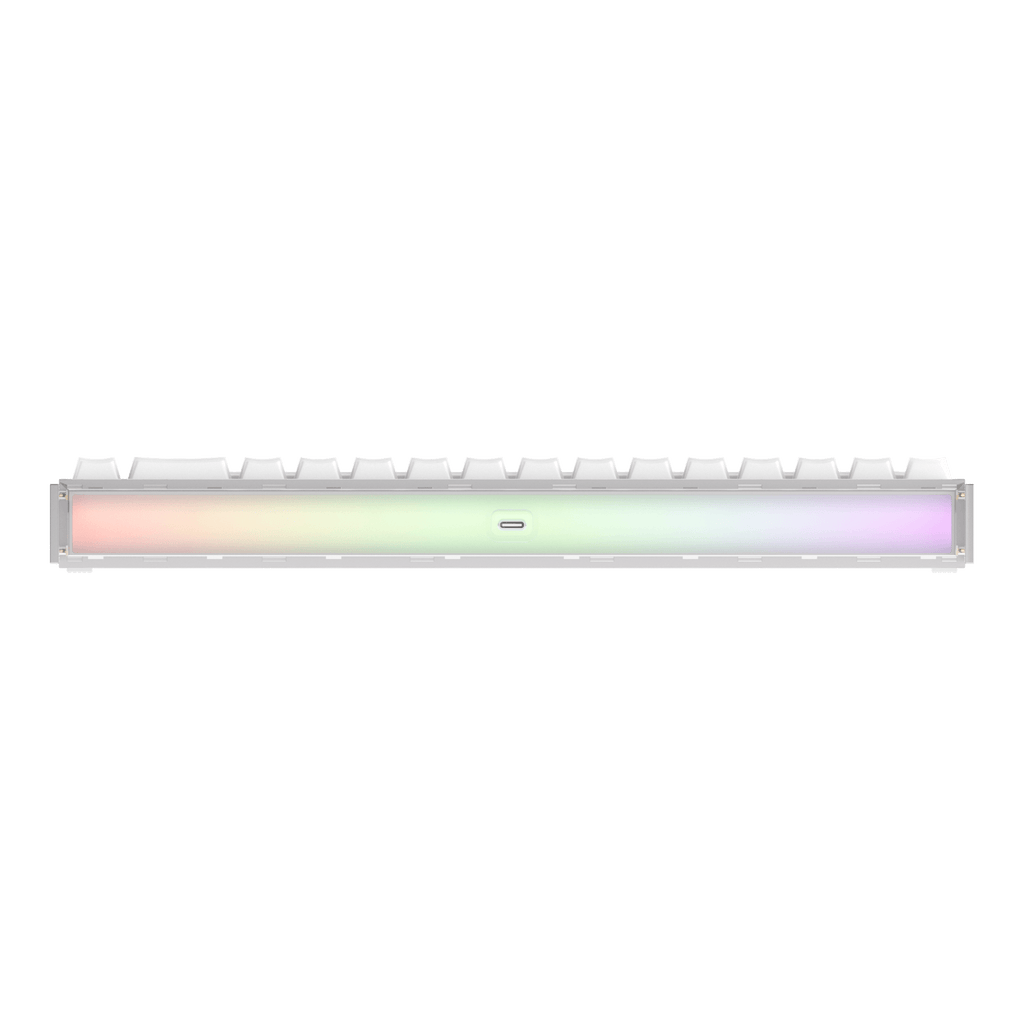

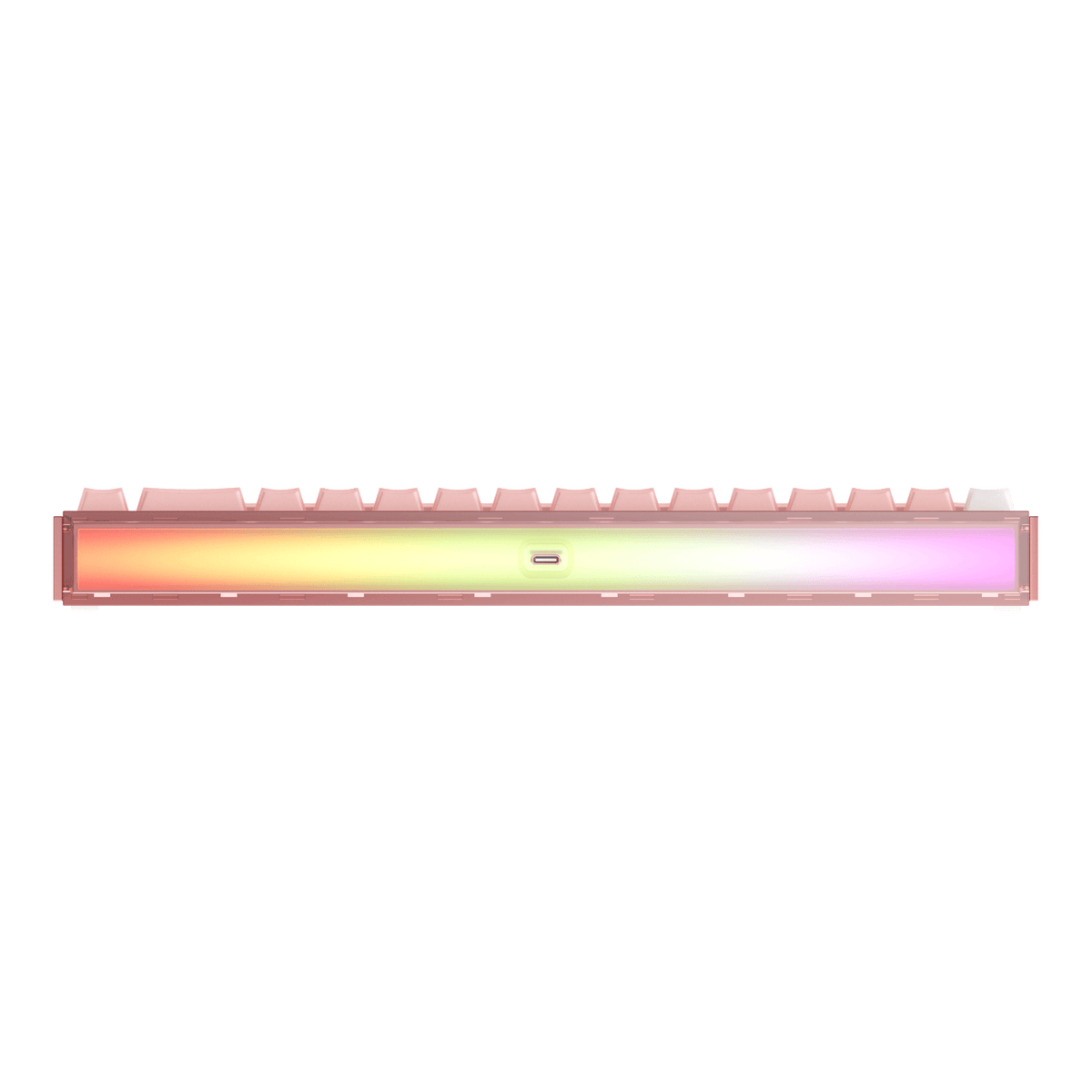

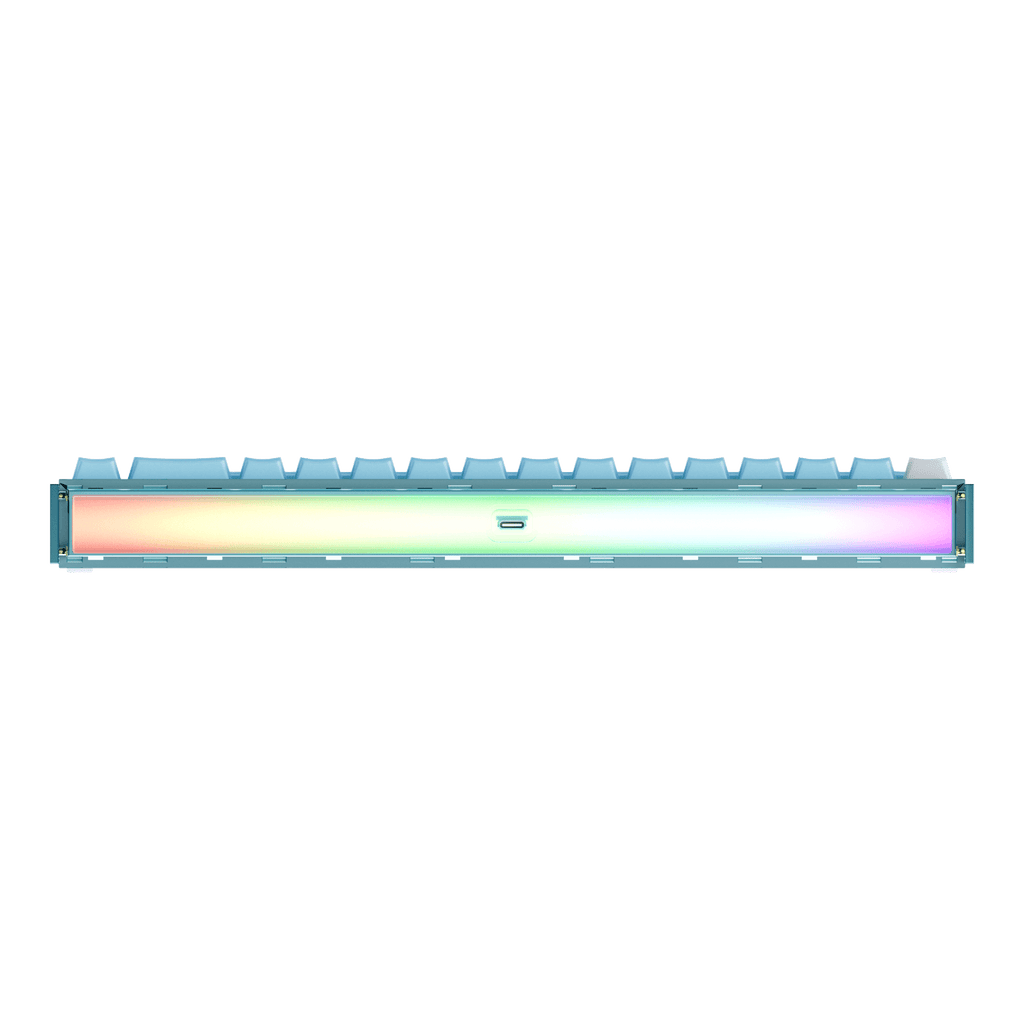

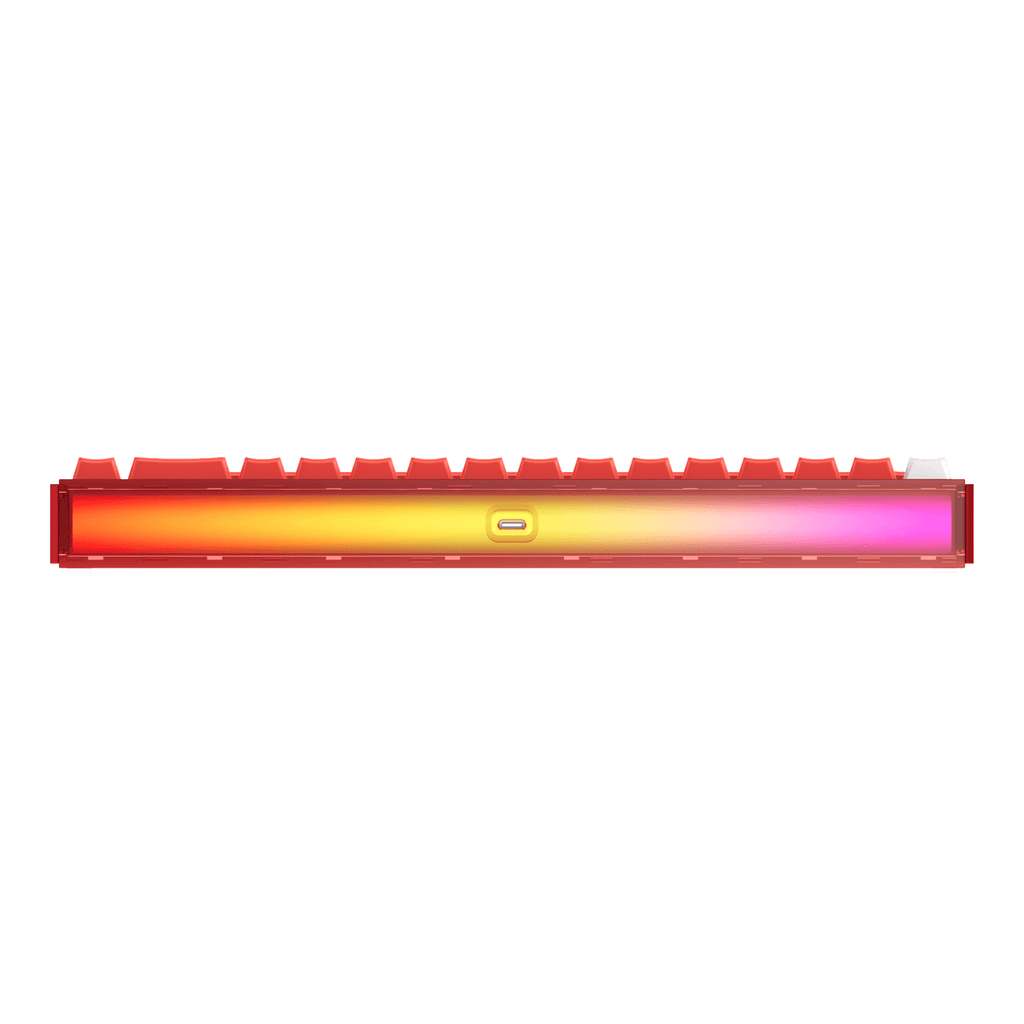

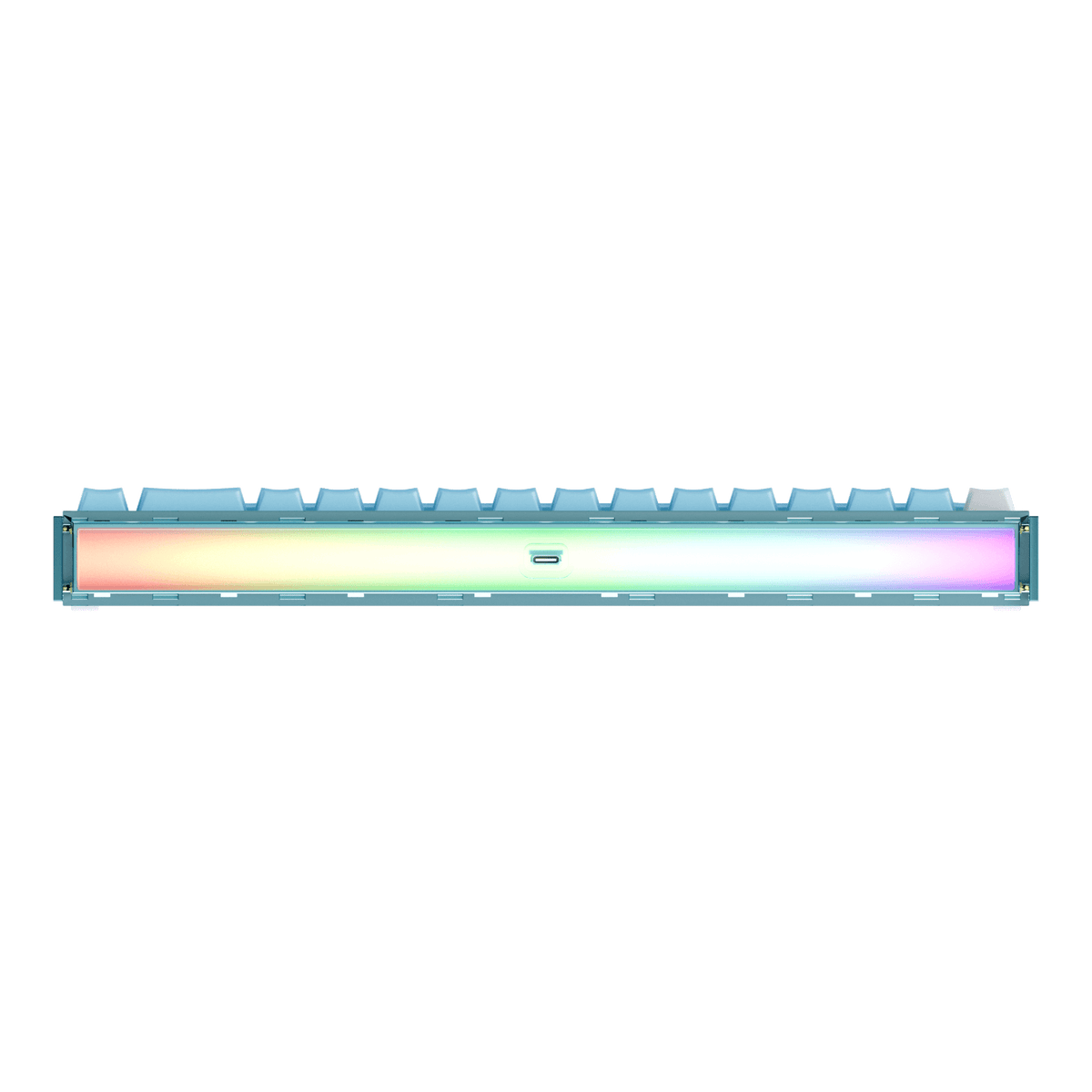

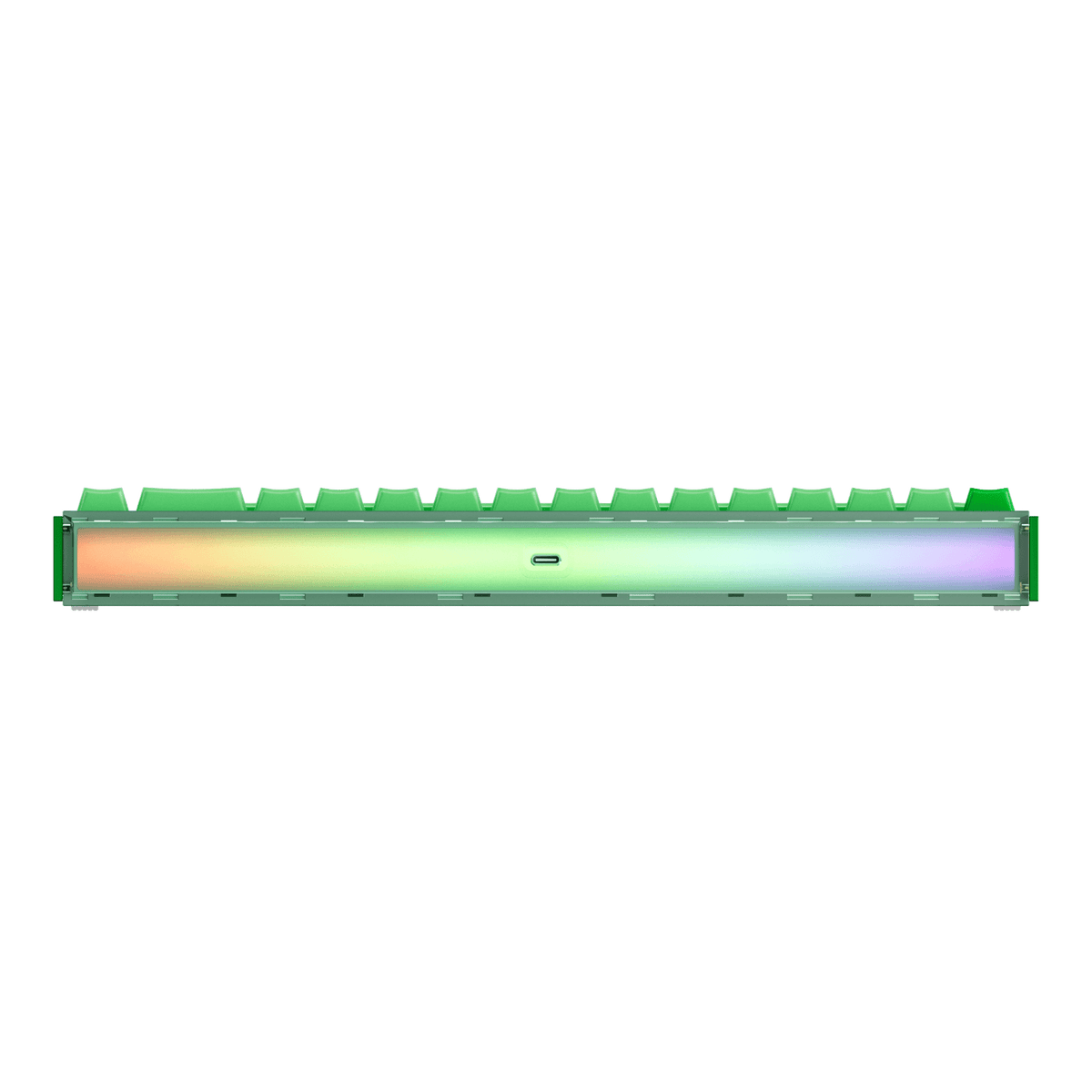

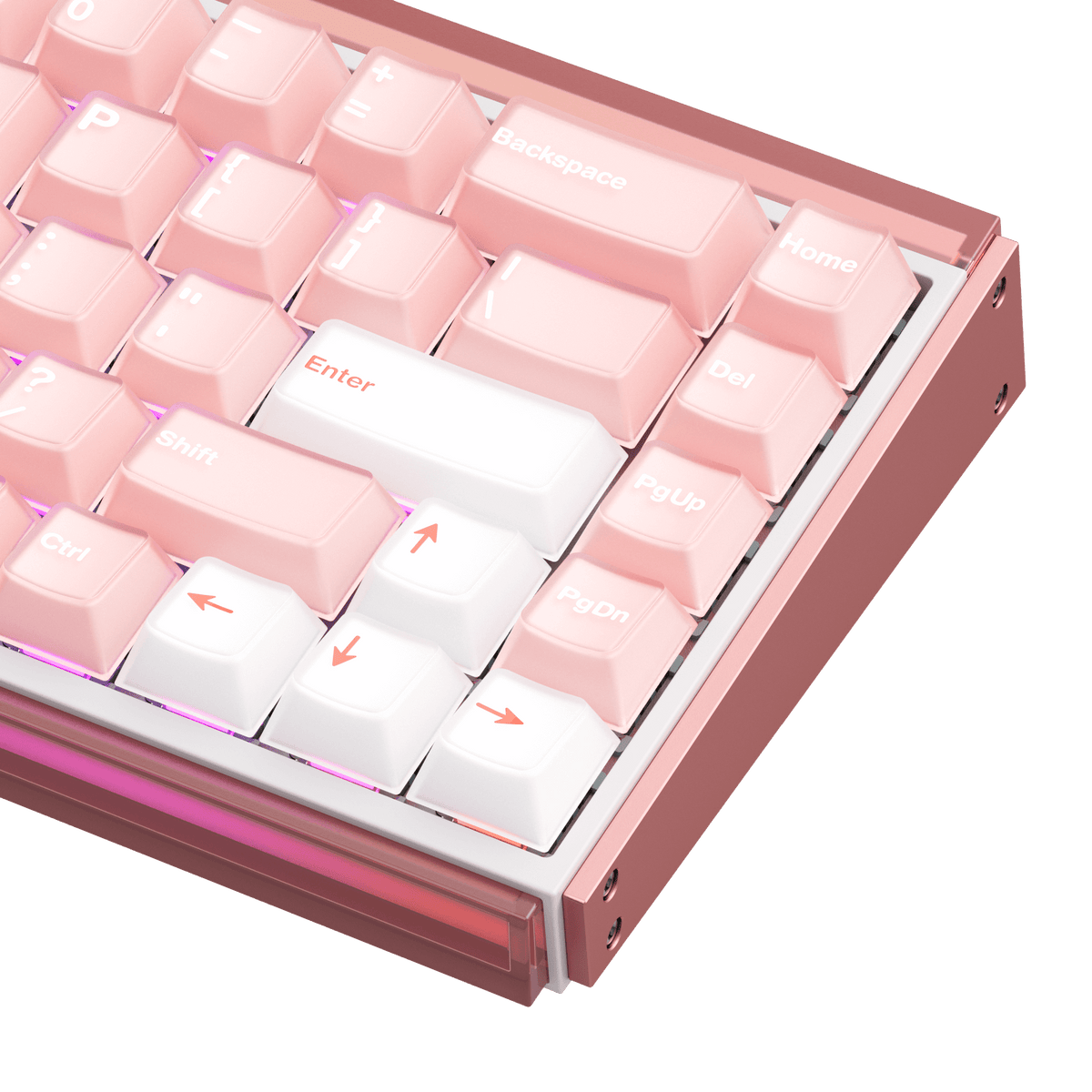

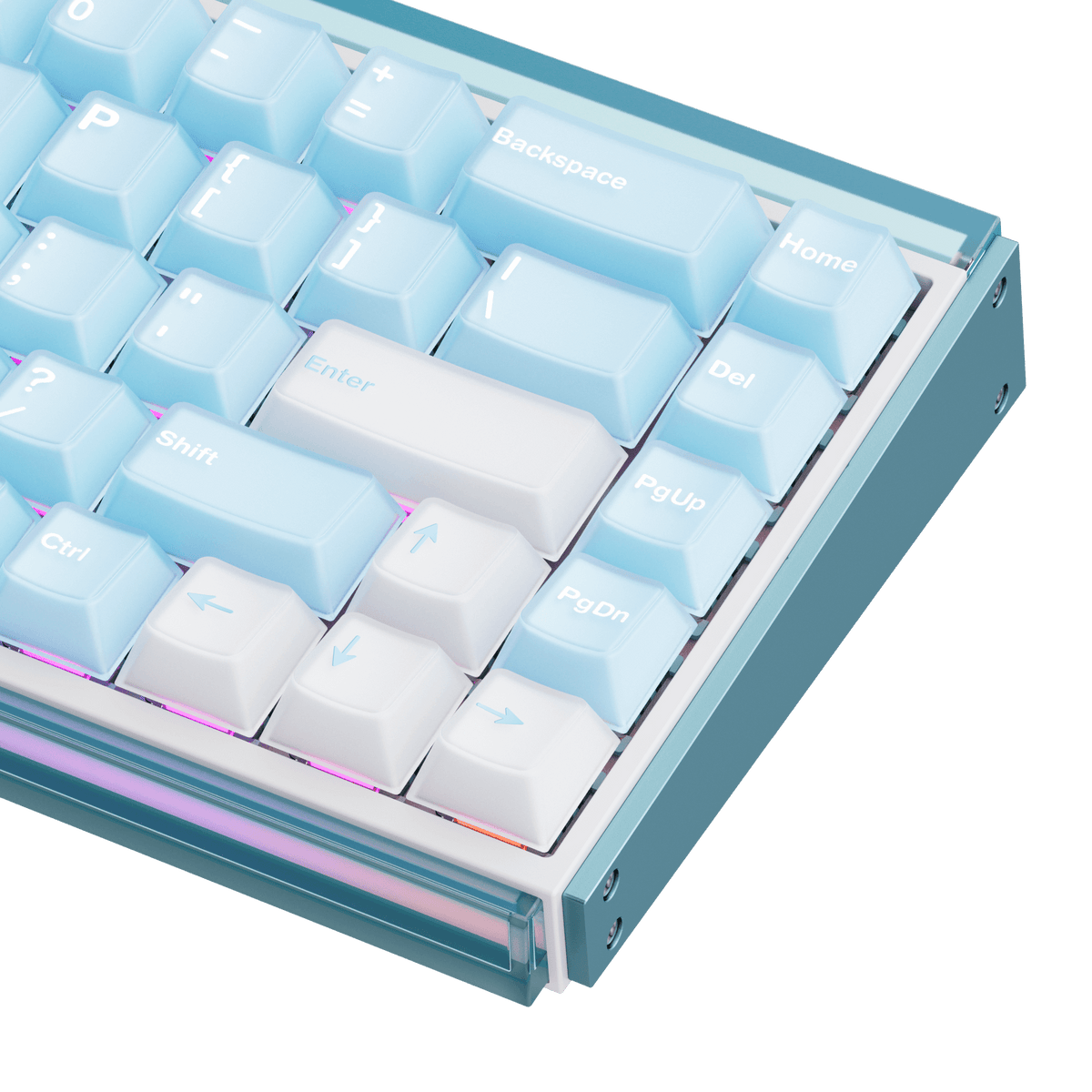

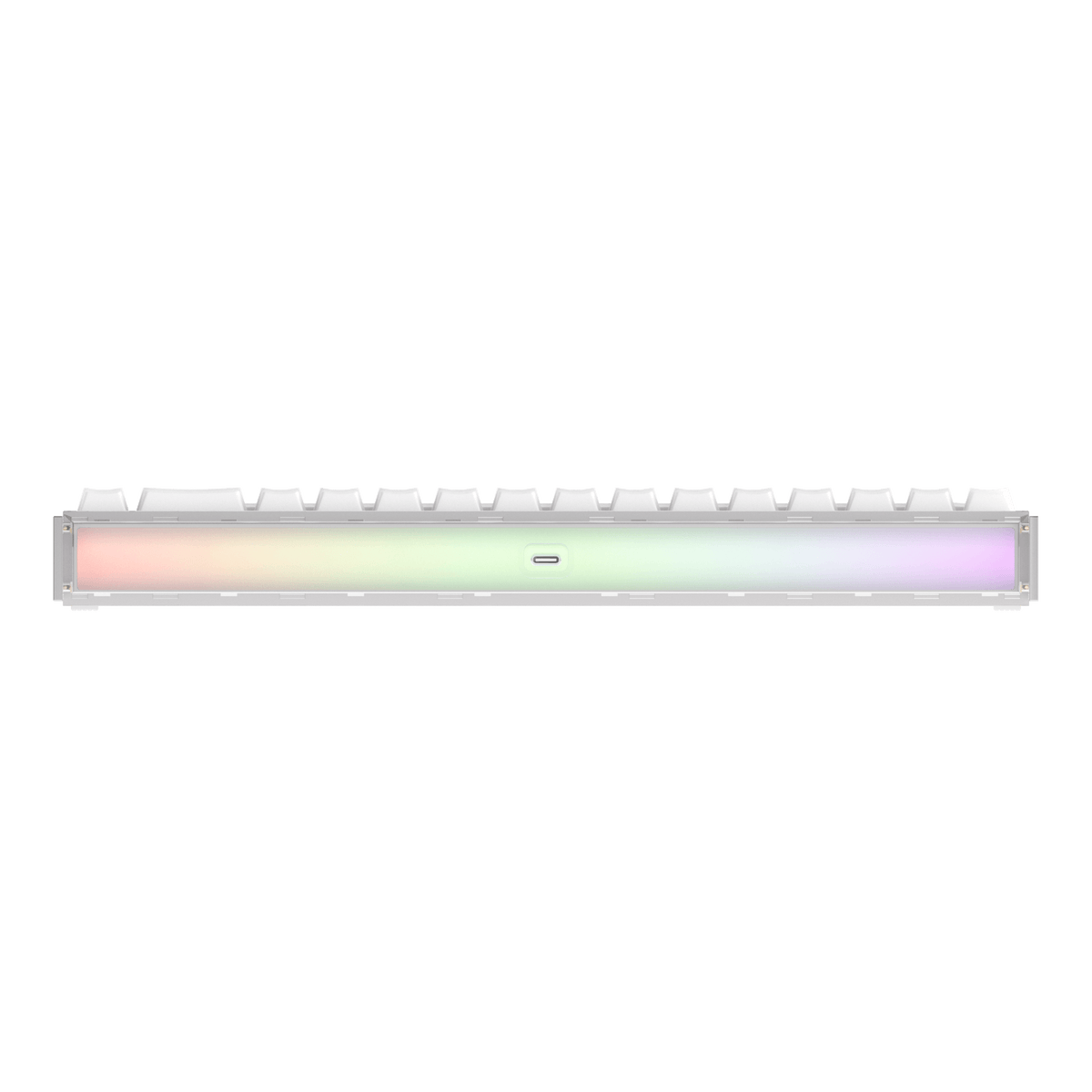

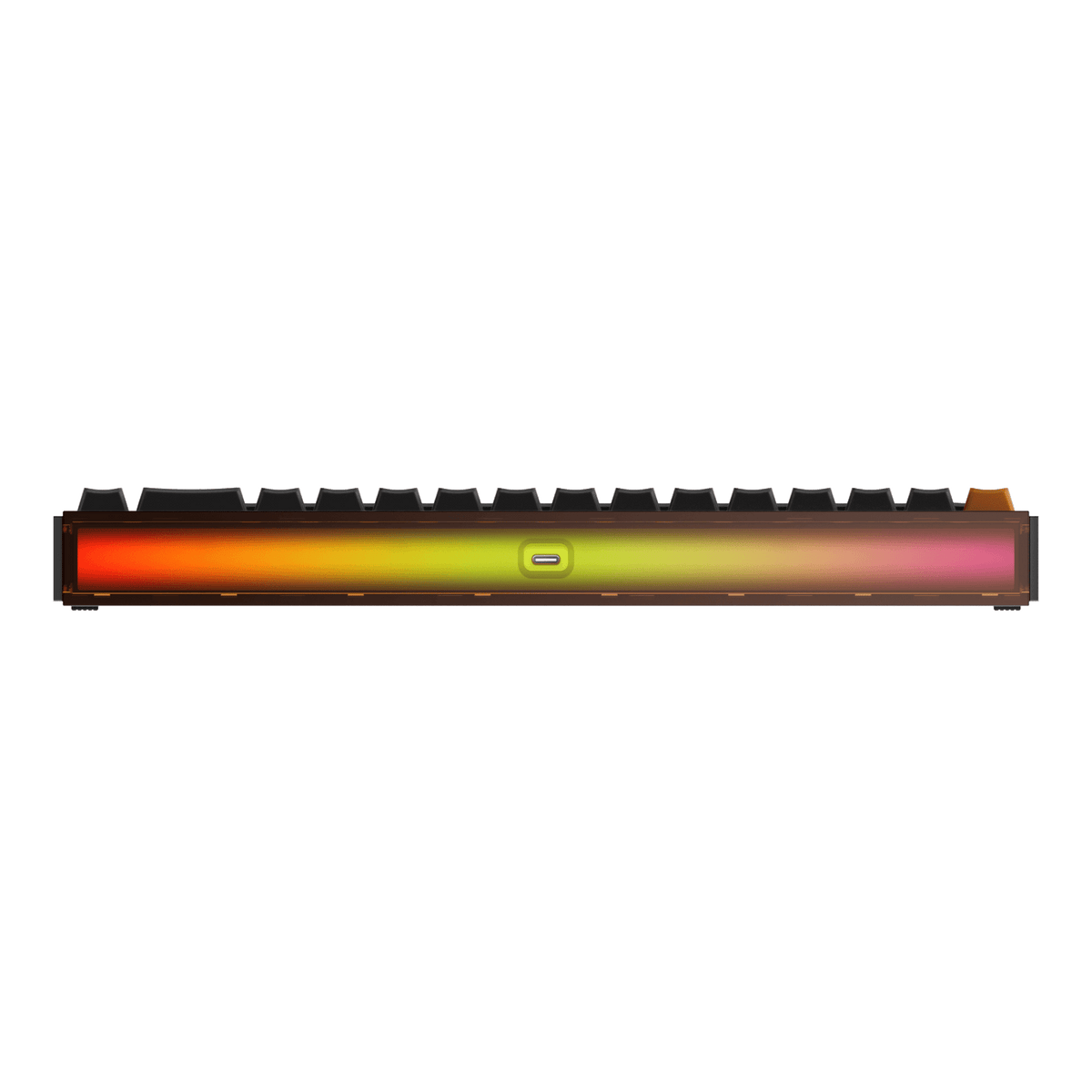

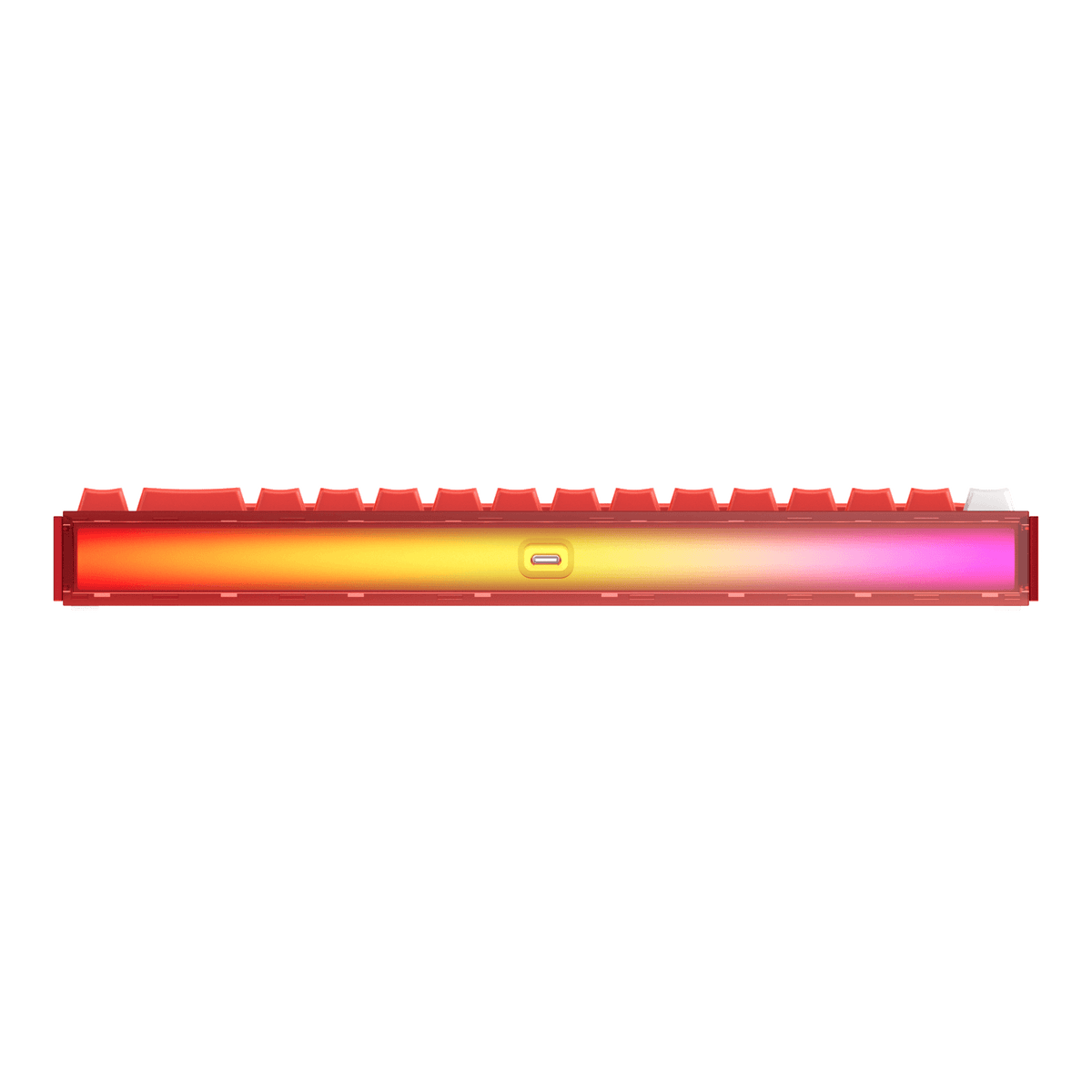

• DIY lightbox for personalizing the keyboard appearance.
• Adjustable actuation from 0.1 to 3.4mm with Rapid Trigger.
• Hot-swappable magnetic switches with selectable third-party switch calibration; mechanical switches are not supported.
• Snap Key SOCD, Dynamic Keystrokes, Toggle Key, Mod-Tap, key remapping and macros.

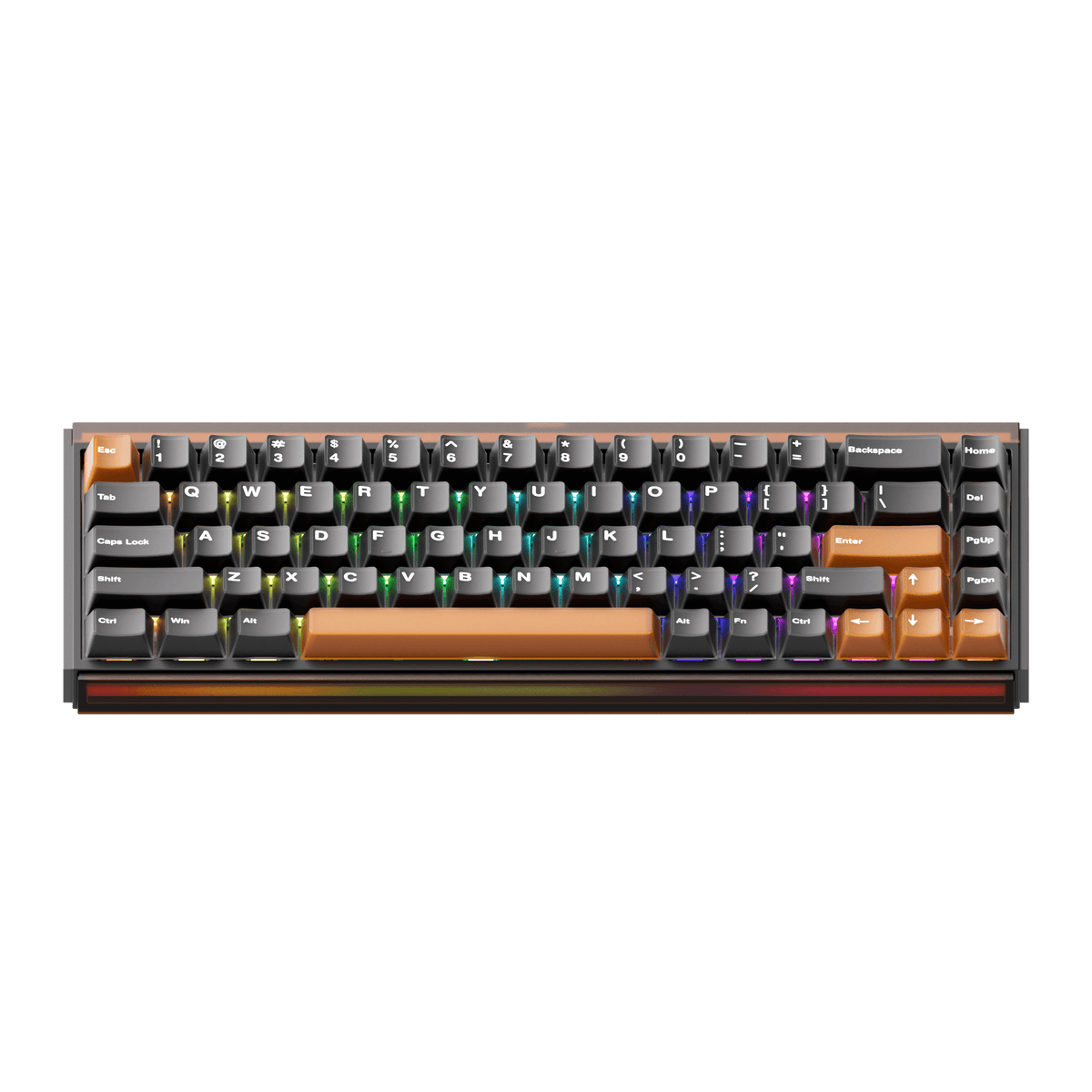

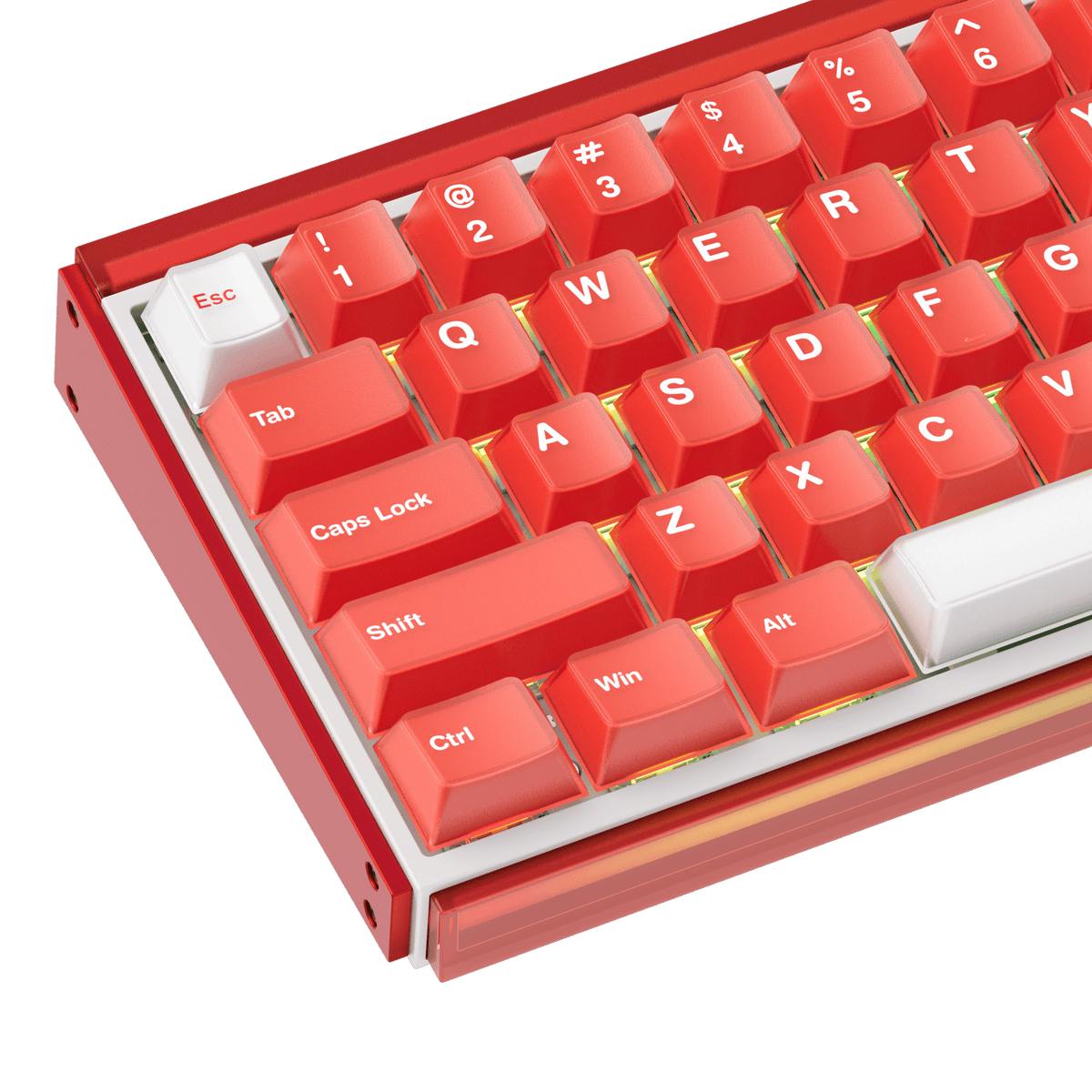

• South-facing ARGB LEDs with a 500Hz lighting refresh rate.
• Cloud and web drivers for lighting, keys and macros.

Specifications

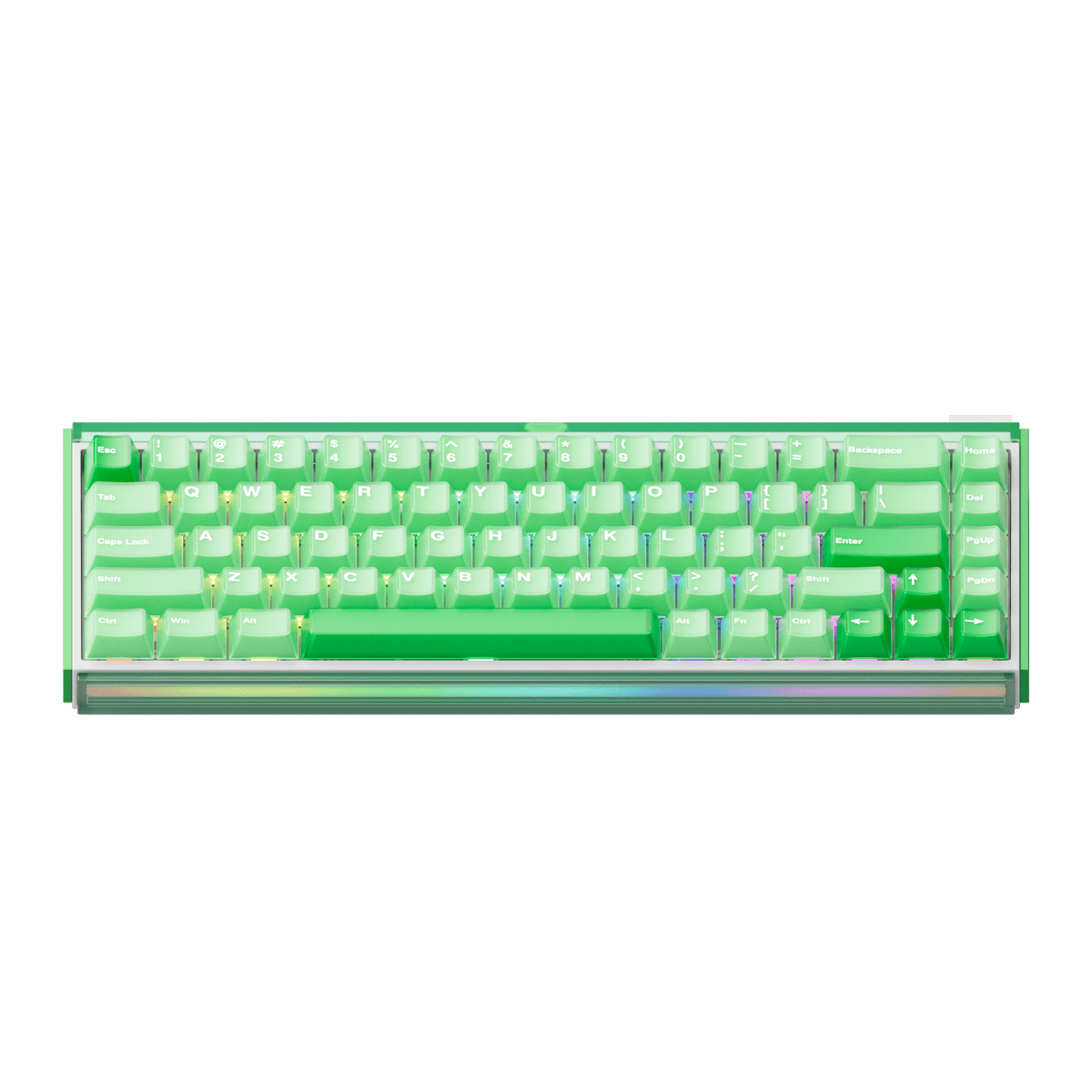

• Layout: 65%, US-ANSI

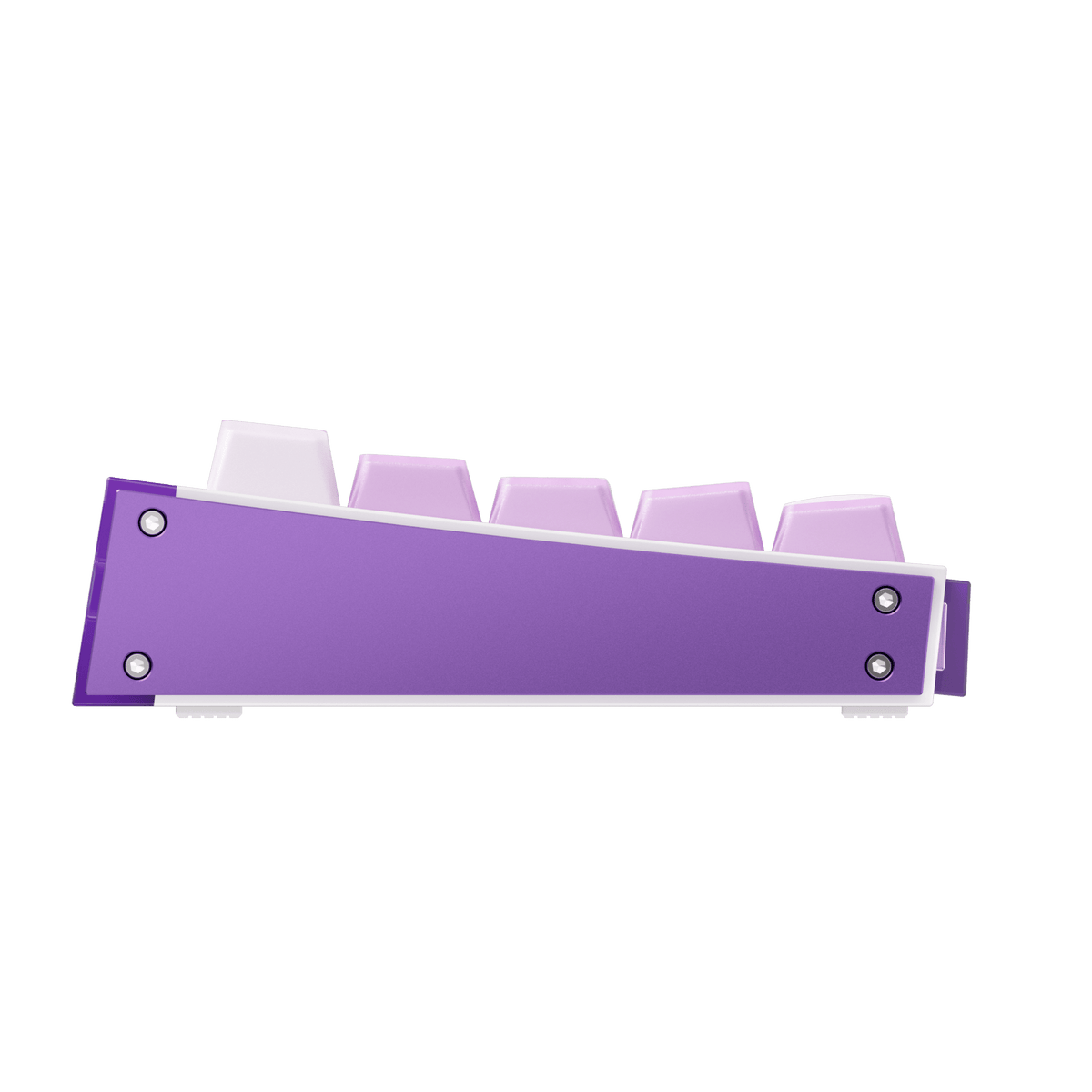

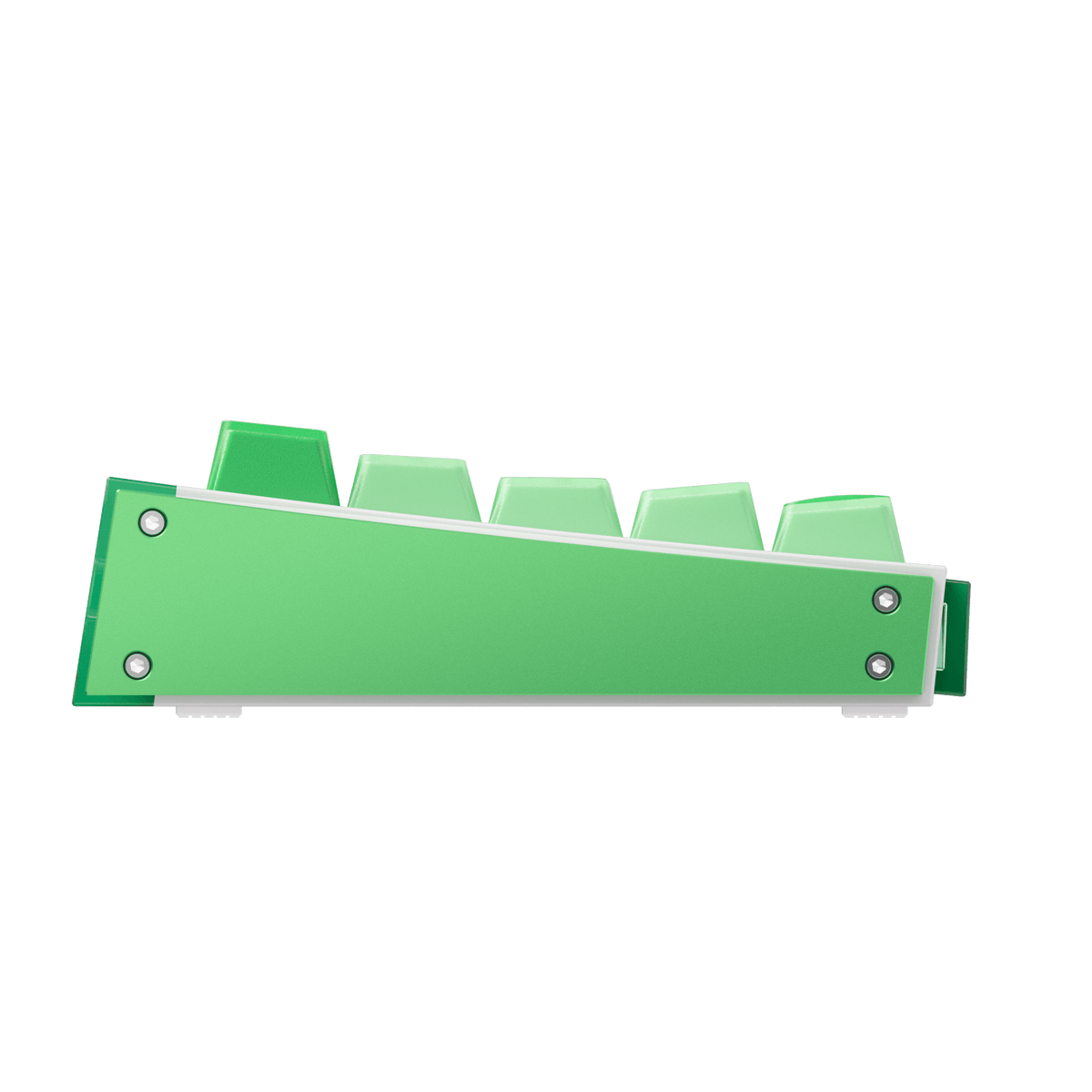

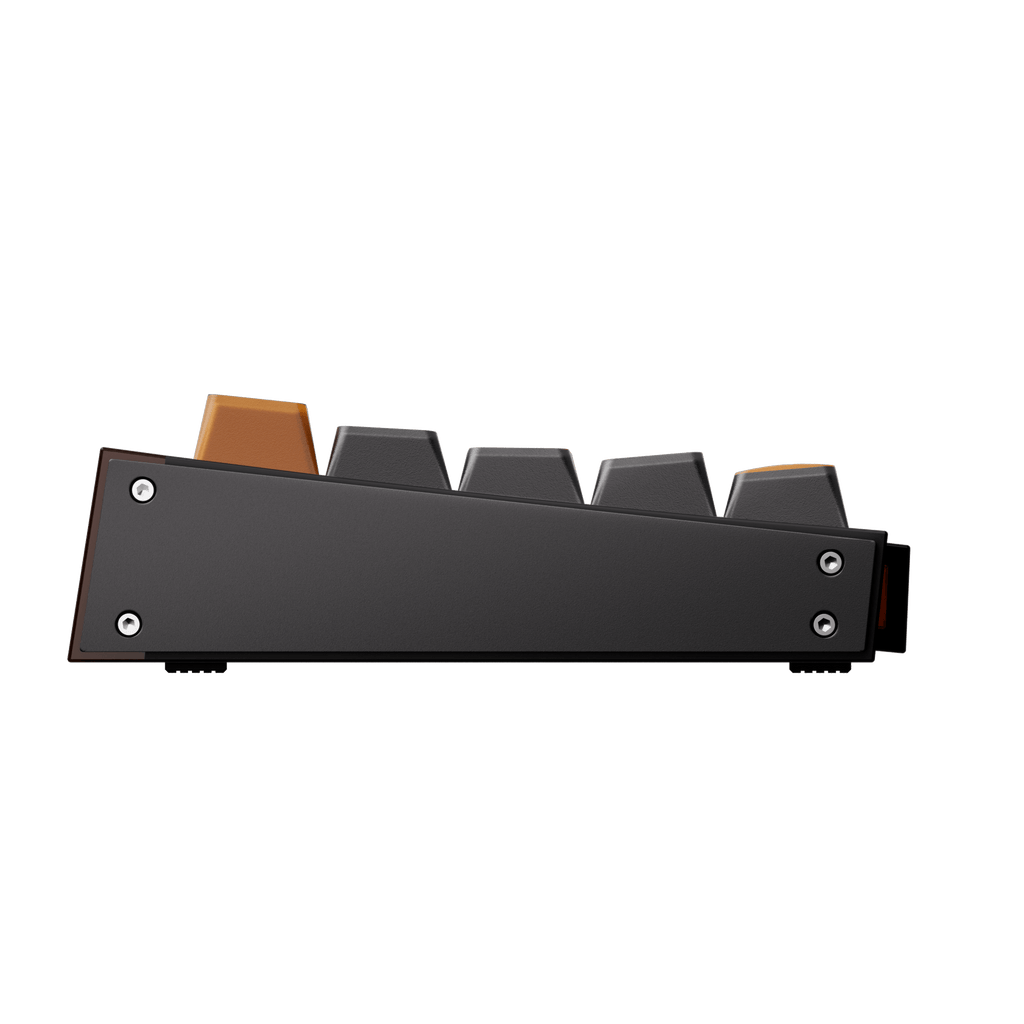

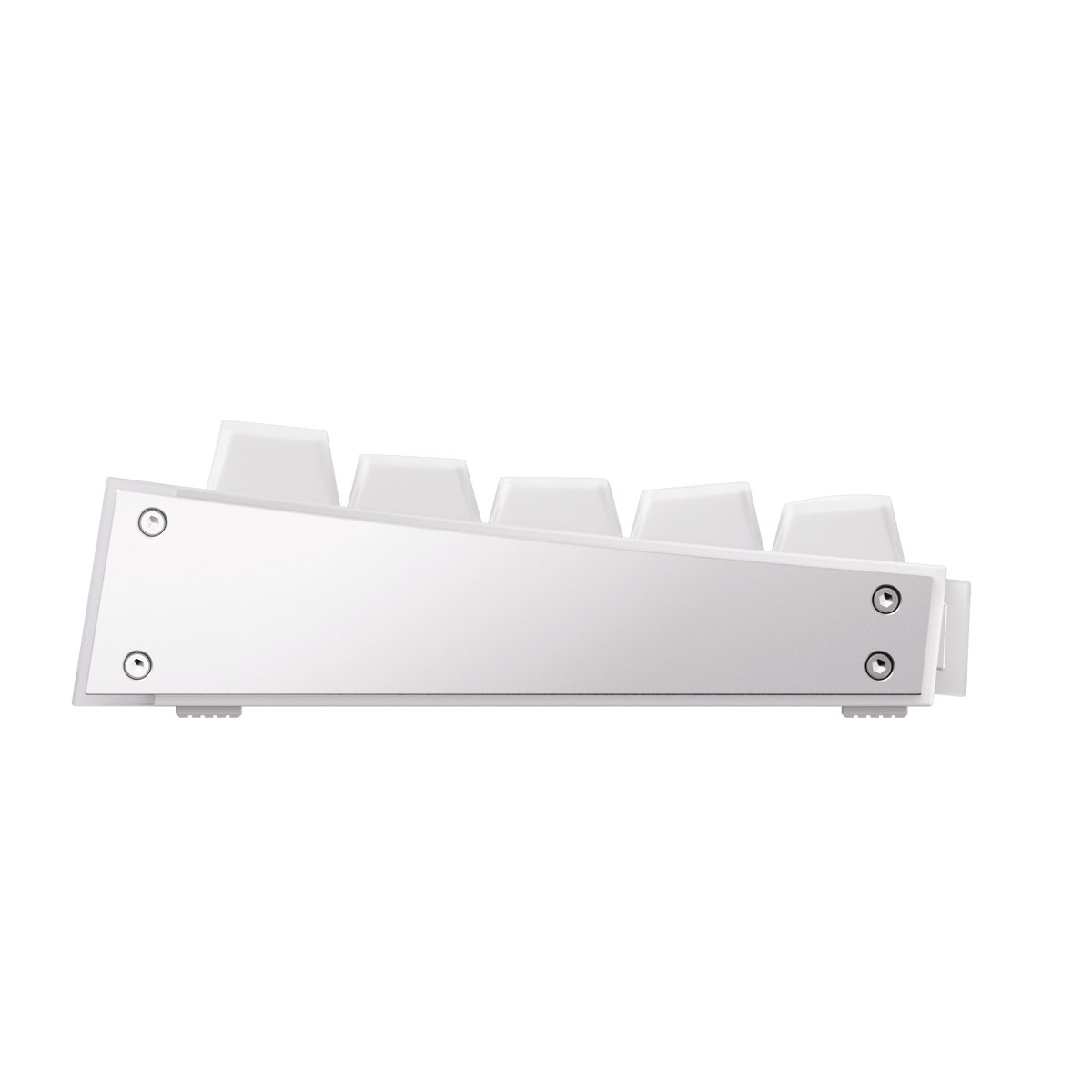

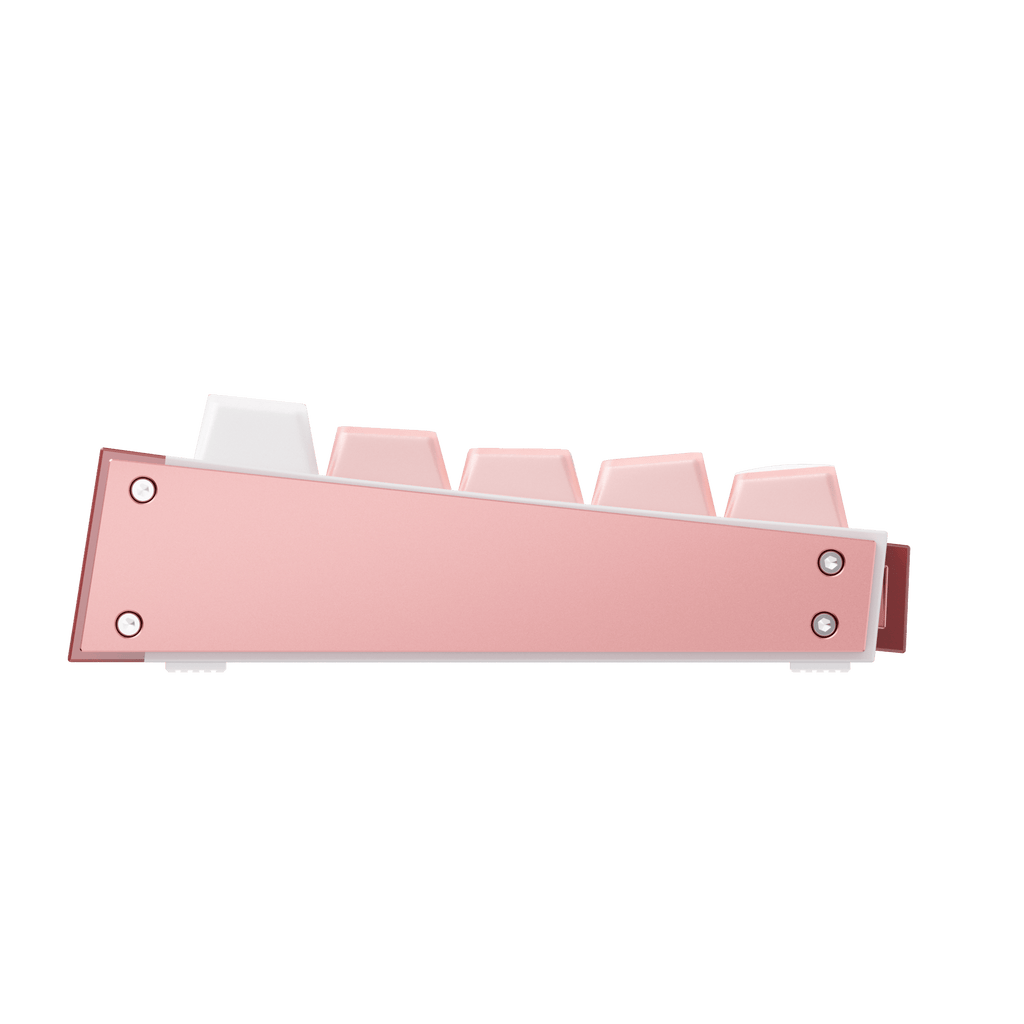

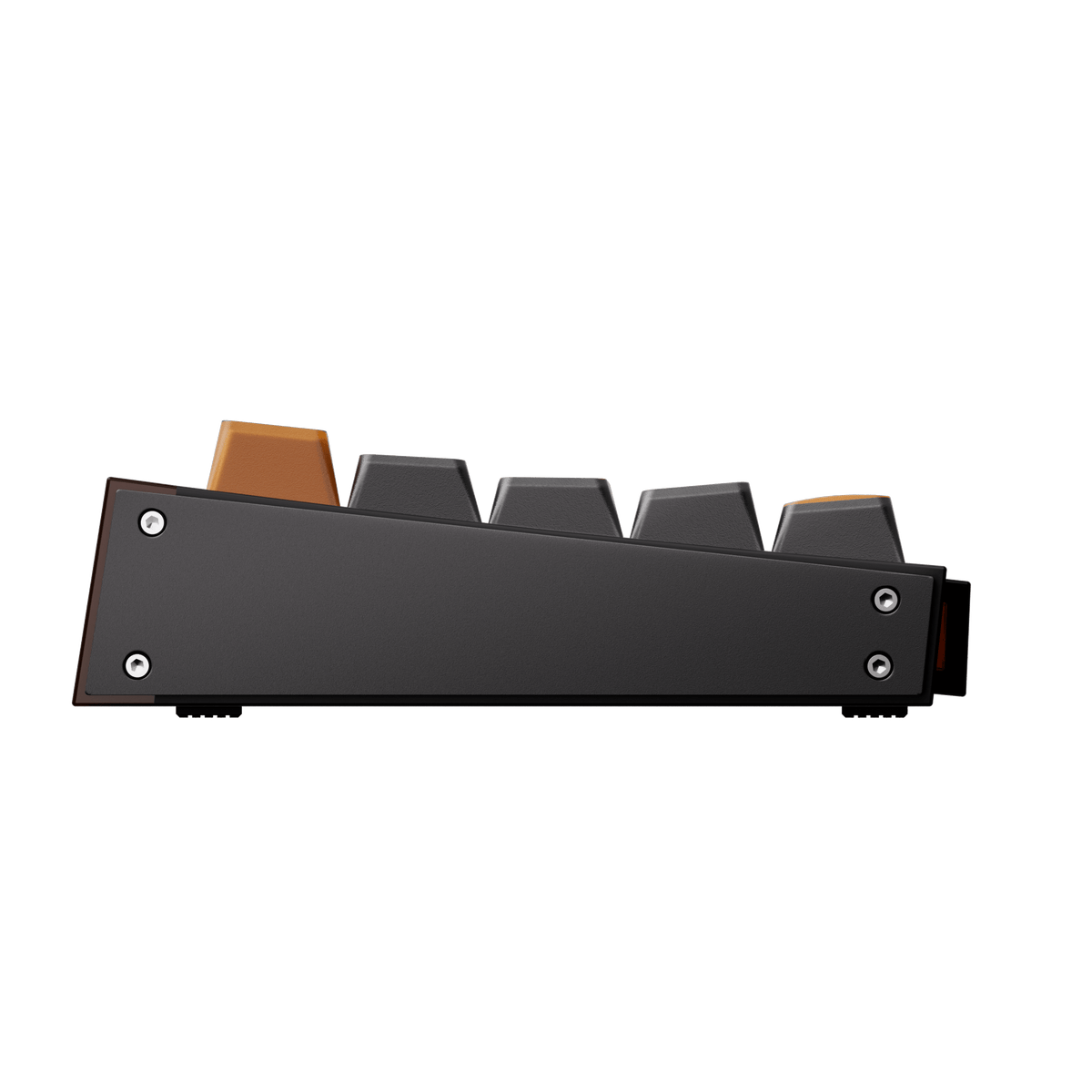

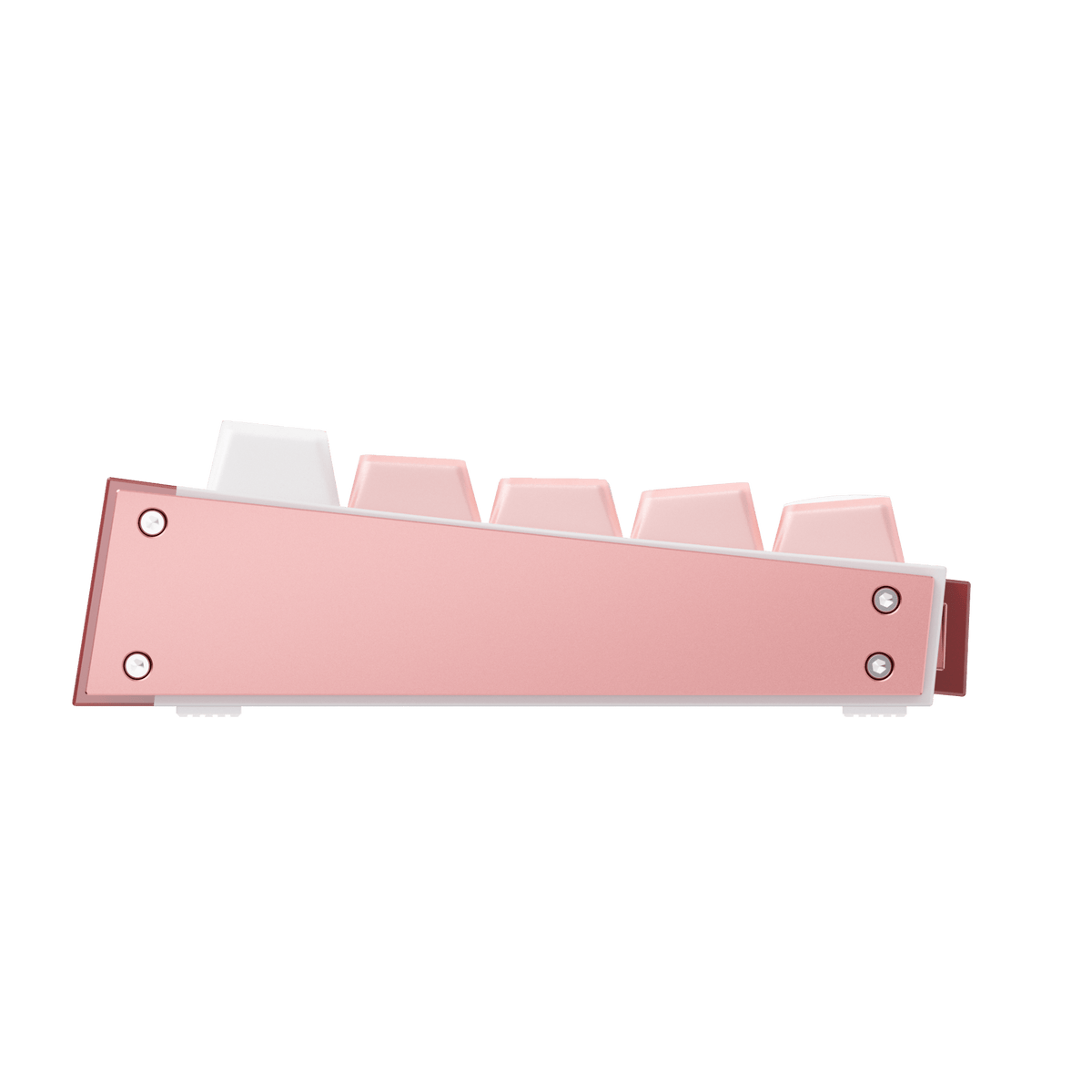

• Structure: tray mount, ABS case and aluminum plate
• Keycaps: Cherry profile, PC+ABS
• Switches: AstroAim linear magnetic; 3.5 ± 0.1mm total travel, 35gf initial force and 55gf end force
• Processor: 32-bit Cortex-M4
• Wired version: USB-C only; 8000Hz polling; no battery
• Wireless version: Bluetooth 5.0, 2.4GHz and USB-C; 8000Hz in wired or 2.4GHz mode, 125Hz in Bluetooth mode; 8000mAh battery

Included

Both versions include a keyboard, manual, cable, keycap/switch puller and dust cover. The wireless version also includes a receiver.
