RD-771 Flexible VHF/UHF Dual-Band Handheld Radio Antenna, SMA-F Connector, 39.6cm Whip and 2.15dBi Gain

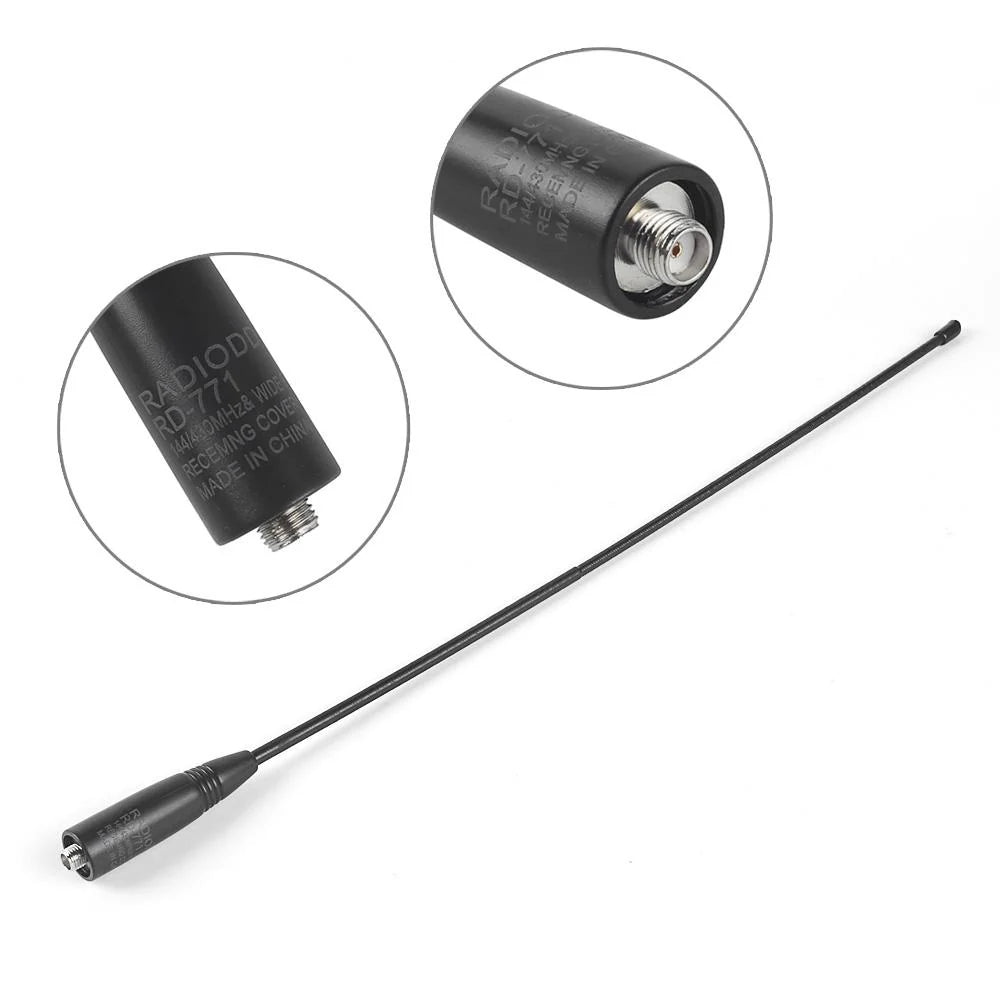

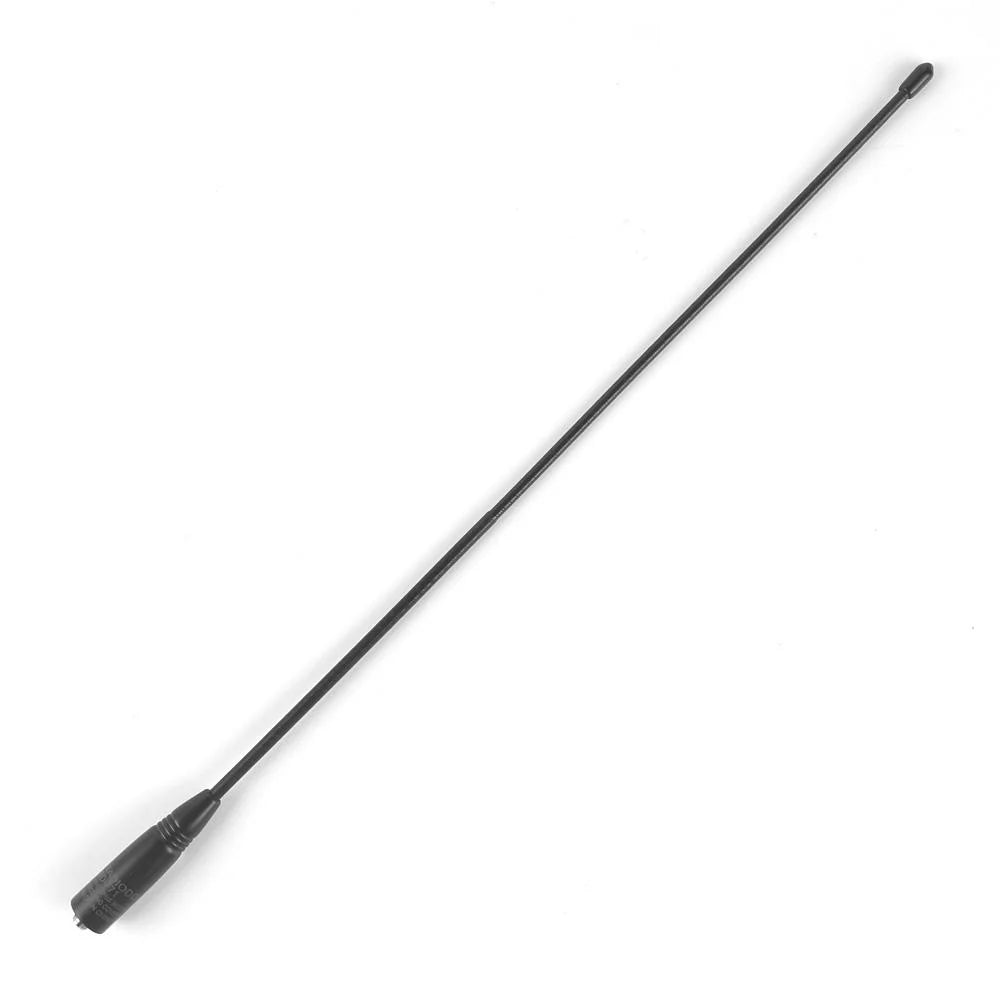

The RD-771 is a flexible dual-band whip antenna for compatible handheld two-way radios. Its SMA-F connector and 39.6cm length suit the listed VHF/UHF radio models.

Key Features

• Supports 136–174MHz VHF and 400–470MHz UHF, with 144/430MHz reference frequencies.
• Soft, flexible whip construction for portable outdoor radio use.

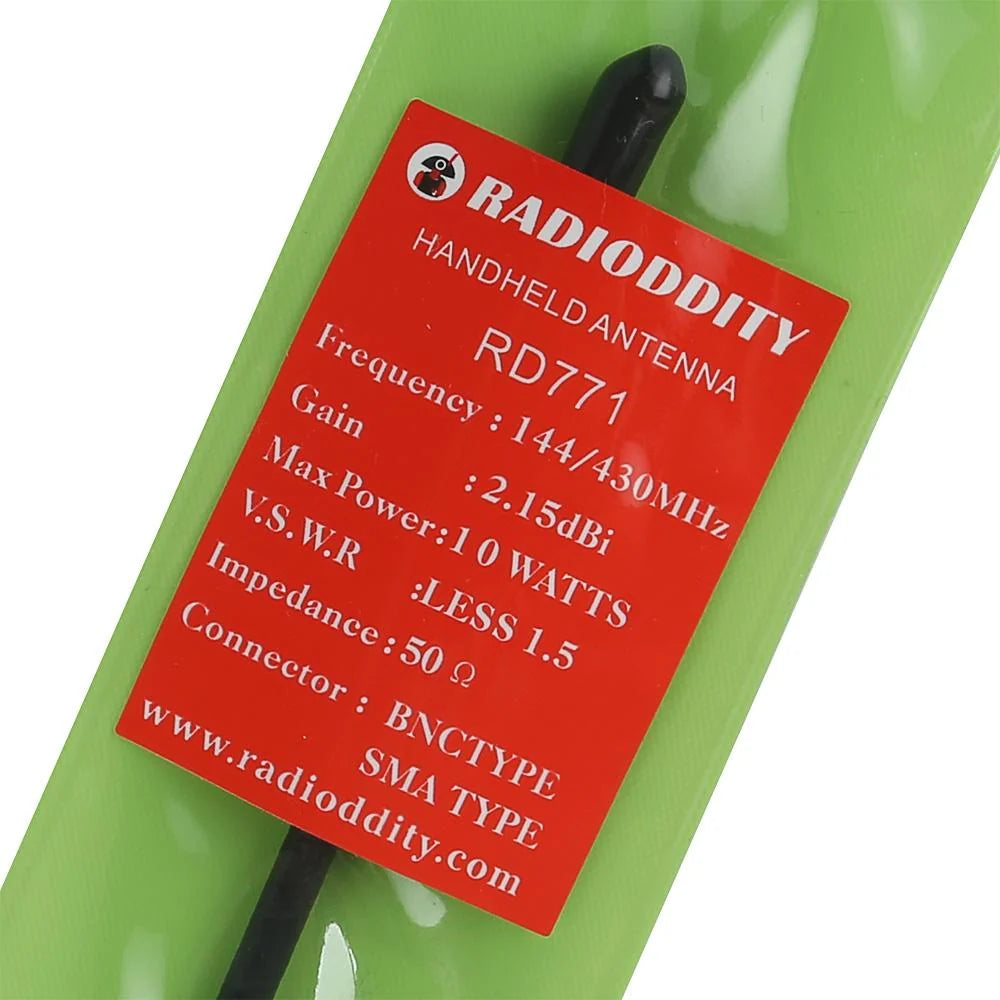

• 2.15dBi gain, 50ohm impedance and a maximum RF power rating of 10W.

Specifications

• Model: RD-771.

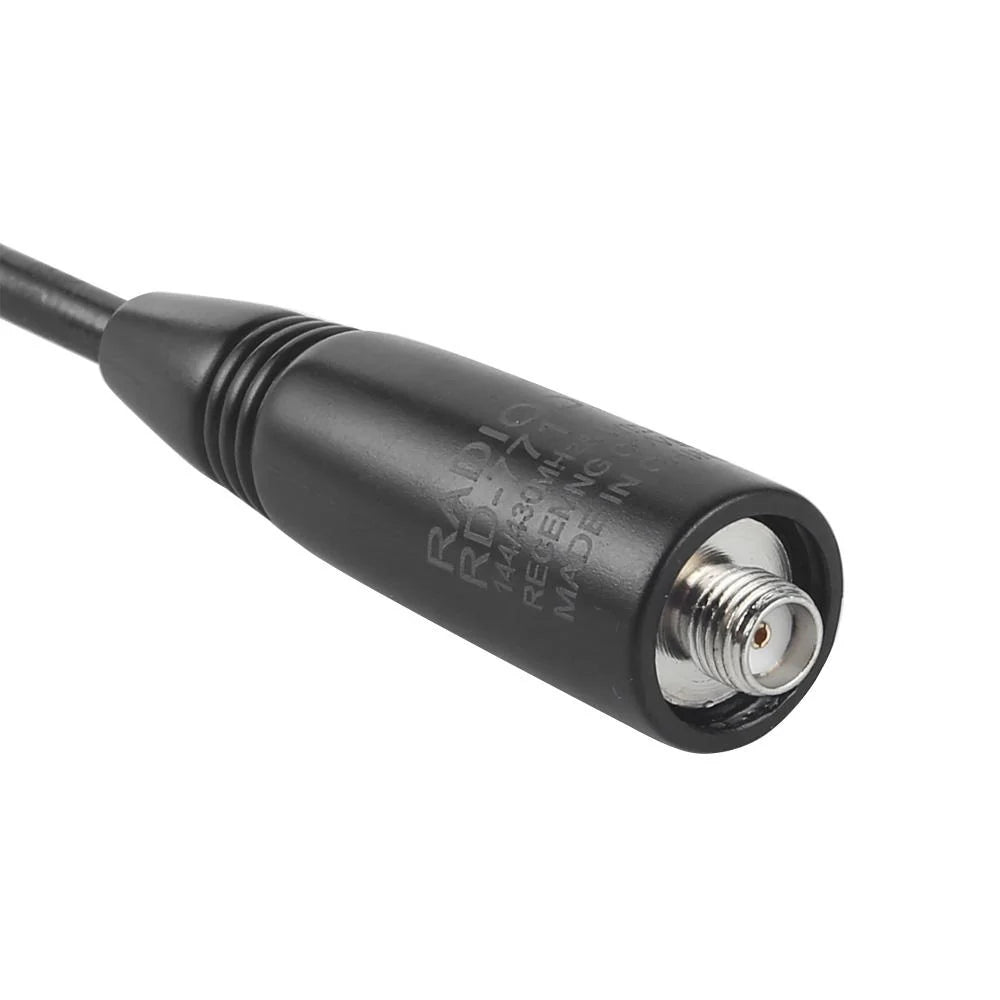

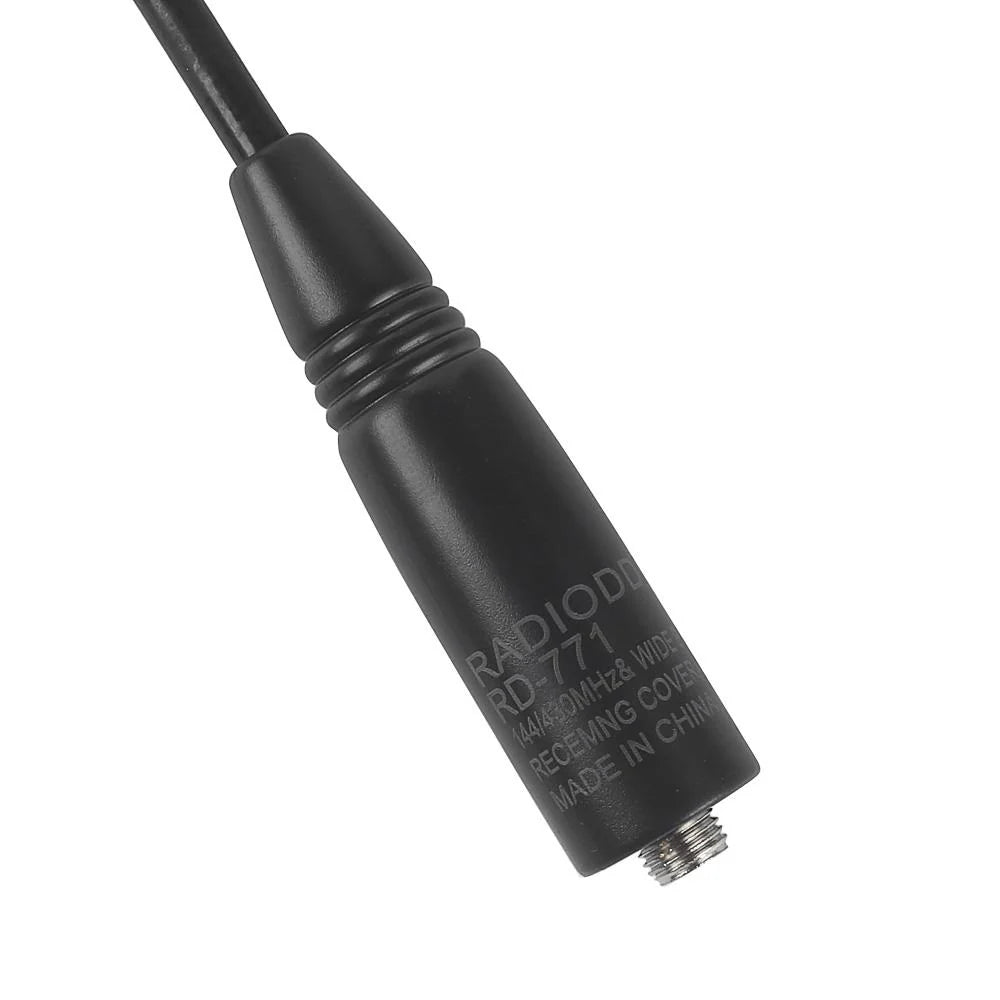

• Connector: SMA-F.

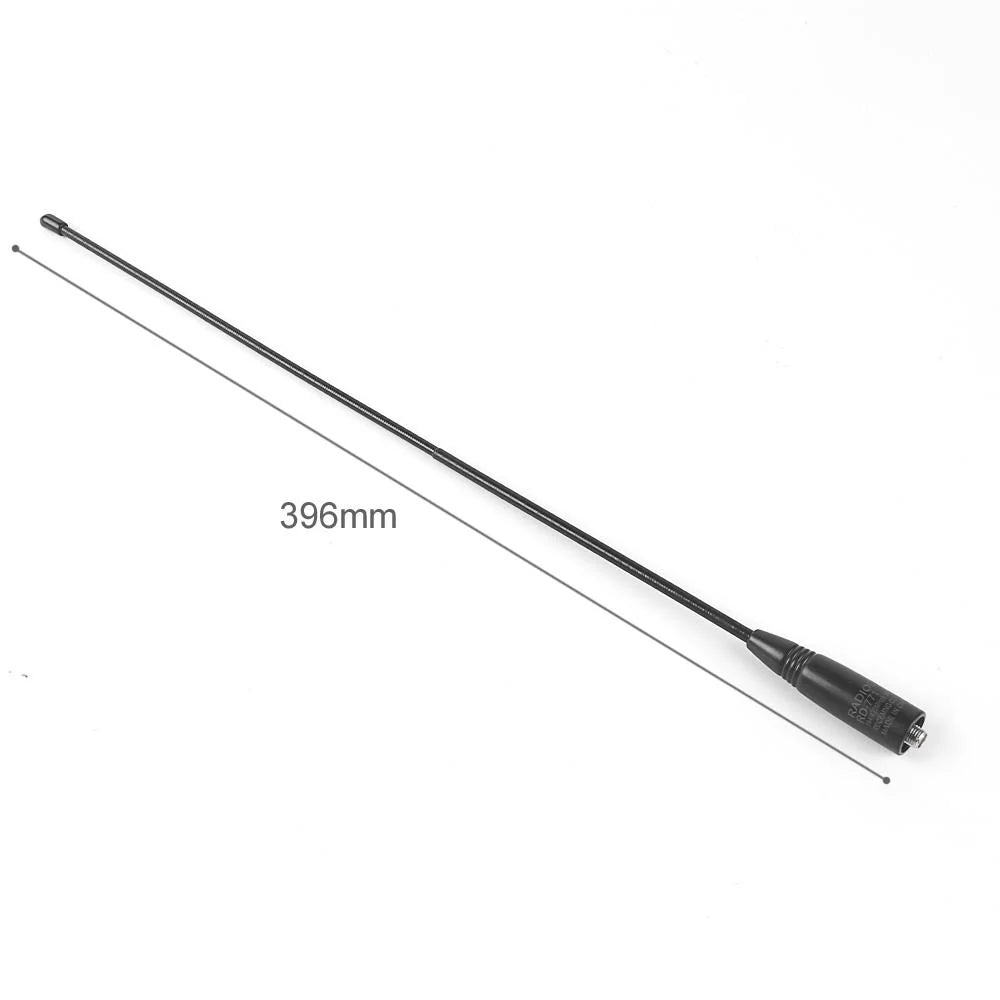

• Length: 39.6cm, approximately 15.6in.
• VSWR: less than 1.5:1.

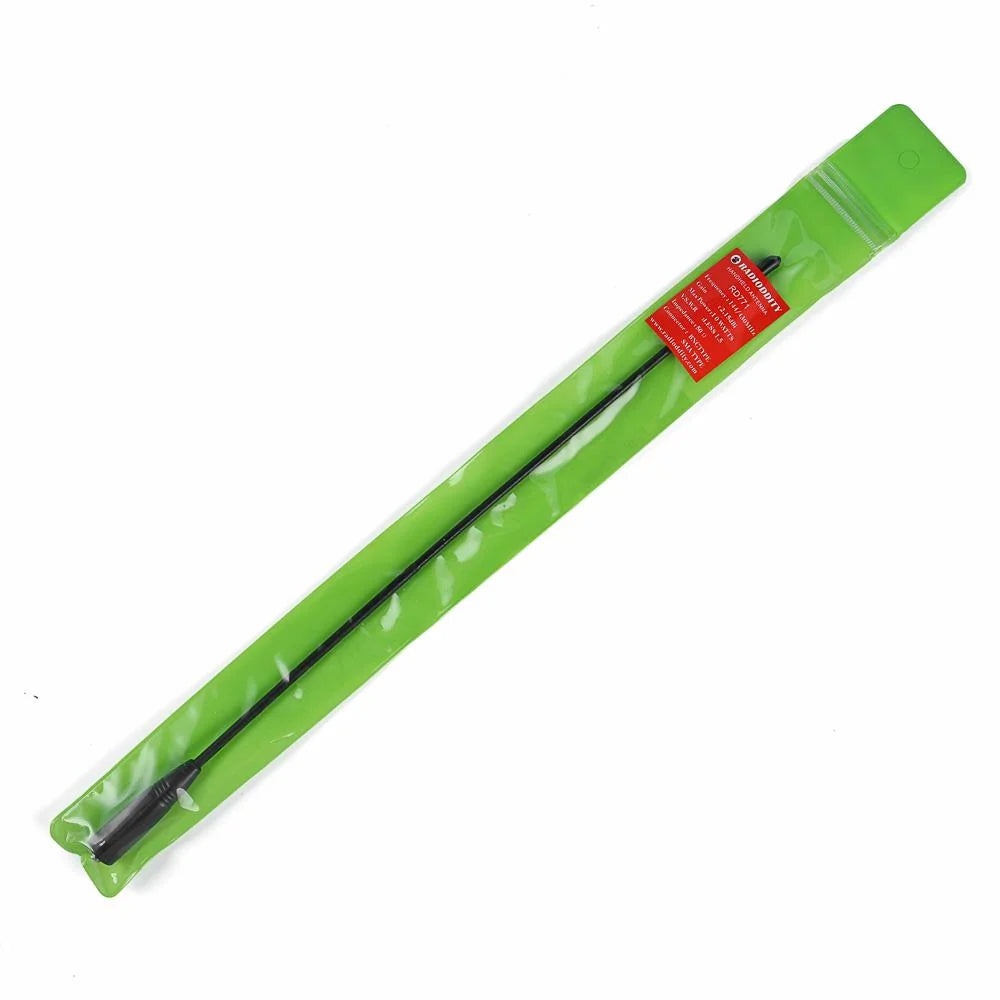

• Package: one RD-771 antenna.

Compatibility

Listed compatible models include GA-2S, GA-5S, GD-55 Plus, GA-510, RD-5R, UV-5R/UV-5RTP, UV-6R, GT-1, GT-3, GT-3TP, BF-9700, BF-F8HP, BF-F8+, BF-F9+TP, BF-888S, KG-UVD1P, KG-UV6D, TH-F5, TH-UVF9, TH-UV3R, TH-UVF8D and TH-UVF9D. Verify your radio connector and operating bands before ordering. UV-5R EX and UV-82X 144/220MHz are excluded from the stated compatibility range. A radio is not included.
