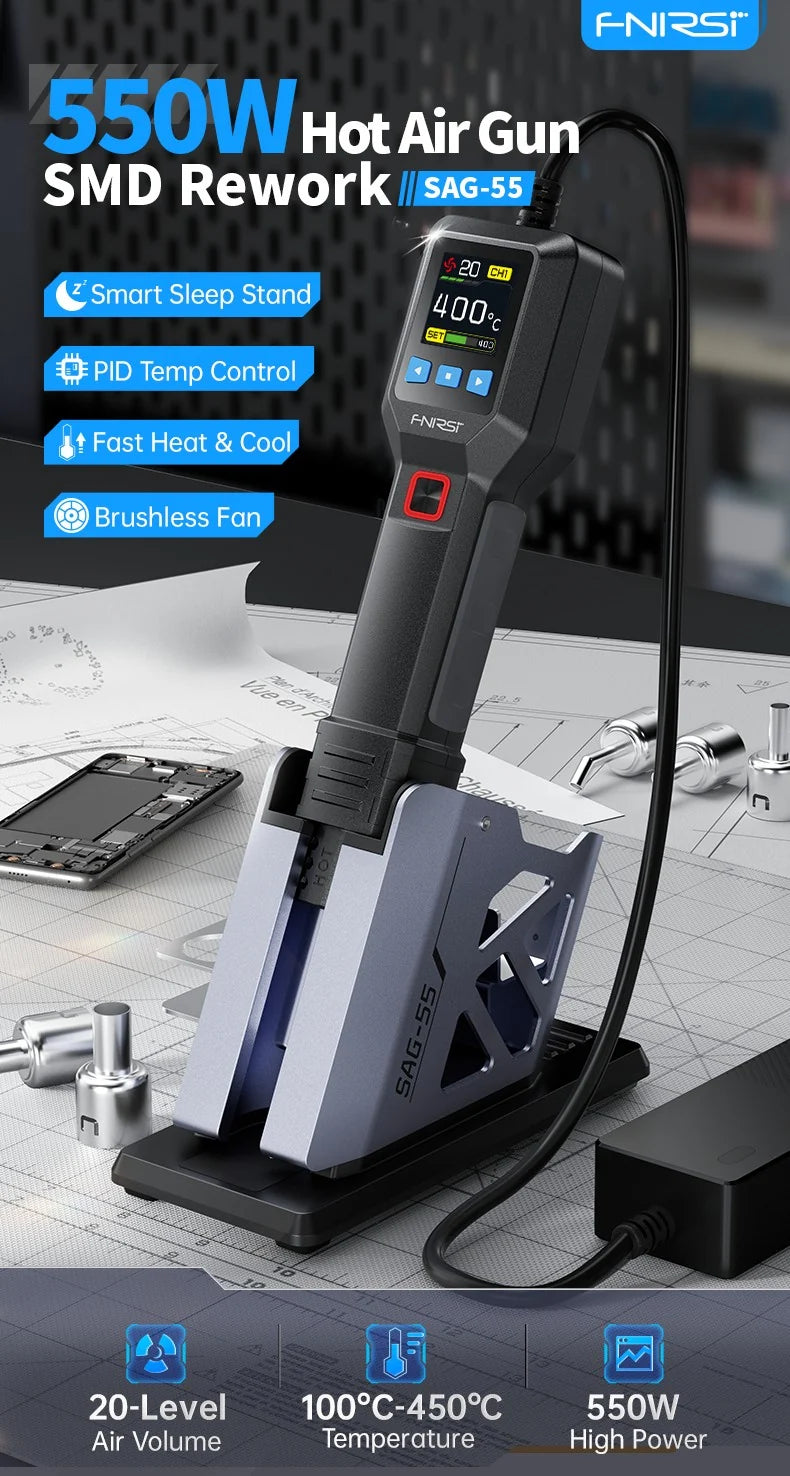

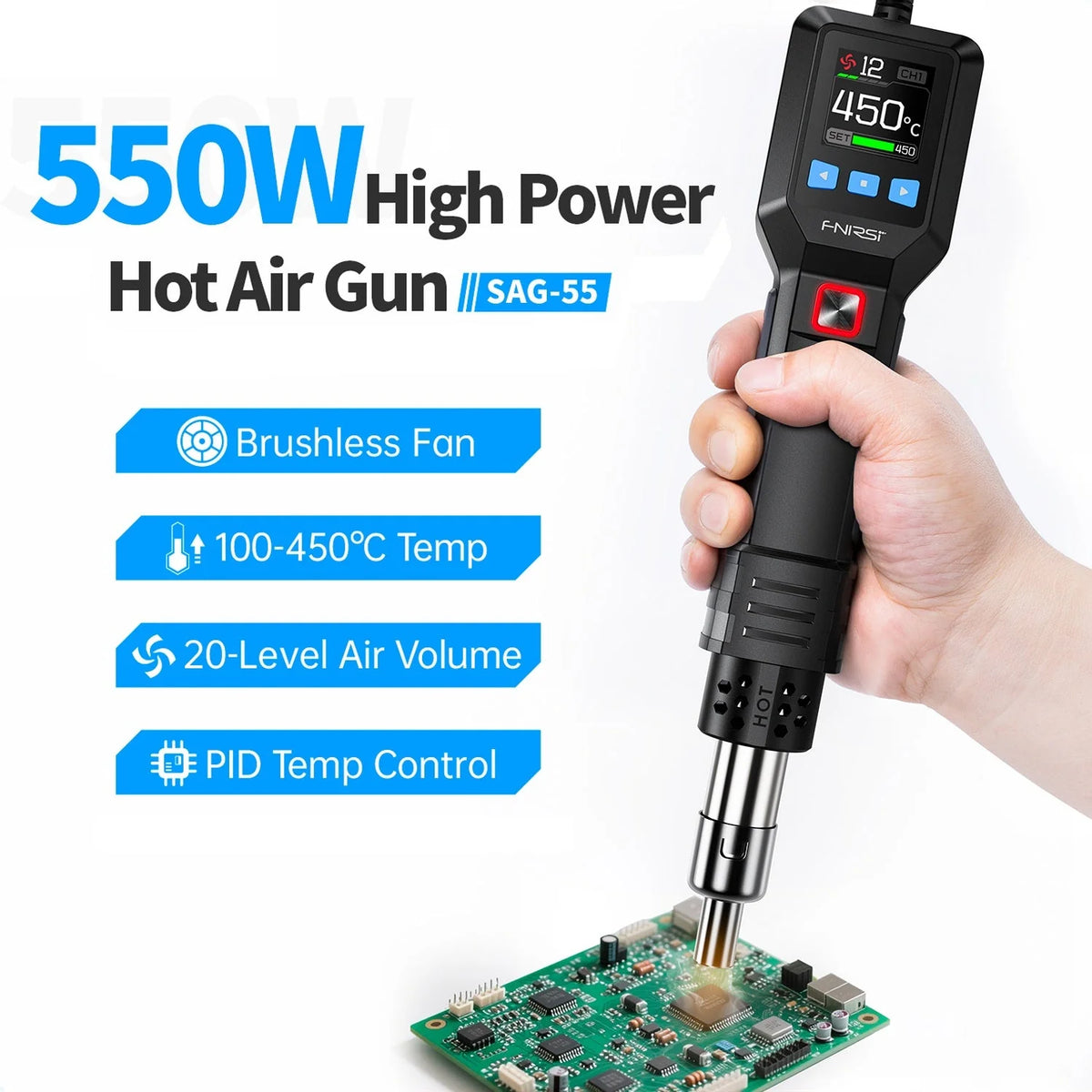

SAG-55 Hot Air Rework Gun with PID Temperature Control, Brushless Fan, LCD and Standard or Pro Stand Package

The SAG-55 hot air rework gun uses PID temperature control and a brushless fan for adjustable heating and airflow. Choose the Standard package with a basic metal stand or the Pro package with a smart sleep stand, then select the US 100-140V or EU 200-240V configuration for your supply.

Key Features

• Temperature control from 100 to 450°C (212 to 842°F) and 20 airflow settings.

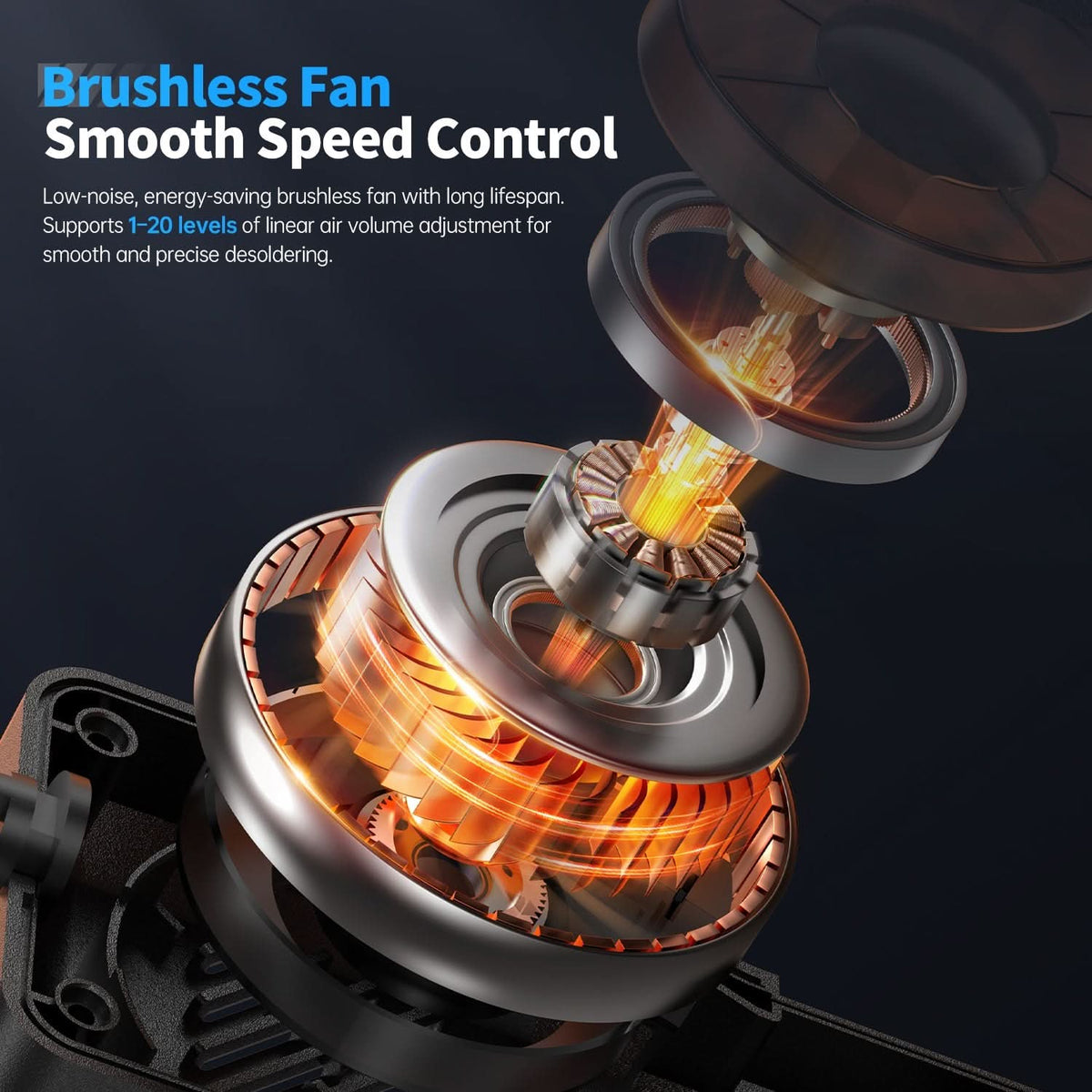

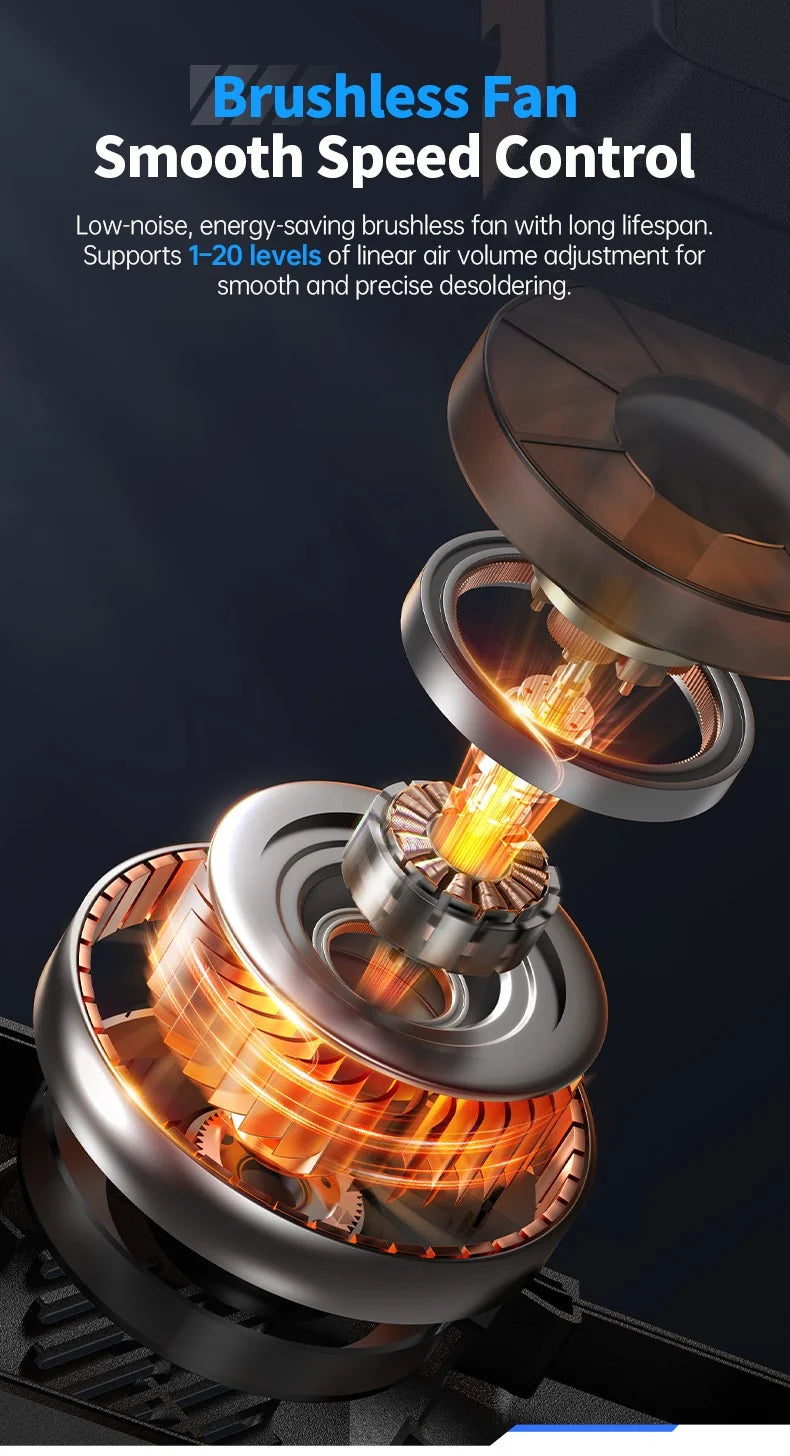

• Brushless fan with a listed airflow rate of 80L/min.
• Handle controls for one-handed temperature and airflow adjustment.

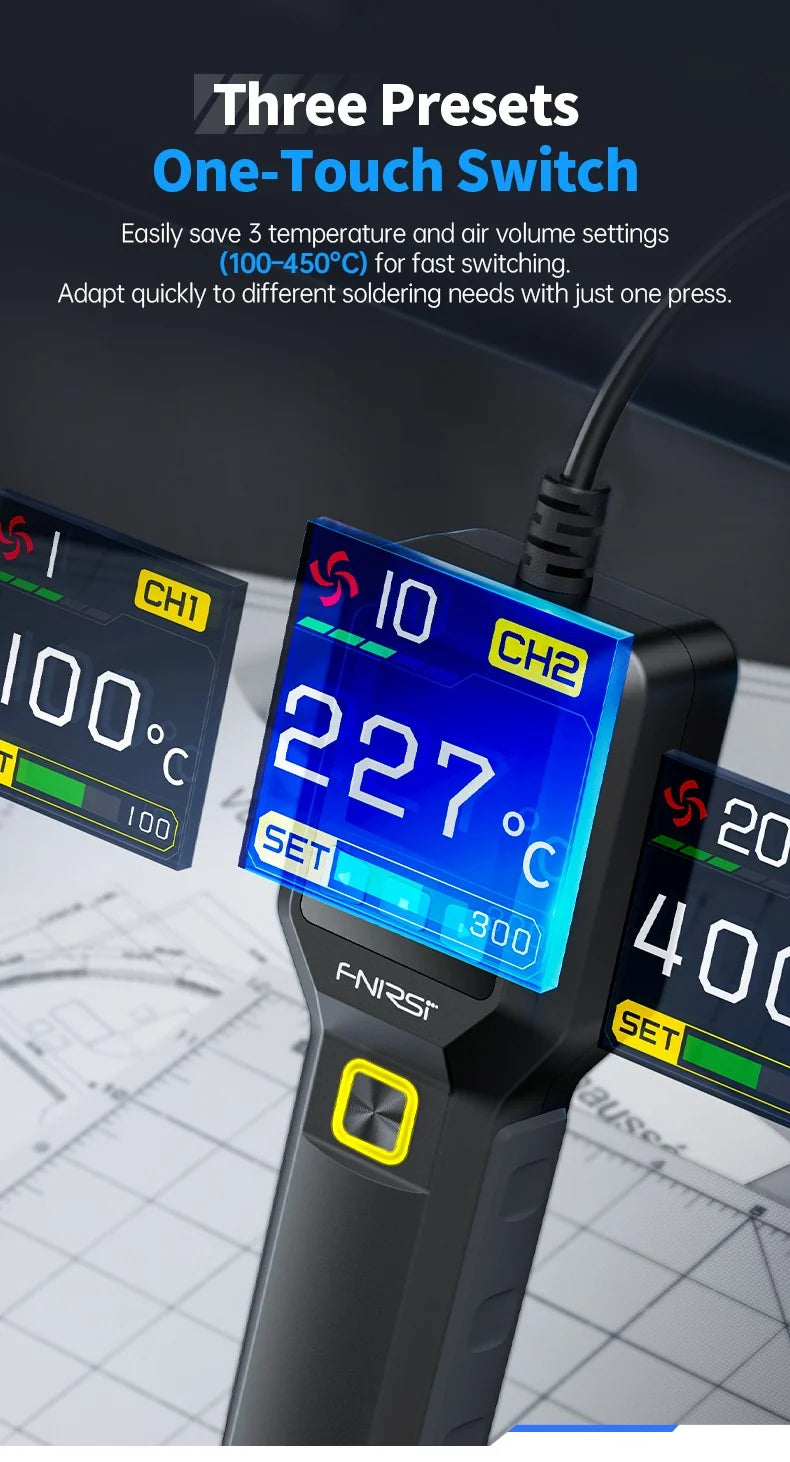

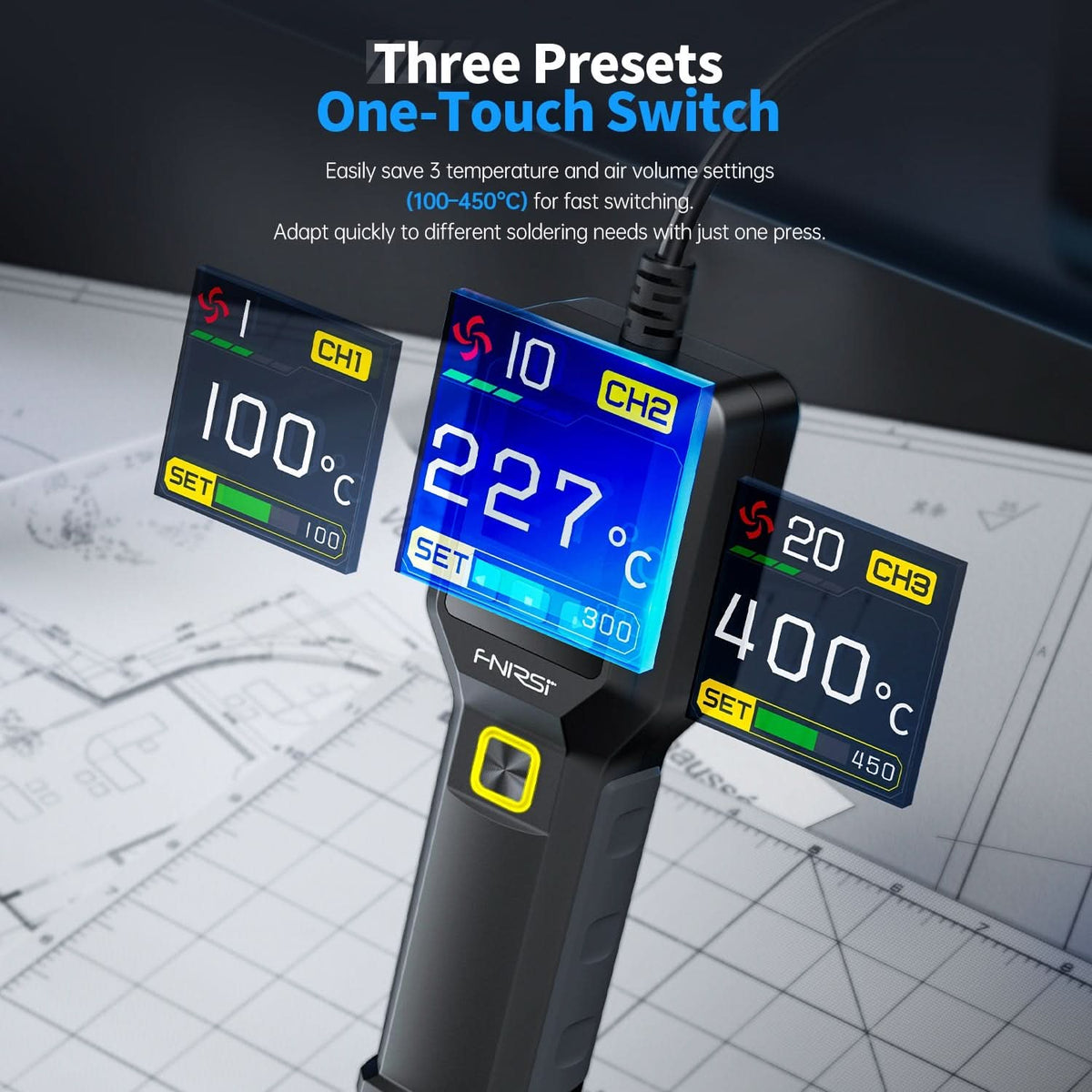

• Three quick presets store temperature and fan settings.
• Hot and cold air selection and a fast cooling function.

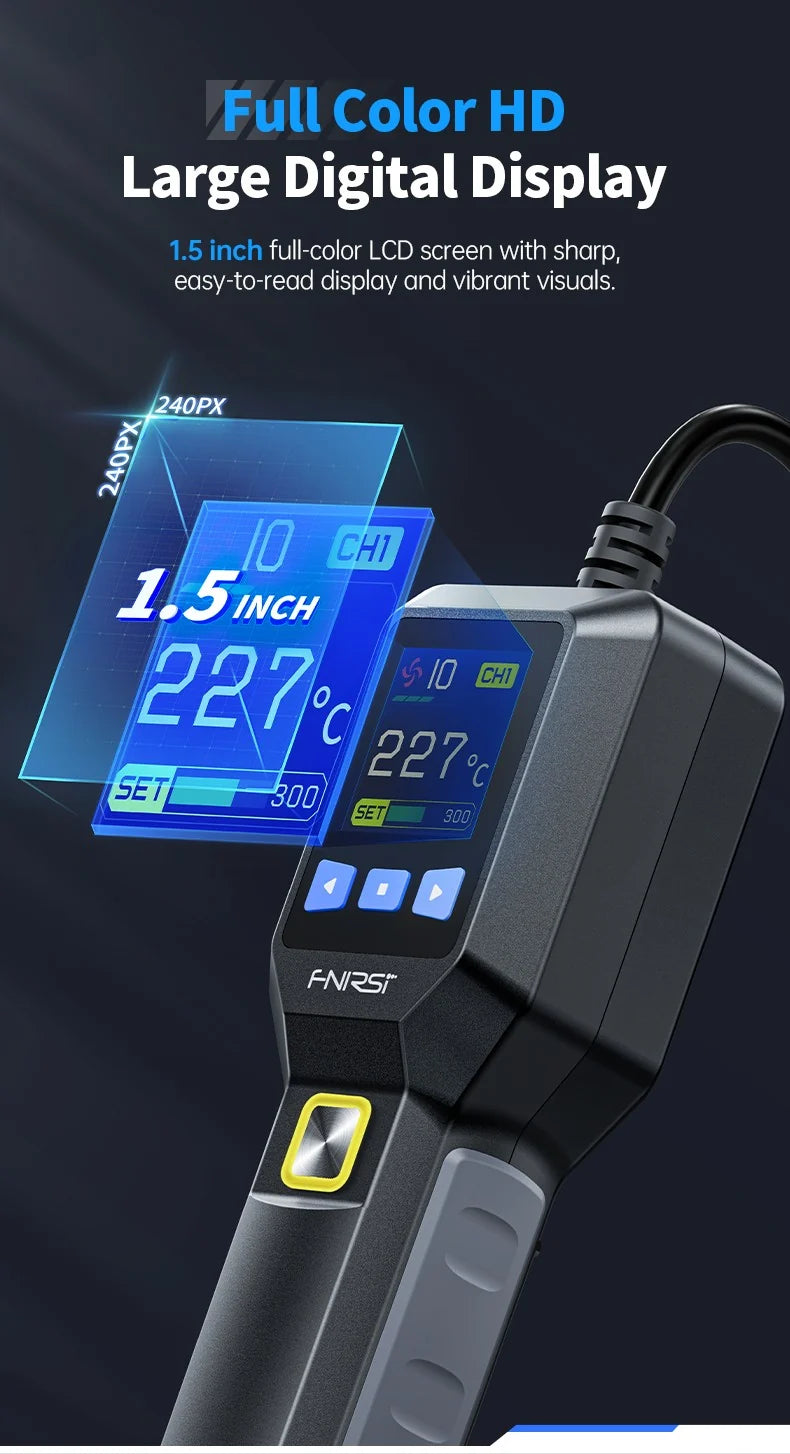

• 1.54-inch LCD with 240 x 240 resolution, plus an LED working-status indicator.

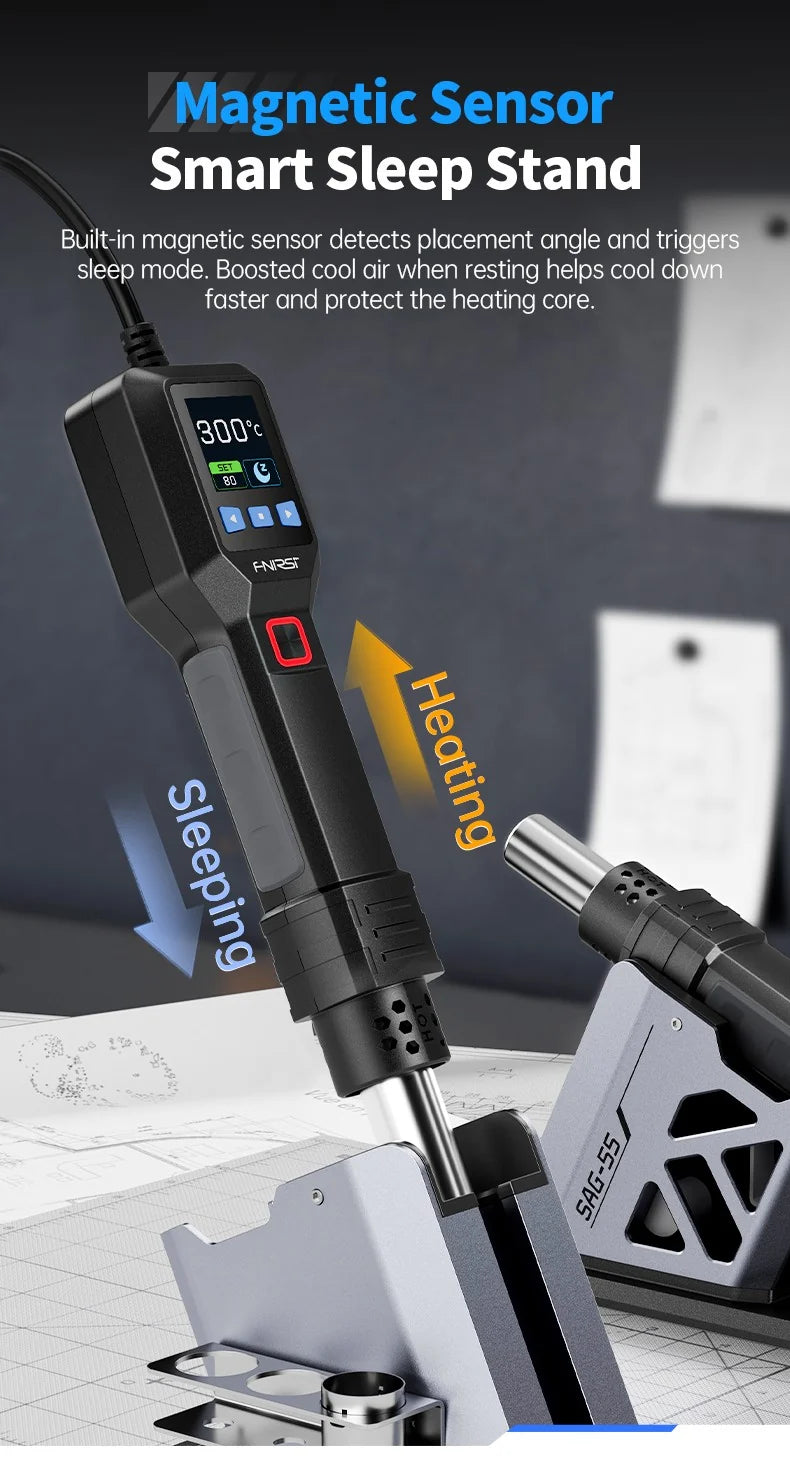

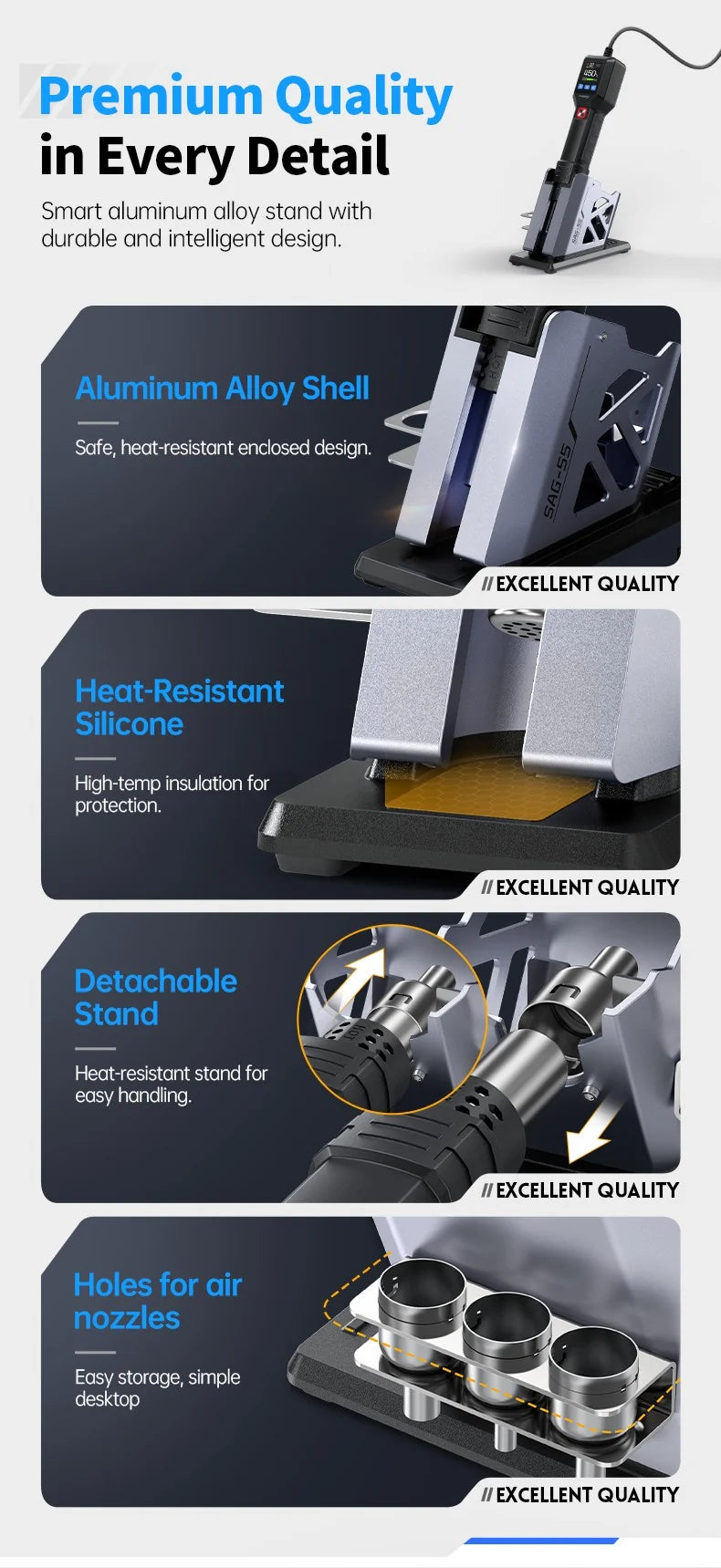

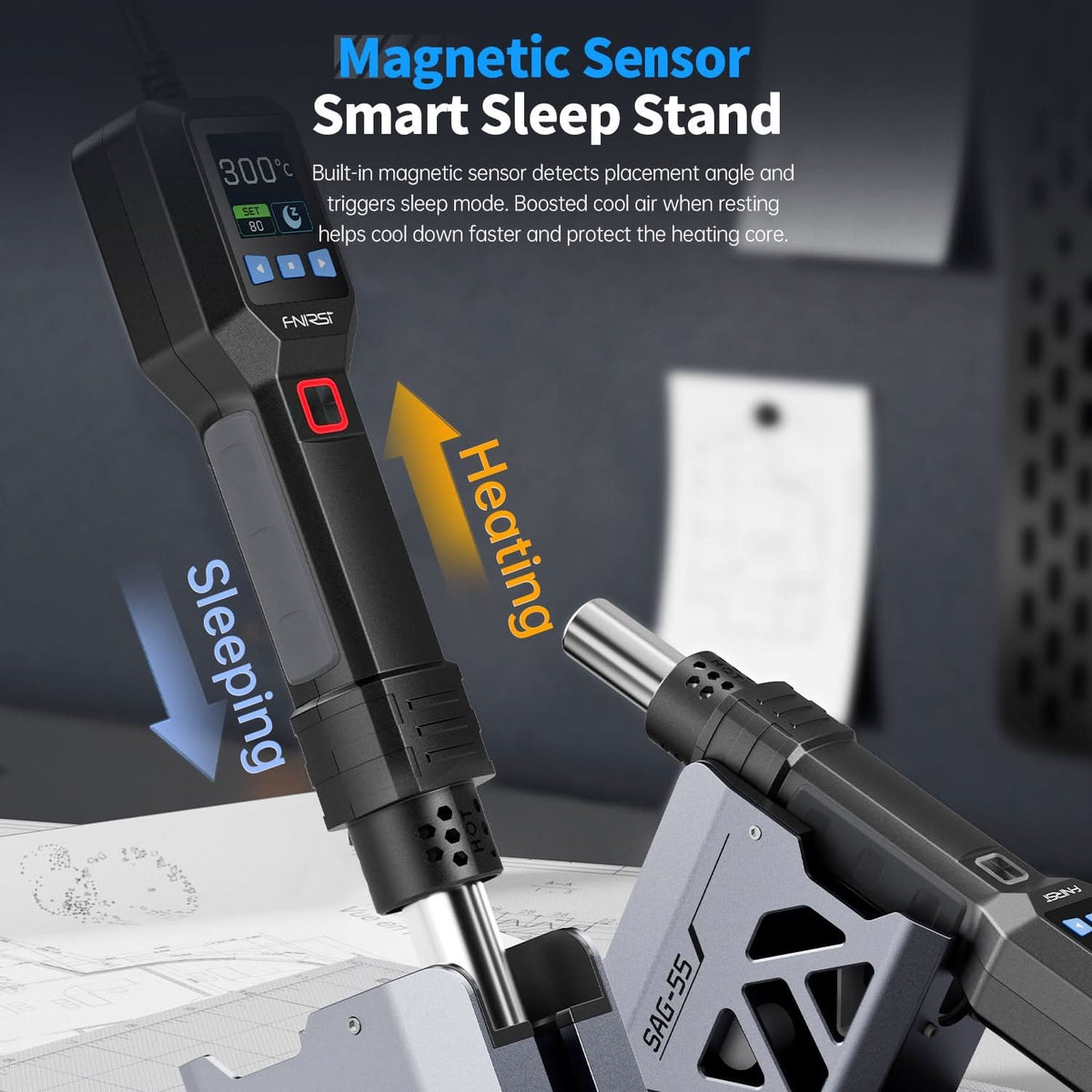

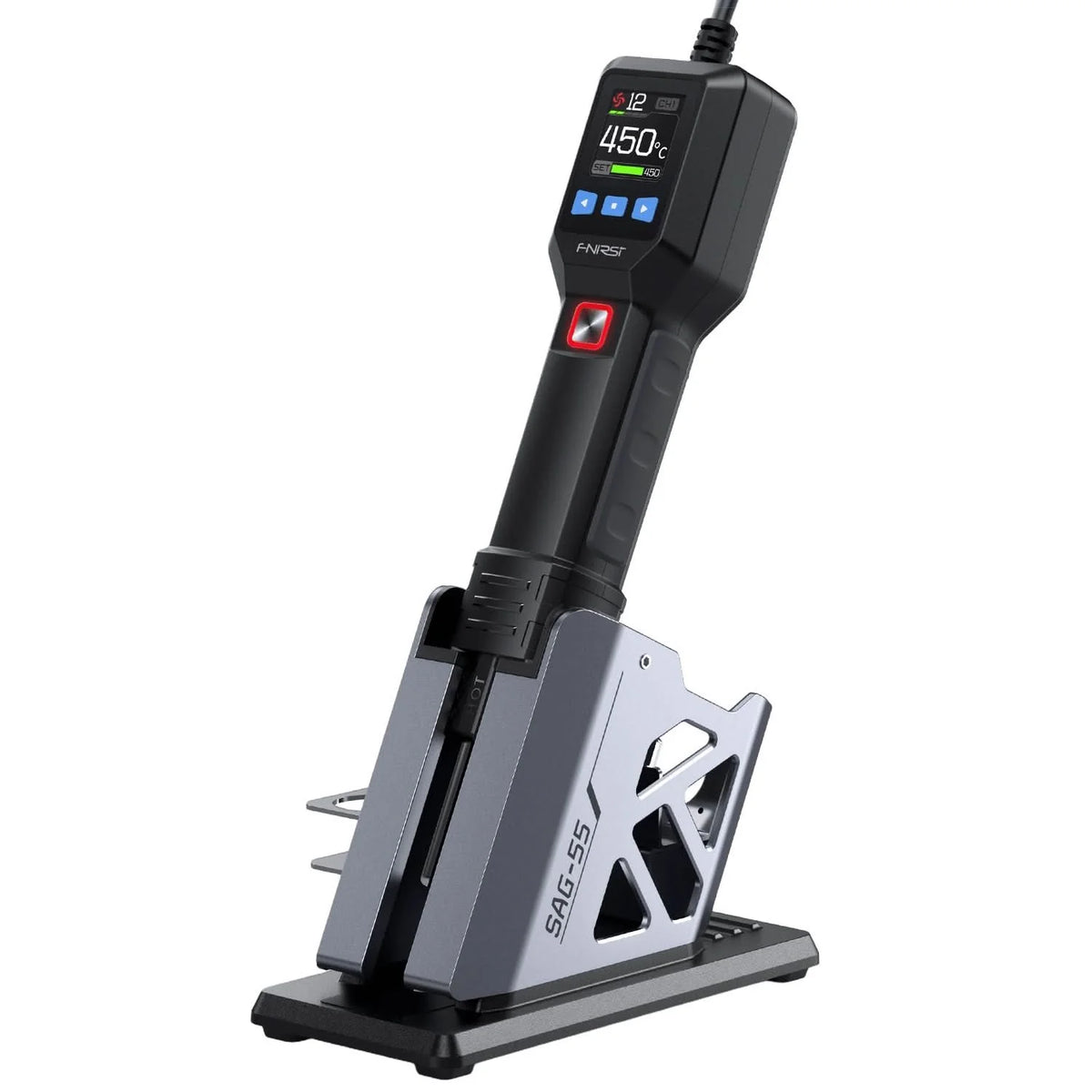

• The Pro package includes the magnetic smart sleep stand for the listed automatic standby operation. The Standard package includes a basic metal stand.

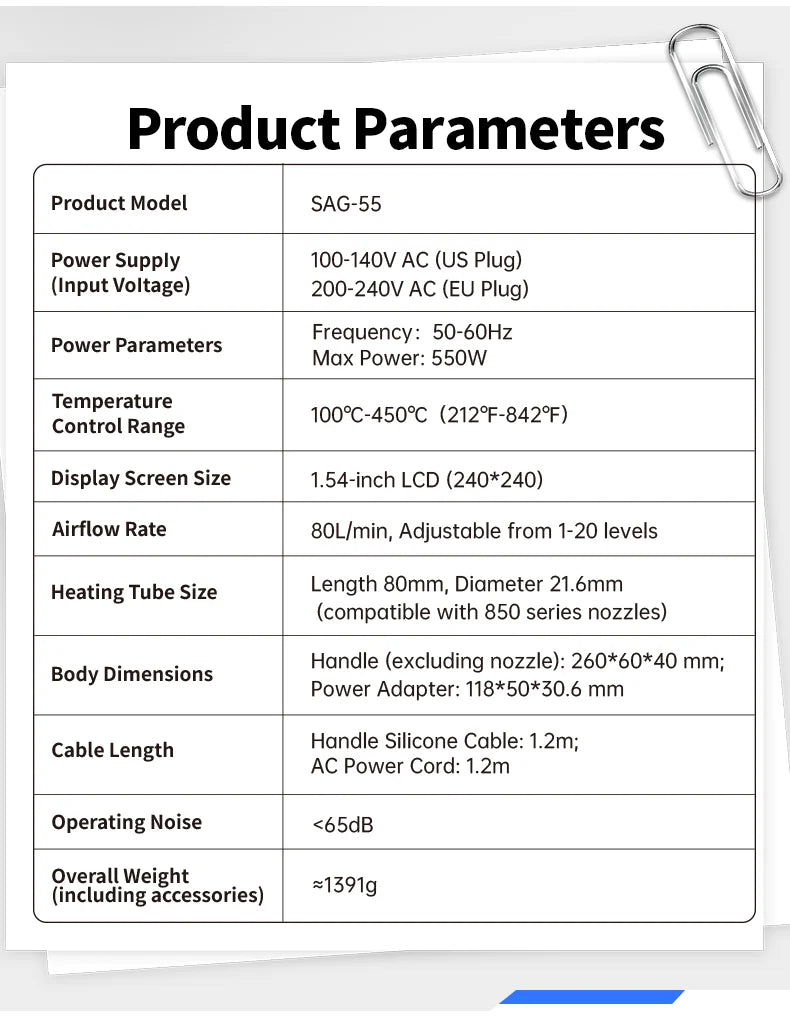

Specifications

• Model: SAG-55; maximum power: 550W; frequency: 50-60Hz.
• US option: 100-140V AC; EU option: 200-240V AC. Select the correct plug and voltage version.
• Heating tube: 80mm long, 21.6mm diameter, compatible with 850-series nozzles.
• Handle dimensions excluding nozzle: 260 x 60 x 40mm; listed power-adapter dimensions: 118 x 50 x 30.6mm.
• Handle silicone cable: 1.2m; AC power cord: 1.2m.
• Celsius or Fahrenheit units, Simplified Chinese or English interface, brightness levels 1-10 and adjustable temperature steps of 5-25°C.
• Automatic shutdown settings: disabled, 5, 10 or 15 minutes.

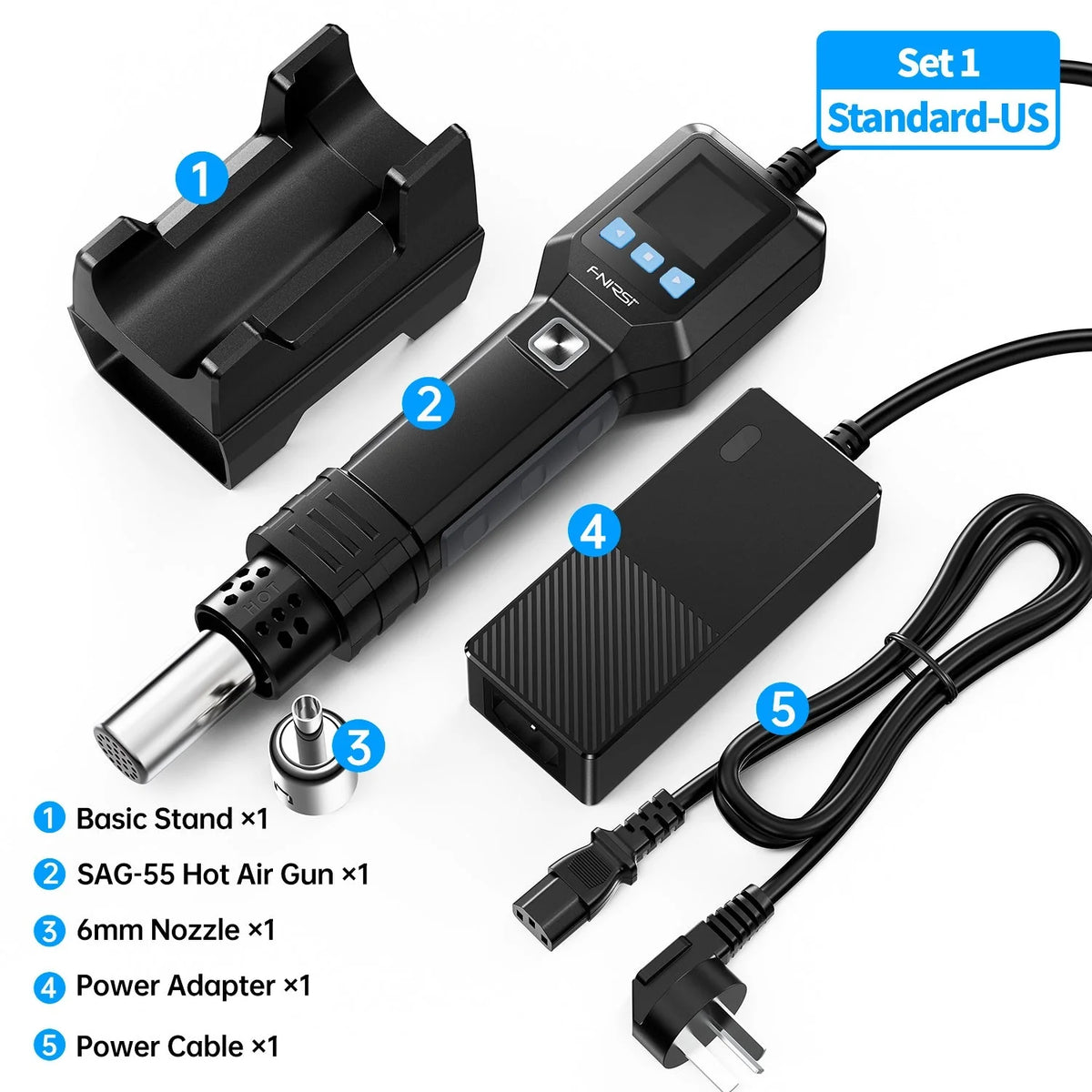

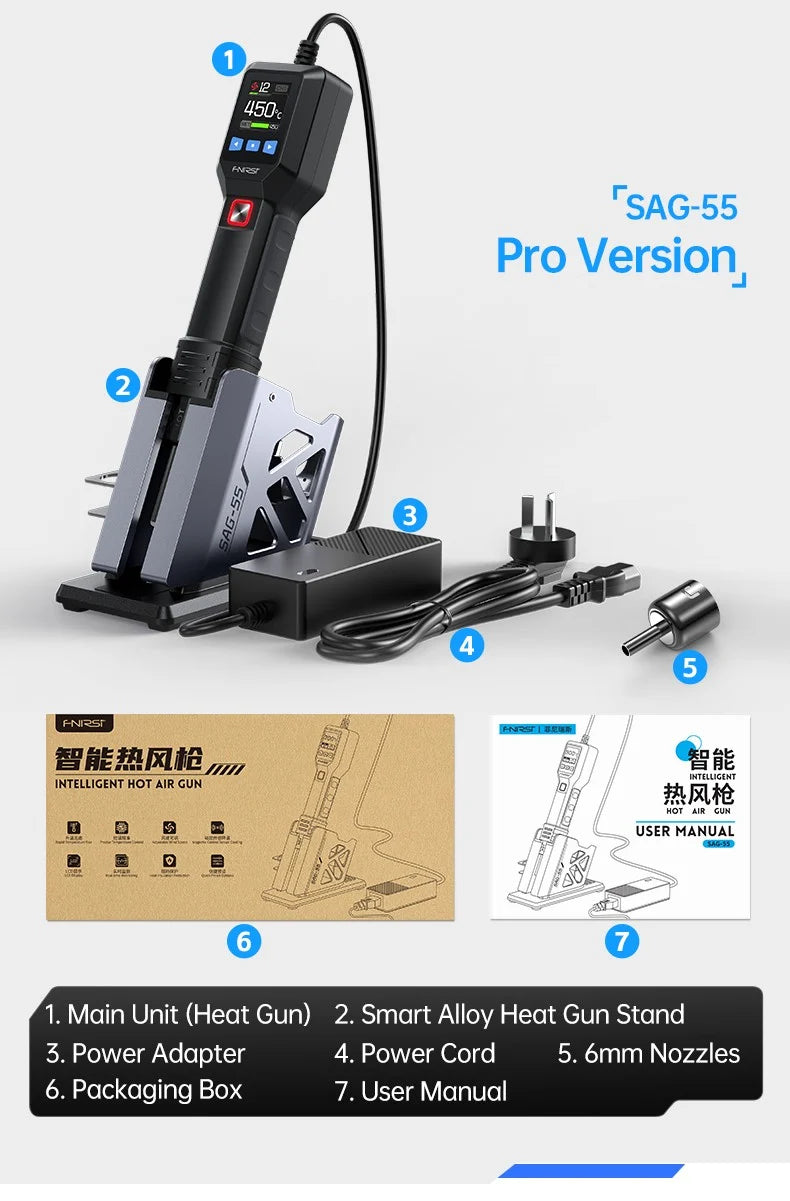

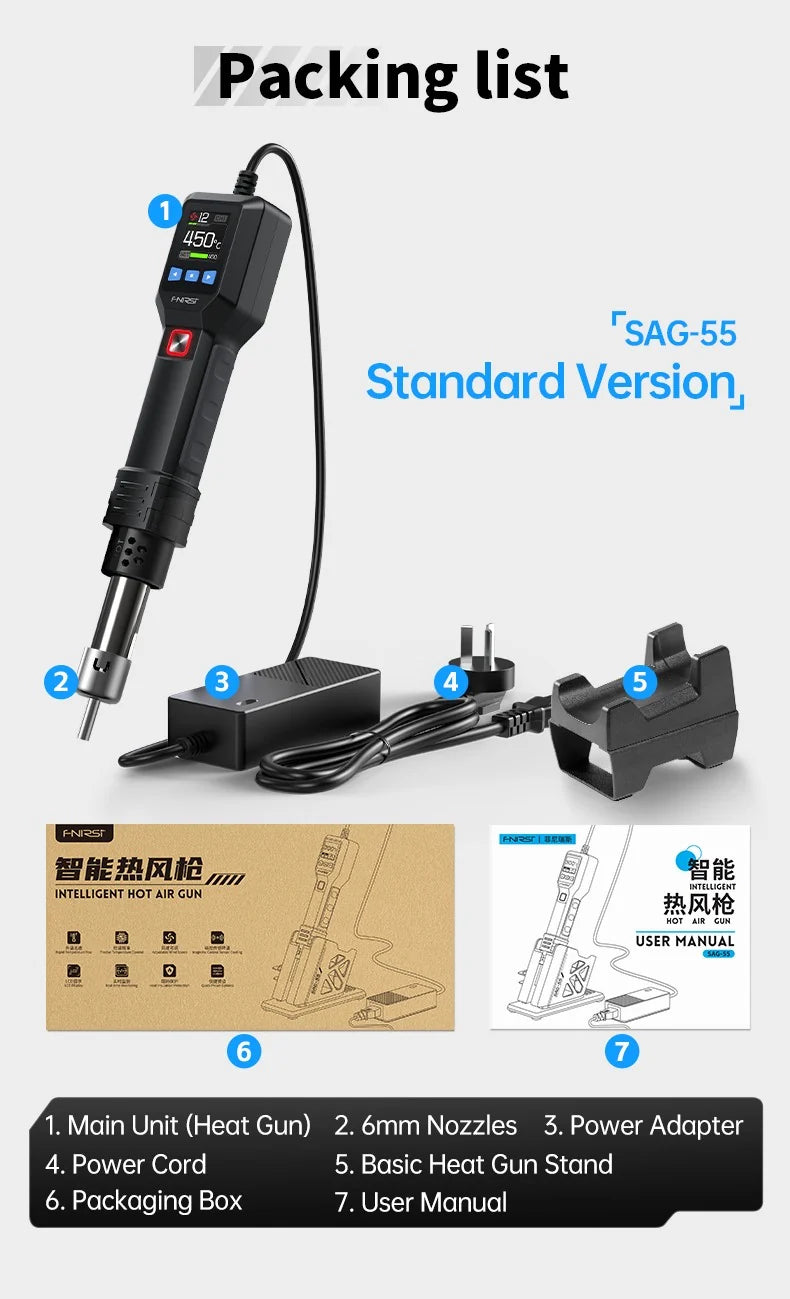

• Both packages contain one hot air gun, one 6mm nozzle, one power adapter, one selected-region power cable and one user manual. Standard adds one basic metal stand; Pro adds one smart sleep stand.
