SP-12 12W Solar Battery Charger and Maintainer for 12V Lead-Acid Systems with Ring Lugs and 17ft Panel Lead

The SP-12 is a solar-powered battery charger and maintainer for 12V lead-acid systems. A low-profile panel supplies the charging circuit, while ring-lug leads connect the circuit box to the battery terminals.

Key Features

• Supports 12V VRLA, AGM, gel and flooded lead-acid battery systems, including three to four batteries connected in parallel.
• Combines solar charging with pulse conditioning for routine battery maintenance.
• Uses monocrystalline photovoltaic cells with clear polyurethane encapsulation and a laminated aluminum back plate.
• The red charge indicator shines steadily in full sunlight and dims in partial sunlight.
• A quick-disconnect connection between the panel and circuit box assists installation.
• Reverse-polarity protection is specified for the system. Follow the complete manufacturer's battery connection instructions.

Specifications

• Model: SP-12. Part number: 735X468.
• Solar power rating: 12W. Rated charging output: 750mA. Maximum DC output voltage: 16.5V.
• Battery compatibility: 12V lead-acid systems; no lithium battery compatibility is promised.
• Circuit box to ring-lug lead: 3ft. Circuit box to solar-panel lead: 17ft.

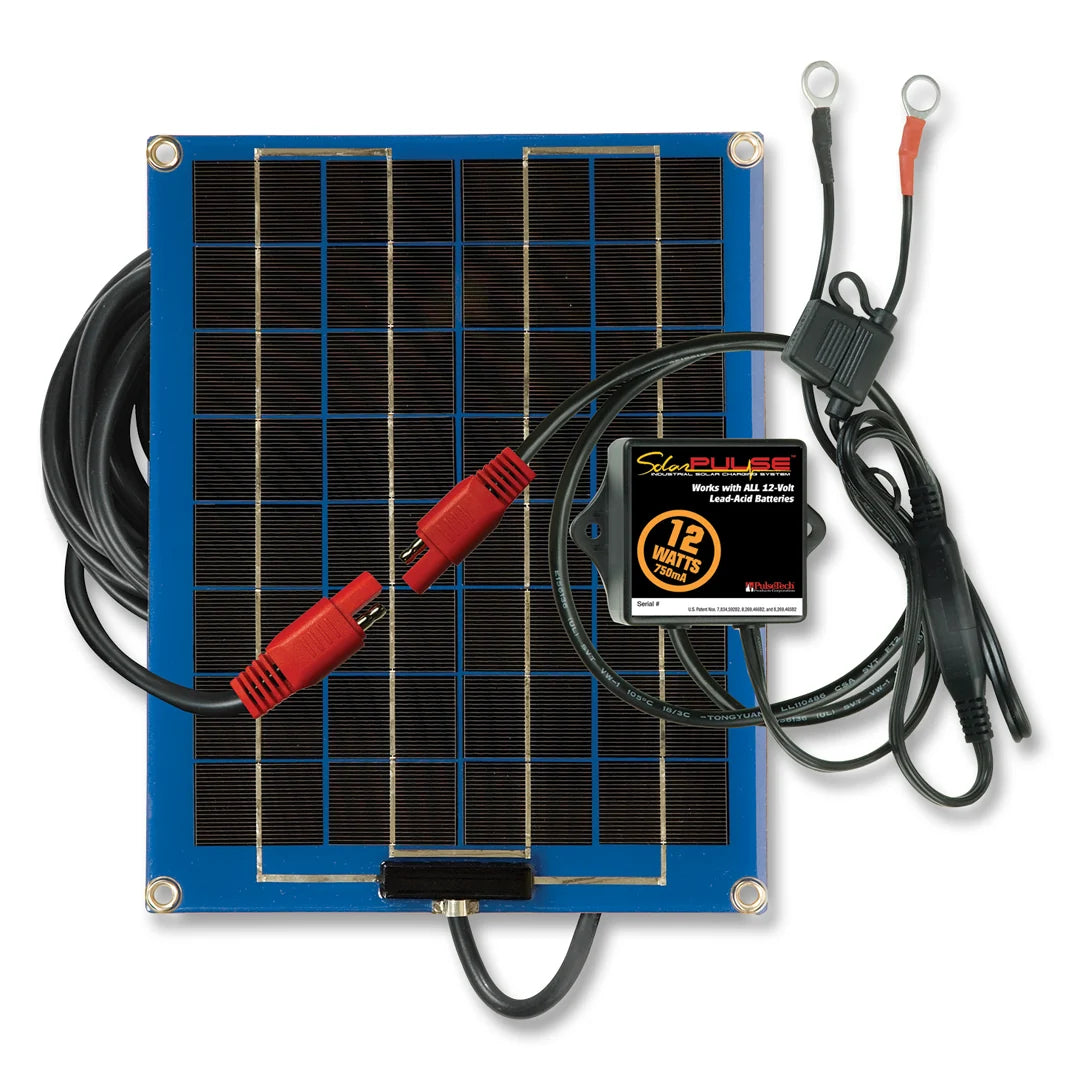

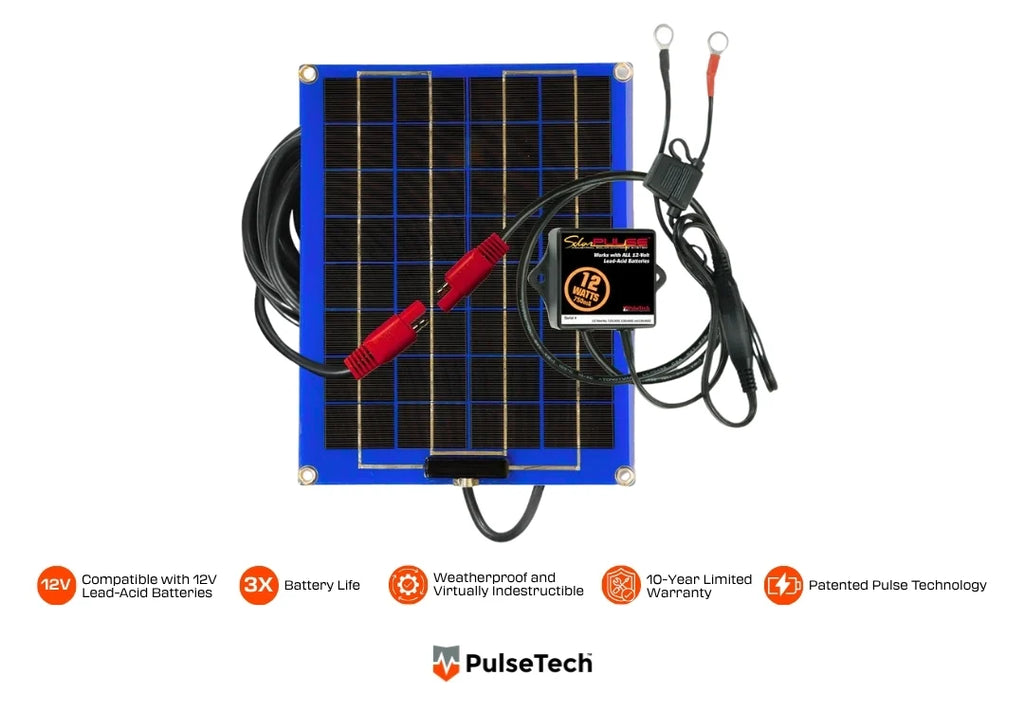

• Package components: solar panel, circuit box and positive/negative lug connections with the stated leads.

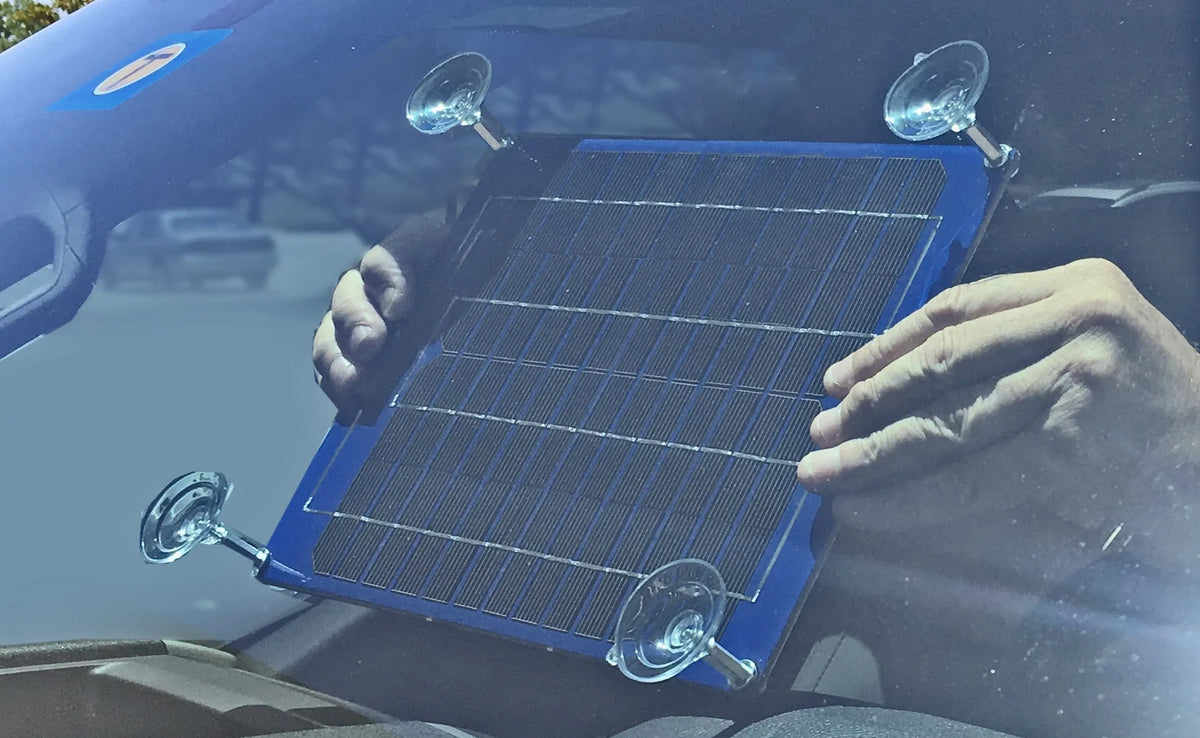

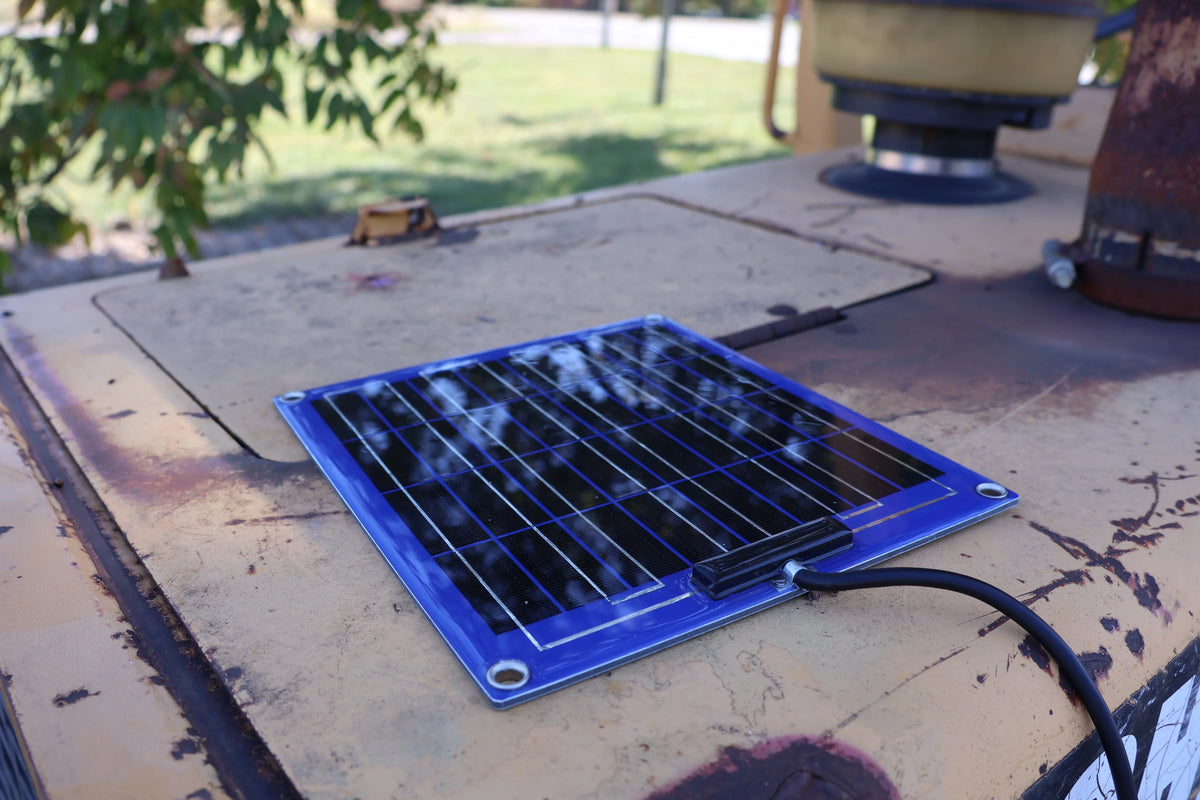

• Install the panel where it receives direct sunlight. Mount the circuit box close to the battery, but do not attach it directly to the battery.
• Mounting screws, adhesive, tape, washers and cable ties are not included according to the installation guide.
• Keep the panel clean and periodically check terminal connections. Place the circuit box away from antennas because pulsing current may interfere with nearby electronics.
