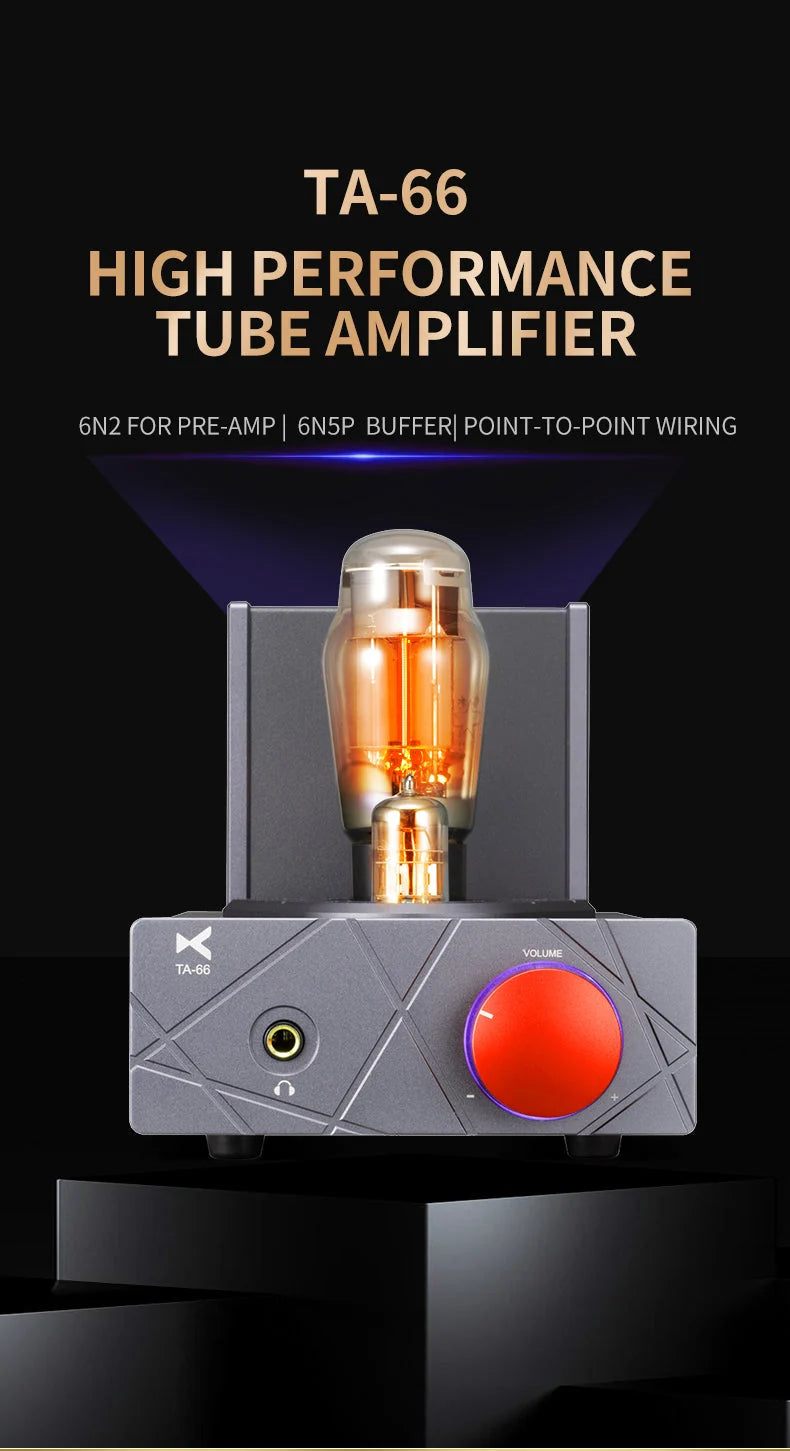

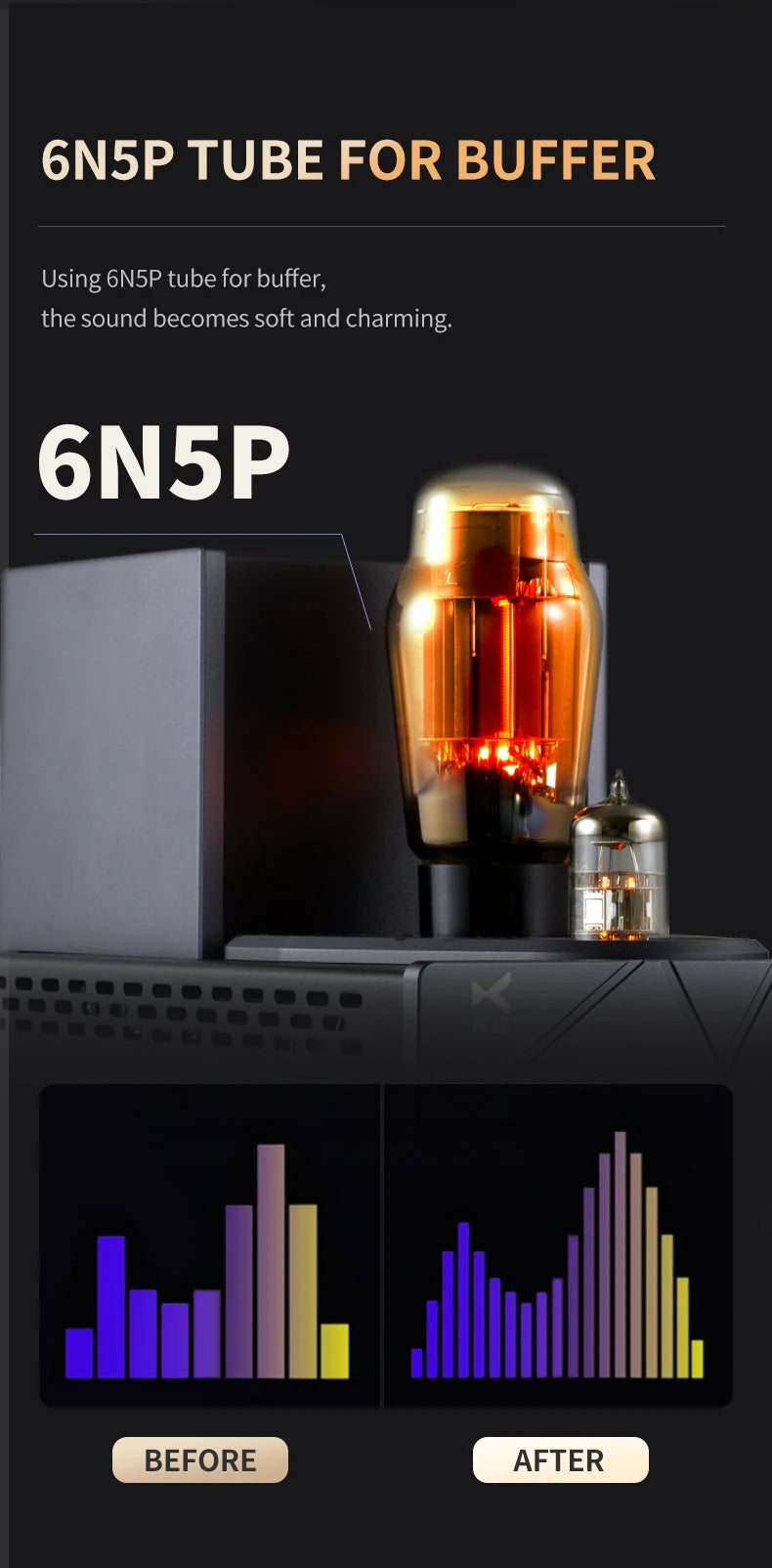

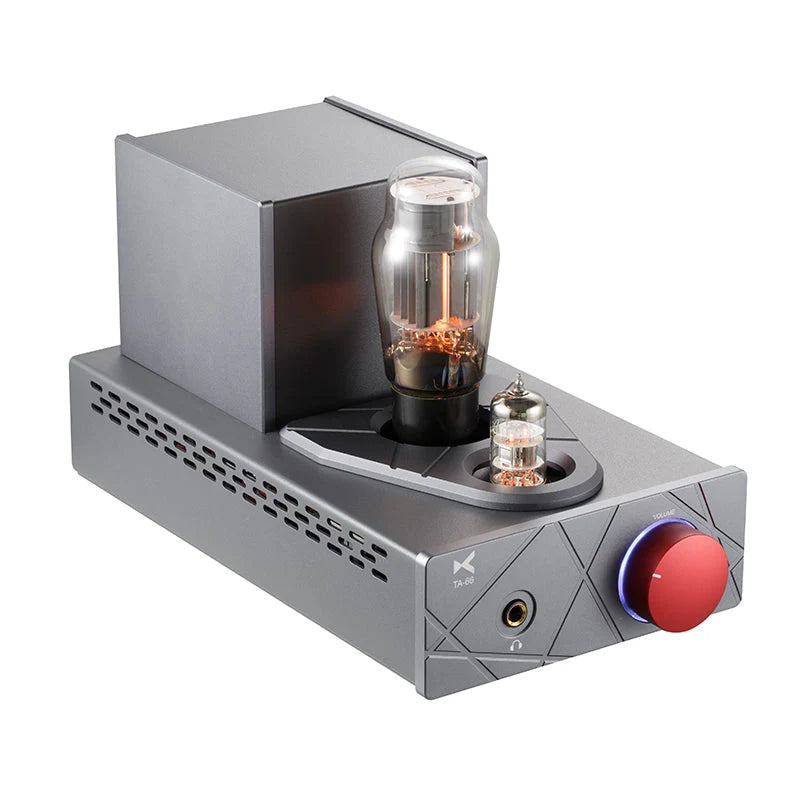

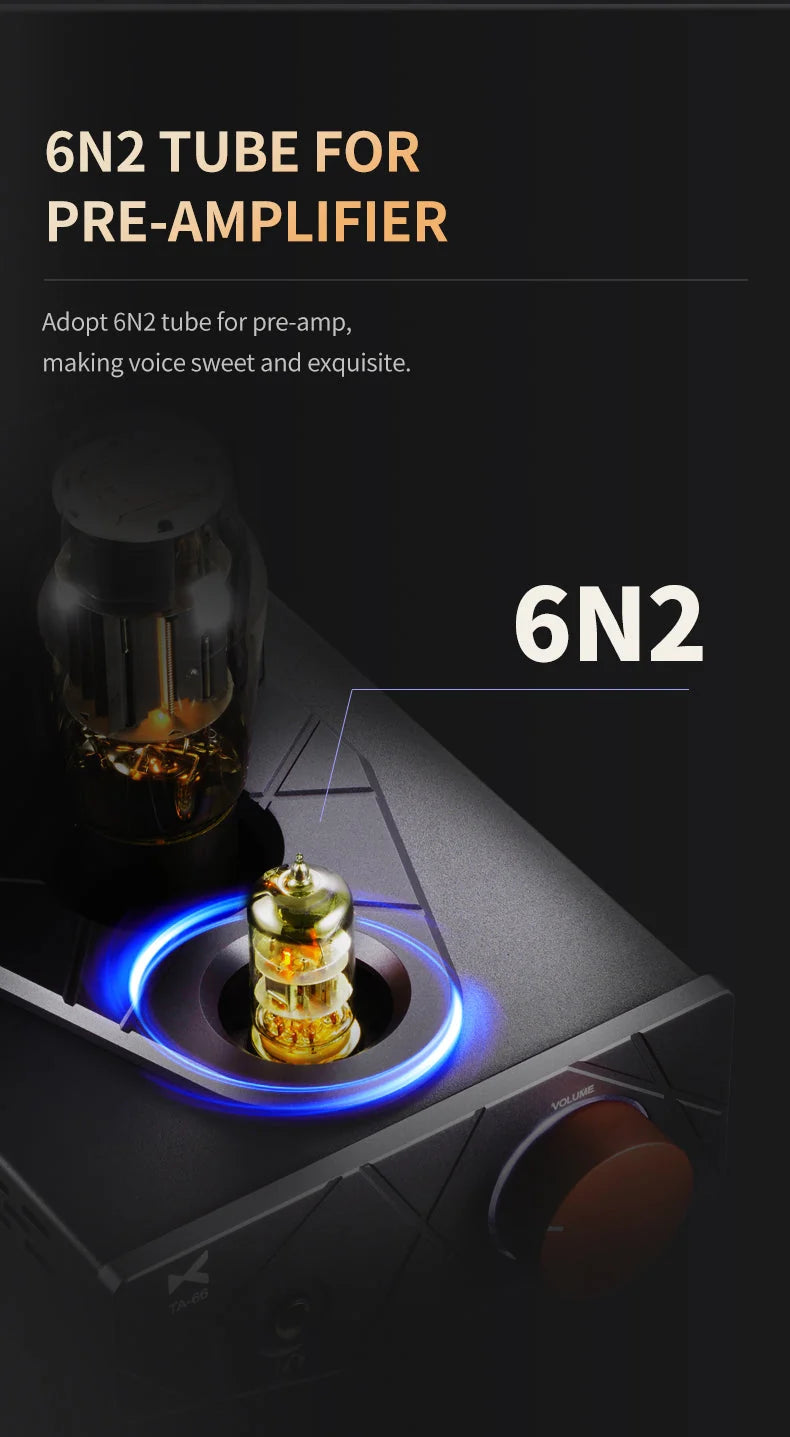

TA-66 is an OTL tube headphone amplifier with a 6N2 preamp tube and a 6N5P buffer tube. Point-to-point copper wiring connects its components, while a stepped volume control adjusts listening level.
Key Features
- OTL tube amplification for headphones in the 60–600Ω range.

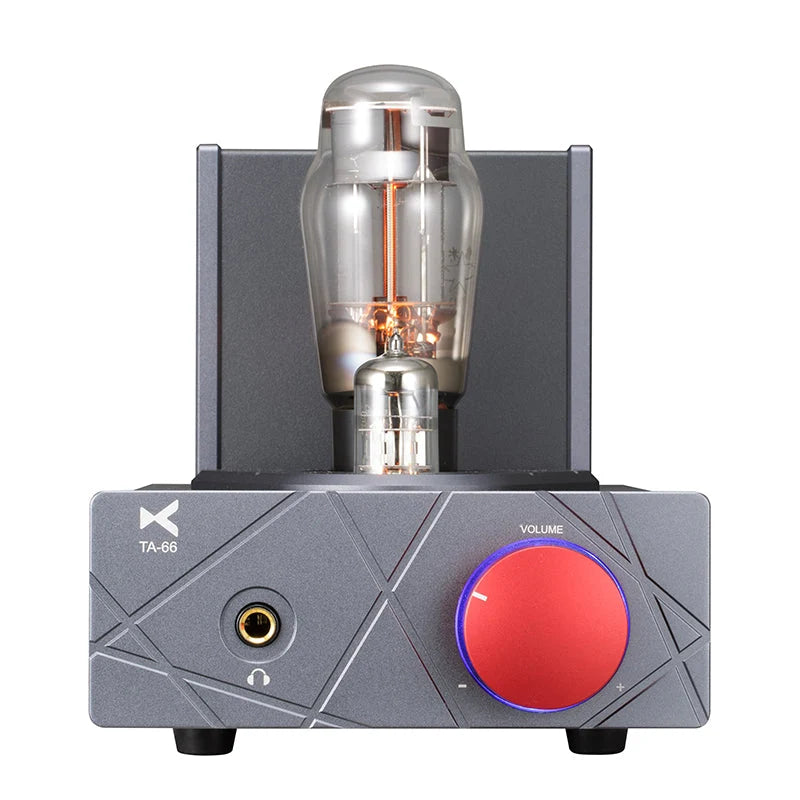

- 6.35mm headphone jack with 200mW output at a 300Ω load.

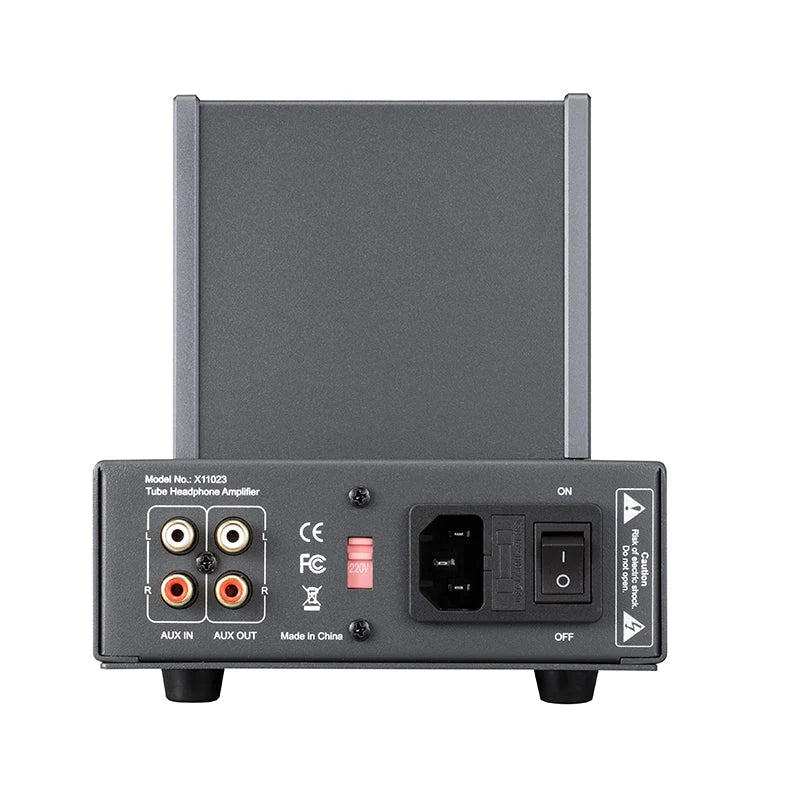

- Aux preamp output for connection to an external amplifier or active speakers.

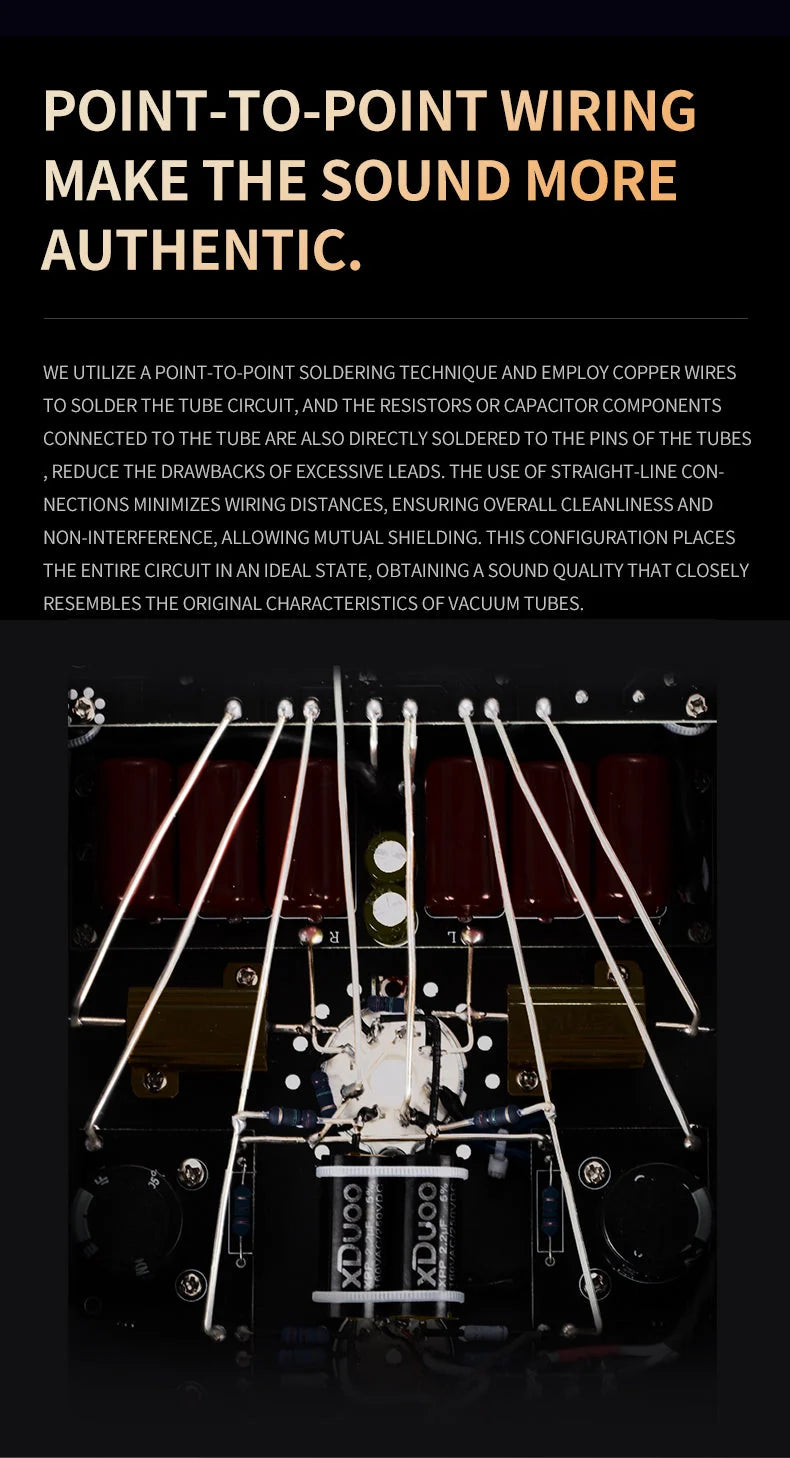

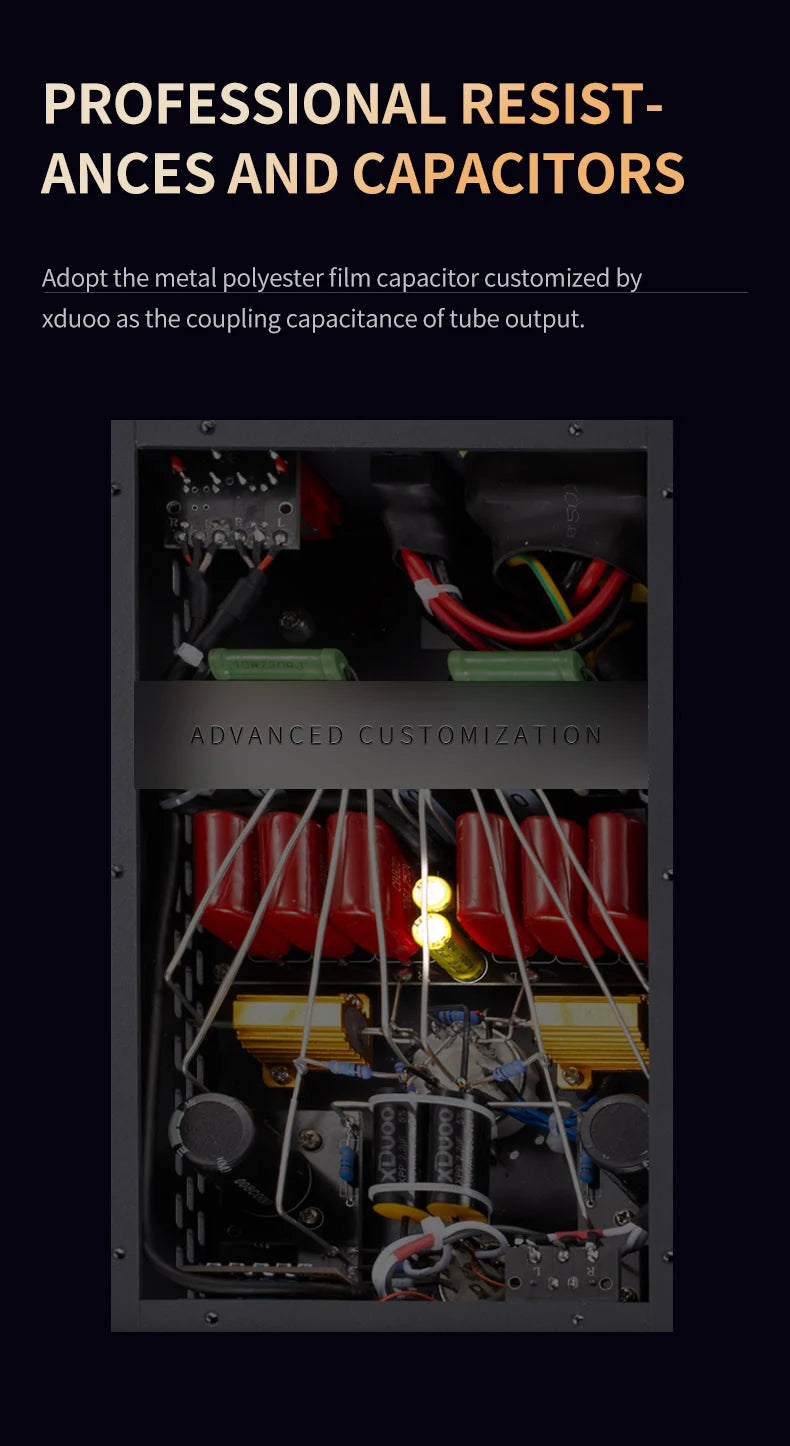

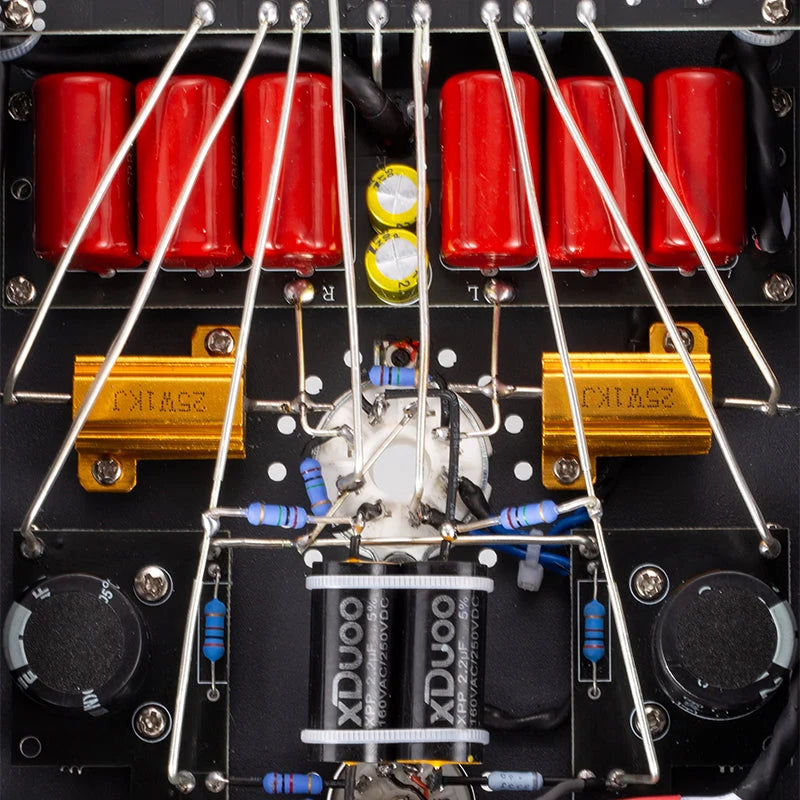

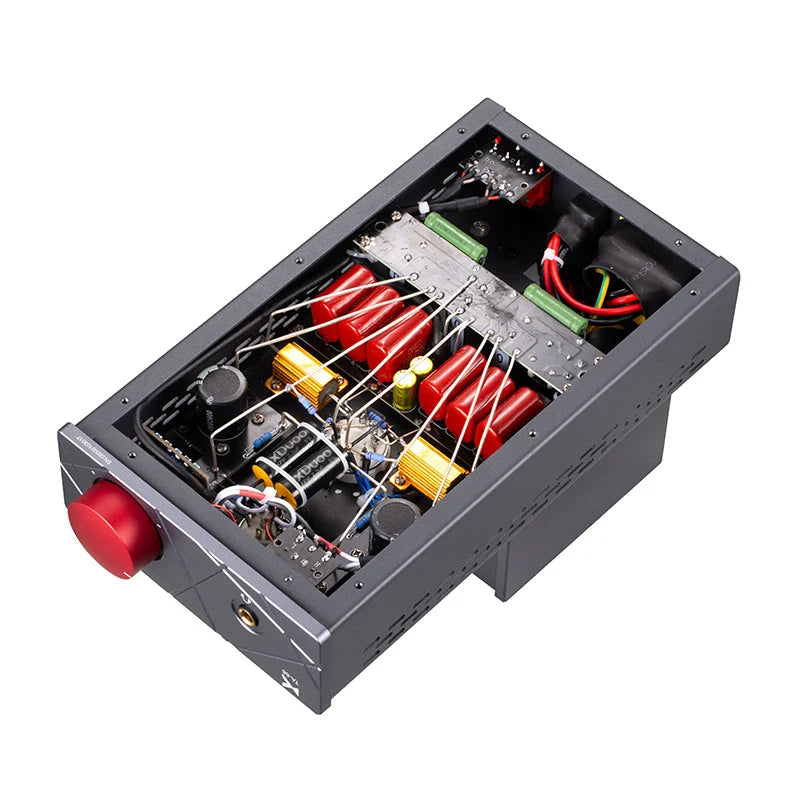

- Point-to-point wiring and a stepped volume potentiometer.

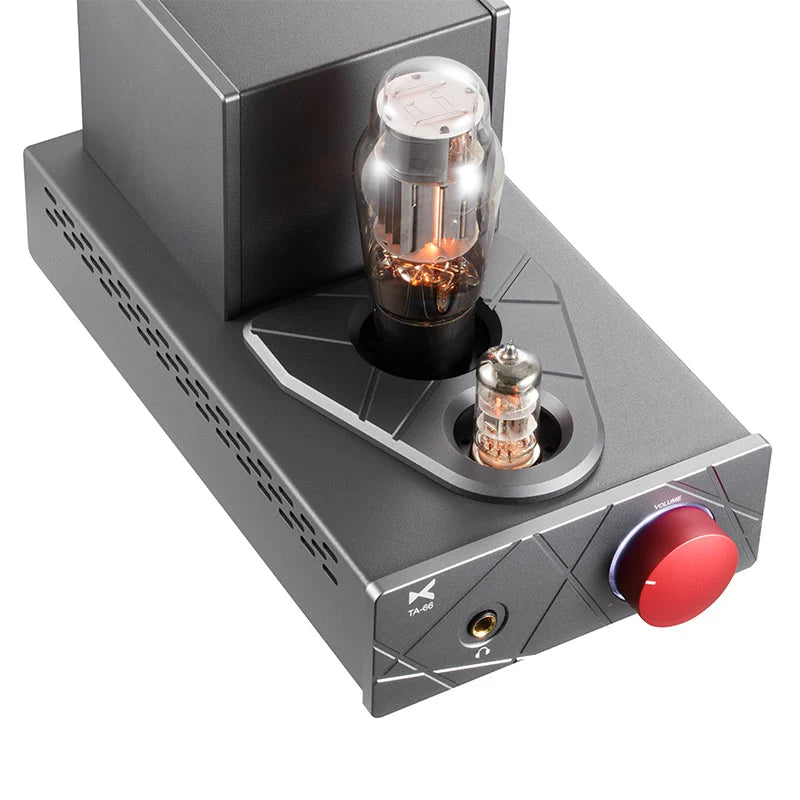

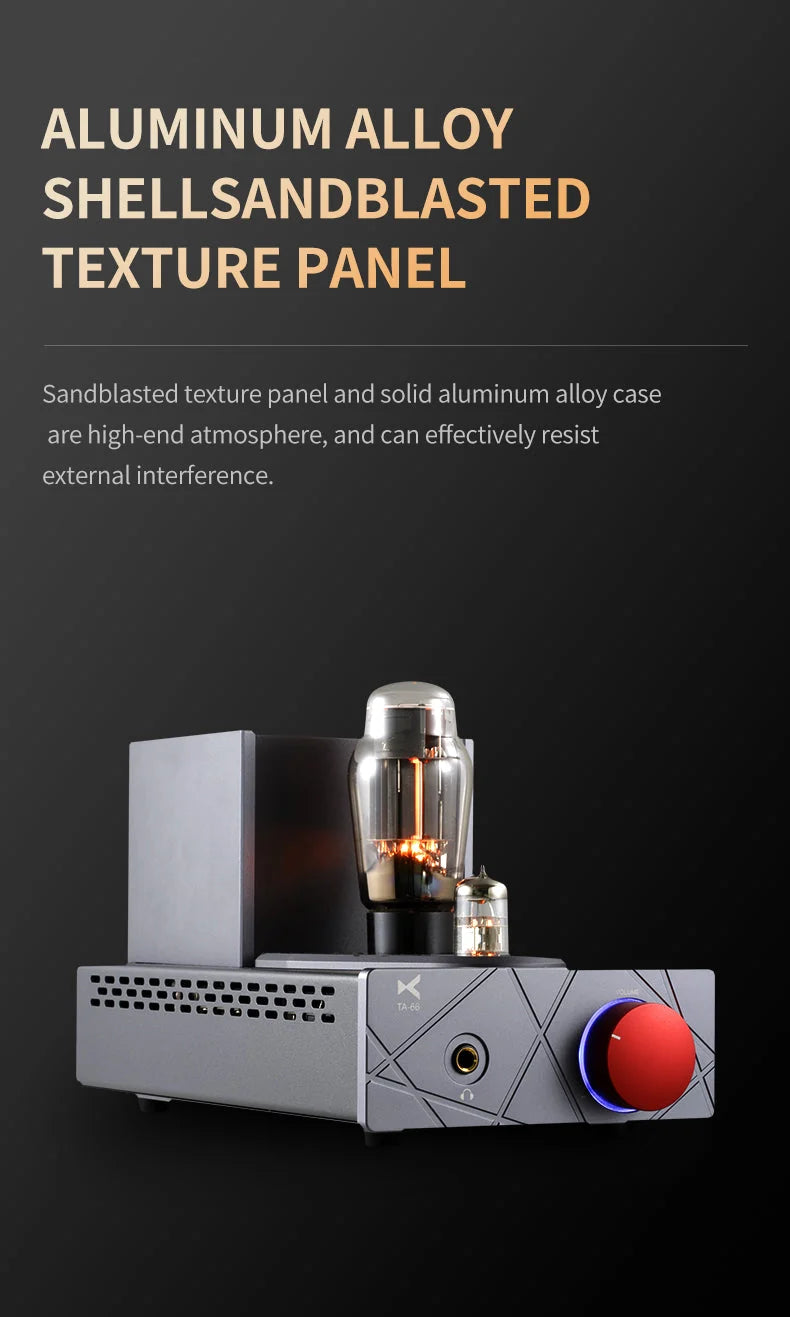

- Aluminum alloy housing with a sandblasted panel.

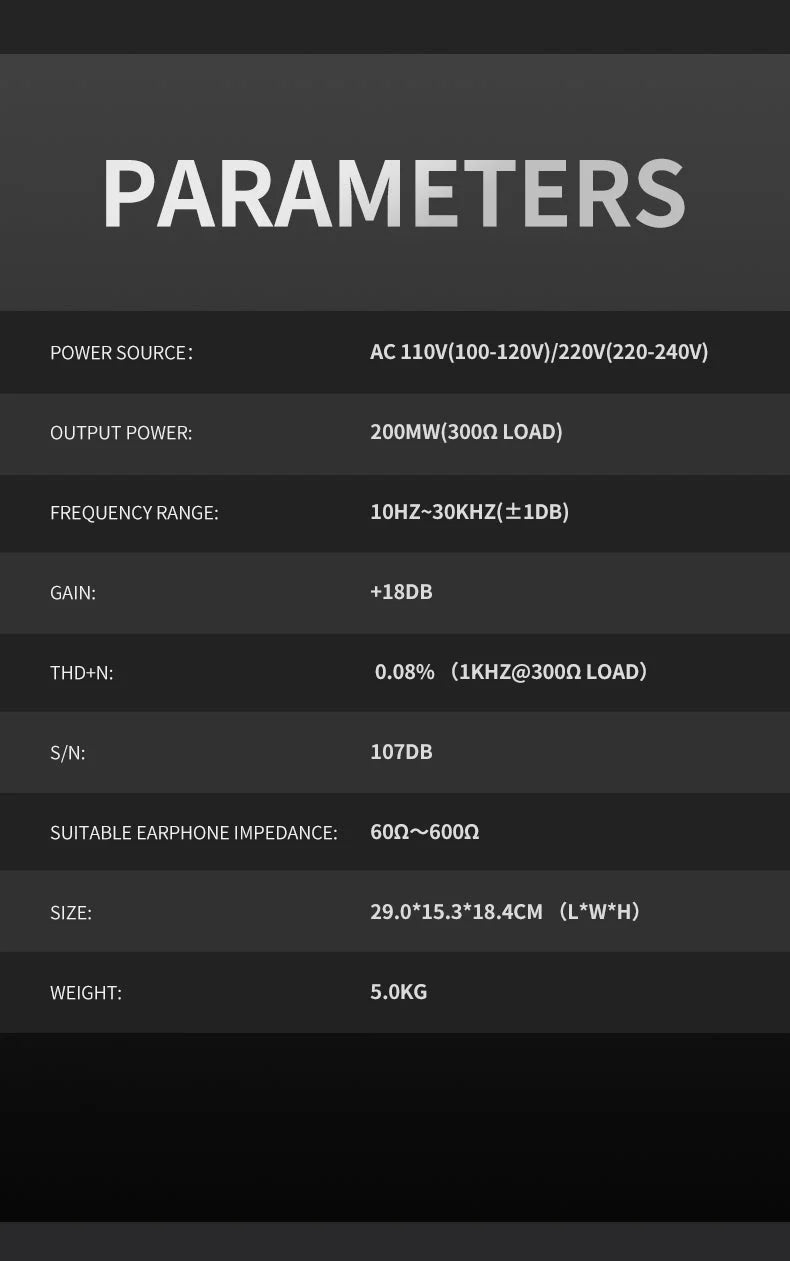

Specifications
- Power: AC 110V (100–120V) / AC 220V (220–240V).
- Frequency range: 10Hz–30kHz, ±1dB.
- Gain: +18dB.
- THD+N: 0.08% at 1kHz with a 300Ω load.
- Signal-to-noise ratio: 107dB.
- Dimensions: 29 × 15.3 × 18.4cm.
Package Contents
TA-66 tube amplifier, power cord and user manual.
