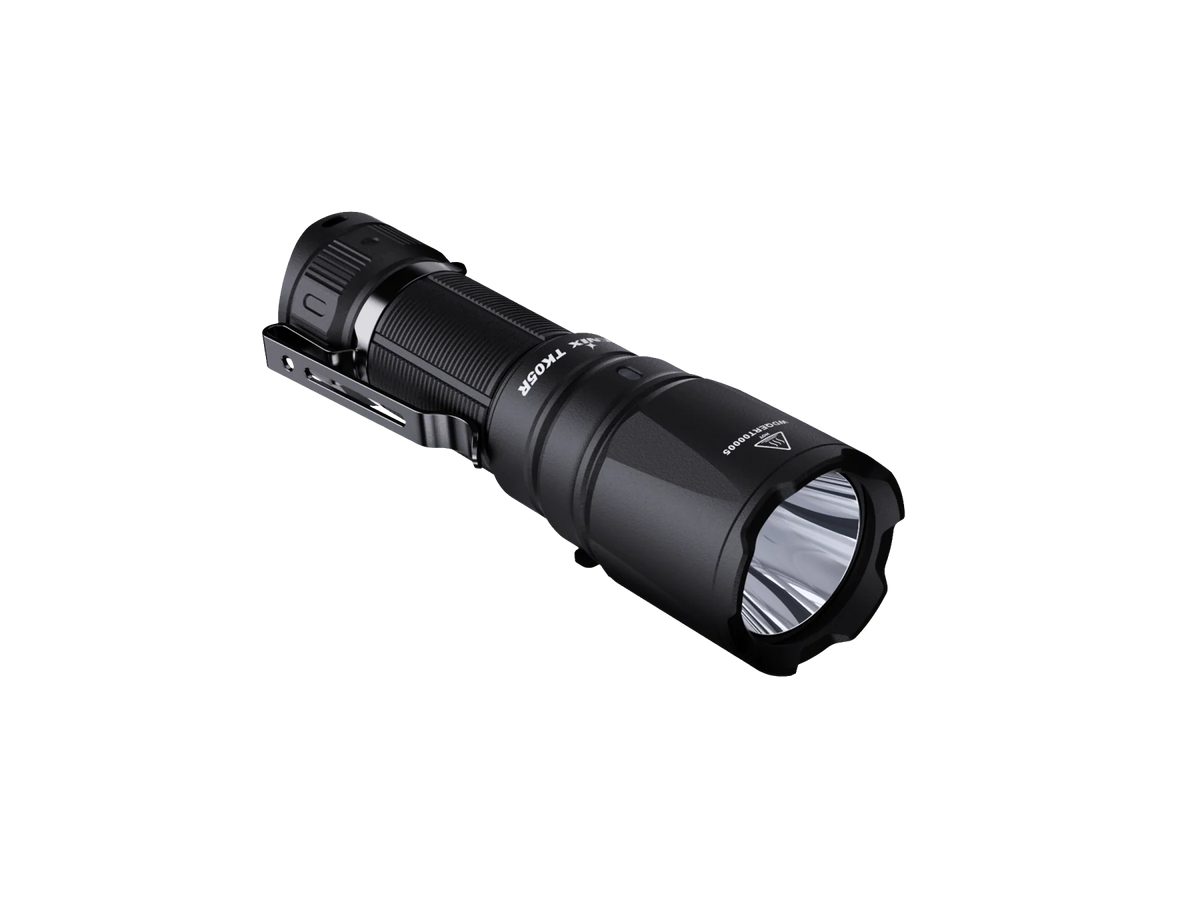

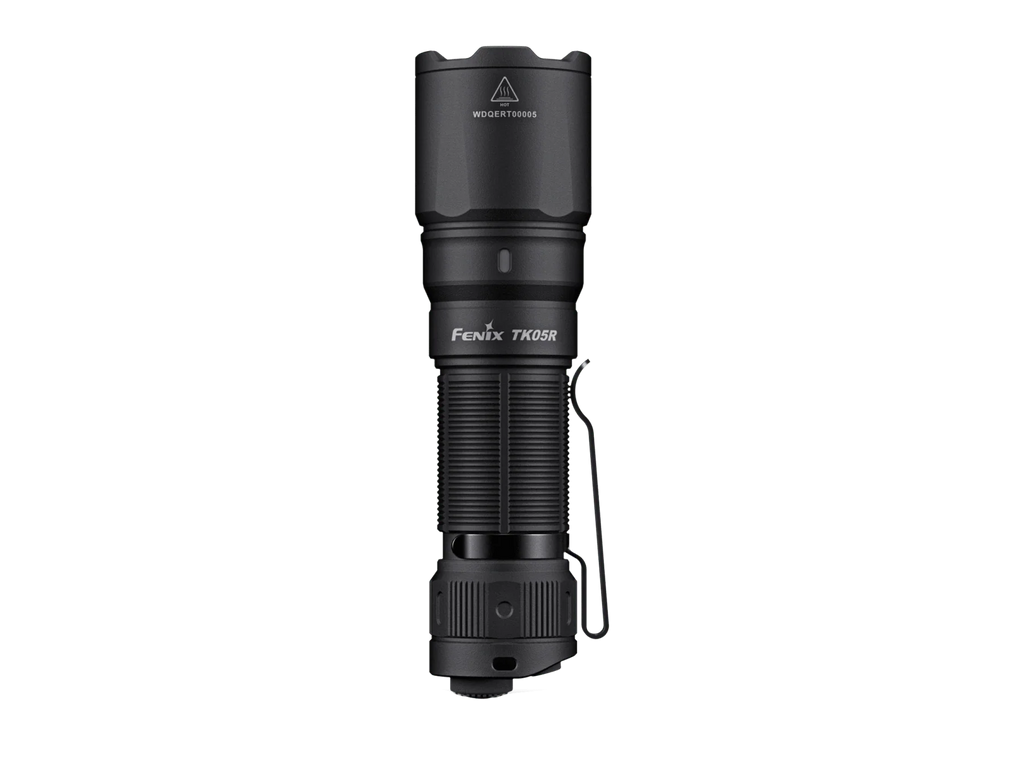

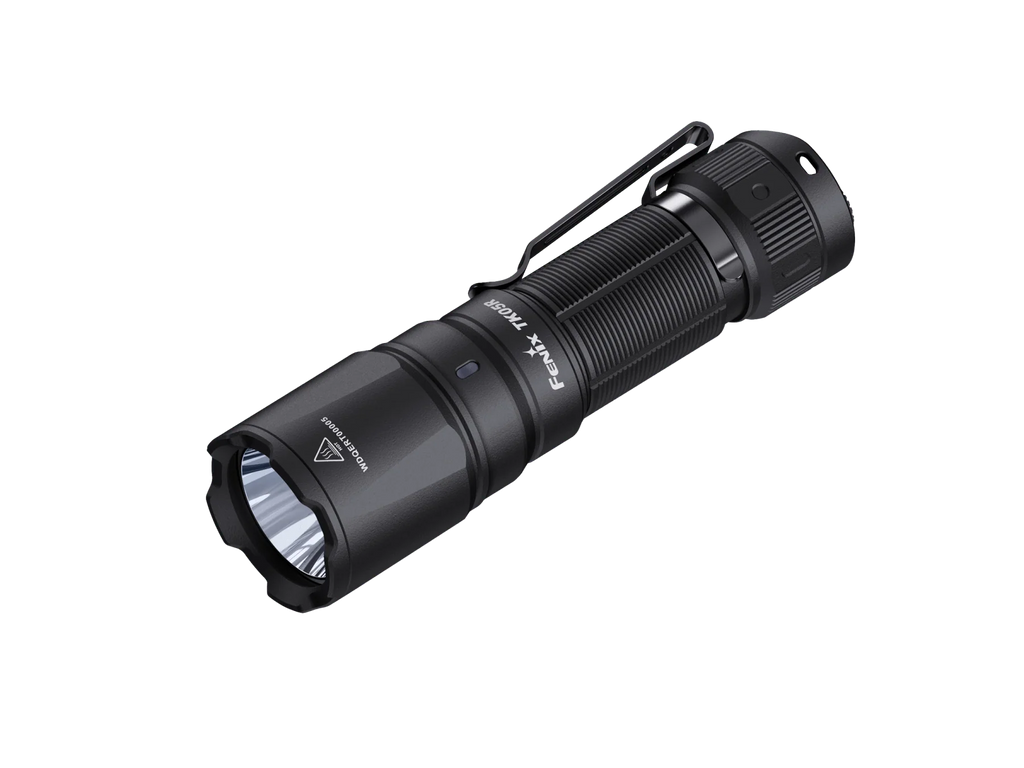

TK05R Compact LED Flashlight with 1000-Lumen Output, 450m Beam, Dual Tail Switch and USB-C Charging

The TK05R is a compact flashlight with three brightness levels and a maximum output of 1000 lumens. Its 450m maximum beam and dual tail switches provide separate power and output controls.

Key Features

• High, Medium and Low levels: 1000, 350 and 30 lumens, plus instant Strobe.

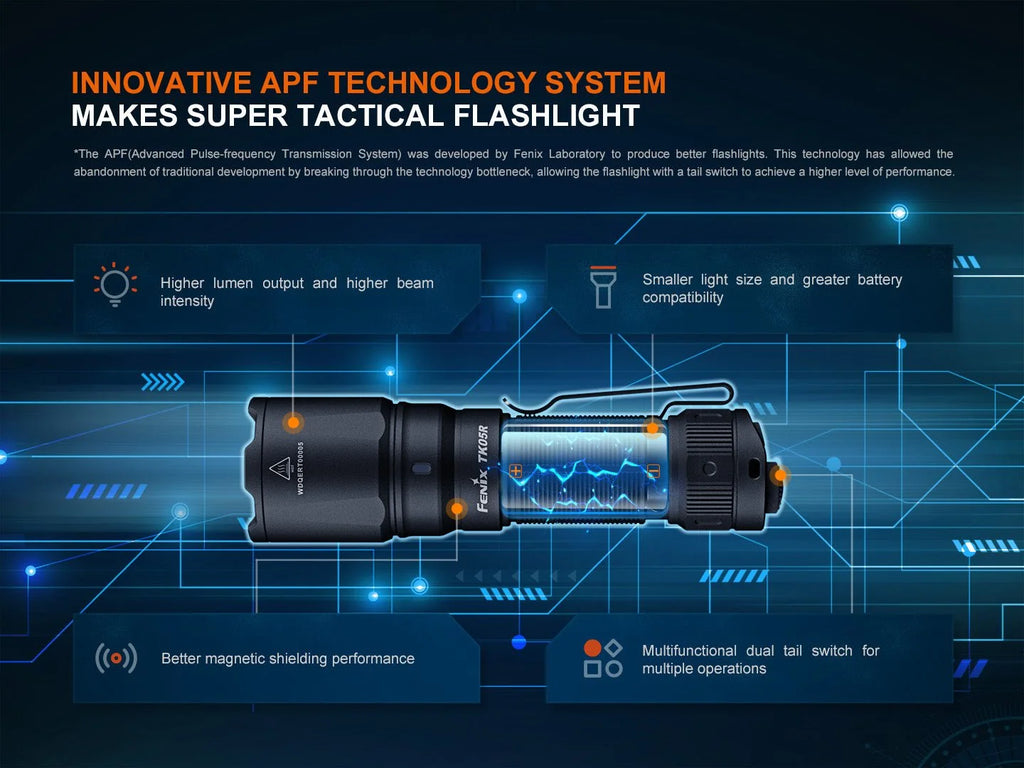

• Tail controls support momentary and constant activation.
• Brightness memory recalls the last output level, excluding Strobe.

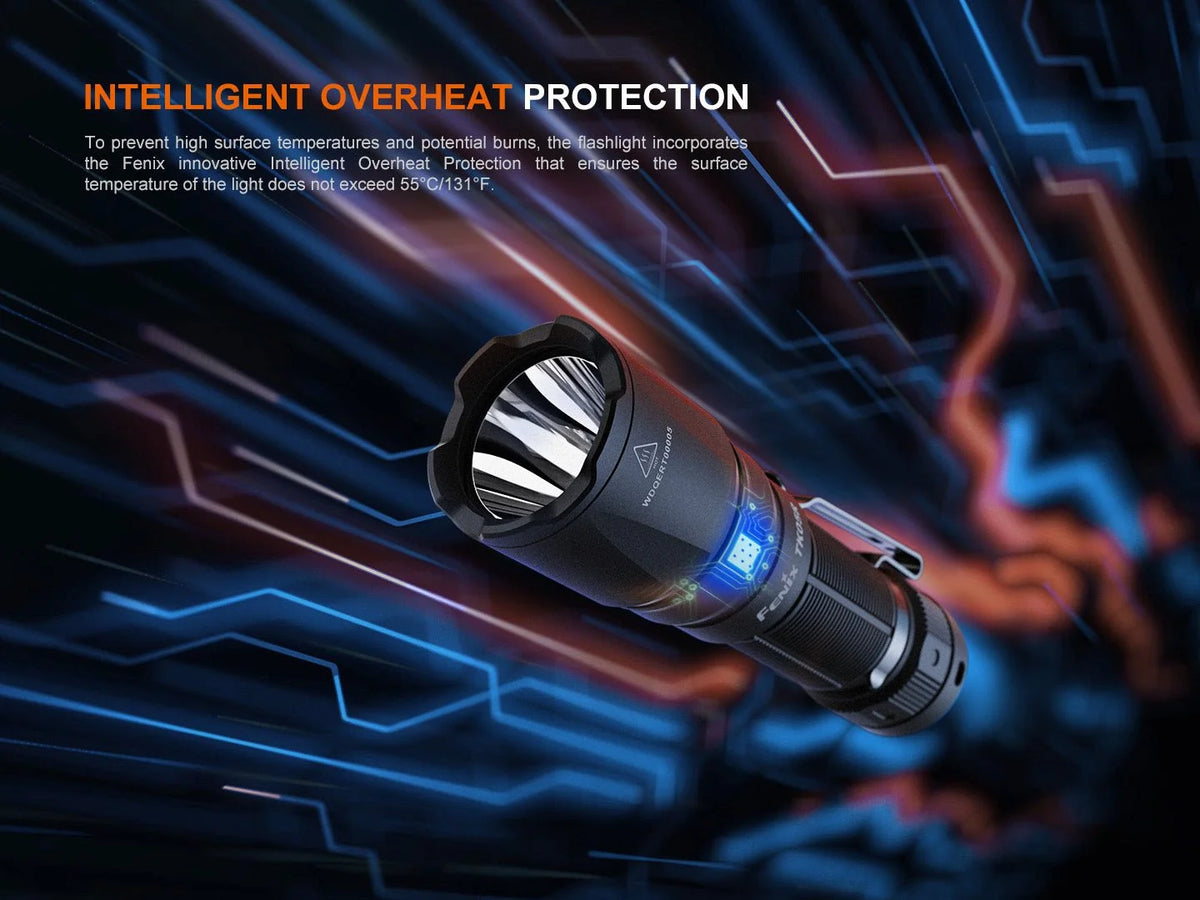

• Battery level indication, low-voltage warning and intelligent overheat protection.
• A6061-T6 aluminum body with a HAIII hard-anodized finish.

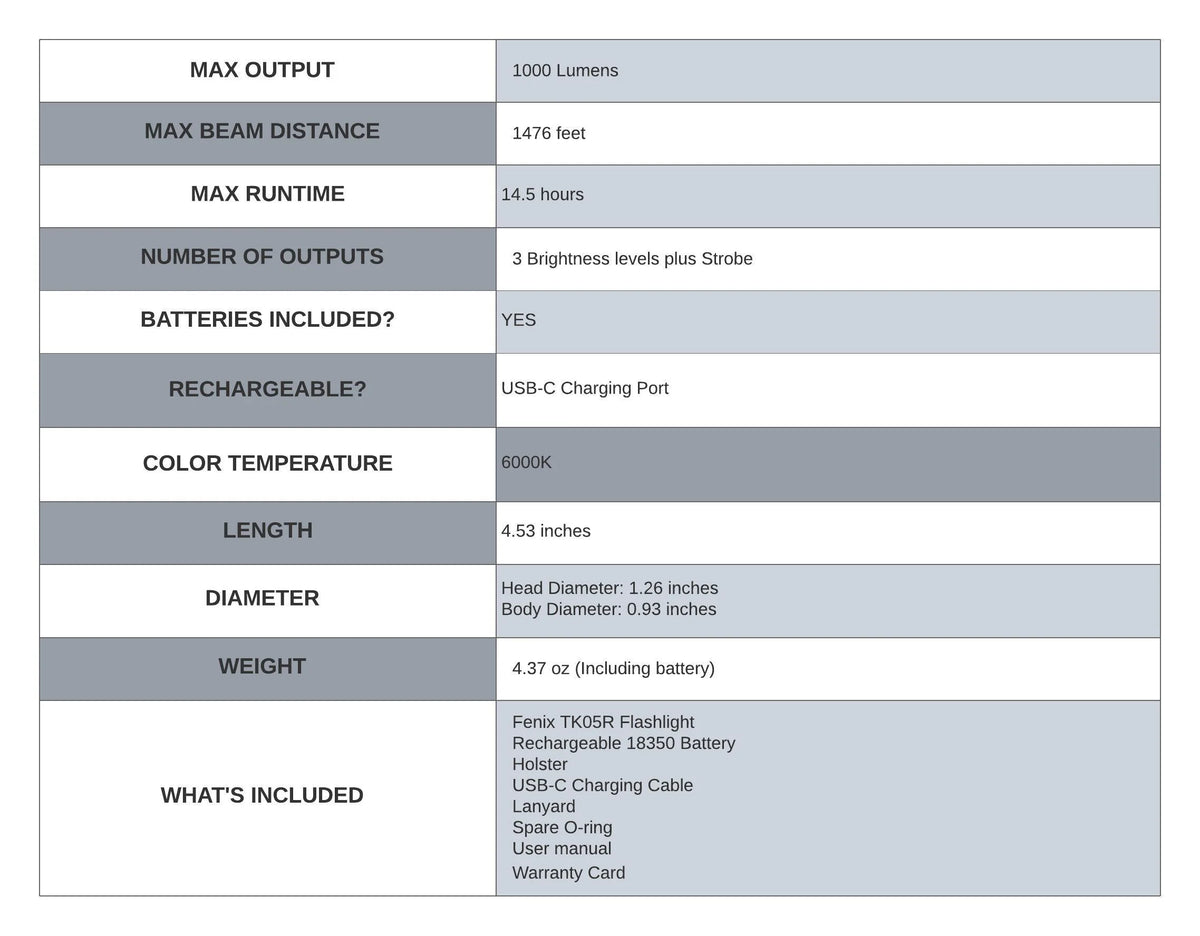

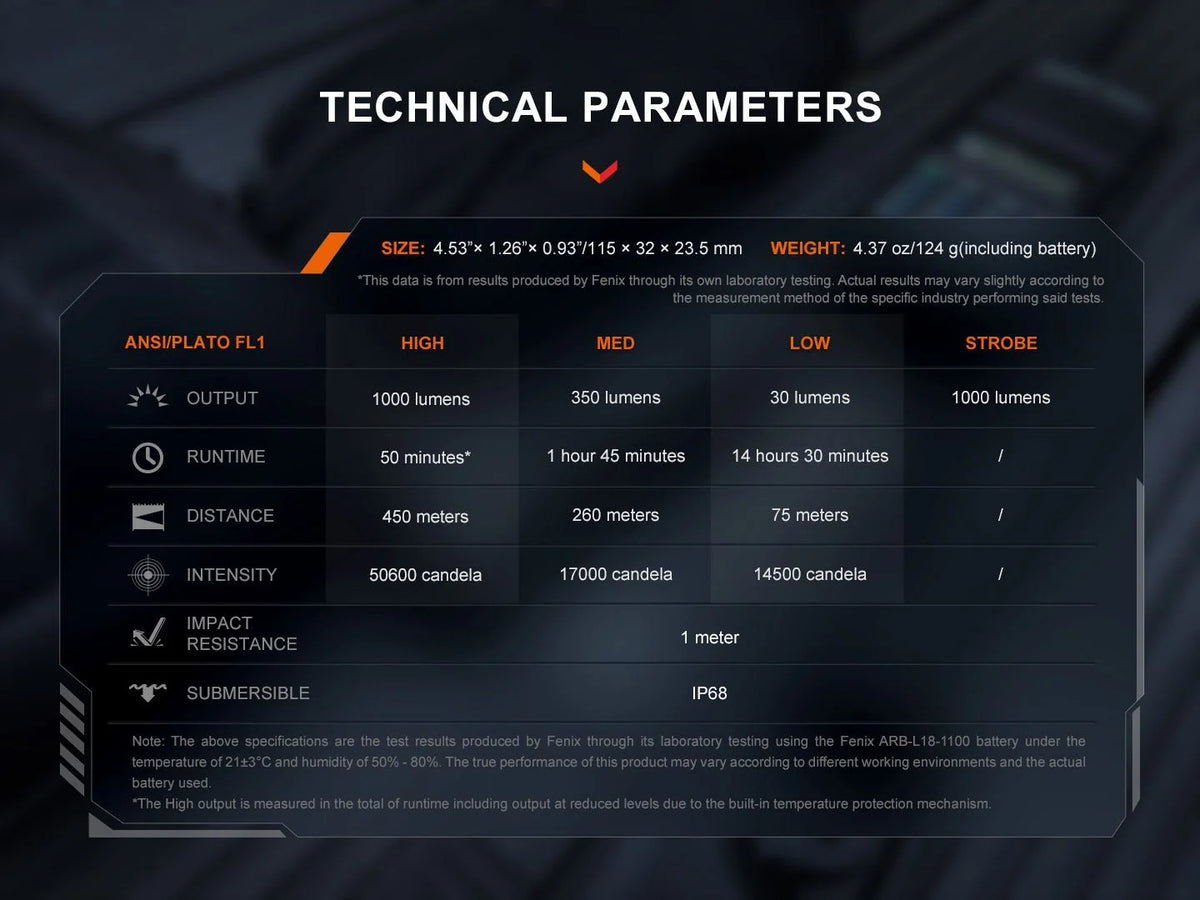

Specifications

• Model: TK05R.
• Operating voltage: 3.0–4.2V.
• Dimensions: 115 × 32 × 23.5mm.
• Weight: 99g excluding the battery; 124g including the battery.
• Protection: IP68 rating and 1m impact resistance.

Battery and Charging

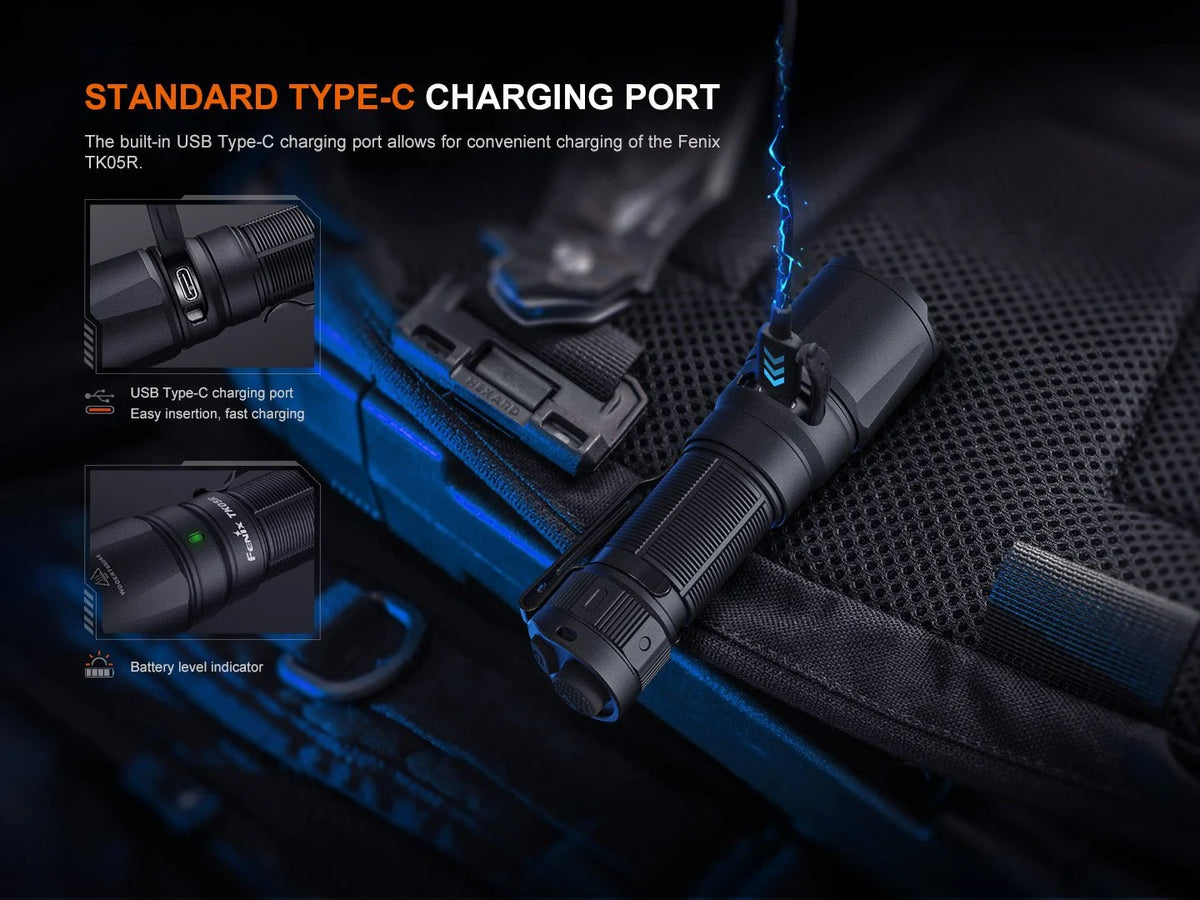

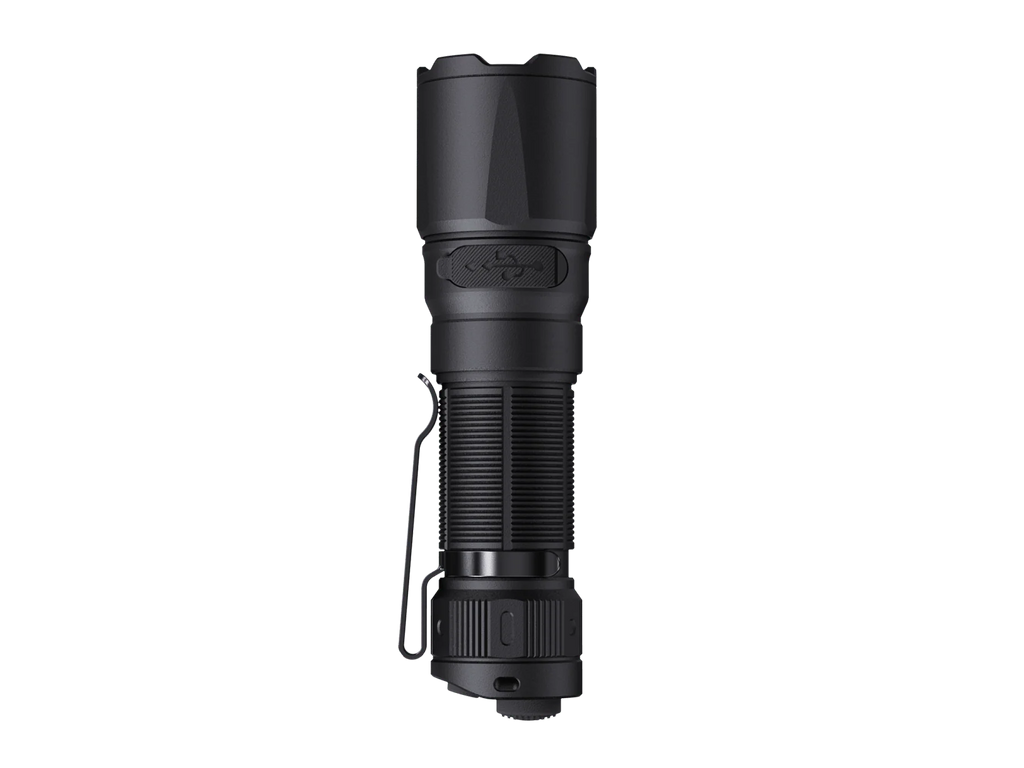

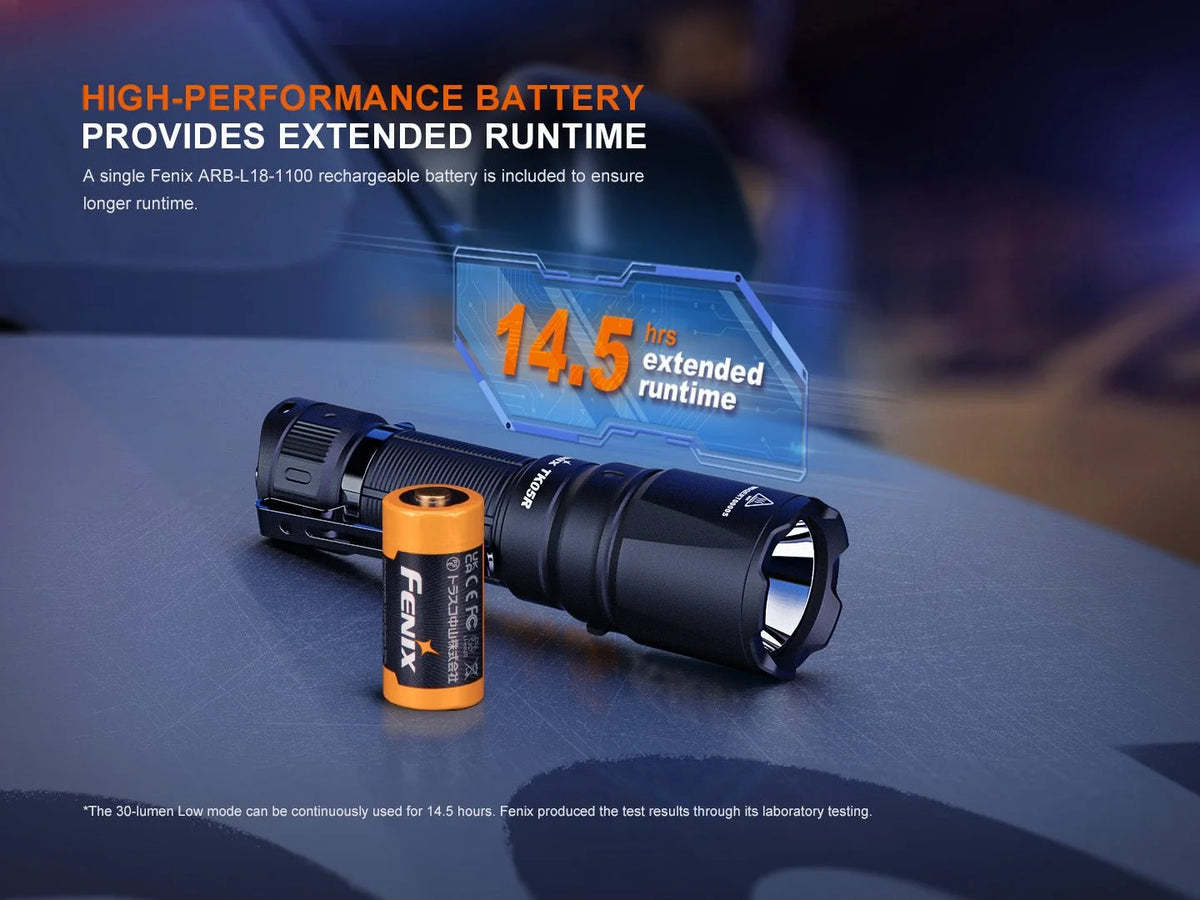

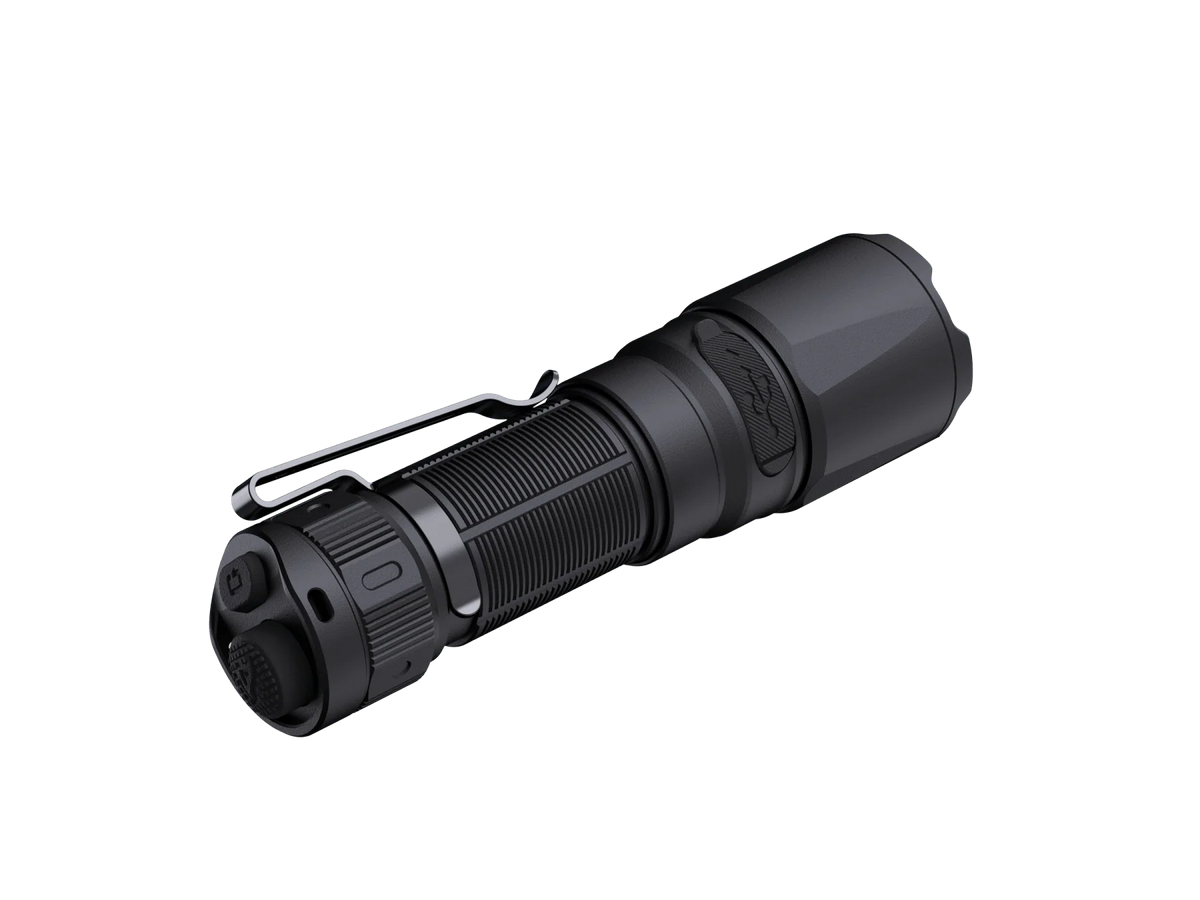

The included ARB-L18-1100 rechargeable battery powers the light. Open the port cover and connect the USB-C cable to the flashlight. The indicator changes from red to green when charging finishes; close the cover after disconnecting. The flashlight cannot operate while charging. Never charge the flashlight with a non-rechargeable CR123A battery installed.

Package Contents

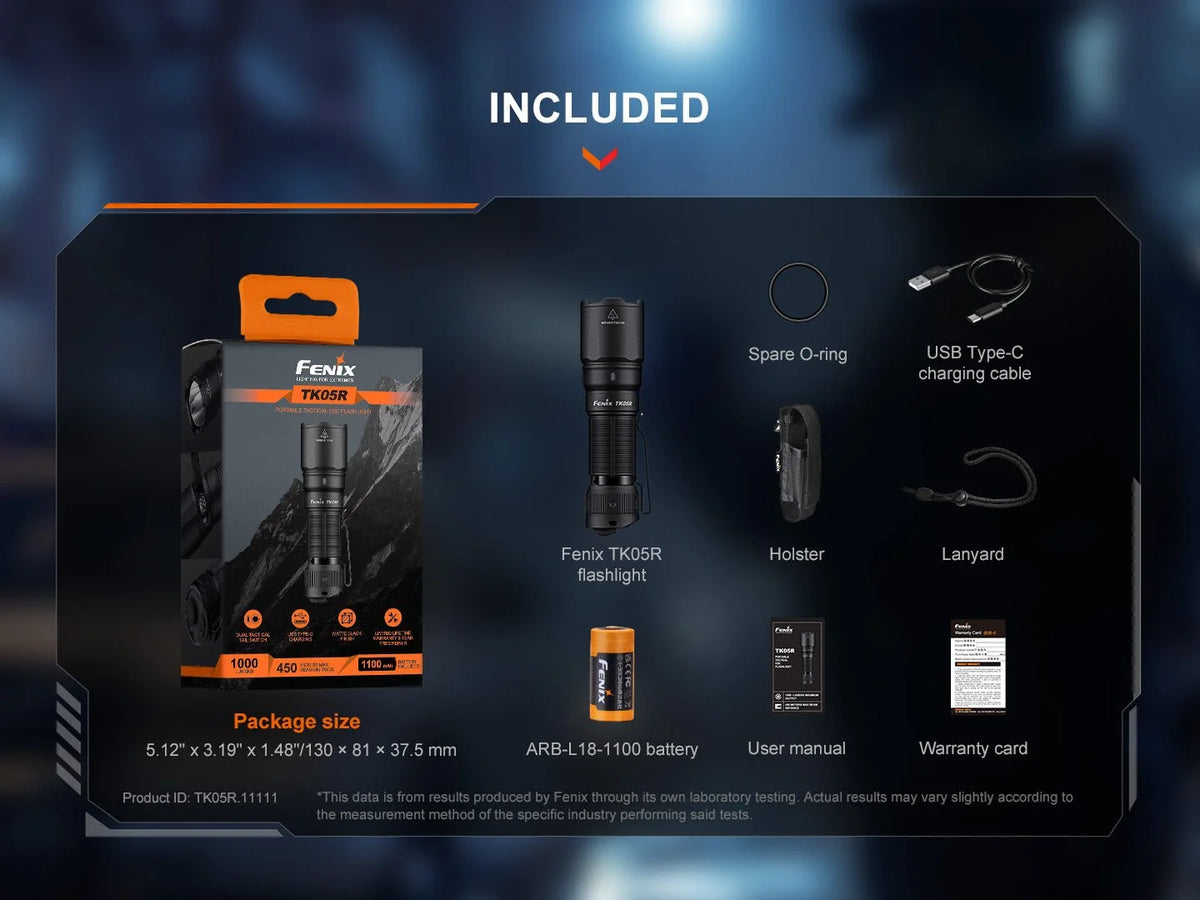

TK05R flashlight, ARB-L18-1100 battery, USB-C charging cable, lanyard, holster, spare O-ring, user manual and warranty card.

Care

Do not shine the light into eyes or place its head near flammable objects. The body becomes hot during use. Loosen the tailcap or remove the battery for storage to prevent accidental activation.
