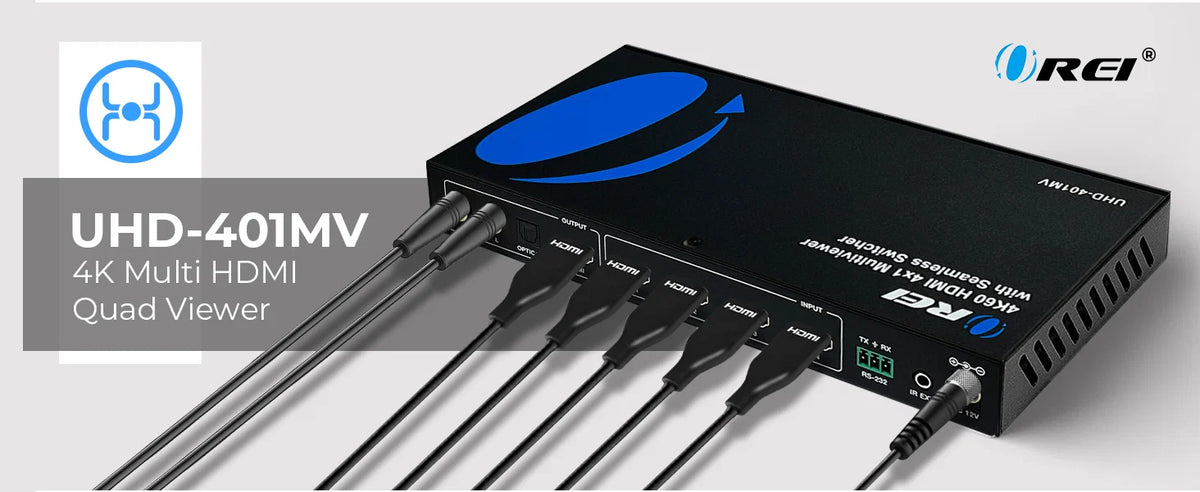

UHD-401MV 4x1 HDMI Multiviewer Switch with 4K 60Hz Video, Eight Display Modes, Audio Extraction and RS-232 Control

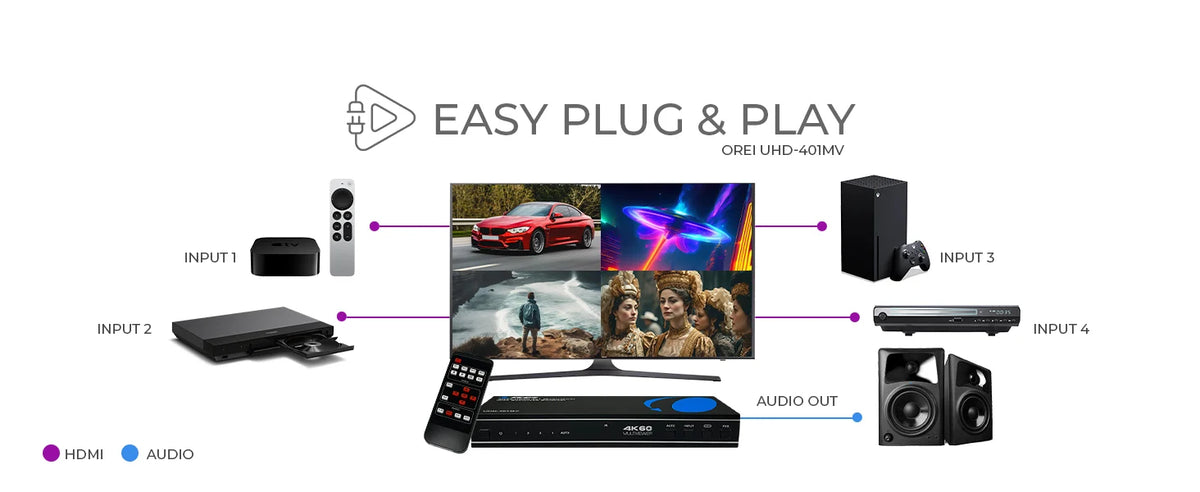

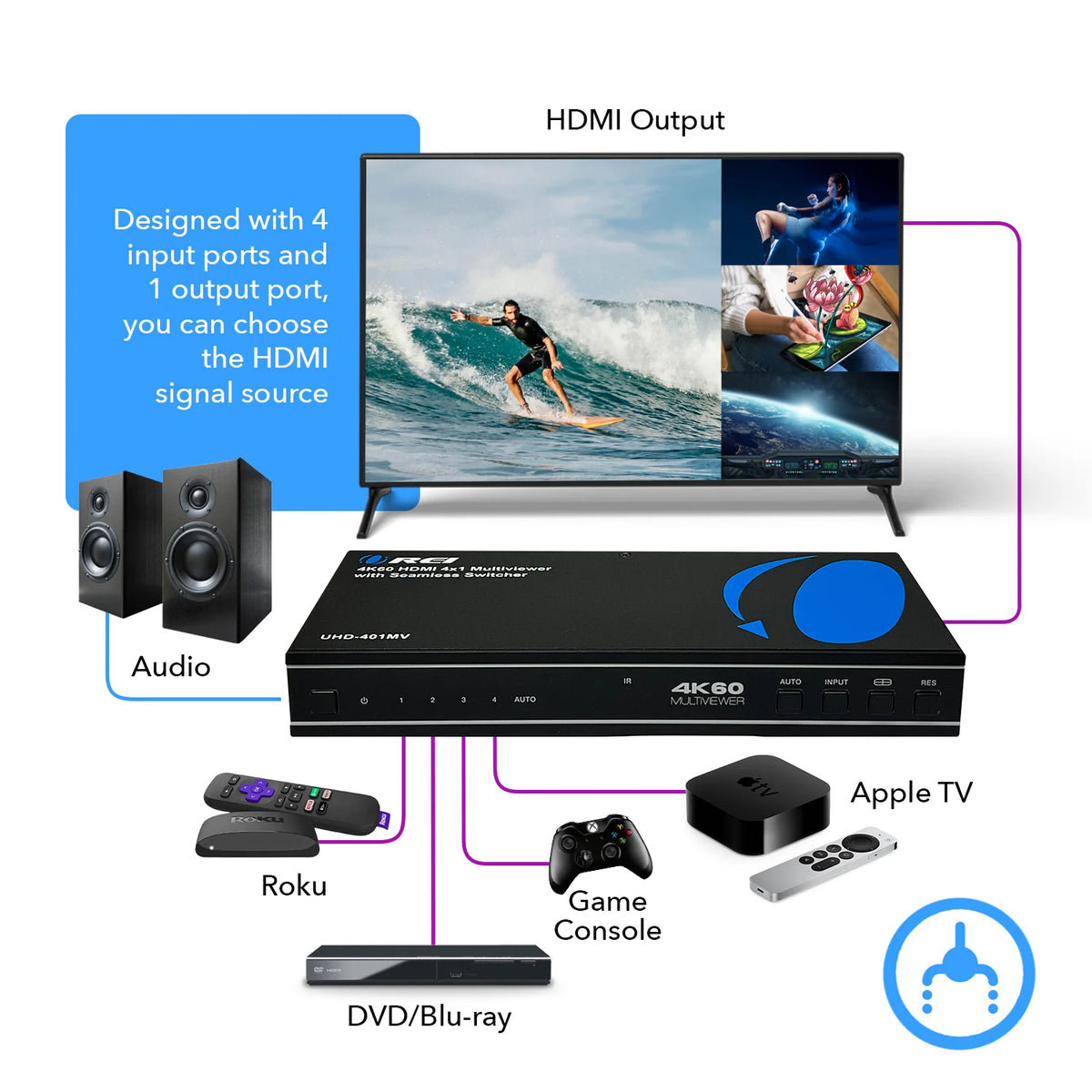

UHD-401MV is a powered 4x1 HDMI multiviewer switch for viewing up to four sources on one display. It supports video up to 4K at 60Hz, eight viewing layouts and audio extraction through analog and optical outputs, with front-panel, IR remote and RS-232 control.

Key Features

• Four HDMI inputs and one HDMI output using Type A 19-pin female connectors.
• Video up to 4K at 60Hz or 2K at 60Hz, with 18Gbps bandwidth.

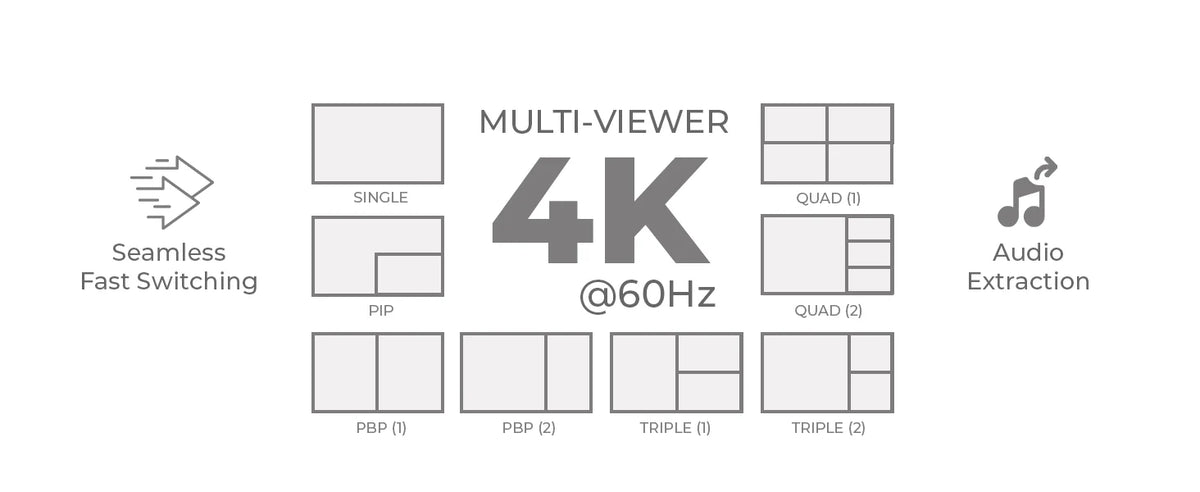

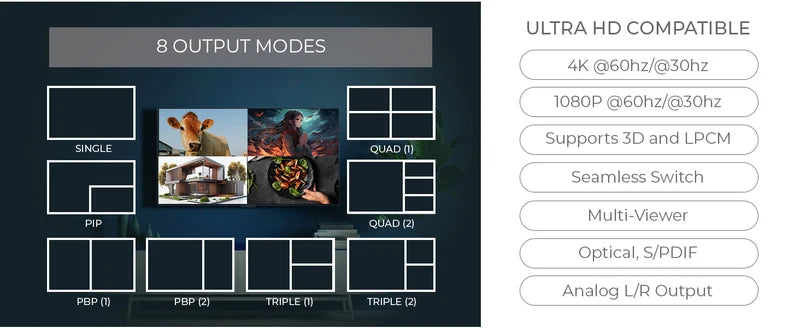

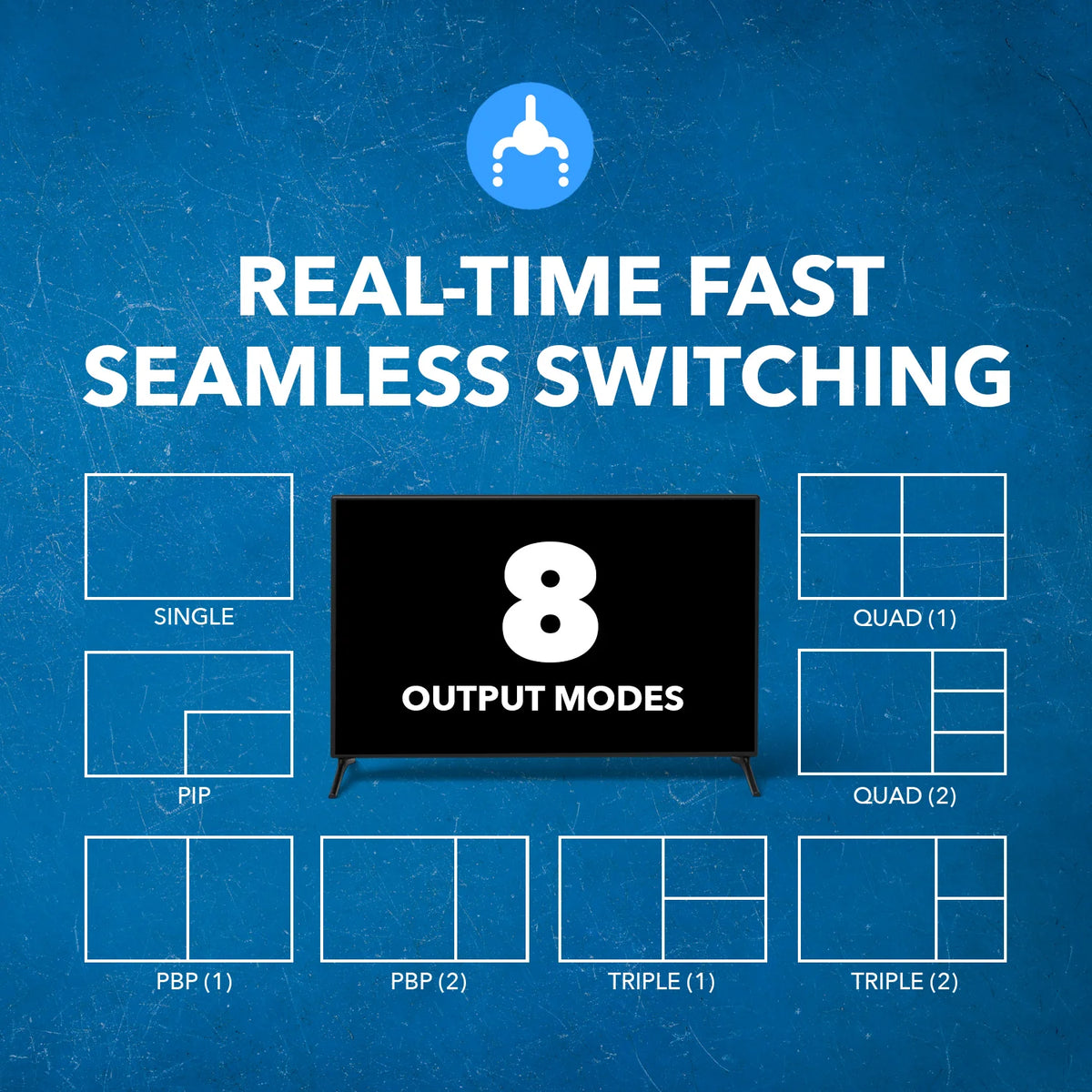

• Eight display modes, including full-screen, dual, quad and picture-in-picture layouts.
• Seamless source switching, EDID management and an on-screen menu.

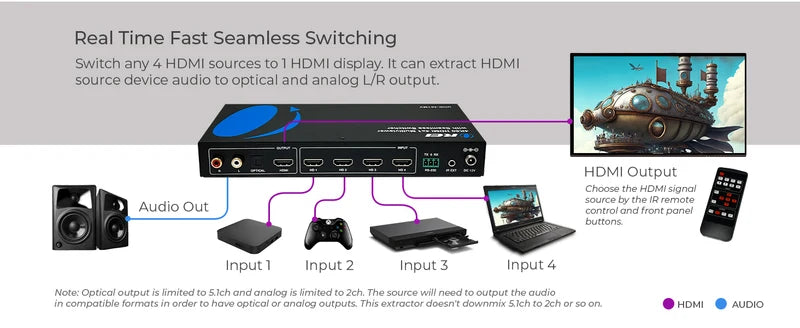

• Analog audio output for PCM 2.0 and optical S/PDIF for PCM 2.0, Dolby Digital and DTS 5.1.
• HDMI audio support includes PCM 2.0/5.1/7.1, Dolby Digital/Plus, DTS and DTS High Res. HBR audio is not supported.
• HDMI 2.0b and HDCP 2.2 compatibility; no video downscaling.

Specifications

• Model: UHD-401MV.
• Color: 8-bit, RGB or YCbCr 4:4:4, 4:2:2 and 4:2:0.

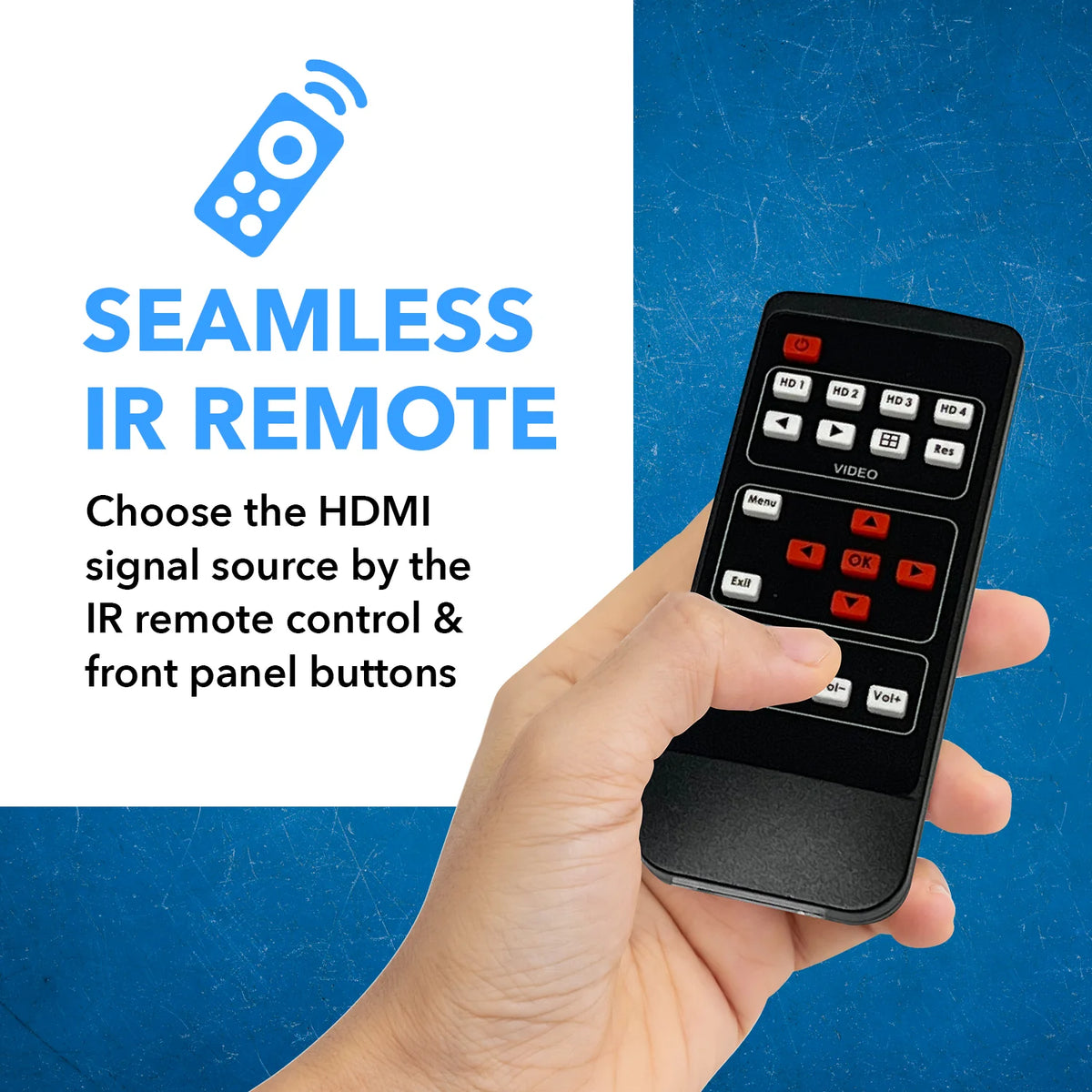

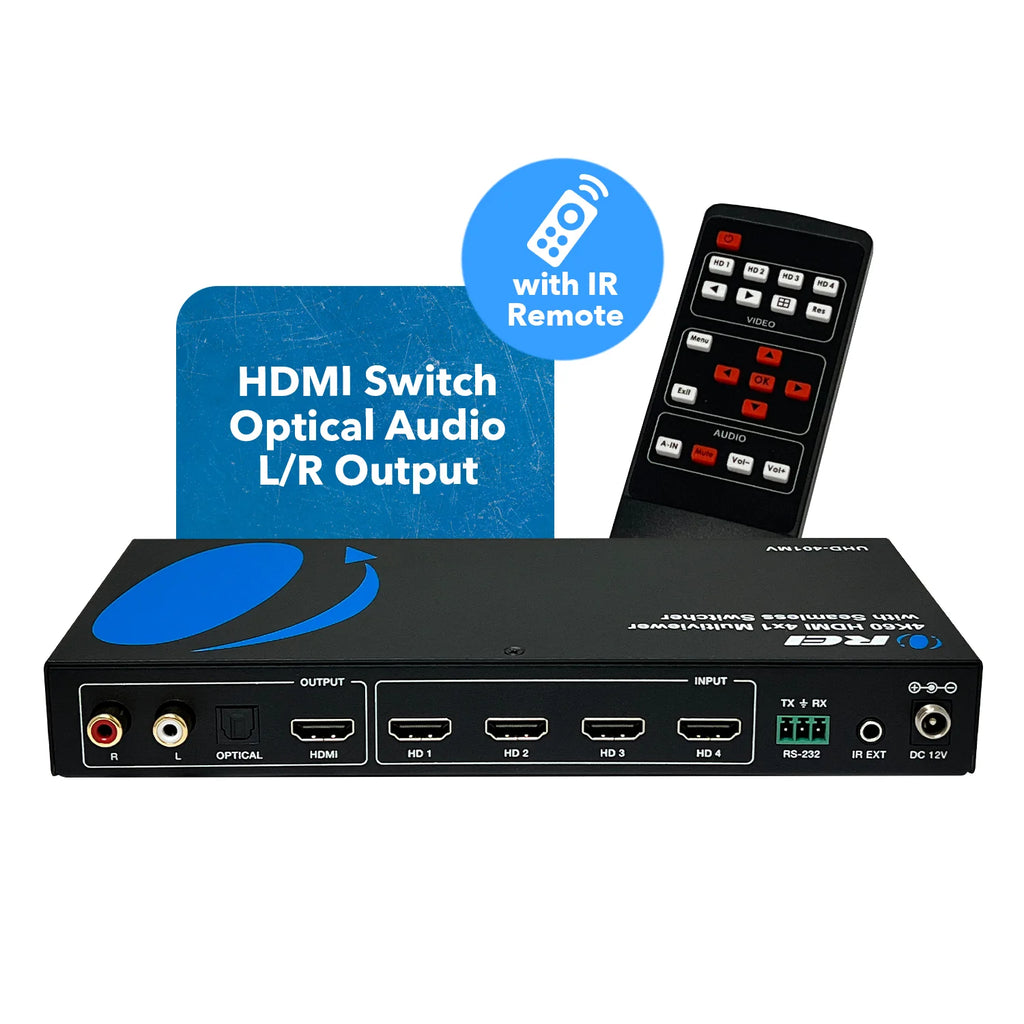

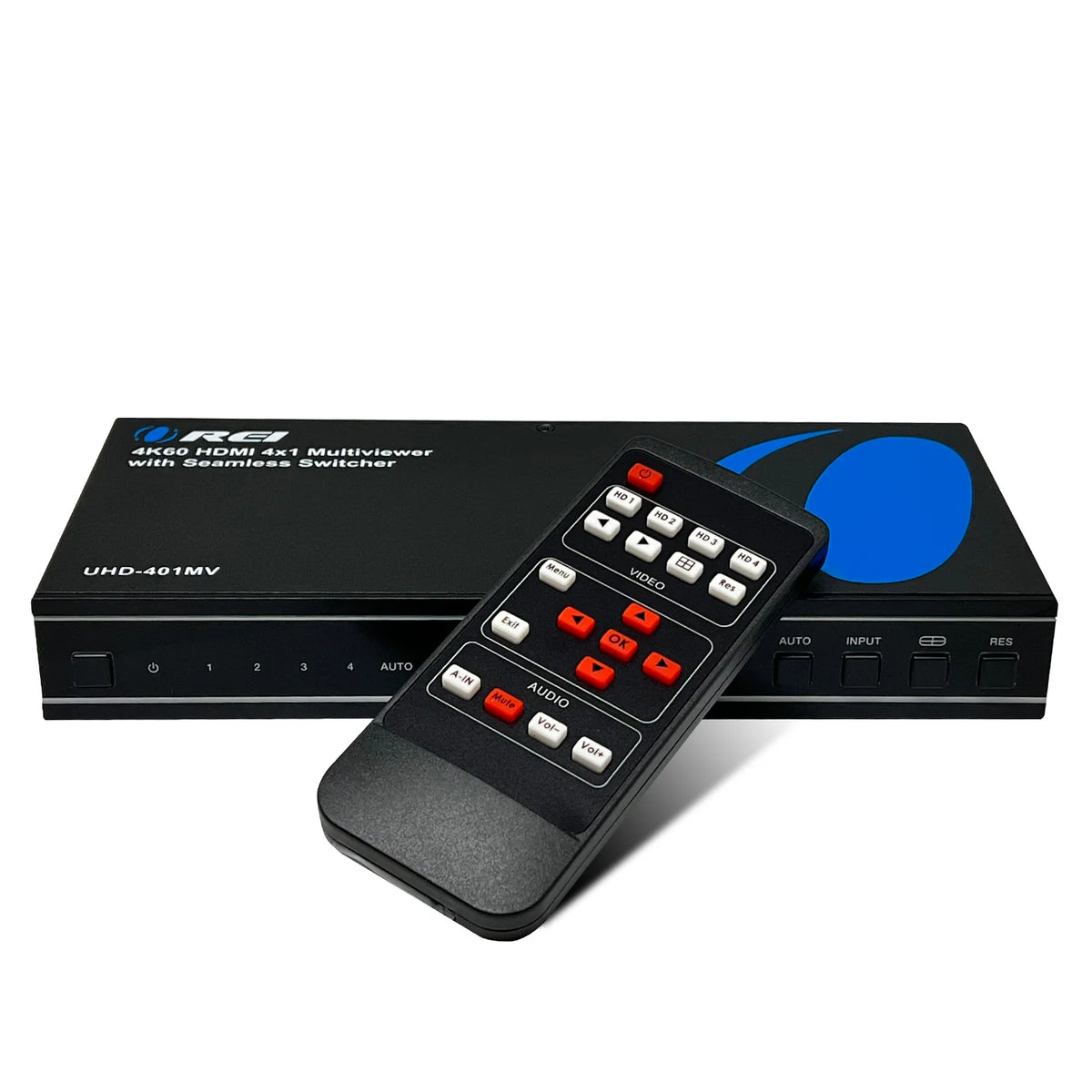

• Control: front-panel buttons, included IR remote or RS-232 through a 3-pin 3.81mm Phoenix connection.
• Supplied locking adapter: AC 100–240V, 50/60Hz input; DC 12V/2.5A output.
• Maximum power consumption: 10W.

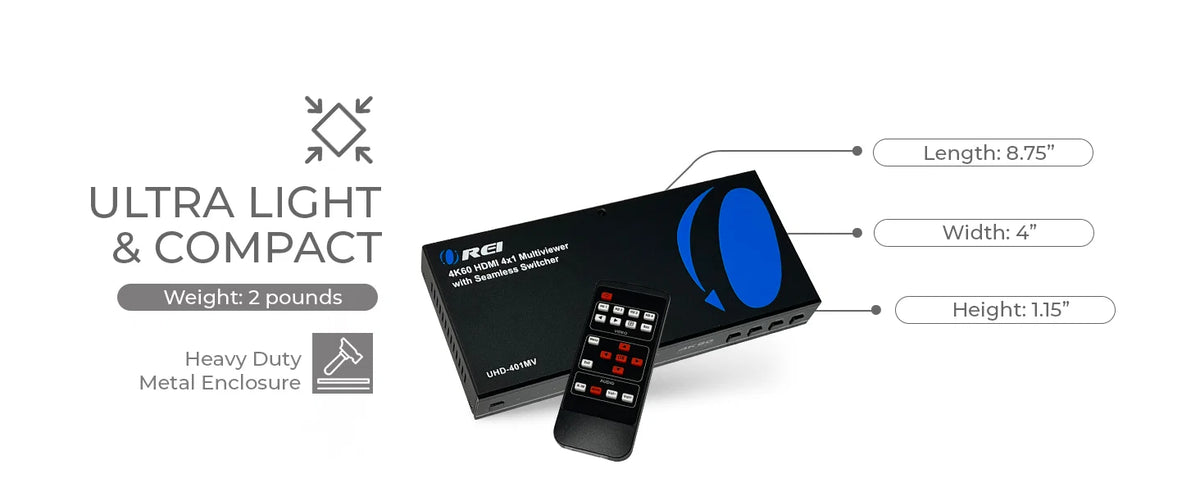

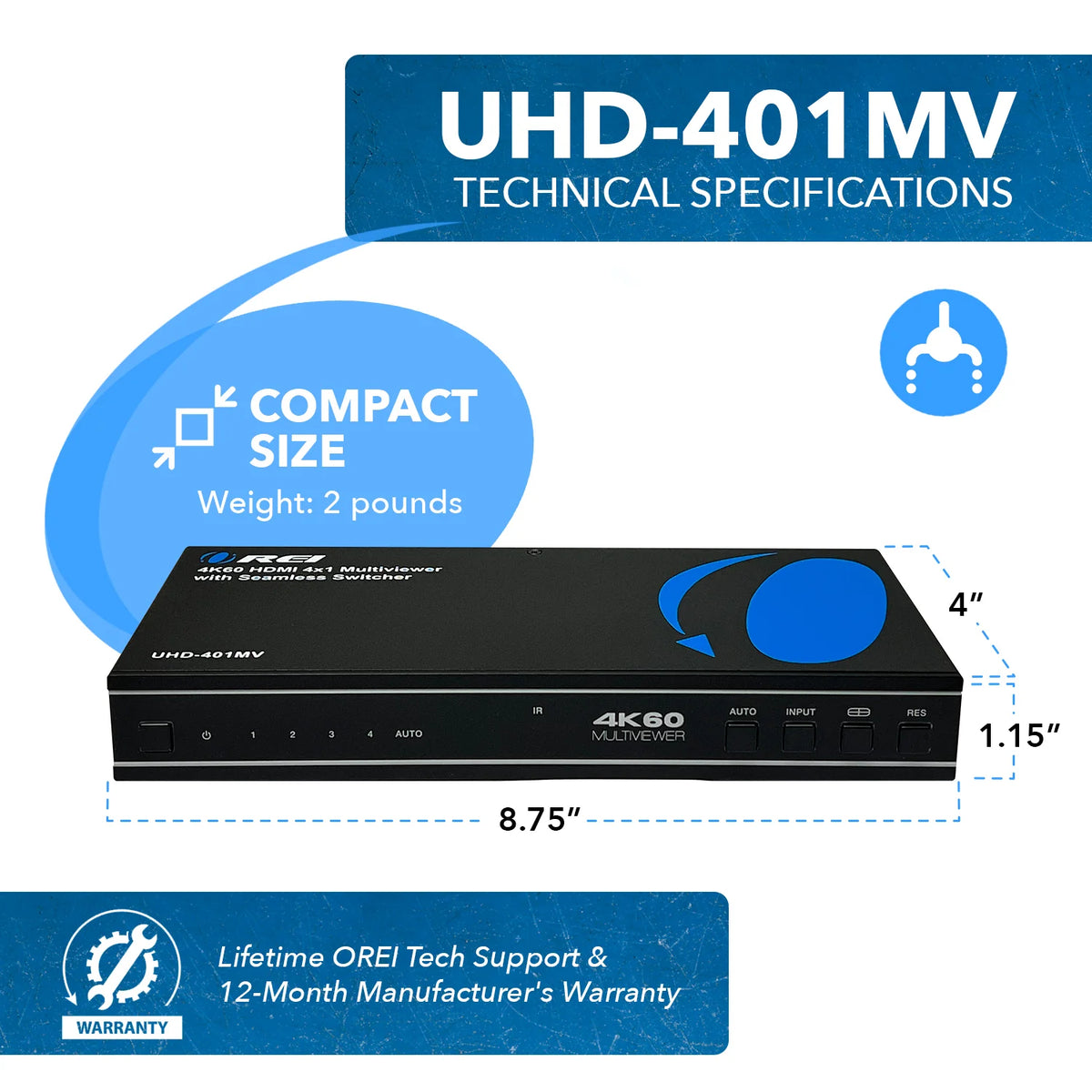

• Dimensions: 220 × 100 × 30mm. Weight: 620g.

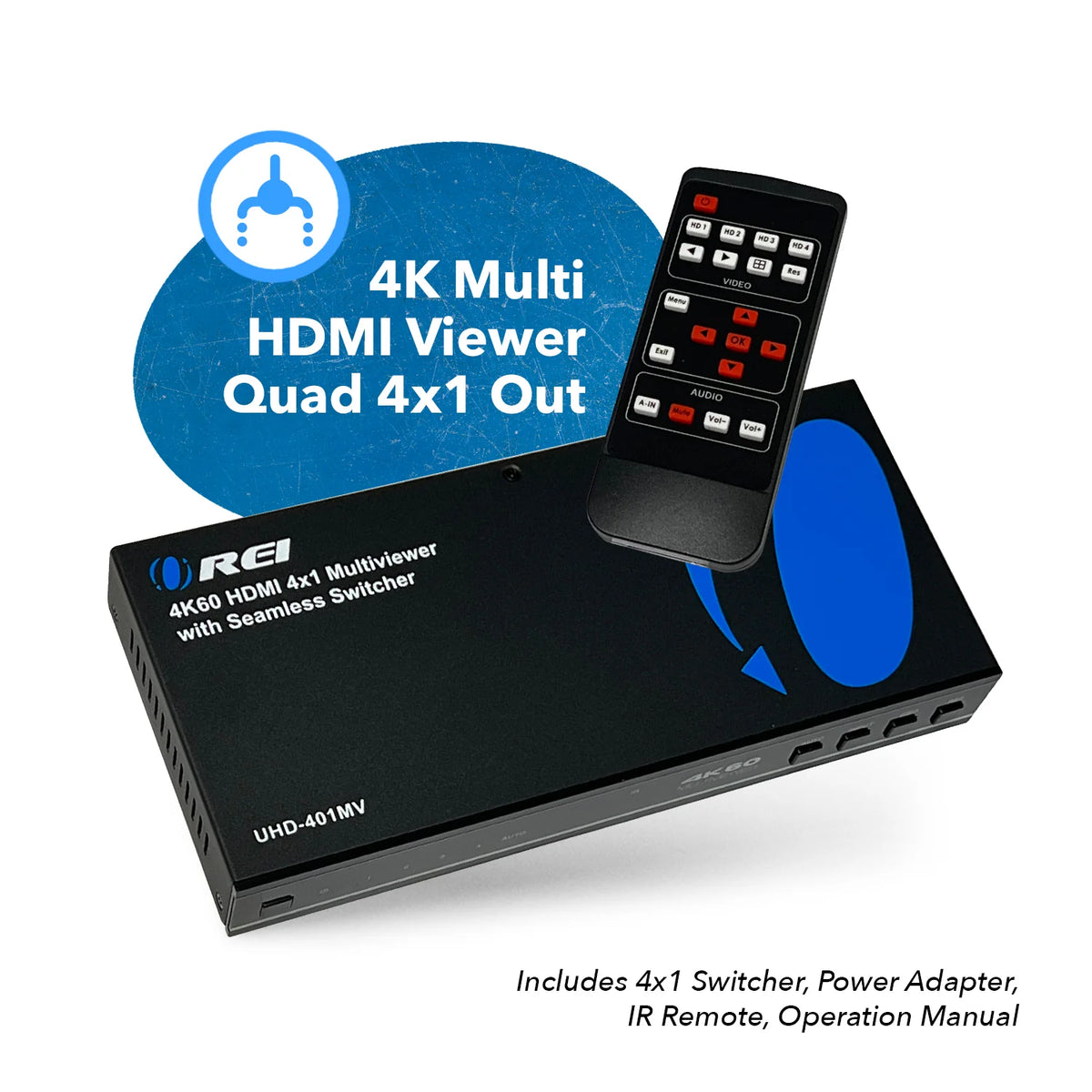

• Included: one multiviewer switch, one IR remote, one male 3-pin 3.81mm Phoenix connector, one 1.5m 38kHz IR receiver cable, two mounting ears, four KM3×4 machine screws, four rubber feet, one locking power adapter and user manual.
