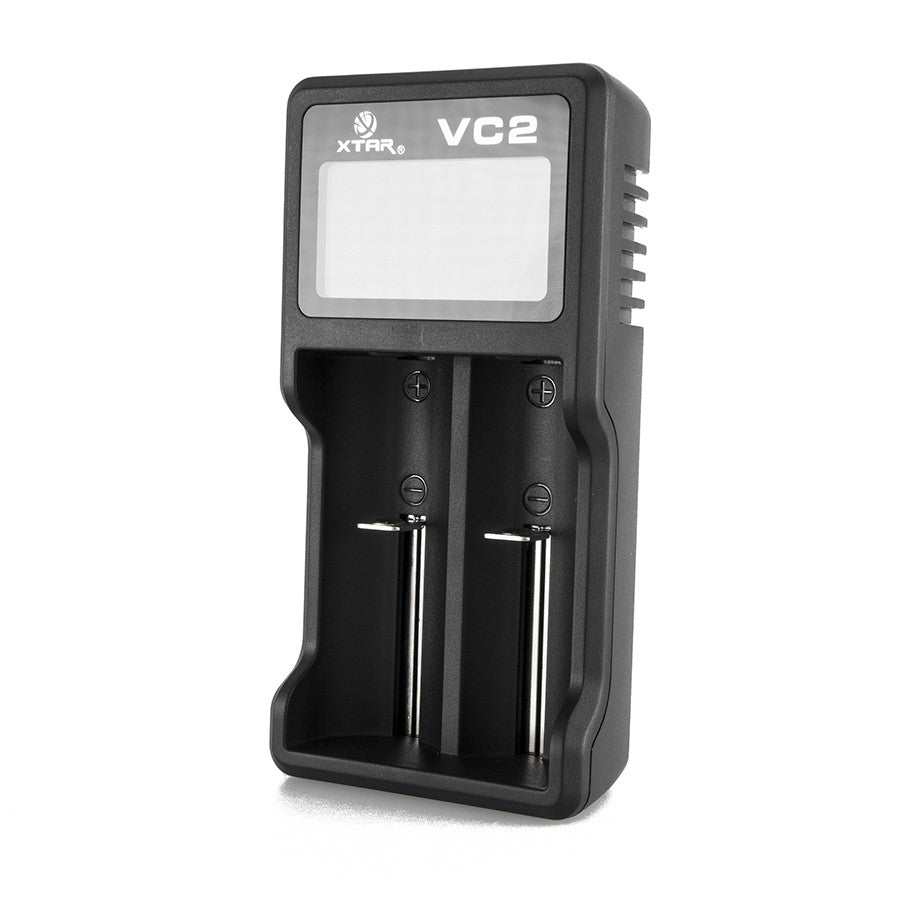

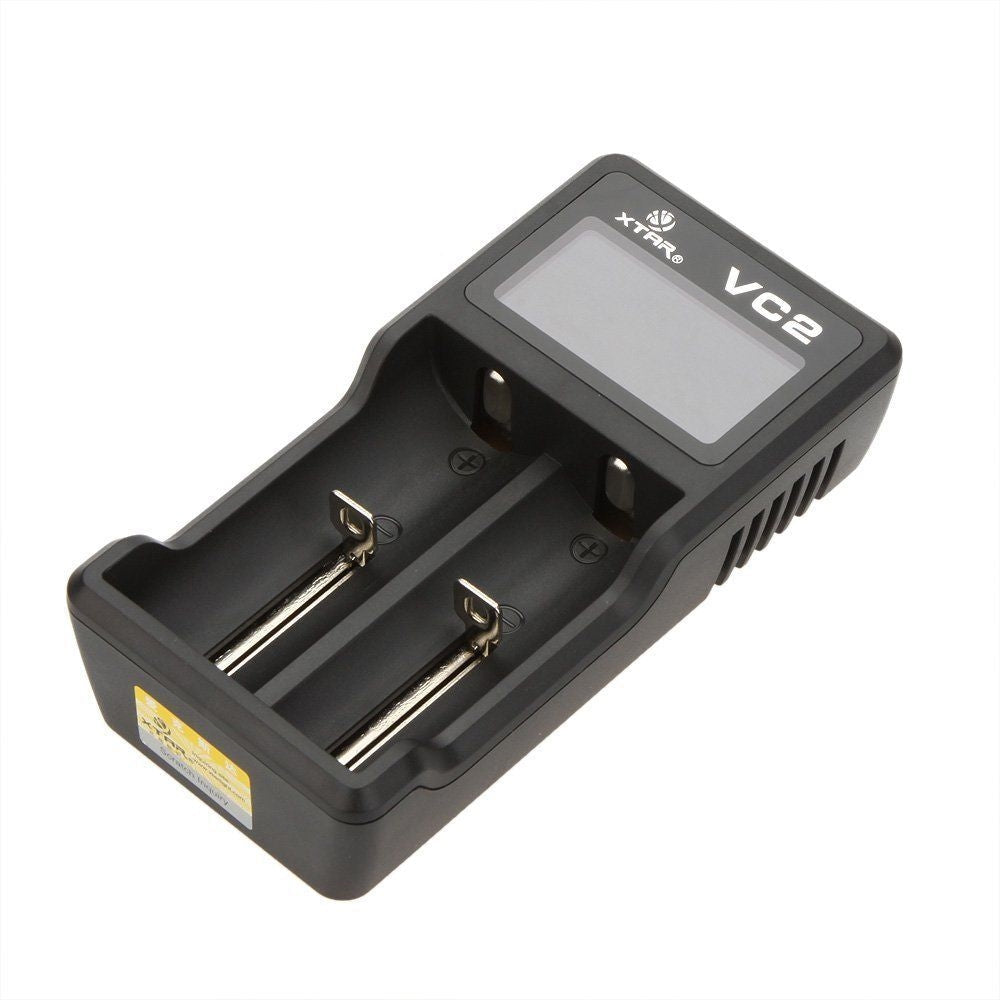

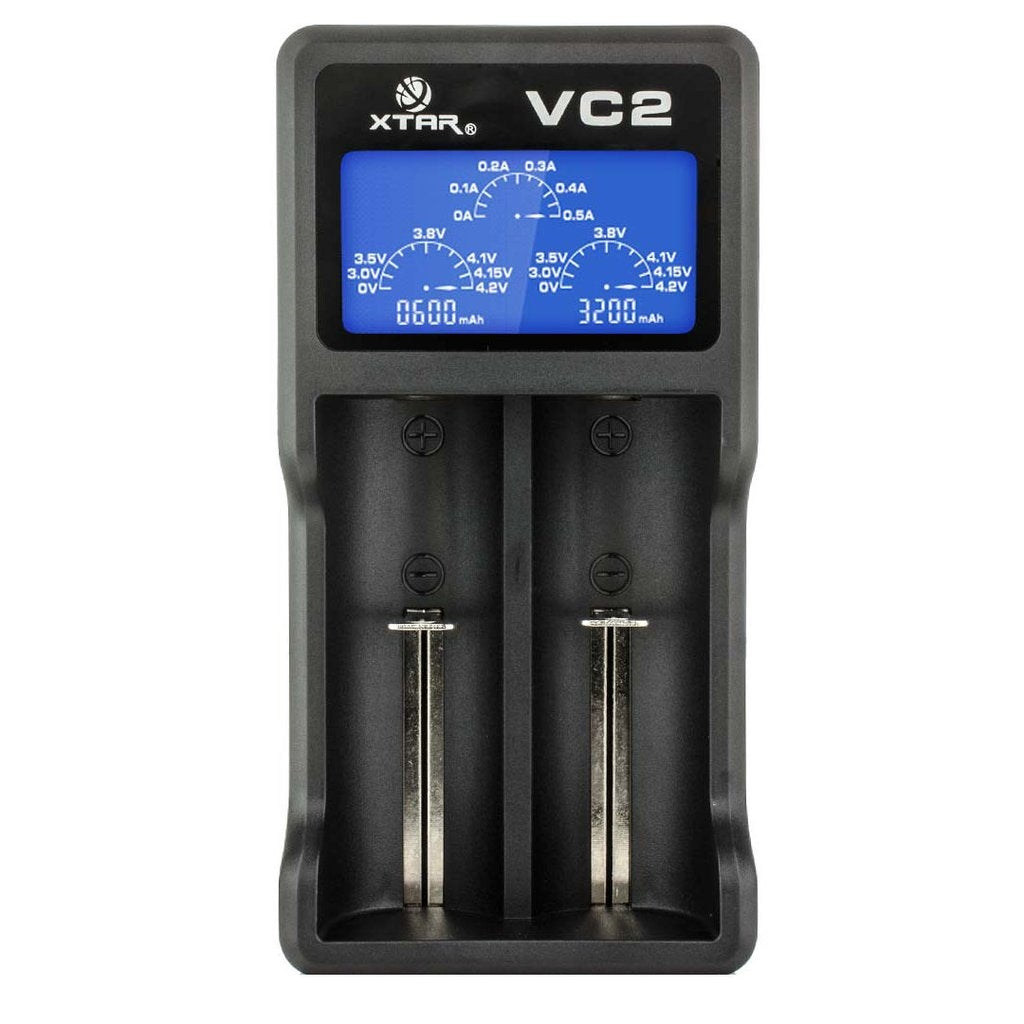

VC2 Two-Bay Lithium-Ion Battery Charger with LCD Charge Readings, USB Cable and Carrying Bag

The XTAR VC2 charges compatible 3.6V or 3.7V cylindrical lithium-ion cells in two independent bays. Its LCD shows charging current, battery voltage and accumulated charge capacity.

Key Features

• Two independent channels, each charging at 0.5A.

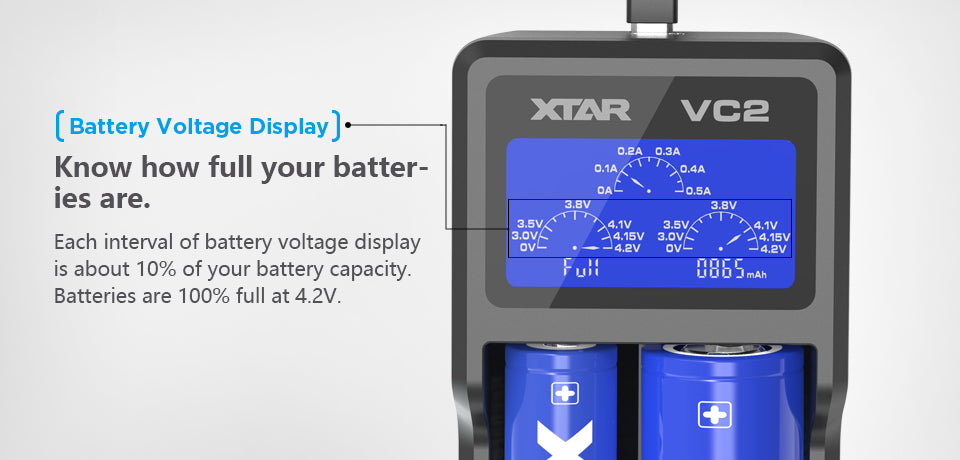

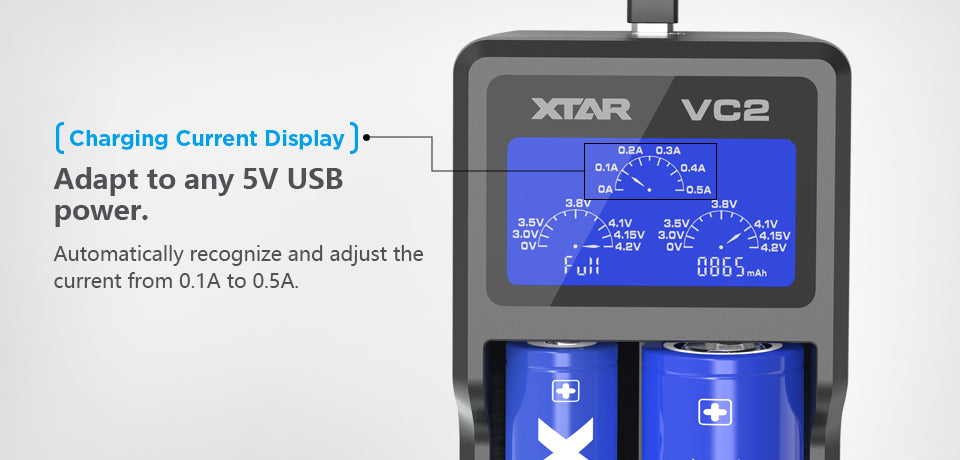

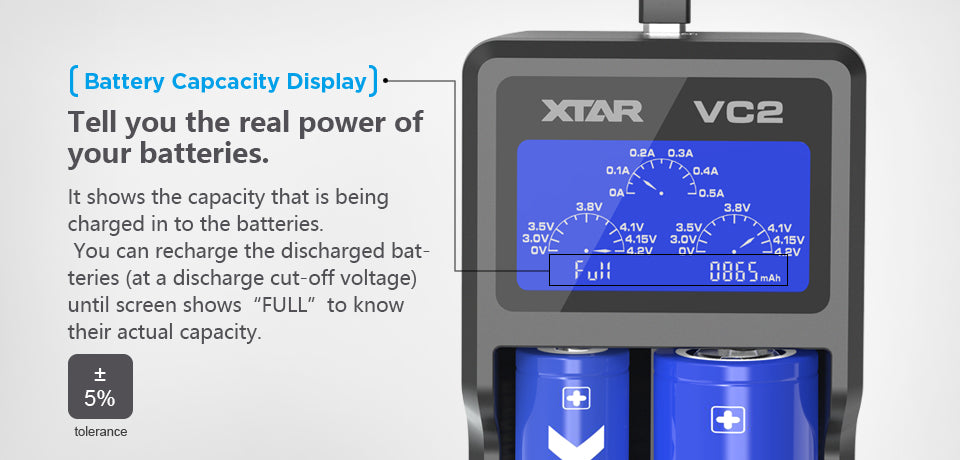

• LCD readings for current, voltage and charge capacity.
• Automatic charge-mode selection and charging termination.
• Reverse-polarity and overcharge protection.
• Independent channels support charging compatible cells of different sizes together.

Specifications

• Model: VC2. SKU: Xtar-VC2.
• Input: 5V DC, 1A.
• Charging output: 0.5A per channel.
• Lithium-ion cutoff: 4.2V ±0.05V.

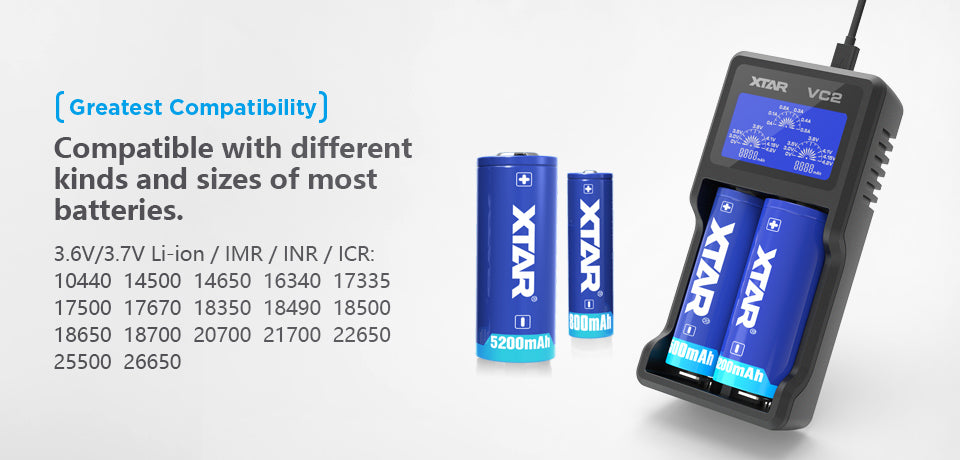

• Supported cells: compatible rechargeable 3.6V/3.7V lithium-ion cylindrical sizes from 10440 to 26650; the source specifically lists 18650, 20700, 21700 and 26650.

Use and Power Requirements

Supply the charger from a compatible 5V DC source and observe battery polarity. Use only compatible rechargeable lithium-ion cells. Do not assume support for other chemistries.

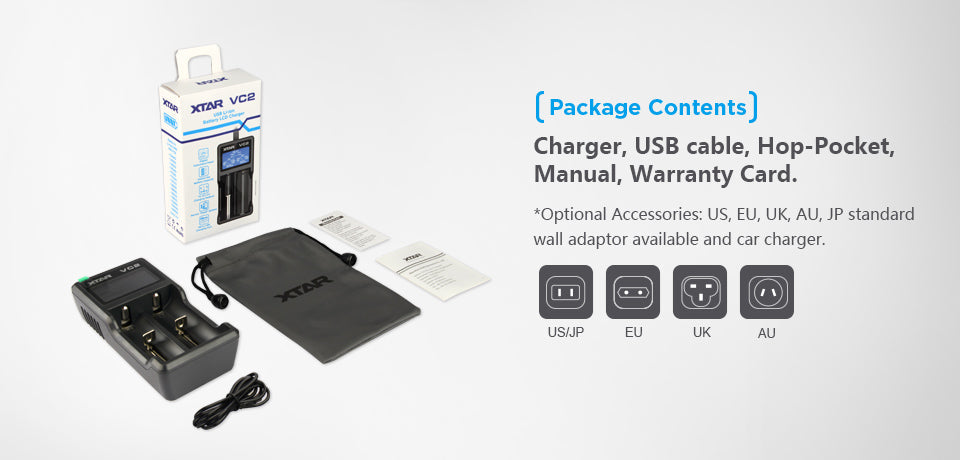

Package Contents

• VC2 charger.

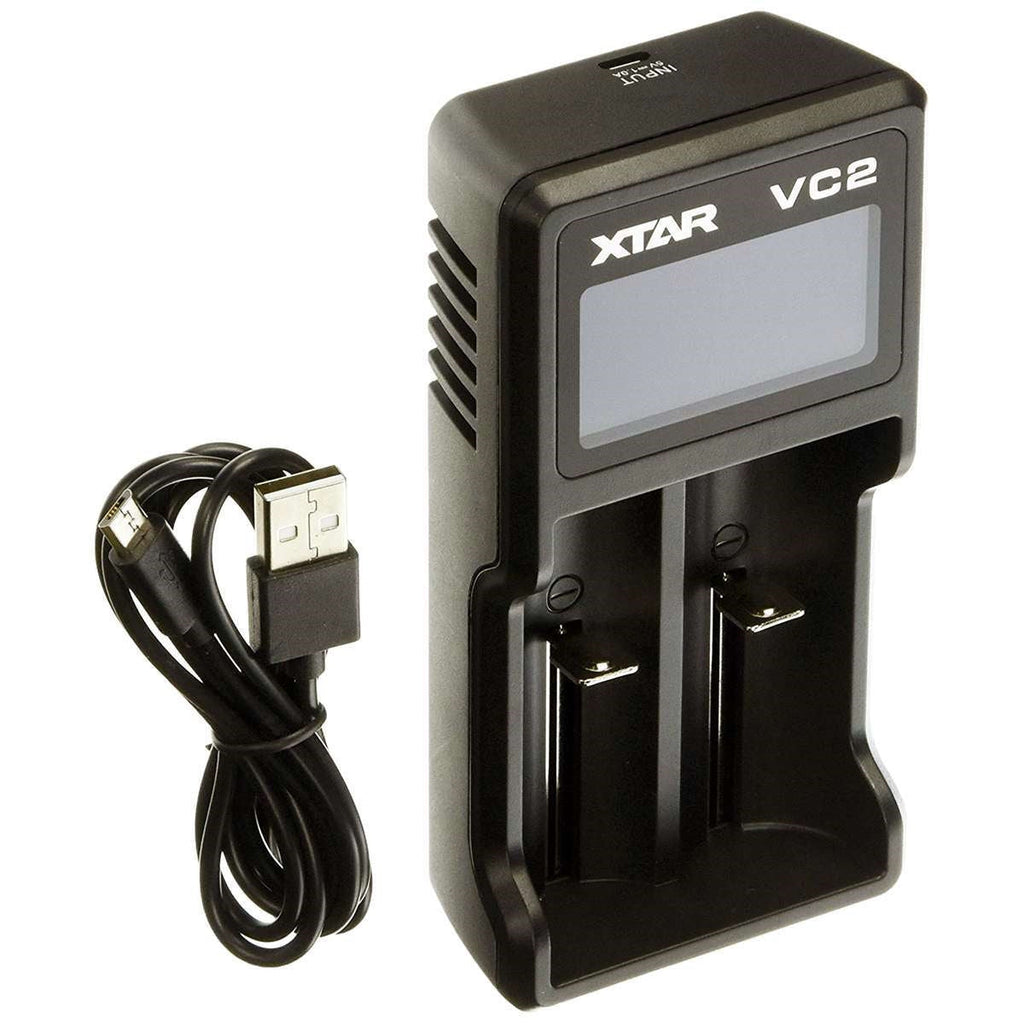

• USB cable and carrying bag.
• Warranty card, user manual and validation serial number.

Battery cells and a separate power adapter are not promised as included.
