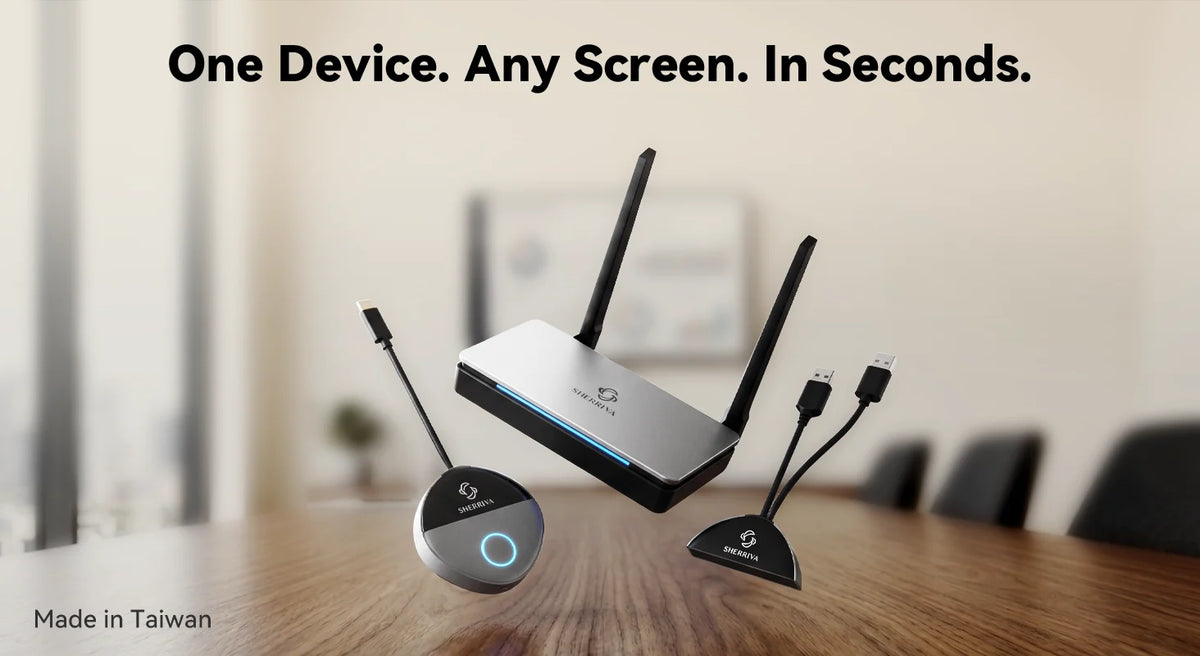

Wireless HDMI and USB-C Presentation System with 1080p60 Screen Sharing, Receiver Kits and Extra Transmitters

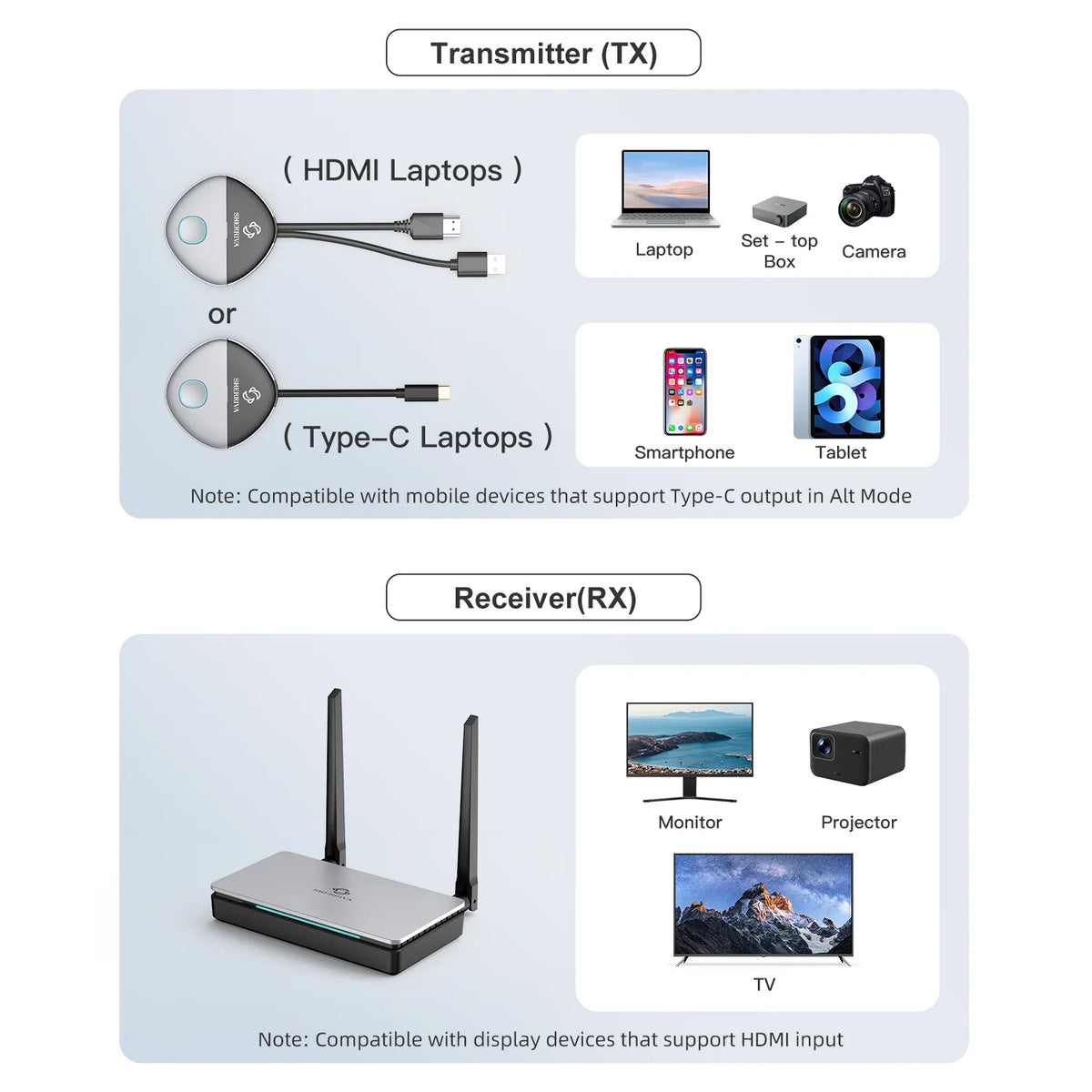

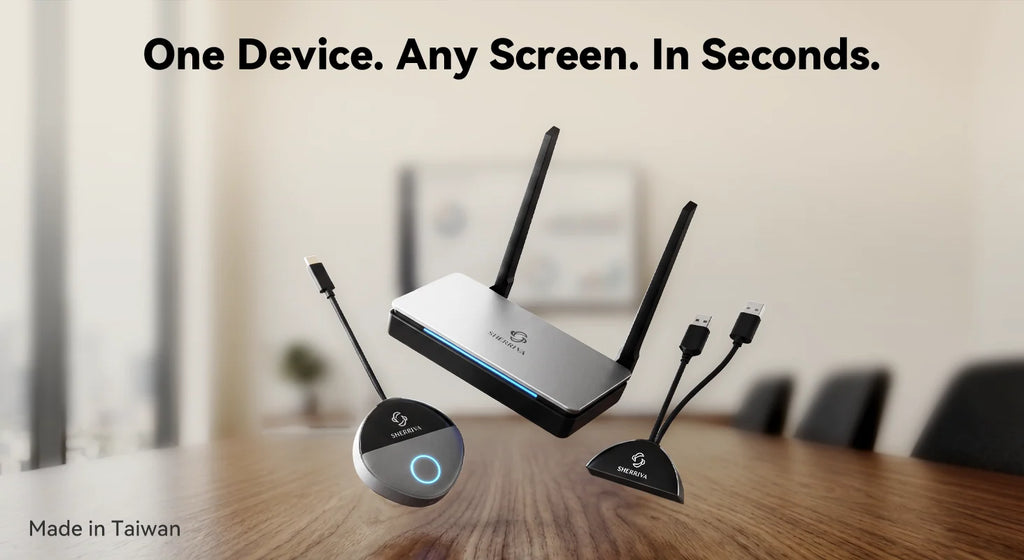

This wireless HDMI and USB-C presentation system shares compatible video sources to a TV, monitor or projector at up to 1080p60. The range includes receiver kits and separate extra transmitters, so select the package that matches your existing equipment.

Key Features

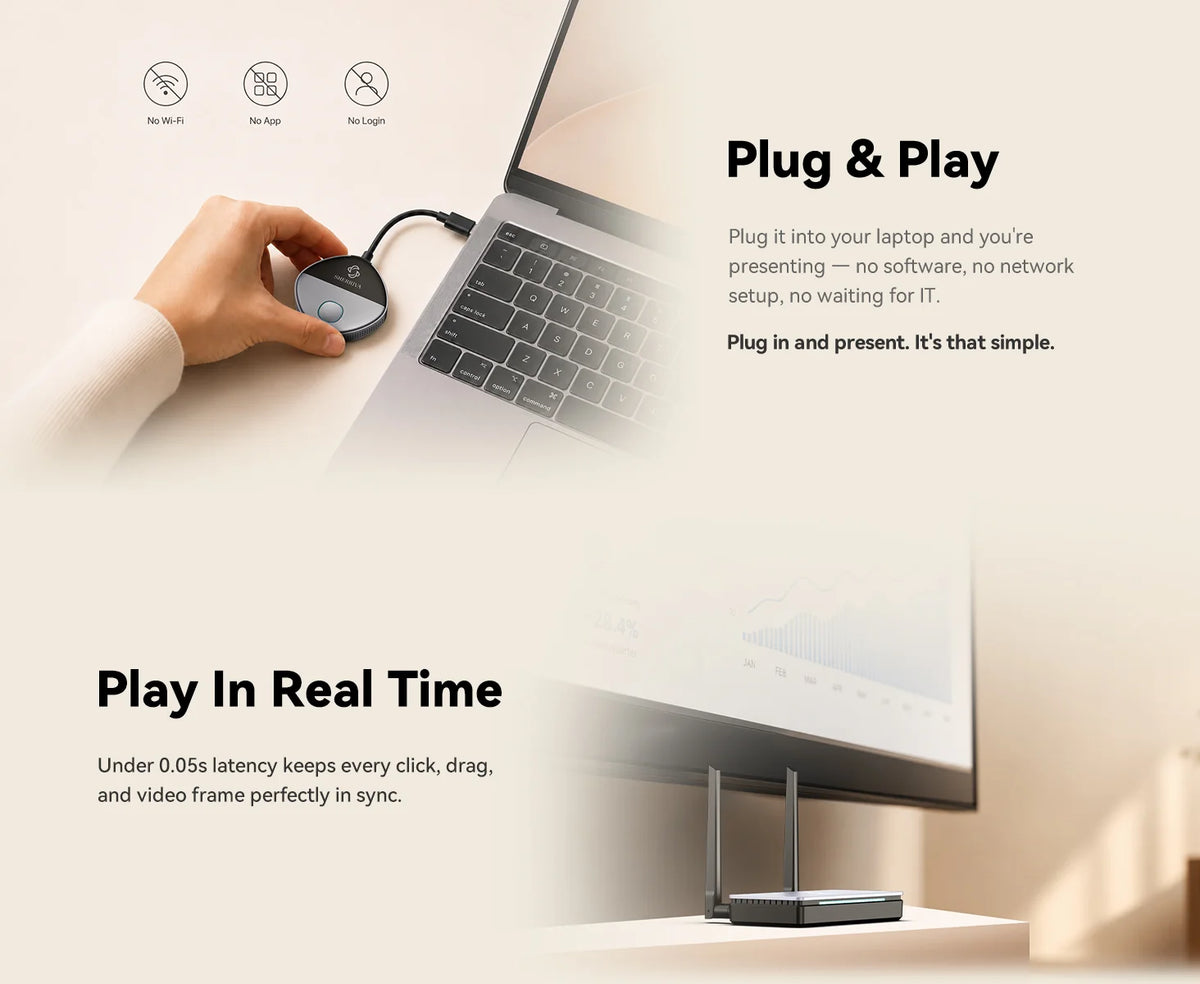

• Mirror a screen or extend a compatible computer desktop without installing an app.
• A transmitter button pauses and resumes sharing.
• Receiver kits support HDMI loop-through and a 3.5mm audio output for external audio equipment.
• Supported receiver casting methods include AirPlay, Miracast and DLNA, subject to device compatibility.
• Up to 32 compatible transmitters can be paired to one receiver for switching presenters; this does not mean 32 simultaneous video outputs.

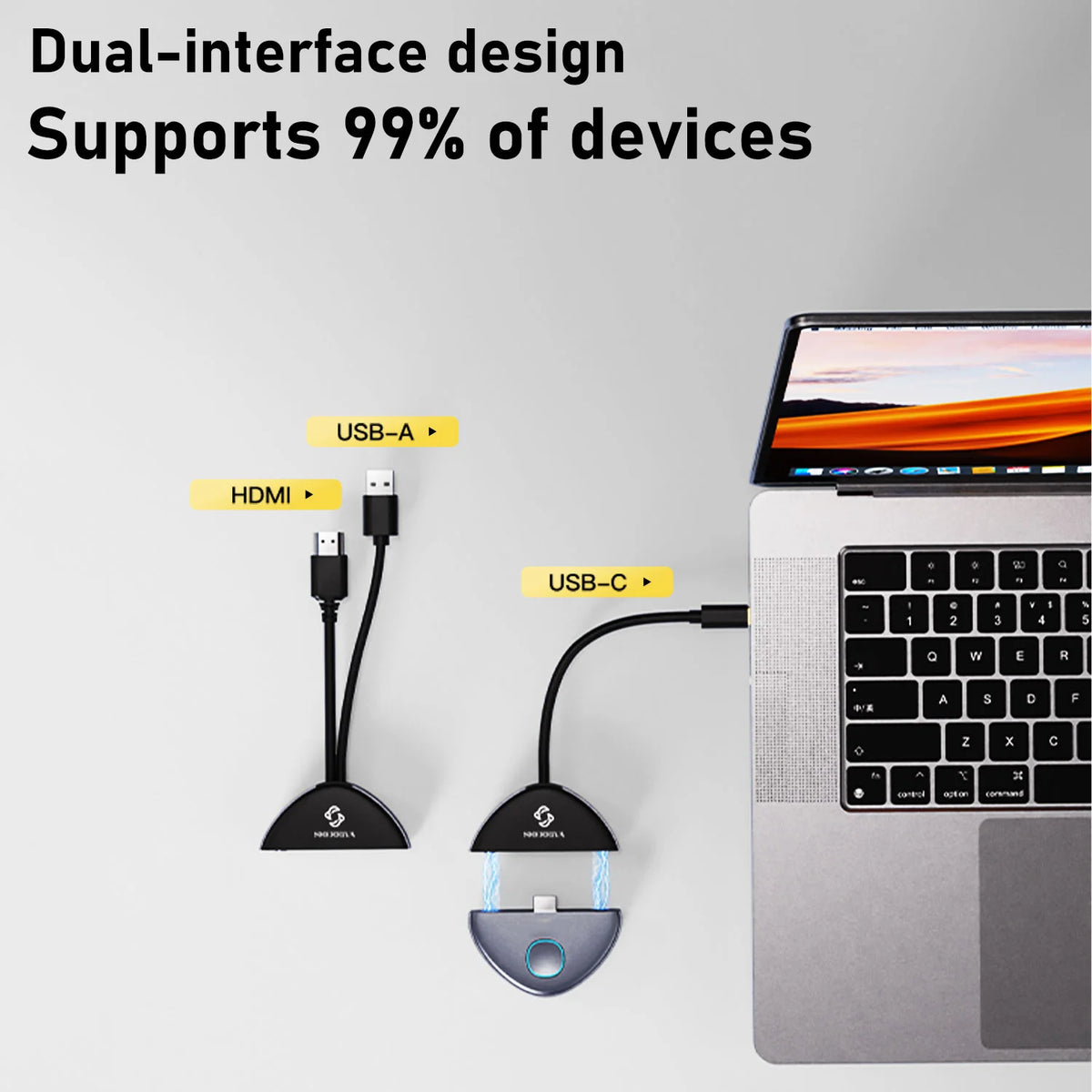

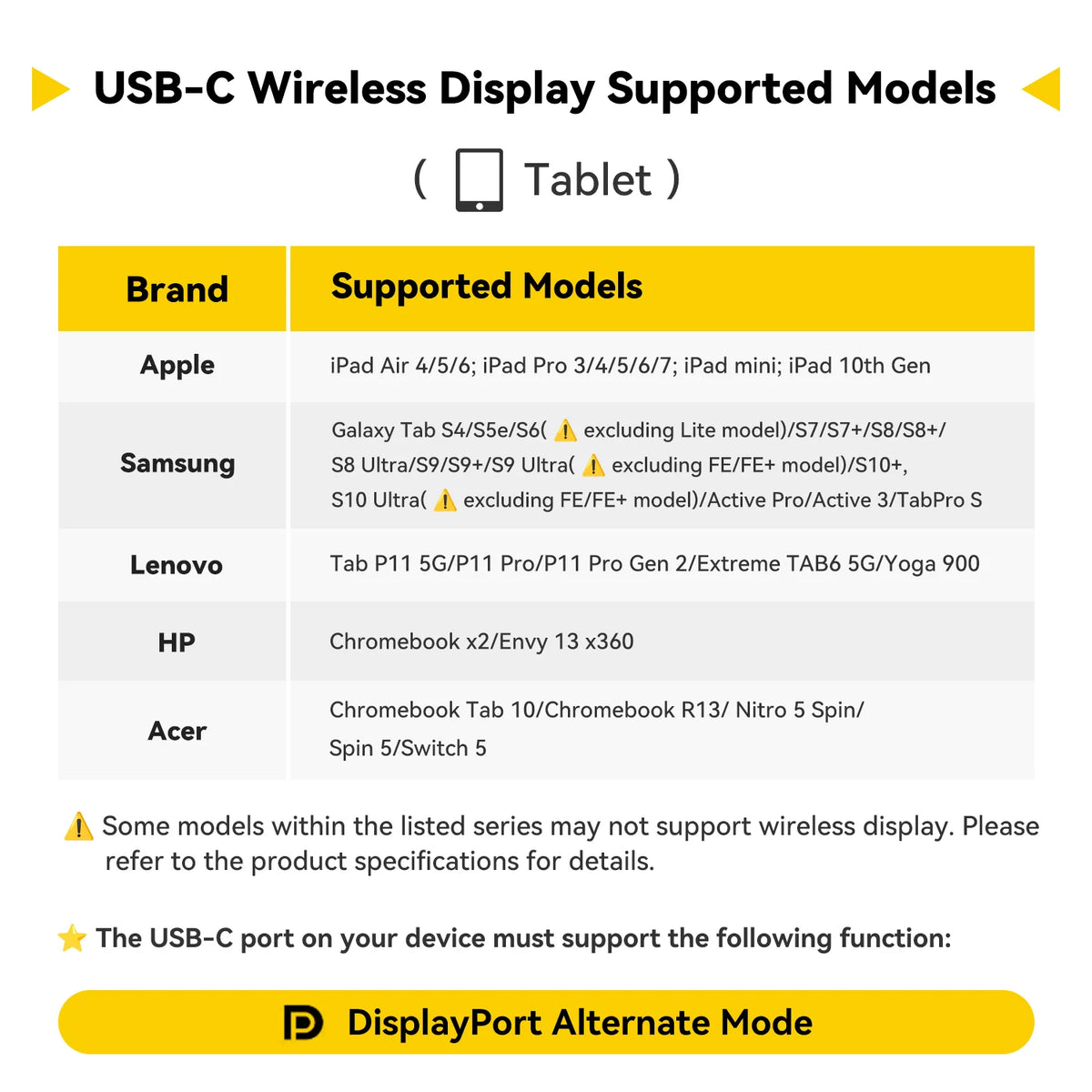

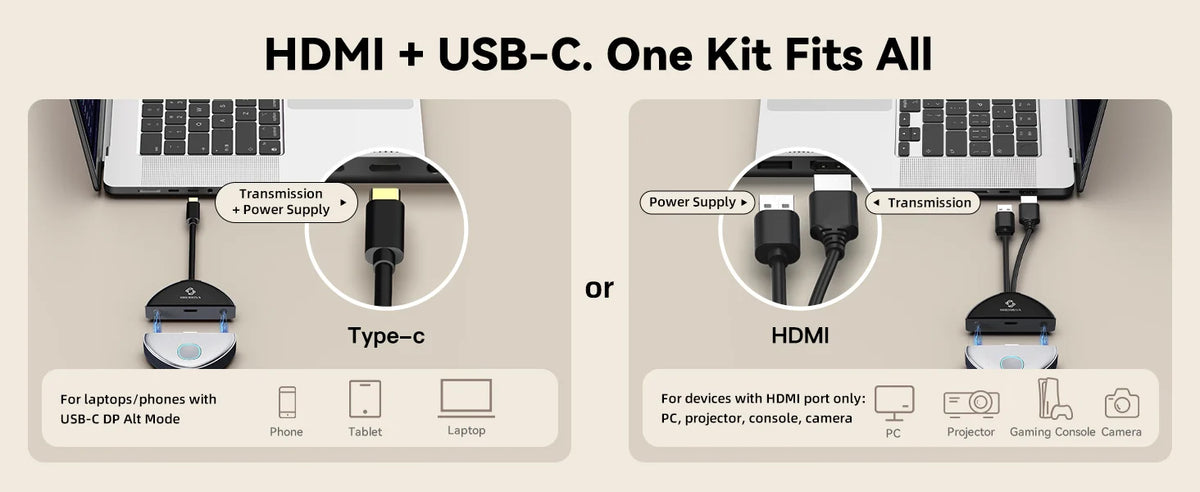

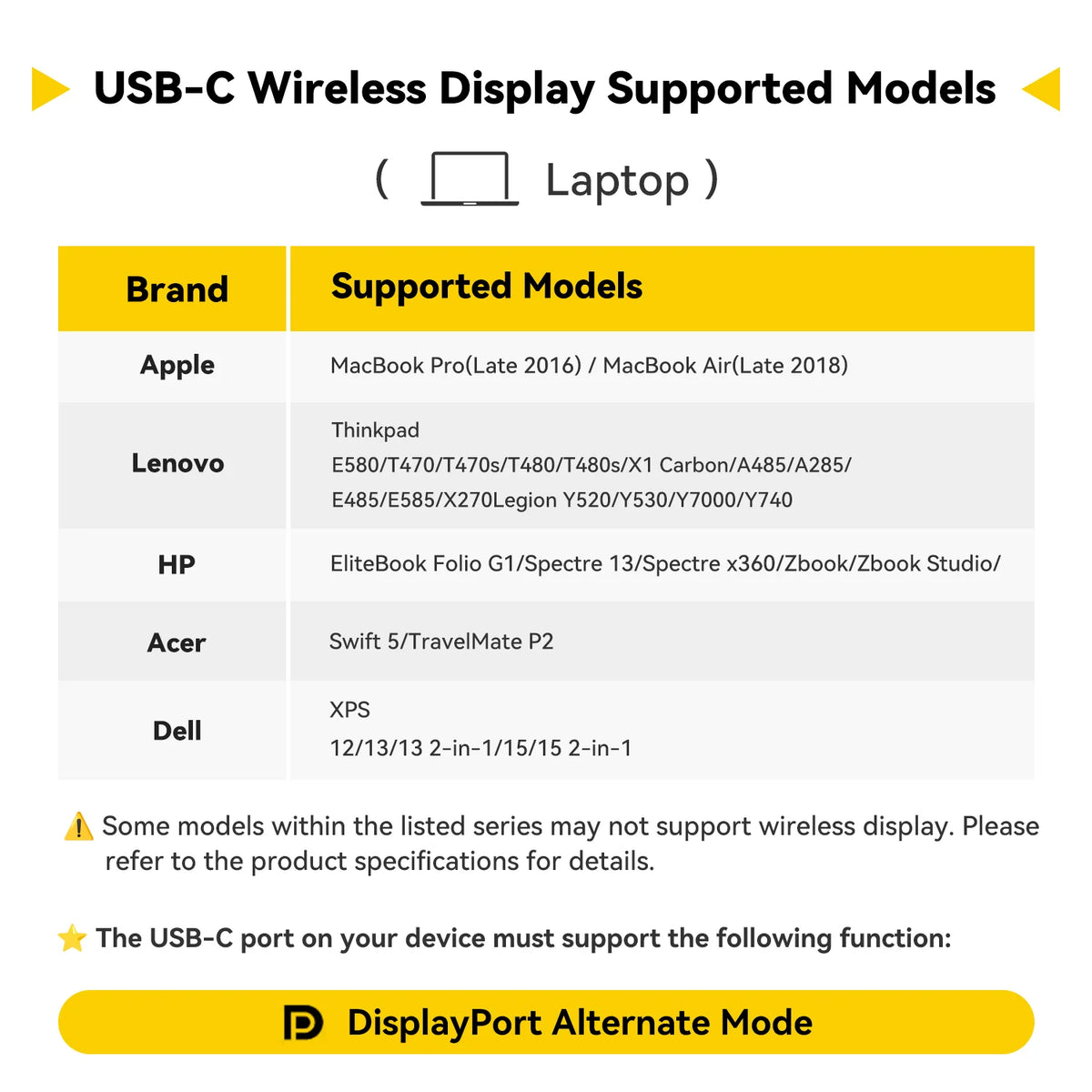

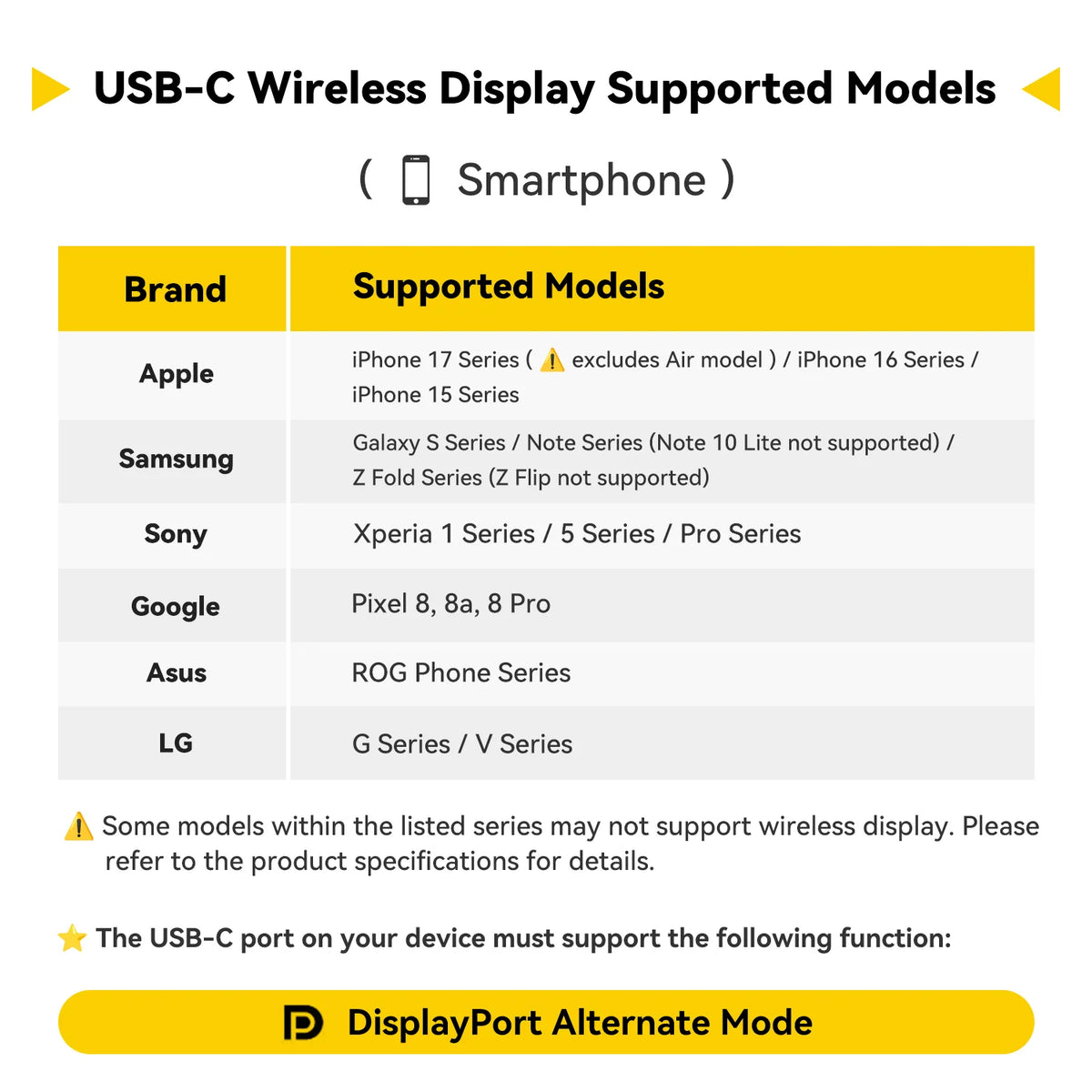

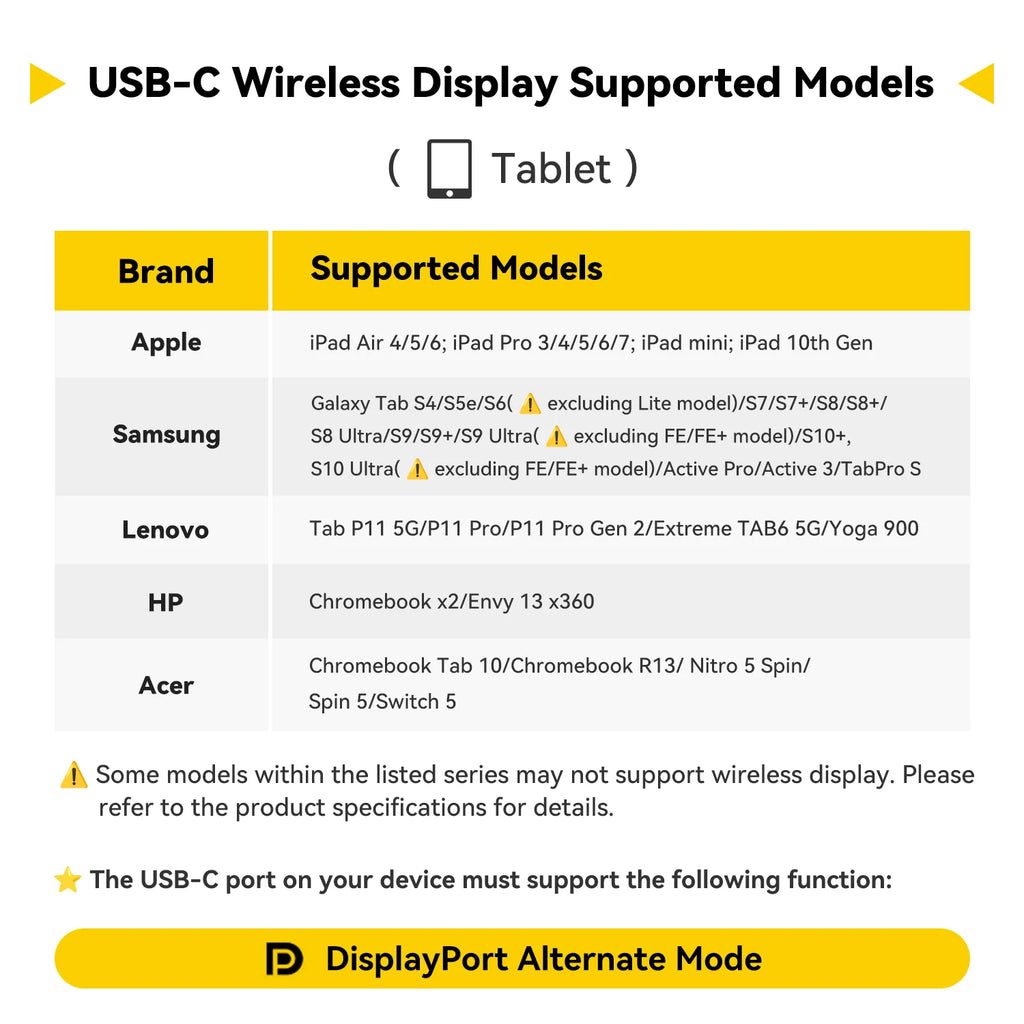

• USB-C video sources must support DisplayPort Alt Mode. A USB-C connector alone does not establish video compatibility.

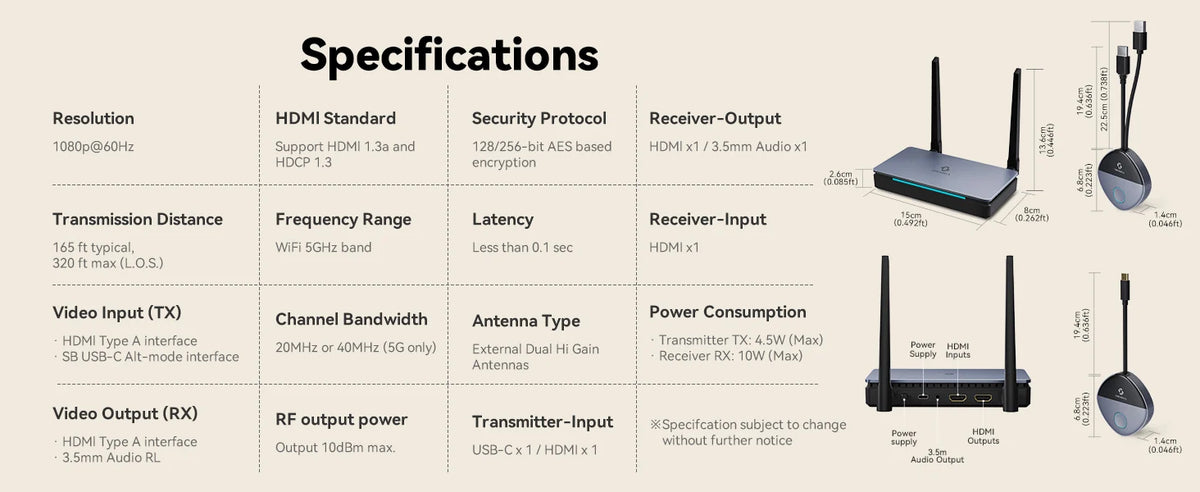

Specifications

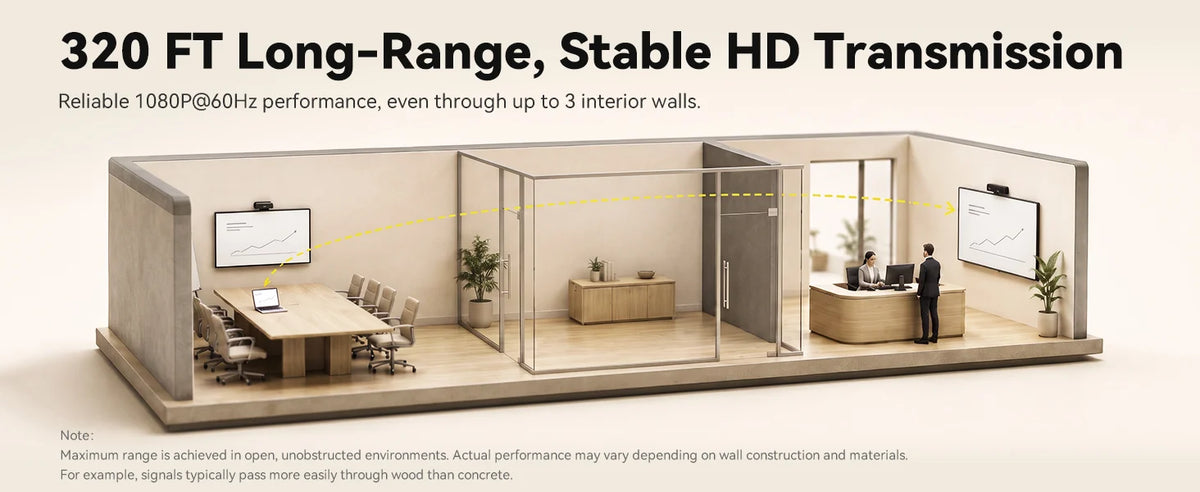

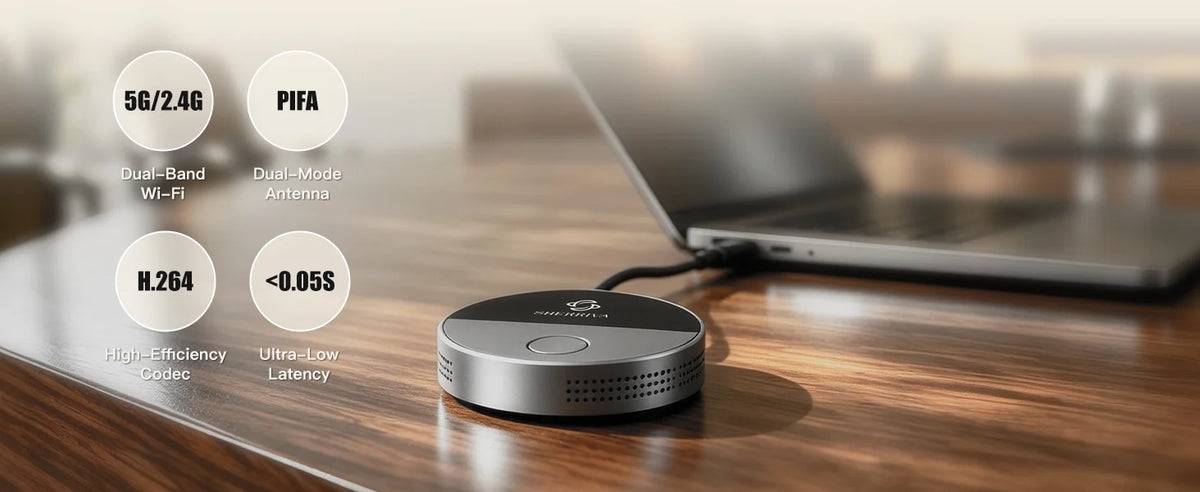

• Wireless video: up to 1920 × 1080 at 60Hz; dual-band 2.4GHz and 5GHz, with H.264 compression.
• Receiver connections: HDMI input/output, 3.5mm audio output and USB-C power input. HDCP 1.3 is listed.
• Receiver power: 5V/2A adapter. Adapter mains input and regional plug format are unspecified.

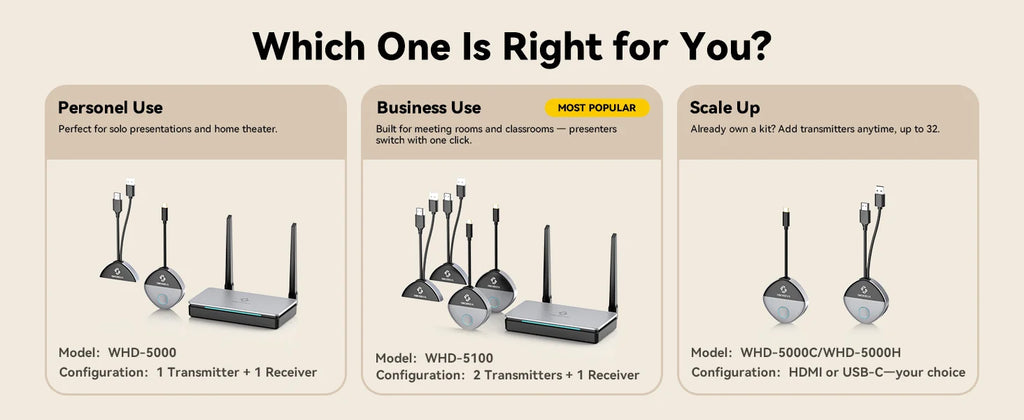

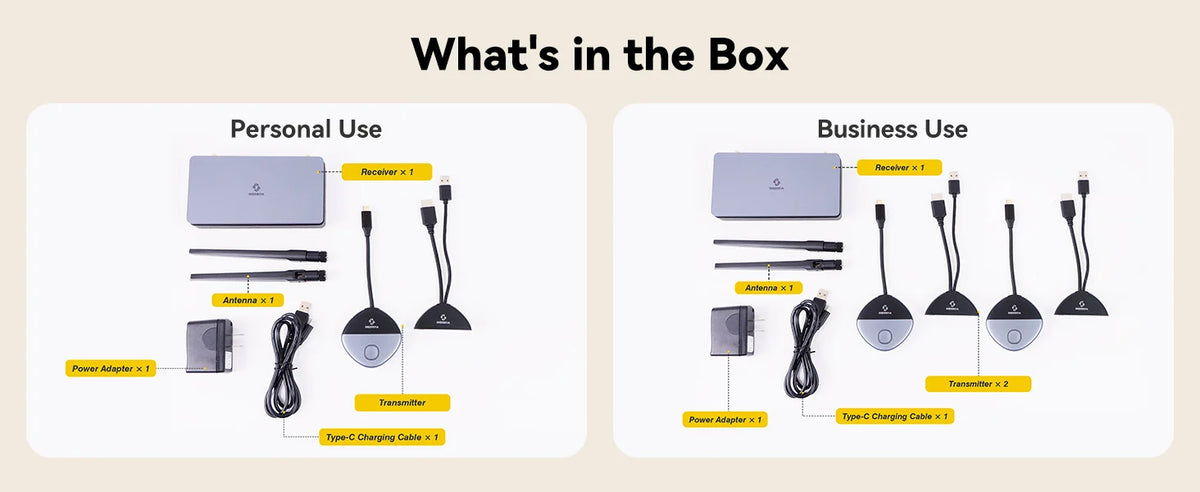

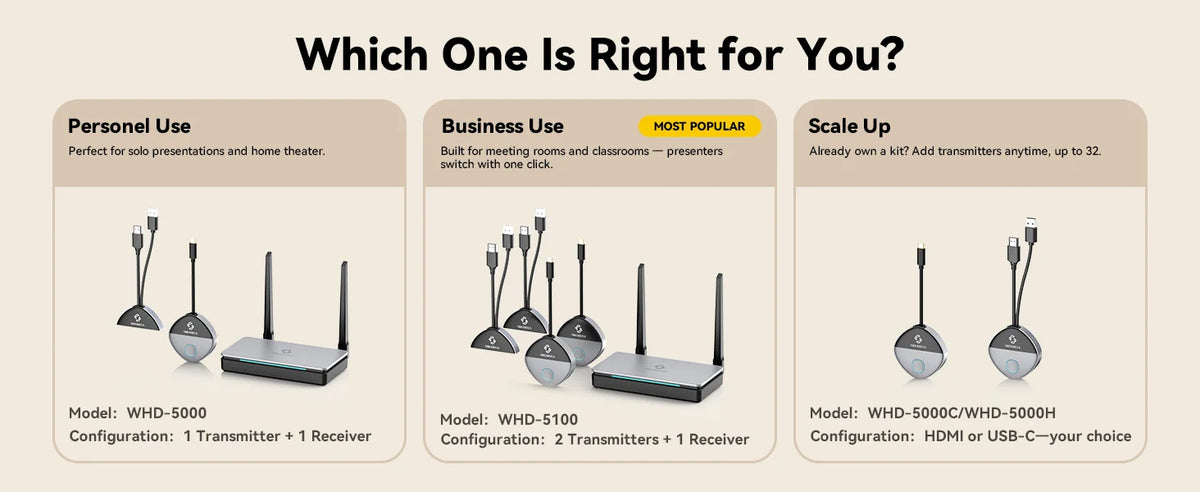

Package Options

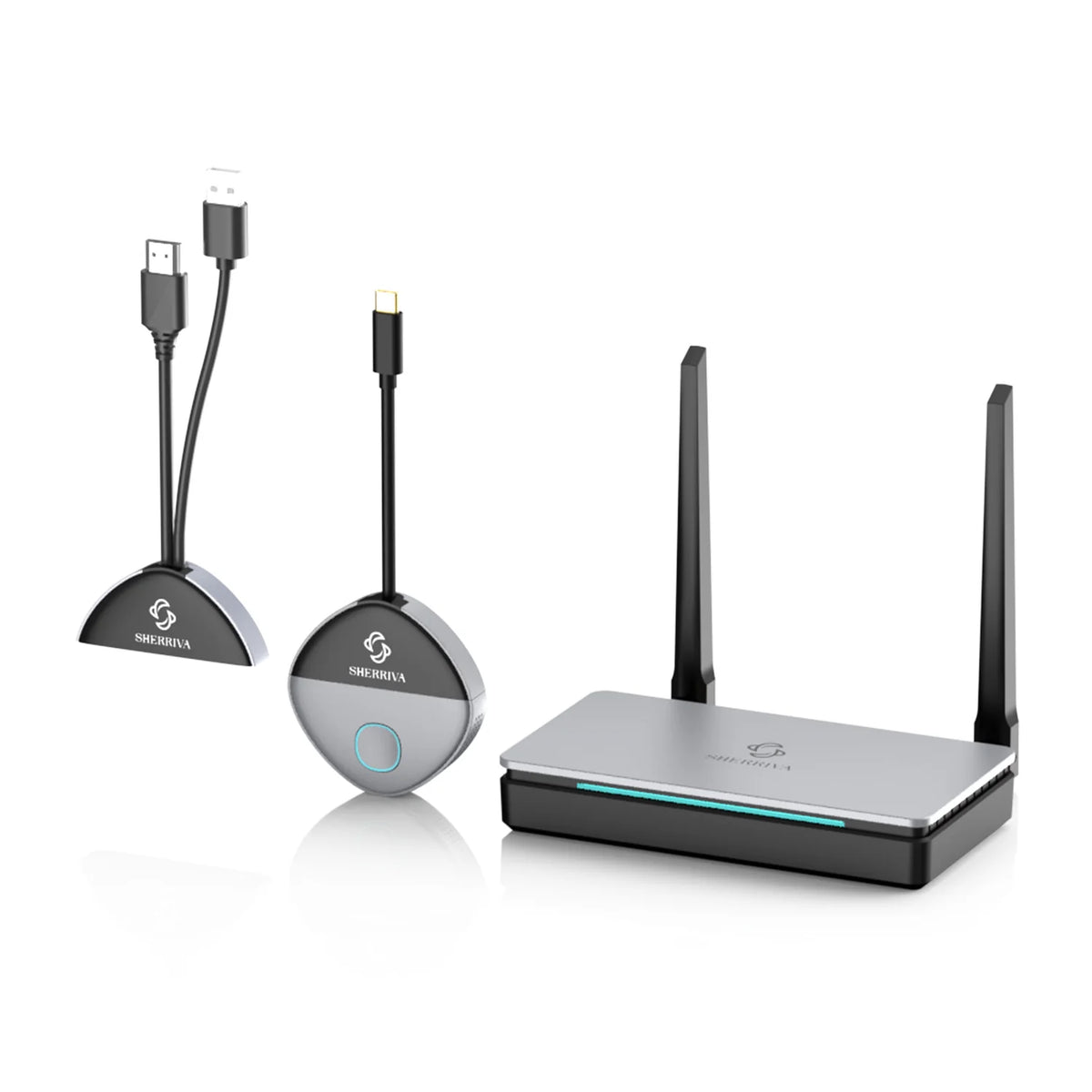

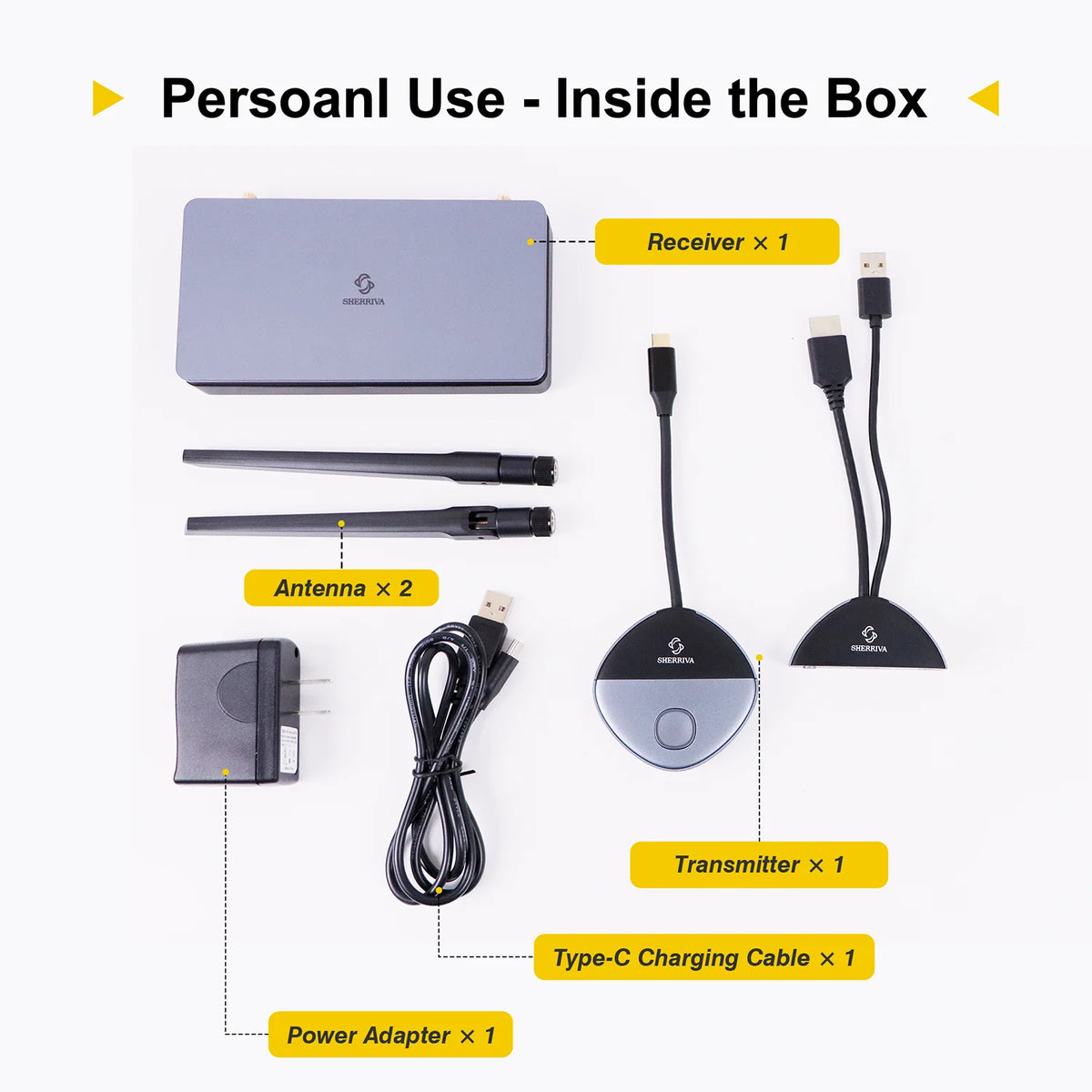

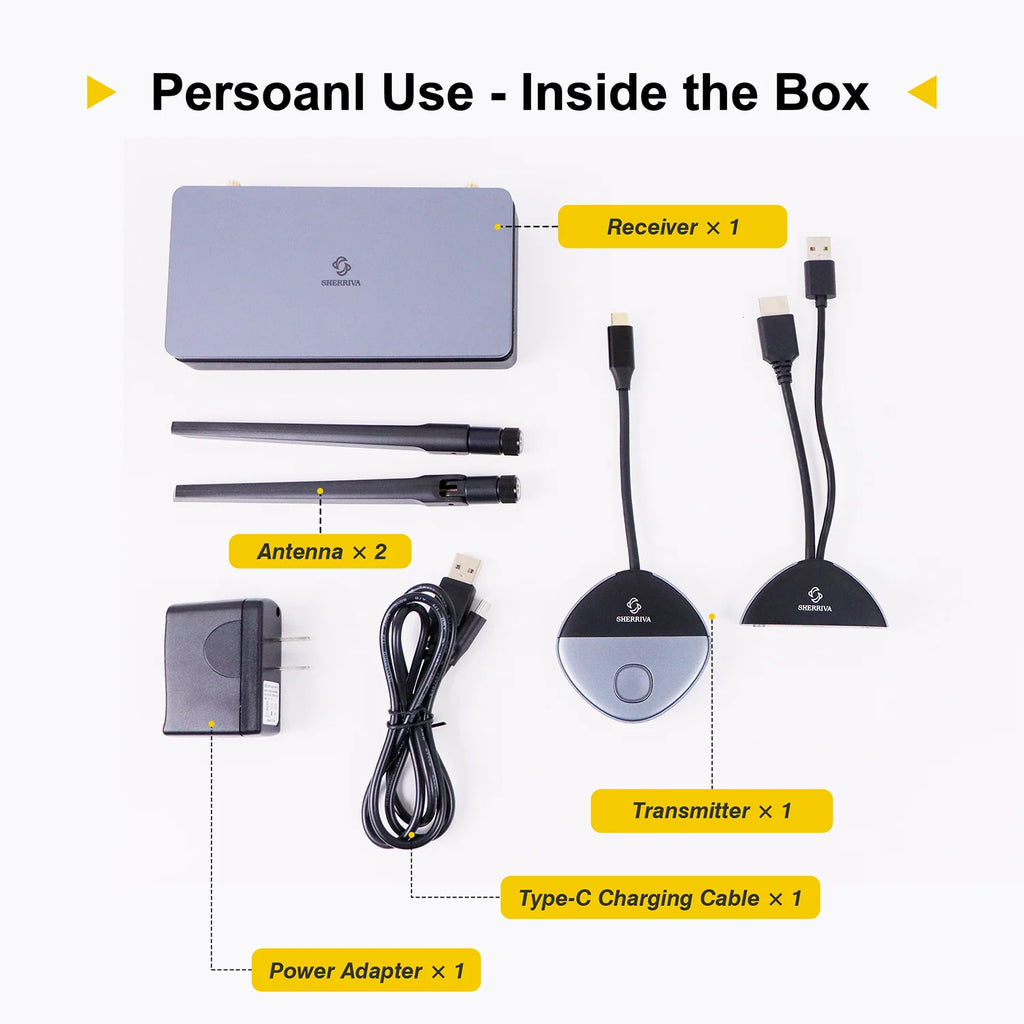

• Personal Use — WHD-5000: receiver, two receiver antenna rods, USB-A to USB-C receiver power cable, one transmitter, transmitter connector kit, DC power adapter and Quick Start Guide.

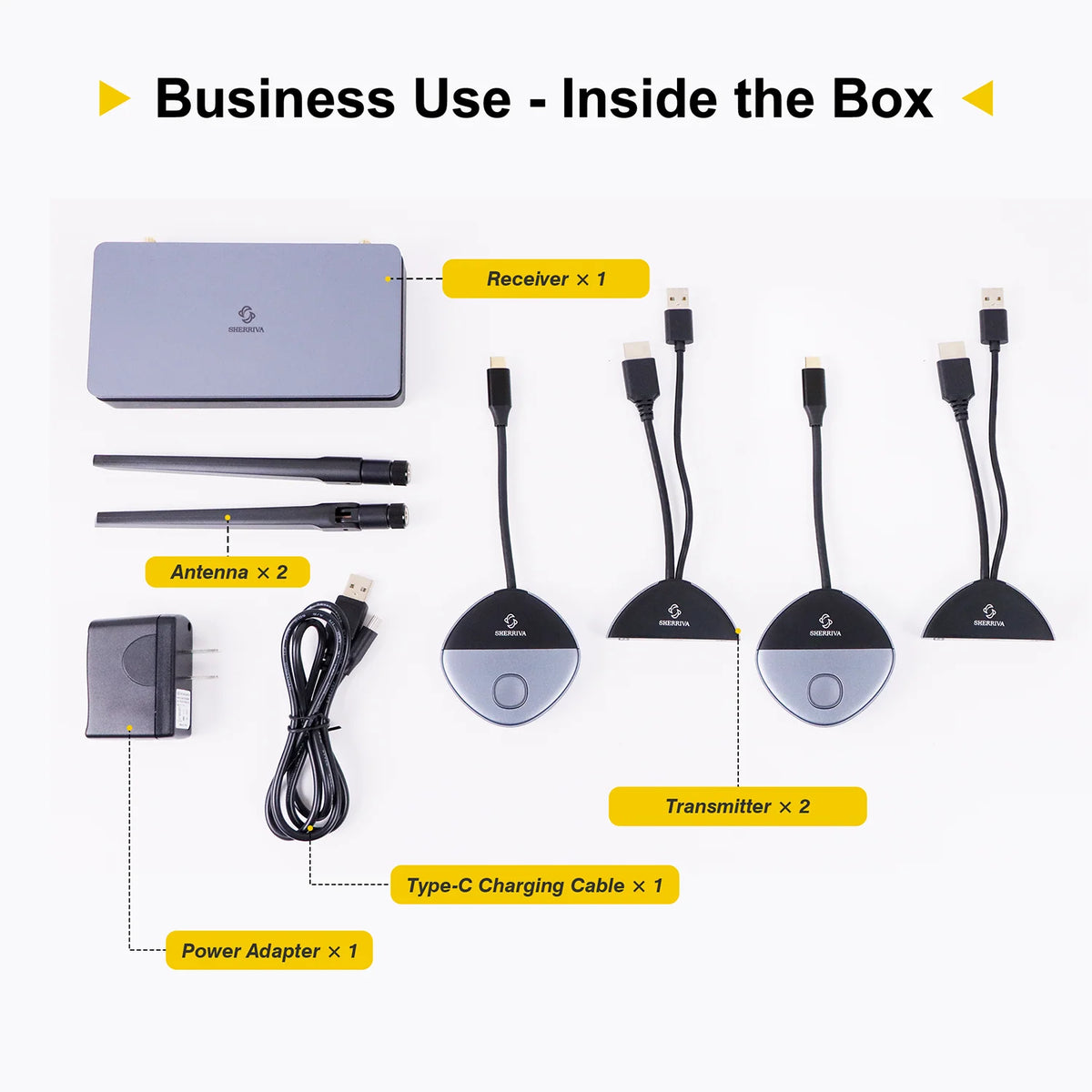

• Business Use — WHD-5100: receiver, two receiver antenna rods, USB-A to USB-C receiver power cable, two transmitters, two transmitter connector kits, DC power adapter and Quick Start Guide.

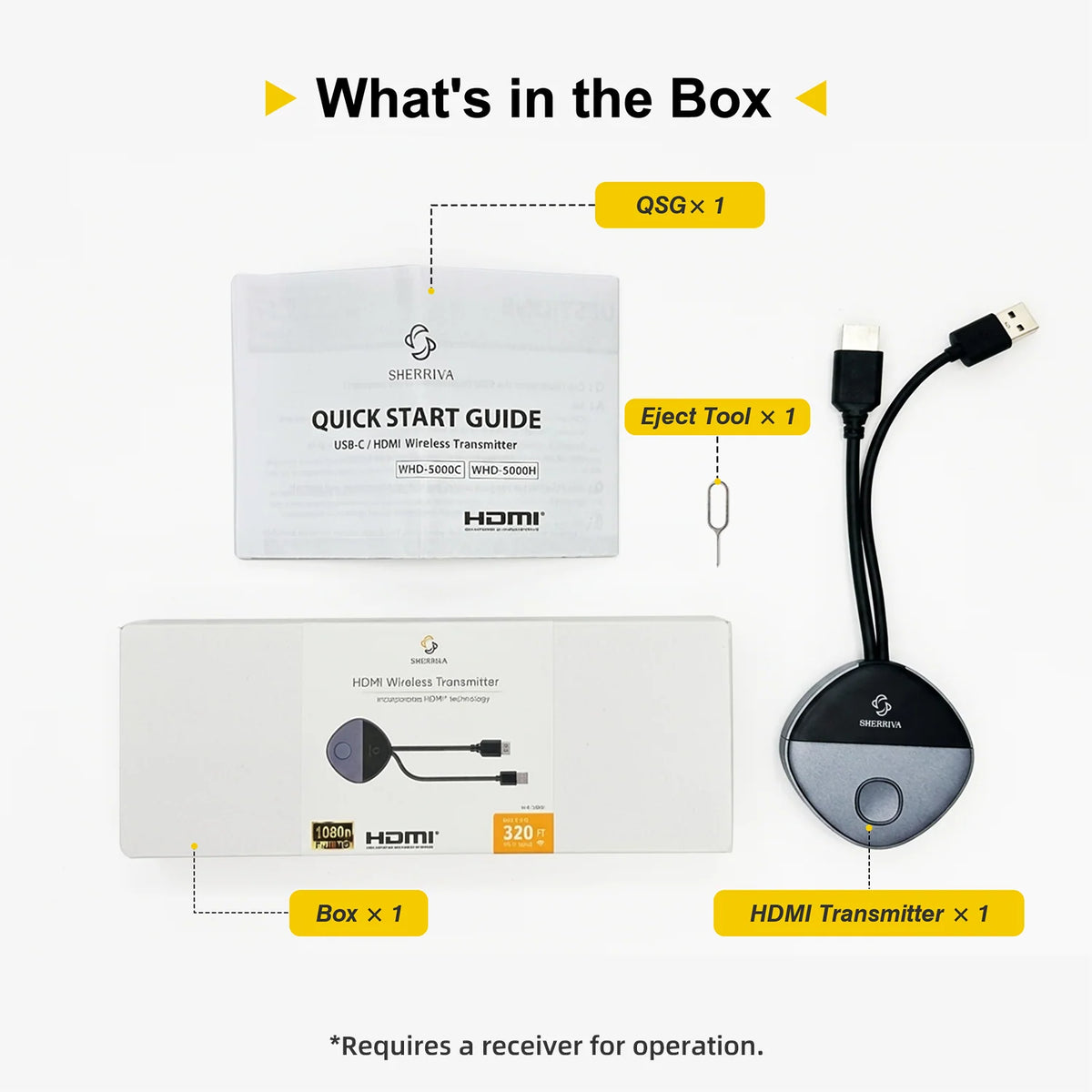

• Extra Transmitter (HDMI Head+Base) — WHD-5000H: extra HDMI transmitter head and base. Requires a compatible WHD-5000 or WHD-5100 receiver, which is not included in this option.

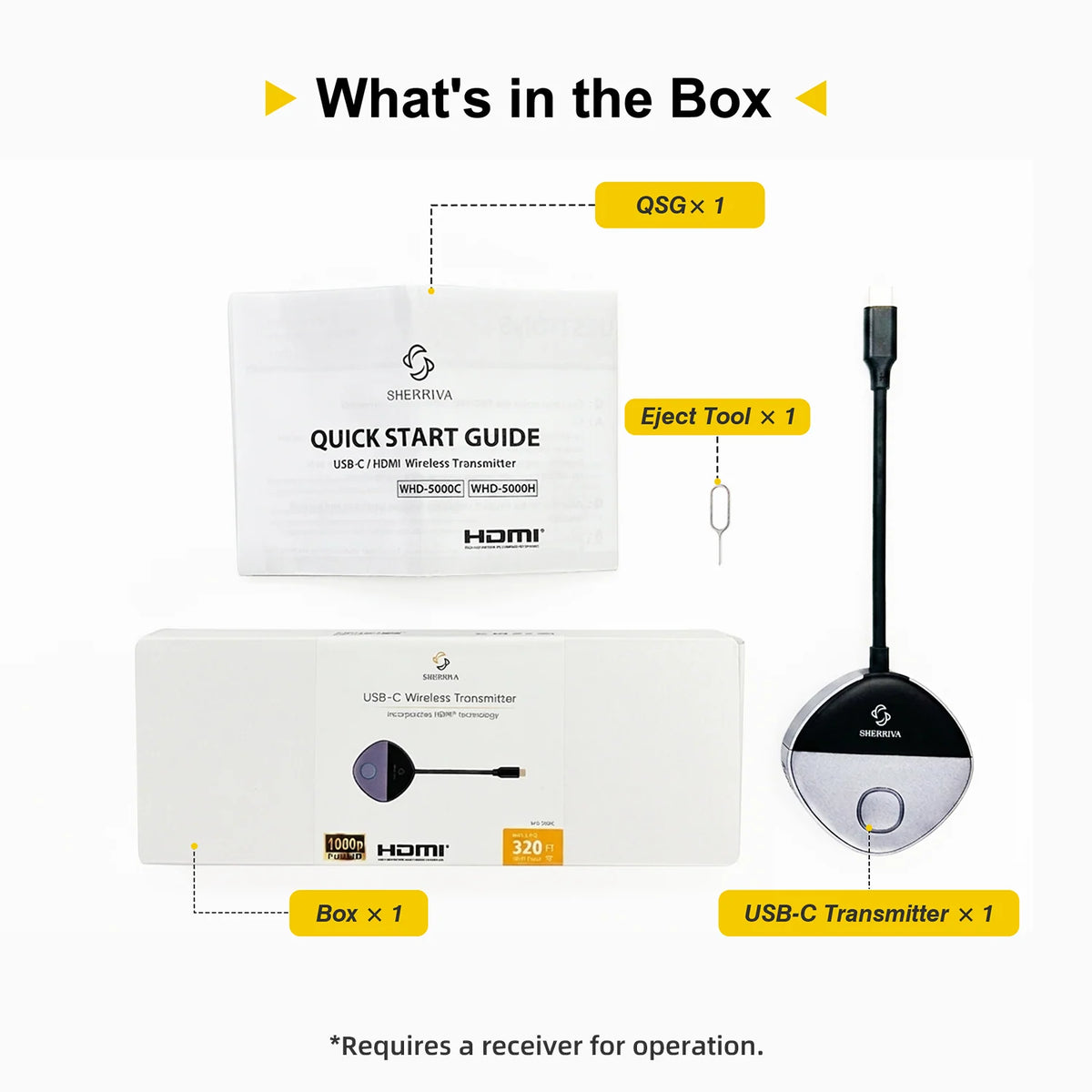

• Extra Transmitter (USB-C Head+Base) — WHD-5000C: extra USB-C transmitter head and base. Requires a compatible WHD-5000 or WHD-5100 receiver, which is not included in this option.
