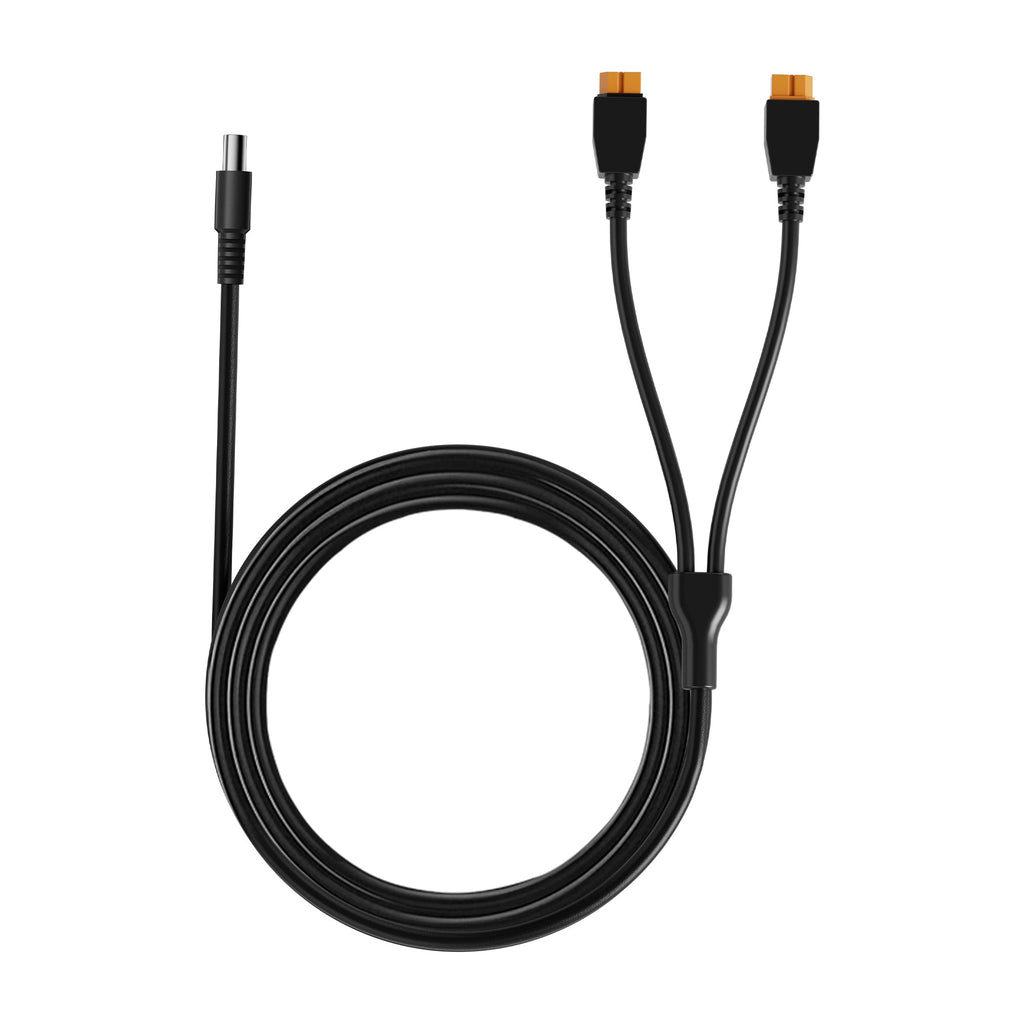

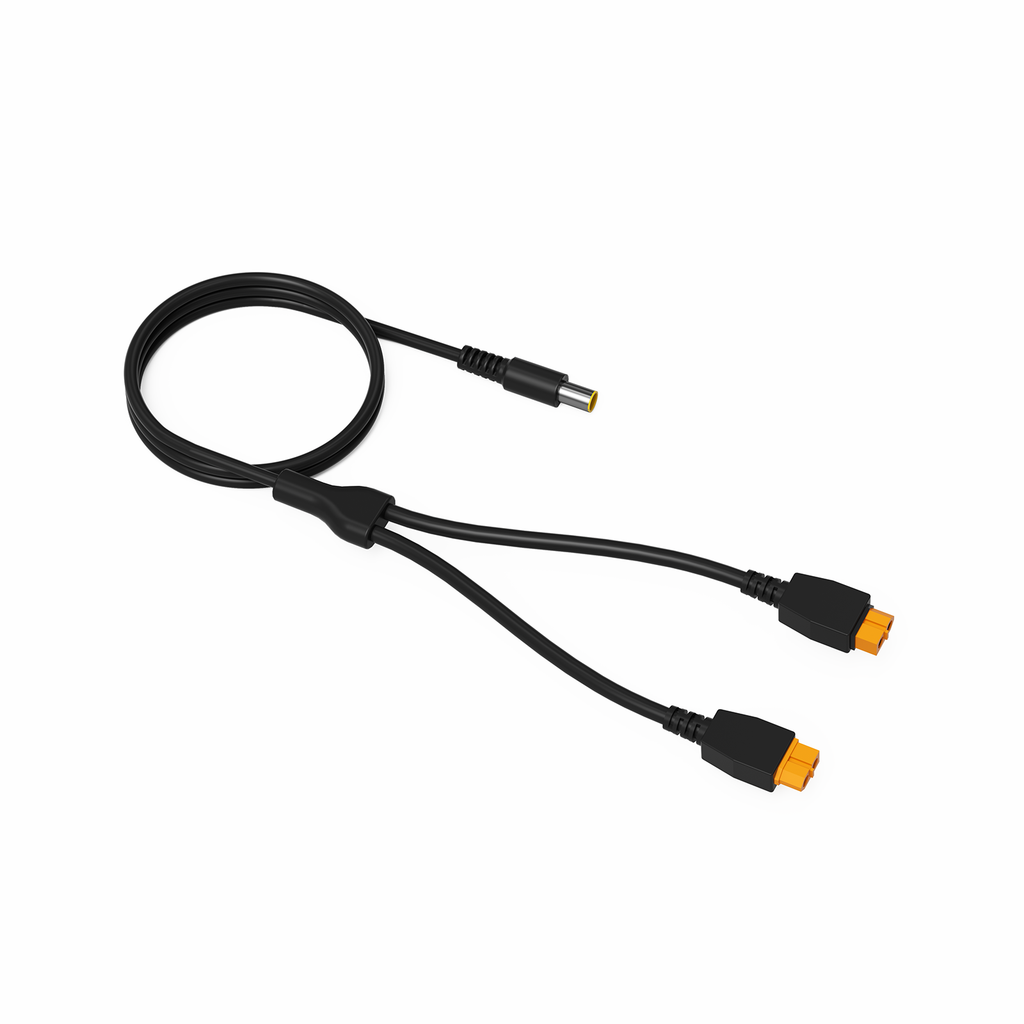

XT60 to DC7909 Y Parallel Solar Adapter Cable with 15 AWG Tinned Copper Wire and PVC Insulation

This Y adapter cable connects two XT60 solar panels in parallel to a compatible power station with a DC7909 input. It uses 15 AWG tinned copper wire with PVC insulation and provides a compact connection for portable solar setups.

Key Features

• The Y-shaped layout combines two panel connections into one power station input.
• XT60 panel connections lead to a DC7909 8mm input connector.
• 15 AWG tinned copper conductors are covered with PVC insulation.
• Suitable for compatible C-Series and S-Series portable power stations with the required input.
• Check your power station's maximum PV input voltage and current before use, and use panels with similar Voc/Vmp values.

Specifications

• Product: Parallel solar adapter cable.
• Panel connection: XT60.
• Power station connection: DC7909, 8mm.
• Configuration: Two solar panels in parallel to one power station input.
• Wire gauge: 15 AWG.
• Conductor: Tinned copper.
• Insulation: PVC.
• Compatibility: A matching DC7909 input and suitable PV input limits are required.
