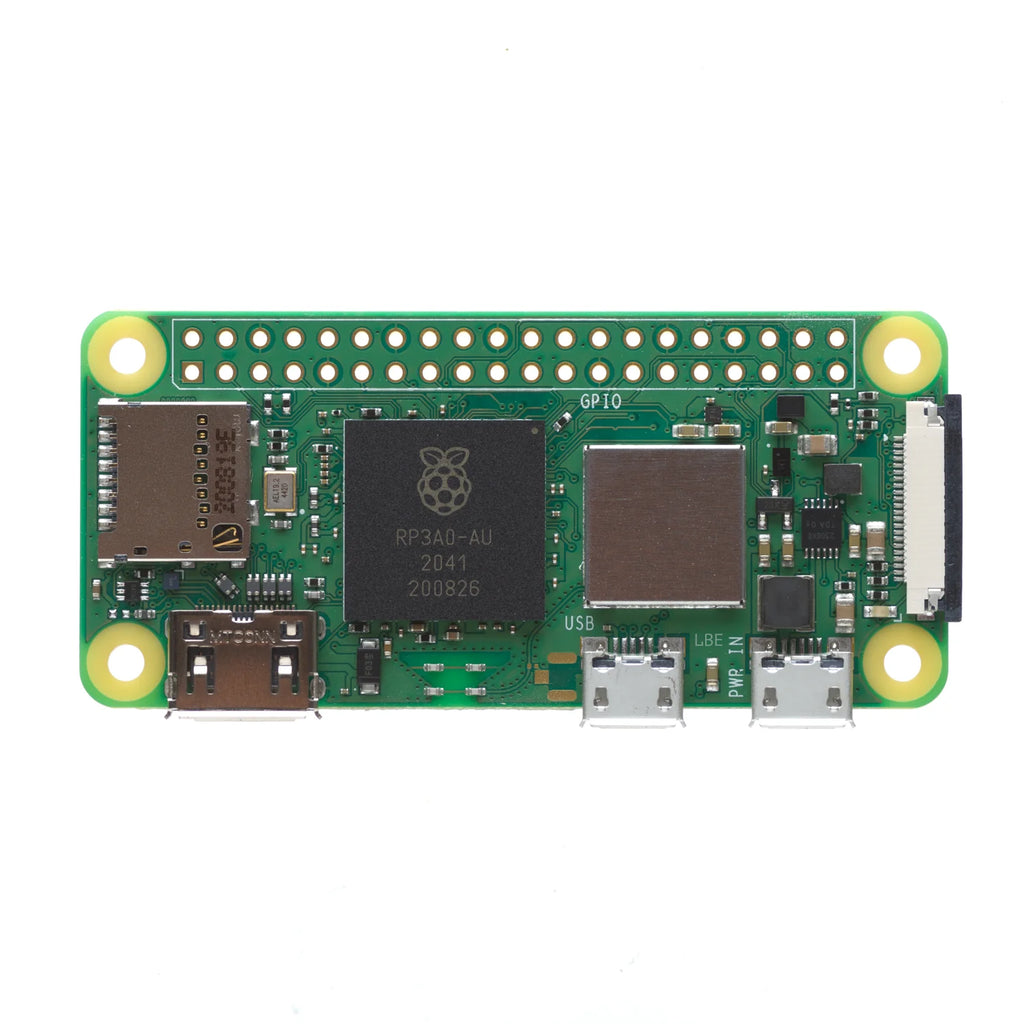

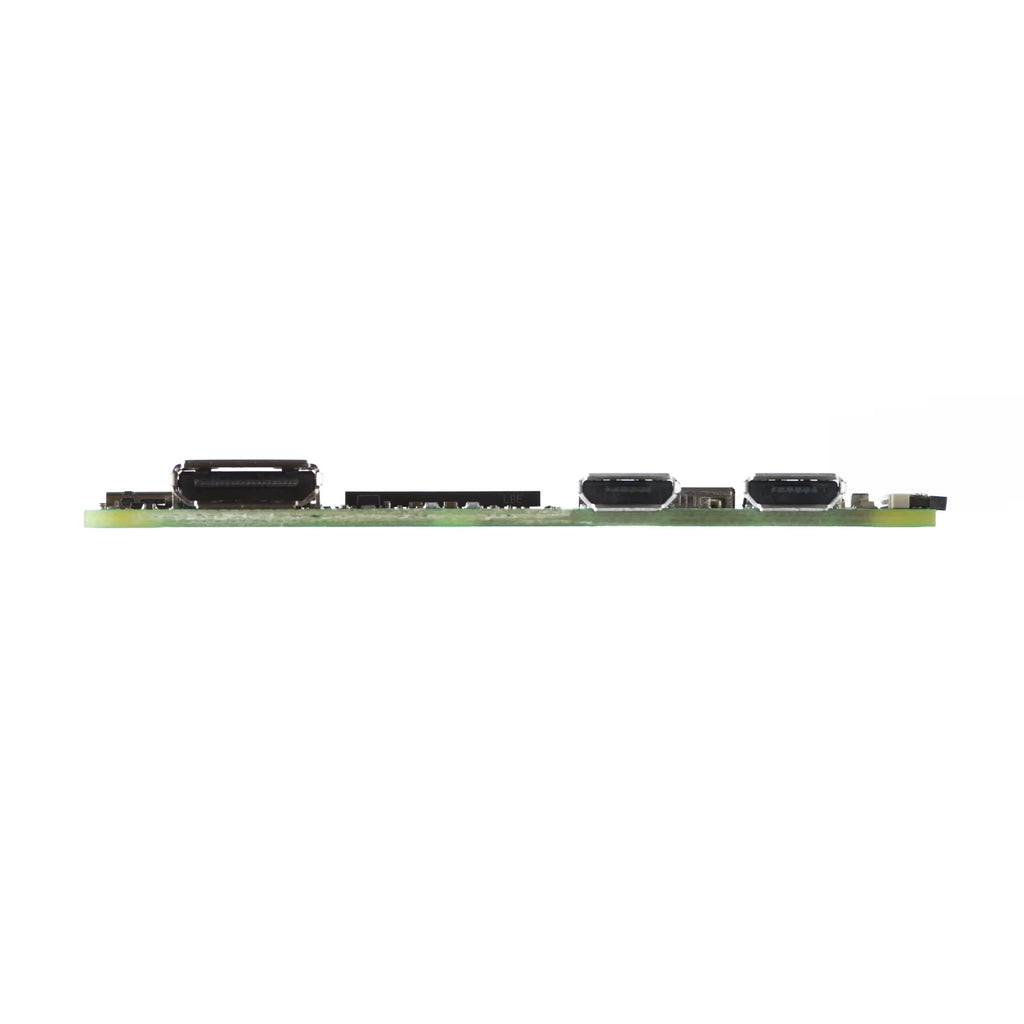

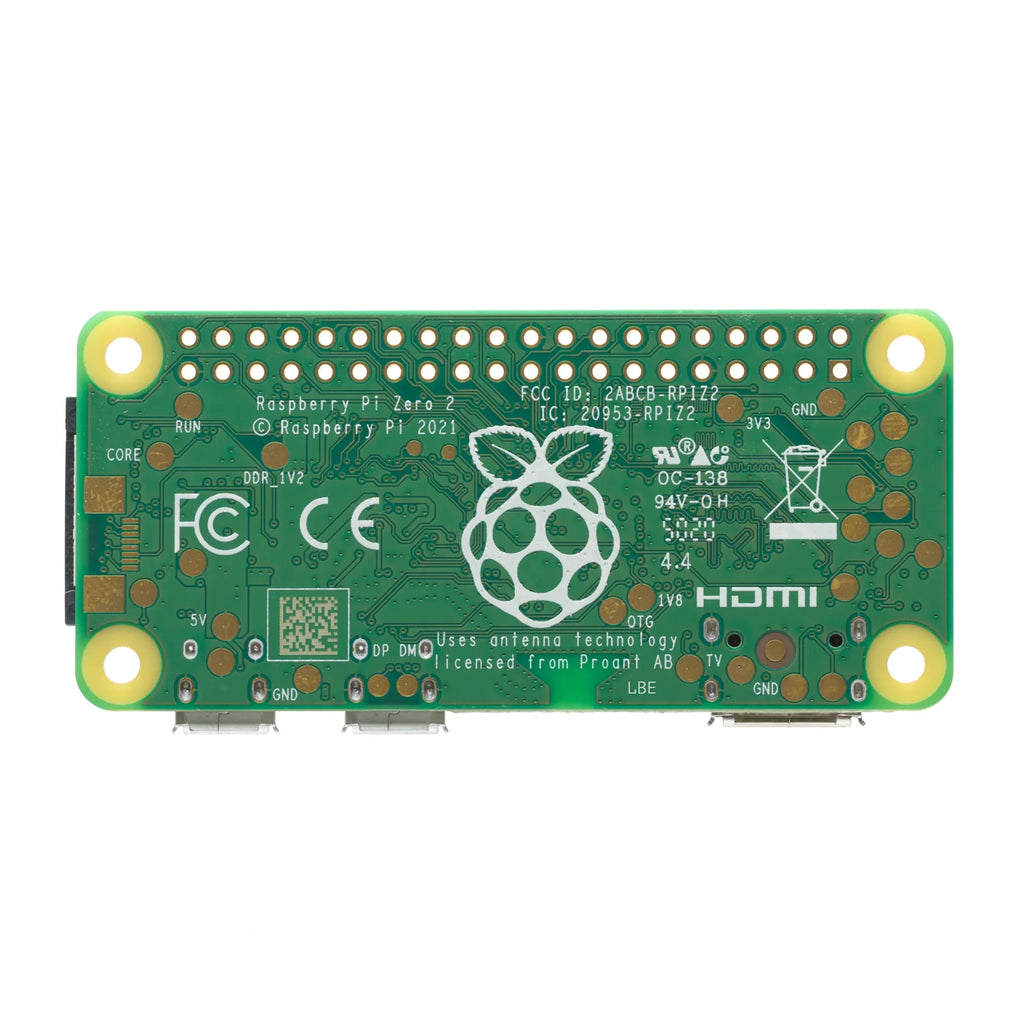

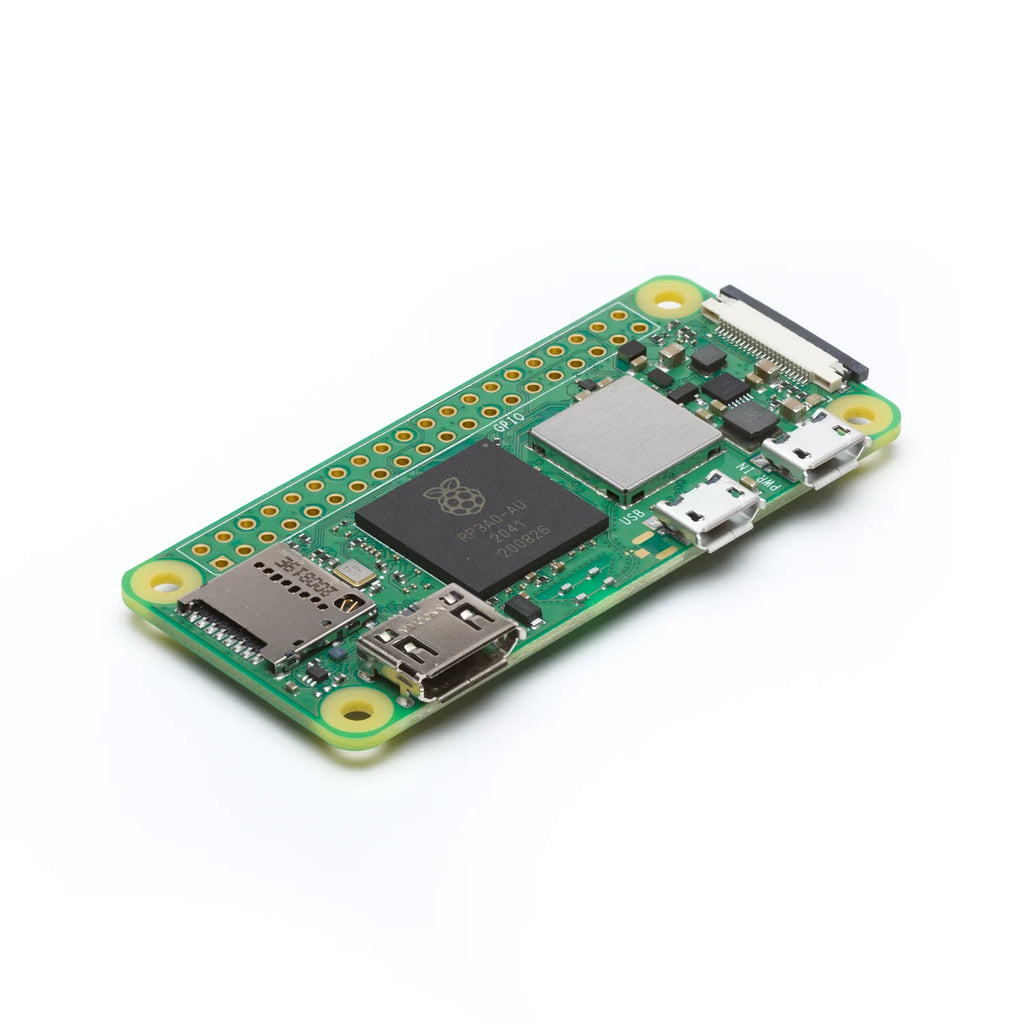

Zero 2 W Wireless Single-Board Computer with Quad-Core Processor and Unpopulated 40-Pin GPIO for Embedded Projects

Zero 2 W is a compact wireless single-board computer for embedded and IoT projects. A 1GHz quad-core Arm Cortex-A53 processor and 512MB LPDDR2 memory provide the core hardware, with Wi-Fi and Bluetooth built in. This version has unpopulated 40-pin GPIO connections; the header is not pre-soldered.

Key Features

• A 64-bit quad-core processor running at 1GHz.
• 802.11b/g/n wireless LAN and Bluetooth 4.2 with BLE.
• Unpopulated HAT-compatible 40-pin GPIO connections and a CSI camera connector.
• Mini-HDMI video, micro-USB 2.0 OTG and a microSD card slot.
• A 65 × 30mm footprint for compact projects.

Specifications

• Model: Zero 2 W
• Processor: BCM2710A1, quad-core Arm Cortex-A53 at 1GHz
• Memory: 512MB LPDDR2 SDRAM
• Power input: 5V through micro-USB; supplier recommends a 2.5A supply
• GPIO header: not pre-soldered
• Storage interface: microSD
• Dimensions: 65 × 30 × 5.2mm
• Weight: 10g
