Arcade LED Button Power Harness for Up to 18 Buttons with 5.5 x 2.1mm Barrel Plug and 2.8mm Terminals
$30.67
Sale price
$30.67
Regular price
Skip to product information
Arcade LED Button Power Harness for Up to 18 Buttons with 5.5 x 2.1mm Barrel Plug and 2.8mm Terminals
$30.67
Sale price
$30.67
Regular price

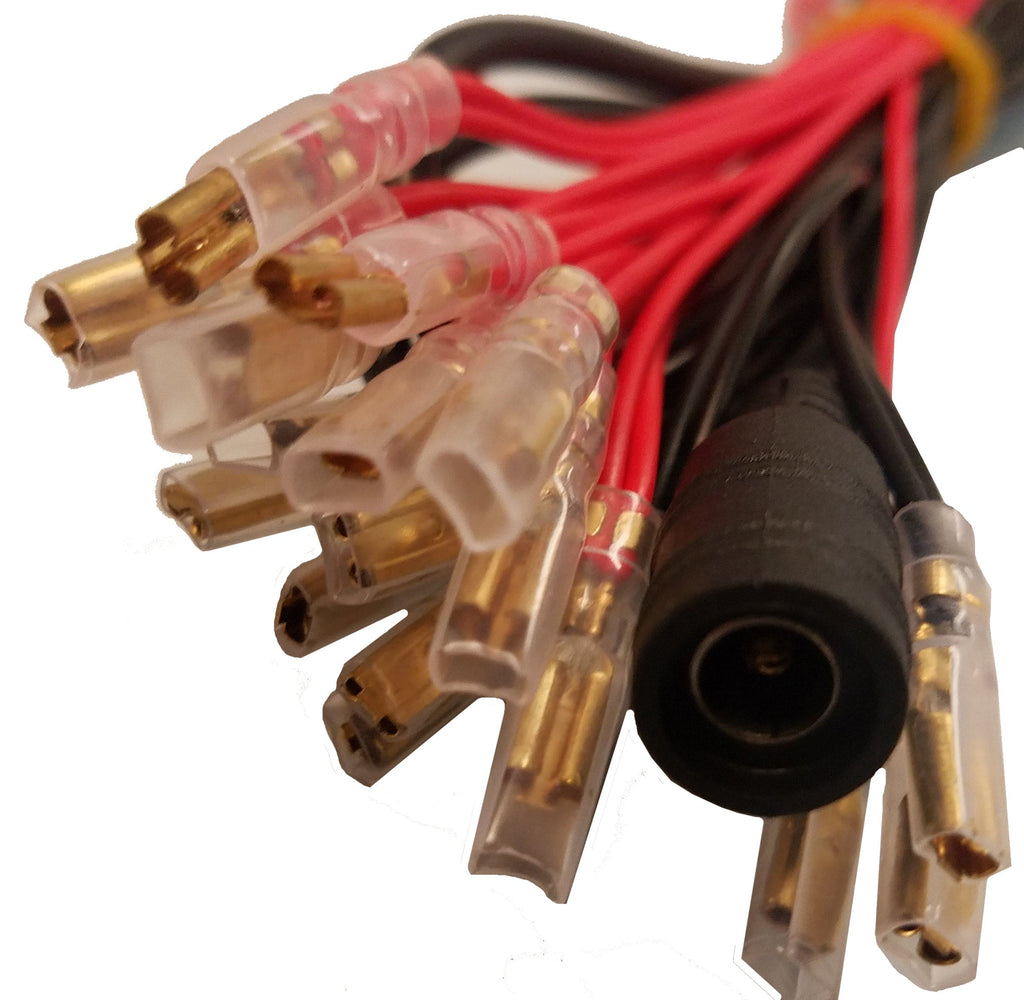

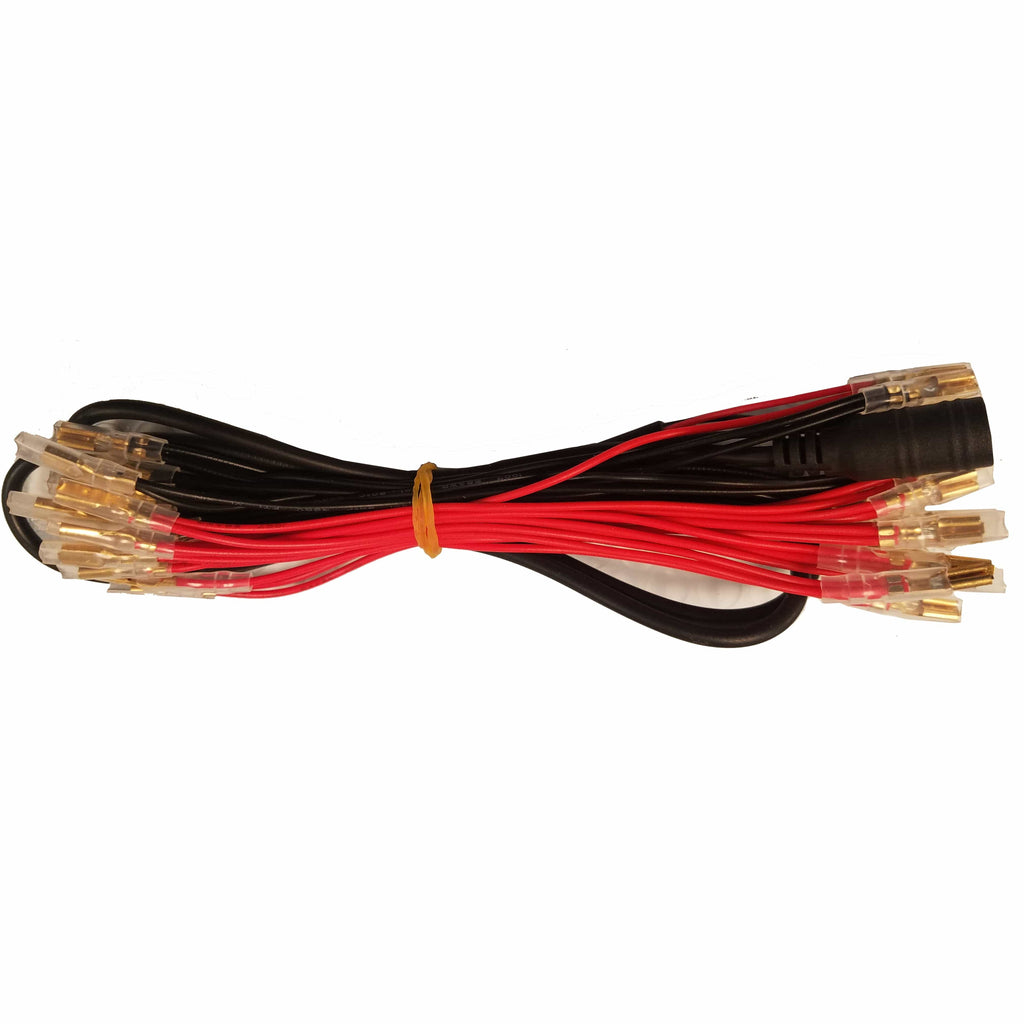

This daisy-chain power harness supplies up to 18 compatible arcade LED buttons from a 12V source through a 5.5 x 2.1mm barrel connection.
Key Features
- Supports as many as 18 illuminated arcade buttons.
- Barrel plug connects quickly to a compatible 12V PC power supply.
- Barrel plug can be removed for manual arcade power-supply wiring.
- Insulated 0.110-inch terminals fit Sanwa-style button connectors.
Specifications
- Button capacity: Up to 18 LED buttons
- Barrel connector: 5.5 x 2.1mm
- Terminal size: 0.110 inch / 2.8mm
- Red wires: 18
- Black wires: 18
- Approximate connector spacing: 5 inches
- Approximate overall length: 8 feet
Installation
Connect each red and black terminal pair to a compatible LED button, then attach the barrel plug to a compatible 12V supply or remove the plug for a properly wired arcade power-supply connection.
