4.5-Inch Round LED Motorcycle Headlight with 2200-Lumen High Beam, IP69K Sealing and Aluminum Finish Options

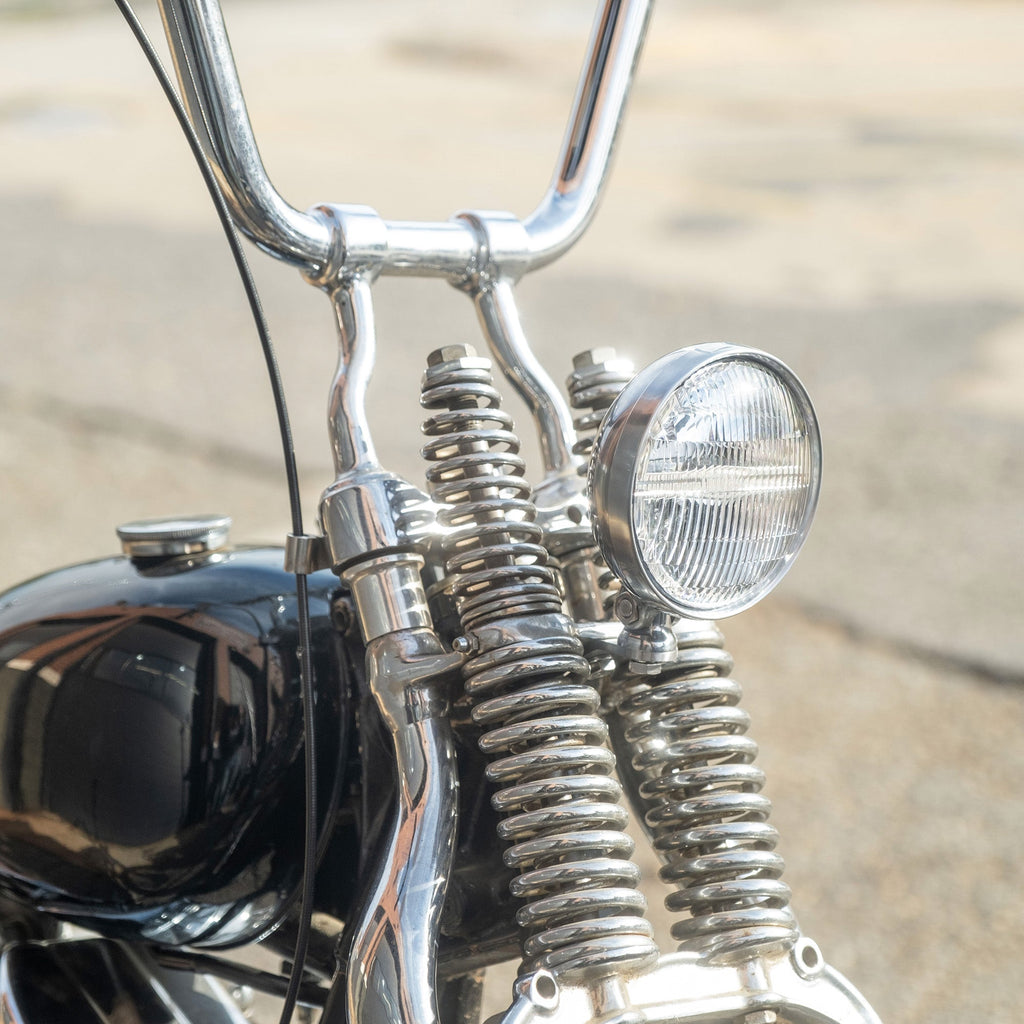

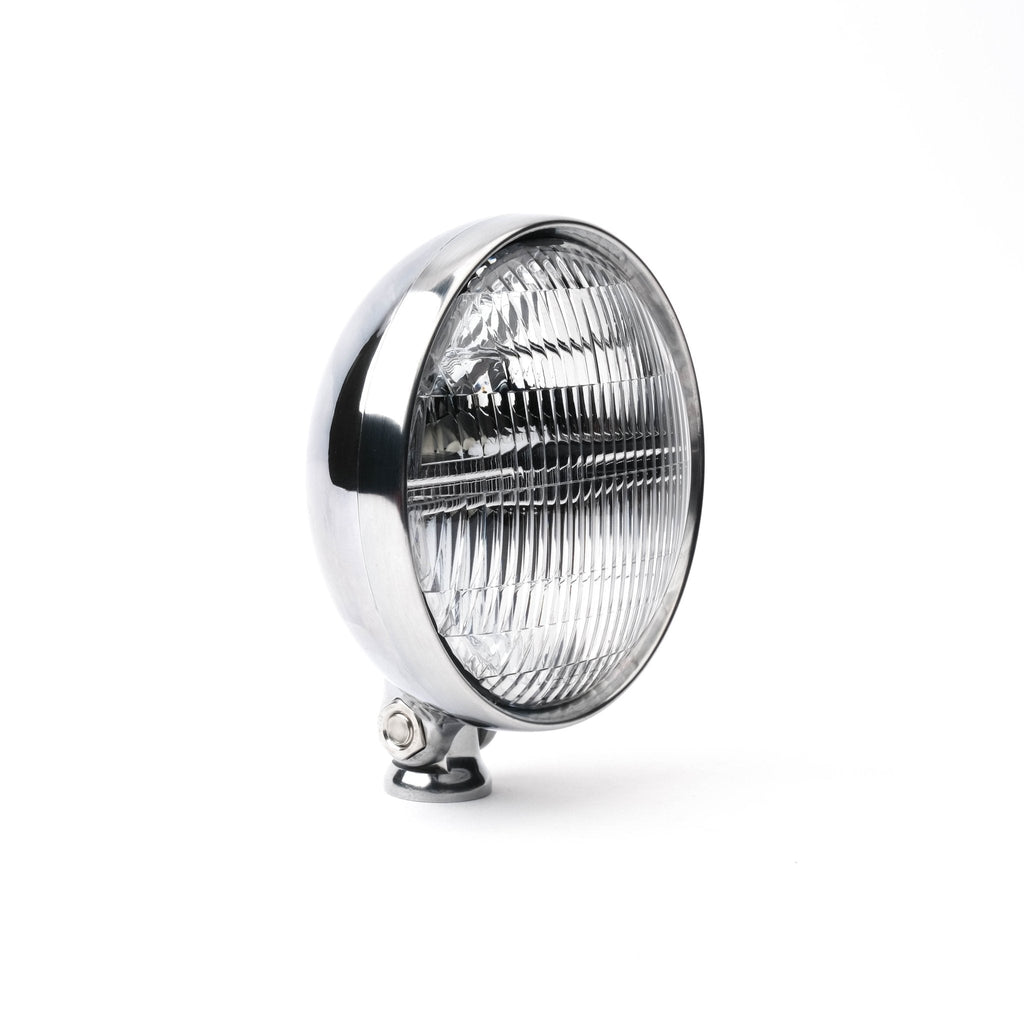

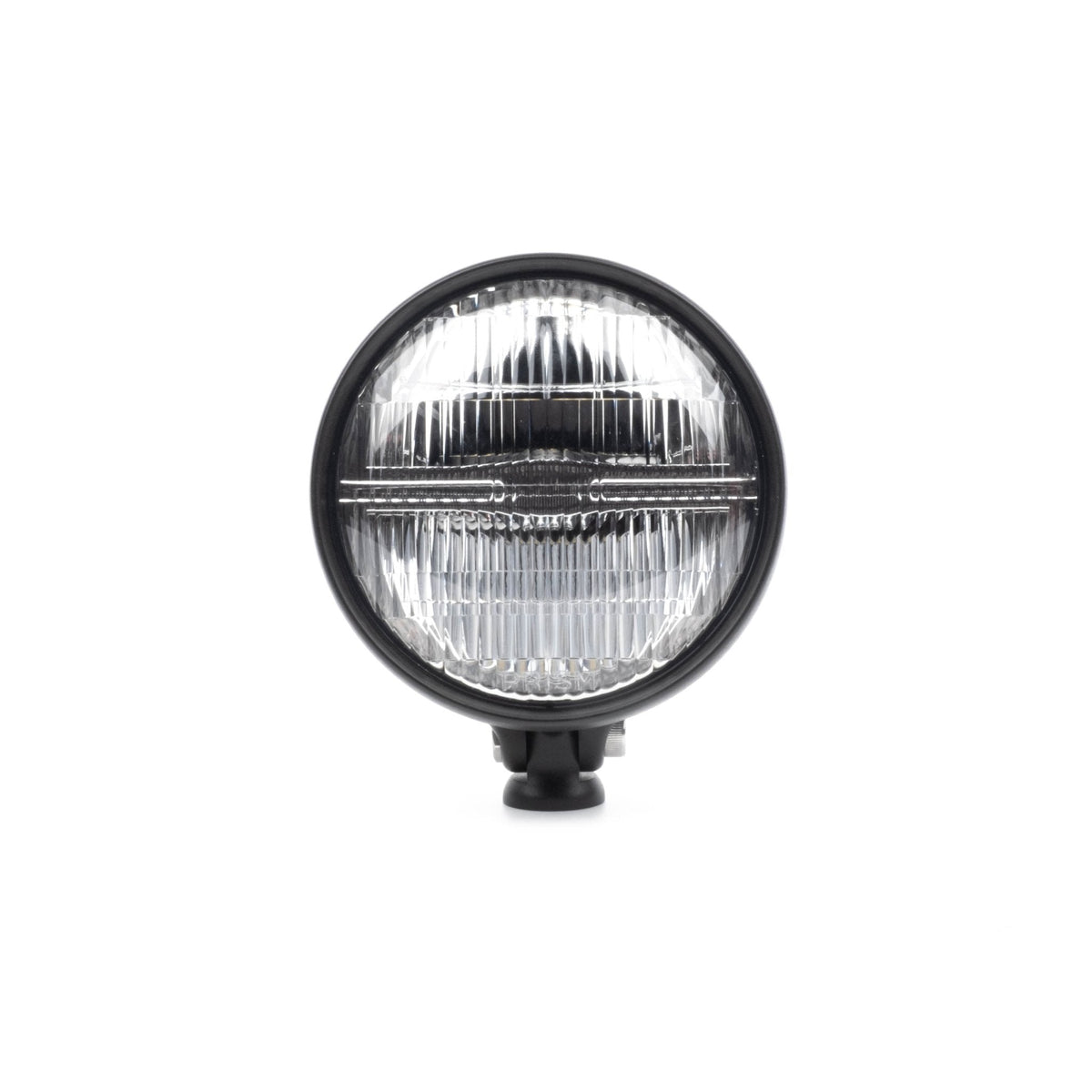

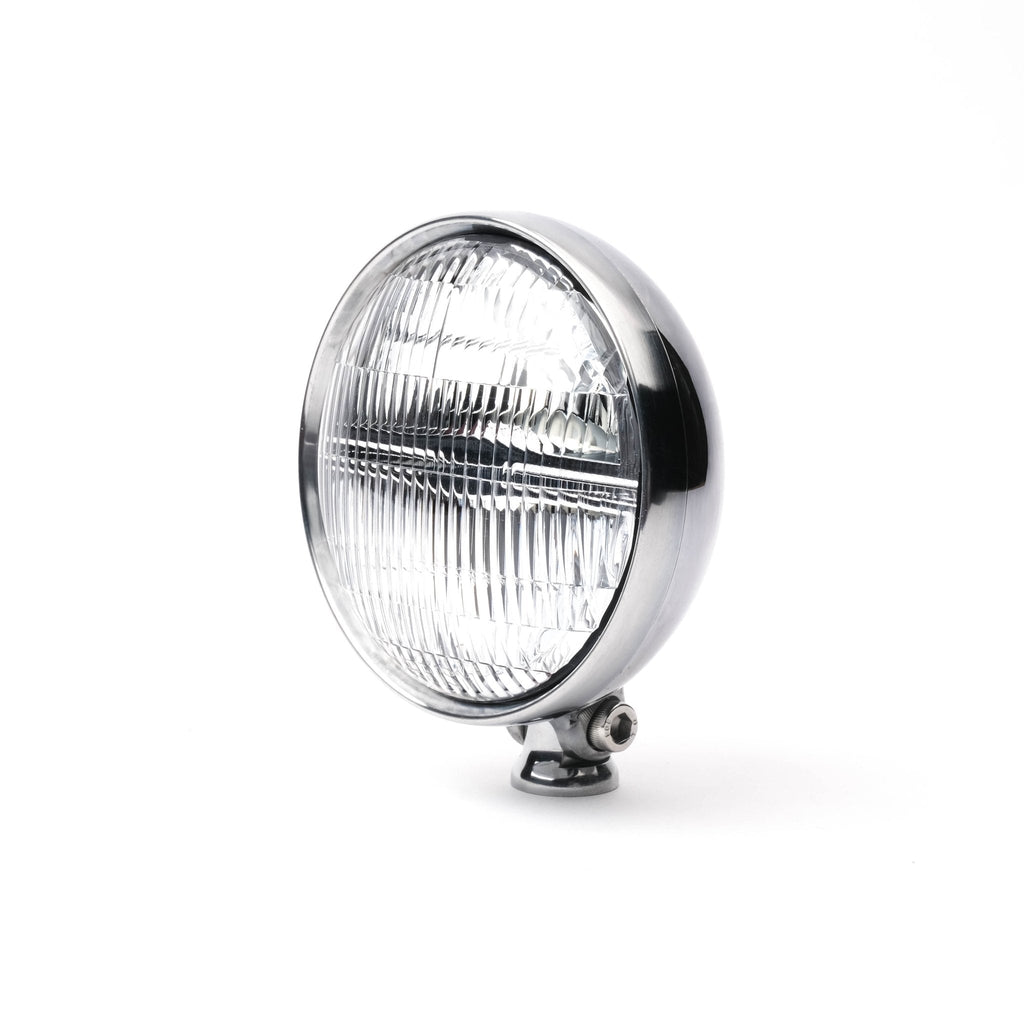

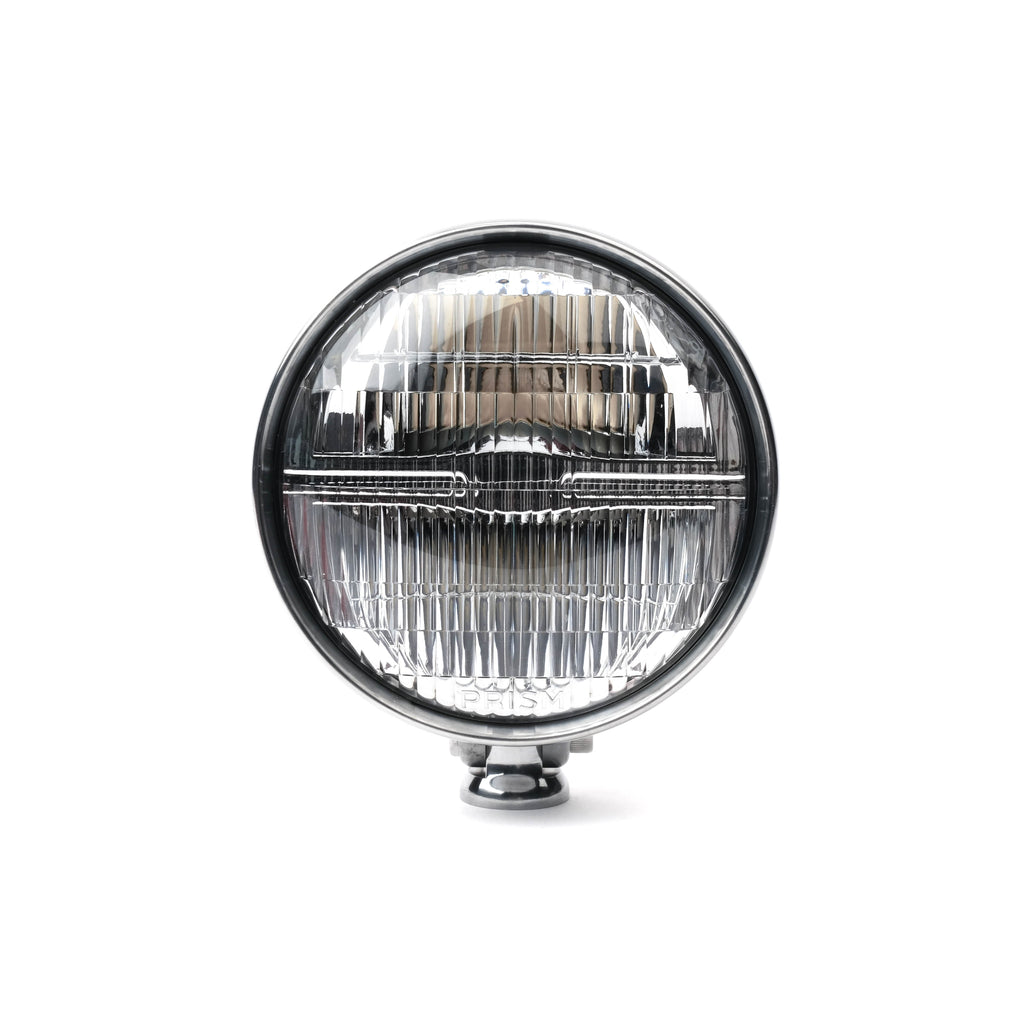

This 4.5-inch round LED headlight pairs vintage motorcycle styling with an integrated high- and low-beam lighting system. Choose polished aluminum or anodized black aluminum.

Key Features

• Integrated LED assembly provides separate low- and high-beam modes.
• Low beam uses a hard cutoff, while high beam uses a narrow spot pattern.
• IP67 and IP69K seal ratings support use in exposed riding conditions.

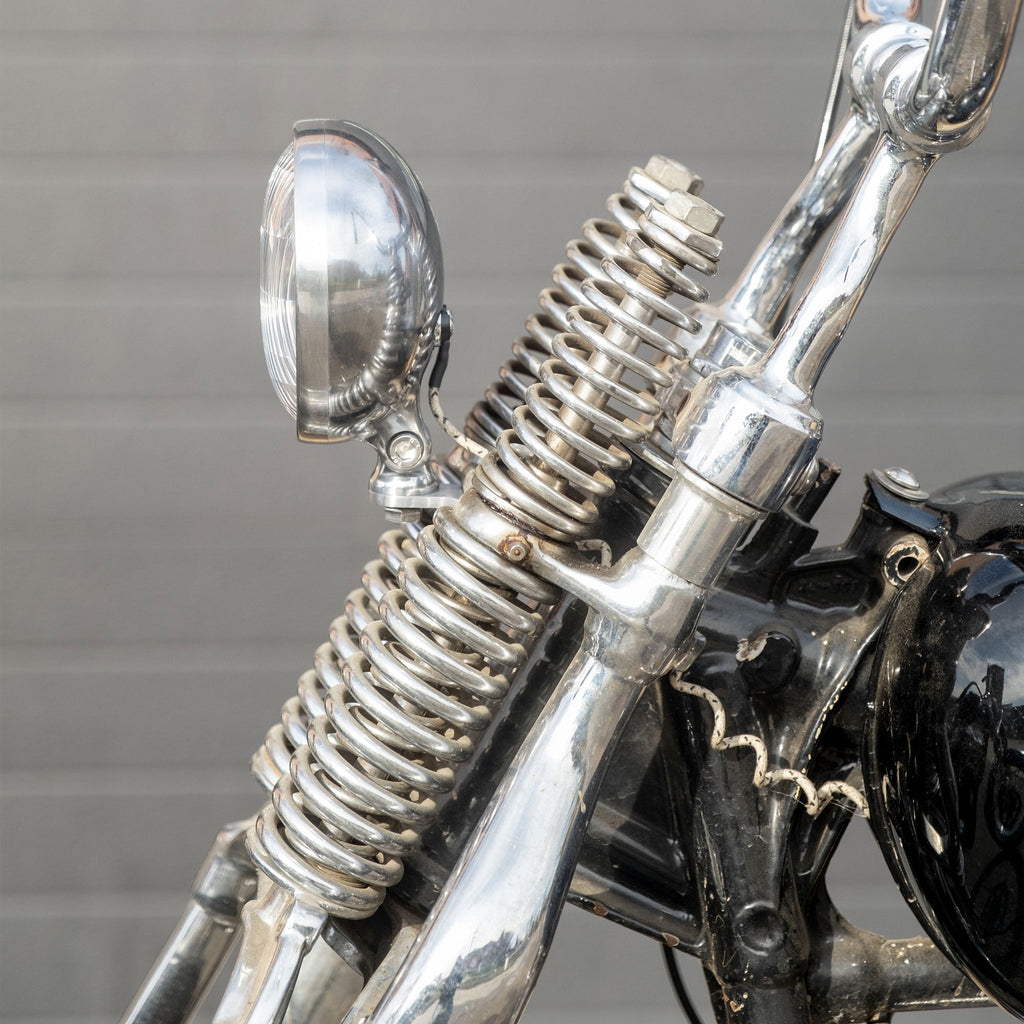

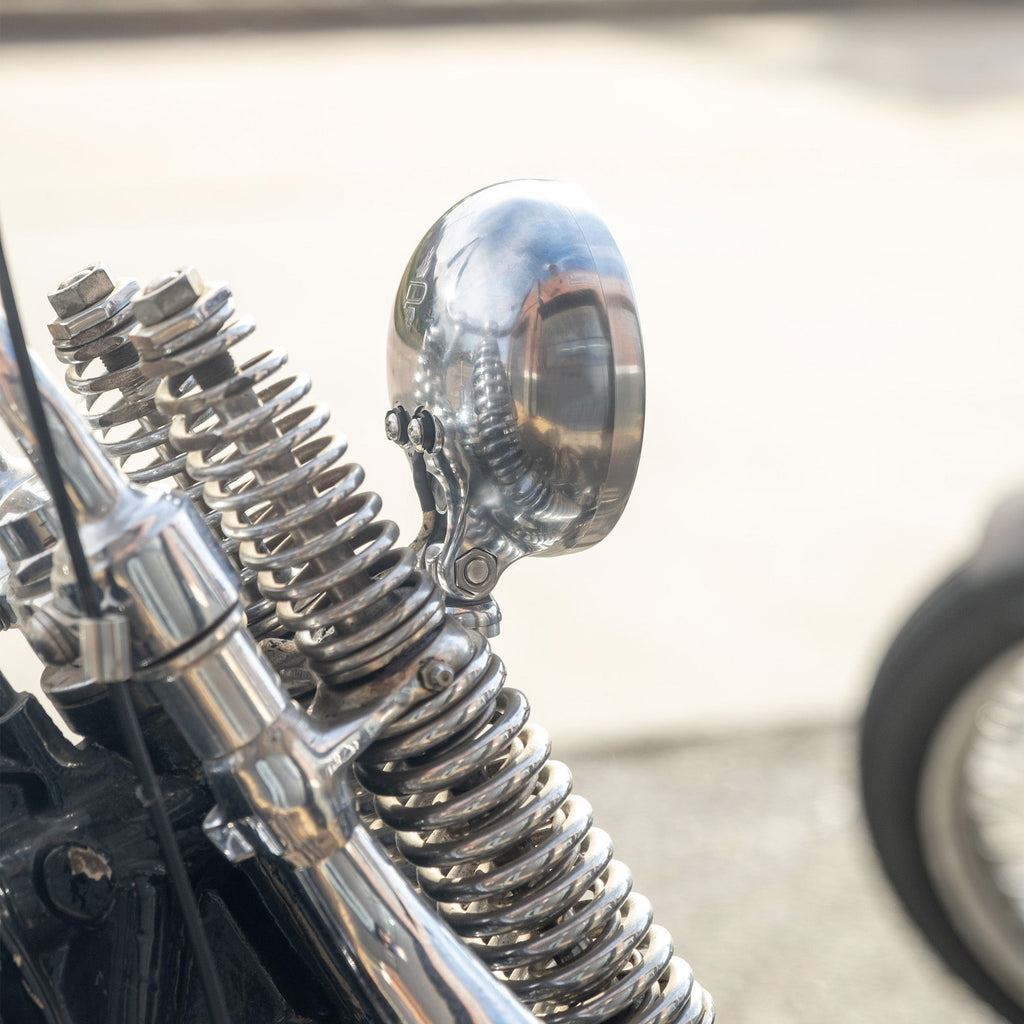

• Universal 5/16-24 threaded pedestal mount supports compatible brackets.

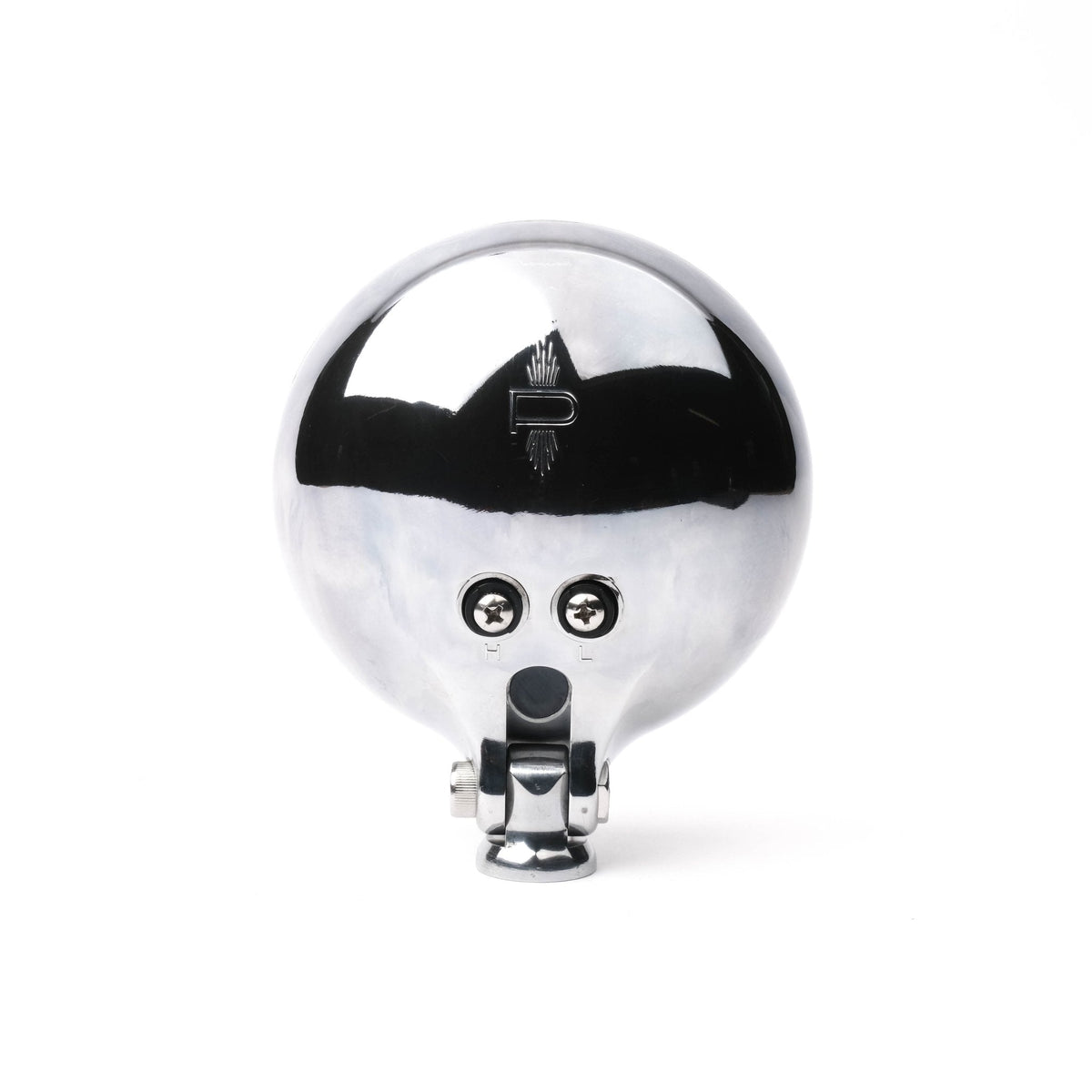

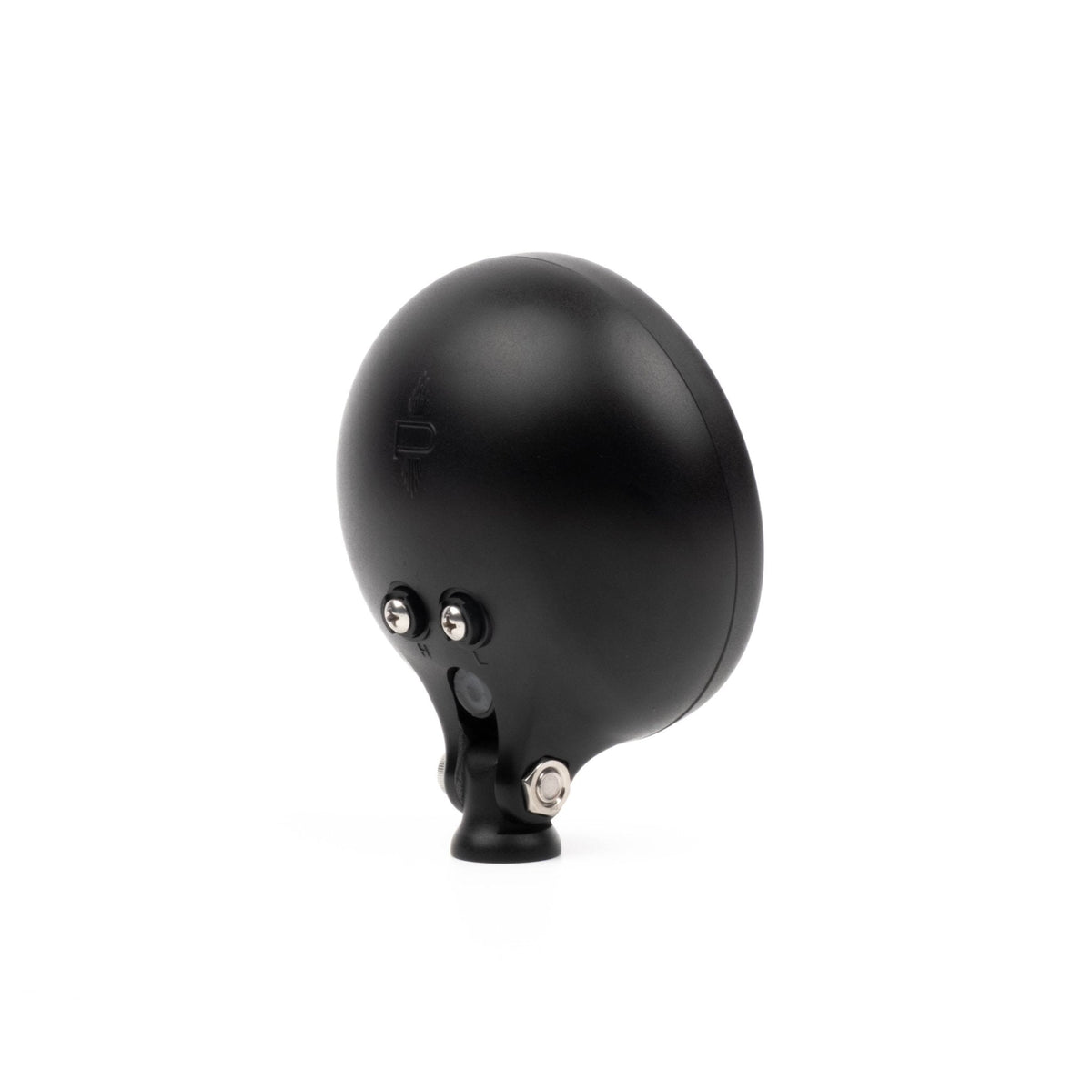

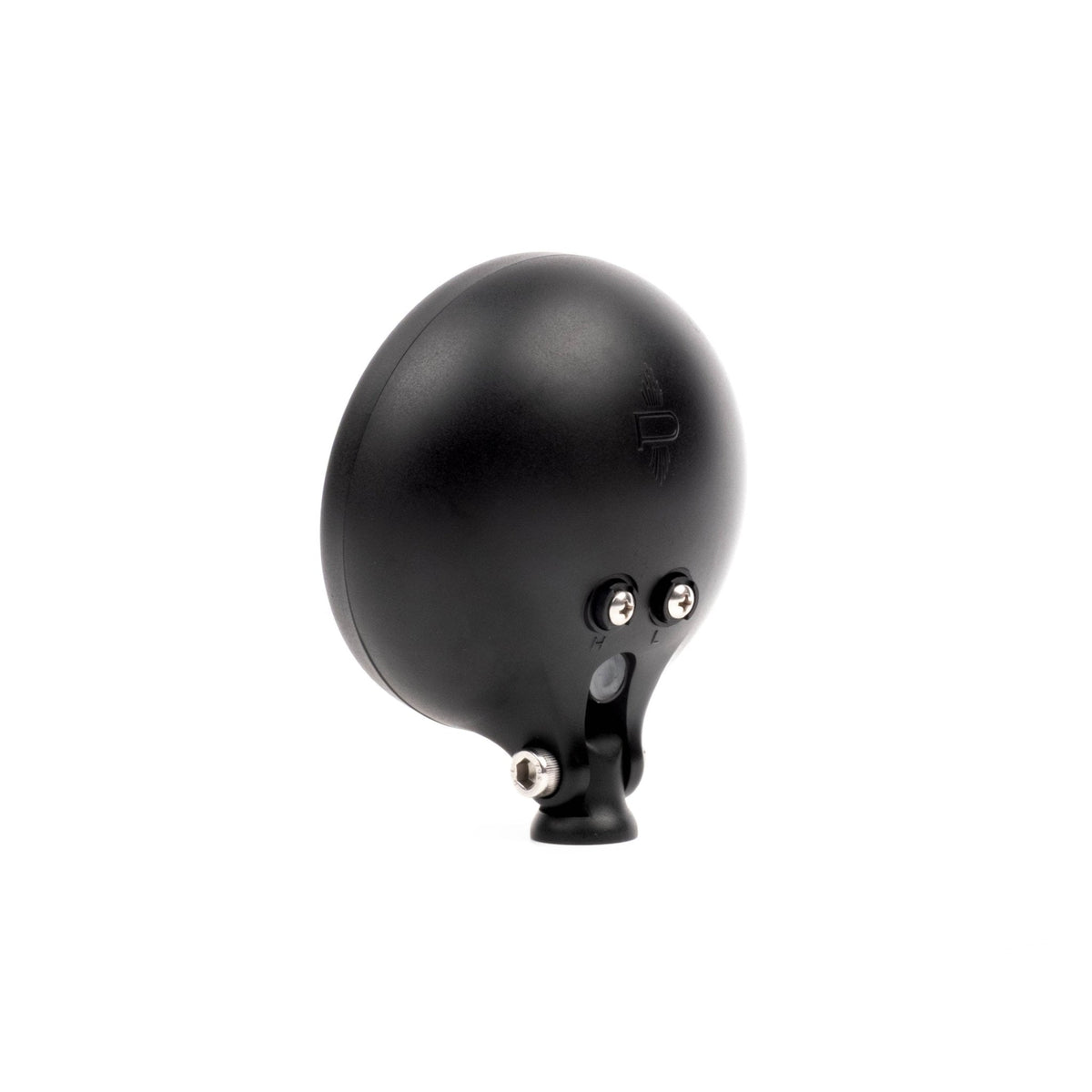

• Two #8-32 Bates-style input terminals and an internal ground support clean wiring.

Specifications

• Diameter: 4.5 inches / 4-1/2 inches
• Operating voltage: 9-16V DC
• Low-beam current: 0.87A at 12V DC
• High-beam current: 1.50A at 12V DC
• Color temperature: 3000K
• Low-beam output: 1250 lumens
• High-beam output: 2200 lumens
• Seal ratings: IP67 and IP69K
• Input terminal screws: #8-32 × 3/16 inch
• Included pedestal bolts: 5/16-24 × 5/8 inch and 5/16-24 × 1-1/4 inch
• Mounting direction: Pedestal down only

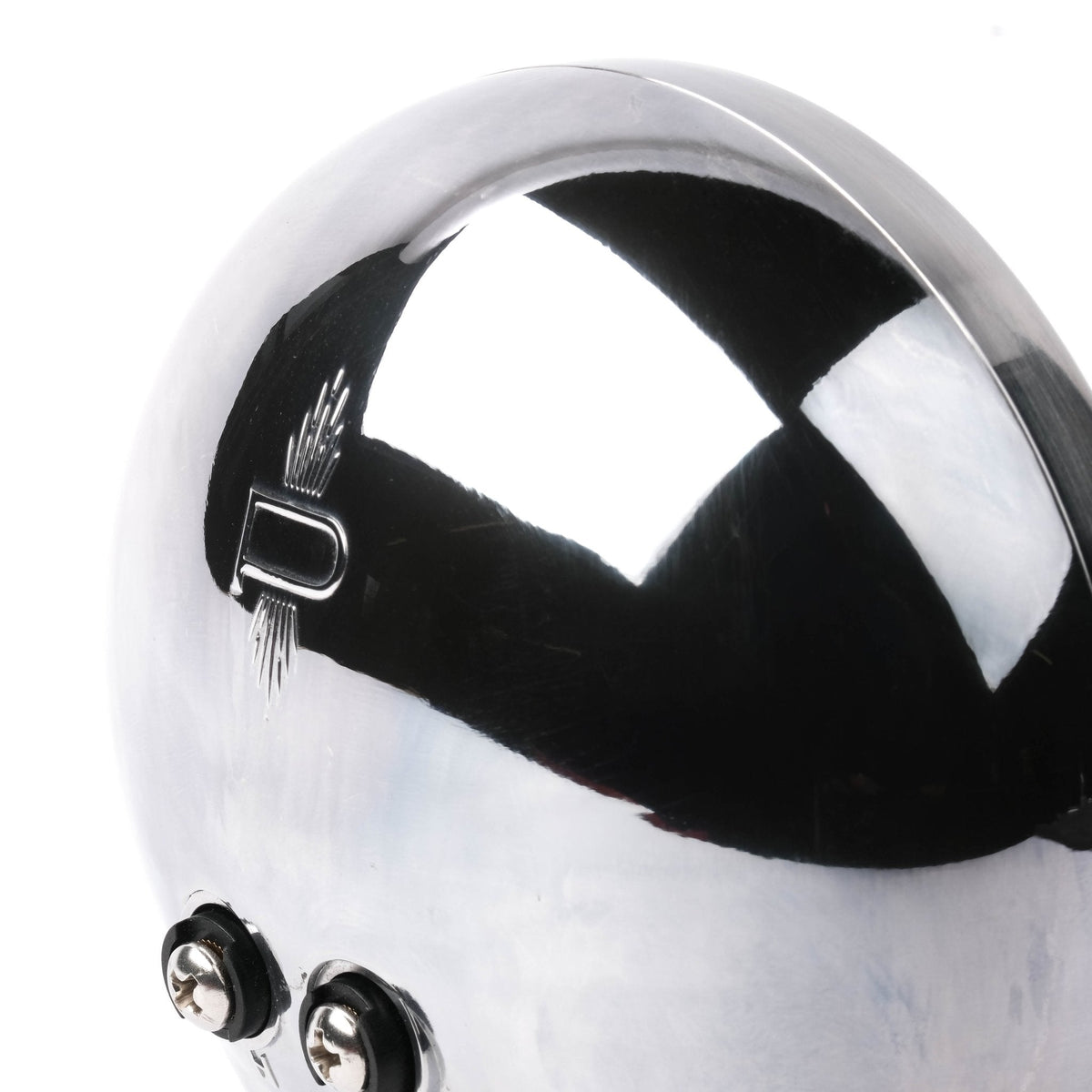

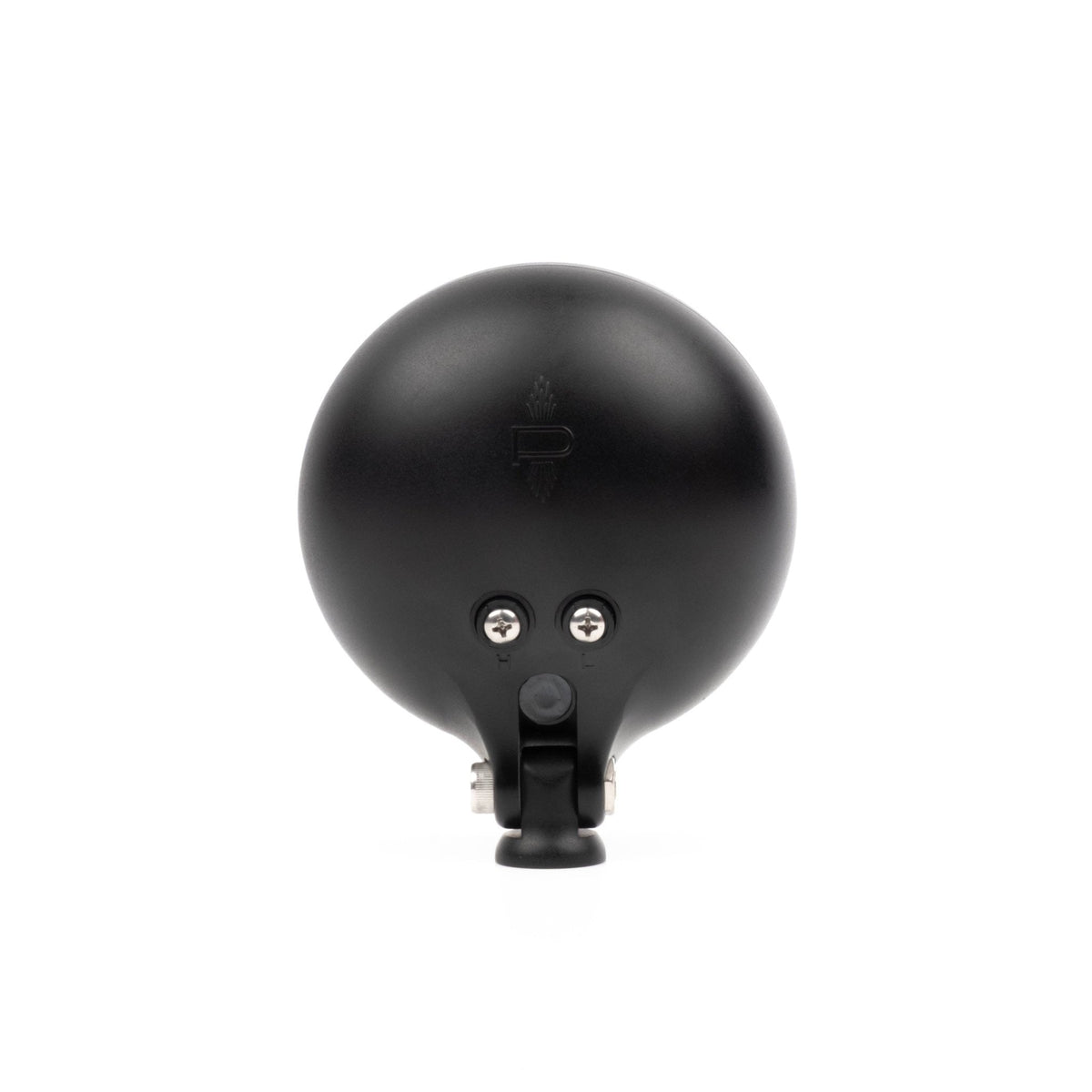

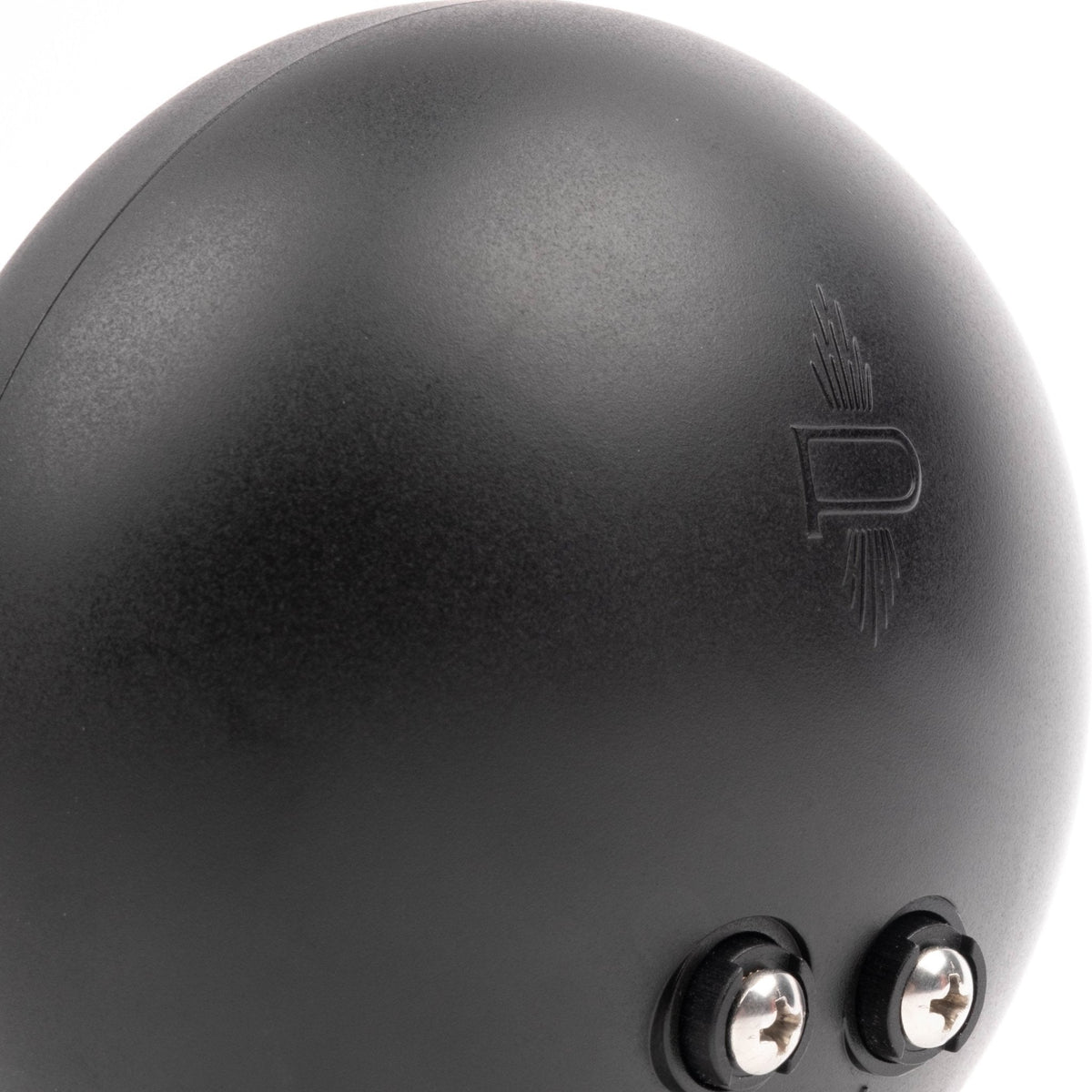

• Finish options: Polished aluminum or anodized black aluminum

This headlight is not DOT or other regulatory-body certified and may not be street legal in every area. Verify local requirements before public-road use.
