40A 9.6kW NACS Mobile EV Charger with Wi-Fi Scheduling, NEMA 14-50 and 5-15 Adapters, 5.5m Cable

This portable NACS mobile EV charger supplies up to 40A and 9.6kW from a compatible AC outlet, with Wi-Fi controls for scheduling, power adjustment and temperature monitoring.

Key Features

• Supports up to 40A charging current and 9.6kW output.
• Wi-Fi control supports scheduled charging, power adjustment and temperature monitoring from a compatible smartphone.

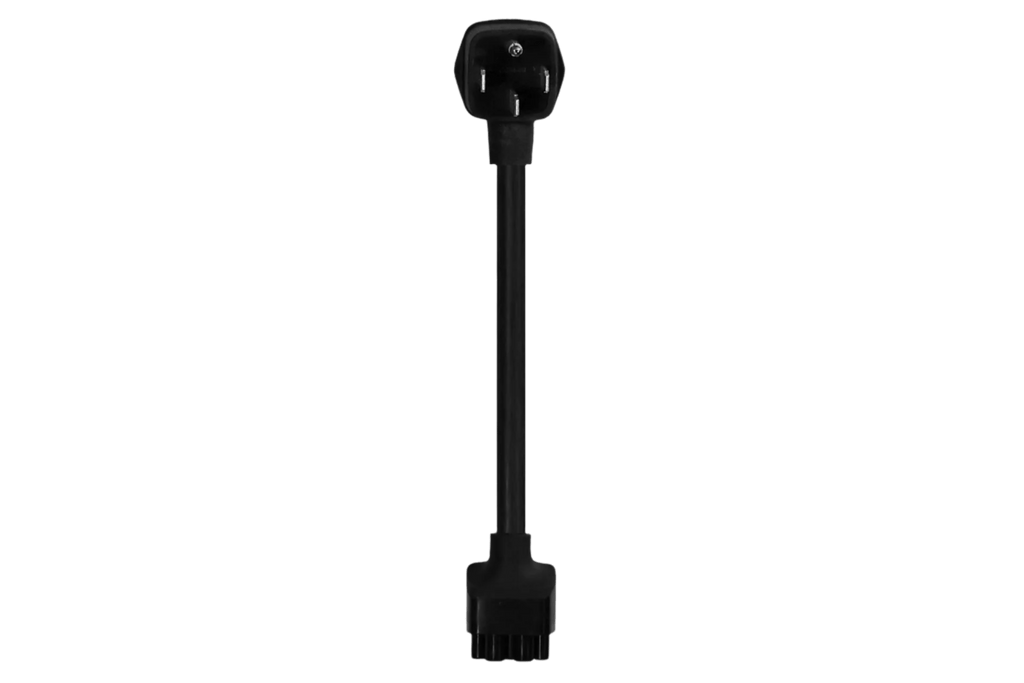

• Includes NEMA 14-50 and NEMA 5-15 adapters for compatible outlets.
• Supports a compatible NEMA 6-20 adapter.
• IP55 enclosure provides dust and water protection for suitable operating conditions.
• Supports OCPP 1.6J in JSON format for compatible charging-management systems.
• Includes a storage pouch for transport and storage.

Specifications

• Connector type: North American Charging System (NACS)
• Rated current: 40A maximum
• Rated voltage: 100–240V AC
• Maximum output: 9.6kW
• Cable length: 5.5m with adapter installed
• Protection rating: IP55
• Flammability rating: UL94 V-0
• Operating temperature: -30°C to 50°C
• Plug and unplug durability: More than 10,000 no-load cycles
• Device dimensions: 233 × 89 × 61mm
• Weight: 2.6kg
• Protocol: OCPP 1.6J

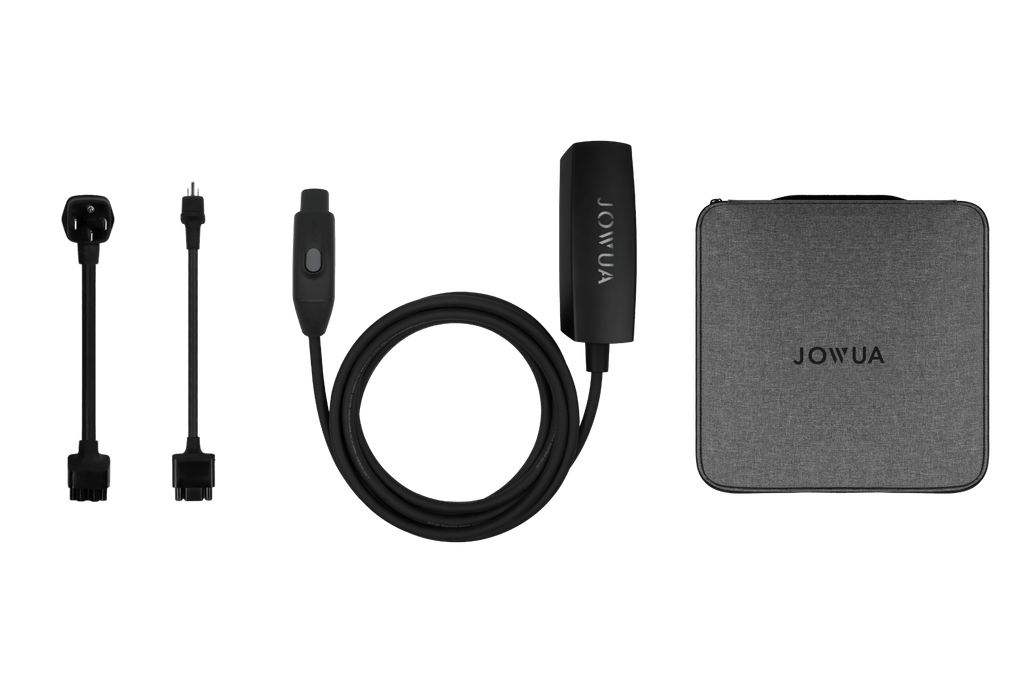

• Included: NACS mobile connector, NEMA 14-50 adapter, NEMA 5-15 adapter and storage pouch
• SKU: FGM25021401
• Barcode: 4711064604474

Confirm the outlet, circuit capacity and vehicle compatibility before use. Charging output depends on the connected circuit and vehicle.
