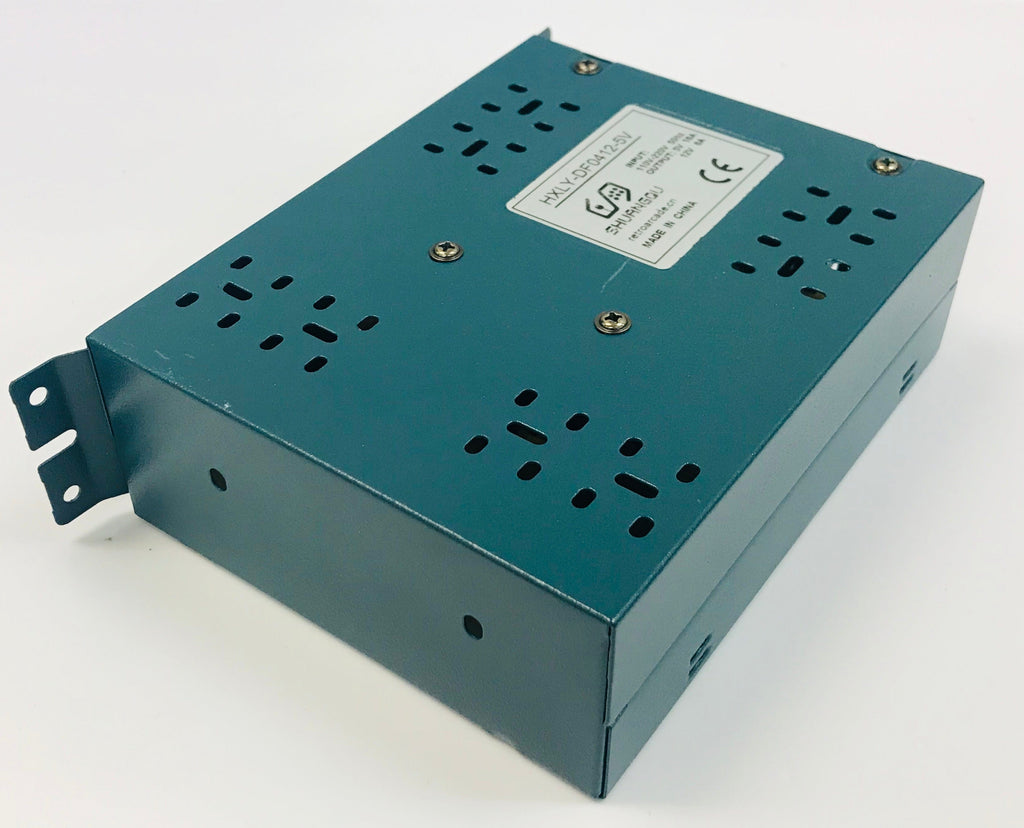

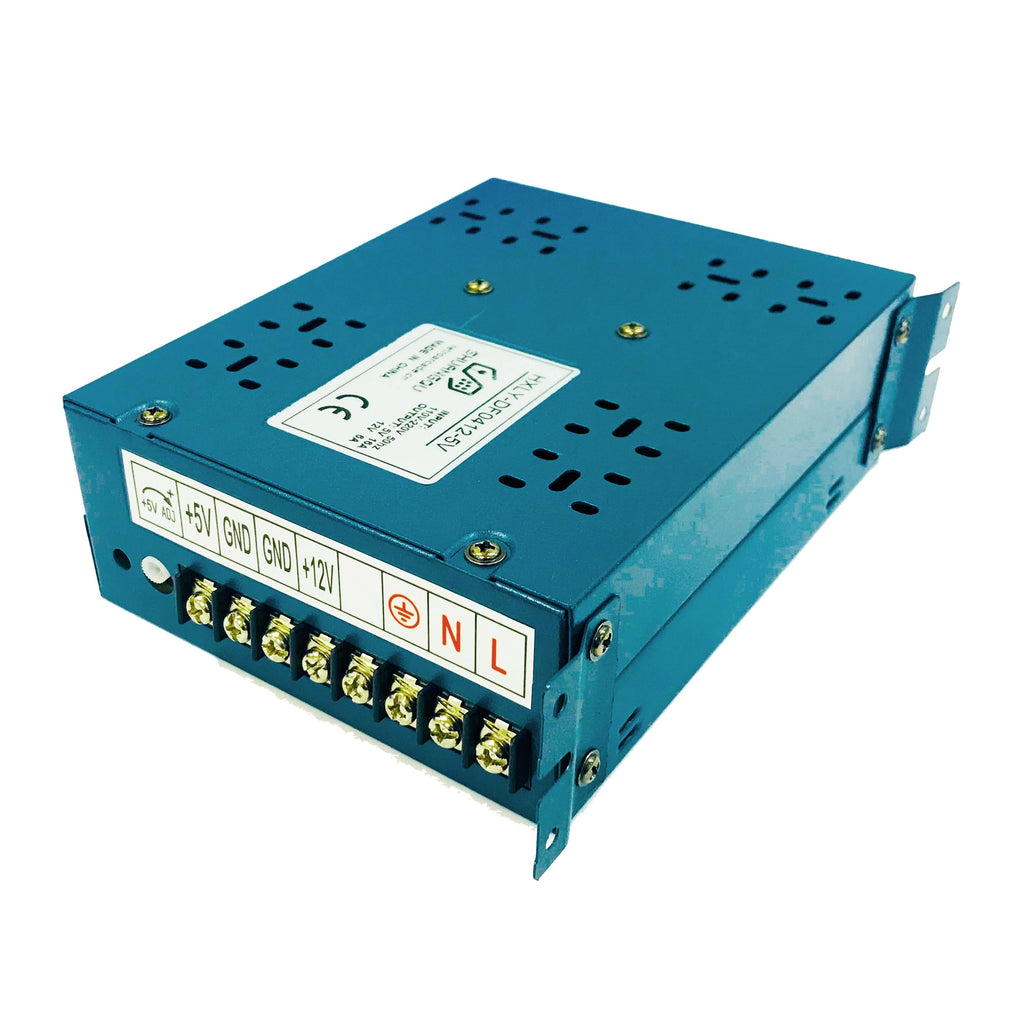

5V 16A and 12V 4A Dual-Output Switching Power Supply with 100–260V AC Input and Terminal Cover

This dual-output switching power supply provides 5V at up to 16A and 12V at up to 4A for compatible arcade electronics and cabinet projects.

Key Features

• Dual 5V and 12V outputs support compatible arcade components.
• Full-range 100–260V AC input supports 50/60Hz mains frequency.
• Built-in EMI filter helps reduce electrical interference.
• Short-circuit, overload and overvoltage protection are included.
• Covered 8-pin terminal block uses 9.5mm pitch connections.

Specifications

• Product type: Dual-output switching power supply
• DC output 1: 5V / 16A
• DC output 2: 12V / 4A
• AC input: 100–260V
• Input frequency: 50/60Hz
• Overload protection: 105%–150% hiccup mode with automatic recovery
• Overvoltage protection: 115%–135% of rated output voltage

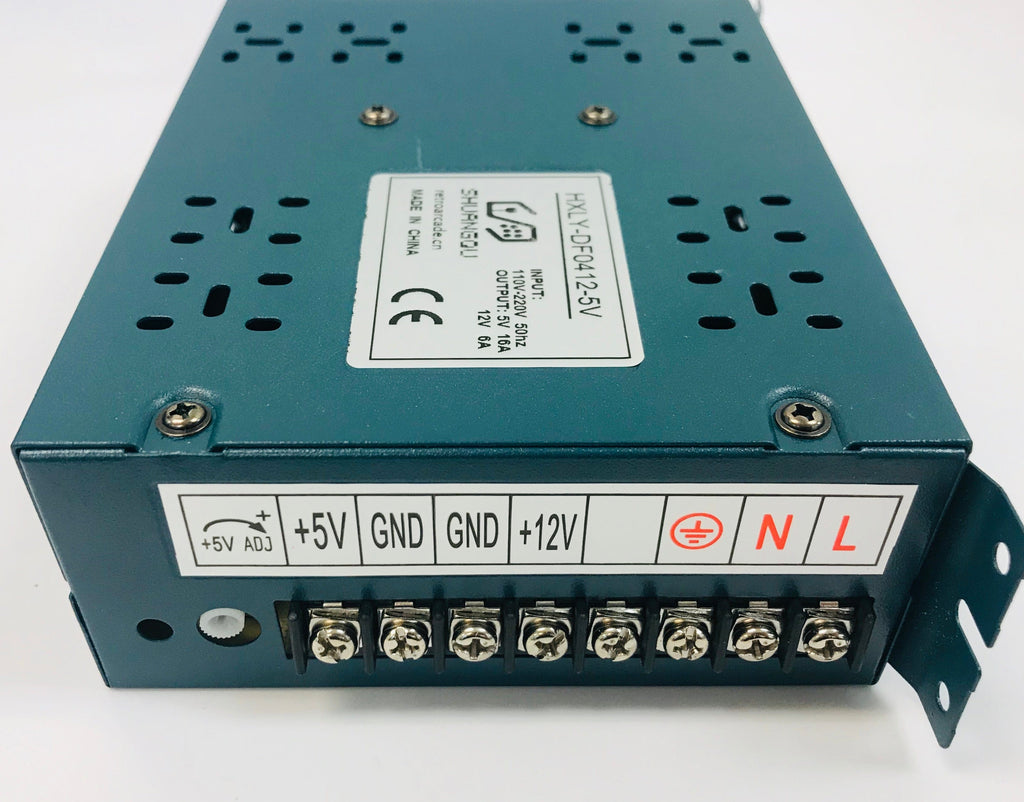

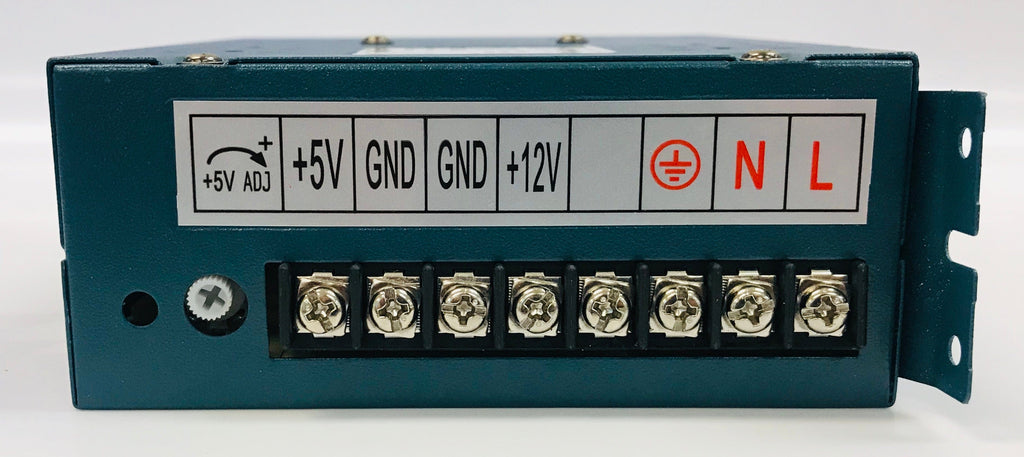

• Connection: 8-pin terminal block with cover
• Terminal pitch: 9.5mm
• Safety standards: UL1950, EN60950, CB and CE
• Model identifier: Arcade-9

Installation requires correct mains wiring, grounding and output-terminal identification for the connected arcade equipment.
