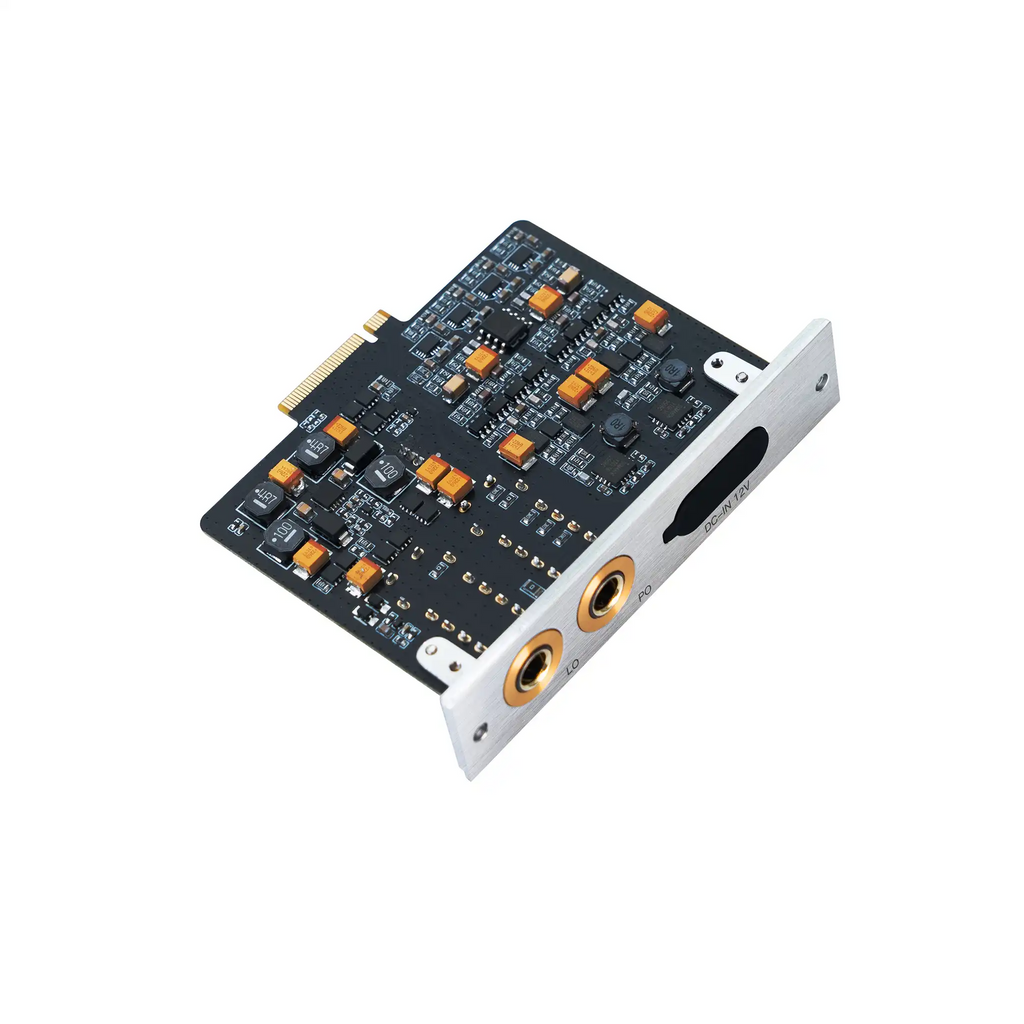

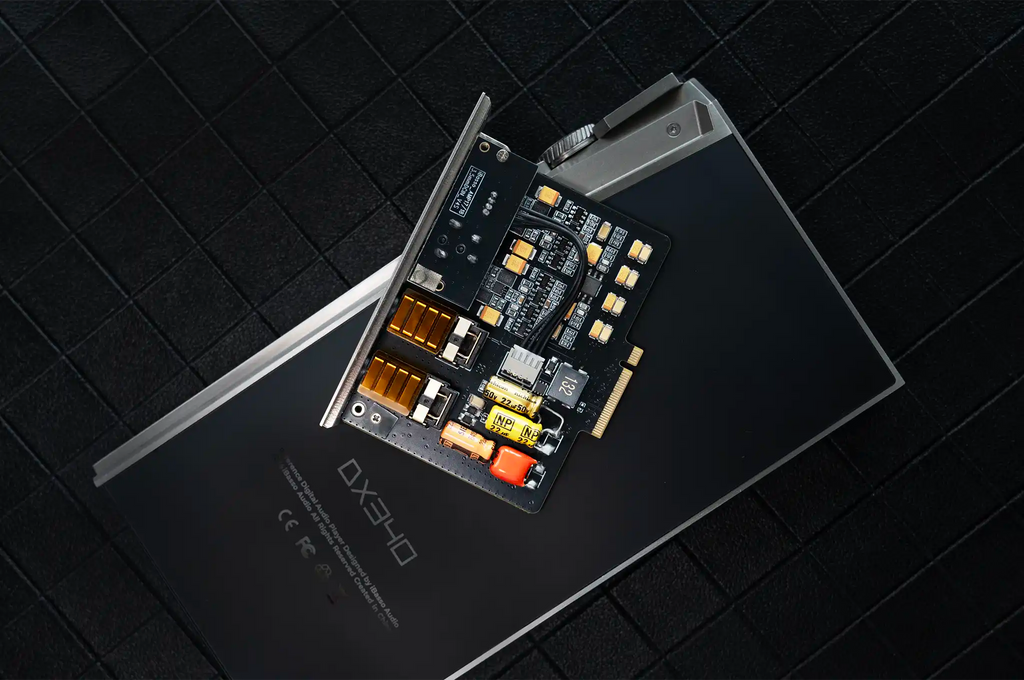

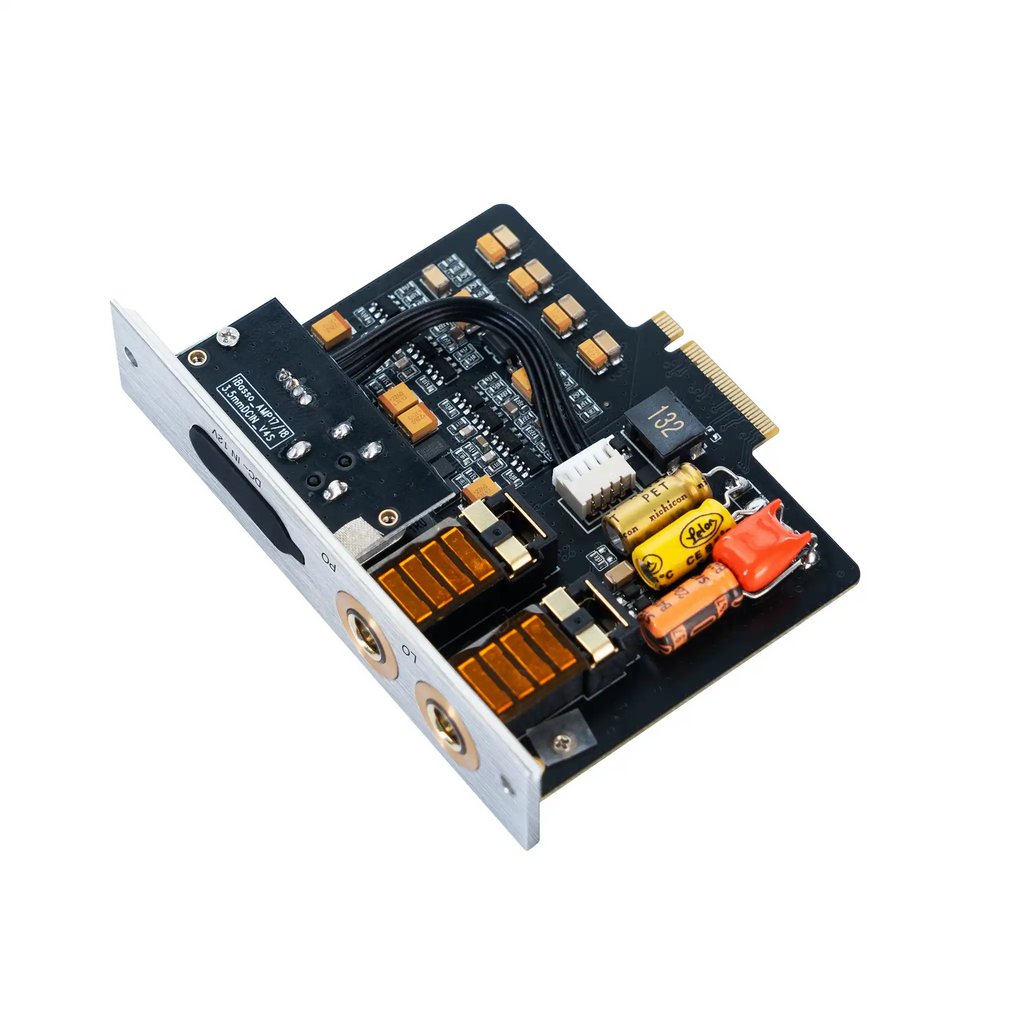

AMP17 is a replaceable amplifier card for compatible iBasso portable players. Its GaN FET and discrete transistor design provides separate 4.4mm balanced headphone and line outputs.
Key Features

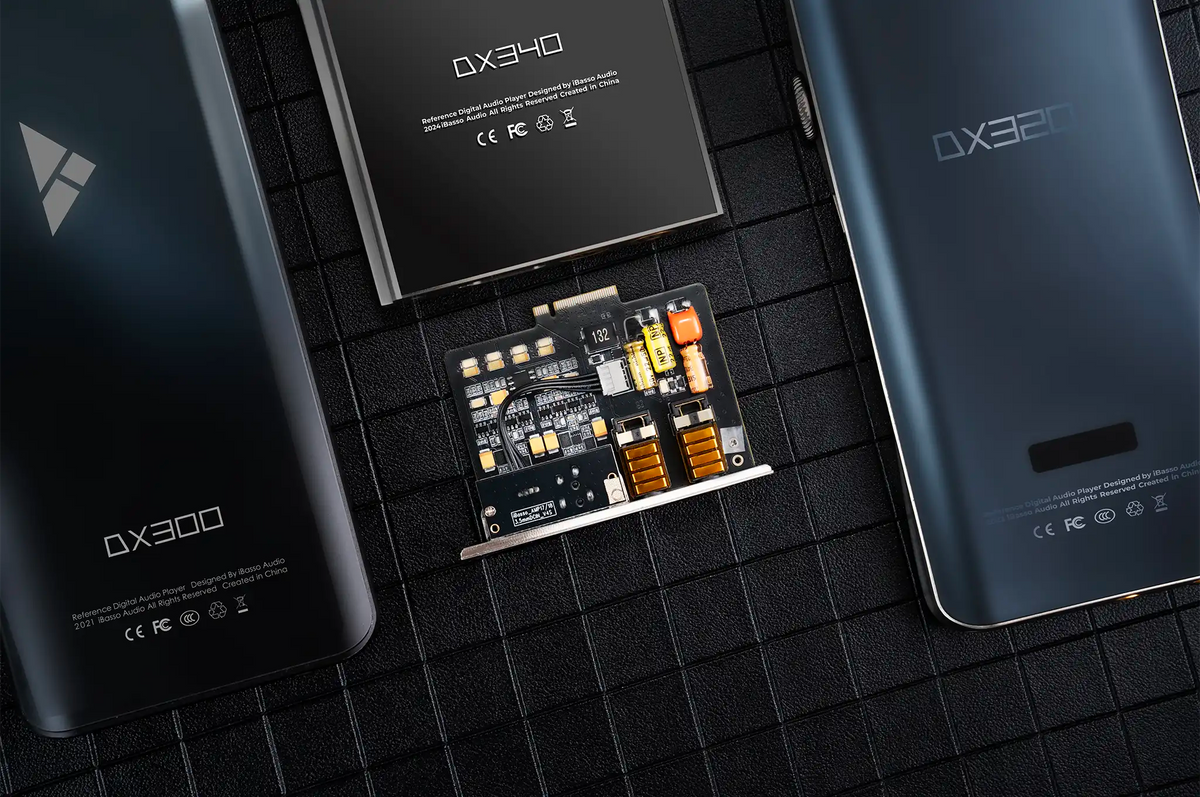

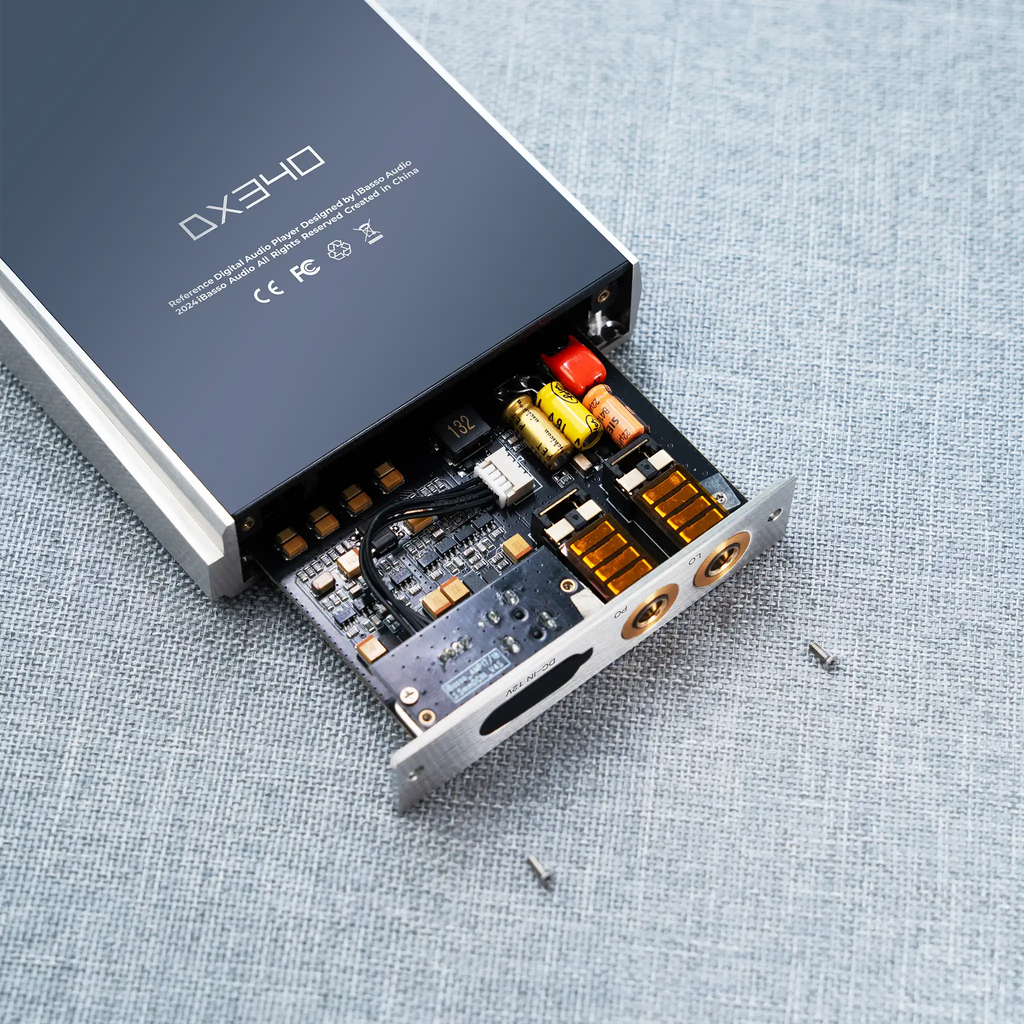

- Supports DX340, DX300 and DX320. DX300/DX320 require the faceplate originally designed for AMP12 or AMP14.
- External 12V DC input is supported with DX340. DX300 and DX320 do not support external 12V DC power.

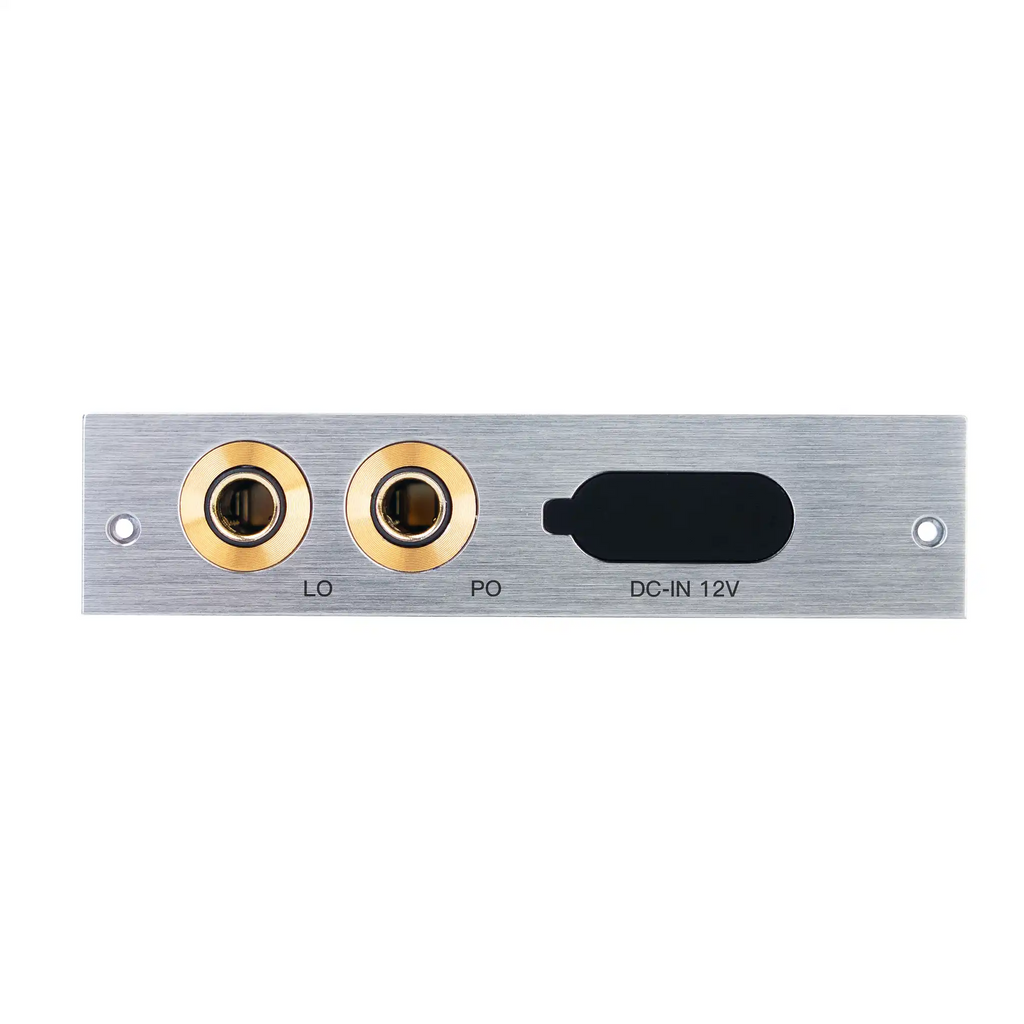

- Separate balanced headphone and line outputs provide distinct listening and connection functions.
Specifications
- Headphone output: 120dB dynamic range, 122dB SNR, −117dB crosstalk and 1.1Ω output impedance.
- Frequency response: 10Hz–40kHz, ±0.5dB.
- Line output: 126dB dynamic range, 123dB SNR and −97dB crosstalk.
- Line output levels: 1.6Vrms low gain, 2.6Vrms mid gain and 3Vrms high gain.
Package Contents
AMP17 amplifier card, warranty card, screwdriver and screws. A portable player and external power supply are not part of the stated package. Select New or Open Box according to the listed condition and availability.
