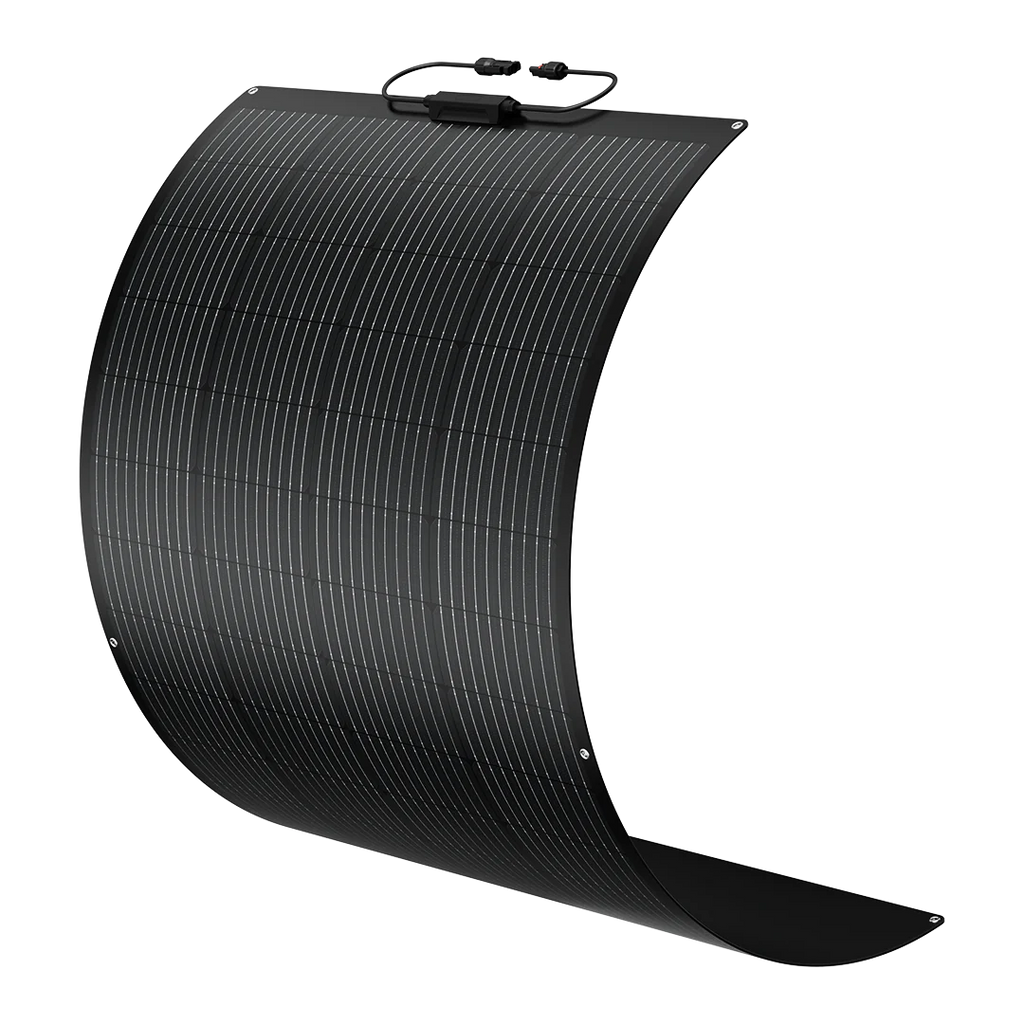

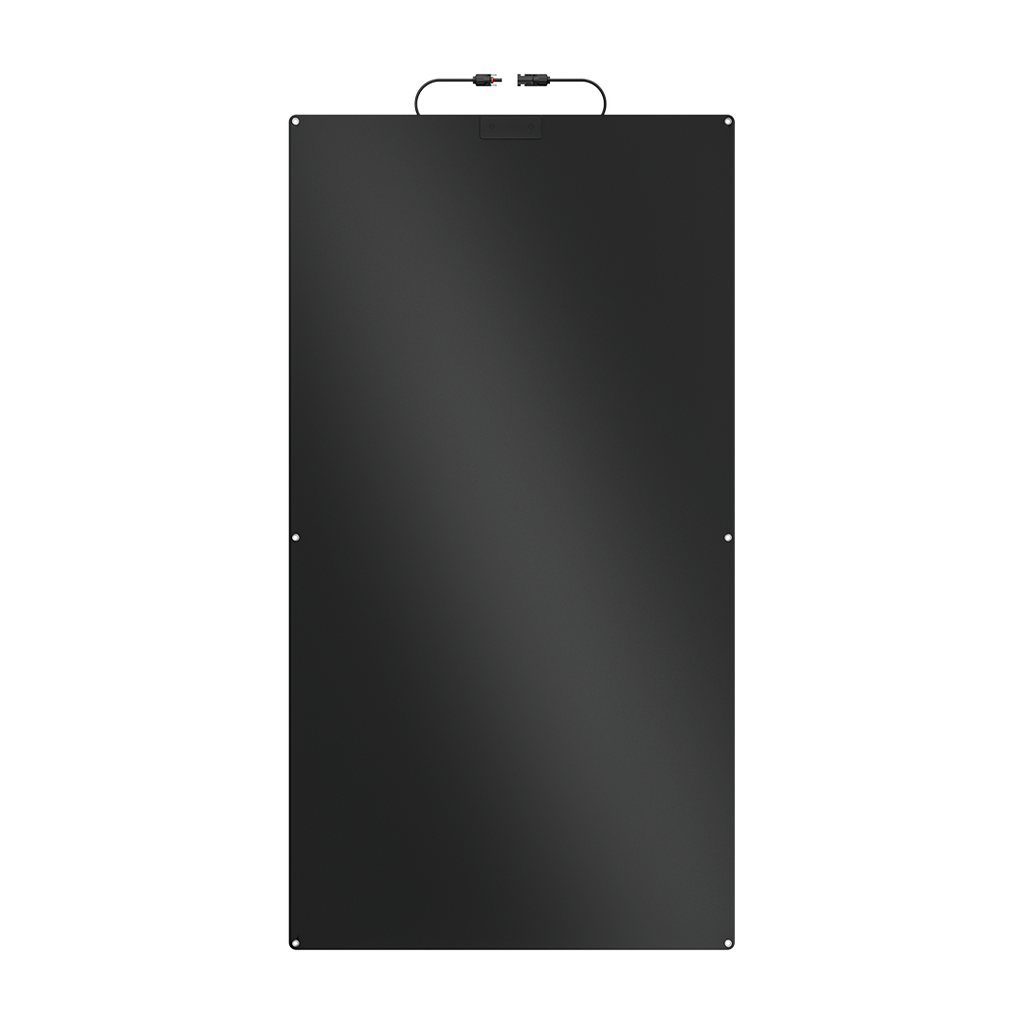

Arch 200W Flexible Monocrystalline Solar Panel with Fiberglass Layers, 10BB Cells and Curved-Surface Installation

The Arch 200W flexible monocrystalline solar panel uses 10BB mono cells protected by fiberglass layers on both sides. Its slim flexible design suits appropriate curved surfaces on RVs, boats and roofs. Select a pack of one, two, three, four or eight panels; the specifications below apply to each panel.

Key Features

• 200W rated maximum power per panel, with a stated ±5% tolerance.

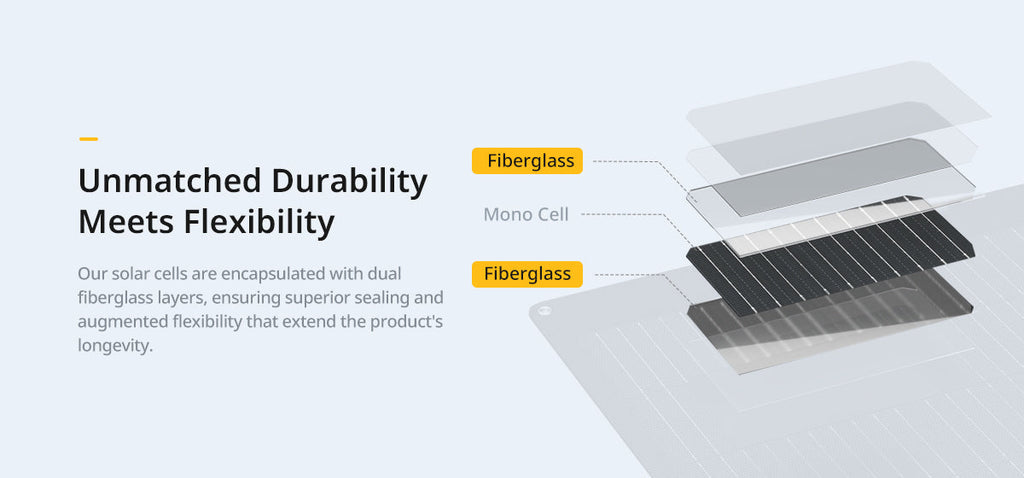

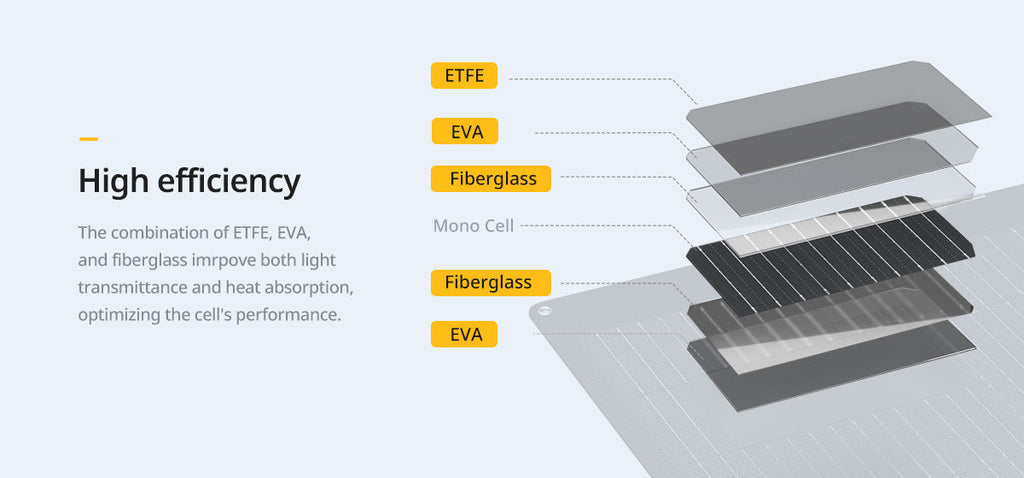

• Double fiberglass layers protect the mono solar cells.
• The manufacturer lists a bend capability up to 270° for curved-surface installation.
• 23% stated solar cell efficiency.
• A slim 2.1mm profile and 7.05lb weight per panel, as listed in the linked technical manual.
• IP68 protection rating listed by the manufacturer.

Specifications

• Series: Arch
• Base panel SKU: ISE230
• Cell type: 10BB monocrystalline
• Maximum power: 200W ±5% per panel
• Maximum-power voltage: 17.1V ±5%
• Maximum-power current: 11.7A ±5%
• Open-circuit voltage: 20.1V ±5%
• Short-circuit current: 12.28A ±5%
• Maximum system voltage: 1000V DC; this is a system limit, not the panel's output voltage
• Series fuse rating: 15A
• Operating temperature range: -40°C to 85°C (-40°F to 185°F)
• Dimensions per panel: 1476 × 787 × 2.1mm; approximately 58.1 × 31 × 0.08 inches
• Weight per panel: 3.2kg / 7.05lb
• Pack quantities: 1, 2, 3, 4 or 8 panels
• System scope: Solar panel component; no battery, controller, power station or installation hardware is specified as included
