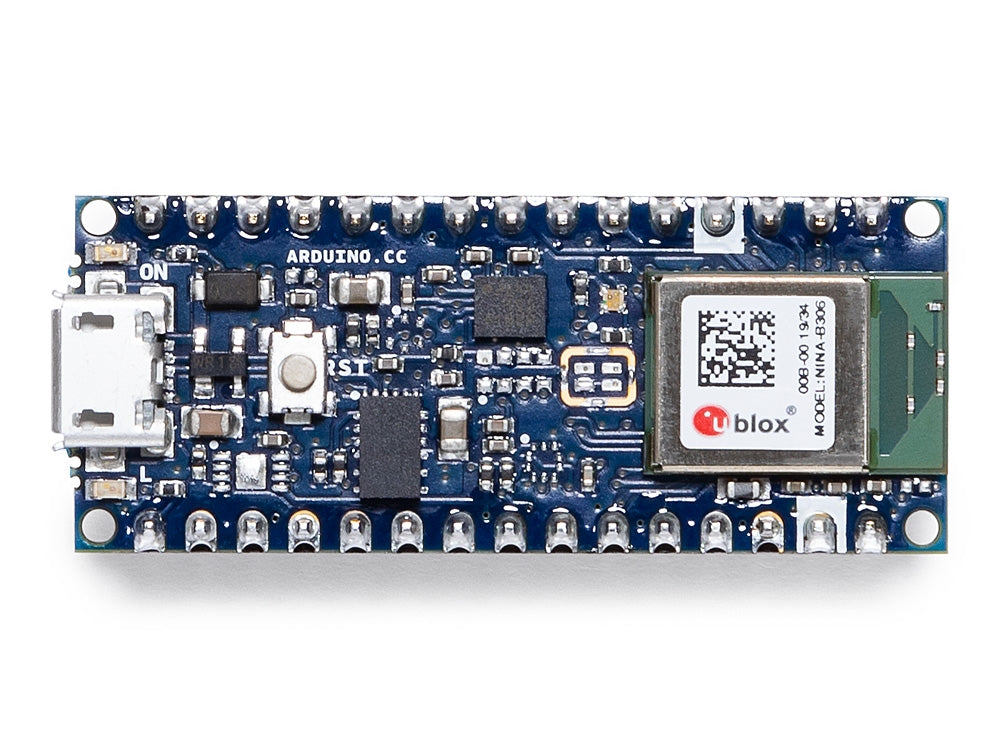

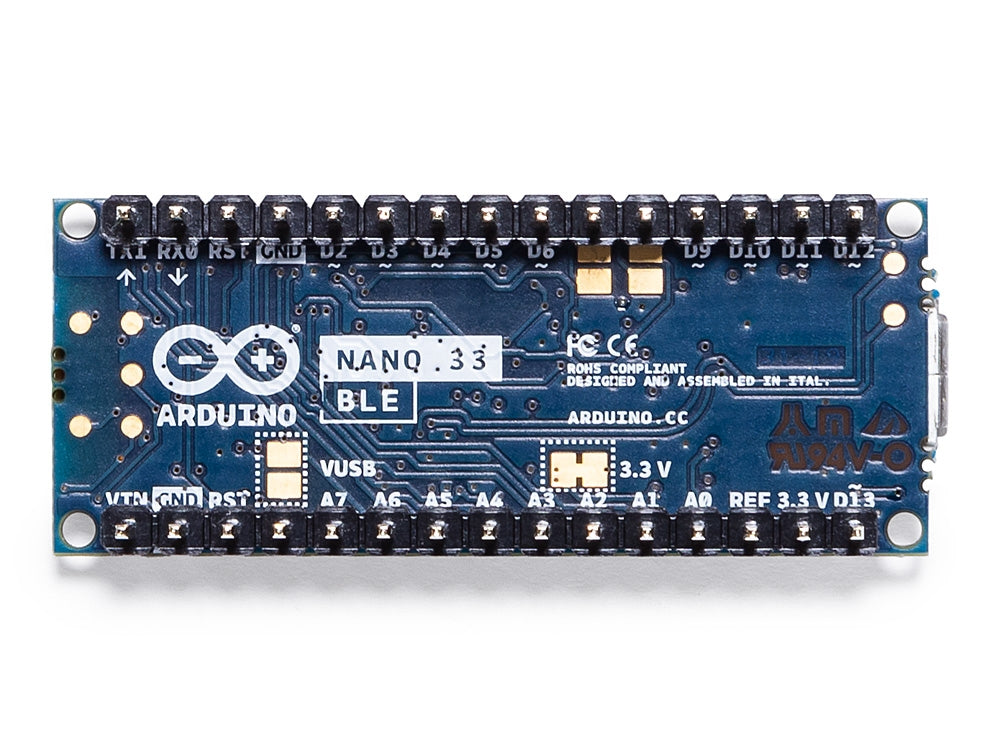

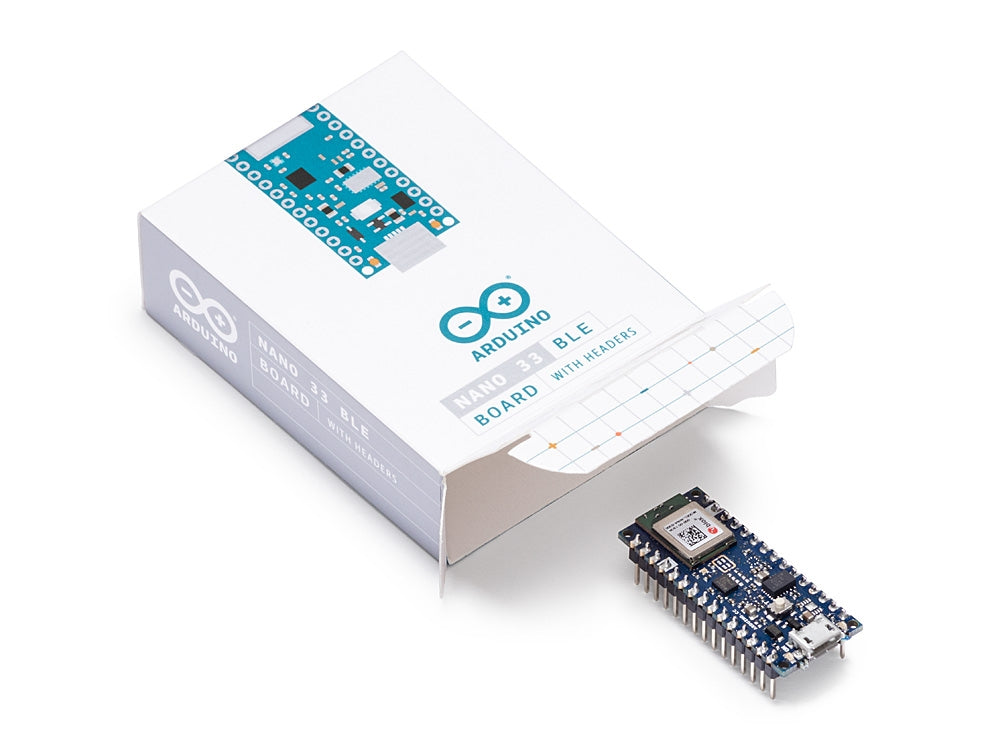

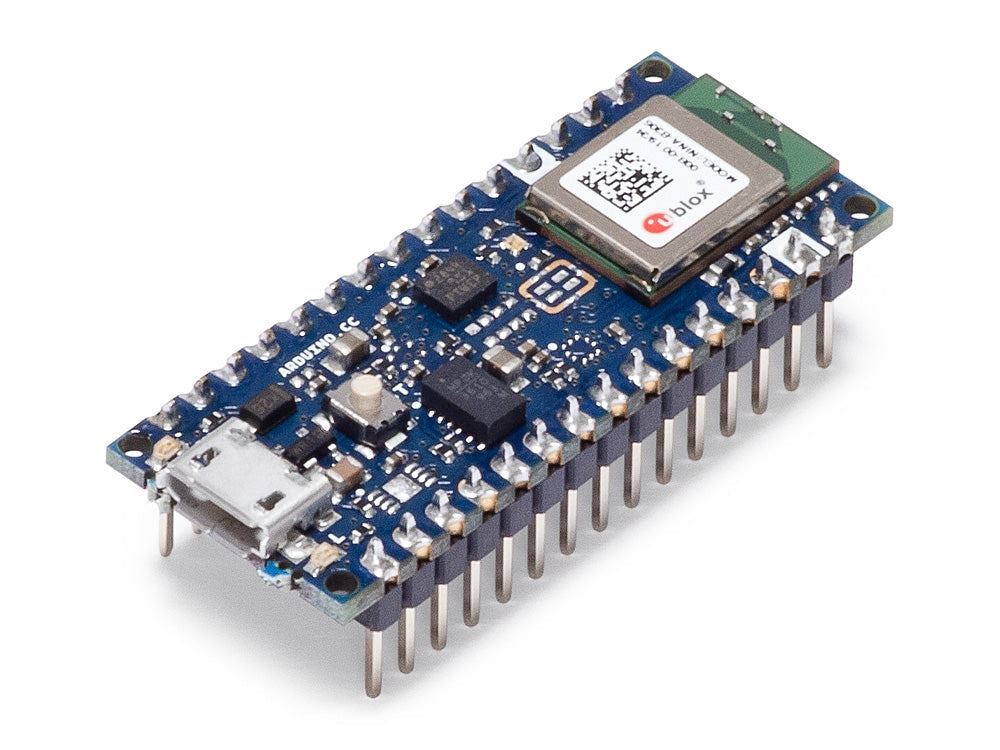

Nano 33 BLE Development Board with Headers, nRF52840 Cortex-M4 Processor, Bluetooth and Nine-Axis IMU

The Arduino Nano 33 BLE with headers is a compact 3.3V development board for Bluetooth, motion-sensing and wearable projects.

Key Features

• Nordic nRF52840 processor uses a 32-bit ARM Cortex-M4 core running at 64MHz.
• Bluetooth Low Energy and NFC pairing support compatible short-range wireless projects.
• Integrated 9-axis IMU combines an accelerometer, gyroscope and magnetometer.
• Nano form factor measures 45 × 18mm for compact builds.
• Preinstalled headers simplify breadboard and wired prototyping.
• Operates at 3.3V and is not 5V tolerant.

Specifications

• Brand/model: Arduino Nano 33 BLE with headers
• SKU: ABX00034
• Processor: Nordic nRF52840
• CPU: 32-bit ARM Cortex-M4 at 64MHz
• Program memory: 1MB
• SRAM: 256KB
• Wireless: Bluetooth Low Energy with NFC pairing
• Sensor: 9-axis IMU
• Operating voltage: 3.3V
• Connector: Micro-USB
