Nano 33 BLE nRF52840 3.3V Development Board with Bluetooth Low Energy and 9-Axis IMU, No Headers

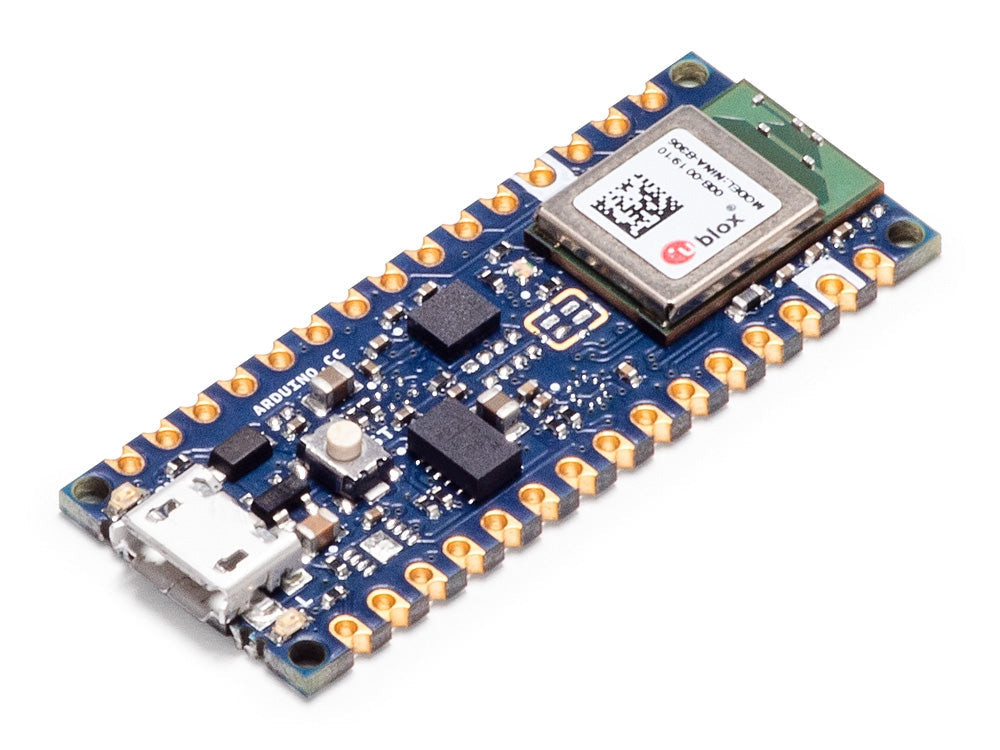

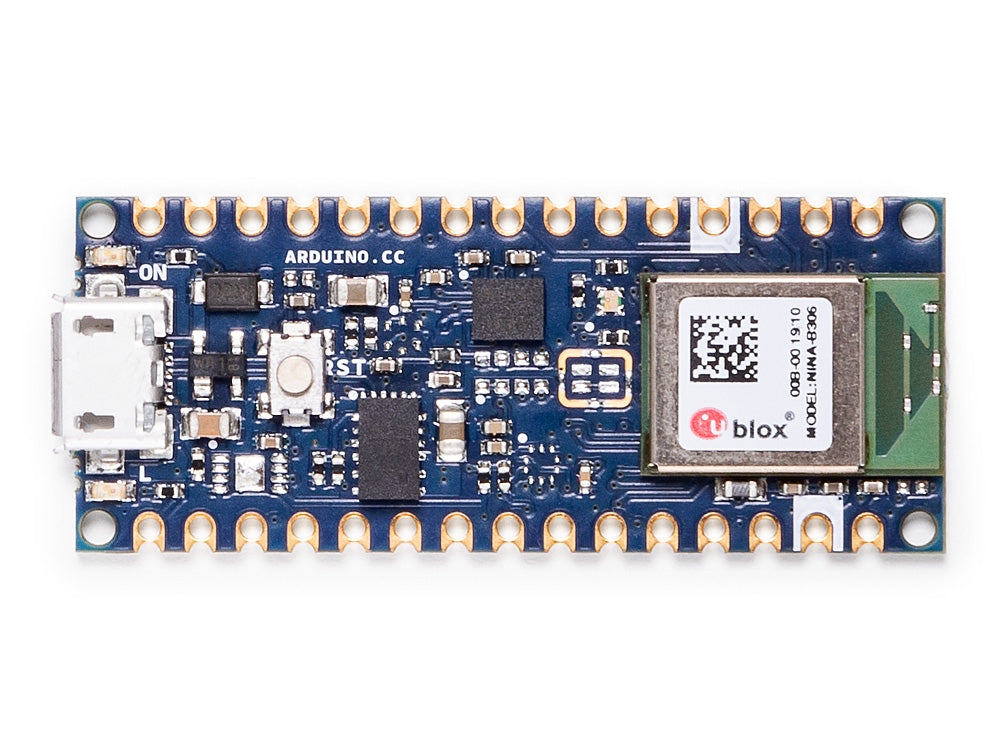

The Arduino Nano 33 BLE is a compact 3.3V development board built around the Nordic nRF52840 32-bit ARM Cortex-M4 processor, with Bluetooth Low Energy and an integrated 9-axis inertial sensor.

Key Features

• 64MHz nRF52840 processor in the 45 × 18mm Nano form factor.
• Bluetooth Low Energy operation as a compatible client or host.
• NFC-assisted Bluetooth pairing support from the main processor.
• Integrated accelerometer, gyroscope and magnetometer with three axes each.
• Suitable for wearables, robotics, motion tracking and short-range wireless projects.

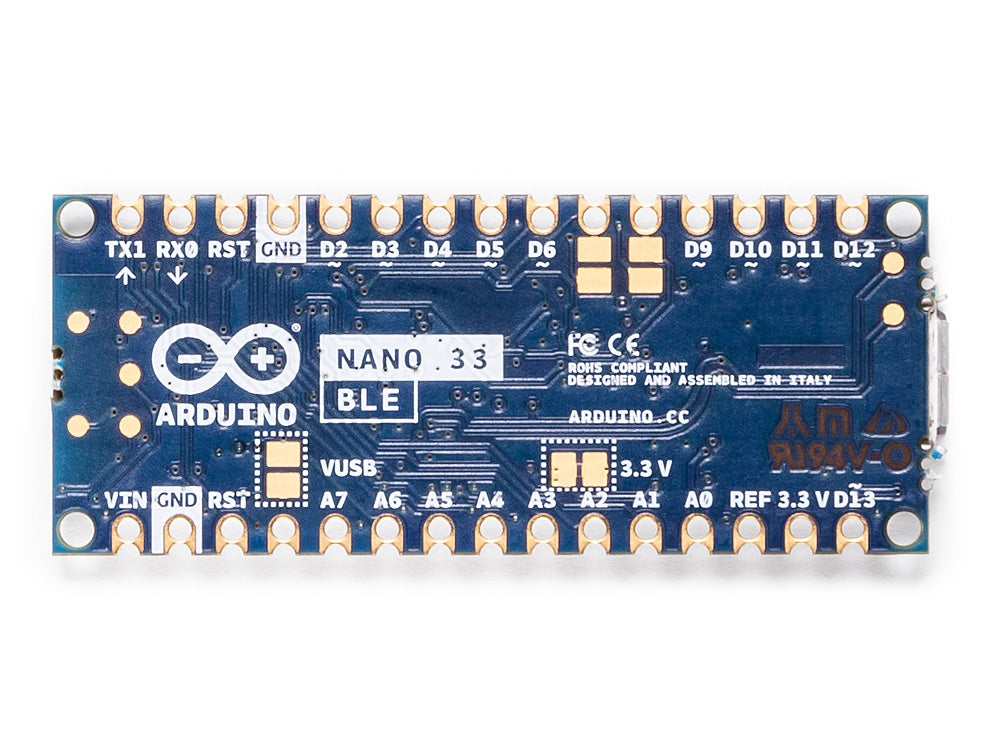

• Tessellated connectors and no components on the B-side support compact integration.

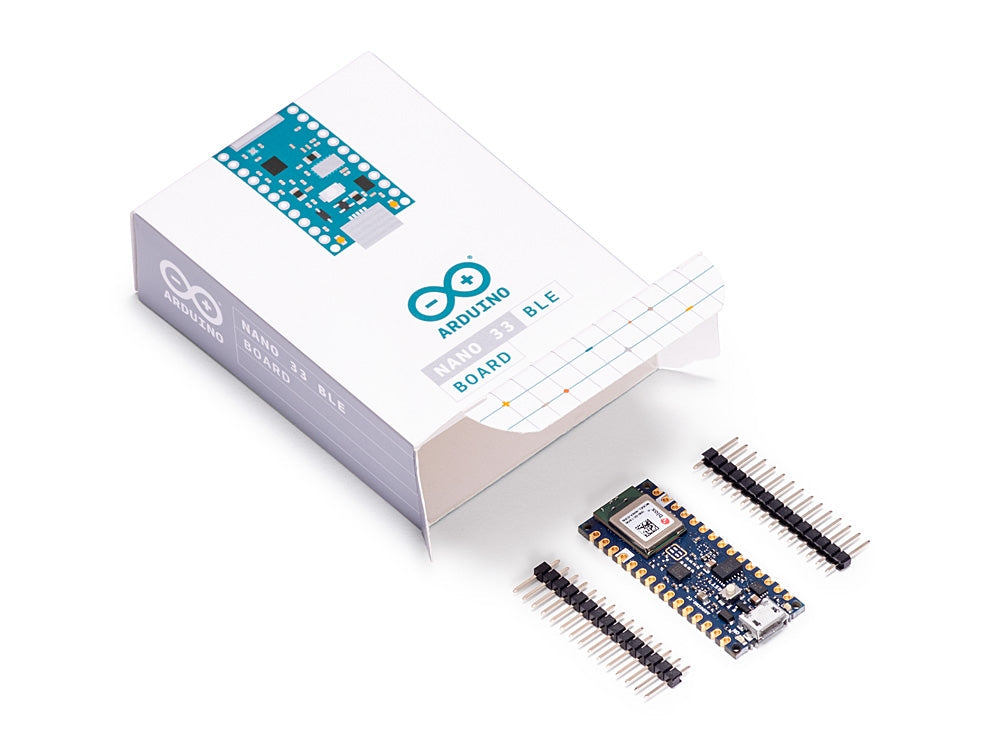

• This configuration is listed without headers.

Specifications

• Brand and model: Arduino Nano 33 BLE
• Processor: Nordic nRF52840, ARM Cortex-M4, 64MHz
• Operating logic: 3.3V
• Connectivity: Bluetooth and Bluetooth Low Energy
• Sensor: 9-axis IMU
• Connector: Micro-USB
• Dimensions: 45 × 18mm
• SKU: ABX00030

The board operates at 3.3V. Review connected components and earlier Nano designs for 3.3V compatibility before use.
