Nano 33 IoT Development Board with Headers, SAMD21 Processor, 2.4GHz Wi-Fi, Bluetooth LE and 6-Axis IMU
$42.89
Sale price
$42.89
Regular price
Skip to product information
Nano 33 IoT Development Board with Headers, SAMD21 Processor, 2.4GHz Wi-Fi, Bluetooth LE and 6-Axis IMU
$42.89
Sale price
$42.89
Regular price

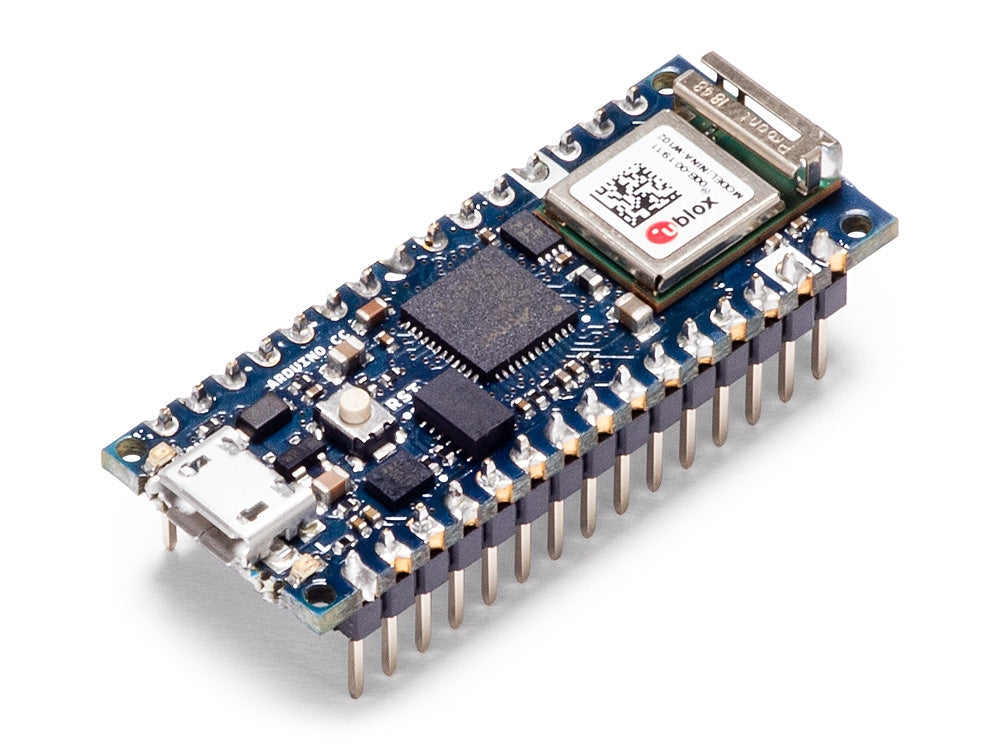

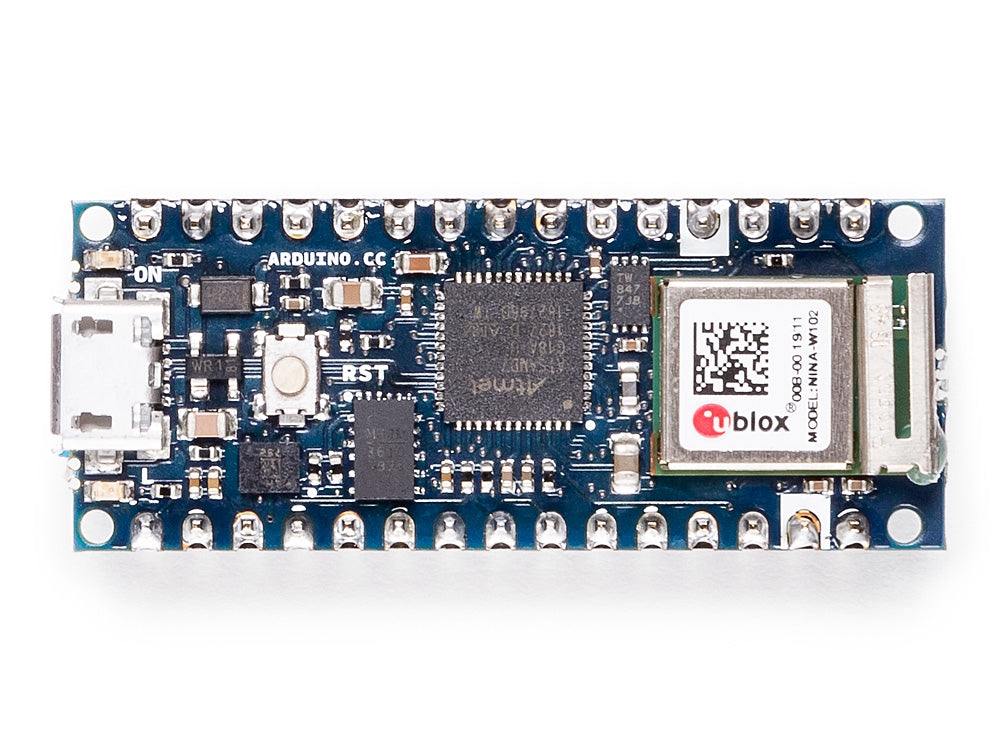

Arduino Nano 33 IoT with headers is a compact development board for connected sensors, Bluetooth Low Energy devices and other IoT prototypes. It combines a 32-bit SAMD21 processor with Wi-Fi, Bluetooth LE, secure communication hardware and motion sensing.
Key Features
- Low-power Arm Cortex-M0 32-bit SAMD21 main processor.
- u-blox NINA-W10 module provides 2.4GHz Wi-Fi and Bluetooth Low Energy.
- Microchip ECC608 crypto chip supports secure communication.
- Built-in six-axis IMU for motion and relative-position projects.
- Can act as a Bluetooth LE client or host.
- Supports Arduino IoT Cloud and the WiFiNINA and ArduinoBLE libraries.
Specifications
- Brand and model: Arduino Nano 33 IoT
- Product code: ABX00032
- Configuration: Headers mounted
- Main processor: SAMD21, Arm Cortex-M0, 32-bit
- Wireless module: u-blox NINA-W10
- Wi-Fi band: 2.4GHz
- Wireless modes: Wi-Fi, Bluetooth and Bluetooth Low Energy
- Security chip: Microchip ECC608
- Motion sensor: Six-axis IMU
Advanced modification of the wireless-module firmware can invalidate its certification; use only supported firmware unless you understand that consequence.
