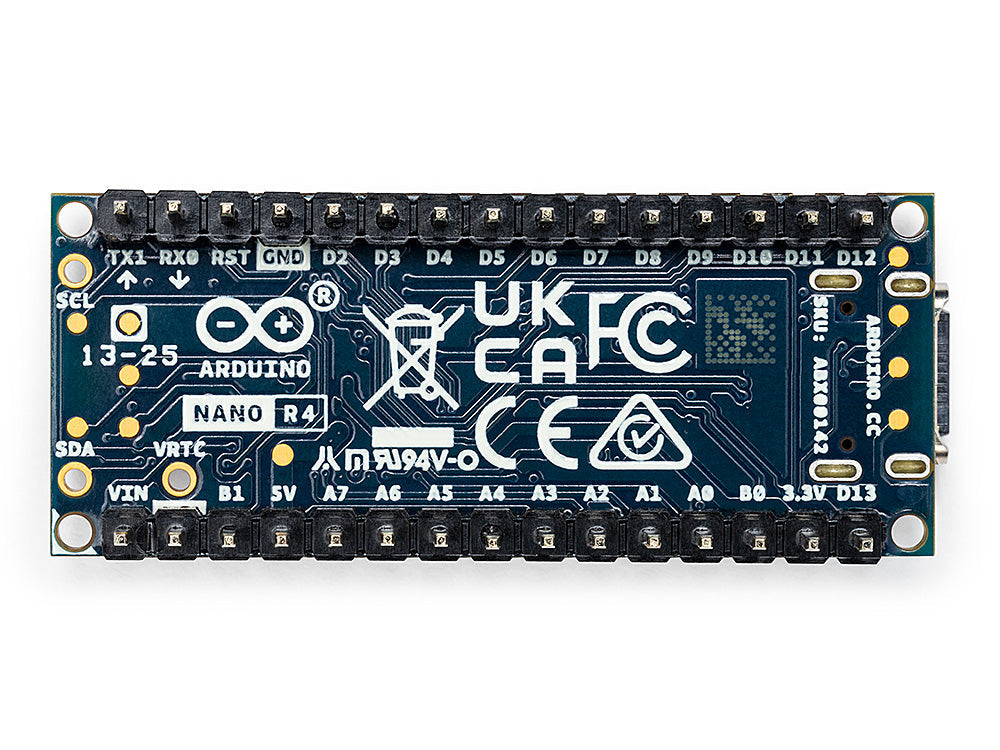

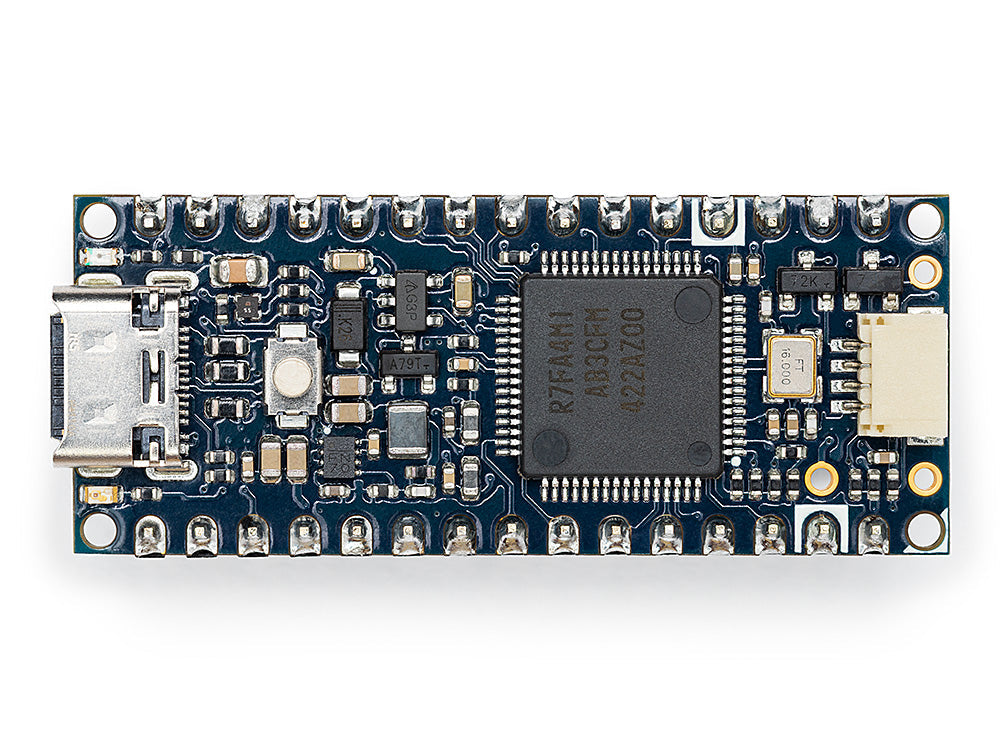

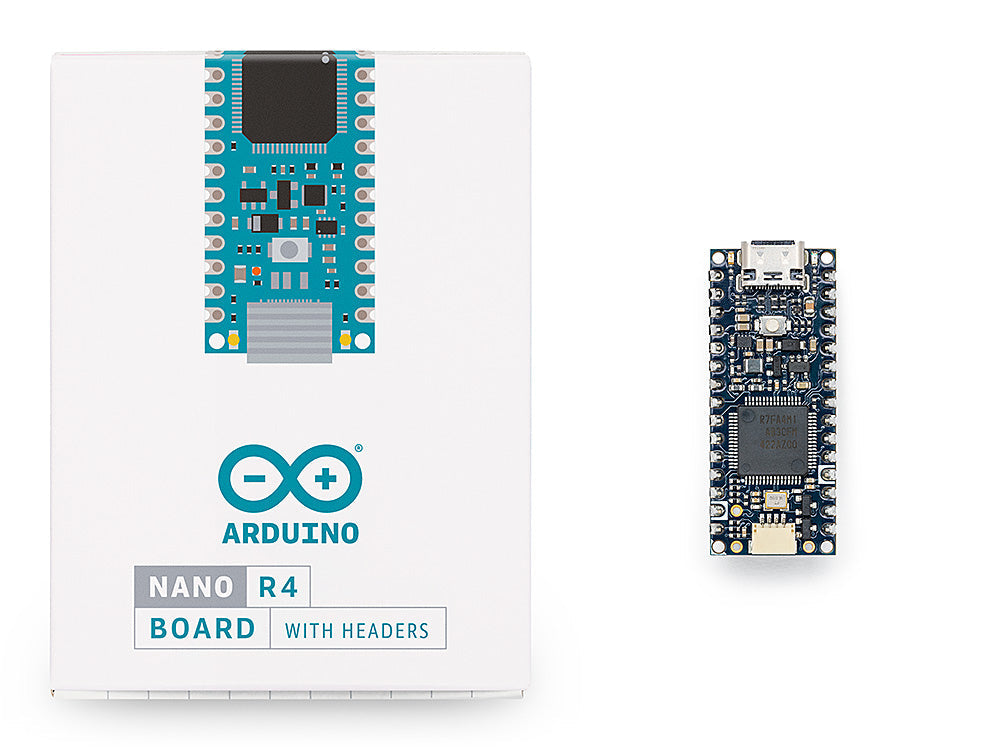

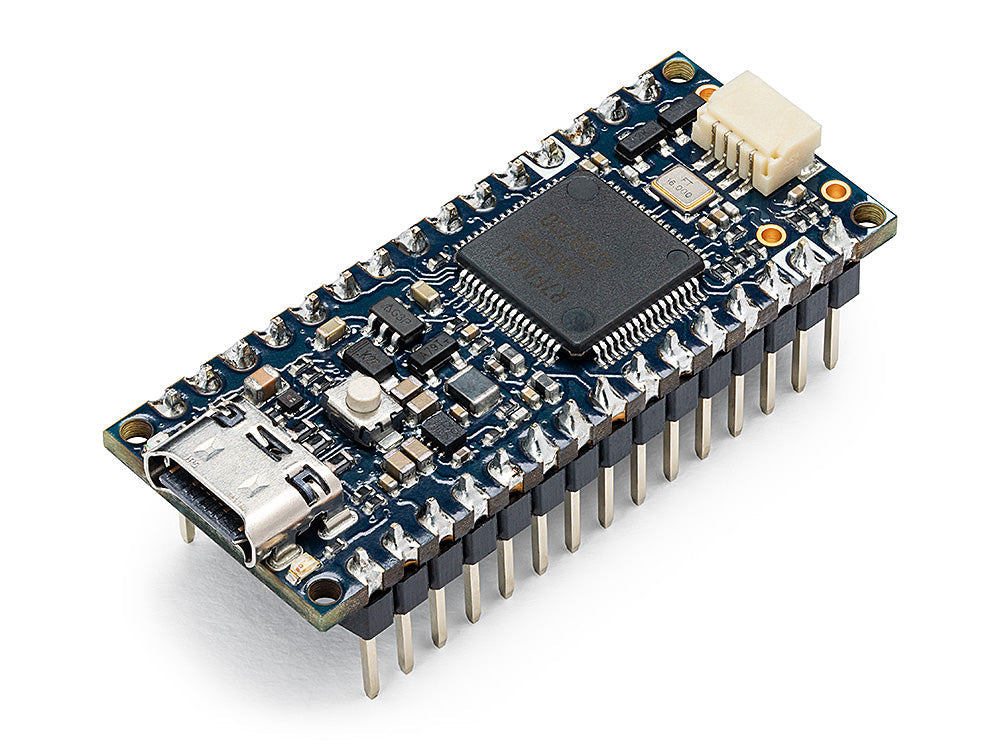

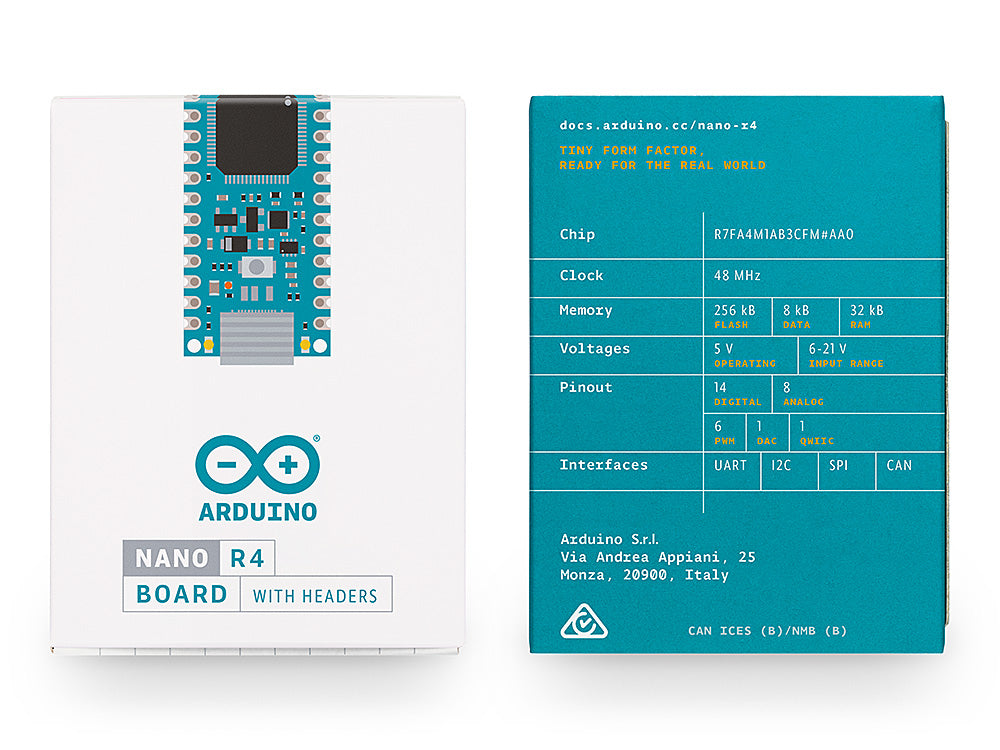

Nano R4 Development Board with Pre-Soldered Headers, Renesas RA4M1, Qwiic and Programmable RGB LED

The Arduino Nano R4 combines the compact Nano form factor with a Renesas RA4M1 microcontroller and pre-soldered headers. It is ready for breadboards and supports a direct path from prototyping to compact embedded products.

Key Features

• Renesas RA4M1 microcontroller from the Arduino UNO R4 family.
• Pre-soldered headers for breadboard prototyping without additional assembly.
• Nano-family pinout and compact 43 × 17mm footprint.
• Onboard Qwiic connector and an additional 5V I2C port for sensors and peripherals.
• Pinout includes CAN, DAC, VRTC and operational-amplifier functions.
• Programmable RGB LED provides visual system feedback.
• Castellated pins and single-sided components support integration into custom hardware.

Specifications

• Brand: Arduino
• Model: Nano R4 with headers
• SKU: ABX00143
• Microcontroller family: Renesas RA4M1
• Dimensions: 4.3 × 1.7cm
• Headers: Pre-soldered
• Expansion: Qwiic and 5V I2C
